TCL Sweeva 6000 User manual

6000/6500

English
Sweeva 6000/6500 User Manual
Deutsch
Sweeva 6000/6500 Benutzerhandbuch
0 1 - 3 0
3 1 - 6 0
Español
Manual del usuario de Sweeva 6000/6500 6 1 - 9 0
Français
Manuel d'utilisation du Sweeva 6000/6500 9 1 - 121
Italiano
Manuale d'uso Sweeva 6000/6500 122 - 152

EN
Sweeva 6000/6500 User Manual
Thank you for purchasing this product.
Please read the user manual carefully before use,
and keep it properly.
0 1

EN
Sweeva 6000/6500
User Manual
Contents
0 4
1. Safety Instructions
Operational instructions
Safety precautions
About child safety
About the battery
Scope of use
Disclaimers
2. Package Information
3. Product Description
Button light interaction
Introduction of main modules
0 8
0 9
4. Installation Instructions 1 3
5. APP Download and
Network Operation (Optional)
1 6
6. Operating Instructions 1 8
2 2
7. Daily Maintenance
Clean the dust box
Clean the rolling brush
Clean the side brush
Clean the universal wheel
Clean the charging electrode
Clean up the dust channel
Replace the dust bag
Clean the sensor
8. Exceptions and Self-check
9. List of Faults
2 5
2 7
1 0. Technical Specifications 2 8
1 1. Environmental
Statement (Optional)
2 9
1 2. Warranty Card 3 0
0 2

EN
Thank you for choosing Sweeva 6000/6500 intelligent robot vacuum.
We hope our product can bring about a better life for you!
If you have any questions about the product during use,
please call our service hotline: [phone].
Please pay attention to the following basic safety precautions before using the product:
Read the user manual carefully and follow the instructions in the user annual when using the product.
Keep the user manual well for future reference.
If you need to transfer the product to a third party, please attach the user manual along with the product.
Any operation not in conformity to the instructions in the user manual may result in serious personal injury or damage to the
product itself.
If the user manual is missing, please contact your local dealer or call the after-sales service department to obtain an electronic
user manual.
Due to the constant improvement of the product, the actual product shall prevail. Our company
reserves the right to update the product.
*
1.
2.
3.
4.
5.
0 3

EN
0 4
Safety Instructions
Scope of use
Safety precautions
Read the user manual carefully and use the product in accordance with the instructions in the manual to avoid damage due to
improper operation.
This product can only be used indoors for the cleaning of wooden floors, ceramic tiles and short-staple carpets.
Do not use the product in high - temperature , humid , flammable , explosive or corrosive environments.
To prevent the product from falling accidentally, do not use this product in a suspended place without a protective fence, which
may result in personal injury.
This product contains a UV-C emitter that cannot be replaced.
Improper use of the machine or damage to t he housing may cause UV-C leakage. Even small doses of UV-C radiation can cause
damage to the eyes and skin.
Before removing the safety protection accessories of t he UV-C lamp, please make sure that the power of the product
is disconnected.
This product can only adopt the adapter, battery and charging dock provided. Failure to do so may result in damage to the
product. The user shall not replace the battery without authorization.
If the main machine and accessories of this product are found to be damaged, please contact our service technicians for
repair. Except for the service technicians designated or authorized by our company, no one may disassemble, repair
or modify this product.
Prevent the suction of water, oil or other liquids, which may damage the sweeper.
Do not use this product to suck in sharp objects (e.g. shattered glass and nails) for fear of damage to the product.
Before use, remove fragile objects, and arrange scattered wires on the floor for fear of affecting the normal operation of the
sweeper.
The charging dock and self-emptying dustbin shall be placed against the wall and on a flat floor. When the product is working,
removal of the charging dock or self-emptying dustbin will affect the normal recharging of the machine.

EN
0 5
Children under the age of 8 are not allowed to use this product. Persons with physical, sensory or intellectual disabilities or lack of
relevant experience/knowledge cannot use the machine unless under supervision, operating instructions or awareness of
the danger.
Children are not allowed to play with the machine or clean/repair the machine unless under supervision.
Children are not allowed to play with the product's packaging bag for fear of suffocation.
Safety precautions
About child safety
Prevent clothing or any part of your body (hair, fingers, etc.) from getting caught in the brush or wheel of the sweeper. Failure to do
so may result in personal injury.
Unplug the product before maintenance. Do not touch the power plug or the product when your hands are wet, as this may
result in electrical shock.
A damaged power cord shall be replaced by the manufacturer, its service department or a similar professional to avoid danger.
Unplug the charging dock if it remains unused for a long time.
Appliances that are obviously damaged must not be operated.
Safety Instructions

EN
0 6
Under any of the following circumstances, the product will be excluded from the scope of free warranty, but paid repair can be
provided:
A. Damage due to the user’s failure to operate the product in strict accordance with our user manual or due to improper storage;
B. The machine or parts have exceeded the free warranty period;
C. Damage due to disassembly by those other than the maintenance personnel of our company or authorized by our company;
D. A valid purchase voucher number cannot be provided;
Safety Instructions
About the battery
Disclaimers
Only the batteries provided by the manufacturer are applicable to the product.
The battery shall be removed when the product is discarded.
Steps to remove the battery:
A. Make sure to disconnect the power of the machine when removing the battery;
B. Use a screwdriver to remove the bottom screws, and then remove the front bumper and middle shell in turn;
C. Take out the motherboard and the battery cover;
D. Unplug the connection line between the battery and the robot vacuum;
E. Remove the battery.
If you need to replace the battery of the robot vacuum, please contact our after-sales service department. Use of wrong batteries
may cause a safety accident.
Do not damage the battery during disassembly for fear of short circuit or battery leakage. If the battery leaks, prevent the contact
of the liquid with the skin or clothing. Immediately wipe it with a dry cloth and send it to the recycling station or
the designated maintenance point. Do not discard it randomly.
Please properly dispose of the old battery of the product. The battery contains hazardous substances harmful to the environment.
Please follow the local environmental regulations and send them to the designated recycling site.
This appliance contains batteries that are only replaceable by skilled persons.

EN
0 7
Disclaimers
Note: Our company provides a warranty for the product in accordance with the “National New Regulations on Warranty”. For details,
please check the warranty card for the product.
Safety Instructions
E. The product model on the warranty card does not match that of the product to be repaired or is altered;
F. Damage caused by irresistible factors such as natural disasters;.
G. Product failure or damage caused by unexpected factors or man-made causes (including operational errors, liquid ingress,
improper plugging/unplugging, scratching, handling, bumping, input of inappropriate voltage, etc.)

0 8
Package Information
EN

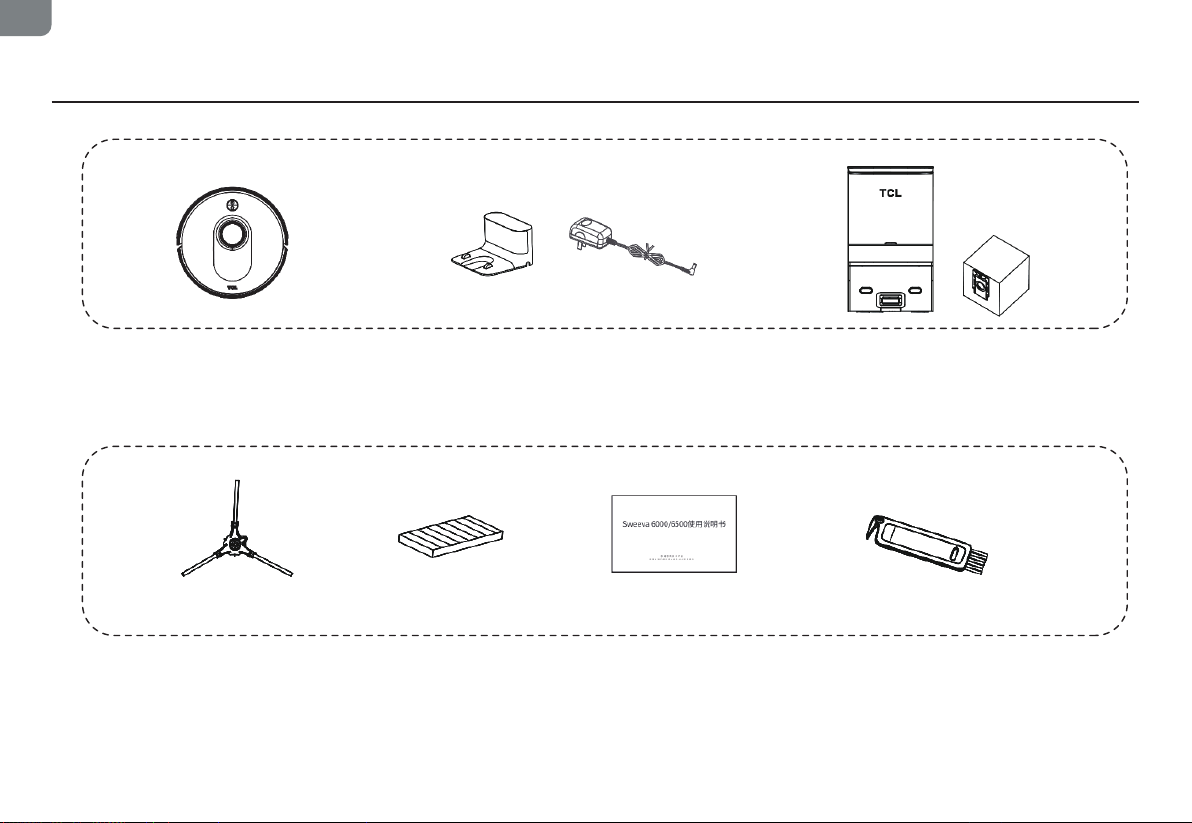

Main machine Self-Emptying Dustbin×1 + dust bag×3
（Sweeva 6500）
Charging dock×1 + Power adapter×1
(Sweeva 6000)
Side brush×2
The number of accessories does not cover the filter and battery of the main machine.
User manual×1 Cleaning brush×1
Filter×1
*

Product Description
EN
Button light interaction
0 9

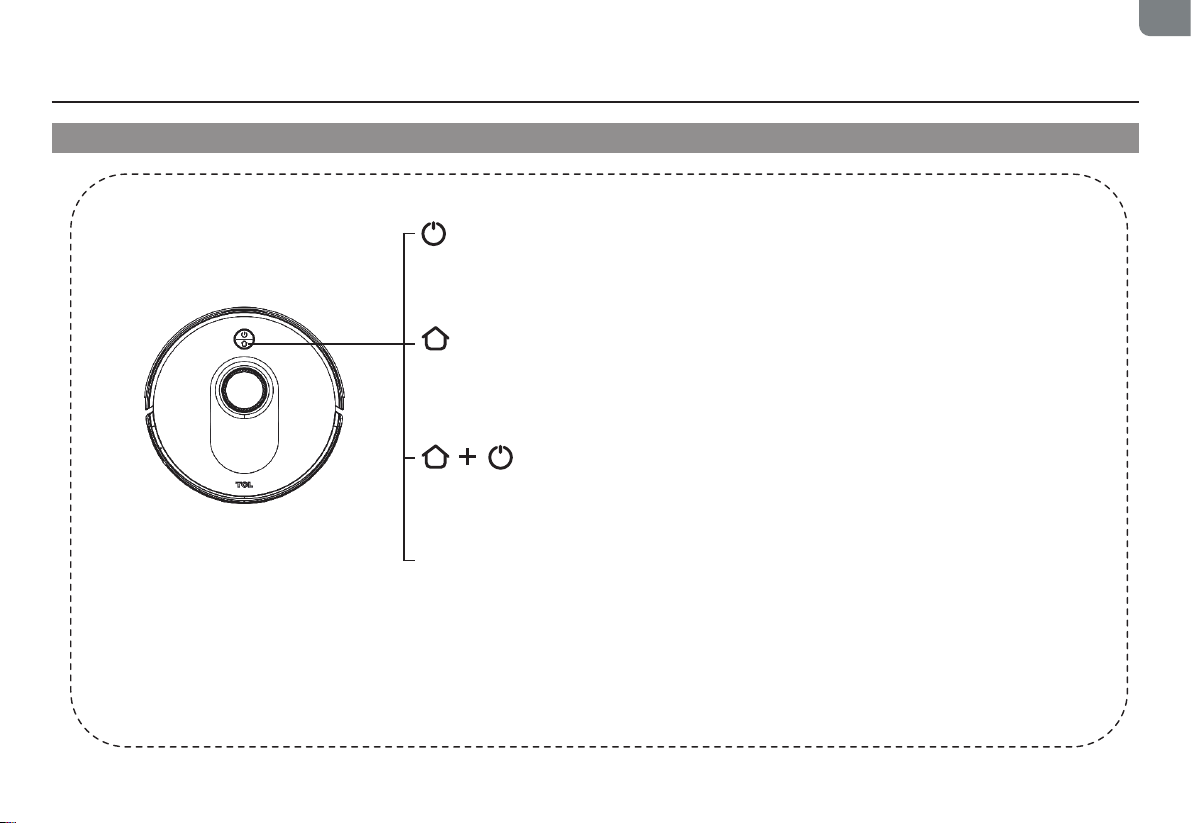

Cleaning/Switch button
• Press and hold for 3 seconds to turn on/off the machine.
• Press once to start cleaning.
Recharging button
• Press once to return for recharging.
• Press and hold for 15 seconds to restore factory settings.
Recharging button + Cleaning/Switch button
• Press and hold the two buttons simultaneously for 3 seconds
to enter the network configuration mode.
Light Status
• Solid blue light: standby/running/return for charging (normal battery level)
• Solid orange light: standby/running (low battery)
• Blue light breathing: return for charging
• Orange light breathing: charging/startup at low battery
• Blue light flashing: connect to Wi-Fi.
• Red light flashing: error or fault
Main machine

1 0
EN
Product Description
Button light interaction
Charging Dock (Sweeva 6000)
Charging dock indicator
Normally on: When the main machine is not connected to the charging dock.
Off: Power off or the main machine and the charging dock are correctly connected.
Self-Emptying Dustbin (Sweeva 6500)
Self-Emptying dustbin indicator
Solid white light: When the main machine is not connected to the self-emptying
dustbin.
White light off: The main machine and the self-emptying dustbin are correctly connected.
Solid red light: The dust bag is not in place.
Red light flashing: Abnormal state.

EN
1 1
Introduction of Main Modules
Product Description

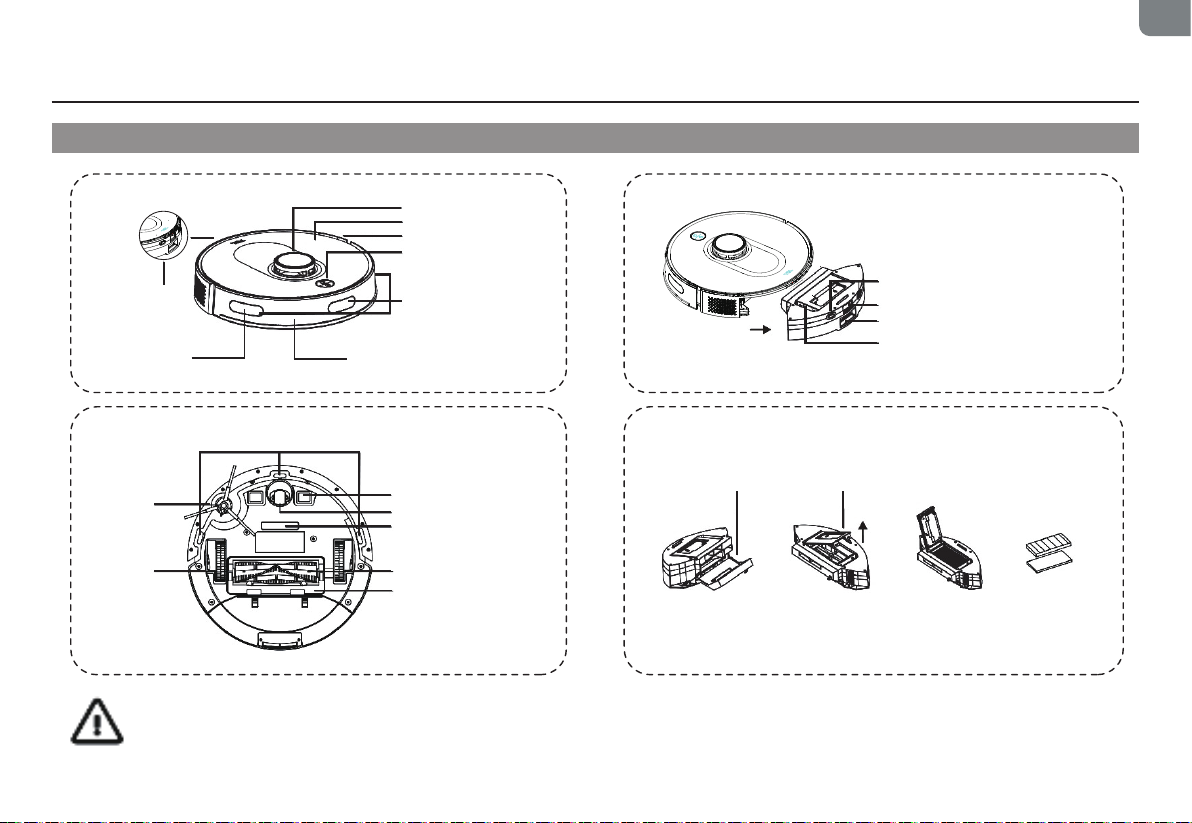

Warning: Take care to avoid direct exposure to human eyes with the UV-C lamp. Improper
use of the machine or damage to the housing may cause UV-C leakage.
Charging pole pieces
Dust box release button
Dust collection port
Filter opening
Anti-drop sensor
Side brush Charging electrode
Caster
UV-C lamp
Rolling brush
Rolling brush
protective cover
Wheel
Recharging
sensor
Along-the-wall
sensor Front bumper
Recharging sensor
Radar
Front cover
Middle shell
Button
Dust box
opening
Filter
opening
Dust box Filter

Top cover
Open the top cover
to put in/take out
the dust bag.
Dust bag
compartment
Fan filter
Dust bag handle
Dust bag
Recharging and
self-emptying
sensor Charging
and self-emptying
sensing
Vacuum button
Vacuum the garbage
in the main machine
into the dust bag
through the vacuum
button.
1 2
EN
Introduction of Main Modules
Product Description

EN
Installation Instructions
① Installation and placement of Sweeva 6000 charging dock
1 3
Connect the charging dock with the power adapter, and be
sure to organize the adapter cable to prevent the robot
vacuum from being entangled during cleaning.
Place the charging dock against and perpendicular to the
wall on a level, hard floor, without obstacles within 1.5m in
front and 0.5m on the left and right.
Install the charging dock in a position where the robot
vacuum can easily reach. It is recommended to place
the charging dock against the wall on a level, hard floor,
not on the carpet.
Always keep the charging dock powered on, otherwise
the robot vacuum will not automatically return.
To ensure normal charging, please do not move the
charging dock frequently. After the location of the robot
vacuum is changed, the robot vacuum may regenerate
a map due to failure to relocate (for details, please refer
to this Manual > Operating I nstructions > Map
Management).
Note:
*
*
*

1 4
② Installation and placement of Sweeva 6500 self-emptying dustbin
Installation Instructions
EN
Place the self-emptying dustbin against and perpendicular
to the wall on a level, hard floor, then insert the power plug
into the socket that meets the requirements and turn on
the power.
③ Remove the protective strip ④ Install the side brush
Before use, remove the protective strips on both sides of the
front bumper.
Side brush installation: align with the holes and press
gently to fix the side brush on the machine.
Place the charging dock against and perpendicular to
the wall on a level, hard floor, without obstacles within
1.5m in front and 0.5m on the left and right.

Installation Instructions
EN
1 5
⑤ Startup and charging
For initial use, press and hold the “ ” button for 3 seconds
to turn on the machine.
The main machine needs to be fully charged (ap-
proximately 4 hours) to ensure normal operation.
Manually place the robot vacuum on the self-emptying
dustbin and aim it at the charging port. When the
white indicator light of the charging dock goes out,
charging will start.
NOTE:
The color of the power indicator indicates the
battery level:
Blue light: ≥15%
Orange light: ＜15%
*
*

1 6
EN
APP Download and Network Operation (Optional)
Search for “TCL Home” in the mobile app store to download
the APP.
① Download
Press and hold the button and the button simulta-
neously until a voice prompt is heard, then the indicator
light flashes slowly in blue, and the machine enters the
pairing state.
Open the APP, create a new account, and follow the operation
instructions in the App.
② Reset the network
③ Add a device
Before setting the Wi-Fi, please make sure that the main
machine and Wi-Fi network meet the following requirements.
A. Main machine:
The battery level of the main machine is greater than 20%
or the main machine is placed on the charging dock.
B. Wi-Fi network:
Use the correct wireless network password.
Do not use a VPN (Virtual Private Network) or proxy server.
The Wi-Fi router supports 802.11b/g/n and IPv4 protocols.
The router frequency band is 2.4GHz or a dual-band router
that supports the 2.4GHz frequency band is used. The main
machine does not support the 5GHz frequency band.
If the main machine cannot be connected in the 2.4/5GHz
dual-band Wi-Fi network, please switch to the 2.4 GHz
network for Wi-Fi settings. After the setting is completed,
you can switch back.
When connecting to a hidden network, please make sure to
enter the correct network name - SSID (case sensitive) and
connect to a 2.4GHz wireless network.
When using a wireless extender/repeater, please make
sure that the network name (SSID) and password are the
same as that of the main network.
Set the firewall and port of the Wi-Fi router to allow the
main machine to connect to the APP server.
Network security requirements:
Use a WPA or WPA2 network encrypted with TKIP, PSK,
AES/CCMP.
Indicator light:
Blue light flashing slowly: wait for connection
Blue light flashing quickly: Wi-Fi connection
in progress
Blue light normally on: Wi-Fi connected
③ Add a device
