TDK NX-4CD User manual
&
TDK
Life
оп
Record
SLIMLINE
2.1
CH.
CD/MP3
HI-FI
SYSTEM
NX-4CD
(CD
+
МРЗ
+
USB
+
SD/MMC)
Instruction
Manual
To
achieve
the
utmost
in
enjoyment
апа
performance,
please
read
this
manual
carefully
before
attempting
to
operate
the
unit
in
order
to
became
familiar
with
its
features,
and
assure
you
years
of
faithful,
trouble
free
performance
and
listening
pleasure.

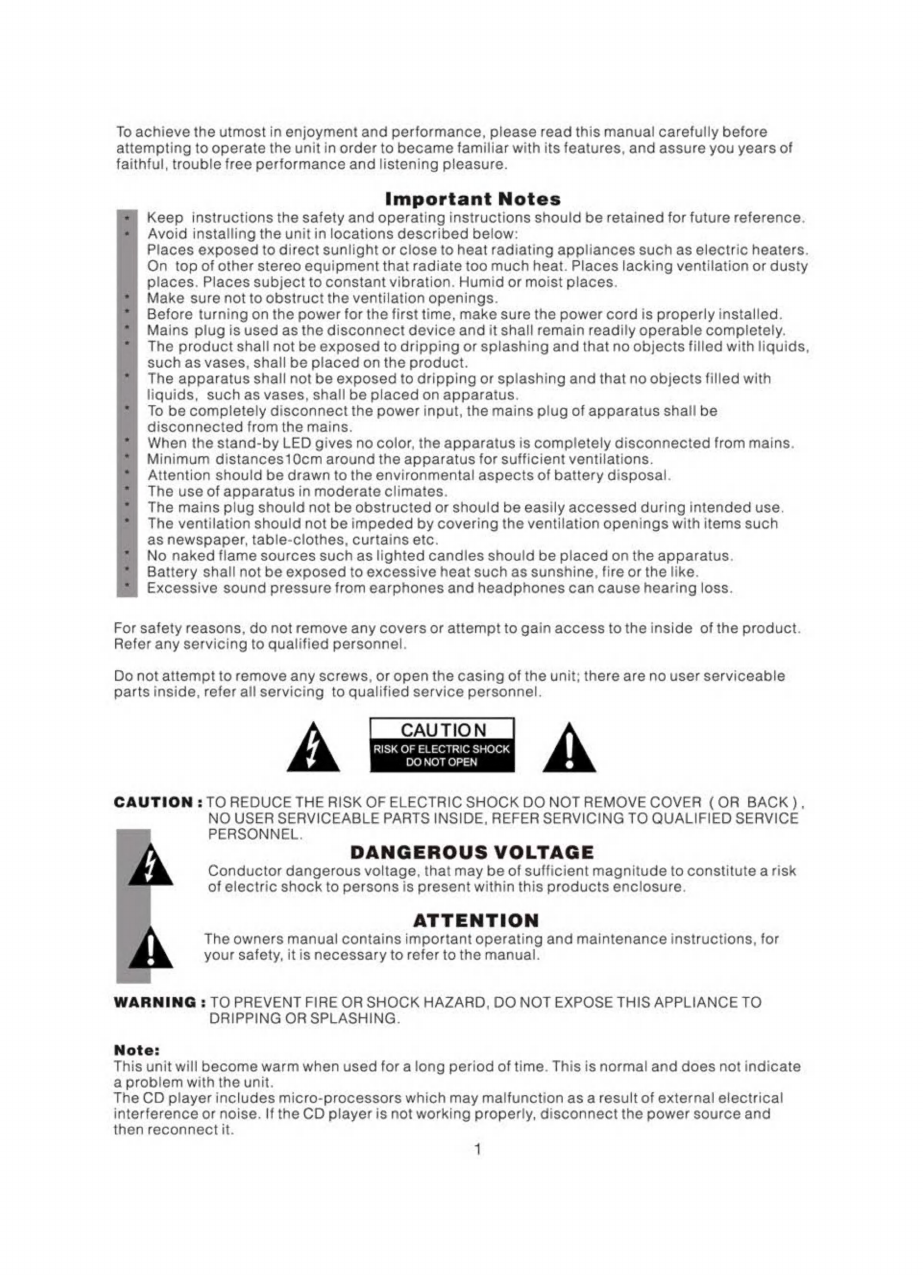

Important
Notes
Keep
instructions
the
safety
and
operating
instructions
should
be
retained
for
future
reference.
Avoid
installing
the
unit
in
locations
described
below:
Places
exposed
to
direct
sunlight
or
close
to
heat
radiating
appliances
such
as
electric
heaters.
On
top
of
other
stereo
equipment
that
radiate
too
much
heat.
Places
lacking
ventilation
or
dusty
places.
Places
subject
to
constant
vibration.
Humid
or
moist
places.
Make
sure
not
to
obstruct
the
ventilation
openings.
Before
turning
on
the
power
for
the
first
time,
make
sure
the
power
cord
is
properly
installed.
Mains
plug
is
used
as
the
disconnect
device
and
it
shall
remain
readily
operable
completely.
The
product
shall
not
be
exposed
to
dripping
or
splashing
and
that
no
objects
filled
with
liquids,
such
as
vases,
shall
be
placed
on
the
product.
The
apparatus
shall
not
be
exposed
to
dripping
or
splashing
and
that
no
objects
filled
with
liquids,
such
as
vases,
shall
be
placed
on
apparatus.
To
be
completely
disconnect
the
power
input,
the
mains
plug
of
apparatus
shall
be
disconnected
from
the
mains.
When
the
stand-by
LED
gives
no
color,
the
apparatus
is
completely
disconnected
from
mains.
Minimum
distances
10cm
around
the
apparatus
for
sufficient
ventilations.
Attention
should
be
drawn
to
the
environmental
aspects
of
battery
disposal.
The
use
of
apparatus
in
moderate
climates.
The
mains
plug
should
not
be
obstructed
or
should
be
easily
accessed
during
intended
use.
The
ventilation
should
not
be
impeded
by
covering
the
ventilation
openings
with
items
such
as
newspaper,
table-clothes,
curtains
etc.
No
naked
flame
sources
such
as
lighted
candles
should
be
placed
on
the
apparatus.
Battery
shall
not
be
exposed
to
excessive
heat
such
as
sunshine,
fire
or
the
like.
Excessive
sound
pressure
from
earphones
and
headphones
can
cause
hearing
loss.
For
safety
reasons,
do
not
remove
any
covers
or
attempt
to
gain
access
to
the
inside
of
the
product.
Refer
any
servicing
to
qualified
personnel.
Do
not
attempt
to
remove
any
screws,
or
open
the
casing
of
the
unit;
there
are
no
user
serviceable
parts
inside,
refer
all
servicing
to
qualified
service
personnel.
й
CAUTION
RISK
OF
ELECTRIC
SHOCK
DO
NOT
OPEN
CAUTION
:
TO
REDUCE
THE
RISK
OF
ELECTRIC
SHOCK
DO
NOT
REMOVE
COVER
(OR
BACK),
NO
USER
SERVICEABLE
PARTS
INSIDE,
REFER
SERVICING
TO
QUALIFIED
SERVICE
PERSONNEL.
DANGEROUS
VOLTAGE
Conductor
dangerous
voltage,
that
may
be
of
sufficient
magnitude
to
constitute
a
risk
of
electric
shock
to
persons
is
present
within
this
products
enclosure.
ATTENTION
The
owners
manual
contains
important
operating
and
maintenance
instructions,
for
your
safety,
itis
necessary
to
refer
to
the
manual.
WARNING
:
TO
PREVENT
FIRE
OR
SHOCK
HAZARD,
DO
NOT
EXPOSE
THIS
APPLIANCE
TO
DRIPPING
OR
SPLASHING.
Note:
This
unit
will
become
warm
when
used
for
a
long
period
of
time.
This
is
normal
and
does
not
indicate
a
problem
with
the
unit.
The
CD
player
includes
micro-processors
which
may
malfunction
as
a
result
of
external
electrical
interference
or
noise.
If
the
CD
player
is
not
working
properly,
disconnect
the
power
source
and
then
reconnect
it.

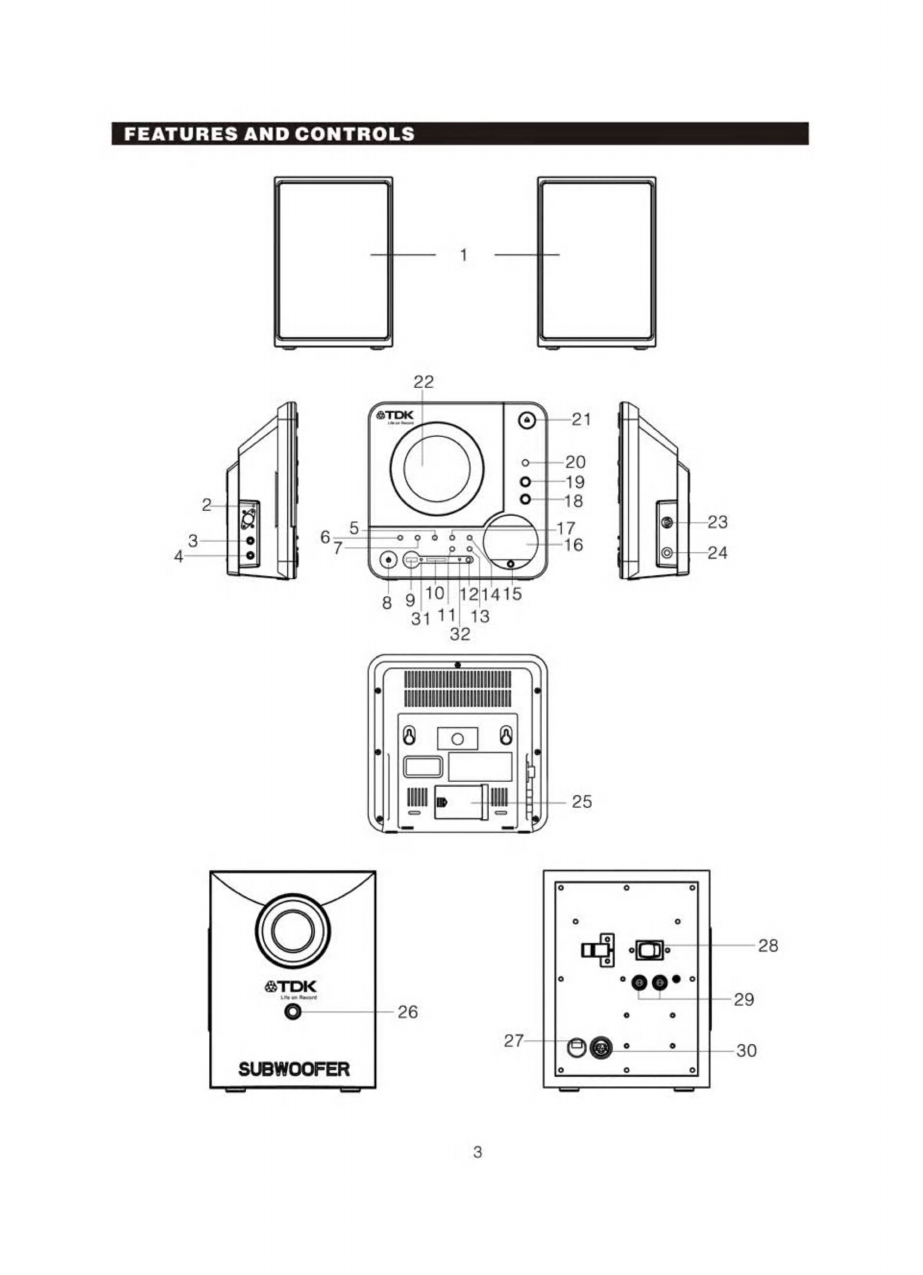

1
ASSEMBLY
DRAWING
OF
UNIT
AND
SPEAKER
@
Speaker
connection
LCD
DISPLAY
WINDOW
С
інге
MEMORY
ПЕРЕТА
МАМА
ALBUN
|
А.
FIND
INDICATOR
E.
ESPINDICATOR
B.
TIMER
INDICATOR
Е
VOLUME
HIGH/LOW
INDICATOR
C.
ALBUM
NUMBER
INDICATOR
G.
TRACK/NUMBER/TIME
INDICATOR
D.
STEREO
INDICATOR

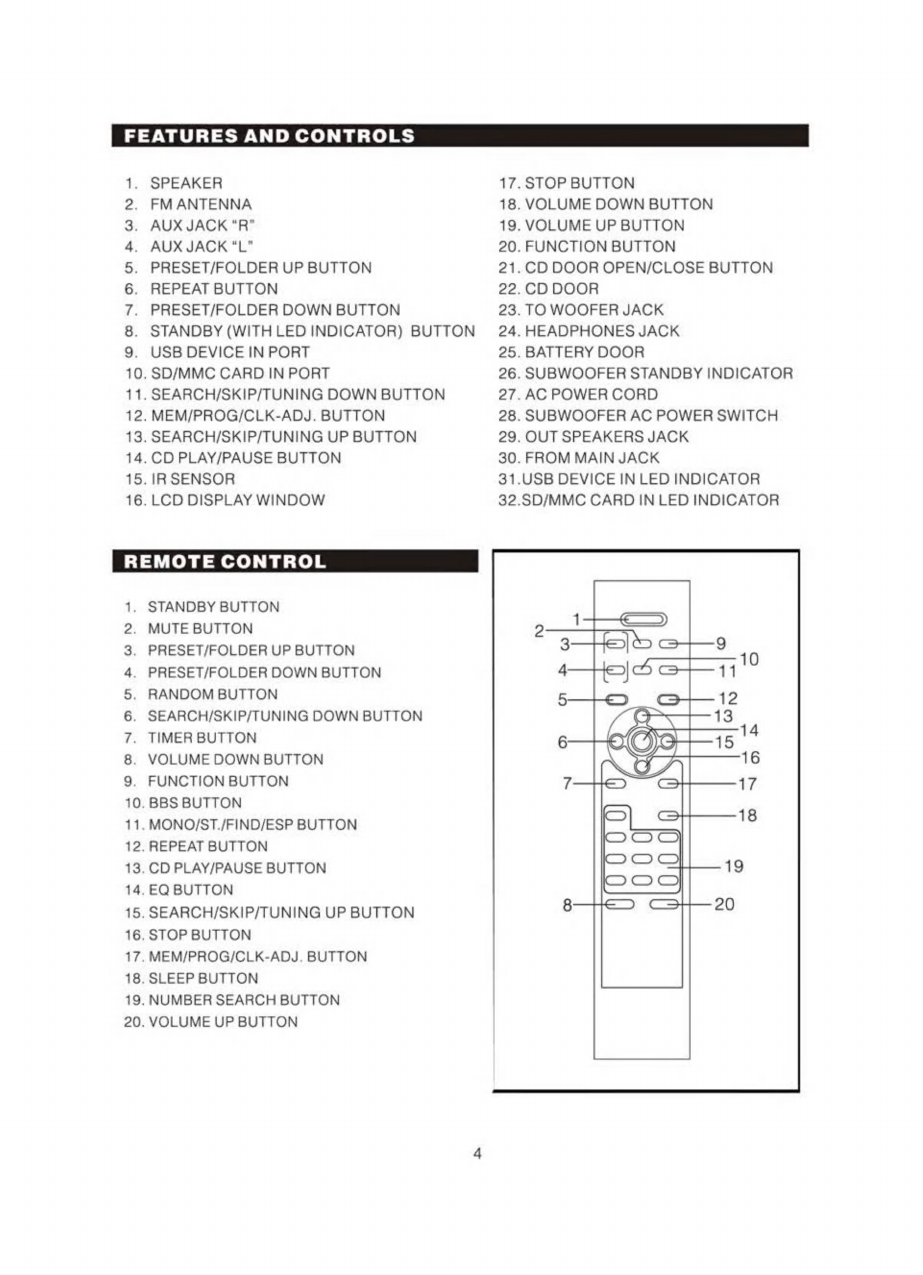

FEATURES
AND
CONTROLS
|
>
|
>)\
9
10
121415
31
"us
6
[o]
8
C
|
|
жи
с»
»
FEATURES
AND
CONTROLS
Se
Пе
г
=h
-.
-.
ы
әл
ДА
А
(О
о
от
Ь
боз
о
о
REMOTE
CONTROL
SFP
"="
"не:
10.
‚
MONO/ST./FIND/ESP
BUTTON
12.
13.
14.
15.
‚
STOP
BUTTON
17.
18.
19.
20.
SPEAKER
17.
STOP
BUTTON
FM
ANTENNA
18.
VOLUME
DOWN
BUTTON
AUX
JACK
"R"
19.
VOLUME
UP
BUTTON
AUX
JACK
“Г”
20.
FUNCTION
BUTTON
PRESET/FOLDER
UP
BUTTON
21.
CD
DOOR
OPEN/CLOSE
BUTTON
REPEAT
BUTTON
22.
CD
DOOR
PRESET/FOLDER
DOWN
BUTTON
23.
TO
WOOFER
JACK
STANDBY
(WITH
LED
INDICATOR)
BUTTON
24.
HEADPHONES
JACK
USB
DEVICE
IN
PORT
25.
BATTERY
DOOR
‚
SD/MMC
CARD
IN
PORT
26.
SUBWOOFER
STANDBY
INDICATOR
.
SEARCH/SKIP/TUNING
DOWN
BUTTON
27.
AC
POWER
CORD
.
MEM/PROG/CLK-ADJ.
BUTTON
28.
SUBWOOFER
AC
POWER
SWITCH
‚
SEARCH/SKIP/TUNING
UP
BUTTON
29.
OUT
SPEAKERS
JACK
.
CD
PLAY/PAUSE
BUTTON
30.
FROM
MAIN
JACK
.
IR
SENSOR
31.USB
DEVICE
IN
LED
INDICATOR
‚
LCD
DISPLAY
WINDOW
32.50/ММС
CARD
IN
LED
INDICATOR
STANDBY
BUTTON
MUTE
BUTTON
PRESET/FOLDER
UP
BUTTON
PRESET/FOLDER
DOWN
BUTTON
RANDOM
BUTTON
SEARCH/SKIP/TUNING
DOWN
BUTTON
TIMER
BUTTON
VOLUME
DOWN
BUTTON
FUNCTION
BUTTON
BBS
BUTTON
REPEAT
BUTTON
CD
PLAY/PAUSE
BUTTON
EQ
BUTTON
SEARCH/SKIP/TUNING
UP
BUTTON
MEM/PROG/CLK-ADJ.
BUTTON
SLEEP
BUTTON
NUMBER
SEARCH
BUTTON
VOLUME
UP
BUTTON

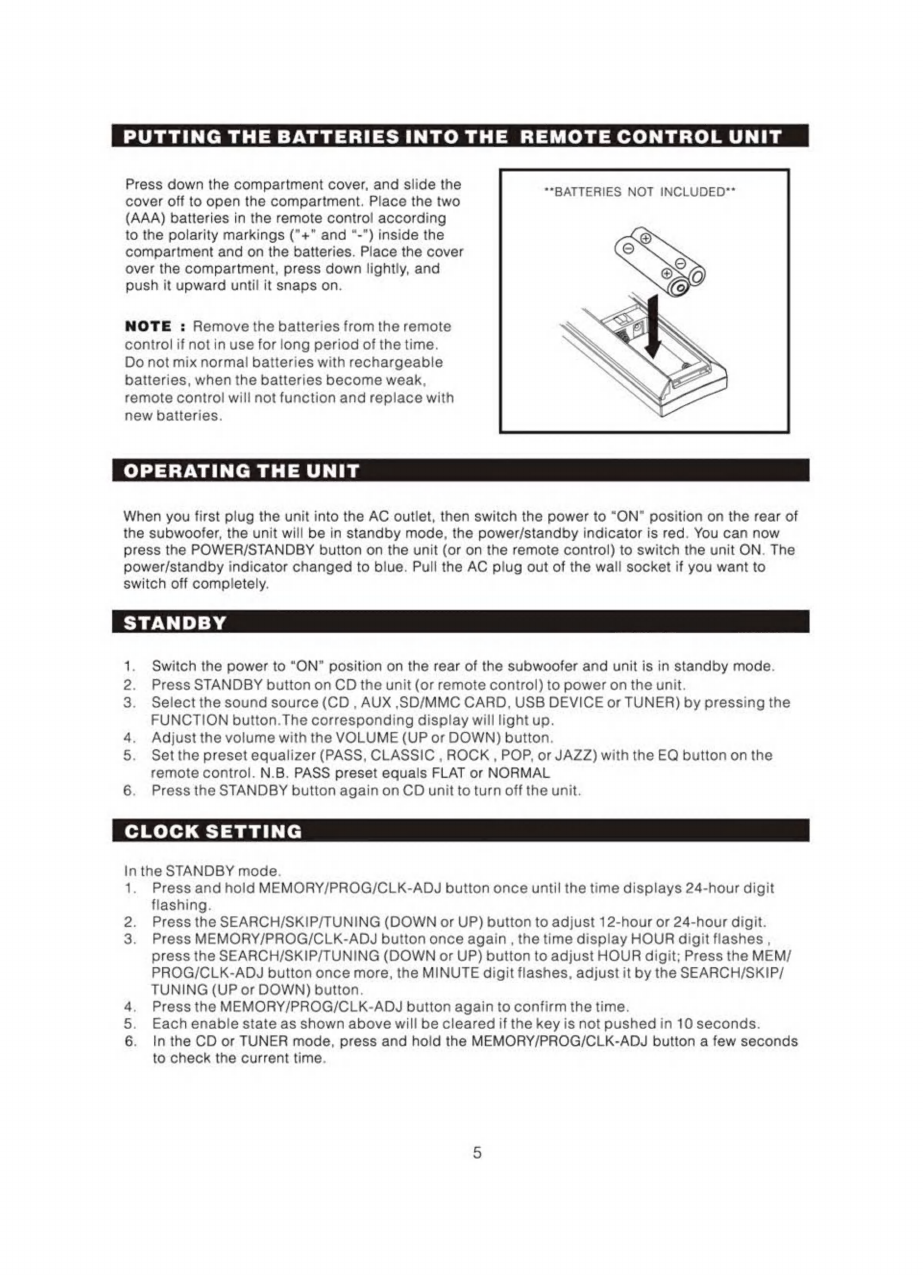

PUTTING
THE
BATTERIES
INTO
THE
REMOTE
CONTROL
UNIT
Press
down
the
compartment
cover,
and
slide
the
cover
off
to
open
the
compartment.
Place
the
two
(AAA)
batteries
in
the
remote
control
according
to
the
polarity
markings
("+"
and
"-")
inside
the
compartment
and
on
the
batteries.
Place
the
cover
over
the
compartment,
press
down
lightly,
and
push
it
upward
until
it
snaps
on.
"BATTERIES
NOT
INCLUDED**
NOTE
:
Remove
the
batteries
from
the
remote
control
if
not
in
use
for
long
period
of
the
time.
Do
not
mix
normal
batteries
with
rechargeable
batteries,
when
the
batteries
become
weak,
remote
control
will
not
function
and
replace
with
new
batteries.
OPERATING
THE
UNIT
When
you
first
plug
the
unit
into
the
AC
outlet,
then
switch
the
power
to
"ON"
position
on
the
rear
of
the
subwoofer,
the
unit
will
be
in
standby
mode,
the
power/standby
indicator
is
red.
You
can
now
press
the
POWER/STANDBY
button
on
the
unit
(or
on
the
remote
control)
to
switch
the
unit
ON.
The
power/standby
indicator
changed
to
blue.
Pull
the
AC
plug
out
of
the
wall
socket
if
you
want
to
switch
off
completely.
STANDBY
1.
Switch
the
power
to
"ОМ"
position
on
the
rear
of
the
subwoofer
and
unit
is
in
standby
mode.
2.
Press
STANDBY
button
on
CD
the
unit
(or
remote
control)
to
power
on
the
unit.
3.
Select
the
sound
source
(CD
,
AUX
,SD/MMC
CARD,
USB
DEVICE
or
TUNER)
by
pressing
the
FUNCTION
button.The
corresponding
display
will
light
up.
4.
Adjust
the
volume
with
the
VOLUME
(UP
or
DOWN)
button.
5.
Setthe
preset
equalizer
(PASS,
CLASSIC
,
ROCK
,
POP,
or
JAZZ)
with
the
EQ
button
on
the
remote
control.
N.B.
PASS
preset
equals
FLAT
or
NORMAL
6.
Press
the
STANDBY
button
again
on
CD
unit
to
turn
off
the
unit.
Inthe
STANDBY
mode.
1.
Press
and
hold
MEMORY/PROG/CLK-ADJ
button
once
until
the
time
displays
24-hour
digit
flashing.
2.
Pressthe
SEARCH/SKIP/TUNING
(DOWN
or
UP)
button
to
adjust
12-hour
or
24-hour
digit.
3.
Press
MEMORY/PROG/CLK-ADJ
button
once
again
,
the
time
display
HOUR
digit
flashes
,
press
the
SEARCH/SKIP/TUNING
(DOWN
or
UP)
button
to
adjust
HOUR
digit;
Press
the
MEM/
PROG/CLK-ADJ
button
once
more,
the
MINUTE
digit
flashes,
adjust
it
by
the
SEARCH/SKIP/
TUNING
(UP
or
DOWN)
button.
4.
Press
the
MEMORY/PROG/CLK-ADJ
button
again
to
confirm
the
time.
5.
Eachenable
state
as
shown
above
will
be
cleared
if
the
key
is
not
pushed
in
10
seconds.
6.
Inthe
CD
or
TUNER
mode,
press
and
hold
the
MEMORY/PROG/CLK-ADJ
button
a
few
seconds
to
check
the
current
time.
TIMER
ЅЕТТІМС
(оп
the
remote
control)
1.
After
adjusting
clock,
press
the
TIMER
button
for
a
few
seconds,
"
e
ОМ"
and
"00:00"
appears
on
the
display
and
the
HOUR
digit
flashes.(F
1)
2.
Pressthe
SEARCH/SKIP/TUNING
(UP
or
DOWN)
button
to
adjust
it.
3.
Pressthe
TIMER
button
again,
the
MINUTE
digit
will
start
flashing,
adjust
it
by
pressing
the
SEARCH/SKIP/TUNING
(UP
or
DOWN)
button.
4.
Pressthe
TIMER
button
once
more
to
confirm
and
order
TIMER
ON
time.
5.
After
adjusting
"ТІМЕН
ОМ",
"Є
OFF"
appears
on
the
display
and
the
HOUR
digit
flashes.(F2)
6.
Repeatthe
above
steps
2
to
3,
then
press
the
TIMER
button
once more
to
confirm
and
order
TIMER
OFF
time.
7.
Nowthe
"ТОМЕН"
or
"СО"
appears
on
the
display
with
flashing
,
adjust
"ТОМЕН"
or
"CD"
by
pressing
the
SEARCH/SKIP/TUNING
(UP
or
DOWN)
button.
8.
Pressthe
TIMER
button
again,
the
timer
'VOL
15"
indicator
appears
on
the
display
and
flashes,
adjust
the
timer
volume
high
or
low
by
the
SEARCH/SKIP/TUNING
(UP
or
DOWN)
button.
9.
Eachenable
state
as
shown
above
will
be
cleared
if
the
button
is
not
pushed
in
10
seconds.
10.
After
adjusting
"ТІМЕН
ON"
and
"ТІМЕН
OFF"
,press
the
TIMER
button,
*
e
"
appears
on
the
display.
11.
The
unit
will
be
switched
on
automatically
at
"TIMER
ОМ”
order
and
start
playing
8
the
unit
will
be
switched
off
automatically
at
"ТІМЕН
OFF"
order.
Note:
The
"ТІМЕН"
function
is
not
available
in
“SD/MMC
САКО"
or
“USB
DEVICE"
mode.
F1
F2
~
«~
+.
INT
EQ
CONTROL
(оп
the
remote
control)
Press
EQ
to
show
the
present
sound
tone.
When
you
continue
to
press
the
EQ
button
on
the
remote
control,
the
sound
tone
changes
as
below:
pres.
CLASSIC
КОСК-РОР-ЈА2
2
7]
TO
SET
SLEEP
FUNCTION
(for
remote
control)
1.
If
you
want
to
fall
asleep
to
music,
press
the
SLEEP
button
once
оп
the
remote
control.
2.
You
may
adjust
the
Radio
or
CD
player's
sleep
function
to
play
from
90,
80,
70
up
1010
minutes
of
music
before
shutting
itself
off
automatically.
Ге
толоно
о
ain
>
20
uw]
NORMAL
Press
function
button
to
switch
input
modes.
CD
=»
AUX
=>
ol
TUNER
RADIO
OPERATION
1.
Press
the
FUNCTION
button
to
select
the
TUNER
mode
on
the
unit
(or
remote
control).
2.
Select
the
desired
frequency
with
the
SEARCH/SKIP/TUNING
(UP
or
DOWN)
button
continuously
until
you
read
the
correct
frequency
or
the
reception
is
at
its
best.
MONO/
STEREO
SELECT
This
unit
can
receive
the
FM
mode
only.
1.
When
you
want
to
select
FM
stereo
station,
press
the
MONO/ST./FIND/ESP
button
once
on
the
remote
control
only.
When
you
receive
a
FM
stereo
station
the
"€stD
"
indicator
will
appear
on
the
display,
you
can
receive
FM
stereo
transmission
.
2.
When
you
press
the
MONO/ST./FIND/ESP
button
once
again
,
the
FM
STEREO
indicator
will
turn
off
&
switch
to
MONO
FM
status.
Automatic
tuning
1.
Pressthe
SEARCH/SKIP/TUNING
(UP
or
DOWN)
button
for
a
few
seconds,
then
release
the
button.
The
tuner
will
automatically
search
the
first
station
of
sufficient
signal
strength.
2.
Repeatabove
procedure
if
you
wish
to
select
another
station.
Programming
preset
stations
You
can
also
preset
stations
of
your
choice
and
store
up
30
FM
stations
in
its
memory.
To
store
your
selected
broadcasting
stations:
Tune
to
the
required
station.
Press
the
MEMORY/CLK-ADJ
button.
Press
the
PRESET/FOLDER(UPorDOWN)
button
for
your
desired
station
number.
Press
the
MEMORY/CLK-ADJ
again
to
confirm
your
selection.
To
program
more
stations
into
memory,
repeat
the
above
steps
2
to
5.
To
change
the
stored
preset
stations,
repeat
the
above
steps
2
to
5.
олом
Моїез:
1.
Storing
a
new
station
into
a
preset
location
will
erase
the
previously
stored
station
in
that
location.
2.
Power
off/failure
or
power
cord
disconnection
will
clear
the
memory
of
all
preset
stations.
Perform
the
stations
presetting
procedures
again
to
store
the
stations.
Selecting
the
Preset
Stations
1.
Press
PRESET/FOLDER(UP
or
DOWN)
button
to
select
the
desired
preset
station
number.
2.
Thenumeric
location
of
that
preset
station
is
displayed
along
with
the
corresponding
frequency.
FM
Antenna
Make
sure
the
FM
lead
wire
antenna
is
unwound
and
extended
to
its
full
length.
It
may
be
necessary
to
vary
the
direction
of
this
wire
antenna
until
you
find
the
position
that
provides
the
best
reception
for
your
favorite
FM
stations.
CD/MP3
OPERATION
Listening
To
Compact
Disc
(CD/MP3)
1.
Pressthe
FUNCTION
button
on
the
unit
to
select
the
CD
mode.
2.
Ifyou
wantto
enjoy
CD/MP3,
press
the
CD
DOOR
OPEN/CLOSE
button
on
the
unit
first,
then
the
CD
door
will
open
automatically.(F3)
З.
Insert
the
CD/MP3
disc
into
the
CD
compartment,
press
the
CD
DOOR
OPEN/CLOSE
button
again,
then
the
CD
door
will
close
automatically.
NOTE:
(1)
This
unit
can
play
CD,
CD-R,
CD-RW
and
МРЗ
discs.
(2)
Ії
по
disc
or
can't
read
the
disc
inserted,
NO
DISC
will
be
displayed.
(F4)
F3
F4
/
~
„
посм
кіп
ТІТСГ!
ОРЕМ
INL).
UL
OL
KS
um
mm
)
(Monna
)
Playing
The
Entire
СО/МРЗ
1.
Playback
will
start
by
pressing
the
PLAY/PAUSE
.
Playback
starts
with
the
first
track.
The
display
shows
the
current
track
number
and
its
elapsed
time.(F5)
2.
Tointerrupt
playback
,
press
the
PLAY/PAUSE
button
once.
The
time
elapsed
indicator
will
flash.(F6)
3.
Toresume
playback,
press
the
PLAY/PAUSE
button
once
again.
4.
То
з!ор
playback,
press
the
STOP
button.
F5 r6
Ld
“
Ld
сл
пі
f"
ма
І
("7.1
га
43
ші
wv
ru
i
ога
ме
0179
~
на
а
и
0179
ик
на
а
=
~
—
CARD-USB
OPERATION
During
in
the
STANDBY
mode
1.Insert
the
SD/MMC
memory
card
or
USB
devices,
and
then
press
the
STANDBY
button
on
the
unit
(or
remote
control)
to
power"ON"the
unit.
2.Press
the
FUNCTION
button
on
the
unit
(or
remote
control)
to
select
the
CARD-USB
mode.
The
SD/
MMC
CARD
IN
LED
or
USB
DEVICE
IN
LED
will
be
indicated
on
the
front
panel
of
the
unit.
The
unit
will
automatically
read
the
total
number
of
the
folders
and
tracks
at
the
same
time.(F7)
3.If
the
SD/MMC
CARD
and
USB
DEVICE
more
than
one
folder.
a.Press
the
PRESET/FOLDER
(UP
or
DOWN)
button
to
select
each
folder.
b.
Press
the
SEARCH/SKIP/TUNING
(Up
or
Down)
button
to
select
current
track
in
desired
folder.
4.|f
you
press
the
MONO/ST./FIND/ESP
button
once
on
the
remote
control
only.
a.
To
search
each
folder
name,
press
the
SEARCH/SKIP/TUNING
(UP
or
DOWN)
button
once.
The
display
will
show
“
P
ALBUM"
and
"FOLDER
МАМЕ”
(F8)
b.To
search
current
track
name
by
pressing
and
holding
the
SEARCH/SKIP/TUNING(UP
or
DOWN)
button
a
few
seconds
and
then
release
it.
The
display
will
shows
">"
and
"TRACK
МАМЕ".
(F9)
NOTE:
1.
The
unit
can
only
play
MP3
files
in
this
mode.
2.
The
capacity
of
SD/MMC
card
is
unlimited.
It
can't
support
some
brands
of
flash
disk,
USB
harddisk
and
iPod
players.
3.
It
can
support
USB
version
1.1
and
2.0.
F7
ЕВ F9
^
oo.
|»
г!
=
jj
=
^
шч
=
ли
А
ha
T
Й
й
ТОР
YD
М-МТЕМ1
VOL
rrr
1а
|
уо
а
а
mm
|
Lum
ај
и
The
Entire
CARD
Playback
will
start
by
pressing
the
PLAY/PAUSE
.
Playback
starts
with
the
first
track.
The
display
shows
the
current
track
number
and
its
elapsed
time.(F10)
To
interrupt
playback
,
press
the
PLAY/PAUSE
button.
The
time
elapsed
indicator
will
flash.(F11)
To
resume
playback,
press
the
PLAY/PAUSE
again.
To
stop
playback,
press
the
STOP
button.
>
о
№
F10
01
ГАГА
|
AATA
І
кир
го
wer
1
VOL
„т
ва
=
NOTE:
In
any
time,
the
SD/MMC
CARD
and
USB
DEVICE
must
be
fixed
securely
in
the
slot.
LISTEN
ТО
THE
DESIRED
TRACK
-CD
1.
Press
the
SEARCH/SKIP/TUNING
(UP
or
DOWN)
button
once
on
the
unit
(or
remote
control)
until
the
required
track
number
appears
on
the
display,
then
press
the
PLAY/PAUSE
button
to
start
playing.(F12)
2.
During
playing,
press
the
SEARCH/SKIP/TUNING
(UP
or
DOWN)
button,
skip
to
the
next
track
(or
the
head
of
the
current
track
).
3.
Press
the
SEARCH/SKIP/TUNING
(UP
or
DOWN)
button
during
pause
condition,
then
skips
to
the
next
track(or
the
head
of
the
current
track)
and
keep
pausing
,
and
the
"
00:00"
appears
on
the
display
and
flashes.
(F13)
4.
Press
the
PLAY/PAUSE
button
to
start
playing.
5.
Press
the
MONO/ST./FIND/ESP
button
once
on
the
remote
control
only,
the
ESP
(Electronic
Shock
Protection)
function
will
turn
on
&
the
ESP
indicator
appears
on
the
display.
(F14)
6.
Press
the
MONO/ST./FIND/ESP
button
once
again,
the
ESP
function
will
turn
off
&
the
ESP
indicator
disappears
on
the
display.
F12
F13
F14
[d
=
44........
4
га
(209-9
00.
йо
ийми
0179
=
=
oe
ла
-
MP3
1.
Press
the
PRESET/FOLDER
(UP
or
DOWN)
button,
the
album
number
will
be
changed;
press
the
SEARCH/SKIP/TUNING
(UP
or
DOWN)
button,
the
track
number
will
be
changed.
2.
Press
the
MONO/ST./FIND/ESP
button
once
on
the
remote
control
only,
TITLE
indicator
is
displayed
and
"^"
flashed.(In
that
case
if
no
name
in
the
disc,
NONE
is
displayed.)
Press
the
SEARCH/SKIP/
TUNING
(UP
or
DOWN)
to
select
the
TITLE
A
to
Z
and
0-9.
(F15)
(USB-MEMORY
device
without
this
function)
3.
Press
the
MONO/ST./FIND/ESP
button
twice,
ALBUM
name
is
displayed.(In
that
case
if
no
name
in
the
disc.
UN-KNOWN
is
displayed.)
Press
the
SEARCH/SKIP/TUNING
(UP
or
DOWN)
to
select
ALBUM
name.(F16)
4.
Whenthe
desired
track
is
displayed,
press
the
PLAY/PAUSE
button
to
start
playing
the
track.
F15
F16
шы
чи
-мт
4T
на
При
I
ДР
X
=
>
5.
Press
ће
MONO/ST./FIND/ESP
button
а
few
seconds
on
the
remote
control
only,
if
the
МРЗ
file
is
written
in
"103",
it
will
automatically
search
more
than
64
letters
of
"TITLE
NAME"
"ARTIST
NAME
"or'
ALBUM
NAME"which
move
from
the
right
corner
to
the
left
corner
on
the
display
continuously:
FILE
МАМЕ
=>
TITLE
NAME-
ARTIST
МАМЕ»
ALBUM
e]
9

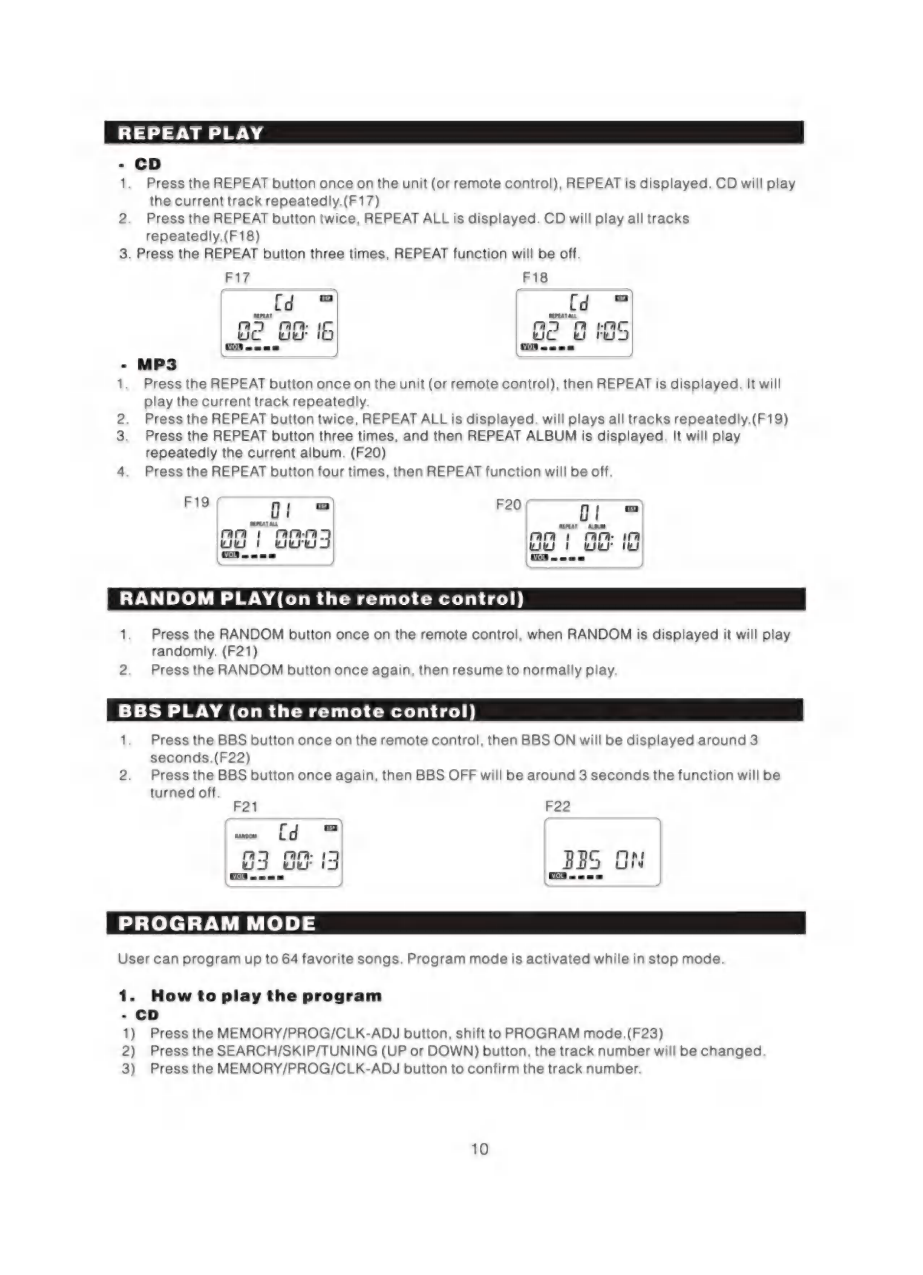

REPEAT
PLAY
-
CD
1.
Press
the
REPEAT
button
once
on
the
unit
(or
remote
control),
REPEAT
is
displayed.
CD
will
play
the
current
track
repeatedly.(F17)
2.
Press
the
REPEAT
button
twice,
REPEAT
ALL
is
displayed.
CD
will
play
all
tracks
repeatedly.(F18)
3.
Press
the
REPEAT
button
three
times,
REPEAT
function
will
be
off.
F17
F18
|
ыла
ш
ЖЕ
5.
T
rara.
fa
fa
Ha
по
08:
15
00
8
05
0778
„
„т
а
КОМ
„а
|
-
МРЗ
1.
Ргеѕѕ
ће
REPEAT
button
once
on
the
unit
(ог
remote
control),
then
REPEAT
is
displayed.
It
will
play
the
current
track
repeatedly.
2.
Pressthe
REPEAT
button
twice,
REPEAT
ALL
is
displayed.
will
plays
all
tracks
repeatedly.(F19)
3.
Press
the
REPEAT
button
three
times,
and
then
REPEAT
ALBUM
is
displayed.
It
will
play
repeatedly
the
current
album.
(F20)
4.
Pressthe
REPEAT
button
four
times,
then
REPEAT
function
will
be
off.
F19
|
|
f
У
REPEAT
ALL
лт
мм
AA
ро
пыл
я
V)
|
0003
00108981
|
ES
wees
KS
„
не
та
а
-
“.
RANDOM
РІАҮ
(оп
the
remote
control)
1.
Press
the
RANDOM
button
once
on
the
remote
control,
when
RANDOM
is
displayed
it
will
play
randomly.
(F21)
2.
Press
the
RANDOM
button
once
again,
then
resume
to
normally
play.
BBS
PLAY
(on
the
remote
control)
1.
Press
the
BBS
button
once
on
the
remote
control,
then
BBS
ON
will
be
displayed
around
З
seconds.(F22)
2.
Press
the
BBS
button
once
again,
then
BBS
OFF
will
be
around
З
seconds
the
function
will
be
turned
off.
F21
22
[
td
=
|
ӨЗ
пи:
13
885
ON
КЛ----
KS
=
м
mm
PROGRAM
MODE
User
can
program
up
to
64
favorite
songs.
Program
mode
is
activated
while
in
stop
mode.
1.
How
to
play
the
program
.
CD
1)
Press
the
MEMORY/PROG/CLK-ADJ
button,
shift
to
PROGRAM
mode.(F23)
2)
Pressthe
SEARCH/SKIP/TUNING
(UP
or
DOWN)
button,
the
track
number
will
be
changed.
3)
Press
the
MEMORY/PROG/CLK-ADJ
button
to
confirm
the
track
number.
-
МРЗ
)
Pressthe
MEMORY/PROG/CLK-ADJ
button,
shift
to
PROGRAM
mode.
The
album
number
is
flashing.
(F24)
2)
Pressthe
SEARCH/SKIP/TUNING
button,
the
album
number
will
be
changed.
3)
Press
the
MEMORY/PROG/CLK-ADJ
button
,
the
track
number
is
flashing.(F25)
4)
Pressthe
SEARCH/SKIP/TUNING
button,
the
track
number
will
be
changed.
5)
Press
the
MEMORY/PROG/CLK-ADJ
button
to
confirm
the
track
number.
—
223
224
225
|
па
|
f
пп
па
i
пп
па
|
|
ци
Uu
мемоку
|
месту
MEMORY
мм
PN
d
гагага
о.
І
DATATA
p..
г
І
WIW
ү)
1
WIKY
eg
ИЛИЈЕ)
ЕЈ
1
===
T.
|
о.
pp
2.
PROGRAM
PLAY
After
programming
tracks,
press
the
PLAY/PAUSE
button
and
it
will
play
the
songs
as
you
programmed.
3.
CANCEL
PROGRAM
Press
the
MEMORY/PROG/CLK-ADJ
button,
then
press
the
STOP
button
in
stop
mode.
Alternatively,
switch
the
unit
OFF
or
open
the
CD
door.
Note:
Seta
new
program,
the
existing
one
will
be
cleared.
MUTE
SETTING(on
the
remote
control
1.
When
you
press
the
MUTE
button
once
on
the
remote
control,
the
volume
level
will
flash
and
the
audio
output
will
be
temporarily
terminated.
(F26)
2.
Press
the
MUTE
button
once
again,
the
volume
level
and
the
audio
output
will
return
to
normal.
F26
[d
=
3
шия
ы
----
)
LINE-INPUT
FOR
EXTERNAL
AUDIO
SOURCE
1.
Press
the
FUNCTION
button
until
“AUX”
indicator
lights
up
on
the
display.
This
unit
can
input
analog
audio
through
AUX
jacks.
2.
Usea
cable
with
RCA
jack
to
connect
external
audio
source.
LISTEN
TO
THE
MUSIC
USING
HEADPHONES
Stereo
headphone
jack
is
provided
for
private
listening.
To
listen
to
the
unit
with
headphones
(not
included
)
insert
the
3.5mm
mini-stereo
plug
from
the
headphones
into
the
phones
jack
is
located
on
the
right
side
of
the
unit.
The
external
speakers
are
automatically
disconnected
when
headphones
are
used.
MEMORY
BACK-UP
To
insert
1.5V
x
3,
UM-4,
AAA
or
equivalent
batteries
in
the
battery
compartment
of
the
unit.
It
is
used
to
back-up
the
memory
of
the
main
CPU.
The
clock
will
not
need
to
be
reset
if
power
off/failure
occurs.
11
COMPACT
DISC
1.
Always
use
compact
discs
bearing
the
mark
as
shown.
COMPACT
DIGITAL
AUDIO
2.
Notes
on
handling
discs
Removing
the
disc
from
its
storage
case
and
load
it.
*
Do
not
touch
the
reflective
recorded
surface.
*
Do
not
stick
paper
or
write
anything
on
the
surface.
*
Donot
bend
the
disc.
3.
Storage
*
Store
the
disc
in
its
case.
*
Donot
expose
discs
to
direct
sunlight
or
high
temperatures,
high
humidity
or
dusty
places.
4.
Cleaning
a
disc
*
Should
the
disc
become
soiled,
wipe
off
dust,
dirt
and
fingerprints
with
a
soft
cloth.
*
The
disc
should
be
cleaned
from
the
centre
to
the
edge.
FROM
THE
CENTRE
TO
THE
EDGE
*
Never
use
benzene,
thinners,
record
cleaner
fluid
or
anti
static
spray.
*
Besure
to
close
the
CD
door
so
the
lens
is
not
contaminated
by
dust.
*
Donottouch
the
lens.
12
SPECIFICATION
POWER
SUPPLY
:
AC
240V~
50Hz
OUTPUT
POWER
:
4.5
Watts
x
2+30W
UNIT
DIMENSION
:
207(W)
x
82(D)
x
206
(Н)
mm
SPEAKER
BOX
DIMENSION
:
139
(W)
x
72.5(D)
x
200
(H)
mm
SUB
WOOFER
DIMENSION
:
131(W)x
242
(D)
x
173(H)
mm
М.
W.:
6.6
kg
RADIO
SECTION
FREQUENCY
RANGE
:
FM
87.5-108
MHz
COMPACT
DISC
SECTION
OPTICAL
PICKUP
:
3
-
BEAM
LASER
FREQUENCY
RESPONSE
:
100Hz
-
16kHz
SPECIFICATION
SUBJECT
TO
CHANGE
WITHOUT
FURTHER
NOTICE.
Dripping
warning:
*
The
product
shall
not
be
exposed
to
dripping
or
splashing
and
that
no
objects
filled
with
liquids,
such
as
vases,
shall
be
placed
on
the
product."
Ventilation
warning
:
'
The
normal
ventilation
of
the
product
shall
not
be
impeded
for
intended
use."
13
&TDK
Life
on
Record
Imation
Asia
Pacific
Pte
Ltd.
23,New
Industrial
Road,
803-01
Century
Industrial
Building,
Singapore,
536209
www.tdk-media.com.sg
АР001206-А
Imation
is
а
registered
trademark
of
Imation
Corp.
The
TDK
Life
on
Record
logo
is
a
trademark
of
TDK
Corporation
and
is
used
under
a
trademark
license
from
TDK
Corporation.
*NXT
is
the
trademark
or
registered
trademark
of
New
Transducers
Limited
in
the
U.K.
Table of contents
Other TDK Stereo System manuals
