CCDD--PP11445500
SERVICE MANUAL
COMPACT DISC PLAYER
Effective : April, 2002 S-0060A
CONTENTS
1 SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2
2 EXPLODED VIEWS AND PARTS LIST ・・・・・・・・・・・・・・・・・3
3 PC BOARDS AND PARTS LIST ・・・・・・・・・・・・・・・・・・・・・・・・8
4 INCLUDED ACCESSORIES ・・・・・・・・・・・・・・・・・・・・・・・・・・・13
NOTES
●PC boards shown are viewed from parts side.
●The parts with no reference number or no parts number in the
exploded views are not supplied.

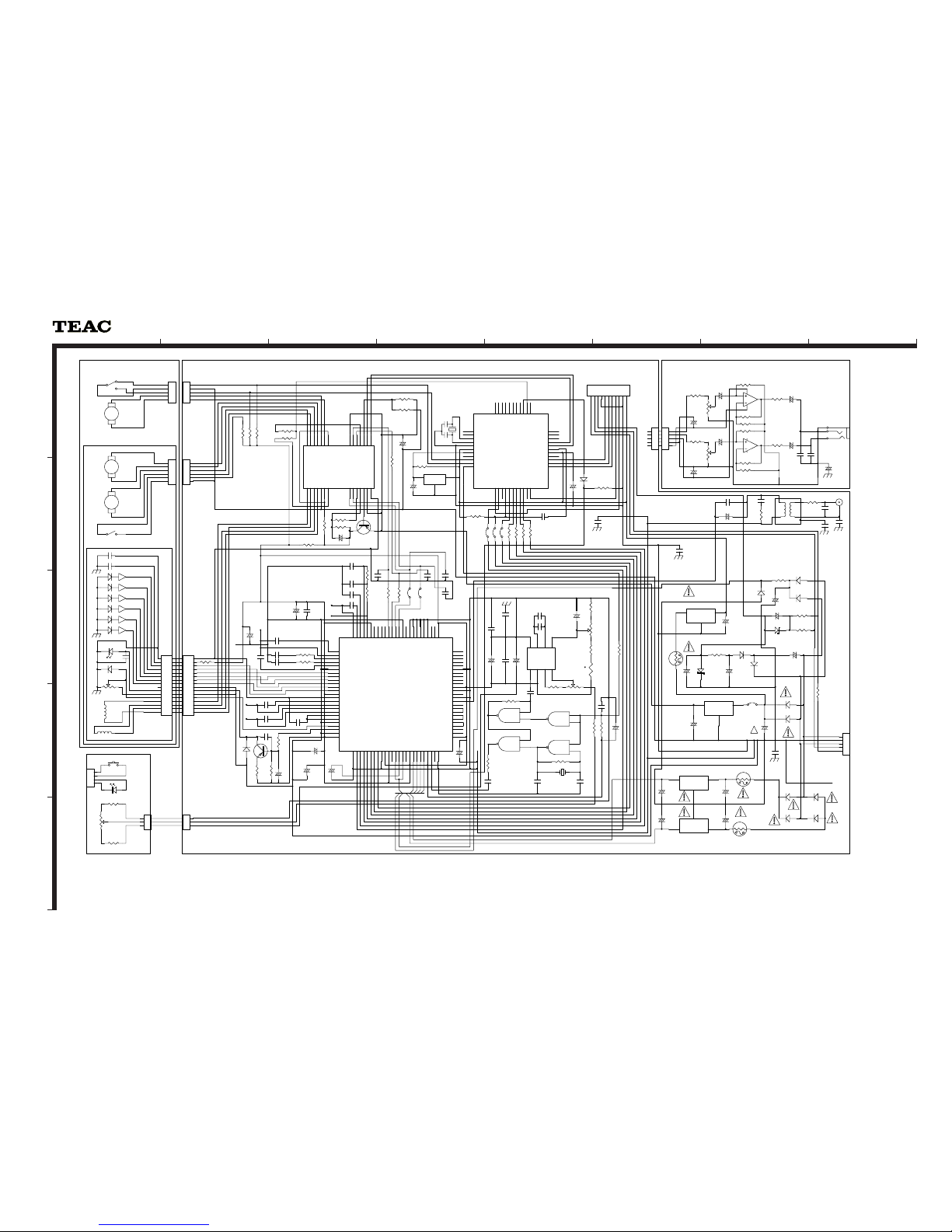

●As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
●£Parts marked with this sign are safety critical components. They
must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
●Parts of [ ] mark can be used only with the version designated.
[US]:U.S.A.[C]:CANADA[E]:EUROPE[UK]:U.K.
[NZ]:NEWZEALAND

1 SPECIFICATIONS
−2−
CD PLAYER
Pickup:
3-beam, semiconductor laser
D/A Converter:
1 bit DAC
Digital filter:
8-times oversampling
Frequency Response:
20 Hz ~ 20 kHz ±1.5dB
Total Harmonic Distortion:
< 0.02 % (1 kHz)
Signal-to-Noise Ratio (S/N):
>85 dB (1 kHz)
Channel Separation:
>80 dB (1 kHz)
Output:
Analog; 2.0 Vrms (RCA)
Digital; COAXIAL
Wow and Flutter:
Below measurable limit
GENERAL
Power Requirements:
120 V AC, 60Hz (U.S.A./Canada Model)
230 V AC, 50Hz (Europe/U.K. Model)
240 V AC, 50Hz (New Zealand Model)
Power Consumption:
12 Watts (AC)
Dimensions (W x H x D):
435 x 104 x 290mm
Net Weight:
3.6 kg
Standard Accessories:
Wireless Remote Control Unit (RC-681)
RCA pin-plug cord
Battery (SUM-3, "AA", "R6" type) x 2
(Europe/U.K./New Zealand Model)
•Design and specifications are subject to change without notice.
SAFETY INFORMATION
This product has been designed and manufactured according to FDA
regulations "title 21, CFR, chapter 1, subchapter J, based on the Radiation
Control for Health and Safety Act of 1968", and is classified as a class 1
laser product. There is no hazardous invisible laser radiation during
operation because invisible laser radiation emitted inside of this product
is completely confined in the protective housings.
The label required in this regulation is shown 1.
OCAUTION
USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
Optical pickup:
TYPE : SFP101NXR
MANUFACTURER : Sanyo Electric Co., Ltd.
LASER OUTPUT : Continuous Wave max. 5mW
WAVE LENGTH : 765-815nm
1For U.S.A.

2 EXPLODED VIEWS AND PARTS LIST

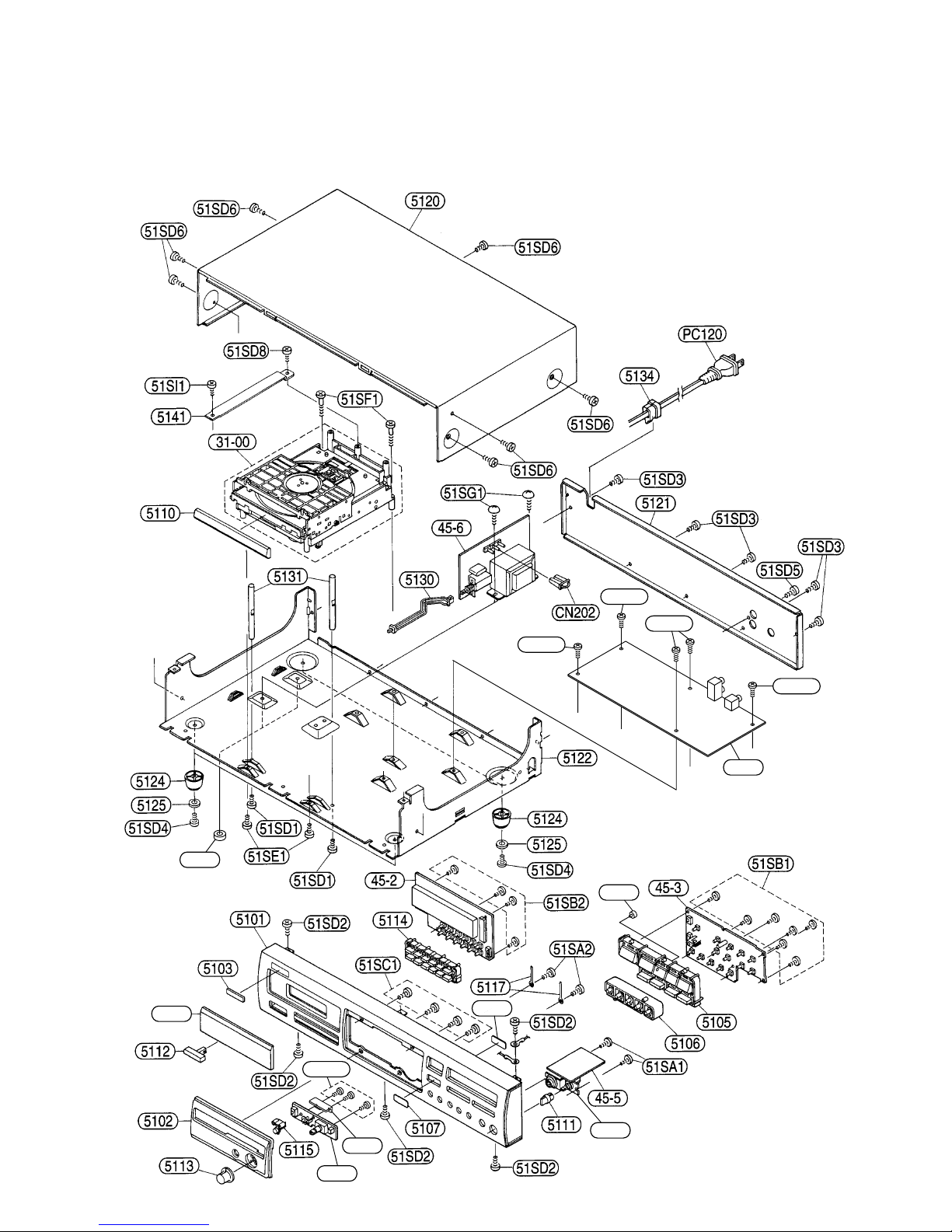

EXPLODED VIEW-1
−3−
51SC2
51SC2
51SC2
51SC2
45-1
5142
5108
5140
45-4
5118
5104
51SB3
5116

−4−
EXPLODED VIEW-1
REF.NO. PARTSNO. DESCRIPTION REMARKS
31‑00 9A09092400 MECHA,CD93F8NDT CEC0991004800
45‑1 9A09157400 MAINPCBASSY CEC0B10032300
45‑2 9A09157500 DISPLAYPCBASSY CEC0B10032400
45‑3 9A09187200 KEYSWPCBASSY CEC0B10032410
45‑4 9A09187300 PITCHCONPCBASSY CEC0B10032420
45‑5 9A09187400 H.P.PCBASSY[US,C] CEC0B10032900
9A09187420 H.P.PCBASSY[E,UK,NZ] CEC0B10032901
45‑6 9A09187510 POWERPCBASSY,120V[US,C] CEC0B10032500
9A09187520 POWERPCBASSY,230V[E] CEC0B10032501
9A09187530 POWERPCBASSY,230V[UK] CEC0B10032503
9A09187540 POWERPCBASSY,240V[NZ] CEC0B10032504
5101 9A09263800 ESCUTCHEON CEC2141003327
5102 9A07077400 PANEL,TRAY CEC2155000810
5103 9A08667500 BADGE CEC2163004000
5104 9A07077500 WINDOW CEC2164006120
5105 9A07078000 BUTTON,PLAY CEC2175012010
5106 9A07077900 BUTTON,FUNCTION CEC2175011900
5107 9A07079200 FILTER,IR CEC2431001200
5108 9A07079300 FILTER,LED CEC2431001600
5110 9A07077200 DECORATION,TRAY CEC2144003911
5111 9A07077700 KNOB,ROTARY CEC2171001800
5112 9A07077800 KNOB,PUSH CEC2174005200
5113 9A07077600 KNOB,ROTARY,PITCHCONT. CEC2171001700
5114 9A07078100 BUTTON,12KEY CEC2175012100
5115 9A07078200 BUTTON,PITCHCONT. CEC2175012200
5116 9A07079800 SHEET,IR CEC2462011300
5117 9A07079000 LUG CEC2377001600
5118 9A07079900 SHEET,LED CEC2462011400
5120 9A07077000 COVER,TOP CEC2121003900
5121 9A09263900 PANEL,REAR[US,C] CEC2153002340
9A09264300 PANEL,REAR[E,UK] CEC2153002341
9A09264700 PANEL,REAR[NZ] CEC2153002342
5122 9A07078400 CHASSIS CEC2311006900
5124 9A07078300 LEG CEC2251003500
5125 9A07080000 FELT CEC2571001700
5130 9A07078800 JOINT CEC2351001900
5131 9A07078900 POST CEC2373001100
5134£9A06846200 BUSHING,NIFCO2271 CEC2446000200
5140 9A07078500 BRACKET‑E,JACK CEC2321000800
5141 9A07078700 BRACKET‑M,TOP CEC2322001800
5142 9A07274200 FELT,PL CEC2571002200
CN202 9A09195600 HOUSING,2P[US,C] 43‑791002031‑00
PC120£9A08660100 POWERCORD[US,C] CEC4W10006400
£9A09196200 POWERCORD[E] CEC4W10006300
£9A07258200 POWERCORD[UK] CEC4W10004700
£9A07089300 POWERCORD[NZ] CEC4W10004800
9A07508700 CORE,BP53RB120070060M CEC4Z21000700
9A07508800 CORE,E04RA120070060 CEC4Z21000800

−5−
EXPLODED VIEW-1
REF.NO. PARTSNO. DESCRIPTION REMARKS
51SA1 9A06855600 SCREW,S‑TPGBIN2.6X6 SFBDN266R0SE‑
51SA2 9A06855600 SCREW,S‑TPGBIN2.6X6 SFBDN266R0SE‑
51SB1 9A00768400 SCREW,S‑TPGBRZM2.6X8 SFBAN268R0SE‑
51SB2 9A00768400 SCREW,S‑TPGBRZM2.6X8 SFBAN268R0SE‑
51SB3 9A00768400 SCREW,S‑TPGBRZM2.6X8 SFBAN268R0SE‑
51SC1 9A01589800 SCREW,S‑TPGBINM3X6 SFBDN306R0SE‑
51SC2 9A01589800 SCREW,S‑TPGBINM3X6 SFBDN306R0SE‑
51SD1 9A01041200 SCREW,S‑TPGBINM3X8 SFBDN308R0SM‑
51SD2 9A01041200 SCREW,S‑TPGBINM3X8 SFBDN308R0SM‑
51SD3 9A01041200 SCREW,S‑TPGBINM3X8 SFBDN308R0SM‑
51SD4 9A01041200 SCREW,S‑TPGBINM3X8 SFBDN308R0SM‑
51SD5 9A01041200 SCREW,S‑TPGBINM3X8 SFBDN308R0SM‑
51SD6 9A01041200 SCREW,S‑TPGBINM3X8 SFBDN308R0SM‑
51SD8 9A01041200 SCREW,S‑TPGBINM3X8 SFBDN308R0SM‑
51SE1 9A07086400 SCREW,S‑TPGBIN3X14 SFBDN30140SE‑
51SF1 9A07086500 SCREW,S‑TPGBIN3X25 SFBDN30250SE‑
51SG1 9A06856000 SCREW,S‑TPGTRS4X6 SFSTN406R0SE‑
51SI1 9A06855700 SCREW,S‑TPGBIN3X4 SFBDN304R0SE‑

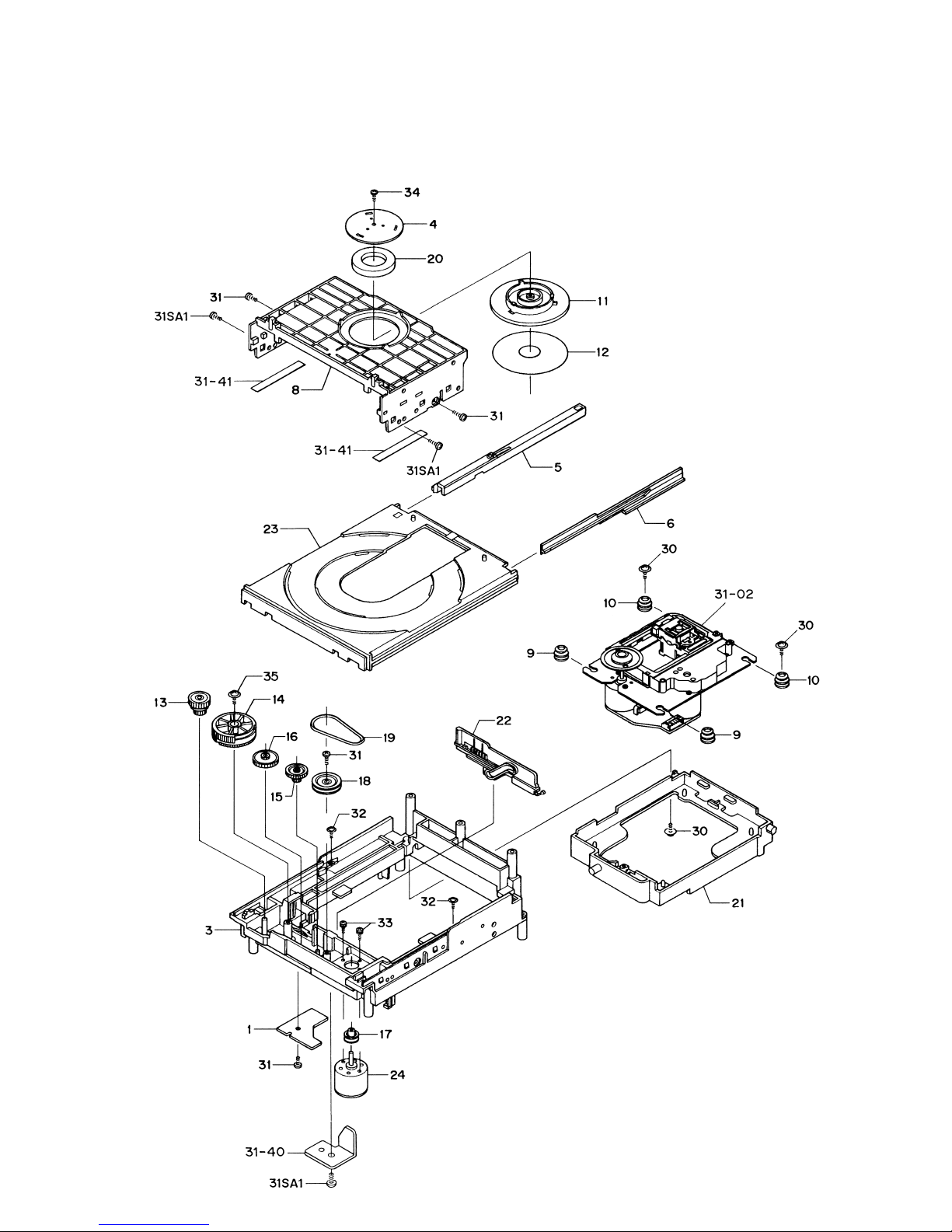

EXPLODED VIEW-2
−6−

−7−
EXPLODED VIEW-2 (CD93F8NDT)
REF.NO. PARTSNO. DESCRIPTION REMARKS
1 9A07071300 SWITCHPCBASSY 1EA0B10A98100
3 9A07072300 CHASSIS,FRAME 1EA2311A06600
4 9A07071400 PLATE,MAGNET 1EA2336A05300
5 9A07071500 LEFTRAILASSY 1EA0363A00100
6 9A07071600 RAIL,RIGHT 1EA2363A00300
8 9A07071800 SUPPORT,MAGNET 1EA2413A01700
9 9A08438700 CUSHION,RUBBER CEC2443000100
10 9A08438800 CUSHION,RUBBER CEC2443000101
11 9A07072100 HOLDER,MAGNET 1EA2451A09000
12 9A07072200 SHEET 1EA2462A13200
13 9A07072400 GEAR,LOADING 1EA2511A10900
14 9A07072500 GEAR,LIFTER 1EA2511A11000
15 9A07072600 GEAR,IDLER,A 1EA2511A11100
16 9A07072700 GEAR,IDLER,B 1EA2511A11200
17 9A07072800 PULLEY,MOTOR 1EA2523A01700
18 9A07072900 PULLEY,GEAR 1EA2524A01600
19 9A07073000 BELT,SQUARE 1EA2563A02200
20 9A02677600 MAGNET,DISCCLAMP 1EA2641A01300
21 9A08438600 LIFTER,MECHA CEC2713000700
22 9A07073200 SLIDE,LIFTER 1EA2741A01300
23 9A07073300 TABLE,LOADING 1EA2761A00700
24 9A03303300 MOTOR,3.0V 1EA4M10A02100
30 5760707700 SCREW,B‑TITESEMSM3X10 13124201283000
31 9A07073500 SCREW,S‑TPGBIN2.6X8 SFBDN268R0SE‑
31‑02 9A09093000 MECHASSY,DA11T3CN 13933102
31‑40 9A07070800 BRACKET CEC2322001300
31‑41 9A07070900 SHEET,MECHA CEC2462011200
31SA1 9A07071100 SCREW,S‑TPGBIN3X8 SFBDN308R0SE‑
32 9A07073600 SCREW,S‑TPGPAN+FLG2X6 SFBPY206R0SE‑
33 9A07073700 SCREW,PAN+SW1.7X3.5 SM2PS173R5SE‑
34 9A07073800 SCREW,SPECIAL SGXEA00201‑‑‑
35 9A07071100 SCREW,S‑TPGBIN3X8 SFBDN308R0SE‑
9A08632700 WIRE,JUMPER,16P CEC4W30009700

−8−
3 PC BOARDS AND PARTS LIST

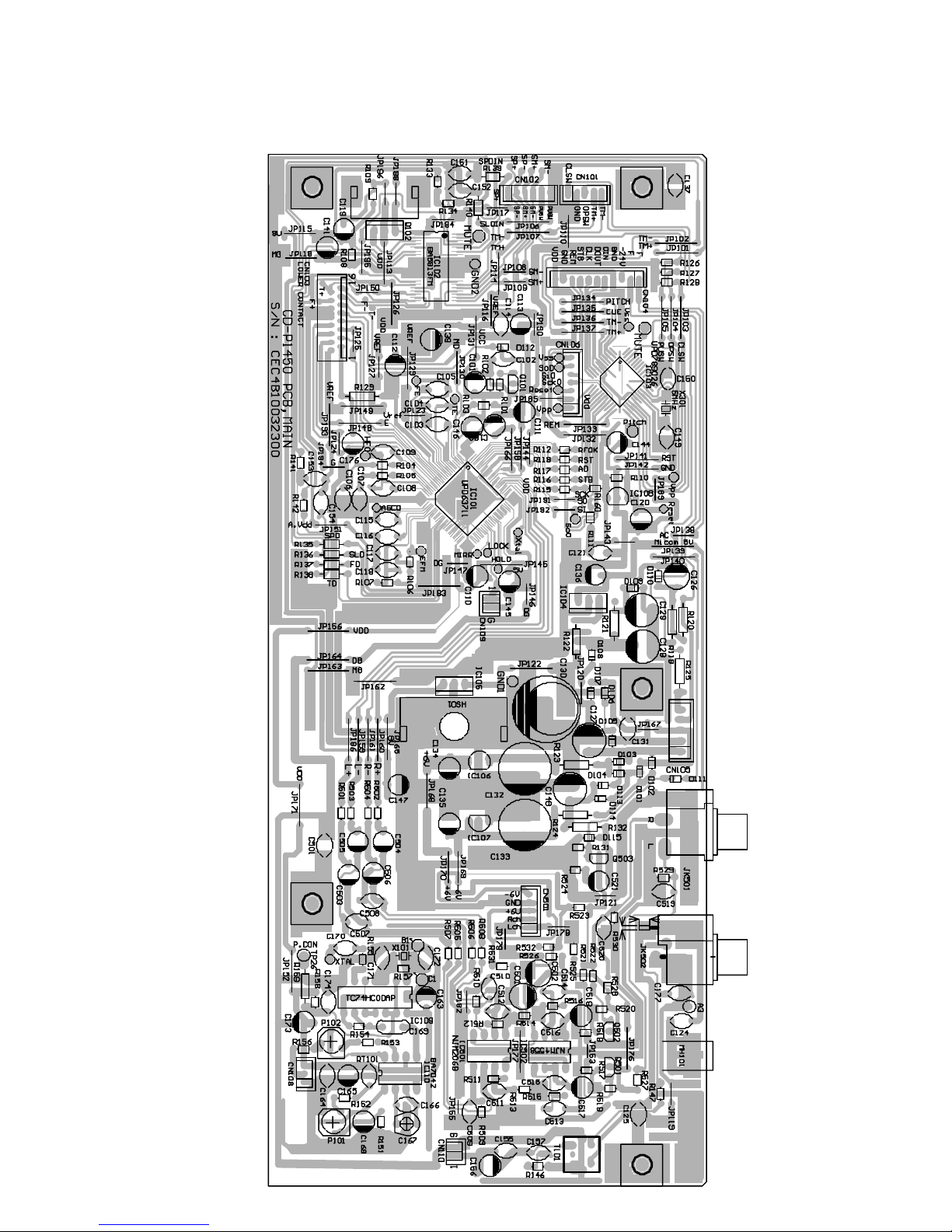

MAIN PCB

−9−

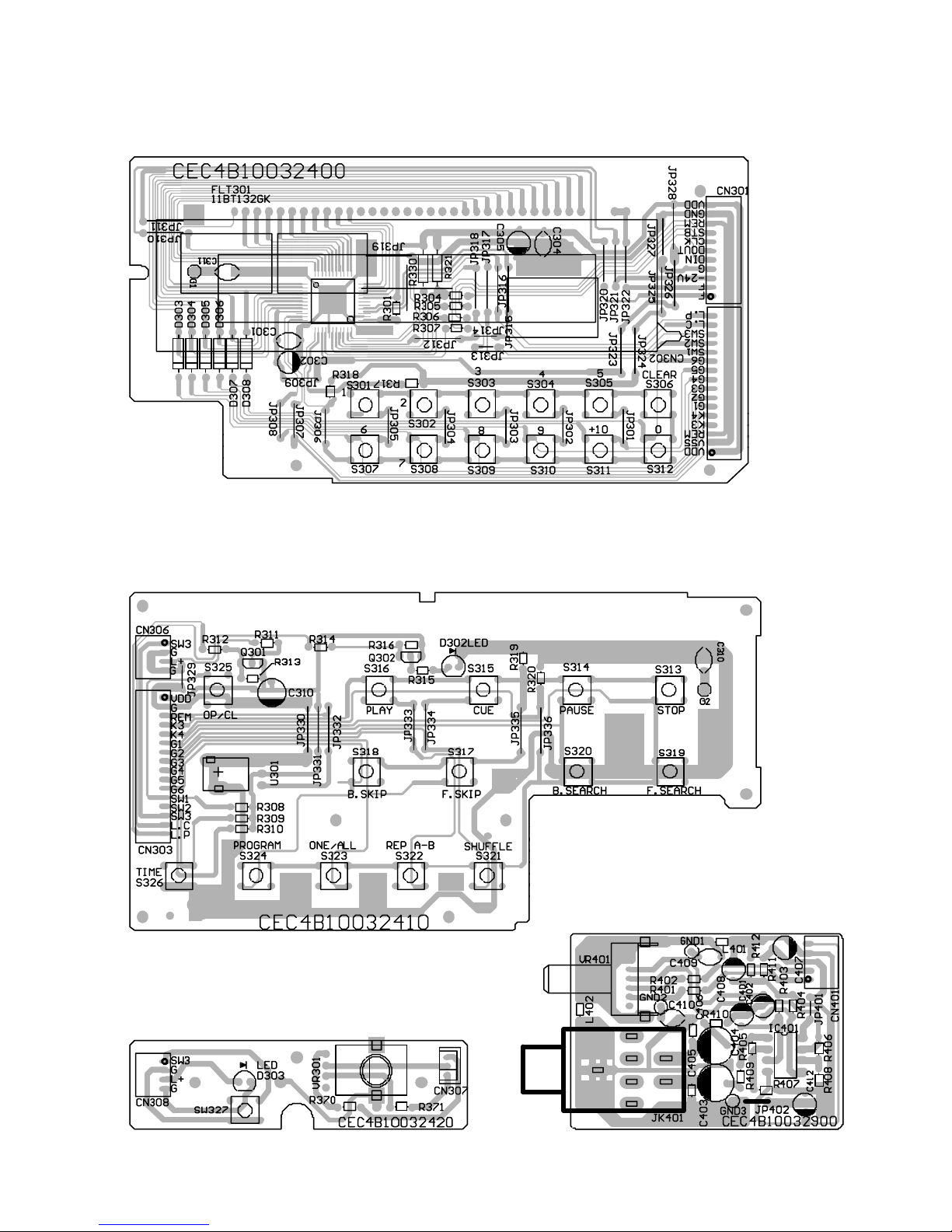

DISPLAY PCB
KEY SW PCB
PITCH CON PCB
HP PCB

−10−
POWER PCB
