RRWW--880000
SERVICE MANUAL
CD Rewritable Deck
Effective : June, 2000 S-0024A
CONTENTS
1 SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2
2 ADJUSTMENTS AND CHECKS ・・・・・・・・・・・・・・・・・・・・・・・・3
3 EXPLODED VIEWS AND PARTS LIST ・・・・・・・・・・・・・・・・・6
4 PC BOARDS AND PARTS LIST ・・・・・・・・・・・・・・・・・・・・・・・・8
5 INCLUDED ACCESSORIES ・・・・・・・・・・・・・・・・・・・・・・・・・・・15
目次
1仕 様 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2
2調整と確認 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・3
3分解図とパーツリスト ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・6
4基板図とパーツリスト ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・8
5付属品 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・15
NOTES
●PC boards shown are viewed from parts side.
●Parts marked with * require longer delivery time.
●The parts with no reference number or no parts number in the
exploded views are not supplied.
●As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
●£Parts marked with this sign are safety critical components. They
must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
●Parts of [ ] mark can be used only with the version designated.
[J]:JAPAN[US]:U.S.A.[C]:CANADA[GE]:GENERALEXPORT
[E]:EUROPE[UK]:U.K.[A]:AUSTRALIA
注 意
●プリント基板図は部品面を示しています。
●*印の部品は納期が若干かかります。
あらかじめご了承ください。
●分解図に部番のない部品および品番のない部品は供給できま
せん。
●標準の抵抗、コンデンサーは省略してあります。
回路図を参照してください。
●£印は安全重要部品です。
交換する時は必ず指定の部品を使用してください。
●仕向先
[J]:JAPAN[US]:U.S.A.[C]:CANADA[GE]:GENERALEXPORT
[E]:EUROPE[UK]:U.K.[A]:AUSTRALIA

1 SPECIFICATIONS
−2−
仕 様
記録メディア ..................................................音楽用CD-R/CD-RW
入力サンプリング周波数........................................32kHz〜48kHz
録音サンプリング周波数 ....................................................44.1kHz
周波数特性 ................................................................20Hz〜20kHz
(再生時：±0.5dB、記録時：±1dB)
S/N比 ..................................................................97dB以上(再生時)
92dB以上(記録時)
ダイナミックレンジ ............................................94dB以上(再生時)
92dB以上(記録時)
歪率..................................................................0.004％以下(再生時)
0.005％以下(記録時)
ワウ・フラッター ..........................................................測定限界以下
入力端子....................................................アナログ：ライン×1系統
マイク×1系統(L/MONO,R)
デジタル：光/同軸 各1系統
出力端子......................アナログ：ライン×1系統、ヘッドホン×1
デジタル：光/同軸 各1系統
ライン入力 ..........................................入力インピーダンス：33kΩ
規定入力レベル：−10dBV(316mV)
マイク入力 ..........................................入力インピーダンス：47kΩ
規定入力レベル：−50dBV(3.16mV)
ライン出力..........................................出力インピーダンス：800Ω
規定出力レベル：−10dBV(316mV)
最大出力レベル：＋6dBV(2.0V)
ヘッドホン出力............................................................................32Ω
電源 ................................................................AC100V、50-60Hz
消費電力 ...................................................................................... 27W
外形寸法(幅×高さ×奥行き)......................435×102×312mm
質量............................................................................................ 5.5kg
動作保証温度 ....................................................................5℃〜35℃
付属品 ..................................................................リモコン(RC-754)
リモコン用乾電池(単3)×2本
オーディオケーブル×2本
取扱説明書、保証書
● 仕様および外観は、改善のため予告なく変更することがあり
ます。
Media type ............CD-RW and CD-R for Digital audio (record and
playback), CD (playback only)
Frequency converter input sampling frequency ........32kHz~48kHz
Recording sampling frequency ..........................................44.1kHz
Frequency response ....................................................20Hz~20kHz
(playback: ±0.5dB, recording: ±1dB)
Signal to noise ratio ............................More than 97dB (playback)
More than 92dB (recording)
Dynamic range ....................................More than 94dB (playback)
More than 92dB (recording)
Total Harmonic Distortion ................Less than 0.004% (playback)
Less than 0.005% (recording)
Wow & flutter ..........................................................Unmeasurable
Audio Input Sensitivity/Impedance ..LINE : -10dBV (316mV)/33kΩ
MIC : -50dBV (3.16mV)/47kΩ
Output Level/Impedance..................LINE : -10dBV (316mV)/800Ω
PHONES : -35mW/32Ω
Maximum output level ....................................LINE :+6dBV (2.0V)
Power supply........120/230 V AC, 50/60Hz (General export model)
230 V AC, 50Hz (Europe model)
Power consumption ..............................................................27 W
Dimensions (W x H x D) ................................435 x 102 x 312 mm
(17-1/8" x 4" x 12-5/16")
Weight (Net) ................................................................5.5kg (12lb)
Standard Accessories..................Audio signal connection cord x 2
Remote control unit x 1
Batteries (AA,R6,SUM-3) x 2
●Improvements may result in specification or feature changes
without notice.
SAFETY INFORMATION
This product has been designed and manufactured according to FDA regulations
"title 21, CFR, chapter 1, subchapter J, based on the Radiation Control for Health
and Safety Act of 1968", and is classified as a class 1 laser product. There is no
hazardous invisible laser radiation during operation because invisible laser radiation
emitted inside of this product is completely confined in the protective housings.
The label required in this regulation is shown 1.
OCAUTION
USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
Optical pickup: Type : KRS-202A or KRS-220B
Manufacturer : SONY Corporation
Laser output : Less than 0.1mW (Play) and 32mW (Record)
on the objective lens
Wavelength : 777 - 787nm
1For U.S.A.

2 ADJUSTMENTS AND CHECKS
−3−
2-1 Test Mode
In Standby mode, press and hold the STOP + PLAY + PAUSE keys
simultaneously for 5 seconds. The display will show the model
name and the system controller’s version number, and the test
mode is initiated.
Press the STOP key to exit from the test mode and return to the
standby mode.
2-1-1 Front key check
1. Press the PLAY key to enter the front key check mode.
2. The display shows the name of each key to be checked; press
the corresponding key.
When the check result of the key is OK, the display shows
another key name. When the result is No Good, the display
continues to show the same key name.
3. When all of the keys have been checked, the display shows
“timer play”. Follow this instruction by checking the
TIMER slide switch operation.
4. The display finally shows “dial50”. Check the MULTI JOG
dial so that the displayed figure increases when the dial is
rotated clockwise and decreases when it is rotated
counterclockwise.
5. Press the PLAY key to exit from the front key check mode and
return to the Version number display mode.
2-1-2 Display check
1. Press the DISPLAY key to enter the display check mode.
2. Press DISPLAY key a few times and ensure that each press
lights the display blocks one after another.
3. When all the indicators are lit, press the DISPLAY key to exit
from the display check mode and return to the Version number
display mode.
2-1-3 EEPROM default setting
1. Press the ERASE key.
This writes the default values in the EEPROM and checks the
written data. When the default data is written correctly, the
display shows “EEPROM OK !!”. If not, it shows
“EEPROM NG !!”.
2. Press the ERASE key again to return to the Version number
display mode.
2-1-4 Total recording time display
1. When the RECORD key is pressed, the display shows the time
in which the pickup outputs the recording power (in the unit of
hour).
2. Press the RECORD key again to return to the Version number
display mode.
2-1テストモード
スタンバイモードの状態で、STOPキー＋PLAYキー＋PAUSE
キーを5秒間押し続けると、表示部に機種名とシスコンの
VersionNo.が表示されテストモードに入る。
STOPキーを押すと、テストモードは終了しスタンバイモードに
戻る。
2-1-1フロントキーチェック
1. PLAYキーを押し、フロントキーチェックモードに入る。
2. 表示部にチェックするキーの名称が表示されるので、そのキ
ーを押す。
チェックOKなら次のキーの名称が表示され、NGなら表示は
変化しない。
3. 一通りキーの確認が終了すると、timer playの表示が
出る。指示通りTIMERスライドスイッチを動かして確認する。
4. 最後にdial50の表示が出る。MULTIJOGダイアルを回
し、表示の数字が右回しで増加、左回しで減少することを確
認する。
5. PLAYキーを押すと、フロントキーチェックモードを終了し
VersionNo.表示に戻る。
2-1-2ディスプレイチェック
1. DISPLAYキーを押し、ディスプレイチェックモードに入る。
2. DISPLAYキーを押すたびに、表示部がブロックごとに点灯し
て行くことを確認する。
3. 表示部が全点灯した状態からDISPLAYキーを押すと、ディス
プレイチェックモードを終了しVersionNo.表示に戻る。
2-1-3EEPROMデフォルト設定
1. ERASEキーを押す。
EEPROMにデフォルト値を書き込み、自動的に書き込みチェ
ックを行う。このとき、正しく書き込めていれば、表示部に
EEPROM OK !!と表示され、不良の場合はEEPROM
NG !!と表示される。
2. 再度ERASEキーを押すと、VersionNo.表示に戻る。
2-1-4記録積算時間表示
1. RECORD キーを押すと、ピックアップが記録パワーを出力
した時間を表示する。（単位：hour）
2. 再度 RECORDキーを押すと、VersionNo.表示に戻る。
調整と確認

−4−
ITEM
項 目
TEST DISC
テストディスク
PLAYBACK SIGNAL
再生信号
SPECIFICATIONS
規 格
REMARKS
備 考
1. Playback level
再生レベル
MCD-111
Track 2 1kHz, 0dB 2.0±0.5V
2. Playback distortion
再生歪率
MCD-111
Track 2 1kHz, 0dB 0.005% or less 400Hz HPF ＋22kHz LPF
4. Playback S/N ratio
再生S/N比
MCD-111
Track 7 −∞dB 94dB or better 22kHz LPF ＋IEC-A
5. Playback channel
separation
再生チャンネル
セパレーション
MCD-111
Track 8, 10 1kHz, 0dB 80dB or better 22kHz LPF ＋IEC-A
6. Emphasis effect
エンファシス効果
MCD-111
Track 13 16kHz, −20dB −20±1dB
2-2 Audio Check オーディオ系の確認
2-2-1 Playback performance 再生系
Measurement point: LINE OUT
Mode: play
3. Playback frequency
response
再生周波数特性
MCD-111
Track 3〜620Hz〜20kHz, 0dB 0±1dB Reference level: 1kHz
1kHz基準

−5−
2-2-2 Monitor performance モニター系
Measurement point: LINE OUT
Mode: record monitor
ITEM
項 目
INPUT SIGNAL (LINE IN)
入力信号
SPECIFICATIONS
規 格
REMARKS
備 考
1. Specified input level
規定入力レベル 1kHz, ＋6dBV ＋6dBV±2dB
Rotate the REC LEVEL controls to positions at
which the "OVER" segments of the level meter is
just about to light.
Do not alter the value after setting.
RECLEVELつまみを回して、レベルメータの
OVERが点灯する直前になるように設定する。
調整後は動かさないこと。
2. Monitor distortion
モニター歪率 1kHz, ＋6dBV 0.01% or less 400Hz HPF ＋22kHz LPF
3. Monitor frequency
response
モニター周波数特性
20Hz〜20kHz, ＋6dBV 0±1dB Reference level: 1kHz
1kHz基準
5. Monitor channel
separation
モニターチャンネル
セパレーション
L (R) ch: 1kHz, ＋6dBV
R (L) ch: No signal 65dB or better
Ratio between the L CH and R CH outputs.
Lchの出力とRchの出力の比。
22kHz LPF ＋IEC-A
7. MIC input sensitivity
MIC入力感度
MIC:
1kHz, −50dBV ＋6dBV±3dB MIC LEVEL: MAX
6. PHONES output level
PHONES出力レベル 1kHz, ＋6dBV PHONES:
1.1V or more
PHONES LEVEL: MAX
Load: 32Ω
4. Monitor S/N ratio
モニターS/N比 88dB or better 22kHz LPF ＋IEC-A

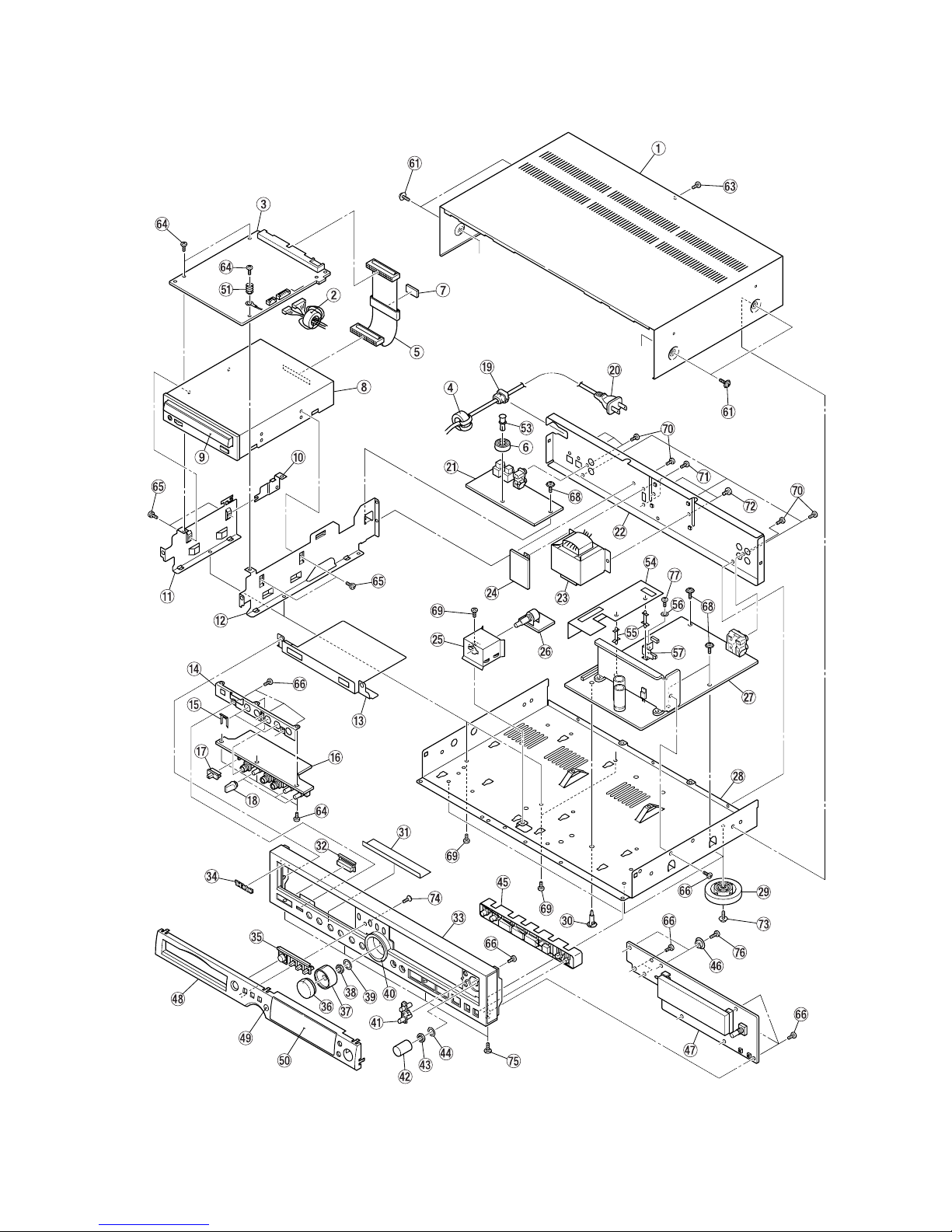

3 EXPLODED VIEWS AND PARTS LIST
−6−
分解図とパーツリスト

−7−
PARTS LIST
REF.NO. PARTSNO. DESCRIPTION
1 * 3M0058120A BONNET[EXCEPTJ]
* 3M0058130A BONNET[J]
2 * 3E010000 FER.COREB18T25X12X15
[US,C,GE,E,UK]
3 3E9524710D PCBASSY,CONVERTER
4 * 3E010000 FER.COREB18T25X12X15
5 * 3E0117100A WIREA,DRIVE‑CONVERT40P
6 3M001950 FOOT,21MM
7 3M0101100A FOOT,2T
8 V00089400A CD‑W54E‑A90
9 3M0089910B PANELTRAY[EXCEPTJ]
3M0089920A PANELTRAY[J]
10 * 3M0101300A BRACKET,EARTHCVTPCB
11 * 3M0088400A BRACKETMECHASIDE(L)
12 * 3M0088500B BRACKETMECHASIDE(R)
13 * 3M0100400A SHEET,SHILDPHPCB
14 * 3M0088600C BRACKETJACK
15 * 3E011630 MOUNTPLATEJACK
16 * 3E9521910A PCBASSY,MIC/HP
17 3M0057400A KNOB,SLIDE(B)[EXCEPTJ]
3M0057410A KNOB,SLIDE(N)[J]
18 3M0024800A KNOB,PHONEVOLUME[EXCEPTJ]
3M0024820A KNOB,PHONEVOLUME(GOLD)[J]
19£* 3M000880 BUSHING,#2271
20£* 3E009000 POWERCORD[J]
£* 3E009230 POWERCORD[US,C,GE]
£* 3E000340 POWERCORD[E]
£* 3E000350 POWERCORD[UK]
£* 3E000360 POWERCORD[A]
21 * 3E9522000B PCBASSY,DIGII/O
22 * 3M0058030C PANEL,REAR[J,E,UK,A]
* 3M0058040C PANEL,REAR[US,C,GE]
23£3E0117700A TRANS,CDRW
24 * 3E9522100A PCBASSY,VSELECTOR[US,C,GE]
25 * 3M0096600A CASESHIELDVR
26 * 3E9522400A PCBASSY,VR
27 * 3E9521800A PCBASSY,AUDIO/POWER
[J,US,C,GE]
* 3E9521840A PCBASSY,AUDIO/POWER
[E,UK,A]
28 * 3M0057910B CHASSIS,MAIN
29 3M0047200A FOOTASSY
30 * 3M0062600A SUPPORT,PCBSCD‑12
31 * 3M0100500B SHEET,EARTH
32 3M0089500B BUTTONPOWER[EXCEPTJ]
3M0089510B BUTTONPOWER[J]
33 3M0088710C PANEL,FRONT[EXCEPTJ]
3M0088720C PANEL,FRONT[J]
34 * 3M0051600A TEACEMBLEM(GOLD)[EXCEPTJ]
* 3M0051610A TEACEMBLEM[J]
35 3M0089300A BUTTONUNTO/C[EXCEPTJ]
3M0089310A BUTTONUNTO/C[J]
REF.NO. PARTSNO. DESCRIPTION
36 3M0090100A KNOBREC(R)[EXCEPTJ]
3M0090110A KNOBREC(R)[J]
37 3M0089700B KNOBREC(L)[EXCEPTJ]
3M0089710B KNOBREC(L)[J]
38 * 3M001340 NUT,VRM9
39 * 3M001350 PLAINWSHR,VRM9.1
40 3M0089100A RINGRECKNOB[EXCEPTJ]
3M0089110A RINGRECKNOB[J]
41 3M0089200A BUTTONMENU[EXCEPTJ]
3M0089210A RINGRECKNOB[J]
42 3M0089800A KNOBD15JOG[EXCEPTJ]
3M0089810A KNOBD15JOG[J]
43 * 3M0096900A NUT,M7
44 * 3M0096800A PLAINWASHER,M7
45 3M0089400A BUTTONUNTOPE[EXCEPTJ]
3M0089410A BUTTONUNTOPE[J]
46 * 3M0097400B STOPPERBONNET
47 * 3E9522300A PCBASSY,FRONT
48 3M0088800C ESCUTCHEONF[EXCEPTJ]
3M0088810B ESCUTCHEONF[J]
49 3M0089000B COVERSENSOR
50 3M0088900B WINDOWFL
51 * 3M0101500A SPRING,EARTHBONNET
53 * 3M0112200A SUPPORTPCBRCA‑6
54 * 3M0099200B SHEETBARRIERE.PWR[E,UK,A]
55 * 3M0099100A SUPPORT,PCBCBS‑15[E,UK,A]
56 * 3M0102400A PLAINWASHER,3.5X10X1
[EXCEPTJ]
57 * 3M0101600B SHEETBARRIERCONECT
[EXCEPTJ]
61 * 3B0001806A SCREW,J,SM3X6(BLK)
63 * 3B0003808A SCREW,VPCM3X8(BLK)
64 * 3B0005305A SCREW,BPBM3X5
65 * 3B0007400A SCREW,BPAAM3X6
66 * 3B0000808A SCREW,BPPM3X8
68 * 3B0001306A SCREW,J,SM3X6
69 * 3B0005308A SCREW,BPBM3X8
70 * 3B0005708A SCREW,BPBM3X8(BLK)
71 * 3B0004408A SCREW,BPSM3X8(BLK)[US,C,GE]
72 * 3B0001905A SCREW,J,SM4X5(BLK)
73 * 3B0001308A SCREW,J,SM3X8
74 * 3B0007008A SCREW,FPPM3X8
75 * 3B0007300A SCREW,FPSTITEM3X6
76 * 3B0000810A SCREW,BPPM3X10
77 * 3B0000106A SCREW,BPSM3X6[EXCEPTJ]

4 PC BOARDS AND PARTS LIST
−8−
基板図とパーツリスト

−9−

−10−

−11−

−12−

CONVERTER PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
3E9524710D PCBASSY,CONVERTER
D701,702 3S002984 DIODE,1SS355
L701 E0013294 COIL,LQH3N4.7UH
P701 3E011730 CONNECT,NS‑TECH
P702 3E001340 CONNECTPLUG8P,S8B‑PH‑K
P703 3E009790 CONNECTPLUG6P,89401‑0610
P704 3E001360 CONNECTPLUG10P,S10B‑PH‑K
Q701 3S002994 TR,DTC124EUA
Q702 3S003004 TR,2SA1037AK
U702,703 S0037164 IC,TC74VHCT541AFT(EL)
U704,705 S0037174 IC,TC74VHCT245AFT(EL)
U706 3S002924 IC,TC74VHC04F(EL)SMT
U707 S00368800A IC,HD6437042CONVERT
U709 S0036813 IC,MSM5118165D
U712 3S002954 IC,LC8905V
U713 3S002914 IC,TC74VHC74F(EL)SMT
U714 3S002963 IC,AD1893JST
U715 3S002944 IC,TC9271F(ELP)SMT
U716 3S002934 IC,TC74HC02AF(EL)SMT
U717 3S002924 IC,TC74VHC04F(EL)SMT
U802 S00361900A IC,AUDIOCONVERTER
X701 3E011994 RES,CSTCC7.17MG0H6‑TC
X702 3E011984 X'TAL,LIM55A16MHZ
X703 3E011974 X'TAL,11.289MHZ
AUDIO/POWER PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
* 3E9521800A PCBASSY,AUDIO/POWER
[J,US,C,GE]
* 3E9521840A PCBASSY,AUDIO/POWER
[E,UK,A]
* 3M0097300B HEATSINK
* 3B0000808A SCREW,BPPM3X8
3E0043200A TERMINAL,EARTHPLATEB
C01£3C011640 CC,YF50V0.1UFZ
C02£3C012790 CE,35V4700UFGS
C04£3C011640 CC,YF50V0.1UFZ
C06£3C011640 CC,YF50V0.1UFZ
C07£3C001350 CE,16V10000UFM
C09£3C011640 CC,YF50V0.1UFZ
C12£3C011640 CC,YF50V0.1UFZ
C14£3C011640 CC,YF50V0.1UFZ
C15,16£3C009820 CE,25V470PFGS
C24£3C000790 CE,50V220UFM
C31£3C009730 CE,25V220UFGS
C32£3C000270 CE,50V4.7UFM
C33£3C009640 CE,50V22UFGS
C51,52£3E004300 S.KILLER,CS12‑F2GA472MYAS
D01‑04£3S000031 DIODE,1N4003‑TR
D05‑08£3S001130 DIODE,1N5404
D09‑12£3S000031 DIODE,1N4003‑TR
D13‑16£3S000031 DIODE,1N4003‑TR
AUDIO/POWER PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
D17 3S001750 ZDI,MTZJ33B
D18 3S000681 ZDI,MTZJ5.1B
D31 3S000681 ZDI,MTZJ5.1B
D32£3S000031 DIODE,1N4003‑TR
D33,34 3S000241 DIODE,1SS133
D35£3S000031 DIODE,1N4003‑TR
D36 3S000681 ZDI,MTZJ5.1B
D37 3S000241 DIODE,1SS133
D71 3S003201 ZDI,MTZJ12B
D72,73 3S000241 DIODE,1SS133
D141,142 3S000241 DIODE,1SS133
J111 3E009030 JACK,RJ‑1073B‑09‑0520A
L51£3E004290 COIL,1MH/1.5AFKOB160MH16
L121 3E011800 COIL,1.0UHK
L122 3E011810 COIL,47UHK
L123 3E011820 FB,FBR07HA850SB‑00
P04 3E000710 CONNECTPLUG7P,B7B‑PH‑K
P11 3E001240 CONNECTPLUG12P,B12B‑EH‑A
P51£3E002170 TERMINALLAPPING2P[E,UK,A]
P111 3E000680 CONNECTPLUG4P,B4B‑PH‑K
P121 3E000700 CONNECTPLUG6P,B6B‑PH‑K
P124 3E000740 CONNECTPLUG10P,B10B‑PH‑K
P141 3E000710 CONNECTPLUG7P,B7B‑PH‑K
Q01£3S002300 TR,KSA733C‑GTA
Q31£3S002300 TR,KSA733C‑GTA
Q32 3S002450 TR,DTC114ESTP
Q33 3S002310 TR,KSC945C‑GTA
Q71£3S000400 TR,2SB1015Y
Q72 3S002310 TR,KSC945C‑GTA
Q73 3S000301 TR,DTA124ES
Q74 3S000291 TR,DTC124ES
Q75 3S002300 TR,KSA733C‑GTA
Q141,241 3S000731 TR,2SD2144S
Q142 3S000291 TR,DTC124ES
Q143 3S000301 TR,DTA124ES
R72,73£3R007100 RD,1/2W470OHMJ
U02£3S003040 IC,BA05ST
U03£3S000650 IC,NJM7805FA
U04£3S002170 IC,NJM7812FA
U05£3S003030 IC,NJM7912FA
U101£3S000650 IC,NJM7805FA
U111 3S001700 IC,NJM4580D
U121,221 3S003010 IC,NJM2100D
U122 S0035883 IC,CS4223‑KS
U141 3S001700 IC,NJM4580D
−13−

FRONT PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
* 3E9522300A PCBASSY,FRONT
* 3M0090000B HOLDERFL
D500‑508 3S000241 DIODE,1SS133
FL500 3E0117500A DISPLAY,HNA‑16MM23RW(L)
SW501‑514 3E002070 SW,TACTSKQSABHMR‑187
S500 3E007320 SW,ENCODEREC11B15244
U500 3S0030600B IC,CXP82040‑115Q
U501 3S002844 IC,RS5C316A‑E2SMT
U502 3S003254 IC,BR93LC46RF‑WE2SMT
U503 3S003074 IC,TC74HC125AF(EL)SMT
U504 3S002200 REMOCON.SENSER,TSOP1838RF
X500 3E011740 RESONATOR,CST10.00MTW
X501 3E012050 X'TAL,32.768KHZ
MIC/HP PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
* 3E9521910A PCBASSY,MIC/HP
D191,192 3S000241 DIODE,1SS133
J171,271 3E005500 JACK,JY‑6315‑01‑050GD
J181 3E002140 JACK,JY‑6313‑01‑030GD
L181,281 3E011800 COIL,1.0UHK
P191 3E000700 CONNECTPLUG6P,B6B‑PH‑K
S191 3E011780 SW,SLIDESSSS91A600
S192 3E011790 SW,TACTSKHVLH0.98N
U171 3S001700 IC,NJM4580D
U181 3S000850 IC,NJM4560D
VR171,271 3R005570 VARRES,RK09K111‑10KA
VR181 3R005560 VARRES,RK09K12A‑20KA
VR PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
* 3E9522400A PCBASSY,VR
VR121 3R005550 VARRES,RK1612220‑20KA

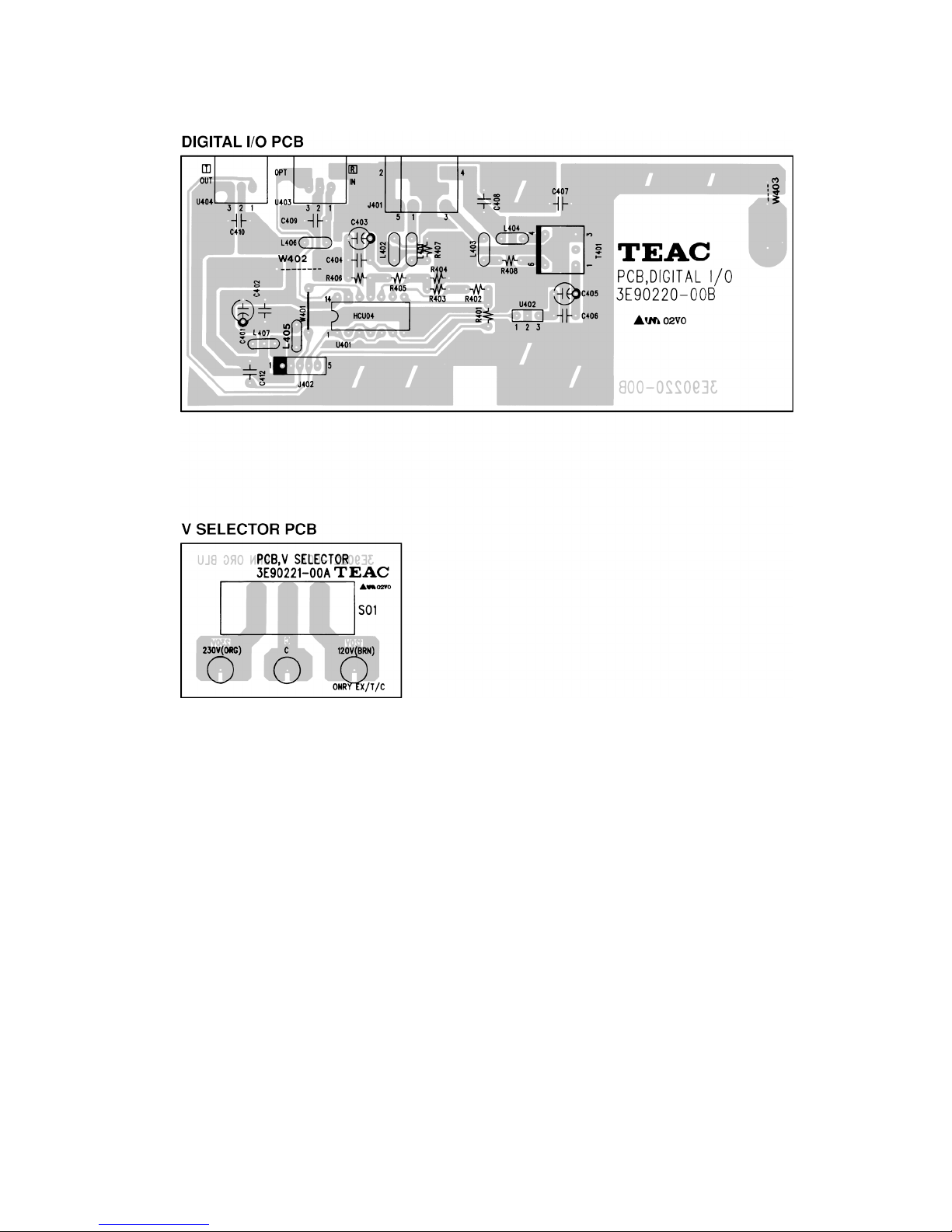

DIGITAL I/O PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
* 3E9522000B PCBASSY,DIGII/O
J401 3E011850 JACK,RJ‑1060A‑31‑0541A
L401‑405 3E011820 FB,FBR07HA850SB‑00
L406 3E011810 COIL,47UHK
L407 3E013130 FILTER,EMT103BT
T401 3E0132300A PULSTRANS,S‑701‑001
U401 3S001660 IC,TC74HCU04AP
U402 3E011830 FILTER,EMT47BT
U403 3S001680 IC,GP1F32R
U404 3S002290 IC,GP1F32T
V SELECTOR PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
* 3E9522100A PCBASSY,VSELECTOR[US,C,GE]
S01£3E002110 SW,SLIDESL13B‑022
−14−

5 INCLUDED ACCESSORIES
−15−
付属品
INCLUDED ACCESSORIES
REF.NO. PARTSNO. DESCRIPTION REMARKS
3D0032300A OWNER'SMNL,E/F/G/I/S[E]
3D0032400A OWNER'SMNL,JPN[J]
3D0034100A OWNER'SMNL,E/F[US,C,GE,UK,A]
* 3D0034600A MNLSTARTGUIDE,E/F[US,C,GE,UK,A]
* 3D0034800A MNLSTARTGUIDE,GIS[E]
3E0123500A REMOTECONTROLUNIT,RC‑753[EXCEPTJ]
3E0123600A REMOTECONTROLUNIT,RC‑754[J]
3E003660 BATTERY,UM‑3(2PXED)
3E000380 PINCORD
3E013190 CABLEOPTICAL1.0M

86745231
E
D
C
B
A
WIRING DIAGRAM
RW-800
CD Rewritable Deck
RRWW--880000
1 st Issue; June 2000
CD-R
DRIVE UNIT
CONVERTER PCB DIGITAL I/O
PCB
AUDIO/POWER PCB
FRONT PCB MIC/HP PCB
VR PCB
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
PLAY
REC
GND
POWER
TIMER
GND
GND
1
2
3
4
5
6
1
2
3
4
5
1
2
3
4
5
6
+5V
GND
OPT RX
OPT TX
COAX RX
POWER TRANS
V SELECT PCB
VRIN L VROUT L GND GND VROUT R VRIN R
P121
J122
HP L GND GND HP R +BVA GND –BVA
P141
J503 P191
1
2
3
4
5
6
7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
STNBY XRST –30V +5VD GND FL1 FL2
HP L
GND GND
HP R
+BVA
GND
–BVA
J182
+12V(SW) GND12 GND5 +5V(SW)
1 2 3 4
+5V(SW) GND5
1 2
J02J01
P04P11
P51
J501 J502
AC IN 1
2
L
N
J402
STNBY
XRST
–30V
+5VD
GND
FL1 FL2
1 2 3 4 5 6 7 8 9 10 1112
1 2 3 4 5
1 2 3 4 5
1 2 3
C
0V
100V 120V 230V 240V
4 3 2 1
P703
P124
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9 10
1 2 3 4
P702
P704
MCLK GND LRCK BCK ADDATA DADATA XDEMP XRESET AMUTE GND
TXD 0 RXD 0 CTS RTS D SEL DRV RST A MUTE IN GND
120V
230V
120V 230V
6 7 8 9 10 11 12 13 14 15
(AC14.1V) 0V (AC7.6V)
0V (AC14V) AC CENT (AC14V) (AC4.8V)
0VA (AC4.8V)
P701B
1
40
1
40
P701D
WHT GRY BRN ORG RED
EX/T/C ONLY
1 2 3 4
1 2 3 4
MIC L GND GND MIC R
P111
MIC L
GND GND
MIC R
J173

86745231
E
D
C
B
A

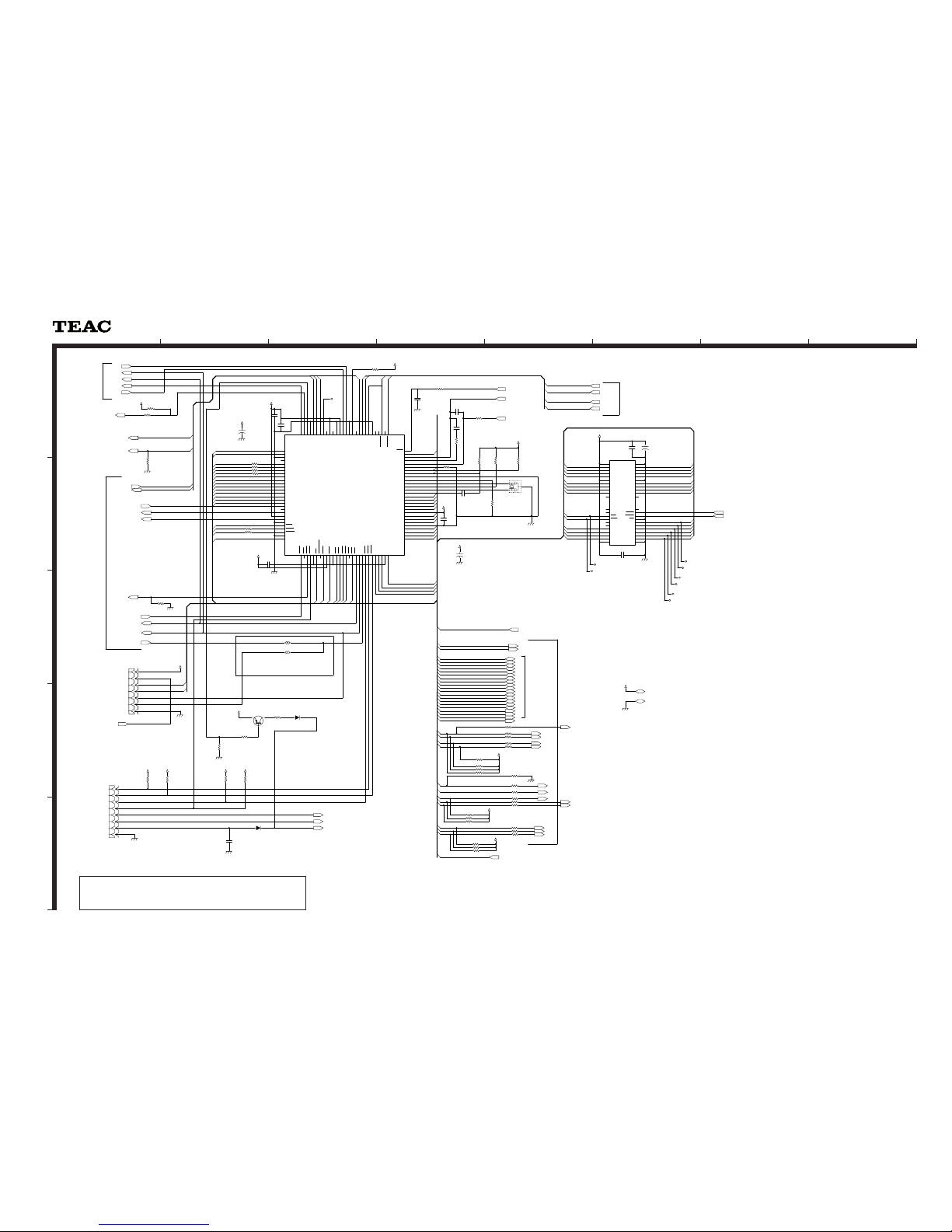

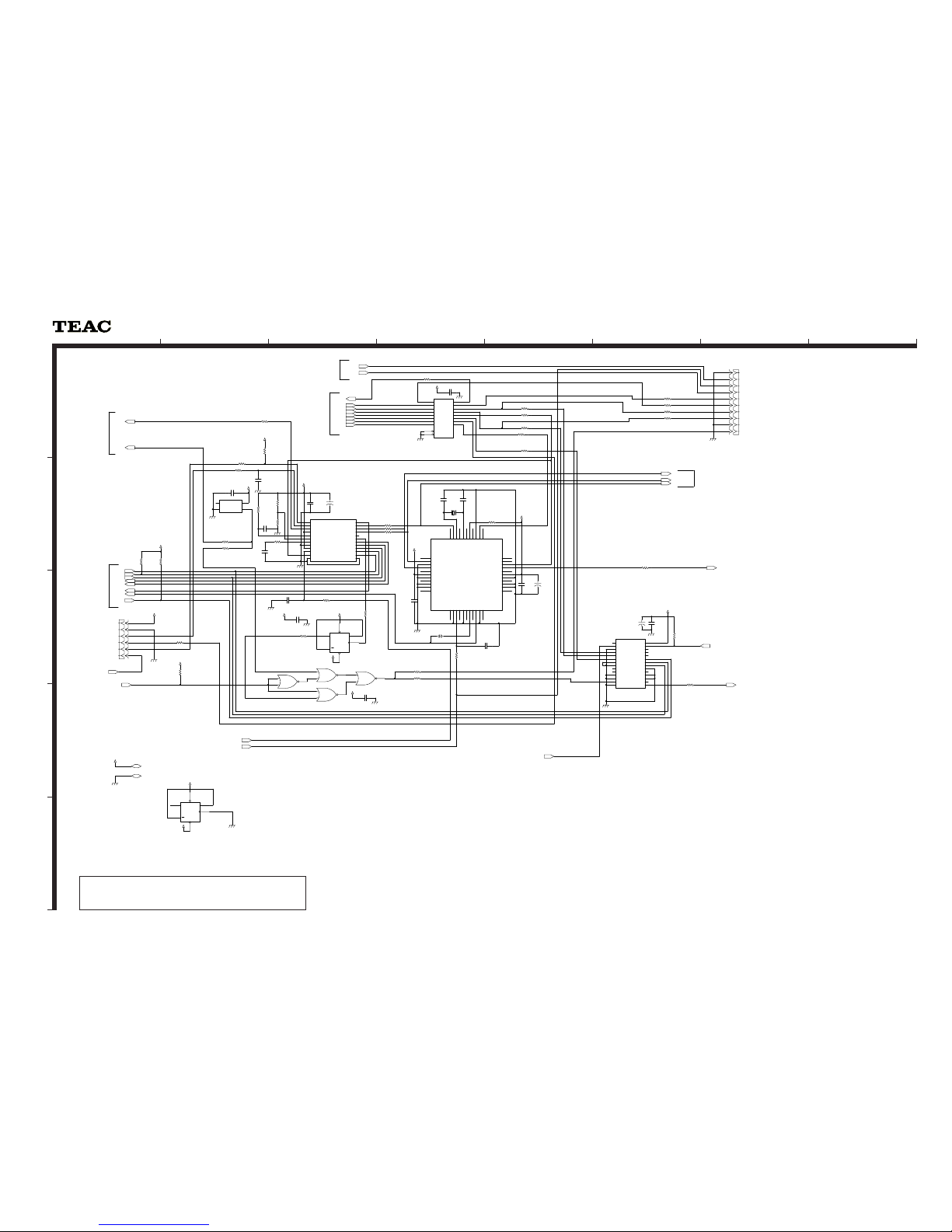

SCHEMATIC DIAGRAM
RW-800
CONVERTER PCB (1/4) (3E9024700B)
CD Rewritable Deck
RRWW--880000
1 st Issue; June 2000
INSTRUCTIONS FOR SERVICE PERSONNEL
BEFORE RETURNING APPLIANCE TO THE CUSTOMER, MAKE LEAKAGE-
CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT.
NOTES:
1. Resistor values are in ohms (k=kilo-ohms, M=megohms).
2. Capacitor values are in microfarads (p=picofarads).
3. £Parts marked with this sign are safety critical components.
They must always be replaced with identical components-refer
to the appropriate parts list and ensure exact replacement.
注意
1.抵抗の単位はΩ（ｋ＝ｋΩ，Ｍ＝ＭΩ）です。
2.コンデンサの単位はμＦ（ｐ＝ｐＦ）です。
3.£マークのある部品は安全規格重要部品です。
交換するときは必ずティアック指定の部品を
使用してください。
NON FRASH
TO FPGA
uCOM SECTION
TO,FROM DIO
x2: MD2=H,MD3=L
x4: MD2=L,MD3=H
TO,FROM FPGA
D-SEL
MD1:H NORMAL
DRVRST
AMUTE IN
TO ATIO
TO DIO
TO DIO
TO ROM WRITER
FZTAT UCOM ONLY
VIN,VIN1
TO ATIO
TO DIO
AMUTE-
FROM ATIO
FROM ATIO
TO FPGA,ATIO
WRITER: PAD1=OPEN,PAD6=SHORT
NORMAL: PAD1=SHORT,PAD6=OPEN
FROM ATIO
TO FPGA
RTS XDEMP
FROM FPGA
TRIG
FROM ATIO
TO ATIO
SINGLE DMA ONLY
FROM ATIO
MCK:28.7MHz
TO FPGA,ATIO
CONVERTER PCB (1/4)
C_DONE
DATA
DCLK
NCONFIG DSAP-
RESET-
NSTATUS TREN5-
ATIORDY
ATDMARQ
ATRST
DRESET ASACK-
ATACK- MCK
A1
A2 MD0 D0 D15
A3 MD1 D1 D14
A4 FWE D2 D13
A5 D3 D12
A6 MD2
A7 D4 D11
SRCERR A8 MD3 D5 D10
DOUT-OFF A9 D6 D9
A10 D7 D8
DIR D0
ASEN D1
ATEN D2
UNLOCK D3
D4
LAT1
D5 RDWR
LAT2 D6 RAS
D7 A10
RAS A9
CASL D8 A1 A8
CASH D9 A2 A7
D10 A3 A6
RDWR D11 A4 A5
XDEMP
TRRQ5-
CASL
CASH
D0
D1
D2
D3
D4
D5
RESET- D6
D7
FWE D8
D9
MD1 D10
D11
TXD D12
D13
RXD D14
D15
A1
A2
A3
A4
ATACK-
ASACK-
ATEN
ASEN
DIR
TXD0
MCK
RXD0
CS2-
CTS CS1-
CS0-
RTS
D-SEL
DRVRST
AMUTEO WRL-
WRH-
RD-
ATINTRQ
DOUT-OFF DRESETRD- ATRST
WRH- WRL- CS1- CS0- ATINTRQ TRRQ5-
FPGACS2-
SCK1
SRCERR
TXD1
ATIORDYRXD1 DSAP-
D15 D14
ATDMARQD13
TREN5-
D12
VCC
VCC
VCC
VCC
VCC
VCCVCC VCCVCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
P801
PH7
1
2
3
4
5
6
7
D702
1SS355
1 2
D701
1SS355
1 2
U707
HD64F7044
DACK0
1
DACK1
2
VSS
3
A0
4
A1
5
A2
6
A3
7
A4
8
A5
9
A6
10
A7
11
A8
12
A9
13
A10
14
PC11
15
PC12
16
PC13
17
PC14
18
PC15
19
PB0
20
VCC
21
PB1
22
VSS
23
RAS
24
CASL
25
CASH
26
VSS
27
RDWR
28
PE13 112 PE12 111 PE11 110
VSS 109
PE10 108
PE9 107 PE8 106 PE7 105 PE6 104
VCC 103
PE5 102 VSS 101
AVCC 100
PF7 99 PF6 98
AVSS 97
PF5 96 PF4 95 PF3 94 PF2 93 PF1 92 PF0 91 VSS 90 PE4 89
DRACK1 88
DREQ1 87
DRACK0 86
DREQ0 85
IRQ4
29
IRQ5
30
IRQ6
31
IRQ7
32
VSS
33
RD
34
WDTOVF
35
WRH
36
VCC
37
WRL
38
VSS
39
CS1
40
CS0
41
IRQ3
42
IRQ2
43
CS3
44
CS2
45
IRQ1
46
TXD1
47
RXD1
48
IRQ0
49
TXD0
50
RXD0
51
D15
52
D14
53
D13
54
VSS
55
D12
56
RES 84
CK 83
PLLVSS 82
PLLCAP 81
PLLVCC 80
MD0 79
MD1 78
VCC 77
NMI 76
MD2 75
EXTAL 74
MD3 73
XTAL 72
VSS 71
D0 70
D1 69
D2 68
D3 67
D4 66
VCC 65
D5 64
D6 63
D7 62
VSS 61
D8 60
D9 59
D10 58
D11 57
R890
47K
1 2
R892 47K
1 2
R742
3K
12
R743
12K
1 2
R744
12K
1 2
R745
12K
1 2
R746
12K
1 2
R747
12K
1 2
R756 47K
1 2
C716
0.1
12
C717
0.1
12
C718
0.1
1 2
C719
0.1
12
C720
0.1
1 2
C721
0.1
1 2
C722
470p
12
C724
0.1
12
C725 0.1
1 2
R753 47K
1 2
R754 47K
1 2
R755 47K
1 2
R758
47K
1 2
R759
47K
1 2
R760
47K
1 2
R761
47K
1 2
R762
1K
1 2
P702
PH-8
1
2
3
4
5
6
7
8
TP21
PAD
1
TP22
PAD
1
TP25
PAD
1
TP26
PAD
1
TP27
PAD
1
TP28
PAD
1
TP29
PAD
1
TP30
PAD
1
R798
4.7K
1 2
R799
4.7K
1 2
R885 47K
1 2
R886 47K
1 2
R887 47K
1 2
R889 47K
1 2
R888 47K
1 2
PAD6 OPEN
1 2
R884 47K
1 2
U709
MSM5118165D-60
VCC
1
DQ1
2
DQ2
3
DQ3
4
DQ4
5
VCC
6
DQ5
7
DQ6
8
DQ7
9
DQ8
10
NC
11
NC
15
NC
16
WE
17
RAS
18
NC
19
NC
20
A0
21
A1
22
A2
23
A3
24
VCC
25
VSS 50
DQ16 49
DQ15 48
DQ14 47
DQ13 46
VSS 45
DQ12 44
DQ11 43
DQ10 42
DQ9 41
NC 40
NC 36
LCAS 35
UCAS 34
OE 33
A9 32
A8 31
A7 30
A6 29
A5 28
A4 27
VSS 26
C714
47/25V
12
C715
47/25V
12
C723
47/25V
12
R741
180
1 2
X701 7.17MHz
1
2
3
Q702
2SA1037AK
1 3
2
R740 1K
1 2
C742
1000p
12
R816 22
1 2
R813 22
1 2
R814 22
1 2
R815 22
1 2
R891
47K
1 2
R752 82
1 2
R748 47K
1 2
R810 33
1 2
R808 33
1 2
R809 33
1 2
R805 33
1 2
R806 33
1 2
R807 33
1 2
R812 33
1 2
R811 33
1 2
R880 33
1 2
R833 33
1 2
R836 33
1 2
R757 47K
1 2
R804 33
1 2
R863 33
1 2
R738 33
1 2
R739 33
1 2
TP930
TP
1
PAD1 SHORT
1 2
C745
1000p
12
5V-PLL
GND-PLL
SCK1
TXD1
RXD1
DQSY
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
LAT1
LAT2
ATDMARQ
ATIORDY
MCK
WRL-
WRH-
RD-
ATINTRQ
UNLOCK
SRCERR
DOUT-OFF
A1
A2
A3
A4
ASACK-
VCC
GND
C_DONE
DATA
DCLK
NCONFIG
NSTATUS
XDEMP
AMUTEO
D-SEL
DRVRST
RESET-
ATRST
DRESET
CS2-
CS1-
CS0-
ATACK-
DIR
TRIG
CASL-
CASH-
ASCASL-
ASCASH-
ATEN-
ASEN-
TRRQ5-
TREN5-
DMACK-
RESET-
DSAP-

86745231
E
D
C
B
A
SCHEMATIC DIAGRAM
RW-800
CONVERTER PCB (2/4) (3E9024700B)
CD Rewritable Deck
RRWW--880000
1 st Issue; June 2000
INSTRUCTIONS FOR SERVICE PERSONNEL
BEFORE RETURNING APPLIANCE TO THE CUSTOMER, MAKE LEAKAGE-
CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT.
NOTES:
1. Resistor values are in ohms (k=kilo-ohms, M=megohms).
2. Capacitor values are in microfarads (p=picofarads).
3. £Parts marked with this sign are safety critical components.
They must always be replaced with identical components-refer
to the appropriate parts list and ensure exact replacement.
注意
1.抵抗の単位はΩ（ｋ＝ｋΩ，Ｍ＝ＭΩ）です。
2.コンデンサの単位はμＦ（ｐ＝ｐＦ）です。
3.£マークのある部品は安全規格重要部品です。
交換するときは必ずティアック指定の部品を
使用してください。
FPGA SECTION
FROM DIO
TO DIO
TRRQ- TREN-
TO ATIO
MCK 28.7MHz
ATDIR
TO ATIO
FROM UCOM
FROM UCOM
FROM UCOM
FROM UCOM
FROM ATIO
MIXEN
TO ATIO
R803 NO MOUNT
LRCOUNT LRCKI
IOR-
IOW-
DMACK-
NO MOUNT
CONVERTER PCB (2/4)
TO,FROM UCOM
TO UCOM
256FS
SRCONDT
SRCOFDT
EXT1FS
EXT64FS
ADTHRU
ADOUT
SAI
O64FS
O1FS
OLRCK
OBCK
SOUT1
SOUT2
ADATA
UBITO
CLKSEL
DIR
SWR- SDIO2
SDIO3
SDIO4
SDIO5
SADD4 SDIO6
SADD3 SOE-
SADD2
SADD1
SADD0 SDIO7
SDIO0 SDIO6 SDIO7
SDIO1 SDIO5 SDIO8
SDIO2 SDIO4 SDIO9
SDIO3 SDIO10
SDIO11
SDIO12
SDIO13
SDIO14
SDIO15
BCKI
SWR-
SADD4 ASCASL-
SADD3 SOE- ASCASH-
SADD2
SADD1
SADD0 SDIO15
SDIO8 SDIO14
SDIO9 SDIO13 ASACK-
SDIO10 SDIO12 ATACK-
SDIO11 TRIG
ASEN-
ATEN-
A4
A3
A2
A1
CASL-
CASH-
CS0-
CS1-
CS2-
WRL-
WRH-
RD-
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
SDIO1 SDIO0 SAD4
D0 SAD3 D1 SAD2 D2 SAD1 D3 SAD0 D4 D5
SWR-
SOE-
D6 D7 D8
DIR
D9
SRCOFDT
D10
SRCONDT
D11 ADATA D12 SDI D13 SAI D14
UBITO
D15 CS0-
SOUT2
CS1-
SOUT1
CS2- NCONFIG
NSTATUS
WRL-
DIGOUT
WRH-
RD-
ADOUT ADTHRU 256FS O64FS O1FS
INT1FS INT64FS
EXT1FS EXT64FS CLKSEL OLRCK OBCK
VCC
VCC
VCC
VCC
3.3VVCC
VCC
3.3V
3.3V
3.3V
3.3V
3.3V
VCC
3.3V
VCC
VCC
U803
HM9264LF8L
NC
1
A12
2
A7
3
A6
4
A5
5
A4
6
A3
7
A2
8
A1
9
A0
10
IO1
11
IO2
12
IO3
13
VSS
14 IO4 15
IO5 16
IO6 17
IO7 18
IO8 19
CS1 20
A10 21
OE 22
A11 23
A9 24
A8 25
CS2 26
WE 27
VCC 28
U804
HM9264LF8L
NC
1
A12
2
A7
3
A6
4
A5
5
A4
6
A3
7
A2
8
A1
9
A0
10
IO1
11
IO2
12
IO3
13
VSS
14 IO4 15
IO5 16
IO6 17
IO7 18
IO8 19
CS1 20
A10 21
OE 22
A11 23
A9 24
A8 25
CS2 26
WE 27
VCC 28
C819
0.1
12
C820
0.1
12
C821
47/25V
1 2
R81722 1 2 R81822 1 2 R81922 1 2 R82022 1 2 R82122 1 2 R82222 1 2 R82322 1 2 R82422 1 2 R82522 1 2 R82622 1 2 R82722 1 2 R82822 1 2 R82922 1 2 R83022 1 2 R831
22 1 2 R83222 1 2
R802 33
1 2
R801 33
1 2
R865 33
1 2
R857
1K
1 2
R87247 1 2 R87147 1 2 R86847 1 2 R86747 1 2 R87047 1 2 R87347 1 2
U801
BA033FP
G
2
I
1O3
C801
0.1
12
C804
47/25V
1 2
C806
47/25V
1 2
R877 4.7K
12
R882
10K
1 2
R881
10K
1 2
R893 100
1 2
R834 33
1 2
R835 33
1 2
R896 33
1 2
R894 33
1 2
C822
1000P
1 2
R878 4.7K
1 2
R874 4.7K
1 2
R875 4.7K
1 2
R876 4.7K
1 2
R843 22
1 2
R844 22
1 2
R845 22
1 2
R846 22
1 2
R847 22
1 2
R848 22
1 2
R849 22
1 2
R850 22
1 2
R851 22
1 2
R852 22
1 2
R853 22
1 2
R856 22
1 2
R855 22
1 2
R854 22
1 2
R803 OPEN
1 2
C807
0.22
1 2
C808
0.22
1 2
C809
0.22
1 2
C810
0.22
12
C811
0.22
12
C812
0.22
12
C813
0.22
12
C814
0.22
12
C815
0.22
12
C816
0.22
12
C817
0.22
12
C818
0.22
12
R866100 1 2
U706E 74VHC04
11 10
U706F 74VHC04
13 12
R763
47
1 2
R84222 1 2 R84122 1 2 R86222 1 2 R86122 1 2 R86022 1 2 R85922 1 2 R85822 1 2 R83822 1 2 R83722 1 2 R86922 1 2
U802
EPF6024A
1
1
2
2
3
3
4
4
5
5
NCE
6
7
7
VCCINT
8
VCCIO
9
GND
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
TDI
19
20
20
21
21
22
22
23
23
INPUT
24
GND
25
VCCINT
26
VCCIO
27
INPUT
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
TMS
38
39
39
40
40
41
41
42
42
GND
43
VCCINT
44
VCCIO
45
MSEL
46
TCLK
47
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
57
57
58
58
59
59
60
60
61
61
GND
62
VCCIO
63
64
64
65
65
66
66
67
67
68
68
69
69
70
70
71
71
72
72
73
73
74
74
75
75
76
76
NCONFIG
77
GND
78
VCCIO
79
NSTATUS
80
81
81
82
82
83
83
84
84
85
85
86
86
87
87
88
88
89
89
90
90
91
91
92
92
93
93
94
94
GND
95
VCCIO
96
97
97
98
98
99
99
100
100
101
101
NCEO
102
103
103
104
104
105 105
106 106
TDO 107
108 108
109 109
GND 110
VCCINT 111
VCCIO 112
113 113
114 114
115 115
116 116
117 117
118 118
119 119
120 120
121 121
122 122
123 123
124 124
125 125
126 126
127 127
INPUT 128
GND 129
VCCINT 130
VCCIO 131
INPUT 132
133 133
134 134
INIT_DONE 135
136 136
137 137
138 138
139 139
RDYNBSY 140
141 141
142 142
143 143
CLKYSR 144
145 145
146 146
GND 147
VCCINT 148
VCCIO 149
CONFIG_DONE 150
151 151
152 152
153 153
154 154
155 155
156 156
157 157 158 158
NCS 159
160 160 161 161
CS 162
163 163 164 164
GND 165
VCCIO 166
167 167 168 168
NWS 169
170 170 171 171 172 172 173 173
NRS 174
175 175 176 176 177 177
DEV_OE 178
179 179 180 180
DATA 181
GND 182
183 183
DCLK 184
185 185 186 186
DEV_CLRN 187
188 188 189 189 190 190 191 191 192 192 193 193 194 194 195 195 196 196 197 197 198 198
GND 199
200 200 201 201 202 202 203 203 204 204 205 205 206 206 207 207 208 208
TP802
TP
1
2
3
4
5
6
7
VCC
GND
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
CS0-
CS1-
CS2-
WRL-
WRH-
RD-
ATEN-
ASEN-
A1
A2
A3
A4
ASACK-
ATACK-
TRIG
RESET-
DMACK-
IOW-
IOR-
MCK
O64FS
O1FS
OLRCK
256FS
SRCONDT
UBITO
NCONFIG
NSTATUS
DATA
DCLK
SRCOFDT
EXT1FS
EXT64FS
OBCK
ADTHRU
ADOUT
SOUT1
SOUT2
TREN-
TRRQ-
C_DONE
ATDIR
CASL-
CASH-
DIR
CLKSEL
SAI
ASCASL-
ASCASH-
DIGOUT

86745231
E
D
C
B
A
SCHEMATIC DIAGRAM
RW-800
CONVERTER PCB (3/4) (3E9024700B)
CD Rewritable Deck
RRWW--880000
1 st Issue; June 2000
INSTRUCTIONS FOR SERVICE PERSONNEL
BEFORE RETURNING APPLIANCE TO THE CUSTOMER, MAKE LEAKAGE-
CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT.
NOTES:
1. Resistor values are in ohms (k=kilo-ohms, M=megohms).
2. Capacitor values are in microfarads (p=picofarads).
3. £Parts marked with this sign are safety critical components.
They must always be replaced with identical components-refer
to the appropriate parts list and ensure exact replacement.
注意
1.抵抗の単位はΩ（ｋ＝ｋΩ，Ｍ＝ＭΩ）です。
2.コンデンサの単位はμＦ（ｐ＝ｐＦ）です。
3.£マークのある部品は安全規格重要部品です。
交換するときは必ずティアック指定の部品を
使用してください。
CSEL
GND(SW)
TO ALL SECTION
TO UCOM
P701:LK-440642H-S1D10-2
TO DIO
5V(SW)
CONVERTER PCB (3/4)
TO UCOM
(5IN1 TYPE CONNECTOR)
ATIO SECTION
FROM FPGA
TO UCOM
FROM FPGA,UCOM
DRIVE ATAPI
I/F
CD-RW DRIVE UNIT
5V(SW)
GND(5V)
GND(12V)
12V(SW)
FROM UCOM
FROM FPGA
FROM UCOM
HCS0-
INTRQ
D14
ATIO3 D3
ATIO5
HCS1-
TRRQ-
ATIO1
ATIO11
D4
ATIO7
D5
ATIORDY
CLKSEL
UBIT
HA1
IORDY
CS1-
ATIO14
ATIO9
UBDA
HCS1-
DMARQ
DDMACK-
ATIO8
INTRQ
CLKSEL
D0
ATDIR
HA0
ATIO0
ATIO5
A2
IIOW-
IIOR-
IIOW-
ATIO11
ATIO10
HA1
DDMACK-
ATIO3
ATIO6
DMACK-
IOR-
ATRST
HCS0-
IORDY
ATIO15
ATIO10
ATIO4
D8
ATIO7
TREN-
CS0-
DSAP-
HA2
ATIO12
D10
ATIO9 D9
ATIO8
ATIO1
D6
TRRQ-
IIOR-
D7
HA2 A3
HA0
ATINTRQ
TREN-
DMARQ
ATIO2
D11
ATIO2
ATDMARQ
A1
ATIO13
D1
ATRESET-
IOW-
ATIO13
D13
ATIO12 D12
ATRESET-
ATIO0
D2
UBIT
ATIO15 D15
ATIO14
ATIO4
ATIO6
CASSIS3
VCC VCC
VCC
VCC
VCC
CASSIS2 CASSIS4
VCC
VCC
VCC
VCC
VCC
VCC
P701C
5IN1_3
1
2
3
4
5
6
P701E
5IN1_5
1
2
3
4
U706B 74VHC04
3 4
R727 33
1 2
R722 22
1 2
U706A 74VHC04
1 2
C713
1000p
12
R723 82
1 2
C709
0.1
1 2
R735
1K
1 2
R731 47K
1 2
R715 33
1 2
R709 33
1 2
R729 33
1 2
P701B
5IN1_2
1
2
3
4
U704
74VHCT245
A1
2B1 18
A2
3B2 17
A3
4B3 16
A4
5B4 15
A5
6B5 14
A6
7B6 13
A7
8B7 12
A8
9B8 11
G
19
DIR
1
R703 33
1 2
R712 33
1 2
R706 33
1 2
R701 33
1 2
U702
74VHCT541
A1 2 Y1
18
A2 3 Y2
17
A3 4 Y3
16
A4 5 Y4
15
A5 6 Y5
14
A6 7 Y6
13
A7 8 Y7
12
A8 9 Y8
11
G1 1
G2 19
R719 22
1 2
R728 33
1 2
R725 33
1 2
C710
0.1
1 2
R736
1K
1 2
R750
10K
1 2
C706
0.1
1 2
R732 47K
1 2
R737 33
1 2
P701D
5IN1_4
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
R713 33
1 2
R707 33
1 2
R716 33
1 2
U703
74VHCT541
A1
2Y1 18
A2
3Y2 17
A3
4Y3 16
A4
5Y4 15
A5
6Y5 14
A6
7Y6 13
A7
8Y7 12
A8
9Y8 11
G1
1
G2
19
U705
74VHCT245
A1
2B1 18
A2
3B2 17
A3
4B3 16
A4
5B4 15
A5
6B5 14
A6
7B6 13
A7
8B7 12
A8
9B8 11
G
19
DIR
1
C711
1000p
12
C705
47/25V
1 2
R710 33
1 2
R704 33
1 2
R718 82
1 2
R751
5.6K
1 2
C707
0.1
1 2
R720 22
1 2
R733 47K
1 2
R726 33
1 2
R724 33
1 2
U706D 74VHC04
9 8
R749
1K
1 2
P701A
5IN1_1 1
2
C712
1000p
12
R717 33
1 2
R721 82
1 2
Q701
DTC124EUA
3
2
1
U706C
74VHC04
5 6
C708
0.1
1 2
R734
47K
1 2
R711 33
1 2
R705 33
1 2
R714 33
1 2
R708 33
1 2
R730
4.7K
1 2
R702 33
1 2
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
2
3
4
1
2
3
4
5
6
1
2
3
4
1
2
C701
100/16V
12
5V-PLL
A2
D2
GND
RESET-
DMACK-
D4
ATDMARQ
D6
ATINTRQ
TRRQ5-
D8
TRRQ-
D10
VCC
ATDIR
CLKSEL
UBDA
D12
D14
CS1-
A1
D1
DRVRST
FROM UCOM
GND-PLL
A3
D3
IOR-
D5
DSAP-
ATIORDY
D7
TREN-
D9
ATRST
IOW-
CLKSEL5
TREN5-
D11
UBITO
D13
D15
CS0-
D0

86745231
E
D
C
B
A
SCHEMATIC DIAGRAM
RW-800
CONVERTER PCB (4/4) (3E9024700B)
CD Rewritable Deck
RRWW--880000
1 st Issue; June 2000
INSTRUCTIONS FOR SERVICE PERSONNEL
BEFORE RETURNING APPLIANCE TO THE CUSTOMER, MAKE LEAKAGE-
CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT.
NOTES:
1. Resistor values are in ohms (k=kilo-ohms, M=megohms).
2. Capacitor values are in microfarads (p=picofarads).
3. £Parts marked with this sign are safety critical components.
They must always be replaced with identical components-refer
to the appropriate parts list and ensure exact replacement.
注意
1.抵抗の単位はΩ（ｋ＝ｋΩ，Ｍ＝ＭΩ）です。
2.コンデンサの単位はμＦ（ｐ＝ｐＦ）です。
3.£マークのある部品は安全規格重要部品です。
交換するときは必ずティアック指定の部品を
使用してください。
DIO SECTION
Settling time
H:800m,L:200m
TO UCOM
TO FPGA
TO FPGA
TO,FROM UCOM
LRCK
BCK
MCLK
DATAI
DATAO
AMUTE
DRESET
GND
MASTER 256FS
DIN 256FS
D-SEL
GND
XDEMP
TO FPGA
FROM UCOM
TO,FROM FPGA
THROUGH OUT
FROM UCOM
FROM ATIO
FROM ATIO
BCK
LRCK
FROM ATIO
+5V
GND
RXOPT
RXCOAX
PLL UNLOCK REF
SPDIF OUT
D-IN LRCK
D-IN BCK
D-IN DATA(SRC OFF)
TO FPGA
SPDIF OUT
A/D DATA
MAEZUME
1/4 MASTER 256FS
AUDIO MASTER CLK
FROM UCOM
1/256 MASTER CLK
TO SPDIF OUT
DATA for SPDIF
DATA for D/A
BCK COMMON
LRCK COMMON
MAEZUME
CONVERTER PCB (4/4)
D-IN DATA (SRC ON)
Sample Rate Converter
Digital Audio I/F
Receiver
TX
DIGITAL AIUDIO I/F
(SPDIF) TRASMITTER
256FS
UNLOCK
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
U710
74VHCT541
A1
2Y1 18
A2
3Y2 17
A3
4Y3 16
A4
5Y4 15
A5
6Y5 14
A6
7Y6 13
A7
8Y7 12
A8
9Y8 11
G1
1
G2
19
U713A
74VHC74
D2 Q
5
CLK 3
Q
6
PR 4
CL
1
U715
TC9271
BLOCK
1
UBDA
2
IRS
3
LRCK
4
BCK
5
DATA1
6
DATA2
7
DEM
8
COPY
9
F0
10
F1
11
CKS
12
XI
13
VSS
14 DO1 15
DO2 16
M1 17
M2 18
IS1 19
IS2 20
CTG1 21
CTG2 22
CTG3 23
FR32 24
LBIT 25
CKA1 26
CKA2 27
VDD 28
U716D
74HC02
11
12
13
U716A
74HC02
2
3
1
U716B
74HC02
5
6
4
U716C
74HC02
8
9
10
C727 0.1
1 2
C728
0.1
1 2
C730
0.1
12
C731
0.1
1 2
C732
0.01
12
C733
0.1
1 2
C737
15p
12
C738
15p
12
C741
0.1
1 2
R764 22
1 2
R765
330K
1 2
R769
5.1K
1 2
R771
24K
1 2
R772
150
12
X702
16MHz
1 2
R789
47K
1 2
R791
47K
1 2
R792
47K
1 2
U713B
74VHC74
D12 Q
9
CLK 11
Q
8
PR 10
CL
13
R793 22
1 2
P704
PH-10
1
2
3
4
5
6
7
8
9
10
C729
47/25V
12
C739
47/25V
12
C734
47/25V
12
R788 22
1 2
R787 22
1 2
R785
100
1 2
R786
100
1 2
R895 47
1 2
R782 47
1 2
R781 47
1 2
R773 47
1 2
R774 47
1 2
R775 47
1 2
R783 47
1 2
R897 47
1 2
R797 47
1 2
R780 47
1 2
R779 47
1 2
R777 47
1 2
R778 47
1 2
R776 47
1 2
R864
10K
1 2
C743 1000p
1 2
R795 1K
1 2
R796
1K
1 2
C744
1000p
1 2
R768 22
1 2
P703
PH-6
1
2
3
4
5
6
X703
11.2896MHz
MIN85A-T
E/D
1
VSS
2OUT 3
VDD 4
R794 100
1 2
R767 75
1 2
C747
15p
12
U712
LC8905V
DIN1
1
DIN2
2
E/D_OUT
3
VDD
4
R
5
VIN
6
VCO
7
GND
8
CK_SEL
9
XMODE
10
AVOCK
11
TST1
12 TST2 13
SCLK/CL 14
XLAT/CE 15
SWDT/DI 16
SRDT/DO 17
DQSY/LD 18
CK_OUT 19
FS128 20
BCK 21
LRCK 22
DATA_OUT 23
ERROR 24
R766 75
1 2
PAD5
SHORT
1 2
C735
0.1
12
R770
5.1K
1 2
R790 47
1 2
C740
0.1
12
C736
0.1
12
R784
47K
1 2
U714
AD1893
N/C 44
DATA_I 43
XTAL_I 42
N/C 41
XTAL_O 40
N/C 39
N/C
1
WCLK_I
3
LR_I
4
N/C
5
VDD
6
GND
7
N/C
8
BKPOL_I
9
MODE0_I
10
N/C
11
N/C
12
MODE1_I
13
RESET
14
N/C
15
GND
16
N/C
17
MUTE_I
18
N/C
19
MUTE_O
20
MODE1_O
21
N/C
22
N/C 23
MODE0_O 24
BKPOL_O 25
N/C 26
GND 27
VDD 28
N/C 29
DATA_O 30
LR_O 31
WCLK_O 32
N/C 33
SETLSLW 38
N/C 37
PWRDWN 36
BCLK_O 35
N/C 34
BLCK_I
2
256FS
RESET-
TXD1
RXD1
SCK1
LAT1
LAT2
DQSY
SRCERR
UNLOCK
DOUT-OFF
VCC
GND
AMUTEO
XDEMP
ADOUT
SRCONDT
DRESET
EXT1FS
D-SEL
UBDA
ADTHRU
EXT64FS
SRCOFDT
SAI
SOUT2
SOUT1
CLKSEL5
O1FS
OLRCK
O64FS
OBCK
DIGOUT
