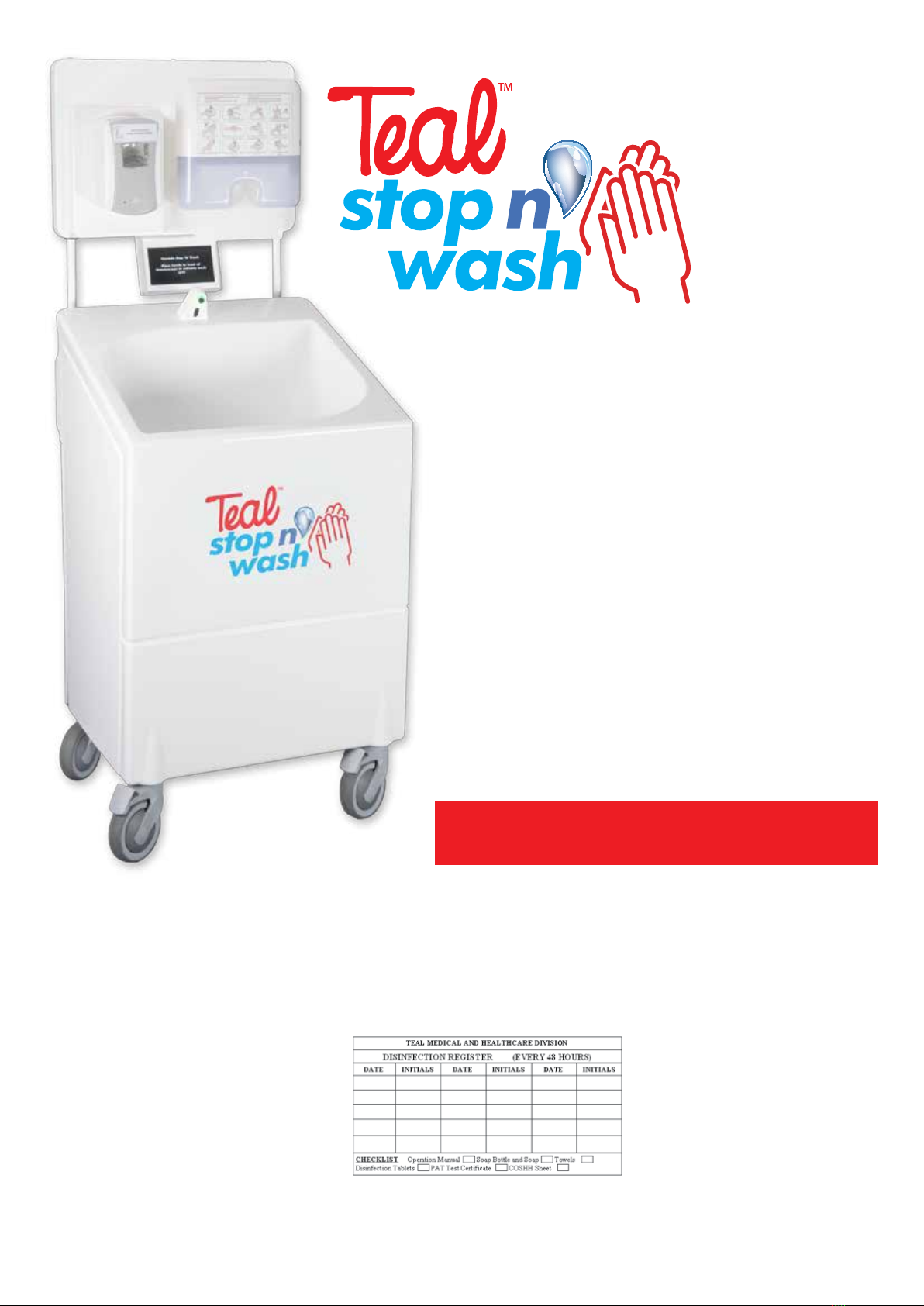

Teal TSNW230 User manual

Standard operating
procedures for the
TEAL Stop n’Wash
TSNW230
TEAL Medical and Healthcare Division
Unit 2, Waterloo Avenue
Chelmsley Wood Industrial Estate,
Birmingham B37 6QQ, United Kingdom
Tel: [phone].
Email: [email protected]
www.tealwash.com
The
best hot
water hand
wash in the
world

Page 2
This appliance can be used by:-
• children aged from eight years and above
• persons with reduced physical, sensory or
mental capabilities
• persons with lack of experience and knowledge
if they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made
by children without supervision.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualied persons, in order to avoid a hazard.
Safety Instructions
Your TEAL hand wash pack contents
• 1 x TEAL Stop n’Wash
• 1 x Tube of 1.8g Haz-Tabs chlorine tablets (sucient for
one week disinfection)
• 1 x PAT Test certicate attached to body of unit
• 1 x COSHH Sheet for Haz-Tabs chlorine
tablets
Your TEAL Stop n’Wash has been disinfected
both internally and externally before being
labelled and packed in box.
Fit your own liquid soap and paper
towel dispensers
The TEAL Stop n’Wash Backboard is made to take all types of
liquid soap and paper towel dispensers.
These can be attached by means of their adhesive backing or
screen xings (screws and Velcro supplied).
Customer Responsibility
DAILY disinfection and clean is VITAL to ensure that your TEAL
Stop n’Wash delivers the highest quality wash possible.
Please refer to pages 6 & 7 “Cleaning
and Maintenance” for full details.
To enable you to record your
disinfection routine please sign and
date the disinfection register at rear
of the Stop n’Wash (left).
The Hand Wash unit is rated at 230VAC 13 amps. Please ensure
that your electrical supply is rated accordingly.
IMPORTANT Please retain all packaging to re-use
for collection at the end of the hire period.

Page 3
Index
Getting to know your TEAL Stop n’Wash Page 3/4
How to set up your TEAL Stop n’Wash Page 6
Operation: How to wash hands eectively Page 7
Cleaning and Maintenance Page 8/9
TEAL Medical and Healthcare Division Page 10
Backboard (3)
7 Steps handwashing sticker, supplied to
stick on your own towel dispenser (1)
Soap dispenser (not supplied, t your
own) (5)
7 Steps hand washing video (14)
Greensensor® (2)
Towel dispenser (not supplied, t your
own) (4)
Medical standard wheels. 2 x lockable at
front and 2 x rear, free run wheels (3)

Page 4

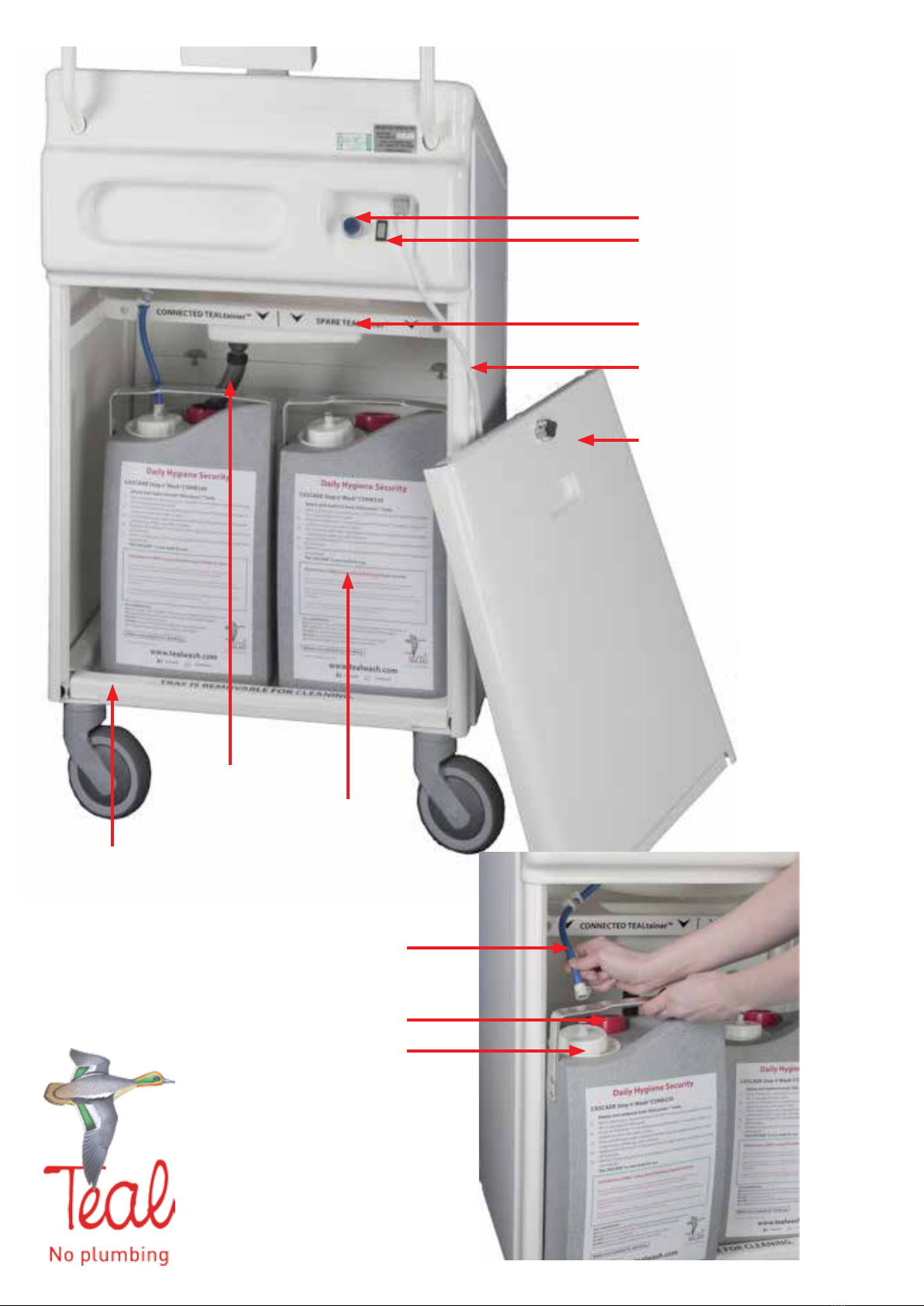

Blue purge button (11)
Waste pipe (13)
On/o Switch (12)
Removable drip tray (9)
Power cable (17)
Removable back panel (10)
2x Twinbag
TEALtainers (6)
Removable Tray (7)
Fresh water pick up pipe (8)
Waste water red cap (16)
Fresh water white cap (15)

Page 6
Stop n’Wash provides hands free hot water hand wash
without the need for external plumbing or drainage.
It’s entirely self-contained with both the fresh and the
wastewater contained in the twin bag TEALtainer II™.
Each heavy-duty polyethylene bag holds 10 litres of water.
When the fresh water is used up, the waste bag is full. The
TEAL Stop n’Wash provides up to 40 complete wash cycles
per lling of the Twin Bag TEALtainer II™.
Please note: The TEAL Stop n’Wash is fully automatic
in operation. There is nothing to adjust. Both the water
temperature of approximately 40°C and the wash programme
are factory set.
Unpacking
Check for any damage and retain the packaging.
Notify TEAL immediately if any damage is discovered.
Set up
• Fit your own liquid soap dispenser (5) on the backboard
(3) and put soap in
• Fit your own paper towel dispenser (4) on the backboard
(3) and ll up with towel and put 7 steps handwashing
sticker on the towel dispenser (1).
• Disconnect the Twin Bag TEALtainer II™ (6) from the fresh
water pick up pipe (8) and remove from unit.
• Unscrew the white cap (15) and ll the fresh water bag
from the cold tap to just below the ller cap.
• Ret the white cap (15).
• Return the Twin Bag TEALtainer II™ to left hand side
of tray into the TEAL Stop n’Wash and place on the
removable tray (7) Reconnect the fresh water delivery
pipe (8) and make sure that the waste pipe (13) is
inserted into the red waste cap hole.
• Fit the 13-amp plug into a suitable 230v mains socket
outlet and switch the unit on by means of the ON/OFF
switch (12) located on the rear of the unit.
• The unit will automatically operate a 10 second cold-
water purge and on the completion of the purge cycle
the Greensensor ready light will come on (2).
The TEAL Stop n’Wash is now ready for use.
How to set up your TEAL Stop n’Wash
DAILY cleaning instructions
Before any maintenance, turn o with the switch at rear of
unit (12), disconnect your TEAL Stop n’Wash from the power
supply by removing the 13-amp plug from the socket.
Disconnect the TEALtainer™ in use (8) and empty both
TEALtainers™ (6) completely – dispose of contents to a foul
water drain or sluice.
Flush out both wastewater compartments (Red Cap) (16) and
replenish both fresh water compartments (White Cap) (15)
with cold water.
Replace both TEALtainers™ in the base of the TEAL Stop
n’Wash and reconnect the one on the left hand side.
Replace plug; switch on at back panel (12). A 10 second cold-
water purge runs automatically.
The TEAL Stop n’Wash is now ready for use.
Cleaning and maintenance DAILY
DAILY disinfection using the following simple routine
Remove both TEALtainers™ (6) and empty completely.
Rell the fresh water compartments and add suitable
chlorine disinfection tablet to each and create a solution
of 500ppm.
Reconnect the TEALtainer™ and use the Blue Purge Button
(11) to run the decontamination programme.
This will run automatically for 5 min. Ensure that both
TEALtainers™ (6) are decontaminated in your maintenance
programme.
Empty the TEALtainers™ and rinse thoroughly with fresh
water. Rell fresh water compartments, reconnect left
TEALtainer™ and your TEAL Stop n’Wash is ready for use.
The TEAL Stop n’Wash is now ready for use.
1. The left side TEALtainer™ is in use and the right
TEALtainer™ is the spare water container.
2. When the left side TEALtainer™ ‘s fresh water is empty
and the waste water full, replace immediately with right
side TEALtainer that contains fresh water to ensure the
TEAL Stop n’Wash operates without disruption.
3. Empty the TEALtainer waste water into the main drain
or sluice and rell with fresh water in white cap and
put back into unit on the right side, ready to replace
immediately when the left hand TEALtainer™ is full.
Each TEALtainer™ contains up to 40 hot washes per lling.
These instructions can be seen on the Tealtainer II™

Page 7
Replacement of TEALtainer™ bags
Replacement waste and fresh water bags can be purchased
only from TEAL. Do not use any substitutes
Waste bag; WB sold in pairs.
Fresh water bag assembly: FB complete with white collar.
To replace the fresh water bag
1. Disconnect the unit, remove the TEALtainer™ and
dispose of all the water to a sluice or foul water drain.
2. Pull on the white cap and ease the bag through the
opening.
3. Then unscrew the cap making sure that the dip pipe
and lter are protected from any contamination.
4. To ret new bag reverse the procedure.
To replace the waste water bag
5. Remove the fresh water bag as above.
6. Unscrew the red cap and push the bag back into the
TEALtainer™.
7. Pull the waste bag out through the larger fresh water
opening.
8. For retting, reserve this procedure.
Storage
Before returning to TEAL or placing in storage: -
9. Operate the purge button until water ow stops and
press purge button to stop running.
10. Empty the TEALtainer™ completely, clean and wipe
down.
11. Carry out disinfection routine.
12. Ensure that the unit is kept free from frost
Cleaning and maintenance (continued)
TEAL design and manufacture some of the most innovative
yet dependable mobile and portable hand washing solutions
currently available for the medical and healthcare sector.
Our extensive range of mobile sinks and basins are proving to
be the eective, cost-eective and environmentally friendly
way of delivering hand hygiene wherever and whenever it’s
required – without the need for complicated and expensive
plumbing
TEAL hand wash units are ideal for
• Emergency clinics
• Acute settings
• Primary Care Trusts
• Mental Health Trusts
• Prisons
• Pharmacies
• Therapists
The TEAL Medical and Healthcare Range – see them at
www.washyourhands.co.uk
TEAL Medical and Healthcare Division
Pro-Wash Super Stallette Hygienius Patientwash Big Synk
TEAL support Monday-Friday 8-5 (Fri 1pm)
Helpline 0121 770 0593
TEAL Patents Ltd, Unit 2 Waterloo Avenue
Chelmsley Wood Industrial Estate, Birmingham B37 6QQ
Tel: [phone]. Fax: [phone]
Email: [email protected] www.tealwash.com
