Team C TC02C User manual

Length
Width
Height
Dimensions
1:10 SCALE 2WD ELECTRIC COMPETITION BUGGY
All manuals and user guides at all-guides.com
all-guides.com

Notice
This manual is written in english language only. If you need a manual in your language please visit our
website or contact your distributor!
Diese Anleitung wurde in englischer Sprache verfasst. Sollten sie eine Anleitung in ihrer Sprache
benötigen, besuchen sie unsere website oder konaktieren sie ihren Vertriebsagenten.
Questo manuale è stato scritto in inglese. Se avete bisogno del manuale nella tua lingua, si prega di
visitare il nostro sito web o contattate il proprio distributore.
Este manual está escrito en Inglés. Si necesita el manual en su idioma, por favor visite nuestro sitio
web o contacte con su distribuidor.
Ce manuel est écrit en langue anglaise. Si vous avez besoin d'un manuel dans votre langue
s'il vous plaît visitez notre site web ou contactez votre distributeur!
Deze handleiding is geschreven in het Engels taal beschikbaar. Als u een handleiding in uw eigen
taal kunt u terecht op onze website of neem contact op met uw distributeur!
Thank you for purchasing this TC02C Competition Buggy by Team C. This manual shows instructions
and tips to built and maintain your TC02C. Please take some time to read through to get familiar with
the shown steps.
We continually improve our products, due to that, actual parts my be different to the illustrations.
Please check our website for the latest versions manuals and tips before you start to built this model.
Generall Information
THIS IS NOT A TOY!
Not suitable for children under 14 years of age without adult supervision.
This is a high performance vehicle, for safety reason don’t run on public streets, in crowded areas,
environmentally areas or near children or animals.
This model contains rotationg parts and parts which become hot during operation. Care must been
taken to avoid damage or injuries.
This product may require some assembly and routine maintance.
This product is covered by warranty based on material defectives. Crash damage or maintenance
failures are not covered under warranty.
Batteries should be used in good condition only, and need to be fully charged.
Nitro models should be driven outside of buildings only. Inhaling exhaust gases could cause health
damage.
Keep chemicals stored out of the range of small children.
Make sure your model and equipment is in perfect condition before you use it, to ensure savety
and fun while driving.
All manuals and user guides at all-guides.com

',*,7$/
3523257,21$/
5$',2&21752/
6<67(0
',*,7$/
3523257,21$/
5$',2&21752/
6<67(0

ᔶީ
Transmitter Preparation
27MHzTransmitter Crystal δTXε
Transmitter crystal(TX)
Power Switch
ON
OFF
Antenna
Extend the antenna to the maximum
Length for best performance
The crystal can be replaced to change frequencies.
Note : You must also change receiver crystals!
Do not use AM crystals
Receiver crystal(RX)
Steering Trim
To be used for trimming the steering
operation
Throttle Trim
Steering Dual Rate
To be used to adjust steering servo throw
AA Alkaling Batteries
8X
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
Transmitter Battery Installation
This switch is used for optional parts.
3ch Switch
Reverse Switch
Low Batteries(Light Blinks)
Good Batteries
Battery Level Indicator
Left turn Straight (neutral)
Right turn
Brake
Forward Stop(Neutral)
To be used for throttle operation
Throttle Trigger
Battery Cover
Servo Factory Settings
1
1
2
3
2
To be used for trimming the throttle
operation
3
4
4
All manuals and user guides at all-guides.com

Transmitter Preparation

Battery
A new Ni-MH battery must be charged before it is used.Refer to the charger instruction manual for charging.
Set up the radio control system as indicated below
6
5
8
Servo
Receiver
Transmitter
10
4
Switch
7
9
Electronic Speed
Controller
Motor
',*,7$/
3523257,21$/
5$',2&21752/
6<67(0
11
2
ON
OFF
6
10
ON
OFF
5
8
1
3
Tools required
Needie Nose Pllers Awl Grease Screw Cement
Instant Glue
Hex Wrench
Differential Grease
Molybdenum Grease(Black)
Hex Wrench
Body Reamer
No need to pre-drill precise holes
(1mm to 15mm)can be drilled
Wire Cutters
Sharp Hobby knife
ROUND CUTTER
For trimming bodies!
Start
Finish
Install batteries.(Transmitter)
Extend the antenna.(Transmitter)
Connect the battery
Extend the antenna.(Reveiver)
Center the trims.
Switch on.(Transmitter)
Switch on.(Reveiver)
Make sure the servos are in command.
Switch off.(Reveiver)
Switch off.(Transmitter)
Retract the antenna(Transmitter)
1
8
7
2
5
3
4
6
9
10
11
H154
H162
H096
All manuals and user guides at all-guides.com

Front Suspension
1
T02056 3x34.5 Hinge pin
front inner
………………………4
………………………2
T02056 2.3 E-ring
…………4
T02083 M3x15 Screw
T02092 Ball stud-Long
…………………2
T02016
T02014
T02037
T02056
T02083(M3x15)
T02092
T02008
T02026
T02016
T02056
T02015
Assemble both Left and Right
㓺㻻ᐜૂ
Assemble both Left and Right
Front Suspension
1
LR LR
LR LR
2
All manuals and user guides at all-guides.com

PP
T02043 4.0 E-ring
……………………1
……………………4
T02080 3x6x2.5 Ball Bearing
T02044 4.5x5.4 Block Carrier
T02044 M3x10 Screw
…………………………2
……………2
T02093 Ball stud-Short
…………………2
T02061 Ball stud-Silvery
……………………1
……………………2
T02044 3x7x0.8 Washer
T02043
T02043
T02043
T02043
T02043
T02080
T02080
T02061
T02080
T02080
T02023
T02023
T02023
T02044
T02044
T02093
T02024
Buffer
Buffer
㕉ߨ
2
T02044(M3x10)
3
4
All manuals and user guides at all-guides.com
all-guides.com

3
……………8
T02054 2.3 E-ring T02093 Ball stud - short
……………4
…………2
T02100 5x10x4 ball bearing
…………4
T02054 3x27.5 Hinge pin front outer
…………4
T02042 2x9.8 Shaft
…………2
T02042 4.0 E-ring
T02093
T02093
T02100
T02054
T02054
T02042
T02054
T02054
T02042
T02011 T02012
T02034
T02082(3x10)
T02019
T02082 M3x10 Screw
……………2
Front Suspension
Front Suspension
Assemble both Left and RightAssemble both Left and Right
5
6
LR LR
LR LR
All manuals and user guides at all-guides.com

Front Upper(Right)
Front Upper (Left)
Steering Tip
T02029 4.8mm Ball End(Long) T02091 3x54 Turnbuckle
…………8 ……4
4
Front Suspension
Front Suspension
……4
T02082 M3x10 Screw
……2
T02082 M3x22 Screw T02063 5mm Ball stud
………………2
T02063
T02082(M3x10)
T02020
T02082(M3x22)

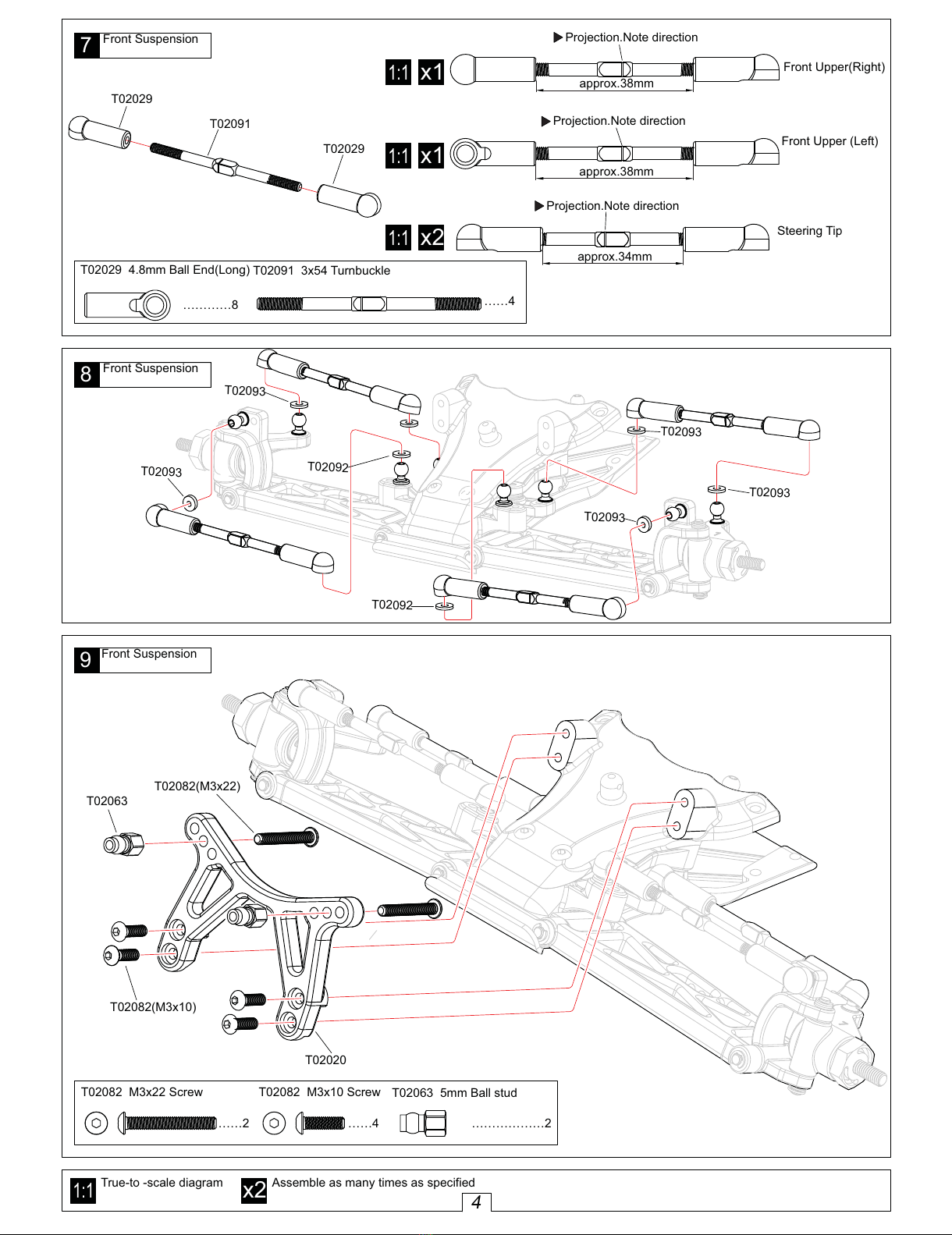

True-to -scale diagram Assemble as many times as specified
Front Suspension
T02091
T02029
T02029
approx.38mm
approx.38mm
approx.34mm
Projection.Note direction
Projection.Note direction
Projection.Note direction
T02093
T02093 T02092
T02092
T02093
T02093
T02093
7
9
1:1 x1
1:1 x1
1:1 x2
8
1:1 x2
All manuals and user guides at all-guides.com

5
Differential
Transmission
T02007 M2.5x25 Screw
……1
T02048 2.37mm Ball
………………12
T02098 5x8x2.5 ball bearing
T02007 M2.5 Nylon Nut
……………………………2
……………1
T02099 10x15x4 ball bearing
……………………2
T02049 17x23x1 Washer
……2
T02007(2.5x25)
T02098(5x8x2.5)
T02099(10x15x4)
T02099(10x15x4) T02007
T02007(M2.5)
T02047
T02046
T02046
T02098(5x8x2.5)
T02049(17x23x1)
T02049(17x23x1)
T02048(2.37)
T02004
T02050(2.6x6x3)
T02100 5x10x4 Contain oil
………………6
T02051 5x16.8 Idler gear shaft
T02041 5x8 Top shaft spacer
…………1
……………1
ball bearing
………1
T02082 M3x12 Screw
T02082(M3x12)
T02100(5x10x4)
T02100(5x10x4)
T02100(5x10x4)
T02052
T02041
T02051
T02003
Apply grease
T02207
T02207
10
11
All manuals and user guides at all-guides.com

6
…………4
T02082 M3x12 Screw
0[㷰ѓ
……3
T02082 M3x27 Screw
0[㷰ѓ
……………1
T02082 M3x10 Screw
0[㷰ѓ
T02082(M3x12)
T02082(M3x10)
T02213(M3x27)
Apply threadlocker(screw cement)
ᢉ㷰ѓ㜬≪
ᓋⴎ

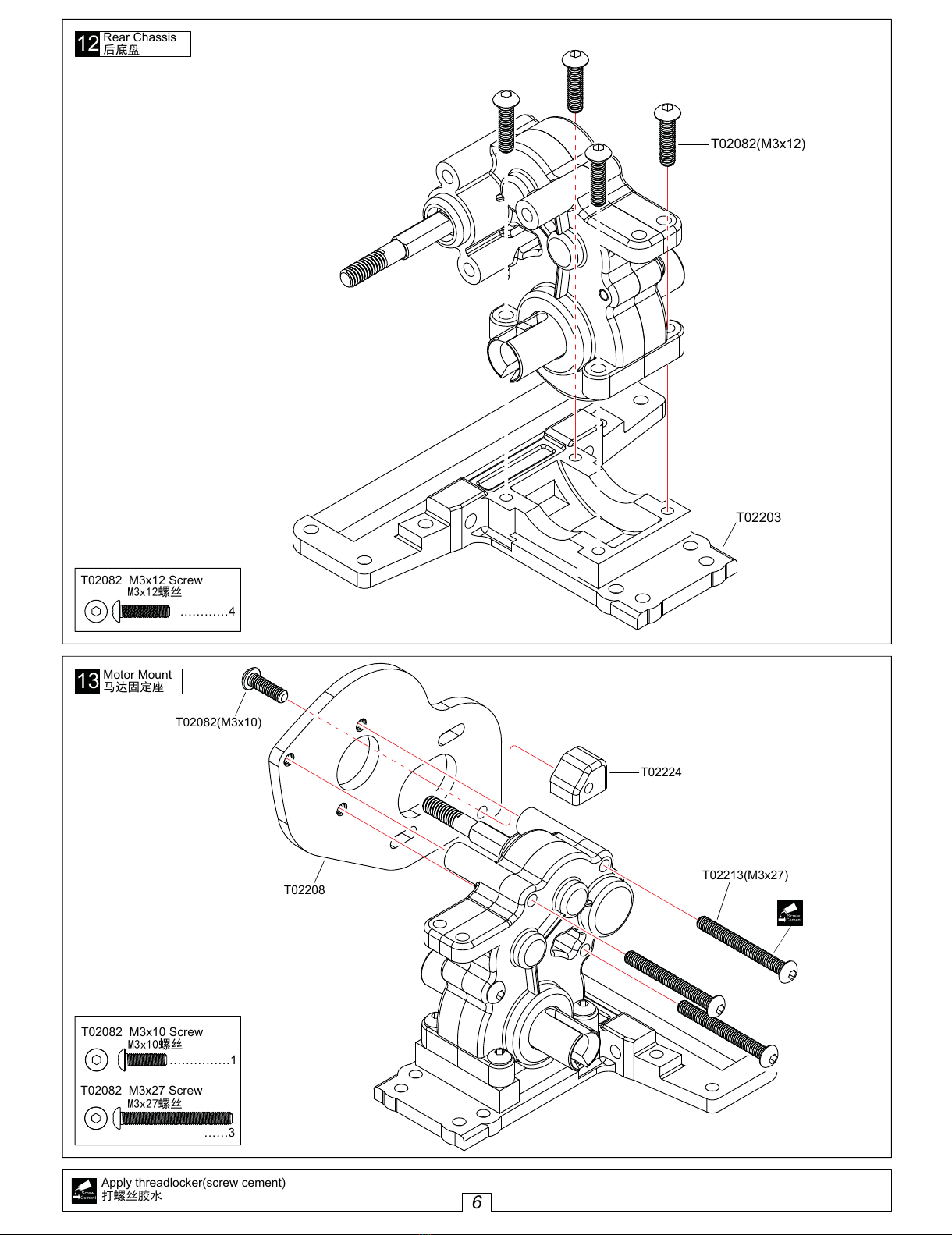

Rear Chassis
Motor Mount
傢䗴രᇐᓝ
T02203
T02208
T02224
12
13
Screw
Cement
Screw
Cement
All manuals and user guides at all-guides.com

Screw
Cement
T02211 5x7 Top shaft spacer
……………………1
7
Apply threadlock
T02084 M4 Flanged Nylon Nut
………………1
18
T02081 3x7x0.8 Washer
T02083 M3x8 Screw
T02053 M3x3 Screw
……………………2
……………2
……………………1
………………2
T02083 M3x8 Screw
T02213 M3x14 Screw
…………2
…………………2
T02055 3x48 Hinge pin Rear inner
……2
T02092 Ball stud-Long
T02213(M3x14)
T02083(M3x8)
T02055
T02092
T02017
T02053(M3x3)
T02083(M3x8)
T02081(3x7x0.8) T02053
Tighten the screws with one sheet of paper
inserted between both gears.
Assemble both Left and RightAssemble both Left and Right
Spur Gear
T02001
T02038T02038
T02038
T02039
T02039
T02040
T02084
MotorMotor
Motor
Rear Suspension
T02204
T02211
Must be purchased separatelyMust be purchased separately
LR LR
LR LR
14
15
16
X
XX
Screw
Cement
All manuals and user guides at all-guides.com
all-guides.com

8
<Right>
T02093 Ball stud-short
…………………2
T02034 2x9.8 Shaft
T02100 5x10x4 ball bearing
……………4
…………………2
T02058
T02100
T02100
T02034
T02034
T02093
T02013
<Left>
…2
T02082 M3x22 Screw
……………2
T02082 M3x12 Screw
………………2
T02082 M3x10 Screw
T02082(M3x10)
T02082(M3x10)
T02082(M3x12)
T02082(M3x12)
T02082(M3x22)
T02082(M3x22)
T02063
T02063 T02025
………………6
T02082 M3x10 Screw
T02082(M3x10)
T02082(M3x10)
Assemble both Left and Right
㓺㻻ᐜૂ
Assemble both Left and Right
Rear Shock Tower
Rear Suspension
Rear Suspension
T02205
LR LR
LR LR
17
18
19
All manuals and user guides at all-guides.com

approx.35mm
Right Upper
T02091 T02029
T02029
T02029 4.8mm Ball End(Long)
T02091 3x54 Turnbuckle
…………4
…………2
9
T02057 3x30.5 Hinge pin Rear outer
…………4
…………2
T02057 2.3 E-ring
T02013 3.1x6x1 Plastic Washer
………………………2
T02013
T02057
T02057
T02057
True-to -scale diagram Assemble as many times as specifiedAssemble both Left and RightAssemble both Left and Right
Rear Suspension
Rear Suspension
Rear Suspension
Projection.Note direction
T02092
T02092
T02093
T02093
1:1 x2
LR LR
1:1 x2
LR LR
20
21
22
All manuals and user guides at all-guides.com

Silicone Oil-200#
Front-Short Rear-Short
……………………4
………………………8
T02064/T02065 2.3 E-ring
T02096 Shock Piston
………………4
T02097 2.8x1.9 O-ring
…………………8
T02097 3.1x1 Plastic Washer
T02062 5.8x6 Ball stud
T02031 5.8 Ball End
…………………4
………………………4
T02094/T02095 8x1 O-ring
for Front(Short)
for Rear(Long)
…………………4
Rear-Long
Front-Short
10
Assemble both front and rear Assemble as many times as specified
Shock Absorber
T02064(Short)
Put a little oil
Put a little oil
T02065(Long)
T02096
T02064
T02064
T02065
T02065
T02096
T02097(2.8x1.9)
T02097(3.1x1)
T02062
T02031
T02031
T02094/T02095
T02073
T02097(2.8x1.9)
T02097
T02095
T02095
T02095(Long)
T02097(2.8x1.9)
T02097(3.1x1)
T02097(2.8x1.9)
T02097
T02094
T02094
T02094(Short)
T02062
T02031
Shock Absorber
䚵䴽ಞ
Shock Absorber
x2 x2
FRx2
x2
x2
FRx2
23
2424
FRx2
All manuals and user guides at all-guides.com

Front-Short
Rear-Short
⸣
T02084 M3 Nylon Nut
………………2
………2
T02082 M3x15 Screw
T02082(M3x15)
T02084(M3)
Assemble as many times as specified Assemble both Left and RightAssemble both Left and Right
Shock Absorber
Front Suspension
11
T02094/T02095 12x1 O-ring
……………4
for adjusting the spring tension
Compress the spring and install
T02094/T02095
T02072(Long)
T02071(Short)
T02031
T02031
x2
x2
LR LR
x2 LR
LR
25
26
x4
All manuals and user guides at all-guides.com

T02084 M3 Nylon Nut
………………2
………2
T02082 M3x15 Screw T02082(M3x15)
T02084(M3)
……………6
T02082 M3x10 Screw
Assemble both Left and Right
Rear Suspension
Front Suspension
T02222
12
T02082(M3x10)
T02082(M3x10)
LR LR
LR LR
27
28
All manuals and user guides at all-guides.com
all-guides.com

……………5
T02083 M3x10 Screw
………………4
T02083 M3x8 Screw
……………2
T02083 M3x10 Screw
T02083(M3x10)
T02083(M3x8)
Rear SuspensionRear Suspension
Battery Mount / Body Mount
T02025
T02212
13
T02083(M3x10)
T02083(M3x10)
T02083(M3x8)
T02083(M3x8)
2929
30
T02083(M3x10)
T02083(M3x10)
T02083(M3x12)
……………2
T02083 M3x12 Screw
All manuals and user guides at all-guides.com

T02030 4.8 Ball End(Short)
……………2
T02030 M3x10 Screw
…………1
T02081 3x7x0.8 Washer
………………4
T02082 M3x8 Screw
……4
………………1
6$1:$
T02035 1.5 Servo spacer
……2
T02030
T02027
T02028
T02061
T02081
T02035 T02082(2.6x8)
Steering Servo-H(24T) Steering Servo-S(23T)
Select for your servo
Sanwa servo T02028
T02082 M2.6x8 Screw
………1
Steering Servo-F(25T)
T02061 Ball stud - silvery
T02082
……………2
T02083 M3x8 Screw
T02083(M3x8)
Must be purchased separatelyMust be purchased separately
Steering Servo
Steering Servo
14
X
XX
31
32
X
All manuals and user guides at all-guides.com

ESC
T02087
Receiver
Double-sided Tape
T02087
T02213 M3x3 Screw
……………………1
……………4
T02086 Small clip
T02086
Must be purchased separatelyMust be purchased separately
Receiver / ESC
BatteryBattery
T02213
15
Battery
T02223
XX
X
33
3434
X
X
All manuals and user guides at all-guides.com

After fitting wheels to tyres,
T02075(Sponge)
T02074(Sponge)
T02074
T02075
T02032
T02033
Glue
Glue
Front Rear
……………2
T02086 Small clip
T02086
T02025
Assemble as many times as specified
Wing
Tyre
T02220
16
apply instant glue as shown.
Must be purchased separatelyMust be purchased separately
x2
x2
35
36 x2
XX
X
XX
X
All manuals and user guides at all-guides.com
