Team C TM2 V2 User manual

尺寸：
TM2 V2
Length …………………………………………………………………………400mm
Width …………………………………………………………………………250mm
Height …………………………………………………………………………145mm
長度
寬度
高度
Dimensions
Instruction manual
www.teamcracing.net
1:10 SCALE RADIO CONTROLLED ELECTRIC
POWERED 2wd RACING BUGGY
All manuals and user guides at all-guides.com
all-guides.com

9
8
7
610
11
12
13
14
電池蓋
調整遙控器
在遙控器的底部打開電池蓋子,安裝電池。
跟隨電池的指示在電池盒裡面指定。
AA 堿性電池
遙控器電池安裝

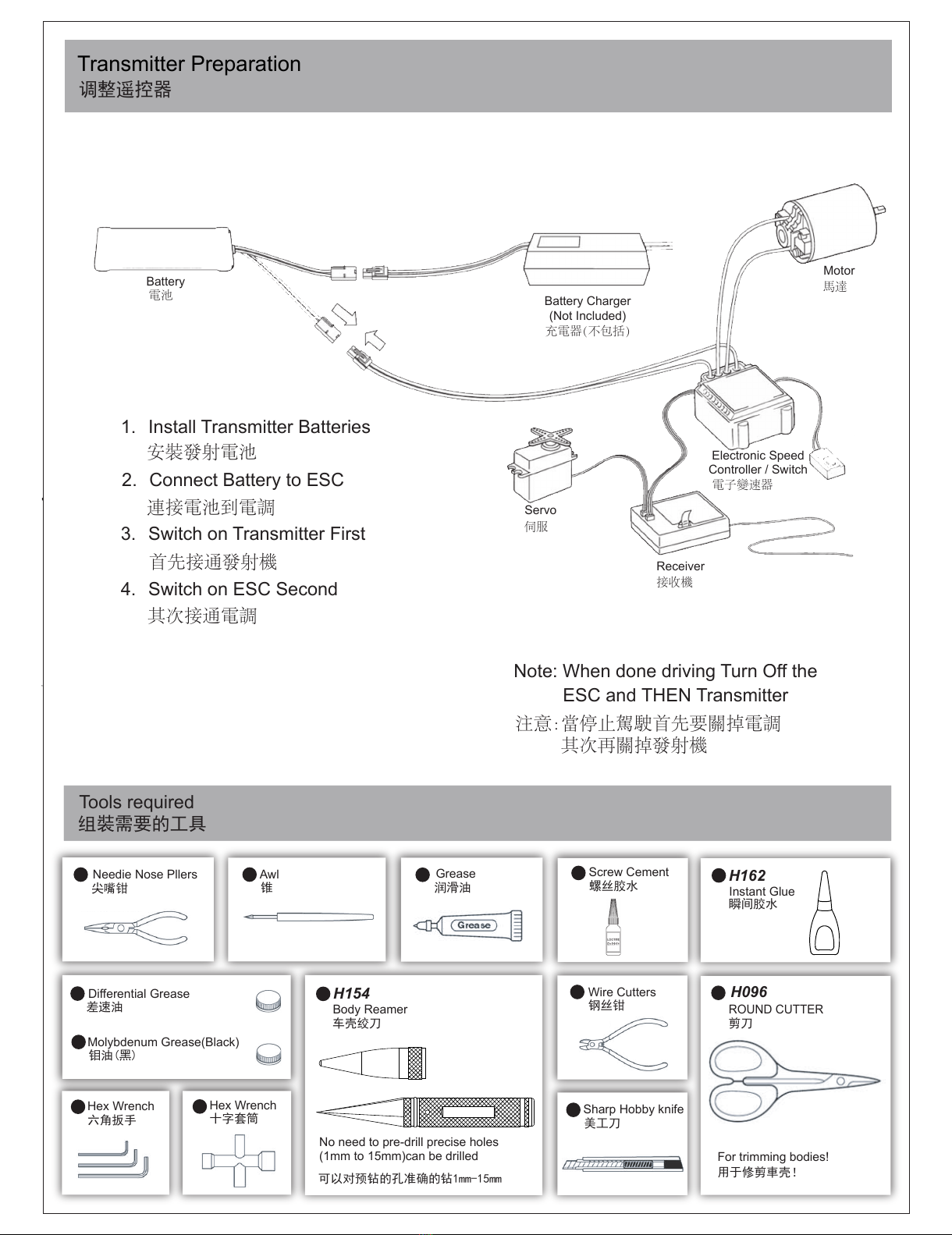

Transmitter Preparation
AA
Alkaling Batteries
4X
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
Transmitter Battery Installation
Battery Cover
1 Control Panel
2 Steering Wheel
3 Throttle Trigger
4 Battery Compartment
5 Charging Jack
6 Sterring Servo Reverse
7 Power LED
8 Steering Trim
9 Bind Button
10 Throttle Servo Reverse
11 Battery Voltage
12 Steering Dual Rate
13 Power Switch
14 Throttle Trim
GLG20
2.4GHz
1
5
3
4
2
控制面板
轉向輪
油門板扣
電池盒
充電接口
轉向正逆轉開關
電源指示燈
轉向调節
設定按扭
油門正逆轉開關
電池電壓
轉向大小微調
電源開關
油門微調
All manuals and user guides at all-guides.com

调整遥控器
Transmitter Preparation
组裝需要的工具
Tools required
Needie Nose Pllers Awl Grease
润滑油
Screw Cement
螺丝胶水
瞬间胶水
Instant Glue
Hex Wrench
六角扳手
Differential Grease
差速油
Molybdenum Grease(Black)
钼油(黑)
锥
尖嘴钳
Hex Wrench
十字套筒
Body Reamer
车壳绞刀
No need to pre-drill precise holes
(1mm to 15mm)can be drilled
可以对预钻的孔准确的钻1mm-15mm
Wire Cutters
钢丝钳
Sharp Hobby knife
美工刀
ROUND CUTTER
剪刀
For trimming bodies!
用于修剪車壳！
H154
H162
H096
Battery Charger
(Not Included)
Battery
Servo
Motor
Electronic Speed
Controller / Switch
Receiver
Note: When done driving Turn Off the
ESC and THEN Transmitter
Install Transmitter Batteries1.
Connect Battery to ESC2.
Switch on Transmitter First3.
Switch on ESC Second4.
安裝發射電池
連接電池到電調
首先接通發射機
其次接通電調
注意：當停止駕駛首先要關掉電調
其次再關掉發射機
電池
充電器（不包括）
馬達
伺服
接收機
電子變速器
All manuals and user guides at all-guides.com

1
2

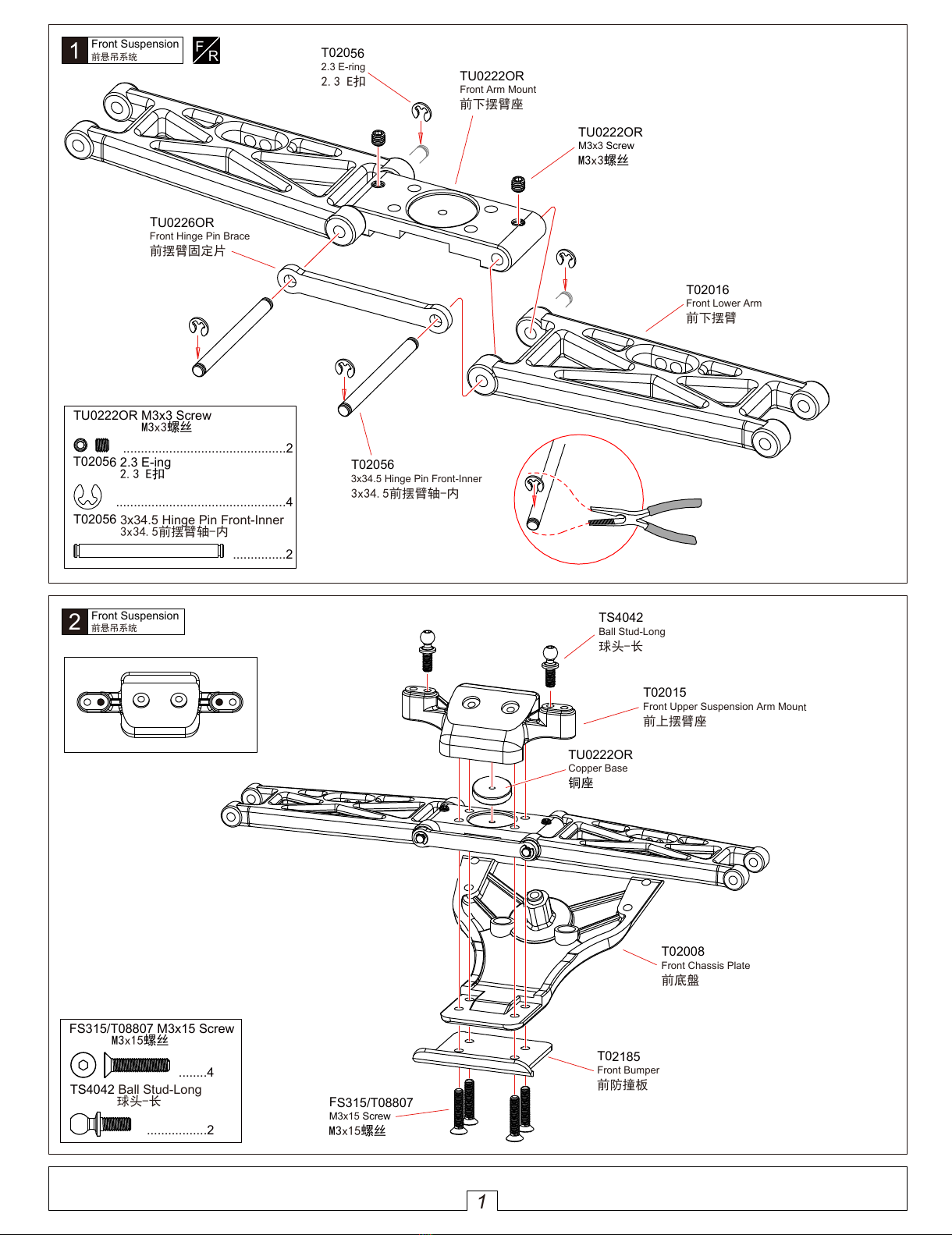

Front Suspension
前悬吊系统
Front Suspension
前悬吊系统
1
M3x3螺丝
M3x3 Screw
TU0222OR
M3x15螺丝
M3x15 Screw
FS315/T08807
铜座
Copper Base
TU0222OR
前底盤
Front Chassis Plate
T02008
前防撞板
Front Bumper
T02185
球头-长
Ball Stud-Long
TS4042
前上摆臂座
Front Upper Suspension Arm Mount
T02015
前下摆臂座
Front Arm Mount
TU0222OR
前下摆臂
Front Lower Arm
T02016
2.3 E扣
2.3 E-ring
T02056
前摆臂固定片
Front Hinge Pin Brace
TU0226OR
3x34.5前摆臂轴-内
3x34.5 Hinge Pin Front-Inner
T02056
..............................................2
...............2
................................................4
M3x3螺丝
TU0222OR M3x3 Screw
2.3 E扣
T02056 2.3 E-ing
3x34.5前摆臂轴-内
T02056 3x34.5 Hinge Pin Front-Inner
........4
.................2
M3x15螺丝
FS315/T08807 M3x15 Screw
球头-长
TS4042 Ball Stud-Long
FR
All manuals and user guides at all-guides.com

4
33
1
2
Buffer
缓冲
Buffer
缓冲
4.0mm
1
2
4
3
5
6
11
7
8
9
10
2
3x6x2.5轴承
3x6x2.5 Ball Bearing
B0306025/T02080
3x6x2.5轴承
3x6x2.5 Ball Bearing
B0306025/T02080
3x6x2.5轴承
3x6x2.5 Ball Bearing
B0306025/T02080
3x6x2.5轴承
3x6x2.5 Ball Bearing
B0306025/T02080
缓冲调解螺帽
Buffer Nut
T02043OR
缓冲弹簧
Buffer Spring
T02043OR
球头-银色
Ball Stud-Silver
T02061
球头-短
Ball Stud-Short
TS4043
缓冲连接片
Steering Rack
T02024
轴套
Block Carrier
T02044
3x7x0.8垫片
3x7x0.8 Washer
T02044
M3x10螺丝
M3x10 Screw
T02044
缓冲臂上
Servo Saver Upper
T02023
缓冲臂-L
Servo Saver-L
T02023
缓冲臂下
Servo Saver Lower
T02023
转向缓冲器-A
Buffer Column-A
T02043OR
转向缓冲器-B
Buffer Column-B
T02043OR
4.0 E扣
4.0 E-ring
T02043OR
…………….................1
…………….............4
…………….............1
4.0 E扣
T02043OR 4.0 E-ring
球头-银色
T02061 Ball Stud-Silver
……………............2
………...2
…………….......2
…………….2
轴套
T02044 Block Carrier
M3x10螺丝
T02044 M3x10 Screw
球头-短
TS4043 Ball Stud-Short
3x7x0.8垫片
T02044 3x7x0.8 Washer
B0306025/T02080
3x6x2.5轴承
3x6x2.5 Ball Bearing
All manuals and user guides at all-guides.com

6Front Suspension
5Chassis/Side Plate
底盘/侧板
前悬吊系统
3
Glue
Apply threadlocker(screw cement)
打螺丝胶水
Screw
Cement
Screw
Cement
侧边补强条
Reinforcing Bars
T02175
前底盘固定座
Front Chassis Mount
T02176
主底盘
Main Chassis
T02241
M3x8螺丝
M3x8 Screw
FS308/T01119
M3x8螺丝
M3x8 Screw
BS308/T01114
M3x8螺丝
M3x8 Screw
BS308/T01114
M3x10螺丝
M3x10 Screw
BS310/T01115
M3x25螺丝
M3x25 Screw
T02147
前支撐座
Front Brace Mount
T02147
..............10
M3x8螺丝
FS308/T01119 M3x8 Screw
.................................6
...............................2
..........1
M3x8螺丝
BS308/T01114 M3x8 Screw
M3x10螺丝
BS310/T01115 M3x10 Screw
M3x25螺丝
T02147 M3x25 Screw
All manuals and user guides at all-guides.com
all-guides.com

7
8
Front Suspension
Turnbuckle
拉杆
approx.28mm
大约28mm
approx.28mm
大约28mm
approx 24mm
大约24mm
前悬吊系统
TS4043
Ball Stud-Short
球头-短
4
▲Projection.Note direction
注意方向
▲Projection.Note direction
注意方向
▲Projection.Note direction
注意方向
...................6
3x45拉杆
T04107 3x45 Turnbuckle
..................................12
4.8mm球头座-长
T04014 4.8mm Ball End-Long
3x45拉杆
3x45 Turnbuckle
T04107
4.8mm球头座-长
4.8mm Ball End-Long
T04014
4mm
Front Upper-L
前上拉杆-左
1:1 x1
Front Upper-R
前上拉杆-右
1:1 x1
Steering Tip
转向拉杆
1:1 x2
C型座-L
C-Type Holder-L
T02011
转向臂-L
Steering Block-L
T02012
六角座
Hex Mount
T02245
前轮轴
Front Wheel Axle
T02042
3X27.5前摆臂销-外
3X27.5 Hinge Pin Front-Outer
T02054
M2x5螺丝
M2x5 Screw
T02245
2x9.8钢针
2x9.8 Pin
T02042
2.3 E 扣
2.3 E-ring
T02054
4.0 E 扣
4.0 E-ring
T02042
5x10x4轴承
5x10x4 Ball Bearing
B051004/T02100
……………8
………….2
………2
2.3 E 扣
T02054 2.3 E-ring
4.0 E 扣
T02042 4.0 E-ring
2x9.8钢针
T02042 2x9.8 Pin
………............4
…………............................4
………...........................4
前摆臂销-外
T02054 3X27.5 Hinge Pin Front-Outer
球头-短
TS4043 Ball Stud-Short
▲Projection.Note direction
注意方向
approx 22.5mm
大约22.5mm
Rear Upper
后上拉杆
1:1 x2
B051004/T02100
5x10x4轴承
5x10x4 Ball Bearing
All manuals and user guides at all-guides.com

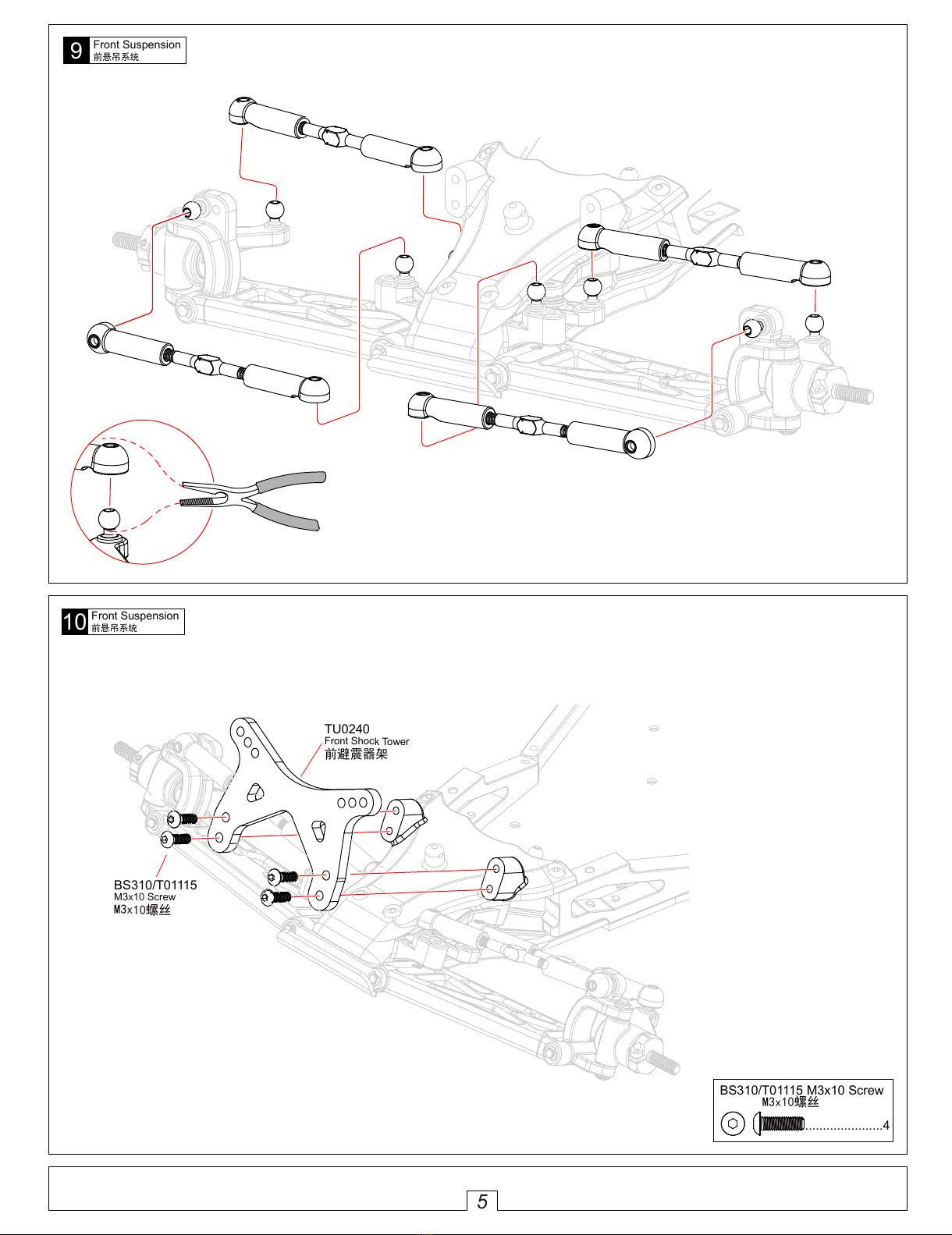

10 Front Suspension
9Front Suspension
前悬吊系统
前悬吊系统
5
前避震器架
Front Shock Tower
TU0240
M3x10螺丝
M3x10 Screw
BS310/T01115
......................4
M3x10螺丝
BS310/T01115 M3x10 Screw
All manuals and user guides at all-guides.com

11 Steering Servo
转向伺服系统
SANWA
T02035
Sanwa servo
T02028
12 Motor Mount
马达座
XMust be purchased separately
需另购物品
T02030
Steering Servo-H(24T) Steering Servo-S(23T)
转向伺服臂H(24T) 转向伺服臂S(23T)
Select for your servo
根据伺服器选择
6
Apply threadlocker(screw cement)
打螺丝胶水
Screw
Cement
3x7x0.8垫片
3x7x0.8 Washer
W3708/T02081
球头-银色
Ball Stud-Silver
T02061
T02027
M3x8螺丝
M3x8 Screw
BS308/T01114
M3x8螺丝
M3x8 Screw
FS308/T01119
伺服机
Servo
X
球头座-短
T02030 4.8 Ball End-Short
球头-银色
T02061 Ball Stud-Silver
.....................1
.................2
......................5
M3x8螺丝
BS308/T01114 M3x8 Screw
...............................4
3x7x0.8垫片
W3708/T02081 3x7x0.8 Washer
................2 ................1
M3x8螺丝
FS308/T01119 M3x8 Screw M3x10螺丝
SS310 M3x10 Screw
马达座
Motor Mount
T02196
中差座
Center Diff Mount
T02197
M3x8螺丝
M3x8 Screw
FS308/T01119
................5
M3x8螺丝
FS308/T01119 M3x8 Screw
All manuals and user guides at all-guides.com

Aften first run, re-adjust to around 3.5mm
运行后再调整到3.5mm
Tighten for less slippage when traction grip
当容易抓地的時候，请按此方向调整螺母。
Loosen for more slippage
当不易抓地的時候，请按此方向调整螺母。
Mid Gear
中齿轮
Apply threadlocker(screw cement)
打螺丝胶水
3.5mm
Upper Deck-Front
二楼板-前
14
13
Screw
Cement 7
中差培林座
Center Bearing Insert
T02177
弹簧扣
Spring Buckle
T04022
中接杯-前
Mid Connecting Hub-F
T02182
扭限座-前
Slipper Hub-F
T04020
扭限弹簧
Slipper Spring
T04019
中轴
Center Shaft
T04023
扭限螺母
Slipper Nut
T04018
扭限座-后
Slipper Hub-R
T04020
扭限摩擦片
Slipper Pad
T04036
减速齿-85T
Supr Gear-85T
TR4027
10x15x4轴承
10x15x4 Ball Bearing
B101504
2x9.8钢针
2x9.8 Pin
P210
M3x5螺丝
M3x5 Screw
BS305/T08788
...........................2
..................2
.............................4
M3x5螺丝
BS305/T08788 M3x5 Screw
2x9.8钢针
P210/T04032 2x9.8 Pin
天线管座
Antenna Pipe Mount
T04055
M3x8螺丝
M3x8 Screw
BS308/T01114
前二楼板
Front Top Deck
T02242
......................5
M3x8螺丝
BS308/T01114 M3x8 Screw
B101504/T02099
10x15x4轴承
10x15x4 Ball Bearing
All manuals and user guides at all-guides.com

需組裝數量
Assemble as many times as specified

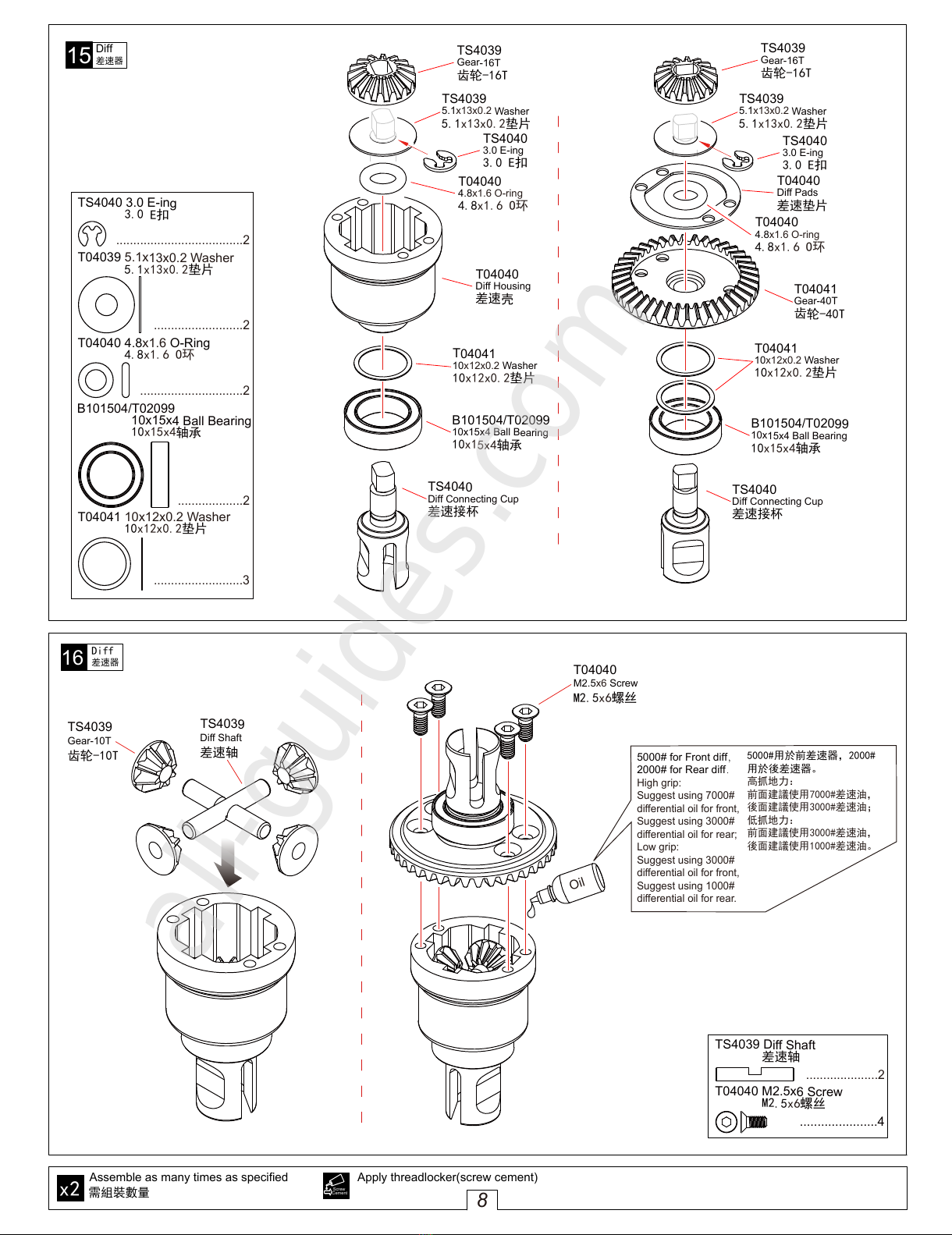

差速器
Diff
Apply threadlocker(screw cement)
Diff
差速器
x2
16
15
Screw
Cement 8
齿轮-16T
Gear-16T
TS4039
齿轮-16T
Gear-16T
TS4039
齿轮-40T
Gear-40T
T04041
3.0 E扣
3.0 E-ing
TS4040
3.0 E扣
3.0 E-ing
TS4040
.....................................2
..............................2
...................2
..........................3
4.8x1.6 O环
T04040 4.8x1.6 O-Ring
10x12x0.2垫片
T04041 10x12x0.2 Washer
..........................2
5.1x13x0.2垫片
T04039 5.1x13x0.2 Washer
3.0 E扣
TS4040 3.0 E-ing
5.1x13x0.2垫片
5.1x13x0.2 Washer
TS4039
10x12x0.2垫片
10x12x0.2 Washer
T04041
10x12x0.2垫片
10x12x0.2 Washer
T04041
5.1x13x0.2垫片
5.1x13x0.2 Washer
TS4039
4.8x1.6 O环
4.8x1.6 O-ring
T04040
4.8x1.6 O环
4.8x1.6 O-ring
T04040
差速壳
Diff Housing
T04040
差速垫片
Diff Pads
T04040
10x15x4轴承
10x15x4 Ball Bearing
B101504/T02099
10x15x4轴承
10x15x4 Ball Bearing
B101504/T02099
差速接杯
Diff Connecting Cup
TS4040
差速接杯
Diff Connecting Cup
TS4040
......................4
M2.5x6螺丝
M2.5x6 Screw
T04040
差速轴
Diff Shaft
TS4039
齿轮-10T
Gear-10T
TS4039
Oil
5000#用於前差速器，2000#
用於後差速器。
高抓地力：
前面建議使用7000#差速油，
後面建議使用3000#差速油；
低抓地力：
前面建議使用3000#差速油，
後面建議使用1000#差速油。
5000# for Front diff，
2000# for Rear diff．
High grip:
Suggest using 7000#
differential oil for front,
Suggest using 3000#
differential oil for rear;
Low grip:
Suggest using 3000#
differential oil for front,
Suggest using 1000#
differential oil for rear.
.....................2
差速轴
TS4039 Diff Shaft
M2.5x6螺丝
T04040 M2.5x6 Screw
B101504/T02099
10x15x4轴承
10x15x4 Ball Bearing
All manuals and user guides at all-guides.com
all-guides.com

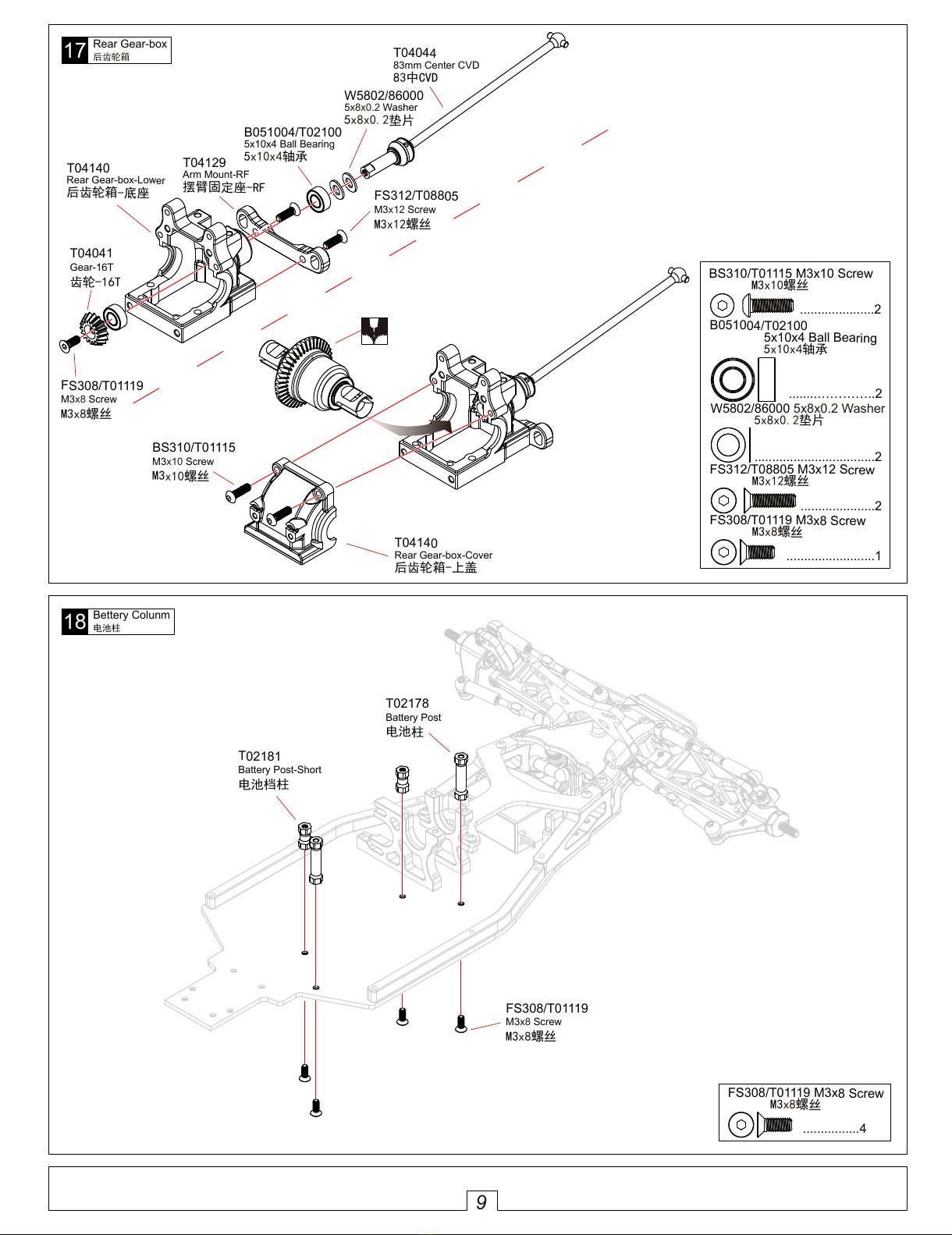

Bettery Colunm
电池柱
Rear Gear-box
后齿轮箱
18
17
9
M3x8螺丝
M3x8 Screw
FS308/T01119
M3x8螺丝
M3x8 Screw
FS308/T01119
电池档柱
Battery Post-Short
T02181
电池柱
Battery Post
T02178
M3x12螺丝
M3x12 Screw
FS312/T08805
齿轮-16T
Gear-16T
T04041
5x8x0.2垫片
5x8x0.2 Washer
W5802/86000
5x10x4轴承
5x10x4 Ball Bearing
B051004/T02100
后齿轮箱-上盖
Rear Gear-box-Cover
T04140
后齿轮箱-底座
Rear Gear-box-Lower
T04140
M3x10螺丝
M3x10 Screw
BS310/T01115
摆臂固定座-RF
Arm Mount-RF
T04129
83中CVD
83mm Center CVD
T04044
................4
M3x8螺丝
FS308/T01119 M3x8 Screw
.........................1
M3x8螺丝
FS308/T01119 M3x8 Screw
.....................2
M3x12螺丝
FS312/T08805 M3x12 Screw
.....................2
M3x10螺丝
BS310/T01115 M3x10 Screw
5x8x0.2垫片
W5802/86000 5x8x0.2 Washer
..................................2
B051004/T02100
5x10x4轴承
5x10x4 Ball Bearing
........…………..2
All manuals and user guides at all-guides.com

Rear Gear-box
后齿轮箱
Center Gear
中齿轮
20
19
10
M3x8螺丝
M3x8 Screw
FS308/T01119
M3x15螺丝
M3x15 Screw
FS315/T08807
................4
M3x8螺丝
FS308/T01119 M3x8 Screw
......2
M3x15螺丝
FS315/T08807 M3x15 Screw
All manuals and user guides at all-guides.com

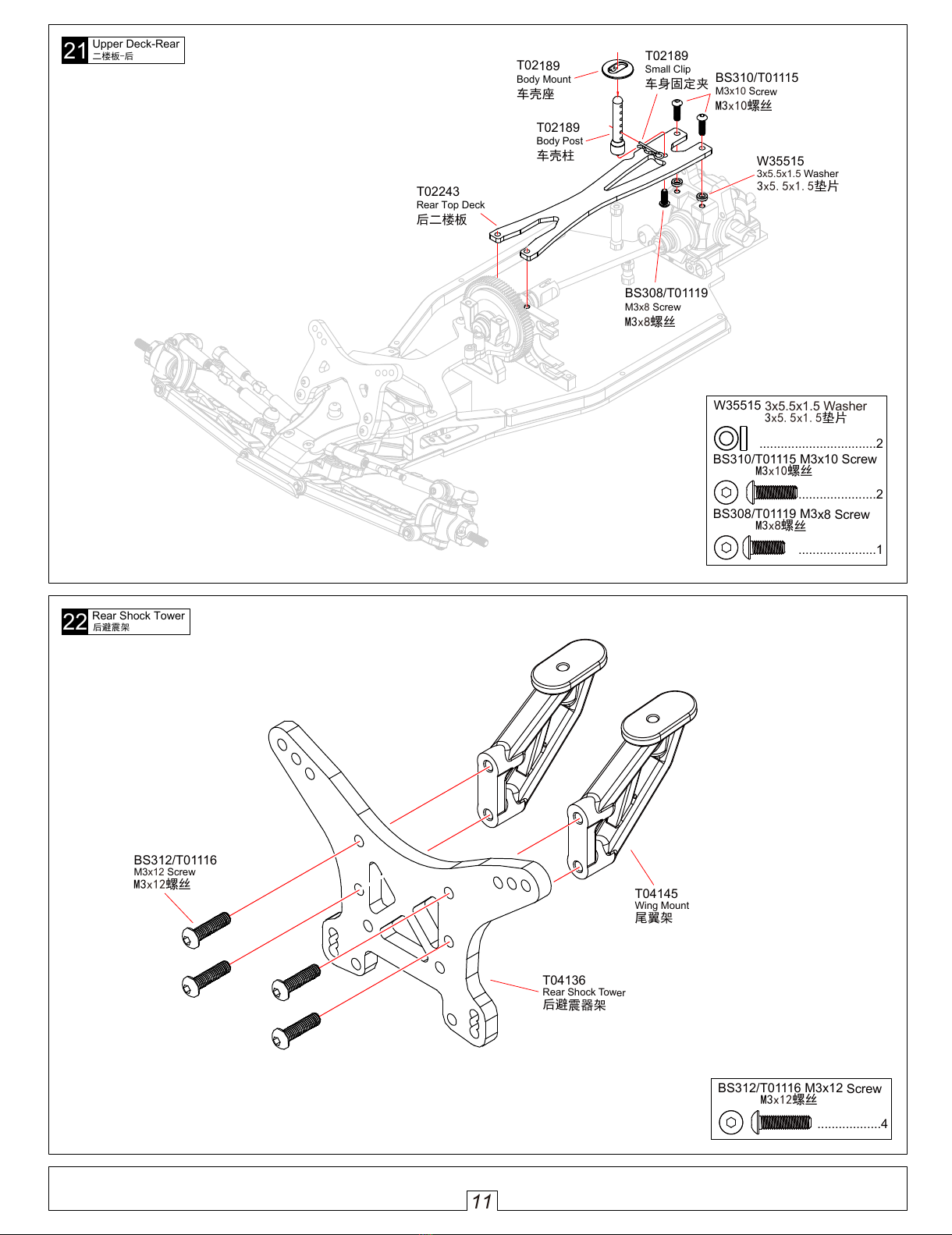

Upper Deck-Rear
二楼板-后
Rear Shock Tower
后避震架
22
21
11
M3x10螺丝
M3x10 Screw
BS310/T01115
M3x8螺丝
M3x8 Screw
BS308/T01119
车身固定夹
Small Clip
T02189
车壳座
Body Mount
T02189
车壳柱
Body Post
T02189
后二楼板
Rear Top Deck
T02243 3x5.5x1.5垫片
3x5.5x1.5 Washer
W35515
......................1
M3x8螺丝
BS308/T01119 M3x8 Screw
......................2
.................................2
M3x10螺丝
BS310/T01115 M3x10 Screw
3x5.5x1.5垫片
W35515 3x5.5x1.5 Washer
M3x12螺丝
M3x12 Screw
BS312/T01116
后避震器架
Rear Shock Tower
T04136
尾翼架
Wing Mount
T04145
..................4
M3x12螺丝
BS312/T01116 M3x12 Screw
All manuals and user guides at all-guides.com

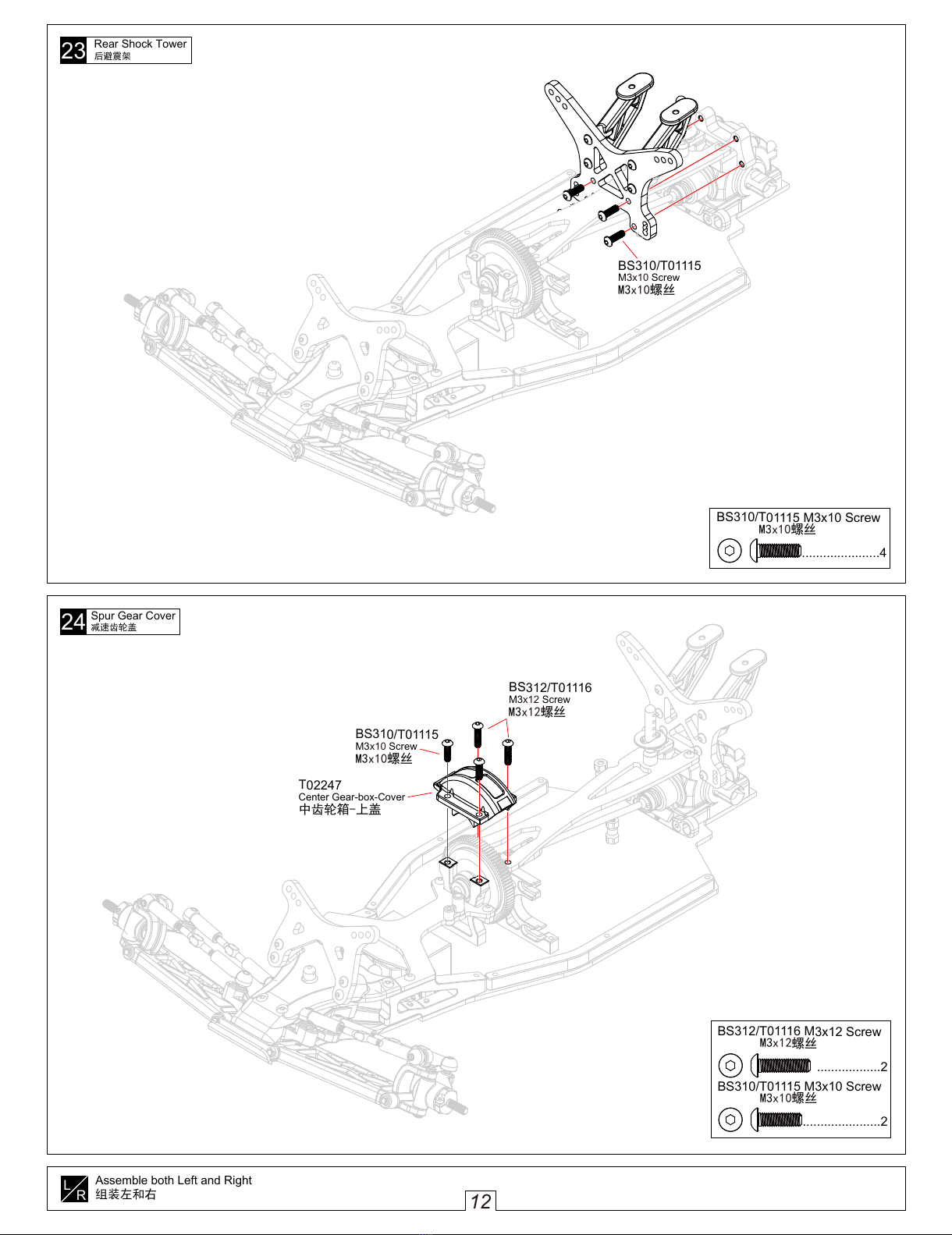

Rear Shock Tower
后避震架
Spur Gear Cover
减速齿轮盖
Assemble both Left and Right
组装左和右
24
23
LR12
M3x10螺丝
M3x10 Screw
BS310/T01115
M3x10螺丝
M3x10 Screw
BS310/T01115
中齿轮箱-上盖
Center Gear-box-Cover
T02247
M3x12螺丝
M3x12 Screw
BS312/T01116
......................4
M3x10螺丝
BS310/T01115 M3x10 Screw
..................2
M3x12螺丝
BS312/T01116 M3x12 Screw
......................2
M3x10螺丝
BS310/T01115 M3x10 Screw
All manuals and user guides at all-guides.com

Assemble both Left and Right
组装左和右

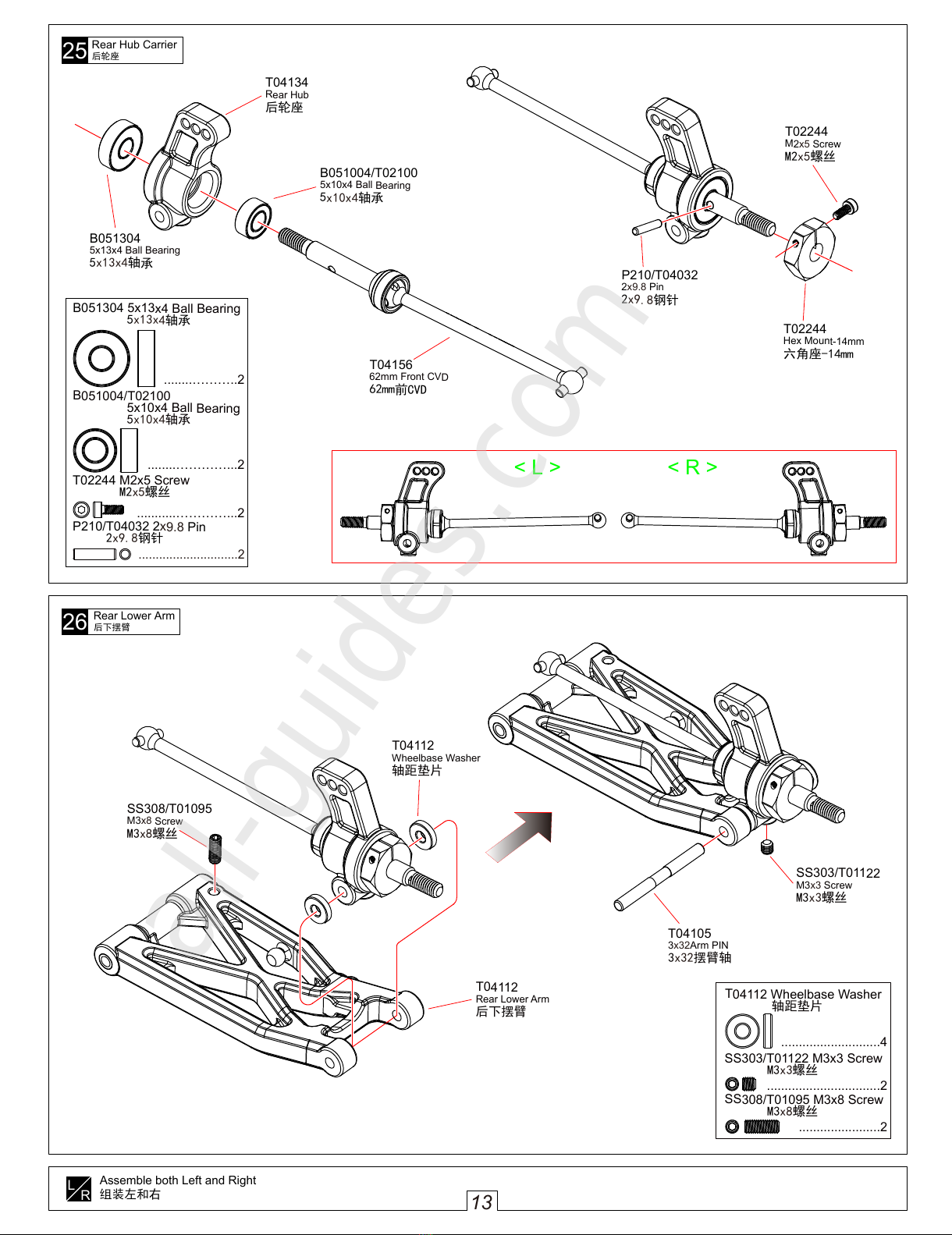

Rear Lower Arm
后下摆臂
Rear Hub Carrier
后轮座
26
25
LR13
2x9.8钢针
2x9.8 Pin
P210/T04032
M2x5螺丝
M2x5 Screw
T02244
六角座-14mm
Hex Mount-14mm
T02244
5x10x4轴承
5x10x4 Ball Bearing
B051004/T02100
5x13x4轴承
5x13x4 Ball Bearing
B051304
后轮座
Rear Hub
T04134
.............................2
2x9.8钢针
P210/T04032 2x9.8 Pin
...........…………...2
M2x5螺丝
T02244 M2x5 Screw
........…………...2
5x13x4轴承
B051304 5x13x4 Ball Bearing
........………..2
< L > < R >
62mm前CVD
62mm Front CVD
T04156
3x32摆臂轴
3x32Arm PIN
T04105
后下摆臂
Rear Lower Arm
T04112
轴距垫片
Wheelbase Washer
T04112
M3x3螺丝
M3x3 Screw
SS303/T01122
M3x8螺丝
M3x8 Screw
SS308/T01095
.......................2
M3x8螺丝
SS308/T01095 M3x8 Screw
................................2
............................4
M3x3螺丝
SS303/T01122 M3x3 Screw
轴距垫片
T04112 Wheelbase Washer
B051004/T02100
5x10x4轴承
5x10x4 Ball Bearing
All manuals and user guides at all-guides.com
all-guides.com

Rear Suspension Arm
后摆臂
27
14
=2 °
( °)
=1 °
=3 °
=3 °
=2 °
=4 °
=1 °
=0 °
=2 °
=+0 . 9 m m
( m m )
=0 m m
=- 0 . 9 m m
A N T I - S Q UA T
R F R R F F F F
R O L L - C E N T E R
=2 . 5 °
( °)
=3 . 5 °
=1 . 5 °
T O E - I N
R F R R
.............2
3x51摆臂轴
T04035 3x51 Arm PIN
.......................2
M3x12螺丝
FS312/T08805 M3x12 Screw
M3x12螺丝
M3x12 Screw
FS312/T08805 3x51摆臂轴
3x51 Arm Pin
T04035
投影调节块-1
Projection Control Block-1
T04139
摆臂固定座-RR
Arm Mount-RR
T04130
防蹲调节块-0
Squat Adjustment Block-0
T04139
All manuals and user guides at all-guides.com

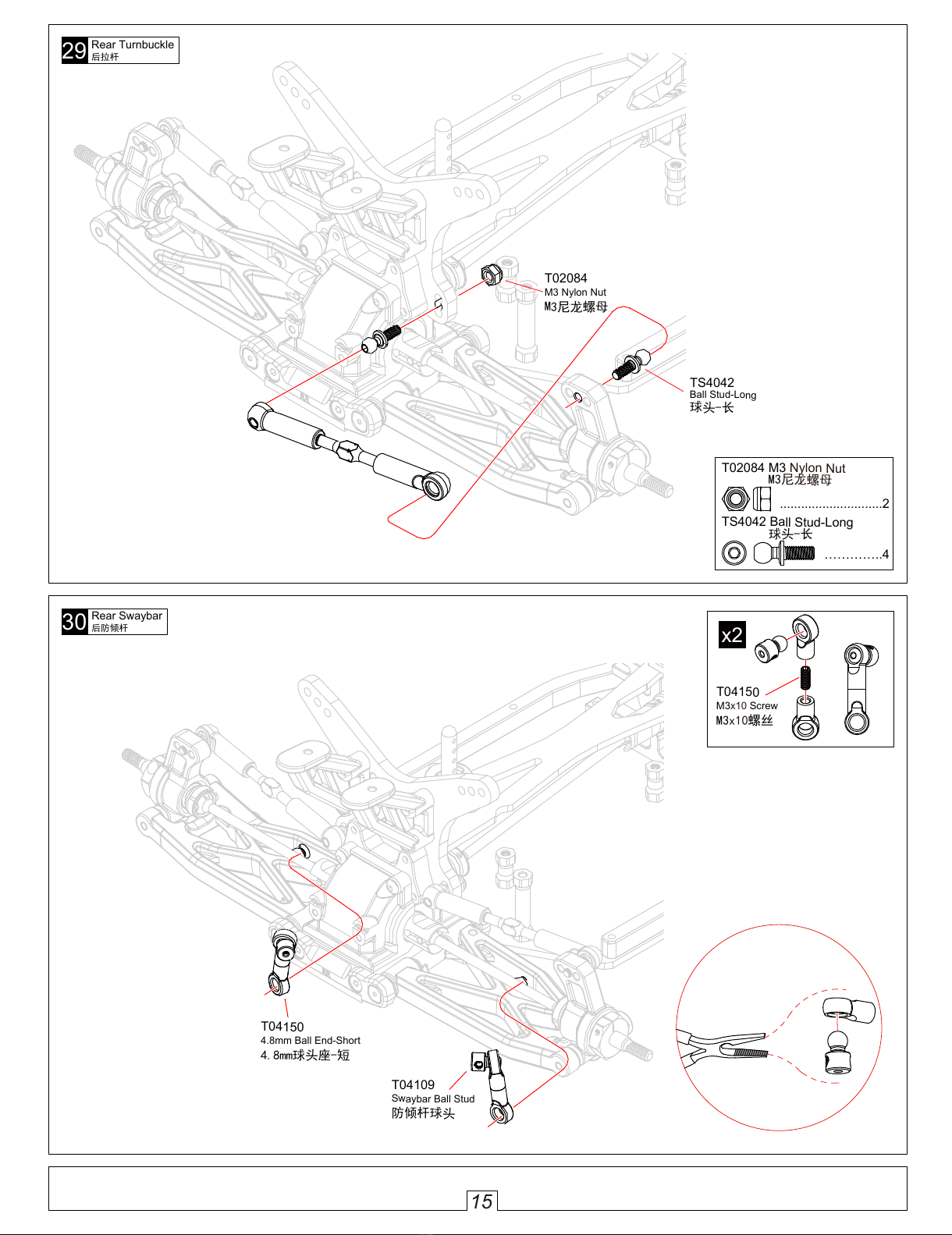

29 Rear Turnbuckle
后拉杆
30 Rear Swaybar
后防倾杆
15
球头-长
TS4042 Ball Stud-Long
…………..4
.............................2
M3尼龙螺母
T02084 M3 Nylon Nut
球头-长
Ball Stud-Long
TS4042
M3尼龙螺母
M3 Nylon Nut
T02084
M3x10螺丝
M3x10 Screw
T04150
x2
4.8mm球头座-短
4.8mm Ball End-Short
T04150
防倾杆球头
Swaybar Ball Stud
T04109
All manuals and user guides at all-guides.com

16
Rear Swaybar
后防倾杆
31
.......................2
M2.5x6螺丝
FS2506 M2.5x6 Screw
................................4
M3x3螺丝
SS303/T04109 M3x3 Screw
M2.5x6螺丝
M2.5x6 Screw
FS2506 防倾杆调整座
Sway Bar Adjustment
T04140
防倾杆-1.2
Swaybar-1.2
T04152
M3x3螺丝
M3x3 Screw
SS303
M3x3螺丝
M3x3 Screw
T04109
Shock Absorber
避震器
32
弹簧
Spring
TU0250-8
1mm压垫-黑色
1mm Washer-Black
TU0250-8
1mm压垫-白色
1mm Washer-White
TU0250-8
2.5mm压垫-白色
2.5mm Washer-White
TU0250-8
2.8x1.9 O环
2.8x1.9 O-ring
TU0250-8
2.8x1.9 O环
2.8x1.9 O-ring
TU0250-8
9x1 O环
9x1 O-ring
TU0250-8
避震下盖
Shock Below Cover
TU4160
9x1 O环
TU0250-8 9x1 O-ring
2.8x1.9 O环
TU0250-8 2.8x1.9 O-ring
2.5mm压垫-白色
TU0250-8 2.5mm Washer-White
1mm压垫-白色
TU0250-8 1mm Washer-White
1mm压垫-黑色
TU0250-8 1mm Washer-Black
弹簧
TU0250-8
Spring
...........…………...4
...........…………..4
...........…………..4
...........……….....8
...........………...8
...........…………......4
x2
FR
前避震器筒身-短
Front Shock Absorber Body-Short
T04158
后避震器筒身-长
Rear Shock Absorber Body-Long
T04159
All manuals and user guides at all-guides.com

34
33 Shock Absorber
避震器
Shock Absorber
避震器
17
避震上盖
Shock Upper Cover
前面用短
Front For Short
后面用长
Rear For Long
前面用短
Front For Short
后面用长
Rear For Long
前面用短
Front For Short
后面用长
Rear For Long
前面用短
Front For Short
后面用长
Rear For Long
TU0266-7
.....................4
14x1.5 O环
TU0250-8 14x1.5 O-ring
14x1.5 O环
14x1.5 O-ring
TU0250-8
弹簧下座
Below Spring Mount End
TU0266-7
弹簧调节座
Spring Adjuster
T04161
前避震器弹簧-中
Front Shock Absorber Spring-Medium
TU0250-10F
后避震器弹簧-中
Rear Shock Absorber Spring-Medium
TU0250-10R
前避震器轴
Front Shock Absorber Shaft
TU0250-1
后避震器轴
Rear Shock Absorber Shaft
TU0250-2
2.3 E扣
2.3 E-ring
Rear Piston-White
TU0250-1/TU0250-2
12x1 O环
12x1 O-ring
TU0250-8
5.8球头
5.8 Ball stud
T02062
5.8球头座
5.8 Ball stud
T02187
2.3 E扣
2.3 E-ring
TU0250-1/TU0250-2
前活塞-黑色
后活塞-白色
Front Piston-Black
TU0250-7
..................................8
.........................2
.........................2
.........................4
............................4
......................................4
2.3 E扣
TU0250-1/TU0250-2 2.3 E-ring
前活塞-黑色
TU0250-7 Front Piston-Black
后活塞-白色
TU0250-7 Rear Piston-White
5.8球头座
T02187 5.8 Ball End
5.8球头
T02062 5.8 Ball Stud
12x1 O环
TU0250-8 12x1 O-ring
400#
200#
x2
FR
x2
FR
M2.5x4螺丝
M2.5x4 Screw
TU0266-7
M2.5x4螺丝
M2.5x4 Screw
将螺丝锁紧。
Please locking the screw.
TU0266-7
……………............4
M2.5x4螺丝
TU0266-7 M2.5x4 Screw
将螺丝松开。
Please loosing the screw.
All manuals and user guides at all-guides.com
