Team C T8TE V2 User manual

尺寸：
T8TE V2
1:8 Scale ELECTRCC OFF ROAD TRUGGY
Length …………………………………………………………………………580mm
Width …………………………………………………………………………430mm
Height …………………………………………………………………………200mm
長度
寬度
高度
Dimensions
Instruction manual
www.teamcracing.net

9
8
7
610
11
12
13
14
電池蓋
調整遙控器
在遙控器的底部打開電池蓋子,安裝電池。
跟隨電池的指示在電池盒裡面指定。
AA 堿性電池
遙控器電池安裝
Transmitter Preparation
AA
Alkaling Batteries
4X
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
Transmitter Battery Installation
Battery Cover
1 Control Panel
2 Steering Wheel
3 Throttle Trigger
4 Battery Compartment
5 Charging Jack
6 Sterring Servo Reverse
7 Power LED
8 Steering Trim
9 Bind Button
10 Throttle Servo Reverse
11 Battery Voltage
12 Steering Dual Rate
13 Power Switch
14 Throttle Trim
GLG20
2.4GHz
1
5
3
4
2
控制面板
轉向輪
油門板扣
電池盒
充電接口
轉向正逆轉開關
電源指示燈
轉向调節
設定按扭
油門正逆轉開關
電池電壓
轉向大小微調
電源開關
油門微調

調整遙控器
Transmitter Preparation
組裝需要的工具
Tools required
Needie Nose Pllers Awl Grease
潤滑油
Screw Cement
螺絲膠水
瞬間膠水
Instant Glue
Hex Wrench
六角扳手
Differential Grease
差速油
Molybdenum Grease(Black)
鉬油(黑)
錐
尖嘴鉗
Hex Wrench
十字套筒
Body Reamer
車殼絞刀
No need to pre-drill precise holes
(1mm to 15mm)can be drilled
可以對預鑽的孔準確地鑽1mm-15mm
Wire Cutters
鋼絲鉗
Sharp Hobby knife
美工刀
ROUND CUTTER
剪刀
For trimming bodies!
用于修剪車殼！
H154
H162
H096
Battery Charger
(Not Included)
Battery
Servo
Motor
Electronic Speed
Controller / Switch
Receiver
Note: When done driving Turn Off the
ESC and THEN Transmitter
Install Transmitter Batteries1.
Connect Battery to ESC2.
Switch on Transmitter First3.
Switch on ESC Second4.
安裝發射電池
連接電池到電調
首先接通發射機
其次接通電調
其次再關掉發射機
電池 馬達
伺服
接收機
電子變速器

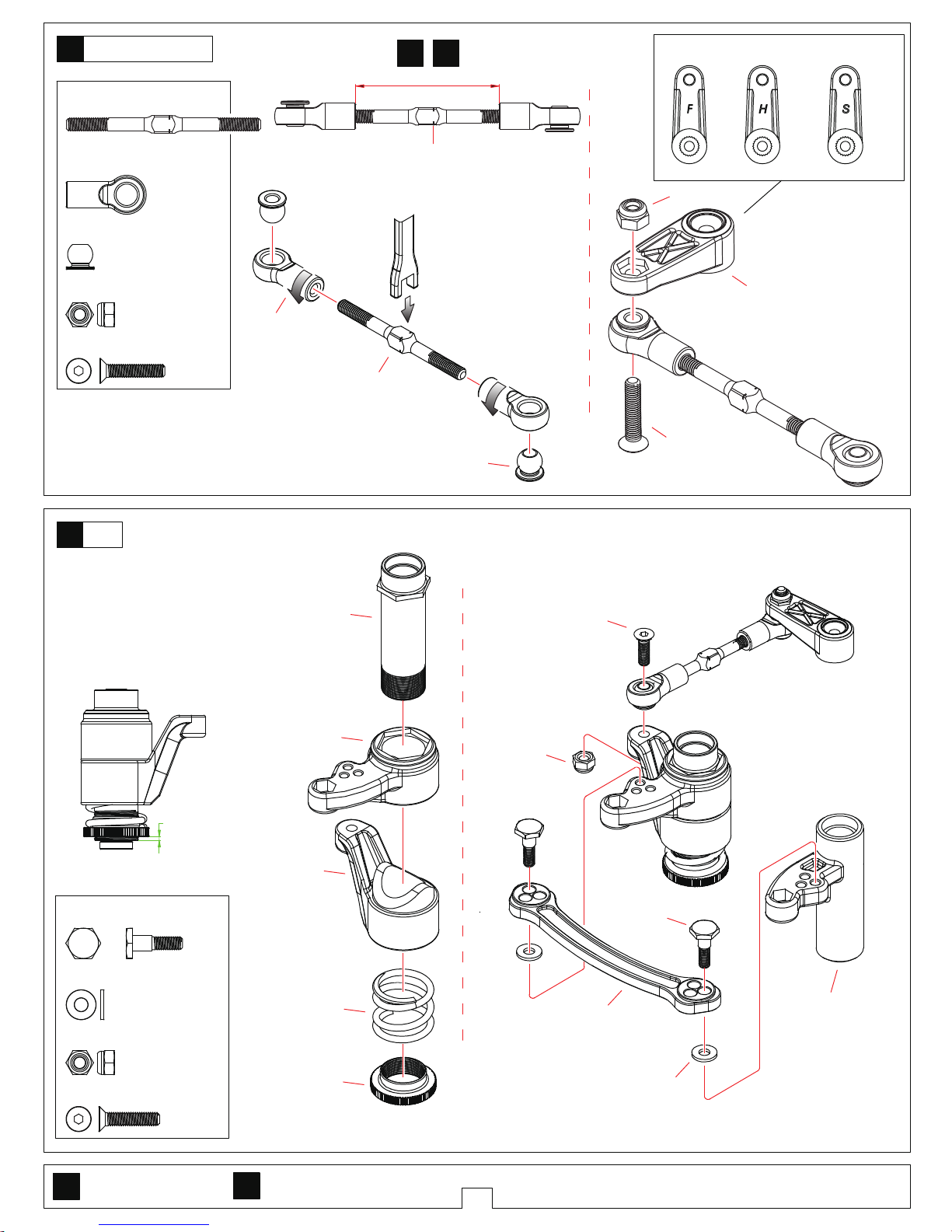

1Servo Saver Turnbuckle
伺服拉杆
…….....1
……........2
…….......1
1
1:1
Ture-to -scale diagram
图形比例
T08666
Select the servo horn matching the servo being used.
根据伺服机选择伺服臂
Futaba-25T Hitec-24T Sanwa/JR/KO-23T
2Buffer
缓冲
4mm
Bag-A
Bag-A
5.8球头
5.8 Ball Stud
T08606
缓冲螺母
Servo Saver Nut
T08954
转向缓冲连接板
Steering Rack
T08651
缓冲螺丝
Buffer Screw
T08651
缓冲筒身
Servo Saver Body
T08954
缓冲座-上
Servo Saver-Top
T08953
缓冲座-下
Servo Saver-Bottom
T08953
缓冲座-左
Servo Saver-Left
T08953
缓冲弹簧
Servo Saver Spring
T08956
5.8球头座
5.8 Ball End
T08606
3x45拉杆
3x45 Turnbuckle
TG8019
▲Projection.Note direction
注意方向
1:1 x1
M3x15螺丝
T08674 M3x15 Screw
...........................1
M3尼龙螺母
T08666 M3 Nylon Nut
…….....1
……2
M3x14螺丝
T08674 M3x14 Screw
...........................1
M3尼龙螺母
T08666 M3 Nylon Nut
缓冲螺丝
T08651 Buffer Screw
...........................2
5.8球头
T08606 5.8 Ball Stud
5.8球头座
T08606 5.8 Ball End
3x45拉杆
TG8019 3x45 Turnbuckle
M3x15螺丝
M3x15 Screw
T08674
M3x14螺丝
M3x14 Screw
T08674
转向伺服臂-F
Steering Servo Horn-F
T08620
1mm
3x7x0.8垫片
3x7x0.8 Washer
W3708
M3尼龙螺母
M3 Nylon Nut
T08666
............................2
3x7x0.8垫片
W3708 3x7x0.8 Washer
Assemble as many times as specified
需組裝數量
x1
approx.33mm
大约33mm

2
Buffer
缓冲
Servo Saver Post/Side Plate
缓冲柱/侧板
4
3
Bag-A
Bag-A/B
M4x10螺丝
M4x10 Screw
T08674
M3x8螺丝
M3x8 Screw
T08674
侧板-左
Side Plate-Left
TG8003
缓冲柱
Servo Saver Post
T08955

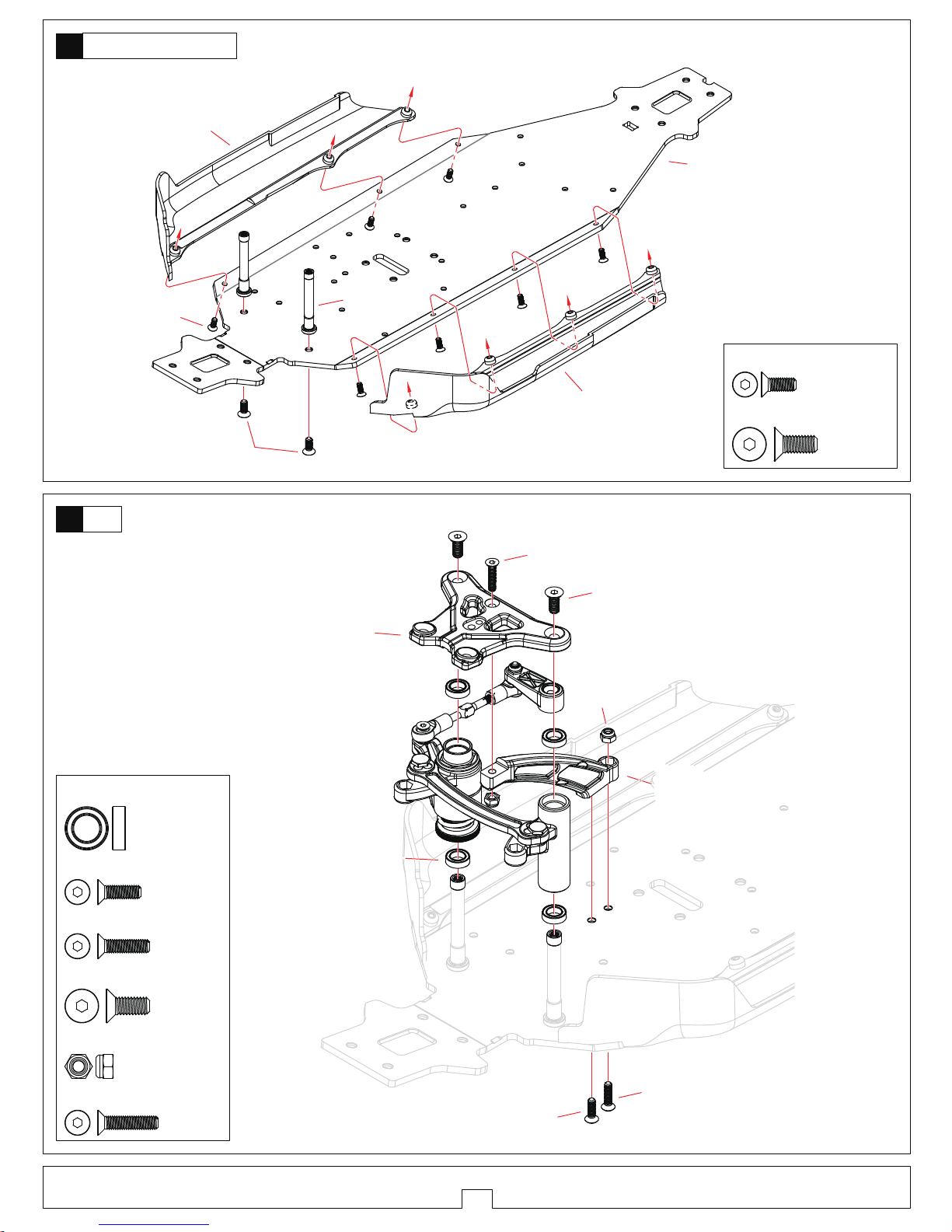

底盘
Chassis
TG8054
M3x10螺丝
M3x10 Screw
T08674 M3x12螺丝
M3x12 Screw
T08674
M4x10螺丝
M4x10 Screw
T08674
缓冲顶板-塑胶
Buffer Plate-Plastic
T08941
M3x14螺丝
M3x14 Screw
T08674
侧板-右
Side Plate-Right
TG8003
M3x8螺丝
T08674 M3x8 Screw
M4x10螺丝
T08674 M4x10 Screw
……......2
…….............7
M3x12螺丝
T08674 M3x12 Screw
M4x10螺丝
T08674 M4x10 Screw
……......2
……........1
M3x10螺丝
T08674 M3x10 Screw
…….............1
……...............4
6x10x3轴承
6x10x3 Ball Bearing
B061003
M3尼龙螺母
M3 Nylon Nut
T08666
前支撑杆
Front Chassis Stiffener
TG8006
…….....1
M3x14螺丝
T08674 M3x14 Screw
...........................2
M3尼龙螺母
T08666 M3 Nylon Nut
6x10x3垫片
B061003 6x10x3 Washer

3
…………..2
………….2
……..2
………………..1
6Front Differential Case
前差速箱
x2
Assemble as many times as specified
需组装数量
Bag-C/D
…………………4 …………8 ………4 ……8

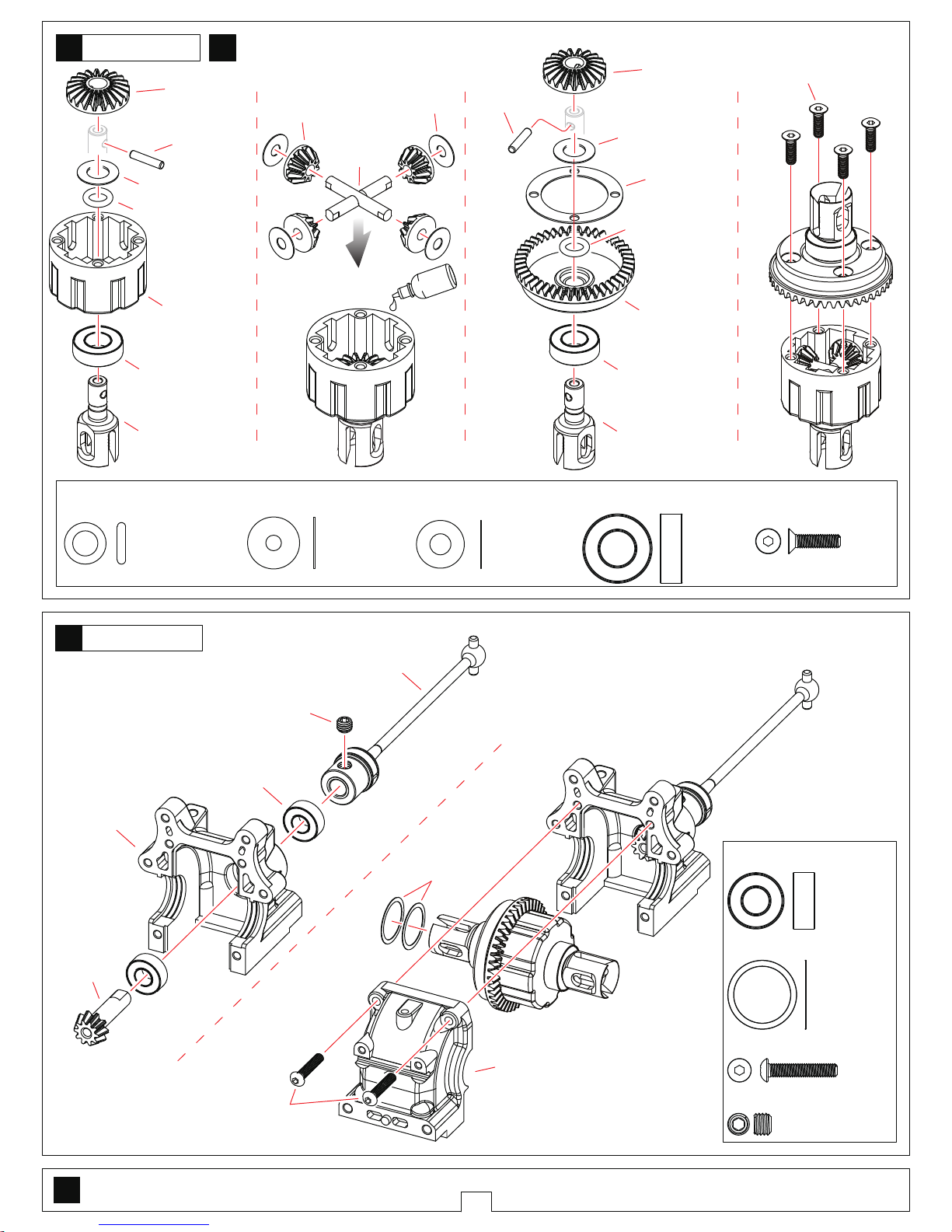

5Front/Rear Differential
前/后差速器
x2
7000# for Front
3000# for Rear
Bag-C
Oil
…………4
8x16x5轴承
B081605
8x16x5 Ball Bearing
M3x12螺丝
T08636
M3x12 Screw
M5x4螺丝
TG8016
M5x4 Screw
M3x16螺丝
T08673
M3x16 Screw
13x16x0.2垫片
W131602 13x16x0.2 Washer
6x13x5轴承
B061305 6x13x5 Ball Bearing
6x11x0.2垫片
W61102
6x11x0.2 Washer
4x12x0.2垫片
W41202
4x12x0.2 Washer
5.8x1.9 O环
T08600/T08636
5.8x1.9 O-Ring
20T差速齿轮
20T Diff Gear
T08633
10T齿轮
10T Gear
T08636
2.5x11.5钢针
2.5x11.5 Pin
T08633
2.5x11.5钢针
2.5x11.5 Pin
T08633
差速壳
Differential Housing
T08600
T08600
T08636
W61102
W61102
W41202
差速接杯
Diff Connecting Cup
T08634
20T差速齿轮
20T Diff Gear
T08633
43T差速齿轮
43T Diff Gear
T08636
差速垫片
Differential Pads
T08600
10T差速齿轮
10T Diff Gear
T08633
差速轴
Diff Shaft
T08633
差速箱
Differential Case
T08601
差速箱
Differential Case
T08601
87mm中前CVD
87mm Center Front CVD
TG8016
8x16x5轴承
8x16x5 Ball Bearing
B081605
6x13x5轴承
6x13x5 Ball Bearing
B061305
差速接杯
Diff Connecting Cup
T08634
8x16x5轴承
8x16x5 Ball Bearing
B081605
M3x12螺丝
M3x12 Screw
T08636
M5x4螺丝
M5x4 Screw
TG8016
M3x16螺丝
M3x16 Screw
T08673
13x16x0.2垫片
13x16x0.2 Washer
W131602

x2
4
LR
LR
Assemble both Left and Right
组装左和右
…………………2
……………………….2
………………………4
x2
Assemble as many times as specified
需组装数量
……………...2
……………....3

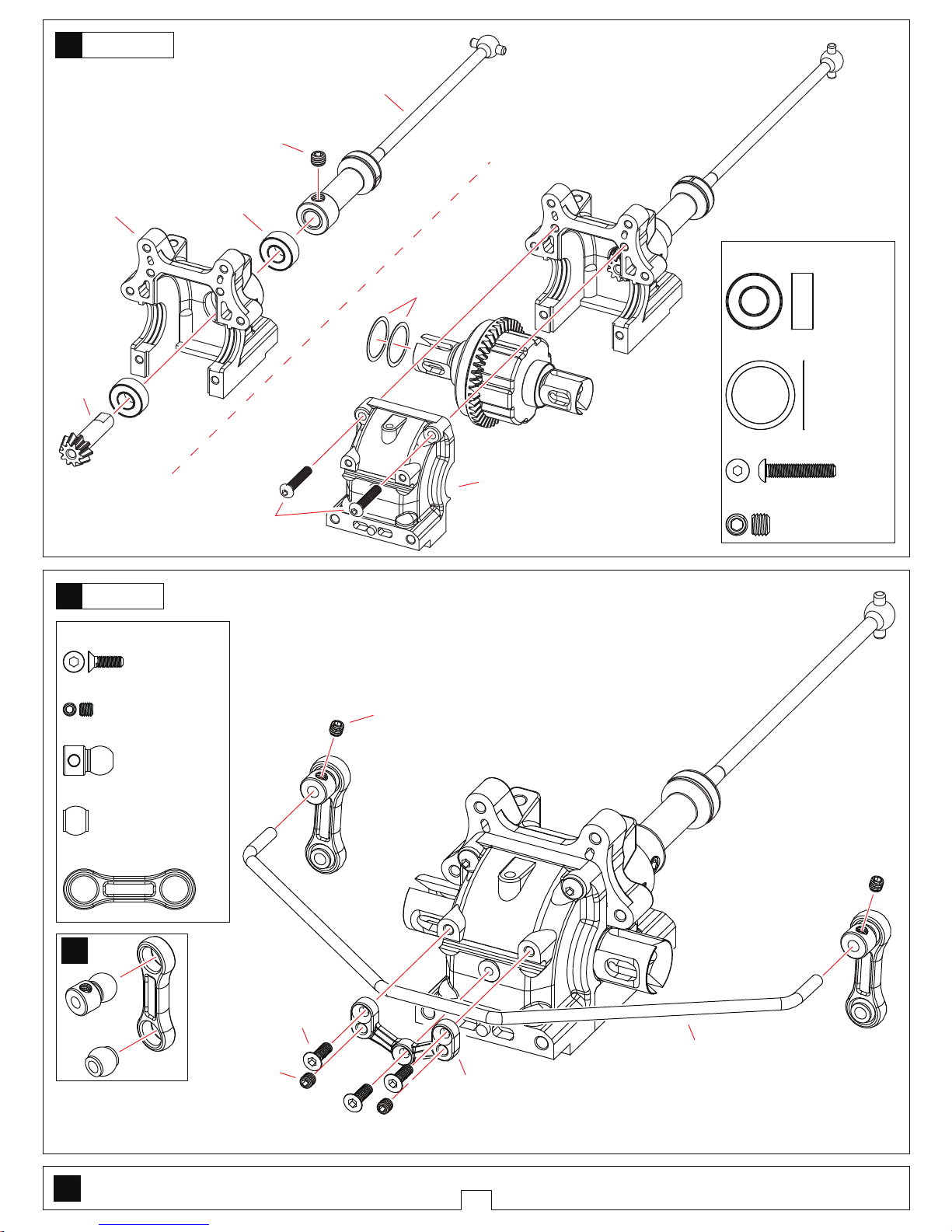

8Front Hub Carrie
前轮座
7
Front Swaybar
前防倾杆
……4
………2
………2
……….4
………………….2
……………2
………………2
……………………2
Bag-D
Bag-D
Left Right
Left Right
M3x3螺丝
M3x3 Screw
T08606
T08606
M3x3螺丝
M3x3 Screw
T08601
M4x14螺丝
M4x14 Screw
T08673
M4x4螺丝
M4x4 Screw
T08675
5x8.5
轴
5x8.5
Shaft
TG8018
M2.5x8螺丝
M2.5x8 Screw
T08601
防倾杆固定座
Swaybar Mount
T08601
132mm传动轴
132mm Drive Shaft
TG8018
CVD接杯
CVD Connecting Cup
T08772
前防倾杆
Front Swaybar
T08647
6.8球头座
T08606
6.8 Ball End
8x16x5轴承
B081605
8x16x5 Ball Bearing
13x19x4轴承
B131904
13x19x4 Ball Bearing
6.8球头
T08606
6.8 Ball Stud
6.8球头
T08606
6.8 Ball Stud
M2.5x8螺丝
T08601
M2.5x8 Screw
M4x14螺丝
T08673
M4x14 Screw
M4x4螺丝
T08675
M4x4 Screw
2.5x16.8钢针
TG8015
2.5x16.8 Pin
2.5x12.8钢针
TG8018
2.5x12.8 Pin
大王销轴套
T08603
King Pin Bushing
5x8.5轴
TG8018
5x8.5 Shaft
M3x3螺丝
T08606/T08601
M3x3 Screw
2.5x12.8钢针
2.5x12.8 Pin
TG8018
前轮座12度
Front Hub Carriers 12 Degree
T08603
2.5x16.8钢针
2.5x16.8 Pin
TG8015
大王销轴套
King Pin Bushing
T08603
转向臂
Steering Block
T08604
13x19x4轴承
13x19x4 Ball Bearing
B131904
8x16x5轴承
8x16x5 Ball Bearing
B081605
六角轮座
Wheel Hex Hub
TG8015

5
LR
Assemble both Left and Right
组装左和右
……4
……….4
…………….2
…….2
…….2
………….2
……….2

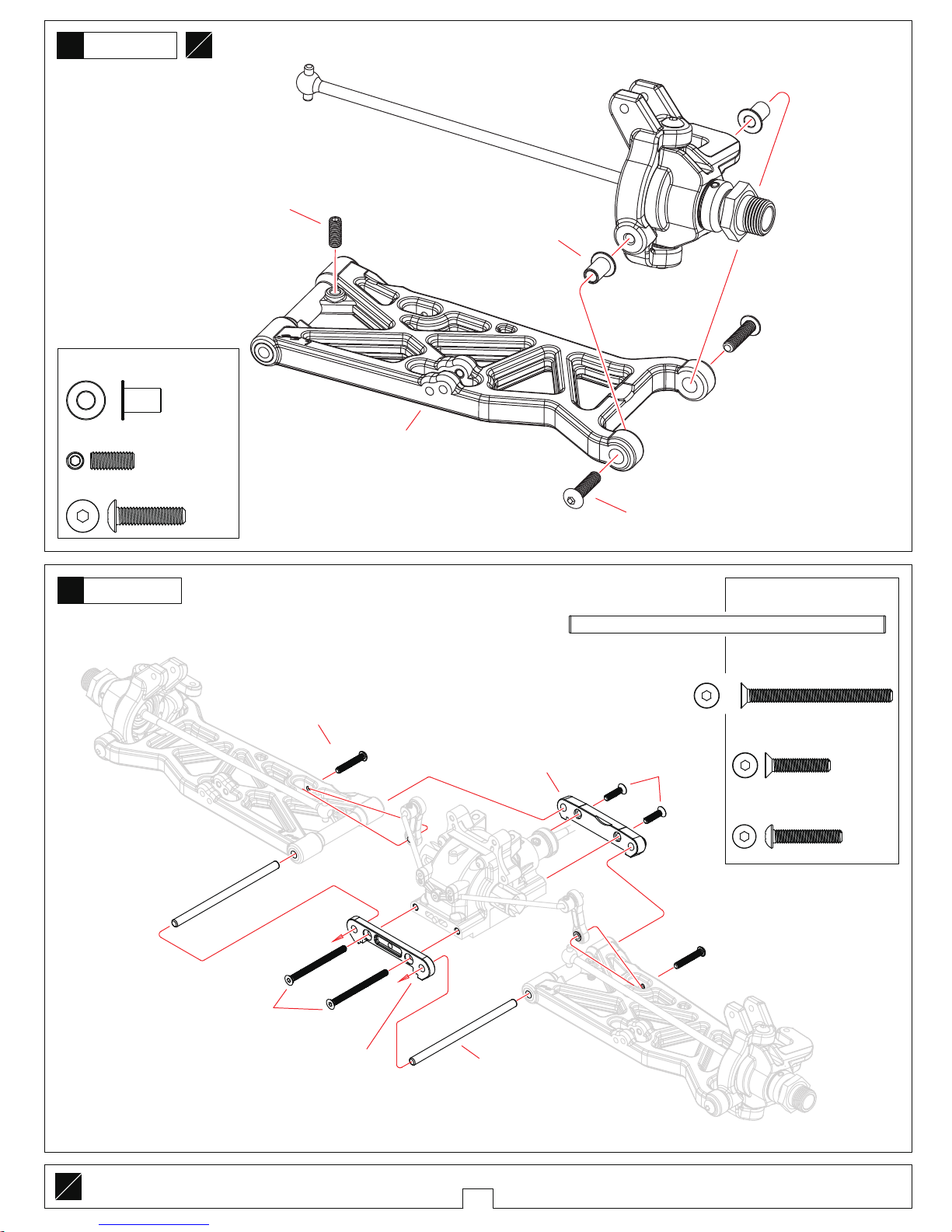

9Front Hub Carrie
前轮座
10 Front Suspension
前悬吊系统
Bag-D
Bag-D
M4x10螺丝
M4x10 Screw
T08675
M4x16螺丝
M4x16 Screw
T08751
M3x16螺丝
M3x16 Screw
T08673
M3x15螺丝
M3x15 Screw
T08674
M3x35螺丝
M3x35 Screw
T08674
摆臂固定座-FR
Arm Mount-FR
TU0839
摆臂固定座-FF
Arm Mount-FF
T08763
前下摆臂
Front Lower Arm
TG8001
前轮座轴套
Front Hub Carrier Bushing
T08751
LR
M4x16 螺丝
T08751 M4x16 Screw
M3x16 螺丝
T08673 M3x16 Screw
M3x35 螺丝
T08674 M3x35 Screw
M3x15 螺丝
T08674 M3x15 Screw
4x73摆臂轴
T08645 4x73 Arm Shaft
M4x10 螺丝
T08675 M4x10 Screw
前轮座轴套
T08751
Front Hub Carrier Bushing
4x73摆臂轴
4x73 Arm Shaft
T08645

6
………4 ………2 ……..2
1:1 x1
1:1 x1
Front Upper-Left
前上-左
Front Upper-Right
前上-右

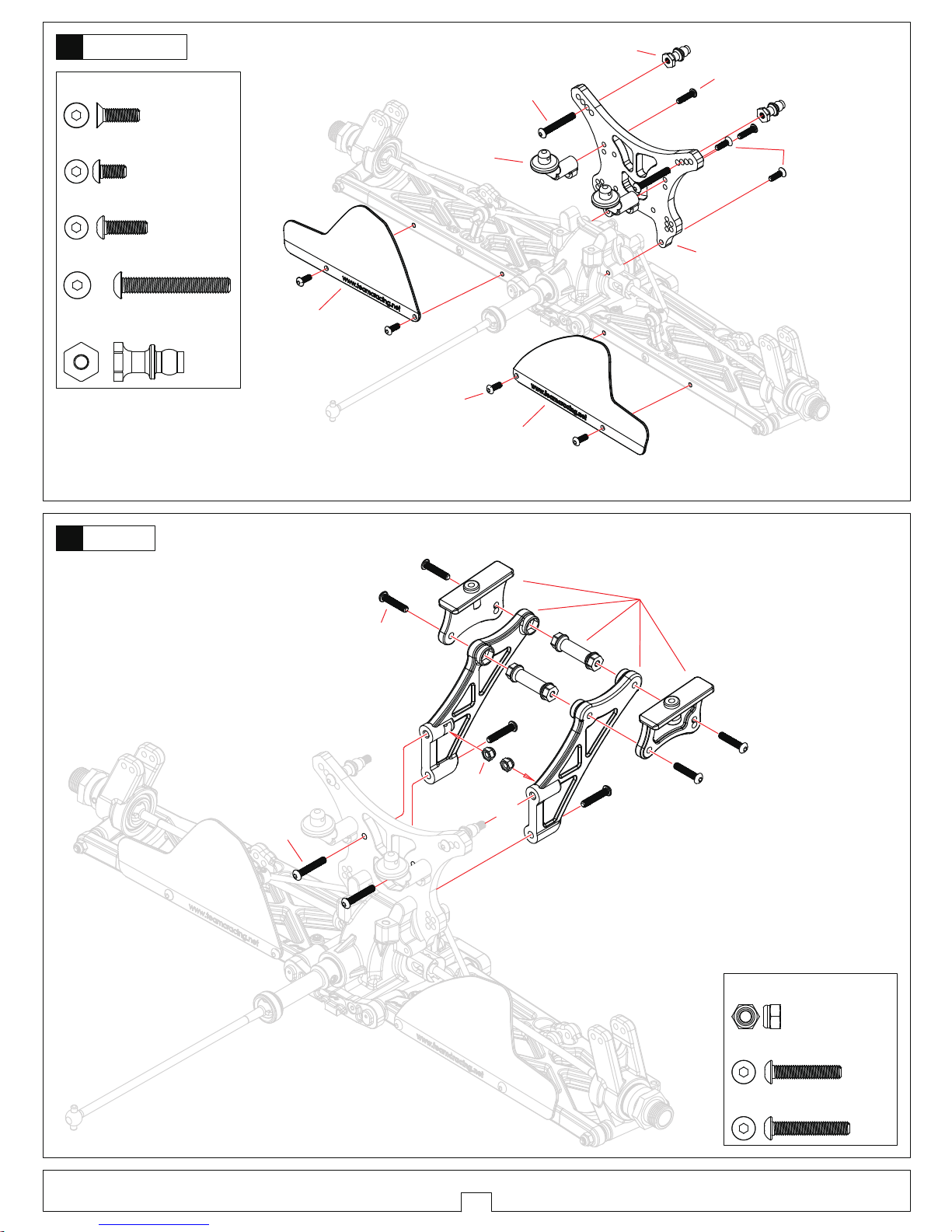

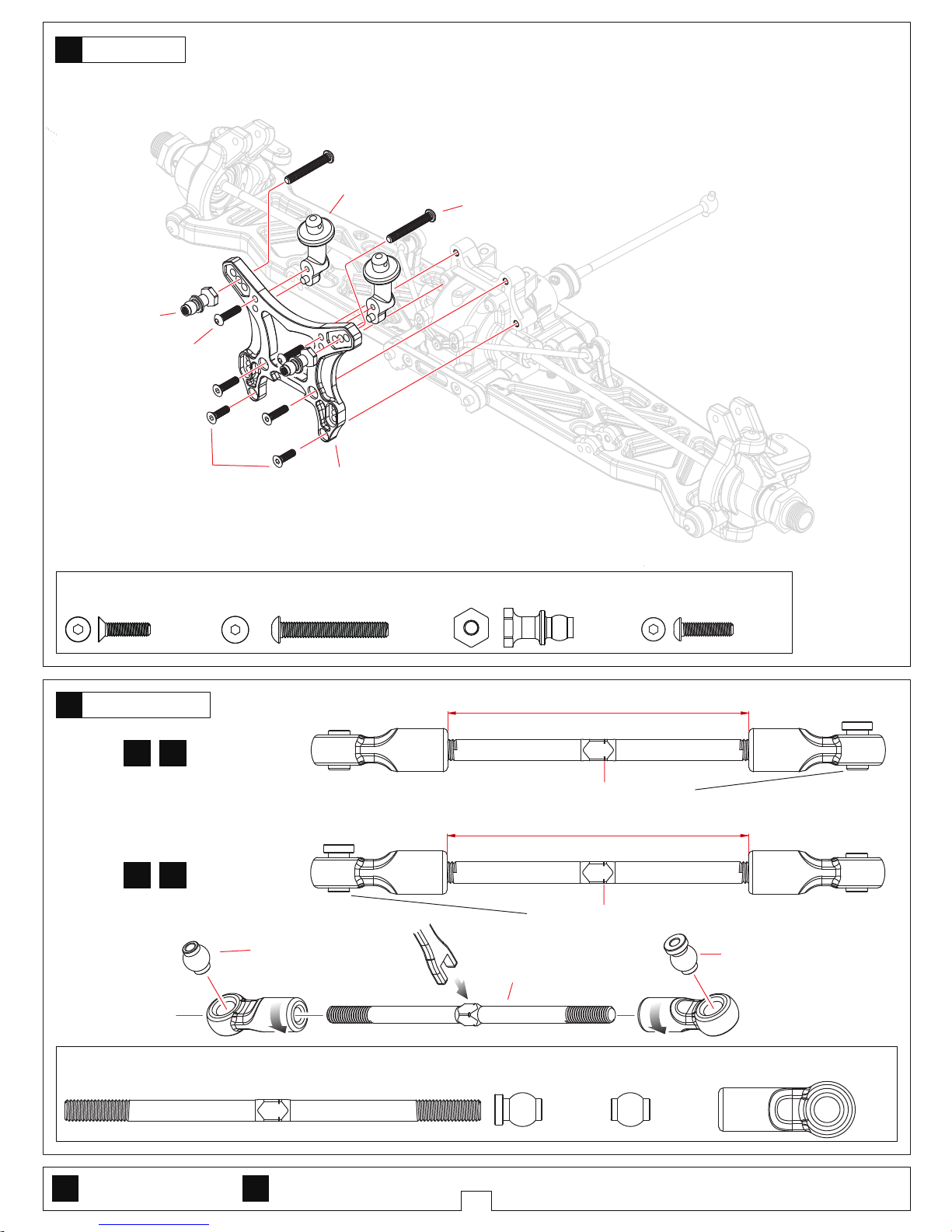

11
Front Shock Tower
前避震架
12 Front Upper Turnbuckle
前上拉杆
1:1
Ture-to -scale diagram
圖形比例
x1
Assemble as many times as specified
需组装数量
Bag-D
Bag-D
M3x12 螺丝
T08674
M3x12 Screw
………2
M3x12 螺丝
T08673
M3x12 Screw
M3.5x25 螺丝
T08673
M3.5x25 Screw 避震上球头
T08622
Shock Top Ball Stud
前避震架
Front Shock Tower
TG8012
7.8球头座-前上
7.8 Ball End-Front Upper
T08606
7.8球头
7.8 Ball Stud
T08606
避震上球头
Shock Top Ball Stud
T08622
M3x12螺丝
M3x12 Screw
T08674
M3x12螺丝
M3x12 Screw
T08673
M3.5x25螺丝
M3.5x25 Screw
T08673
▲Projection.Note direction
注意方向
▲Projection.Note direction
注意方向
前车壳柱
Front Body Mount
TG8005
5x96拉杆
5x96 Turnbuckle
TG8022
7.8球头
7.8 Ball Stud
T08606
TG8022 5x96 Turnbuckle
5x96拉杆
T08606 7.8 Ball stud
7.8 球头
………2
……2 ………2
T08606 7.8 Ball stud
7.8 球头
T0 8606 7.8 Ball End-Front Upper
7.8 球头座-前上
……4
5mm
Approx.69.5mm
大约69.5mm
Approx.69.5mm
大约69.5mm

7
……2
……2 …………6 ……2

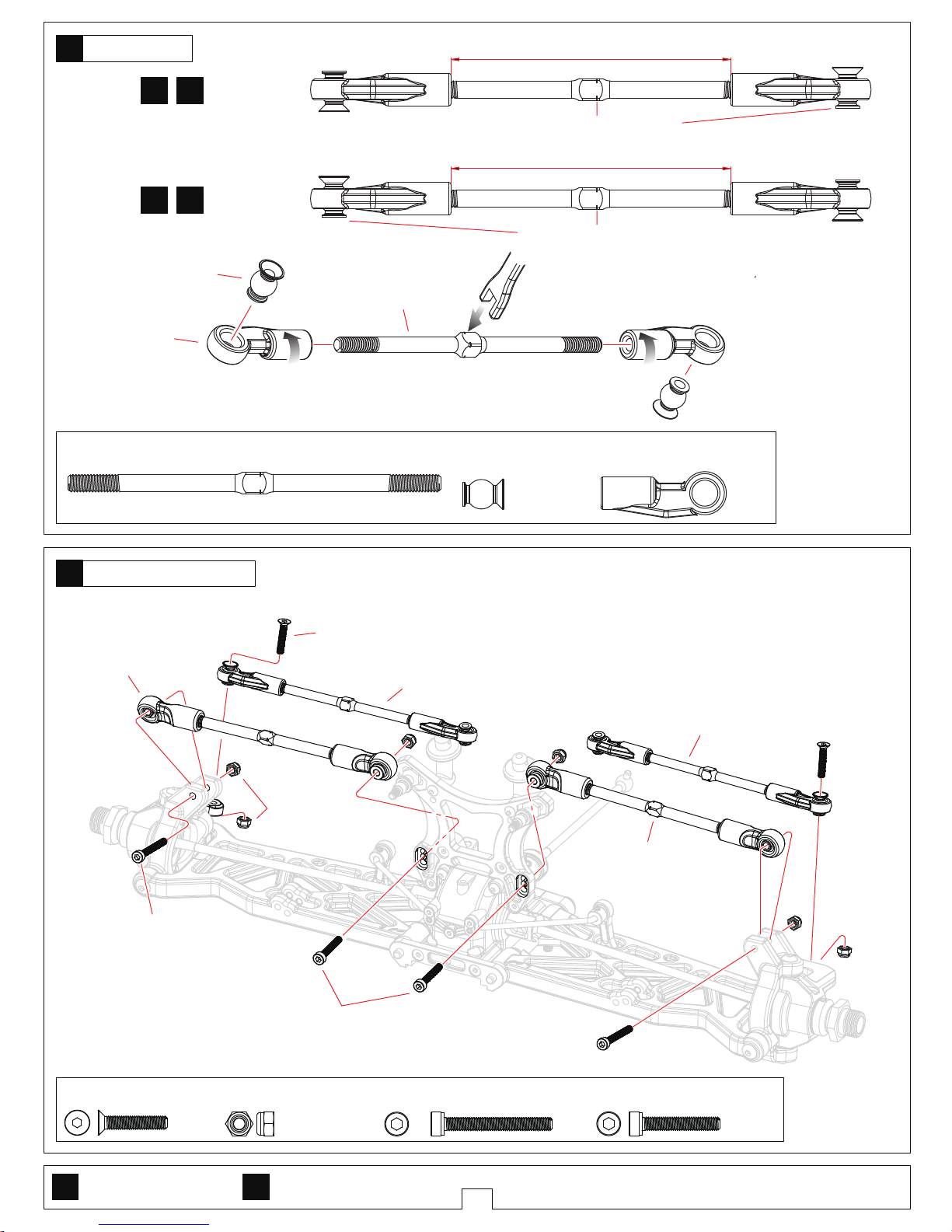

13 Steering
Turnbuckle
转向拉杆
1:1
Ture-to -scale diagram
图形比例
x1
Assemble as many times as specified
需组装数量
Bag-D
1:1 x1
1:1 x1
Steering-Right
转向-右
Steering-Left
转向-左
▲Projection.Note direction
注意方向
▲Projection.Note direction
注意方向
M3x16 螺丝
T08674 M3x16 Screw M3x25 螺丝
T08676 M3x25 Screw M3x18 螺丝
T08676 M3x18 Screw
6.8 球头座-转向
6.8 Ball End-Steering
T08606
4x86拉杆
4x86 Turnbuckle
TG8020
6.8球头
6.8 Ball Stud
T08606
转向拉杆-右
Steering Turnbuckle-Right
前上拉杆-右
Front Upper Turnbuckle-Right
前上拉杆-左
Front Upper Turnbuckle
-Left
转向拉杆-左
Steering Turnbuckle-Left
M3x16螺丝
M3x16 Screw
T08674
M3x25螺丝
M3x25 Screw
T08676
M3x18螺丝
M3x18 Screw
T08676
M3尼龙螺母
M3 Nylon Nut
T08666
M3尼龙螺母
T08666 M3 Nylon Nut
TG8020 4x86 Turnbuckle
4x86 拉杆
T0
8606 6.8 Ball stud
6.8球头
………2
…………4
T0 8606 6.8 Ball End-Steering
6.8 球头座-转向
……4
5mm
Approx.64.5mm
大约64.5mm
Approx.64.5mm
大约64.5mm
14 Front Upper/Steering
Turnbuckle
前上/转向拉杆
Bag-D

8
15 Front Suspension
前悬吊系统
Bag -D

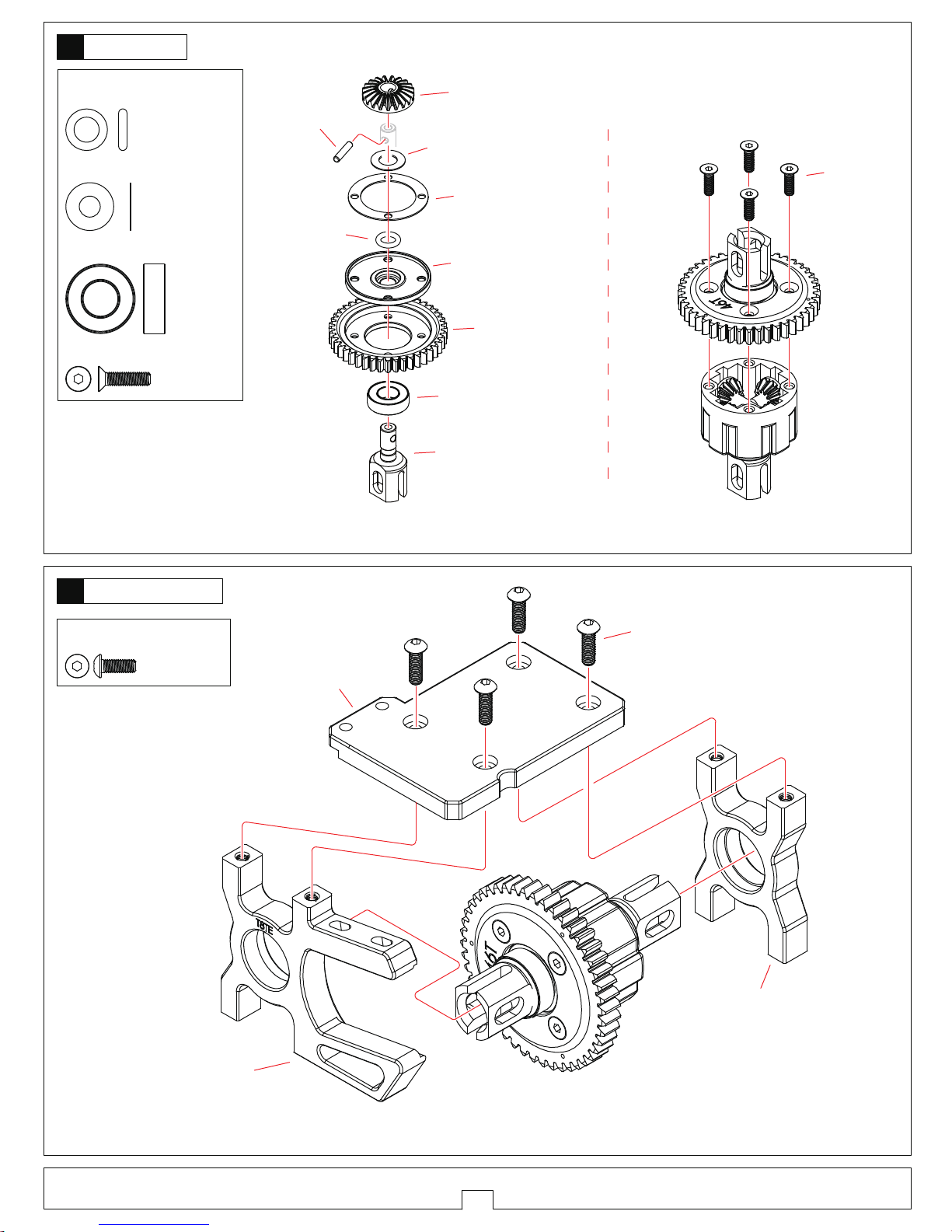

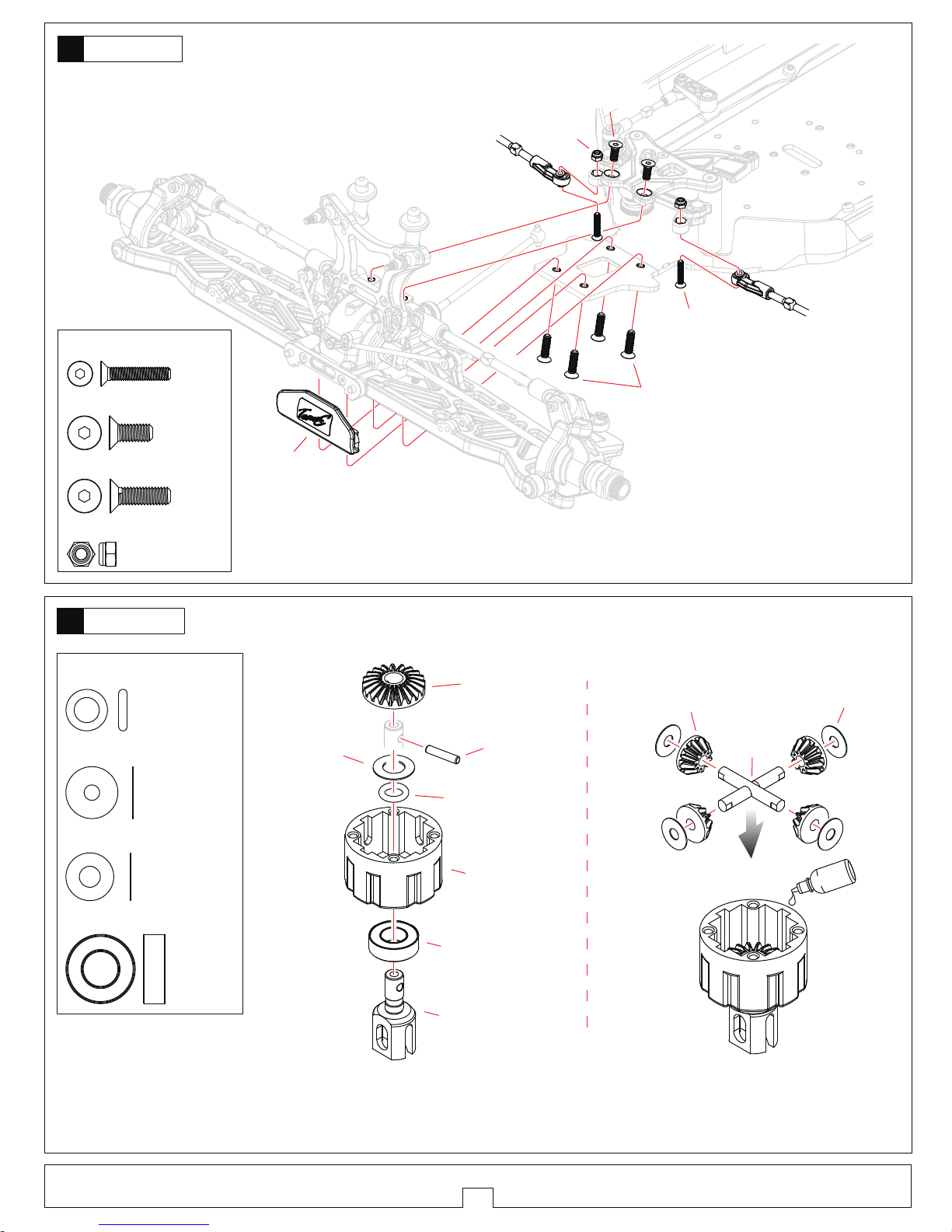

16 Center Differential
中央差速器
Bag -C
...........................2
...........4
.............2
.........2
M3尼龙螺母
T08666 M3 Nylon Nut
M4x14 螺丝
T08674
M4x14 Screw
M4x10 螺丝
T08674
M4x10 Screw
M3x16 螺丝
T08674
M3x16 Screw
M3尼龙螺母
M3 Nylon Nut
T08666
前防撞板
Front Bumper
TG8032
M4x14螺丝
M4x14 Screw
T08674
M4x10螺丝
M4x10 Screw
T08674
M3x16螺丝
M3x16 Screw
T08674
5000#
20T差速齿轮
20T Diff Gear
T08633
2.5x11.5钢针
2.5x11.5 Pin
T08633
差速壳
Differential Housing
T08600
中差差速接杯
Center
Diff Connecting Cup
T08635
10T差速齿轮
10T Diff Gear
T08633
差速轴
Diff Shaft
T08633
8x16x5轴承
8x16x5 Ball Bearing
B081605
…………………1
…………........4
………..1
…………........1
8x16x5轴承
B081605
8x16x5 Ball Bearing
6x11x0.2垫片
W61102
6x11x0.2 Washer
4x12x0.2垫片
W41202
4x12x0.2 Washer
5.8x1.9 O环
T08600
5.8x1.9 O-Ring
6x11x0.2垫片
6x11x0.2 Washer
W61102
4x12x0.2垫片
4x12x0.2 Washer
W41202
5.8x1.9 O环
5.8x1.9 O-ring
T08600

9
Center Differential
中央差速器
Center Differential Mount
中央差速器固定座
18
17
Bag -C
Bag -C
马达固定座
Motor Mount
TG8055
中央差速器固定座
Center Differential Mount
TG8055
中央差速器固定板
Center Differential Plate
TG8031 M3x8螺丝
M3x8 Screw
T08673
M3x8螺丝
T08673 M3x8 Screw
…….........4
…………………1
………..1
……..........4
…………........1
8x16x5轴承
B081605
8x16x5 Ball Bearing
M3x12螺丝
T08916
M3x12 Screw
6x11x0.2垫片
W61102
6x11x0.2 Washer
5.8x1.9 O环
T08636
5.8x1.9 O-Ring
中差差速接杯
Center
Diff Connecting Cup
T08635
2.5x11.5钢针
2.5x11.5 Pin
T08633
20T差速齿轮
20T Diff Gear
T08633
46T中差齿轮-塑胶
46T Center Diff Gear-Plastic
T08915
差速垫片
Differential Pads
T08600
中差齿轮座
Center Diff Gear Mount
T08916
8x16x5轴承
8x16x5 Ball Bearing
B081605
M3x12螺丝
M3x12 Screw
T08916
6x11x0.2垫片
6x11x0.2 Washer
W61102
5.8x1.9 O环
5.8x1.9 O-ring
T08636

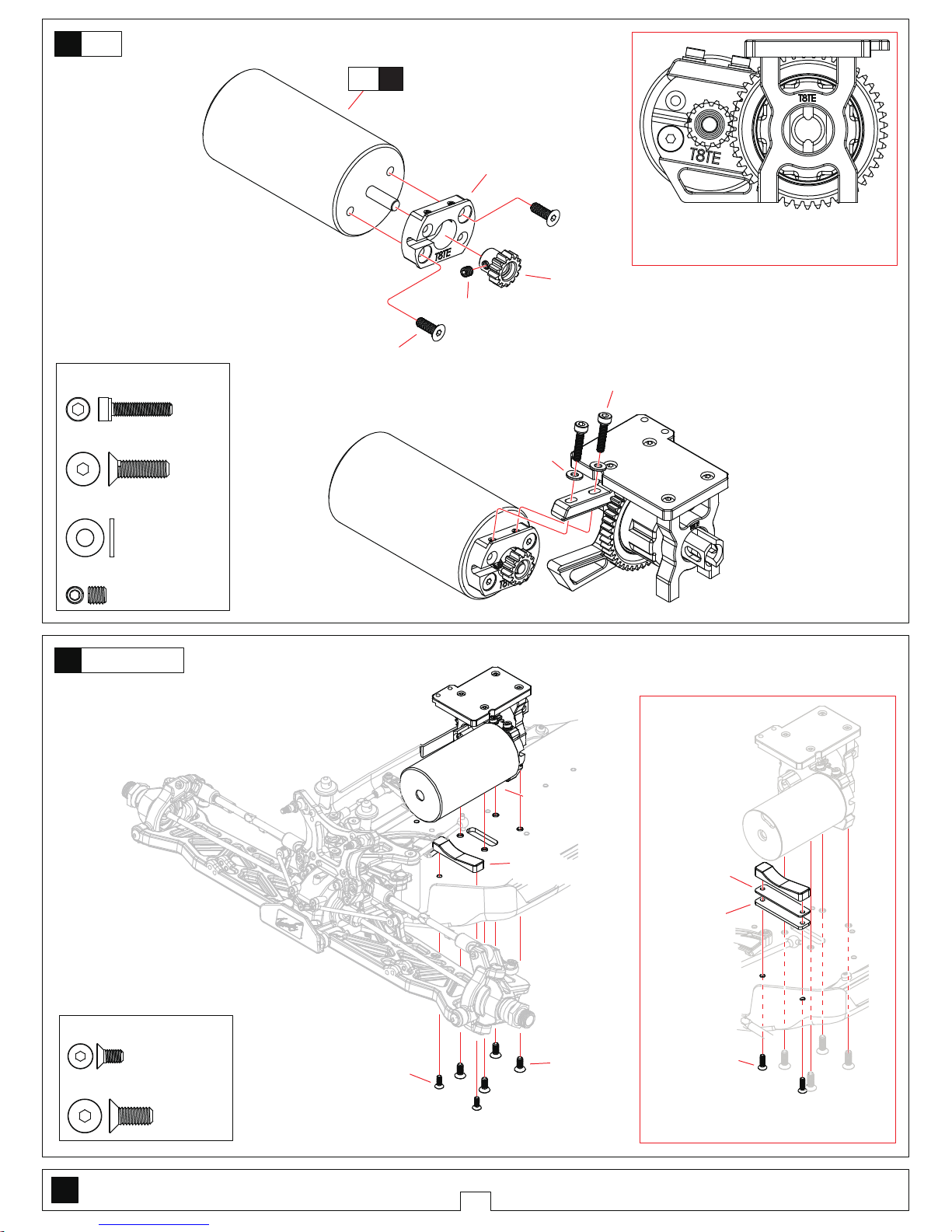

10
Motor
马达
Center Differential
中央差速器
19
20
Bag-C
Bag-C
M3x6螺丝
FS306 M3x6 Screw
M4x10螺丝
T08674 M4x10 Screw
……......4
…….............2
M3x6螺丝
M3x6 Screw
FS306
M4x10螺丝
M4x10 Screw
T08674
M3x10螺丝
M3x10 Screw
T08674
马达扶持座
Motor Mount
马达外径42mm
Motor Outside 42mm
TG8029
1mm垫片
1mm Washer
TG8029
2mm垫片
2mm Washer
TG8029
…………………1
………………..2
Tighten the screws with one sheet of paper
两齿轮之间的间隙大约为一张普通纸的厚度。
inserted between both gears.
…….2
……...2
马达固定座
Motor Mount
TG8055
M4x14螺丝
M4x14 Screw
TG8055
马达齿-16T
Motor Gear-16T
H393
M4x4螺丝
M4x4 Screw
H393
M3x14螺丝
M3x14 Screw
TG8055
马达
Motor
X
M4x4 螺丝
H393
M4x4 Screw
3x7x0.8垫片
TG8055
3x7x0.8 Washer
M4x14螺丝
TG8055
M4x14 Screw
M3x14螺丝
TG8055
M3x14 Screw
3x7x0.8垫片
3x7x0.8 Washer
TG8055
XMust be purchased separately
需另購物品
马达外径是36mm时请使用以上配置
Please use the above configuration when motor-
outside diameter is 36mm

11
Rear Differential
后差速器
Rear Swaybar
后防倾杆
Assemble as many times as specified
需组装数量
22
21
x2
Bag - C/E
x2
…………………2
……………………….2
………………………4
……………...2
……………....3
M3x3螺丝
M3x3 Screw
T08606
T08606
M3x3螺丝
M3x3 Screw
T08601
M2.5x8螺丝
M2.5x8 Screw
T08601
防倾杆固定座
Swaybar Mount
T08601
后
防倾杆
Rear
Swaybar
T08647
6.8球头座
T08606
6.8 Ball End
6.8球头
T08606
6.8 Ball Stud
6.8球头
T08606
6.8 Ball Stud
M2.5x8螺丝
T08601
M2.5x8 Screw
M3x3螺丝
T08606/T08601
M3x3 Screw
Bag-E
…………..2
………….2
……..2
………………..1
M5x4螺丝
TG8017
M5x4 Screw
M3x16螺丝
T08673
M3x16 Screw
13x16x0.2垫片
W131602 13x16x0.2 Washer
6x13x5轴承
B061305 6x13x5 Ball Bearing
10T齿轮
10T Gear
T08636
差速箱
Differential Case
T08601
差速箱
Differential Case
T08601
132mm中后CVD
132mm Center Rear CVD
TG8017
6x13x5轴承
6x13x5 Ball Bearing
B061305
M5x4螺丝
M5x4 Screw
TG8017
M3x16螺丝
M3x16 Screw
T08673
13x16x0.2垫片
13x16x0.2 Washer
W131602

Assemble both Left and Right
组装左和右
LR
12
M3尼龙螺母
M3 Nylon Nut
T08666
后下摆臂-左
Rear Lower Arm-Left
TG8002
3x51.5摆臂轴
3x51.5 Arm Shaft
T08779
M4x10螺丝
M4x10 Screw
T08675
垫片
Washer
T08605
……..............4
……………...2
垫片
T08605 Washer
M4x10 螺丝
T08675 M4x10 Screw
.............................2
M3尼龙螺母
T08666 M3 Nylon Nut
Rear Hub Carrie
后轮座
Rear Hub Carrie
后轮座
24
23
LR
………2
………2
………………….2
……………2
………………2
……………………2
Bag-E
LR
Bag-E
Left Right
M4x4螺丝
M4x4 Screw
T08675
5x8.5
轴
5x8.5
Shaft
TG8018
132mm传动轴
132mm Drive Shaft
TG8018
CVD接杯
CVD Connecting Cup
T08772
8x16x5轴承
B081605
8x16x5 Ball Bearing
13x19x4轴承
B131904
13x19x4 Ball Bearing
M4x4螺丝
T08675
M4x4 Screw
2.5x16.8钢针
TG8015
2.5x16.8 Pin
2.5x12.8钢针
TG8018
2.5x12.8 Pin
5x8.5轴
TG8018
5x8.5 Shaft
2.5x12.8钢针
2.5x12.8 Pin
TG8018
后轮座
Rear Hub Carriers
T08605
2.5x16.8钢针
2.5x16.8 Pin
TG8015
13x19x4轴承
13x19x4 Ball Bearing
B131904
8x16x5轴承
8x16x5 Ball Bearing
B081605
六角轮座
Wheel Hex Hub
TG8015
Oil
油

25 Rear Suspension
后悬吊系统
Bag-E
13
ANTI -SQUAT
TOE -IN
RF
=3.5° =2.5° =1.5°
=2.5° =1.5° =0.5°
=4° =3° =2°
RR
RF
RR
RF
0° 1°
0° 1° 1°
X2 X2
X2 X2 X2
M3x16螺丝
M3x16 Screw
T08673
4x71摆臂轴
4x71 Arm Shaft
T08945
0度轴套-右
0 Degree Bushing-Right
T08944
0度轴套-左
0 Degree Bushing-Left
T08944
1度轴套
1 Degree Bushing
T08944
摆臂固定座-RR
Arm Mount-RR
T08943
摆臂固定座-RF
Arm Mount-RF
T08942
M3x12螺丝
M3x12 Screw
T08674
M3x35螺丝
M3x35 Screw
T08674
…….2 ……2
……...........................2
……….2
M3x16 螺丝
T08673 M3x16 Screw
M3x35 螺丝
T08674 M3x35 Screw
M3x12 螺丝
T08674 M3x12 Screw
4x71摆臂轴
T08945 4x71 Arm Shaft

14
Rear Shock Tower
后避震架
Wing Mount
尾翼固定架
27
26
Bag -E
Bag -E
后挡泥板-左
Dirtcover Rear-Left
TG8004
尾翼固定座
Wing Mount
T08612
后挡泥板-右
Dirtcover Rear-Right
TG8004
后车壳柱
Rear Body Mount
TG8005
球头
Ball stud
T08622
后避震架
Rear Shock Tower
TG8013
M3x6螺丝
M3x6 Screw
T08673
M3x16螺丝
M3x16 Screw
T08673
M3x18螺丝
M3x18 Screw
T08673
M3x12螺丝
M3x12 Screw
T08673
M3x10螺丝
M3x10 Screw
T08674
M3.5x25螺丝
M3.5x25 Screw
T08673
M3尼龙螺母
M3 Nylon Nut
T08666
………..........2
……...2
……....2
M3x12 螺丝
T08673
M3x12 Screw
………..........4
M3x6 螺丝
T08673
M3x6 Screw
………..........2
M3x10 螺丝
T08674
M3x10 Screw
M3.5x25 螺丝
T08673
M3.5x25 Screw
避震上球头
T08622
Shock Top Ball Stud
……2
M3x18 螺丝
T08673
M3x18 Screw
……..6
M3x16 螺丝
T08673
M3x16 Screw
...........................2
M3尼龙螺母
T08666 M3 Nylon Nut

15
28 Rear Upper
Turnbuckle
后上拉杆
29
1:1
Ture-to -scale diagram
图形比例
x1
Assemble as many times as specified
需组装数量
Rear Upper Turnbuckle
后上拉杆
Bag-E
Bag-E
1:1 x1
1:1 x1
Rear Upper-Right
后上-右
Rear Upper-Left
后上-左
7.8球头
7.8 Ball Stud
T08606
7.8球头
7.8 Ball Stud
T08606
▲Projection.Note direction
注意方向
TG8021 5x80 Turnbuckle
5x80 拉杆
T08606 7.8 Ball End-Rear Upper
7.8 球头座-后上
………2
…4 …………2 …………2
T0 8606 7.8 Ball stud
7.8 球头
T0 8606 7.8 Ball stud
7.8 球头
5mm
▲Projection.Note direction
注意方向
Approx.55mm
大约55mm
Approx.55mm
大约55mm
7.8 球头座-后上
7.8 Ball End-Rear Upper
T08606
5x80拉杆
5x80 Turnbuckle
TG8021
M3x25螺丝
M3x25 Screw
T08676
M3x18螺丝
M3x18 Screw
T08676
后上拉杆-左
Rear Upper Turnbuckle-Left
后上拉杆-右
Rear Upper Turnbuckle-Right
M4x22螺丝
M4x22 Screw
T08673 M4x12螺丝
M4x12 Screw
T08674
M3尼龙螺母
M3 Nylon Nut
T08666
后支撑杆固定座
Rear Chassis Stiffener Mount
T08762
后支撑杆
Rear Chassis Stiffener
TG8006 M4尼龙螺母
M4 Nylon Nut
T08666
……2
……2 …….....2
….1
M4x12 螺丝
T08674 M4x12 Screw M3x25 螺丝
T08676 M3x25 Screw M3x18 螺丝
T08676 M3x18 Screw
M3尼龙螺母
T08666 M3 Nylon Nut M4尼龙螺母
T08666 M4 Nylon Nut
……1
……4
M4x22 螺丝
T08673 M4x22 Screw

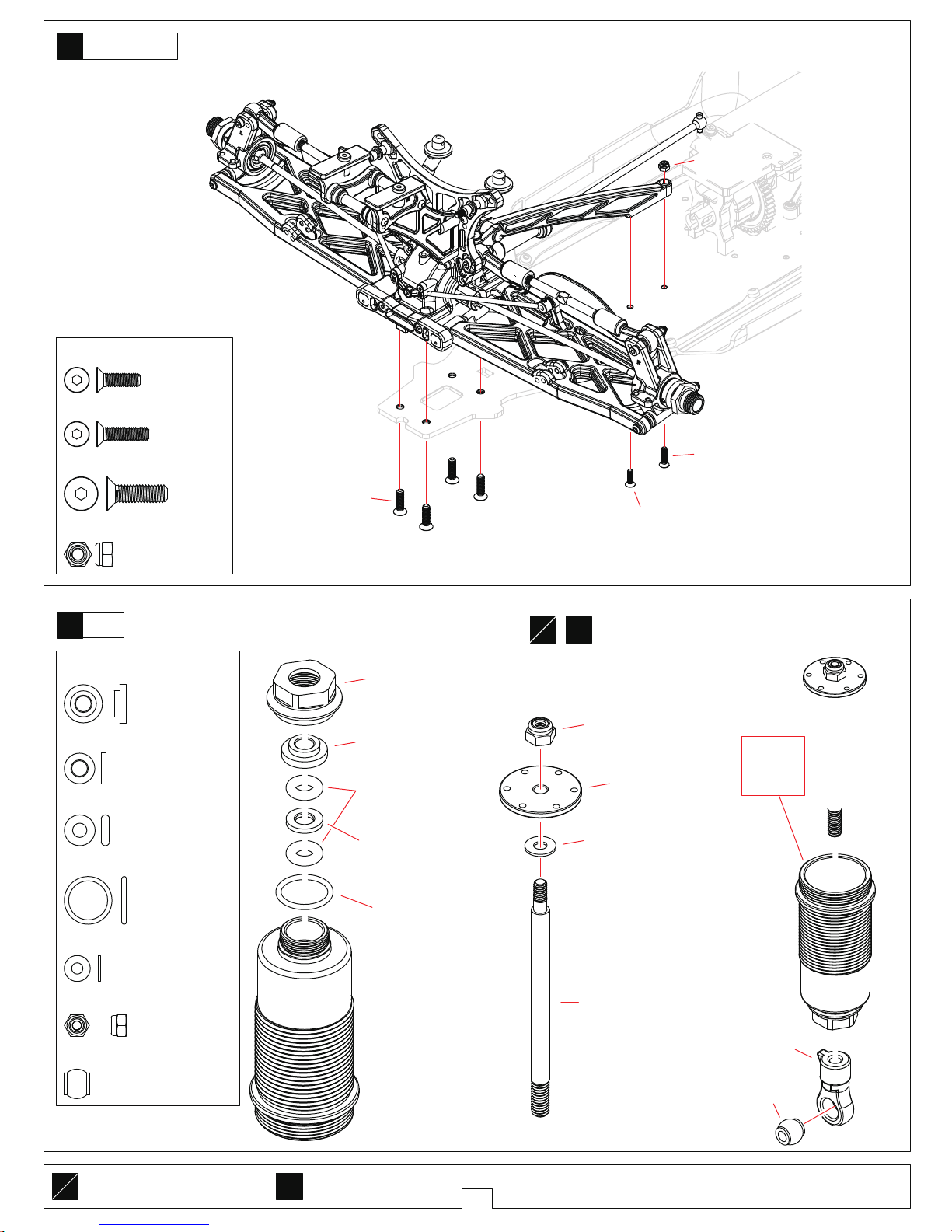

16
…………………4
…………………......4
………………….....8
…………………..4
………………….....4
………………..4
………………............4
Shock
避震器
Rear Suspension
后悬吊系统
Front-Short
前-短
Rear-Long
后-长
Assemble both Front and Rear
组装前和后
Assemble as many times as specified
需组装数量
FR
x2
31
30
FR
x2
Bag-E
Bag-F
M3x12螺丝
T08674 M3x12 Screw
M4x14螺丝
T08674 M4x14 Screw
……......4
……........1
M3x10螺丝
T08674 M3x10 Screw
…….............1
...........................1
M3尼龙螺母
T08666 M3 Nylon Nut
M4x14螺丝
M4x14 Screw
T08674
避震下盖
Shock Bottom Cover
T08625/T08626
9x1.0 O环
9x1.0 O-ring
T08625/T08626
2.75mm塑胶垫片
2.75mm Plastic Washer
T08627
1mm塑胶垫片
1mm Plastic Washer
T08627
3.3x1.9 O环
3.3x1.9 O-ring
T08627
M3x10螺丝
M3x10 Screw
T08674
M3x12螺丝
M3x12 Screw
T08674
M3尼龙螺母
M3 Nylon Nut
T08666
前避震筒身-短
Front Shock Body-Short
T08625
后避震筒身-长
Rear Shock Body-Long
T08626
前避震轴-镀钛
Front Shock
Shaft-Titan Coated
TU0880
后避震轴-镀钛
Rear Shock
Shaft-Titan Coated
TU0882
M2.5尼龙螺母
M2.5 Nylon Nut
T08666
避震活塞
Shock Piston
T08627
6.8球头座
6.8 Ball End
T08622
6.8球头
6.8 Ball Stud
T08622
2.7x5.8x0.5垫片
2.7x5.8x0.5 Washer
W275805
2.75mm塑胶垫片
T08627
2.75mm Plastic Washer
1mm塑胶垫片
T08627
1mm Plastic Washer
3.3x1.9 O环
T08627 3.3x1.9 O-ring
M2.5尼龍螺母
T08624 M2.5 Nylon Nut
6.8球头
T08624 6.8 Ball Stud
9x1.0 O环
T08625/T08626 9x1.0 O-ring
2.7x5.8x0.5垫片
W275805 2.7x5.8x0.5 Washer

FR
x2
Assemble both Front and Rear
组装前和后
……………4
450#
Shock
避震器
Front-Short
前-短
Rear-Long
后-长
Front-Short
前-短
Rear-Long
后-长
Front-Short
前-短
Rear-Long
后-长
Assemble both Left and Right
组装左和右
……2
……...............2
……......................2
……................2
Assemble as many times as specified
需组装数量
Front Shock
前避震器
FR
32
33
LR
LR
x2
17
Bag - F
Bag - F
避震上盖
Shock Top Cover
T08625/T08626
气室
Diaphragm
T08627
18.5x1.5 O环
18.5x1.5 O-ring
T08625/T08626
弹簧调节座
Spring Adjuster
T08625/T08626
避震防尘套
Shock Boot
T08623
弹簧固定座
Spring Mount
T08622
18.5x1.5 O环
T08625/T08626 18.5x1.5 O-Ring
M3.5尼龙螺母
M3.5 Nylon Nut
T08666
3.5x9x1垫片
3.5x9x1 Washer
W3591
M3x18螺丝
M3x18 Screw
T08673
塑胶轴套
Plastic Bushing
T08622
3.5x9x1垫片
W3591 3.5x9x1 Washer
塑胶衬套
T08622 Plastic Bushing
M3.5尼龙螺母
T08666 M3.5 Nylon Nut
M3x18螺丝
T08673 M3x18 Screw
前避震弹簧-硬
Front Shock
Spring-Hard
TU0854
后避震弹簧-硬
Rear Shock
Spring-Hard
TU0856
