Team Corally SSX10 User manual

Team Corally • Geelseweg 80 • 2250 Olen • Belgium
Tel: [phone] • [e-mail] • www.corally.com
2018-V2
CHECK FOR THE LATEST
VERSION OF THIS
INSTRUCTION MANUAL

2
C-52002
# C-53003-1 • For sensored and sensorless motors
• Manufactured with the highest grade components
• Ultra compact design
• Aluminium case for improved heat dissipation
• Built in power switch
• Advanced boost & turbo timing system
for improved acceleration performance
• Enhanced throttle & brake control function.
• 10 programmed profiles can be stored in the ESC
• BEC voltage 6.0V 3A Current
• Powerful TC Link software to test motor timing
and advise the best ESC timing setting
• Ultra High Speed
• High Voltage 6 - 8.4V
• Coreless Motor
• Titanium Gears
• 6,2 Kg Torque/cm @ 7.4V
• Speed 0.07 sec/60°
• 35.5 x 15 x 33mm
Features
• Precision machined T6 aluminium motor can
• High purity copper windings maximizes conductivity
• High power solder tabs
• Removable and replaceable rotor
• Powerful sintered Neodymium magnet
• Improved stator design for higher efficiency
• Dual Sensor Port
• Adjustable Timing
• Compatible with all Sensored/ Sensorless ESC
• Compliant with EFRA, BRCA, IFMAR, ROAR rules

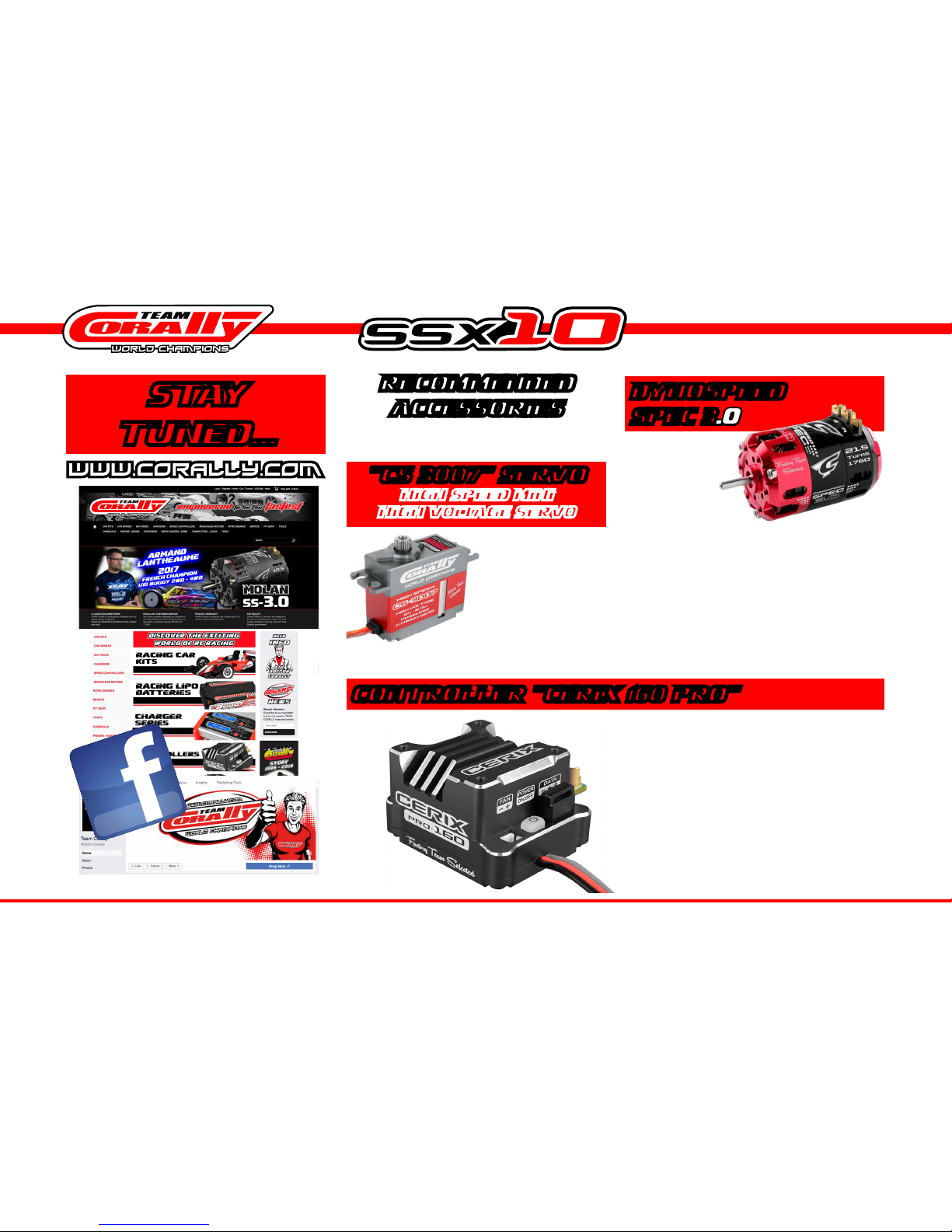

RECOMMENDED
ACCESSORIES
To obtain the maximum performance out of your SSX10
we recommend the following accessories
S TAY
TUNED...
https://www.facebook.com/Team.Corally
# C-52003
HIGH SPEED MINI
HIGH V0LTAGE SERV0
DYNOSPEED
SPEC 3.0
"CS 3007" SERVO
CONTROLLER "CERIX 160 PRO"

3
# C-16300
Voltax 120C LiPo Battery
C-49505 5000mAh - 7.4V - Shorty 2S
VOLTAX 120C Hex Drivers
Aluminium handle • Hardened tool tip
TC Shock Pliers
For use with 1/12 - 1/10 - 1/8 Shocks
Nut Drivers
Aluminium handle • Hardened tool tip
C-16130 Factory Pro Tool - Hex Driver 1.5 mm
C-16131 Factory Pro Tool - Hex Driver 2.0 mm
C-16132 Factory Pro Tool - Hex Driver 2.5 mm
C-16161 Factory Pro Tool - Nut Driver 5.5 mm
C-13094 C-13090
100 Lock-It
Screwlock - Soft
105 Stick-It
Thin - CA Glue
Cutter Knife - Needle Nose Plier
For plastic parts and circlips
TOOLS NEEDED FOR ASSEMBLY

50 10 15 20
4Socket Head Screw Button Head Screw Flat Head Screw
1REAR POWER POD ASSEMBLY
C-00120-016
Alu 7075 T6
Rear Bulkhead Right
C-00120-015
Alu 7075 T6
Rear Bulkhead Left
C-00100-024
Alum. Ball 4.25mm - M3
(2pcs)
C-30050
Flat Head Screw M3x6
C-30050
Flat Head Screw M3x6
C-30051
Flat Head Screw M3x8
(4pcs)
C-00110-004
Rear Pod Lower Plate -
Carbon 2.5mm

50 10 15 20
5

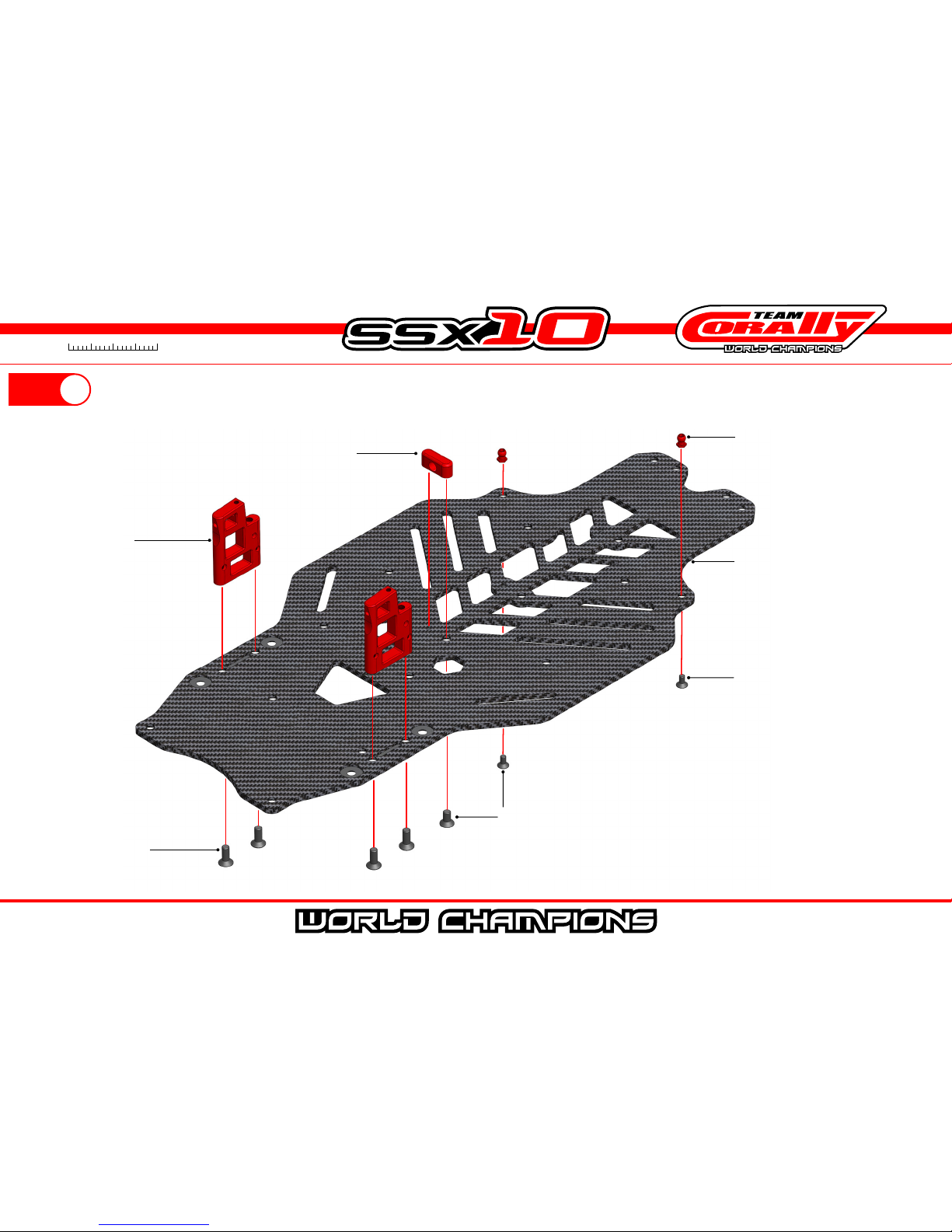

2CHASSIS ASSEMBLY
C-30050
Flat Head Screw M3x6
(2pcs)
C-30050
Flat Head Screw M3x6
C-30051
Flat Head Screw M3x8
(4pcs)
C-00110-014
Alu 7075 T6
Alum. Front Bulkhead
(2pcs)
C-00110-001
Chassis - Carbon 2.5mm
C-00100-016
Alum. Battery Backstop
C-00100-024
Alum.Ball 4.25mm - M3
(2pcs)

50 10 15 20
6Socket Head Screw Button Head Screw Flat Head Screw

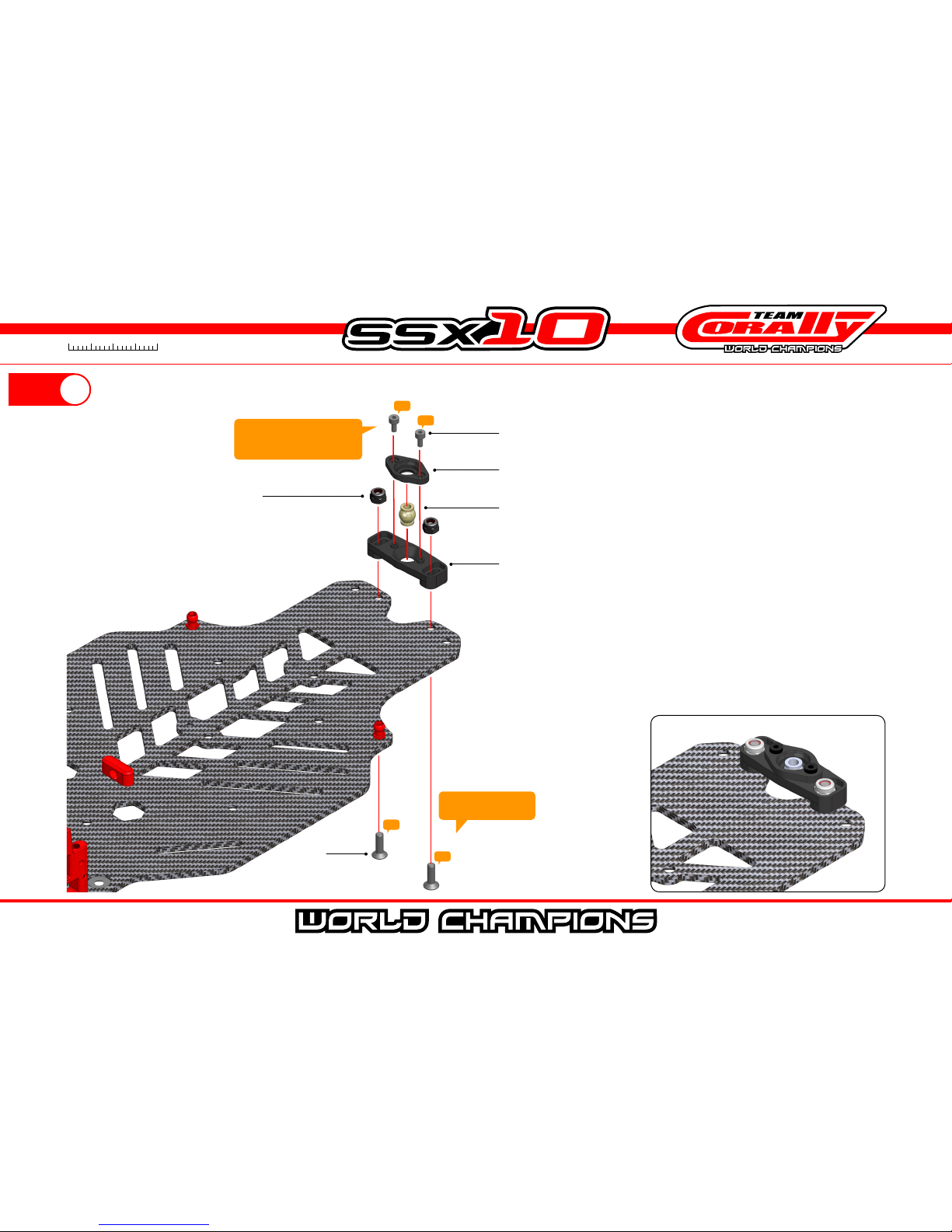

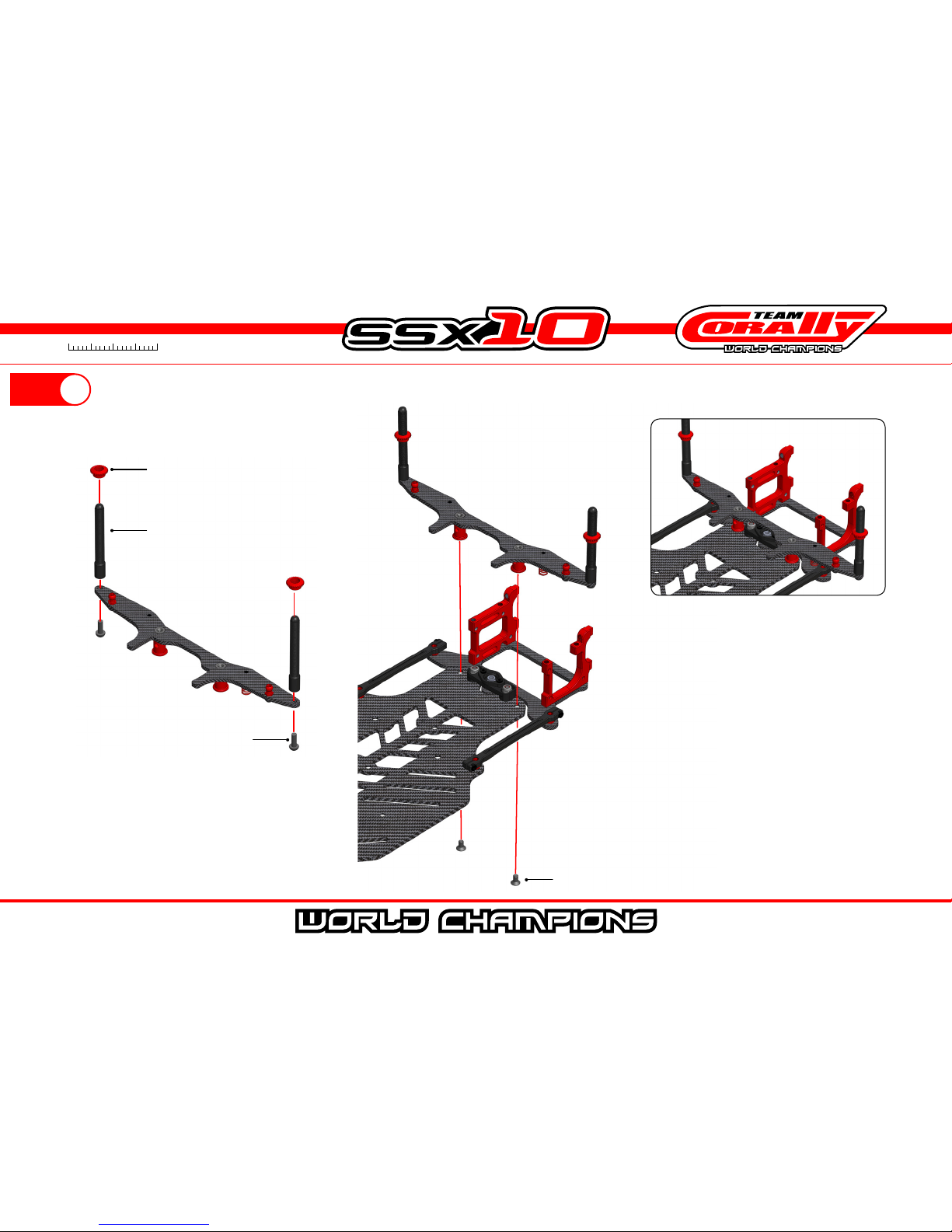

3FRONT CHASSIS PROTECTOR ASSEMBLY
C-00100-054
Chassis Protector
C-00100-052
Threaded Body Mount
(2pcs)
C-00100-053
Alu. Body Mount Nut
(2pcs)
C-30052
Flat Head Screw M3x10
(2pcs)
C-00100-055
Chassis Corner Protector
(2pcs)

50 10 15 20
7
4REAR POWER POD ASSEMBLY
C-00100-056
Composite Pivot Brace - A+B
C-00100-056
Composite Pivot Brace - A+B
C-00100-079
Alum. Pivot Ball - Hard-coated
C-30018
Hex Socket Head Screw M2 X 4mm (2pcs)
C-31002
Steel Nylstop Nut M3 - Black
(2pcs)
C-30052
Flat Head Screw M3x10
(2pcs)
Do not tighten fully
for the moment.
Do not overtighten the
screws, the Pivot Ball must
move freely.

50 10 15 20
8Socket Head Screw Button Head Screw Flat Head Screw
REAR POWER POD INSTALLATION
5
C-30051
Flat Head Screw
M3x8
Make sure that the REAR-POD moves
freely but without excessive play.
Now tighten the screws fully.

50 10 15 20
9

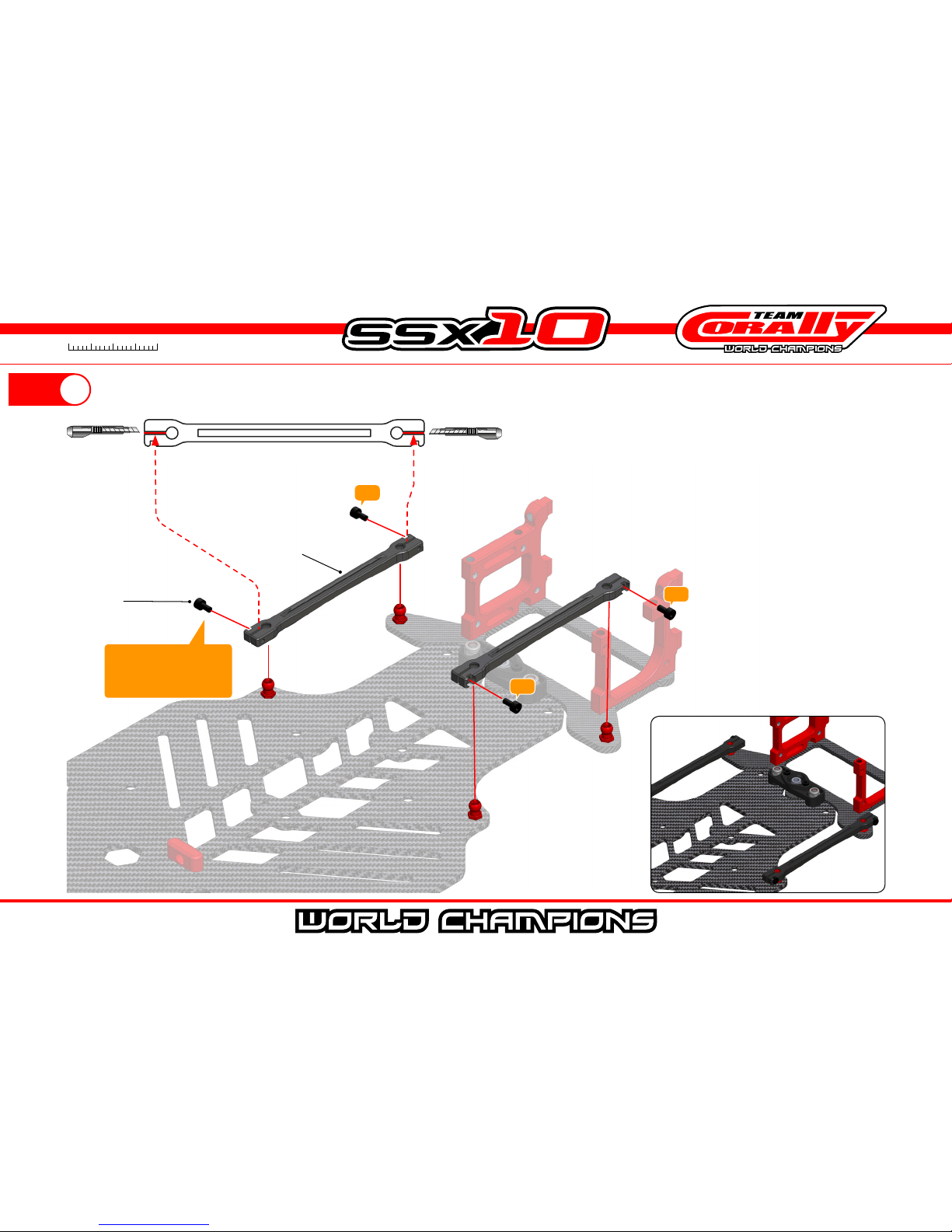

6SIDE POD LINK ASSEMBLY
CUT CUT
C-30018
Hex Socket Head Screw
M2 X 4mm (4pcs)
Do not tighten the screws
fully otherwise the Pod
Link will not move freely.
C-00100-041
Composite Pod Link
(2pcs)

50 10 15 20
10 Socket Head Screw Button Head Screw Flat Head Screw
7REAR POWER POD ASSEMBLY
C-00100-012
Alum. Rear Brace
(2pcs)
C-30100
Hex Button Head Screw
M3x6 - (2pcs)
C-00100-036
Side Spring -
Red 0,5mm - Soft (2pcs)
C-00100-014
Alu. Side Spring Holder
(2pcs)
C-00100-024
Alu. Ball 4.25mm - M3 (2pcs)
C-30152
Set Screw M3x8 (2pcs)
C-30050
Flat Head Screw M3x6 (2pcs)
C-00110-003
Rear Brace - Carbon
C-00100-103 OPTIONAL
Side Spring Silver -
Soft-Medium - 0.6mm
C-00100-104 OPTIONAL
Shock Spring Black -
Medium - 0.7mm
C-00100-108 OPTIONAL
Shock Spring Blue -
Hard - 0.8mm
C-00100-036
Side Spring Red -
Soft - 0.5mm
Make the first spiral oval so that the
spring fits on the support

50 10 15 20
11
REAR POWER POD INSTALLATION
8
C-30050
Flat Head Screw M3x6 (2pcs)
C-30100
Hex Button Head Screw M3x6
C-00100-051
Composite Pod Link
(2pcs)
C-00100-053
Alu. Body Mount
Cambered Nut - (2pcs)

50 10 15 20
12 Socket Head Screw Button Head Screw Flat Head Screw

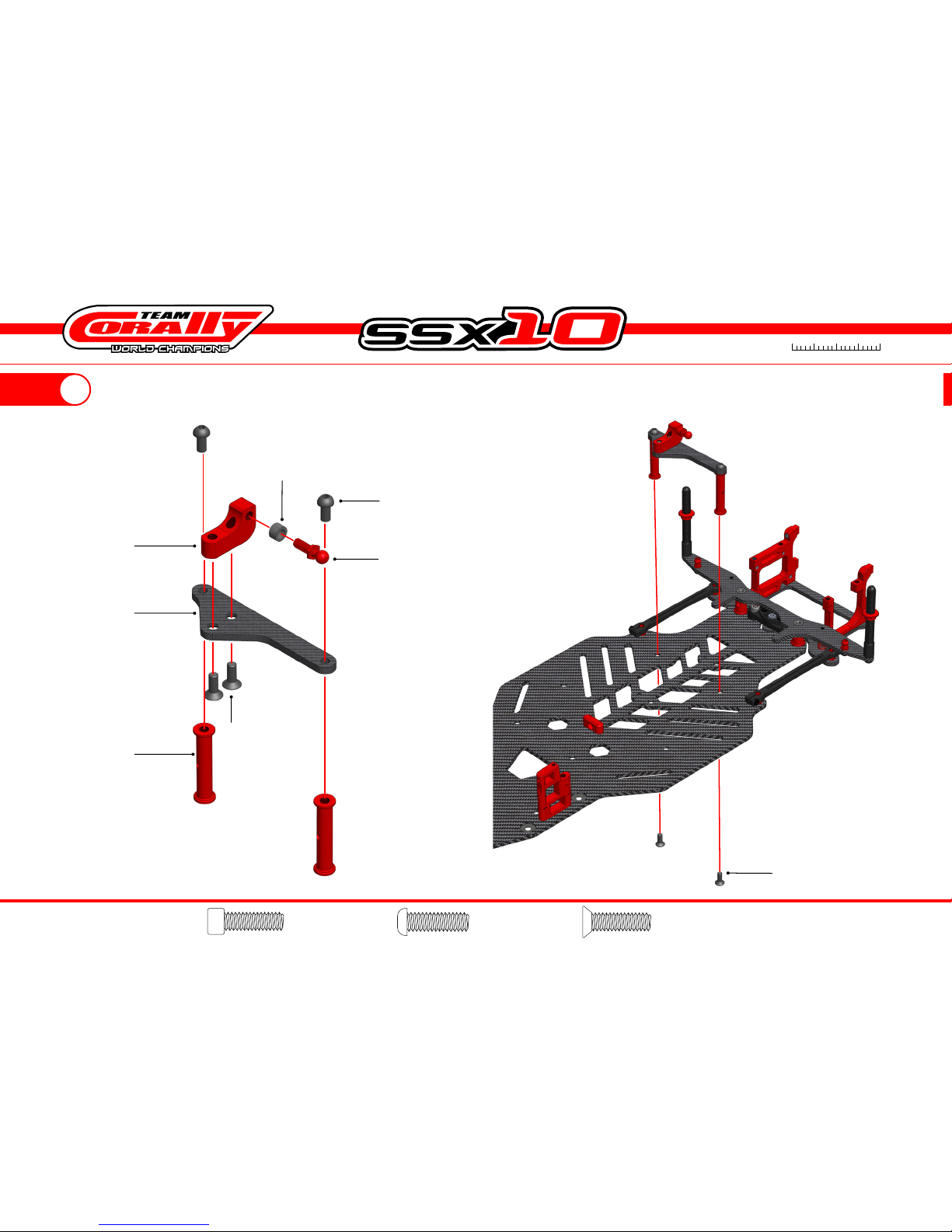

9REAR BRACE ASSEMBLY
C-30100
Hex Button Head Screw M3x6
(2pcs)
C-00110-005
Body Mount Plate
C-00120-029
Alum. Spacer Holder
- 27mm (2pcs)
C-00120-028
Damper Holder C-00100-082
Alum. Threaded Ball
4.25mm
C-00100-083
Shim Ø 3.2-5 Ep3mm
C-30050
Flat Head Screw M3x6
(2pcs)
C-30050
Flat Head Screw
M3x6 (2pcs)

50 10 15 20
13
10 REAR BRACE INSTALLATION
C-30100
Button Head Screw M3x6
C-30100
Button Head Screw M3x6
(4pcs)
C-30100
Button Head Screw M3x6 (3pcs)
C-00110-0021
Rear Pod Upper Plate-
Carbon 2.5mm
C-00100-024
Alu. Ball 4.25mm - M3 (3pcs)

50 10 15 20
14 Socket Head Screw Button Head Screw Flat Head Screw
SIDE LINK DAMPER ASSEMBLY
11
C-00100-050
Composite Ball Joint
C-30152
Set Screws M3 X 8mm
C-00100-072
Composite Damper Tube Rod
C-00100-029
Alum. Side Linkage Damper Tube
C-00100-049
Composite Ball Joint - Alum. Side Linkage Damper Tube
SILICONE
OIL
IMPORTANT:
• Add silicone oil only in the slot, not on
the whole Damper Tube Rod.
• After assembling, check if it is move
smoothly.
• Use different oil thickness to change the
dampening.
• Replace the oil after each race.
C-81515 Shock Syrup - Ultra Pure Silicone - 15.000 CPS
C-81530 Shock Syrup - Ultra Pure Silicone - 30.000 CPS
C-81550 Shock Syrup - Ultra Pure Silicone - 50.000 CPS
C-81575 Shock Syrup - Ultra Pure Silicone - 75.000 CPS
* Not Included
TIP For HIGH GRIP use SOFTER oils
For LOW GRIP use HARDER oils

50 10 15 20
15
SIDE LINK DAMPER INSTALLATION
12
Make sure the Ball Links are aligned
and moves smoothly
C-81515 Shock Syrup - Ultra Pure Silicone - 15.000 CPS
C-81530 Shock Syrup - Ultra Pure Silicone - 30.000 CPS
C-81550 Shock Syrup - Ultra Pure Silicone - 50.000 CPS
C-81575 Shock Syrup - Ultra Pure Silicone - 75.000 CPS

50 10 15 20
16 Socket Head Screw Button Head Screw Flat Head Screw
C-81230 Shock Oil - 300 CPS
C-81235 Shock Oil - 350 CPS
C-81240 Shock Oil - 400 CPS
C-81245 Shock Oil - 450 CPS

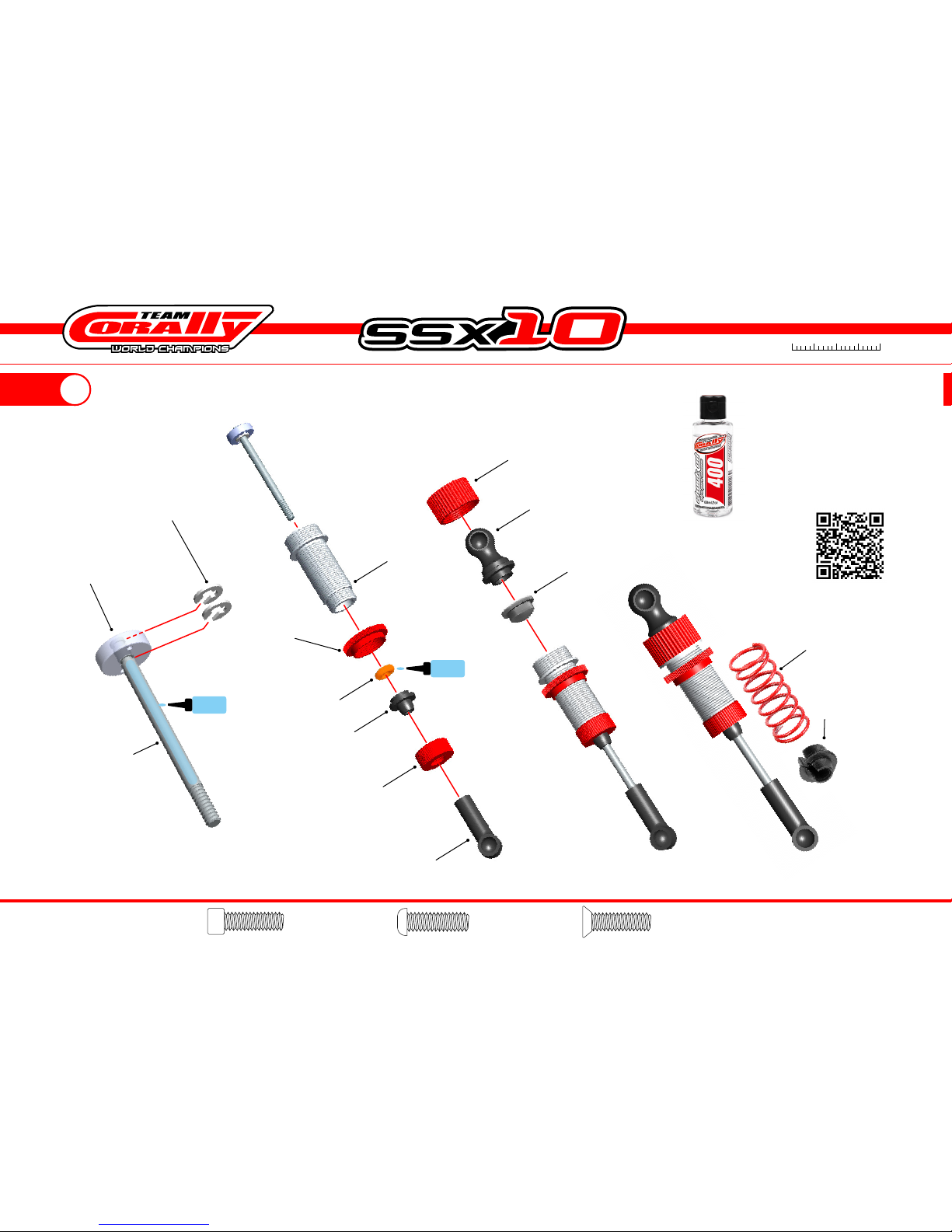

SHOCK ABSORBER ASSEMBLY
13
C-00100-046
Composite Shock Piston
C-00100-044
Composite Lower
Ball Joint - Shock
C-00100-031
Alum. Lower
Shock Body Cap
C-00100-042
Composite
Washer Shock Body
C-00100-048
Silicone Shock O-Ring
C-00100-033
Alum. Shock Spring
Adjustment Nut
C-00100-034
Alum. Shock Body
C-00100-032
Alum. Upper Shock Body Cap
C-00100-045
Composite Upper
Ball Joint - Shock
C-00100-047
Silicone Shock Membrane
C-32150
E-clips Ø1,5mm
C-00100-035
Shock Shaft - Steel
SILICONE
OIL
SILICONE
OIL
* Not Included
C-00100-030
Shock Spring -
1.1mm
C-00100-043
Shock Spring
Holder

50 10 15 20
17
SILICONE
OIL
50%
WAIT TIGHTEN TIGHTEN
FULLY
5min
FILL MOVE
UP
3-4x
MOVE
UP
SHOCK ABSORBER FILLING
14
• Pull the Shock shaft
down.
• Fill the shock body with
silicone oil.
• Move the piston up&down
(3-4x) to release the air
bubbles in the silicone
oil.
• Pull the Shock shaft
down.
• Install the shock absorb-
er vertically and let it sit
for a few minutes until
the bubbles rise to the
surface.
• Install the silicone mem-
brane in the shock cap.
• Tighten slightly the
shock cap on the shock
body.
• A little oil will flow out of
the shock absorber.
• Gently move the piston
in upper position.
• The excess will flow out
of the shock absorber.
• Allow the piston in the
upper position.
• Tighten the cap fully but
not too much otherwise
the membrane will be
deformed.

50 10 15 20
18 Socket Head Screw Button Head Screw Flat Head Screw

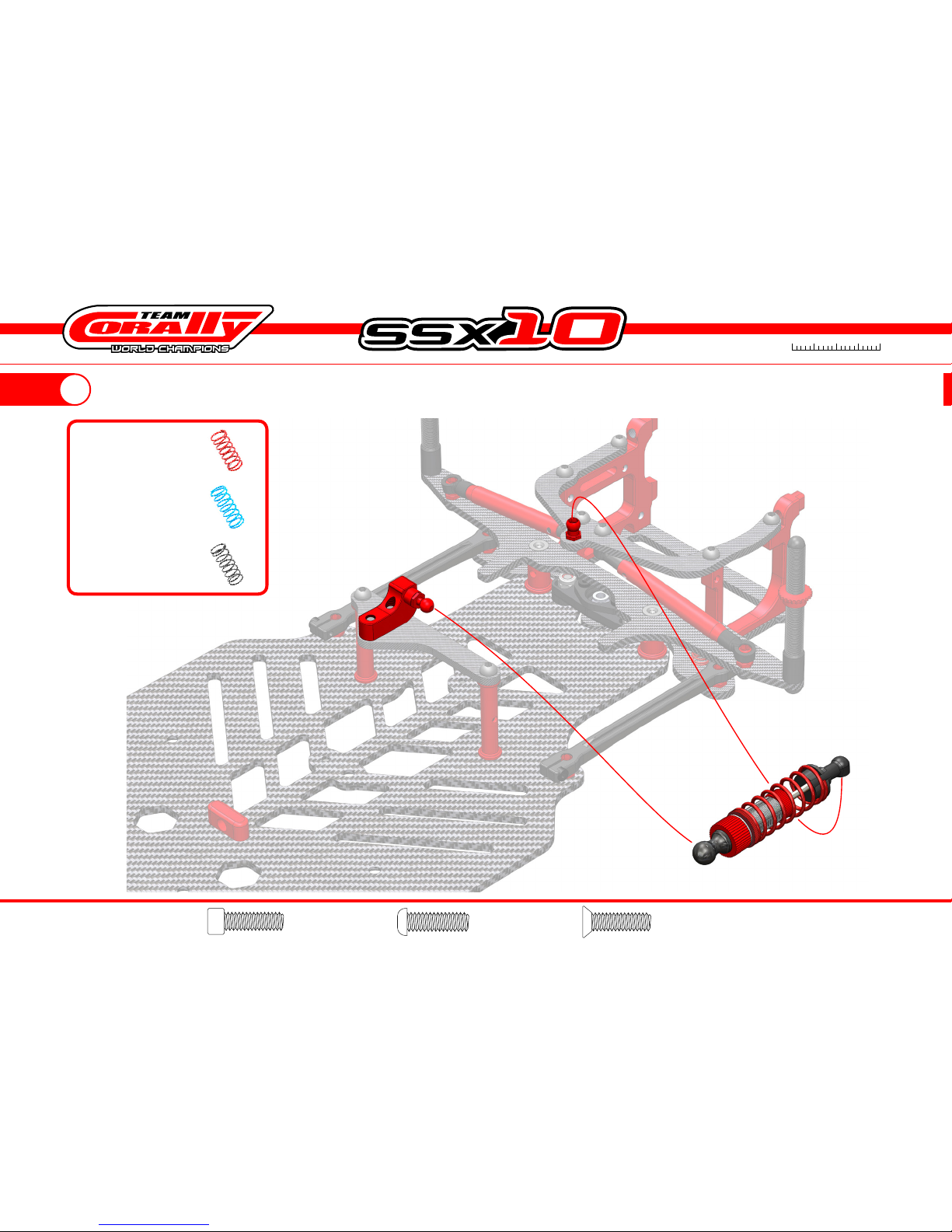

15 SHOCK ABSORBER INSTALLATION
C-00100-101 OPTIONAL
Shock Spring Blue -
Medium - 1.0mm
C-00100-102 OPTIONAL
Shock Spring Black -
Soft - 0.9mm
C-00100-030
Shock Spring Red -
Hard - 1.1mm

50 10 15 20
19

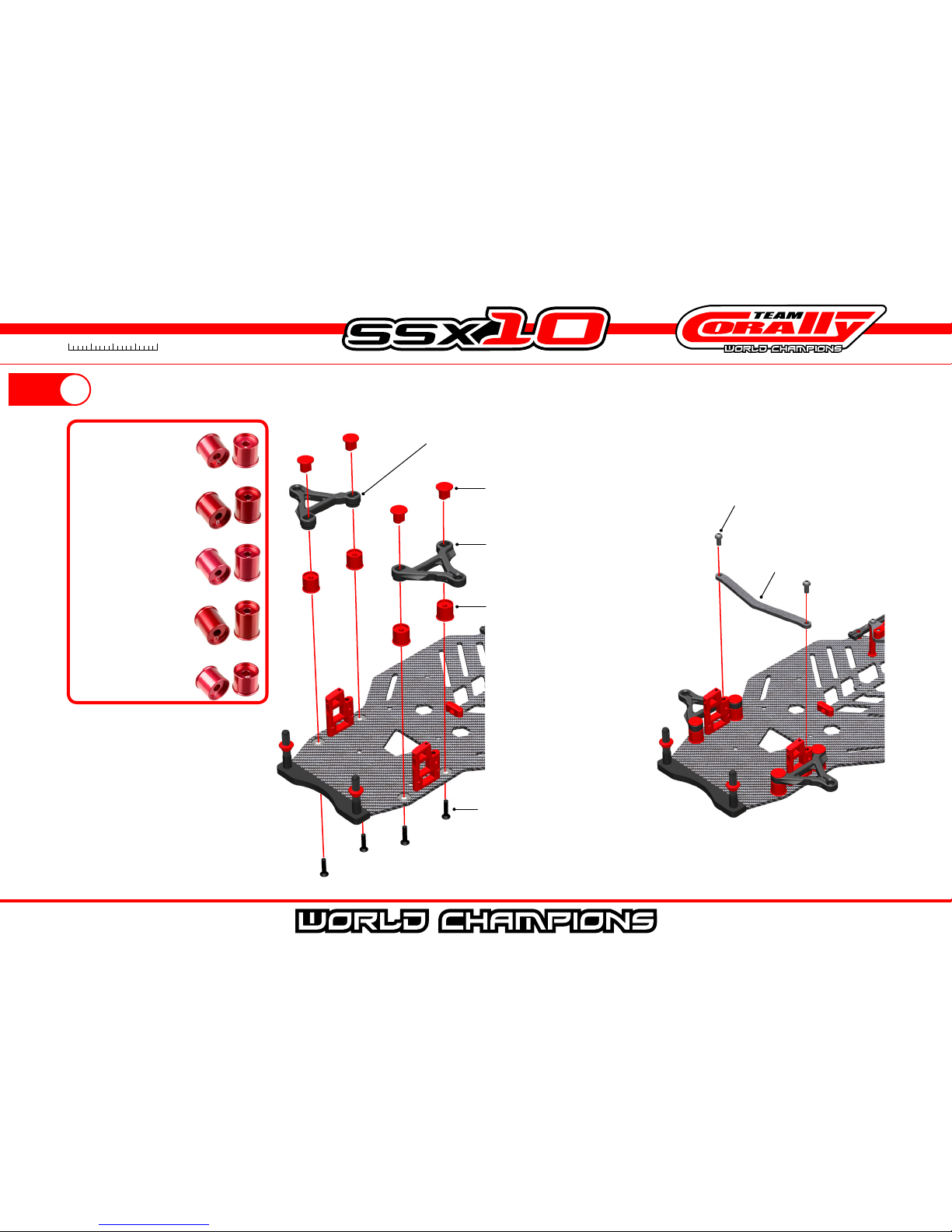

16 FRONT SUSPENSION ASSEMBLY
C-00100-058
Composite Suspension Arm - Front Lower - Right
C-00100-059
Composite Suspension Arm -
Front Lower - Left
C-00110-016
Alum. Lower Arm Cap - A
(4pcs)
C-00100-018
Alum. Upper Arm Cap (4pcs)
C-00110-002
Front Stiffener Plate -
Carbon
C-3002-30-14
Flat Head Screw
M3x14 (4pcs)
C-00110-018 OPTIONAL
Alum. Lower Cap - C -
-2.0mm
C-00110-017 OPTIONAL
Alum. Lower Cap - B -
-1.0mm
C-00110-016
Alum. Lower Cap - A -
0.0mm
C-00110-019 OPTIONAL
Alum. Lower Cap - D -
-3.0mm
C-00110-020 OPTIONAL
Alum. Lower Cap - E -
+1.0mm
C-30100
Button Head Screw M3x6 (3pcs)

50 10 15 20
20 Socket Head Screw Button Head Screw Flat Head Screw
17 FRONT SUSPENSION ASSEMBLY
C-00100-024
Alum. Steering Ball
4.25mm - M3
C-00110-013
Front Wheel Axle
- Steel
C-00100-067
Alum. Shim Ring - ID 3mm -
OD 4mm - 1.0mm
C-32151-T
Circlips Ø2.3mm
C-00100-037
Front Spring Coils - Red
0.4mm - Soft
C-00110-012
Composite Steering
Knuckle
C-00110-015
King Pin - Steel
SILICONE
OIL
C-30100
Hex Button Head
Screw M3x6
C-00100-064
Alum. Ball Ø6mm -
for Lower Susp. Arms
C-00100-106 OPTIONAL
Side Spring Black -
Medium - 0.5mm
C-00100-105 OPTIONAL
Shock Spring Blue -
Hard - 0.6mm
C-00100-037
Side Spring Red -
Soft - 0.4mm
