Ansmann Racing deuce n User manual

510 mm
3100mm
345mm
AR-21 RS 3.5ccm
Betrieb
Art.-Nr.: 114000011 RTR / 112000011 KIT

Nitro

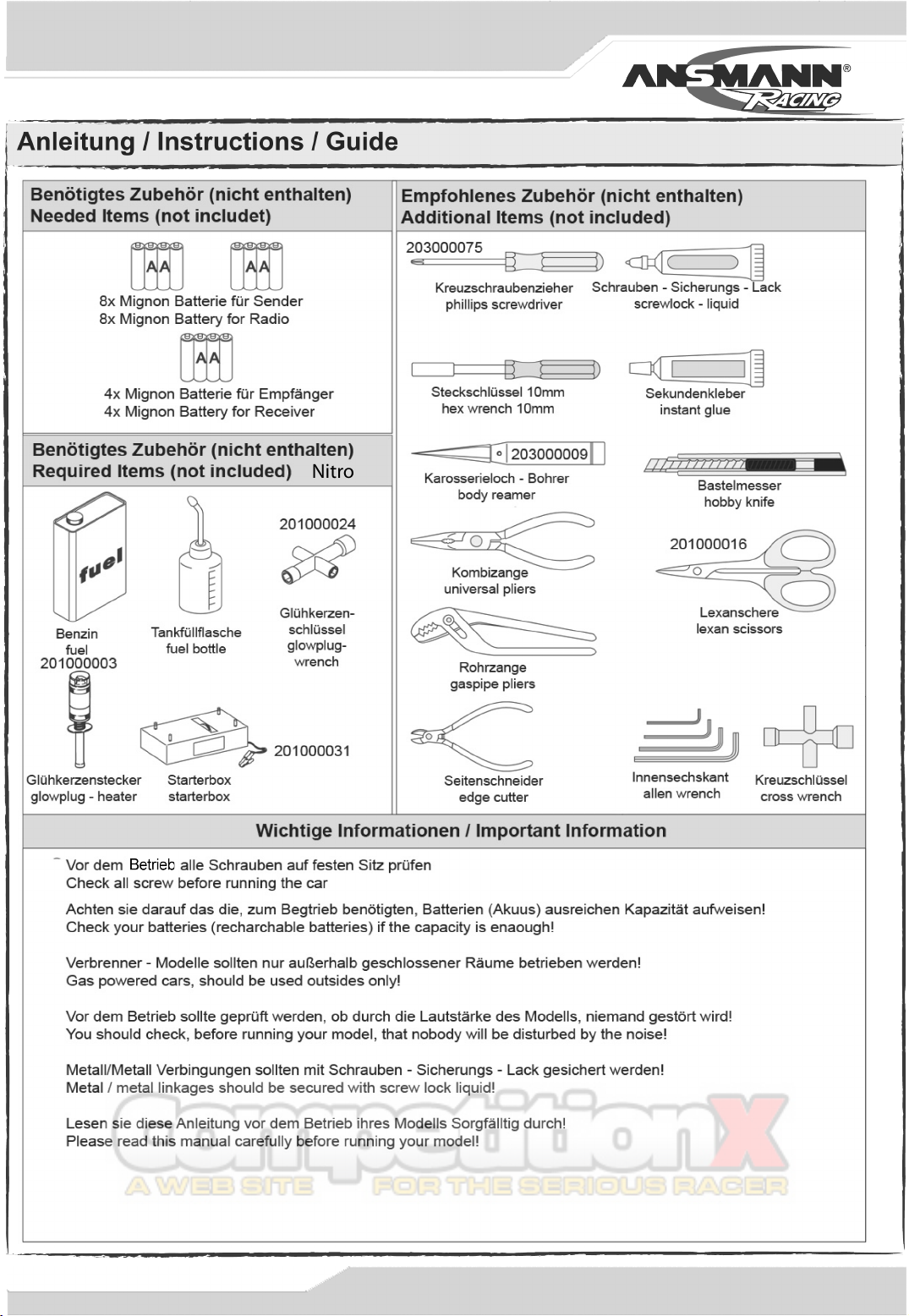

Betrieb / Operation / D'exploitation
Die benötigten Schrauben sind den jeweiligen Bauteilen in
kleinen Tüten beigefügt.
Schrauben, die für den weiteren Zusammenbau nicht mehr
benötigt werden, bitte wieder zurück in den Beutel legen, aus
dem sie genommen wurden.
Somit entsteht beim Zusammenbau weiterer Komponenten
kein Durcheinander!
The required screws are attached to the respective compo-
nents in small bags.
Screws for the further assembly are no longer needed, please
put back into the bag was taken out of them.
This gives rise in the assembly of other components no mess!
Les vis requis sont joints aux composantes respectives dans
des petits sacs.
Vis de la poursuite de l'assemblage ne sont plus nécessaires,
s'il vous plaît remettre dans le sac a été mis hors d'eux.
Cela donne lieu à l'Assemblée des autres composants sans
dégâts!
!

1
Servo Saver Turnbuckle
………1
115000769 M3x15 Screw
Approx.23mm
▲Projection.Note direction
4mm
115000741 3x40 Turnbuckle
…………1
115000706 5.8 Ball End
…………2
115000706 5.8 Ball stud
……………………2
115000762 M3 Nylon Nut
…………………1
………1
115000769 M3x14 Screw
115000762 M3 Nylon Nut
…………………1
115000852 3.6x7x0.8 Washer
…………………2
115000852 Buffer Screw
………2
Approx.8mm
Ture-to -scale diagram
115000762 M3
115000769 M3x15
115000747
Servo Saver Nut
115000747
Servo Saver Spring
115000709
Servo Saver-Top
115000709
Servo Saver-Bottom
115000747
Servo Saver Body
115000852
115000769 M3x14
115000852
Steering Rack
115000762 M3
115000720
Steering Servo Horn-F
Select the servo horn matching the servo being used.
Futaba-25T Hitec-24T Sanwa/JR/KO-23T
115000709
Servo Saver-Left
115000741
3x40 Turnbuckle
5.8 Ball End
115000706
5.8 Ball stud
5.8 Ball stud
Buffer Screw
115000852 3x7x0.8
Buffer
115000852 3.6x7x0.8
115000775 3x7x0.8 Washer
…………………2
1
1:1
1:1
2
115000706
115000706

2
Screw
Cement
Screw
Cement
Screw
Cement
Screw
Cement
Screw
Cement
Apply threadlocker(screw cement)
…………7
115000769 M3x10 Screw
115000769 M4x10 Screw
…………2
…………1
115000769 M3x10 Screw
115000769 M4x10 Screw
…………2
115000762 M3 Nylon Nut
…………………2
115000758 6x10x3 Ball Bearing
115000710
Side Plate-Left
115000710
Side Plate-Right
115000769 M3x10
115000769 M4x10
115000742
Chassis
115000769 M3x10
115000747
Servo Saver Post
115000768 M3x10
115000762 M3
115000769 M3x10
………………4
…………2
115000769 M3x12 Screw
115000769 M3x12
115000769 M3x12
115000769 M4x10
115000769 M4x10
115000719
Front Chassis Stiffener
115000709
Buffer Plate-Plastic
115000874
Buffer Plate-Aluminium
115000712
Front Body Mount
115000758 6x10x3
115000758 6x10x3
Buffer
Servo Saver Post/Side Plate
4
3

3
Screw
Cement
Screw
Cement
Apply threadlocker(screw cement)
115000700/115000735 5.8x1.9 O-Ring
…………………4
115000732 3.6x12x0.2 Washer
……………8
115000760 8x16x5 Ball Bearing
………4 ……8
115000735 M3x12 Screw
115000774 13.1x15.9x0.2 Washer
…………4
115000759 6x13x5 Ball Bearing
………4
115000768 M3x16 Screw
……4
115000857 M5x4 Screw
………………2
115000732
20T Diff Gear
115000732
10T Diff Gear
115000732
20T Diff Gear
115000732
2.5x11.5 Pin
115000732
2.5x11.5 Pin
2.5x11.5 ??
115000733
Diff Connecting Cup
115000733
Diff Connecting Cup
115000700
Differential Housing
115000732 3.6x12x0.2
115000732
Diff Shaft
115000700
Differential Pads
115000735
43T Diff Gear
115000735 M3x12
115000857 M5x4
115000857
Center Connecting Cup
115000701
Differential Case
115000735
10T Gear
115000768 M3x16
115000701
Differential Case
115000700 5.8x1.9
115000760 8x16x5
115000735 5.8x1.9
115000760 8x16x5
115000759 6x13x5
115000774 13.1x15.9x0.2
115000759 6x13x5
Oil油
Front/Rear Differential
Front Differential Case
Assemble as many times as specified
5
6
x2
x2
x2

4
LR
LR
………………3
115000769 M2.5x8 Screw
……………………4
115000701/115000706 M3x3 Screw
Assemble both Left and Right
……4
115000768 M4x14 Screw
115000760 8x16x5 Ball Bearing
115000761 13x19x4 Ball Bearing
………2
………2
115000703 Front Hub Carrier Bushing
………4
115000706 6.8 Ball stud
…………………2
115000706 6.8 Ball stud
…………………2
…………………2
115000853 M4x4 Screw
……………2
115000746 2.5x16.8 Pin
Assemble as many times as specified
115000706 6.8 Ball End
115000706
………………2
115000704
Steering Block-Left Steering Block-Right
115000768 M4x14
115000703
Front Hub Carriers 12 Degree-Left Front Hub Carriers 12 Degree-Right
115000853 M4x4
T08649 2.5x16.8
115000746
Wheel Hex Hub
115000703
Front Hub Carrier Bushing
115000761 13x19x4
115000760 8x16x5
Front Hub Carrie

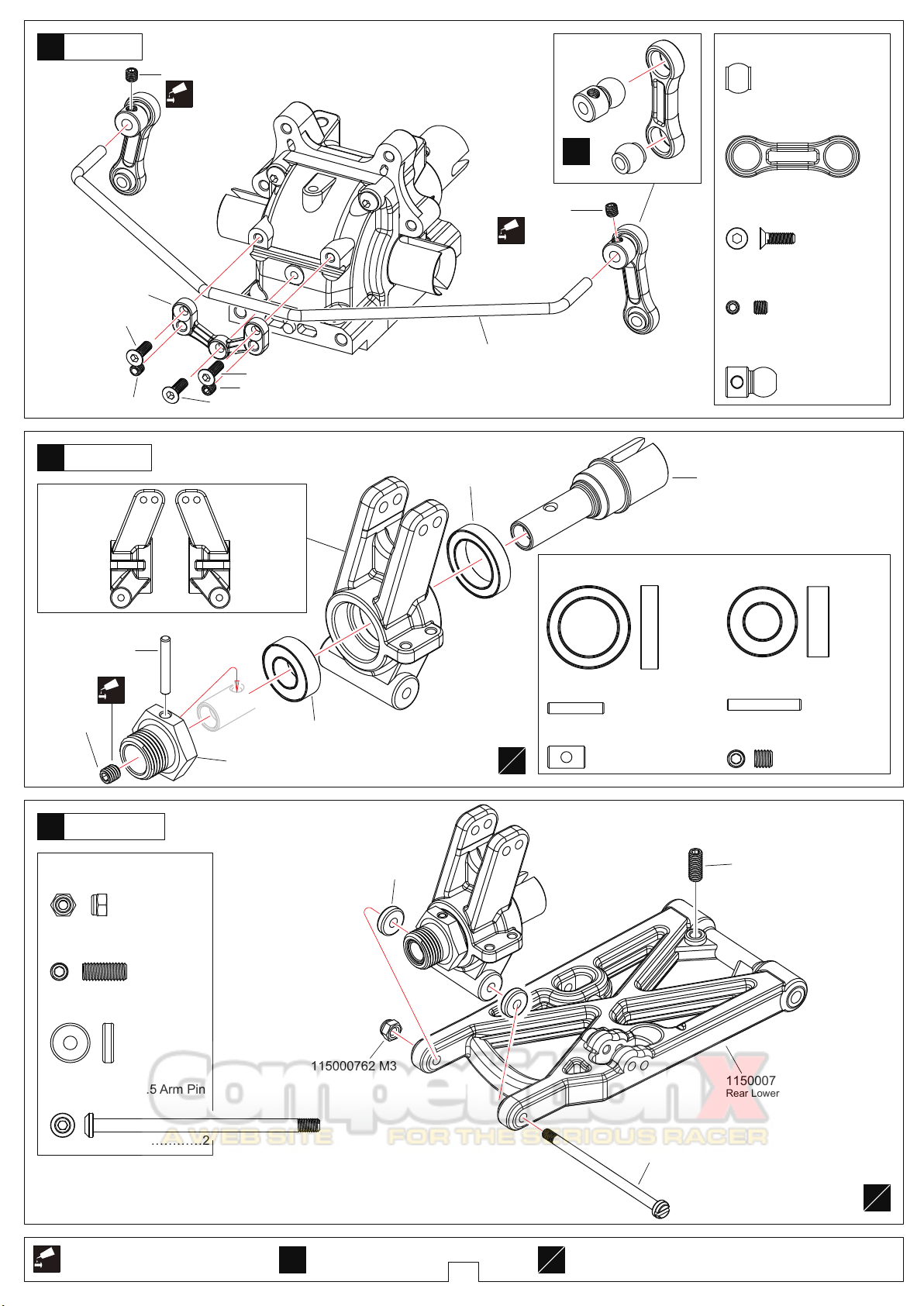

Front Swaybar
115000853 2.5x12.8
115000853 5x8.5
115000853
115000853 2.5x12.8 Pin
………………2
115000853 5x8.5 CVD Shaft
……………………2
115000706 M3x3
115000706 M3x3
115000701 M3x3 115000701 M3x3
115000701 M2.5x8
115000701 M2.5x8
115000701 M2.5x8
115000701
Swaybar Mount
115000769
Front Swaybar
115000853
95.5mm Front CVD
Oil
油
Apply threadlocker(screw cement)
x2
x2
8
7
Screw
Cement
Screw
Cement
Screw
Cement
Screw
Cement

5
Assemble both Left and Right
……4
115000768 M4x16 Screw
115000707 King Pin Bushing
………4
115000770 M4x10 Screw
……………2
115000768 M3x16 Screw
……2
115000743 4x73 Arm Pin
……2
115000769 M3x35 Screw
…………2
115000769 M3x15 Screw
………2
115000768 M4x16
115000768 M4x16
115000770 M4x10 115000707
King Pin Bushing
115000707
Front Lower Arm
115000860
Front Arm Mount-F
115000860
Front Arm Mount-R
115000743 4x73
115000743 4x73
115000769 M3x35
115000769 M3x15
115000768 M3x16
115000768 M3x16
Front Hub Carrie
Front Suspension
LR
LR
9
10

6
115000768 M3x12 Screw

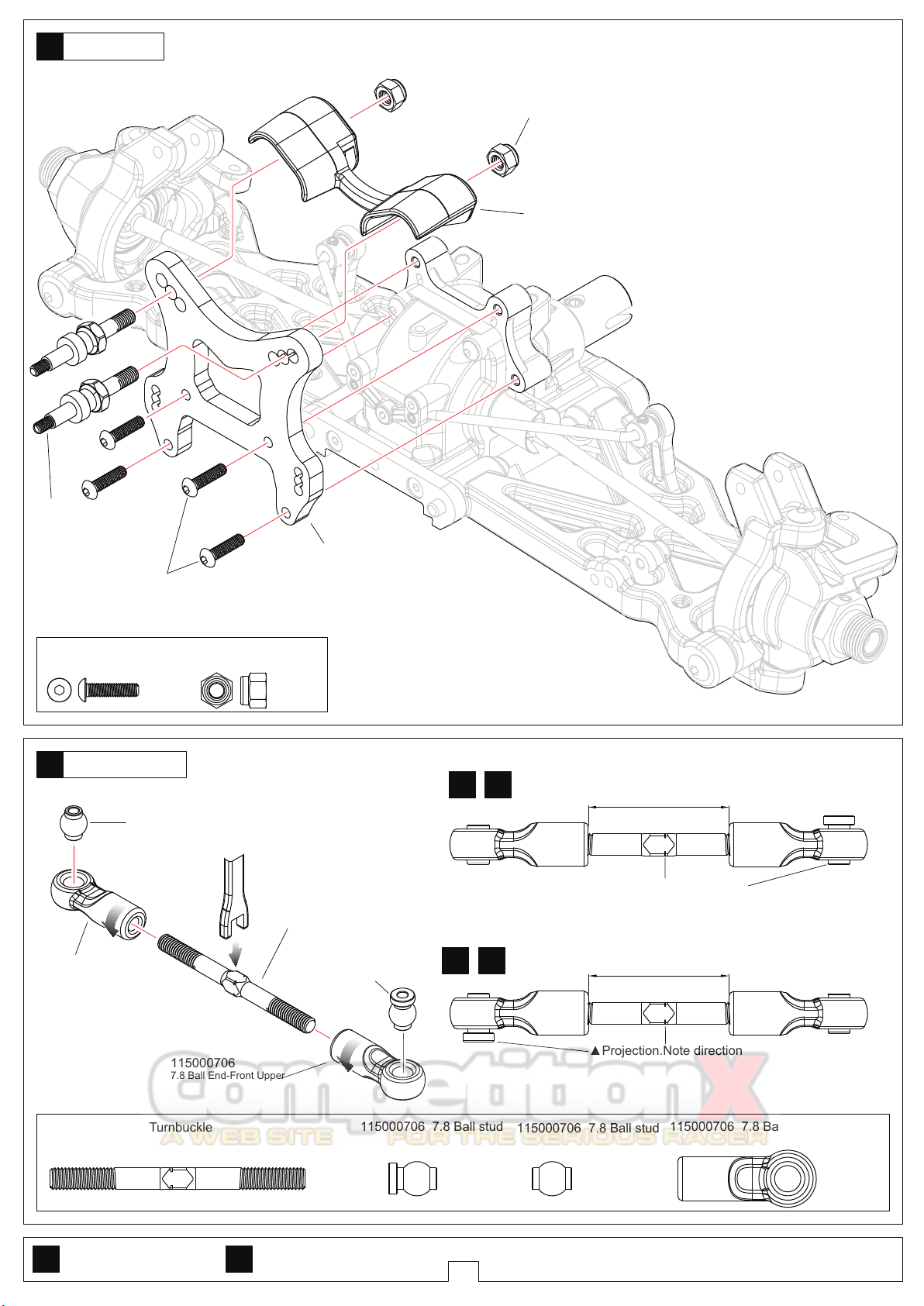

115000741 5x58 Turnbuckle 115000706 7.8 Ball stud
………2 ……………2 ……………2
115000706 7.8 Ball stud
115000730
Front Shock Tower
115000741
5x58 Turnbuckle
115000706
7.8 Ball End-Front Upper
115000706
7.8 Ball stud
115000706
7.8 Ball stud
Approx.32mm
▲Projection.Note direction
Approx.32mm
▲Projection.Note direction
115000706 7.8 Ball End-Front Upper
…………4
Front Upper-Left
Front Upper-Right
115000706
7.8 Ball End-Front Upper
Front Shock Tower
Front Upper Turnbuckle
Ture-to -scale diagram Assemble as many times as specified
5mm
C
……4
115000881 M4 Nylon Nut
………2
115000881 M4
115000768 M3x12

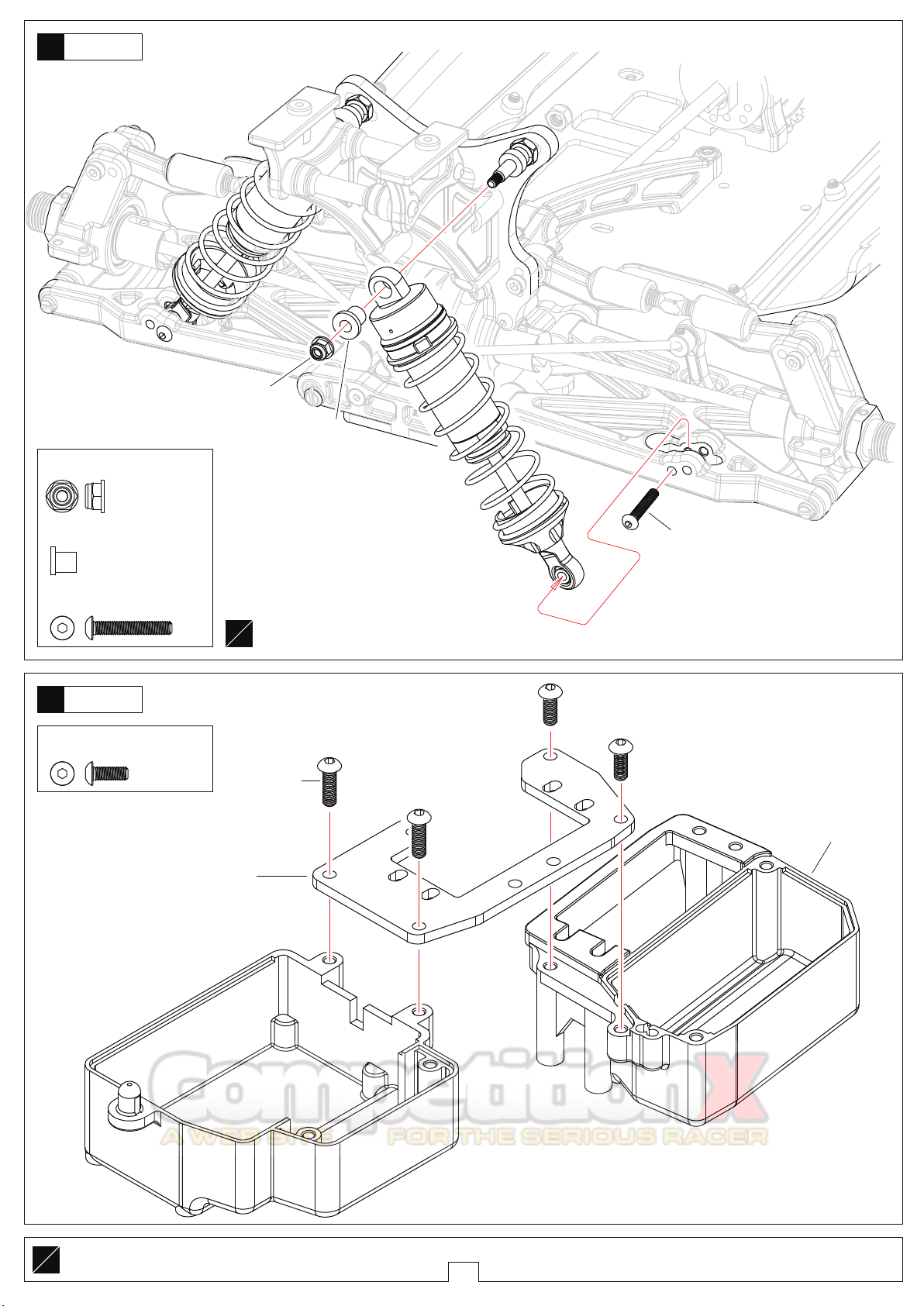

115000879
Shock absorber Mount
115000871
Cover-Frong Shock
1:1 x1
1:1 x1
11
12
1:1 x1

7

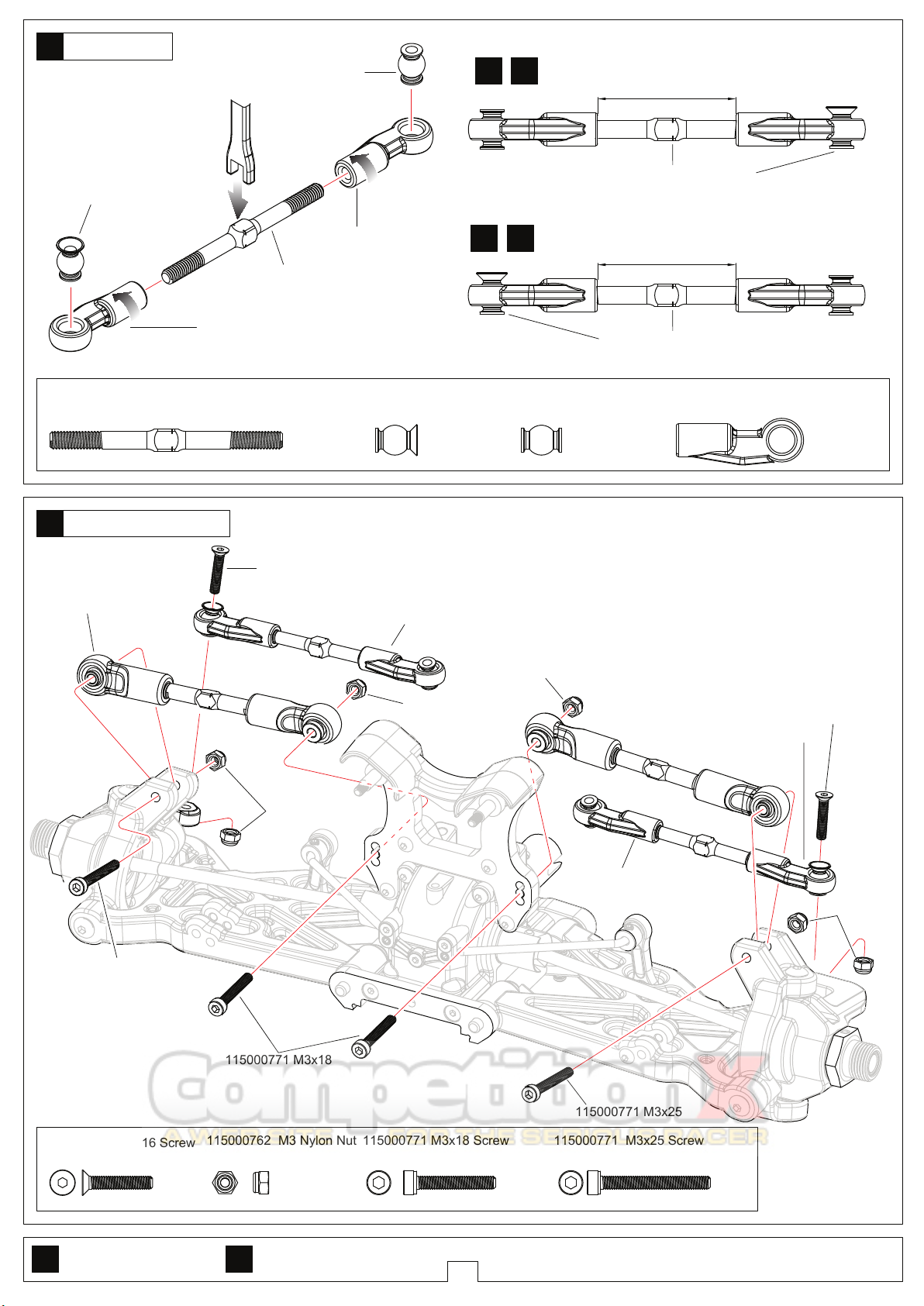

115000741 4x53 Turnbuckle 115000706 6.8 Ball stud
………2 ……………2 ……………2
115000706 6.8 Ball stud
115000771 M3x25 Screw
……2
115000769 M3x16 Screw
……2
115000762 M3 Nylon Nut
…………6 ……2
115000771 M3x18 Screw
115000741
4x53 Turnbuckle
115000706 6.8 Ball End-Steering
……………4
115000706
6.8 Ball End-Steering
115000706
6.8 Ball End-Steering
115000706
6.8 Ball stud
115000706
6.8 Ball stud
Steering-Right
Steering-Left
Approx.31.5mm
Approx.31.5mm
▲Projection.Note direction
▲Projection.Note direction
Front Upper Turnbuckle-Left
Front Upper Turnbuckle-Right
Steering Turnbuckle-Left
Steering Turnbuckle-Right
115000769 M3x16
115000769 M3x16
115000771 M3x25
115000771 M3x25
115000771 M3x18
115000762 M3
115000762 M3
115000762 M3
115000762 M3
Steering Turnbuckle
Ture-to -scale diagram Assemble as many times as specified
Front Upper/Steering Turnbuckle
5mm
1:1 x1
1:1 x1
13
14
1:1 x1

8
115000769 M4x10 Screw
…………2
115000769 M4x14 Screw
………4
115000773 5.8x1.9 O-Ring
…………2
115000732 3.6x12x0.2 Washer
………………4
115000760 8x16x5 Ball Bearing
………2 ……4
115000769 M3x12 Screw
115000769 M3x18 Screw
……2
115000732
10T Diff Gear
115000732
20T Diff Gear
2.5x11.5 Pin
115000773
Differential Housing
115000732 3.6x12x0.2
115000732
Diff Shaft
115000735 M3x12
115000773 5.8x1.9
115000760 8x16x5
Oil油
115000336
44T Center Diff Gear
115000732
20T Diff Gear
115000732
2.5x11.5 Pin
115000760 8x16x5
115000734
Center Diff Connecting Cup
T08637 5.8x1.9
115000773
Differential Pads
115000769 M4x14
115000769 M4x10
115000769 M3x18
115000711
Front Bumper
Center Differential
Front Suspension
115000734
Center Diff Connecting Cup
16
15

9
Screw
Cement
Screw
Cement
Screw
Cement

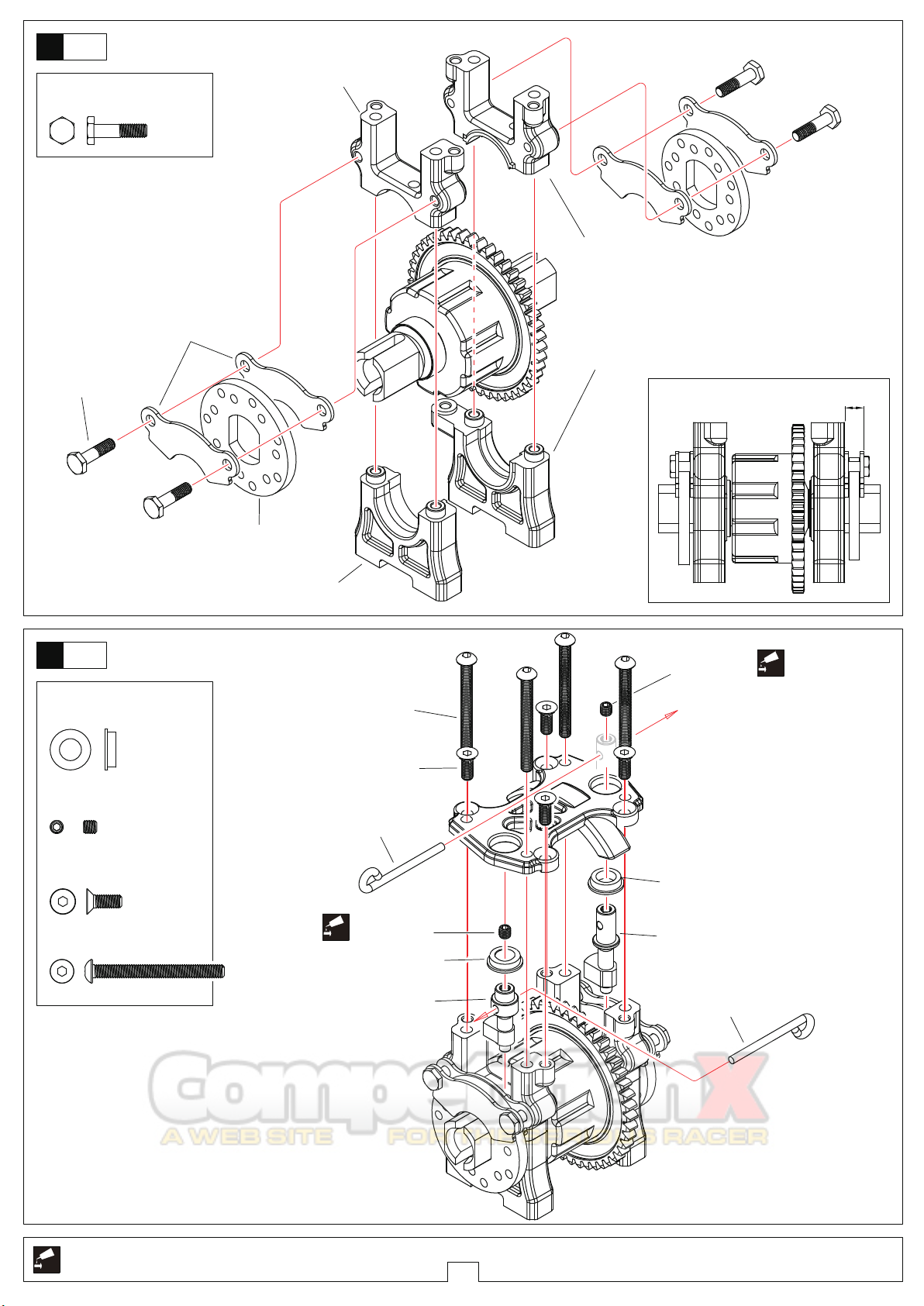

115000702 M3x15 Brake Screw
………4
115000702 M3x8 Screw
…………………2
115000750 M3x3 Screw
115000875 5x8x2.5 Plastic Washer
………………2
……………4
115000702 M3x30 Screw
115000702
M3x15 Brake Screw
115000749
Disk Brake Plate
115000749
Brake Disk Rotor
115000702
Center Differential Mount-Rear Bottom
115000702
Center Differential Mount-Front Bottom
115000702
Center Differential Mount-Front Top
115000702
Center Differential Mount-Rear Top
6
115000875 5x8x2.5
115000875 5x8x2.5
115000750
Brake Shaft-Front
115000750
Brake Shaft-Rear
115000750
Brake Rod
115000750
Brake Rod
115000750 M3x3
115000750 M3x3
115000702 M3x30
……………4
115000702 M3x8
Brake
Brake
Apply threadlocker(screw cement)
18
17

10
115000769 M4x12 Screw
………4
……………………5
115000718 M3x3 Screw
115000762 M2.5 Nylon Nut
…………………1
115000762 3.1x7x1 Plastic Washer
…………………2
……………1
115000771 M2.5x8 Screw
……1
115000771 M2.5x18 Screw
115000771 M2.5x8
115000771 M2.5x18
115000762 M2.5
115000718 M3x3
115000718 M3x3
115000718 M3x3
115000718 M3x3
115000762 3.1x7x1
115000718
Throttle Spring
115000718
Brake Spring
115000718
1.8x58 Rod
115000718
1.8x58 Rod
115000718
1.8x58 Rod
115000718
115000718
115000718
115000718
115000718
115000718
115000718
115000720
Throttle Servo Arm
115000718
115000769 M4x12
Brake/Throttle
Apply threadlocker(screw cement)

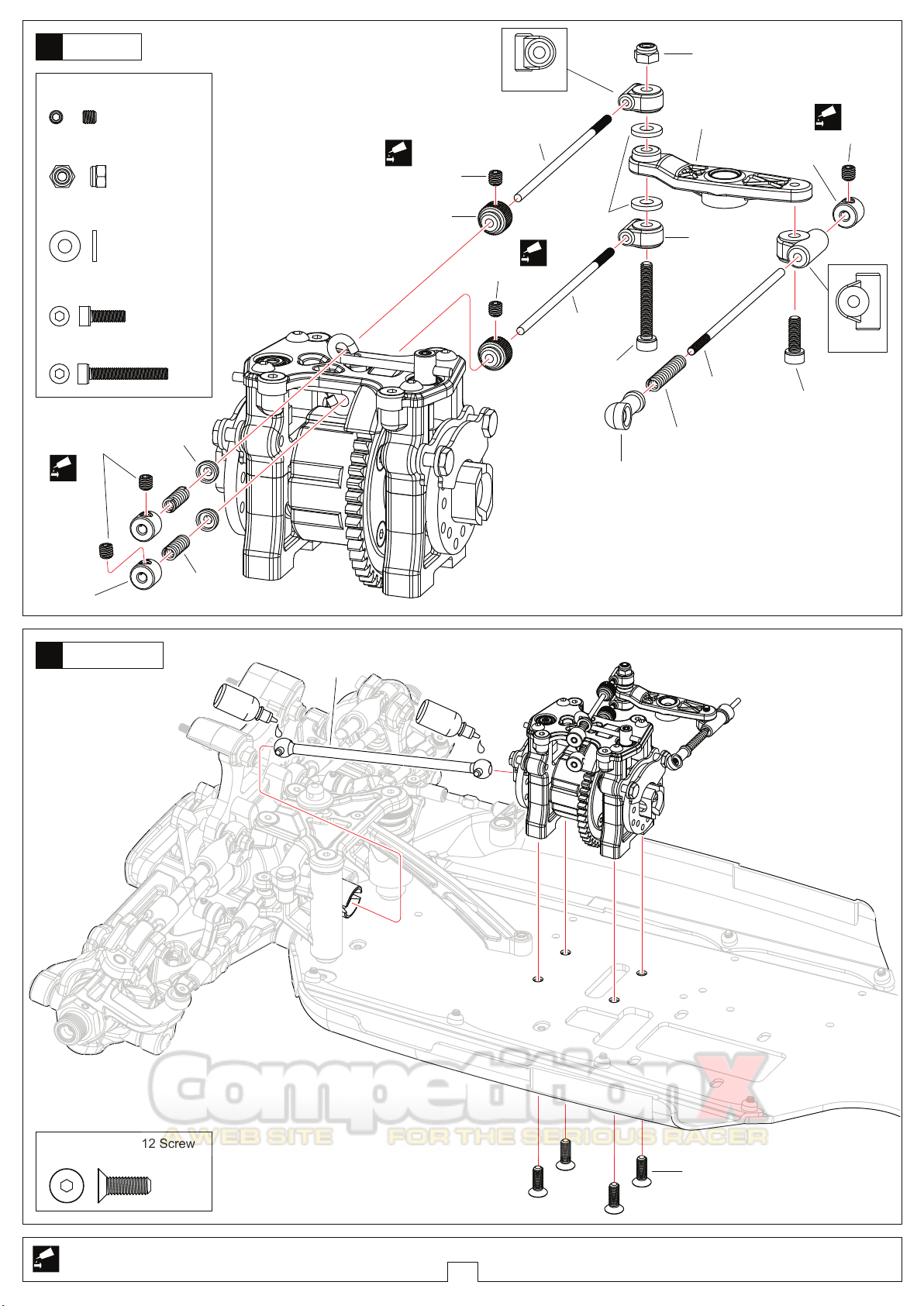

Center Differential 115000855
86mm Drive Shaft
Oil
Oil
19
20
Screw
Cement
Screw
Cement
Screw
Cement
Screw
Cement
Screw
Cement

11
Screw
Cement
Screw
Cement
Assemble both Left and Right
115000762 M3 Nylon Nut
………………2
……………2
115000770 M4x10 Screw
………………4
115000705 3.1x9x2.5 Plastic Washer
……………2
115000851 3x51.5 Arm Pin
115000760 8x16x5 Ball Bearing
115000761 13x19x4 Ball Bearing
………2
………2
……………………2
115000738 M4x4 Screw
………………2
115000746 2.5x16.8 Pin
115000705
Rear Hub Carriers-L
115000705
Rear Hub Carriers-R
115000738 M4x4 115000760 8x16x5
115000761 13x19x4
115000746 2.5x16.8
115000746
Wheel Hex Hub
115000762 M3
115000851 3x51.5
115000770 M4x10
115000705 3.1x9x2.5
115000708
Rear Lower Arm-Left
Rear Hub Carrie
Rear Hub Carrie
Assemble as many times as specifiedApply threadlocker(screw cement)
115000738 2.5x12.8 Pin
………………2
115000738 5x8.5 CVD Shaft
……………………2
………………3
115000769 M2.5x8 Screw
……………………4
115000701/115000706
M3x3 Screw
115000706 6.8 Ball stud
…………………2
115000706 6.8 Ball stud
…………………2
115000706 6.8 Ball End
115000706
………………2
Rear Swaybar
115000706 M3x3
115000706 M3x3
115000701 M3x3
115000701 M3x3
115000701 M2.5x8
115000701 M2.5x8
115000701 M2.5x8
115000701
Swaybar Mount
115000745
Rear Swaybar
115000854
Rear Wheel Shaft
LR
LR
LR
23
22
21
x2
x2
Screw
Cement
Screw
Cement

12
Screw
Cement
115000851 4x77 Arm Pin
……………2
115000762 M4 Nylon Nut
………………2
115000768 M3x16 Screw
……2
115000769 M3x12 Screw
…………2
115000769 M3x35 Screw
……………2
115000768 M3x6 Screw
……………4
115000768 M3x16
115000762 M4
115000851 4x77
115000769 M3x35
115000769 M3x12
115000860
Rear Arm Mount-F
115000860
Rear Arm Mount-R
115000711
Dirtcover Rear-Left
115000711
Dirtcover Rear-Right
115000712
Rear Body Mount
115000712
Rear Shock Tower
115000768 M3x6
Rear Suspension
Apply threadlocker(screw cement)
Rear Shock Tower
115000768 M3x10
115000768 M3x10 Screw
…………1
115000768 M3x12
115000855
86mm Drive Shaft
Oil
Oil
Oil
Oil
115000855
86mm Drive Shaft
115000879
Shock absorber Mount
115000881 M4 Nylon Nut
………………2
115000881 M4
115000768 M3x12 Screw
…………2
25
24

13
115000762 M3 Nylon Nut
…………………2
115000768 M3x18 Screw
…2
115000768 M3x16 Screw
……6
115000768 M3x16
115000768 M3x18
115000741 5x40 Turnbuckle 115000706 7.8 Ball End-Rear Upper
………2 ………4 ………………2 ……………2
115000706 7.8 Ball stud 115000706 7.8 Ball stud
115000712
Wing Mount
▲Projection.Note direction
▲Projection.Note direction
Rear Upper-Left
Rear Upper-Right
115000741
5x40 Turnbuckle
115000706
7.8 Ball End-Rear Upper
115000706
7.8 Ball End-Rear Upper
115000706
7.8 Ball stud
115000706
7.8 Ball stud
Approx.12.5mm
Approx.12.5mm
115000768 M3x16
115000762 M3
115000768 M3x16
Wing
Rear Upper Turnbuckle
Ture-to -scale diagram Assemble as many times as specified
5mm
1:1 x1
1:1 x1
26
27
1:1 x1

14
115000762 M3 Nylon Nut
115000771 M3x18 Screw 115000771 M3x25 Screw
………1
115000768 M4x22 Screw
115000762 M4 Nylon Nut
115000769 M4x14 Screw
……4
115000769 M3x10 Screw
……1
115000769 M3x12 Screw
………1
115000769 M4x12 Screw
……2 ……2 ……2
………………1……………4
115000762 M3 Nylon Nut
………1
115000762 M3
115000769 M4x14
115000769 M3x10
115000769 M3x12
115000769 M4x14
Rear Suspension
Rear Upper Turnbuckle
115000762 M3
115000762 M3
115000762 M3
115000771 M3x18
115000771 M3x25
115000719
Rear Chassis Stiffener
115000719
Rear Chassis Stiffener Mount
115000771 M3x25
115000768 M4x22
115000769 M4x12
Rear Upper Turnbuckle-Right
Rear Upper Turnbuckle-Left
115000856
113mm Drive Shaft
Oil
Oil
29
28

15
Assemble both Front and Rear

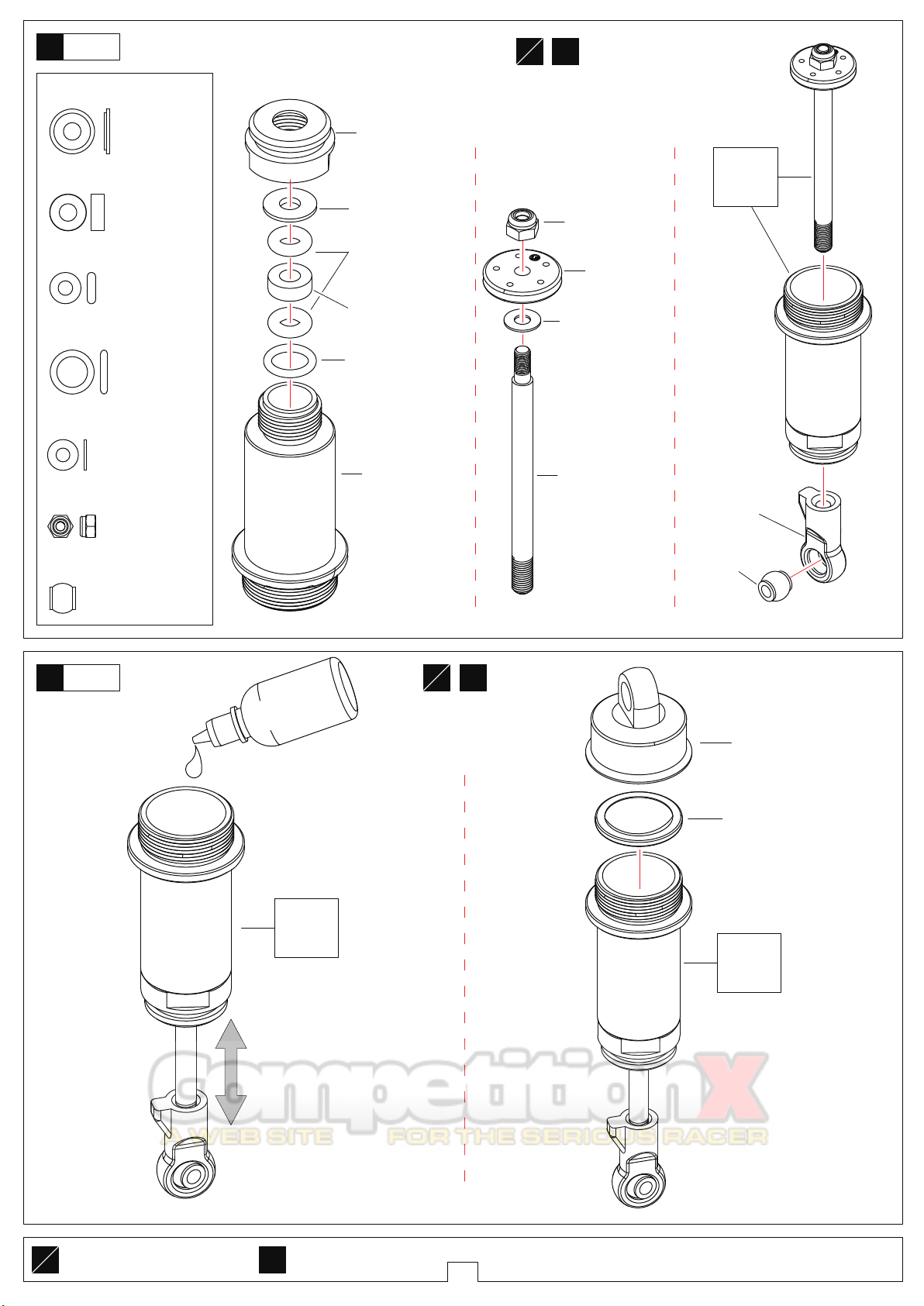

Silicone Oil
115000882 1.2mm Plastic Washer
115000882 3.8x2.3 O-ring
115000882 3mm Plastic Washer
…………………4
…………………4
……………………8
115000883 7x1.5 O-ring
…………………4
115000882 3.1x7x0.4 Washer
……………………4
115000882 M3 Nylon Nut
…………………4
115000873 6.8 Ball stud
………………………4
Shock
115000882
3.8x2.3 O-ring
115000882
3mm Plastic Washer
115000882
1.2mm Plastic Washer
115000883
7x1.5 O-ring
115000883
Shock Bottom cover
115000883
Front Shock Body-Short
Rear Shock Body-Long
115000882
Front Shock Shaft-Short
Rear Shock Shaft-Long
115000882 3.1x7x0.4
115000882
Shock Piston
115000882 M3
115000873
6.8 Ball stud
115000884
Ball End-Short(Front)
Front-Short
Rear-Long
Front-Short
Rear-Long
115000882
Diaphragm
Front-Short
Rear-Long
115000883
Shock Top cover
Assemble as many times as specified
Shock
Ball End-Long(Rear)
FR
FR
x2
30
31 FR
x2
x2

16
115000885 Adjust Ring
……………4
Front-Short
Rear-Long
115000886
Front Shock Spring-Short
Rear Shock Spring-Long
115000885
Spring Adjuster
115000884
Below Spring Mount
Assemble both Left and Right
115000768 M3x18 Screw
…………………2
115000888 M3 Flanged Nylon Nut
………………………2
115000888 Plastic Bushing
……2
115000768 M3x18
Shock
Front Shock
Assemble both Front and Rear Assemble as many times as specified
115000884
Top Spring Mount
115000888
Plastic Bushing
115000888 M3
LR
32
33
LR
FR
x2
FR
x2

Radio Plate
115000768 M3x8 Screw
……………4 115000768 M3x8
115000863
Radio Plate
115000714
Battery Box
115000714
Receiver Box
Rear Shock
Assemble both Left and Right
115000768 M3x18
115000768 M3x18 Screw
…………………2
………………………2
115000888 Plastic Bushing
……2
115000888 M3 Flanged Nylon Nut
115000888
Plastic Bushing
115000888 M3
34
35
LR
LR
17
