Model Space Ford GT User manual

18

STAGE PAGE
76 Upper left engine block 289
77 Left side of the engine block 292
78 Upper right engine block 295

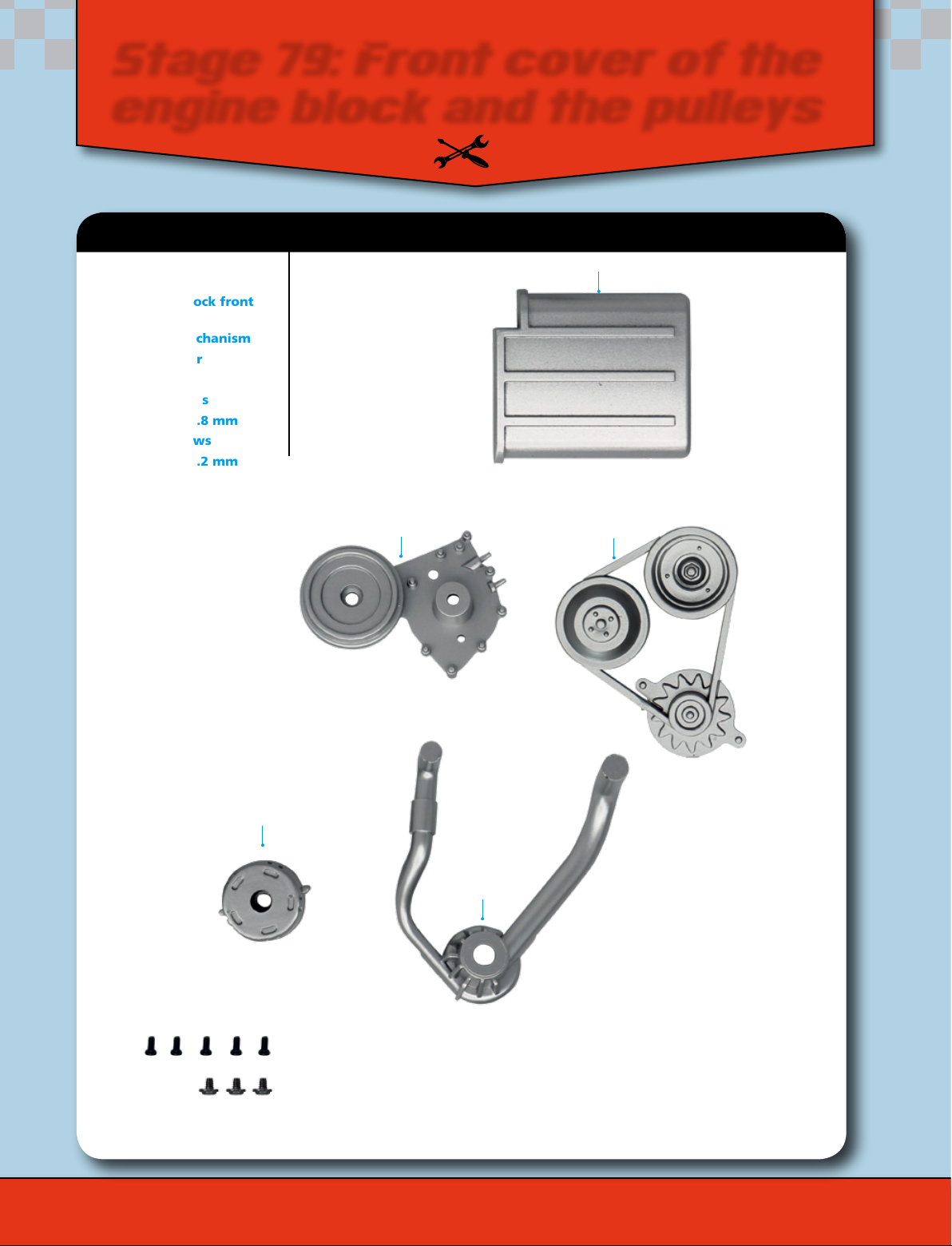

79 Front cover of the engine block
and the pulleys 298
80 Right side of the engine block 302
Published in the UK by De Agostini UK Ltd, Royds Withy King, 65 Carter Lane, London EC4V 5EQ.
Published in the USA by De Agostini Publishing USA, Inc., 299 Park Avenue • New York, New York 10171.
All rights reserved © 2021
Warning: Not suitable for children under the age of 14.
is product is not a toy and is not designed or intended for use in play.
Items may vary from those shown.

289
Ford GT
Faros y capÓ

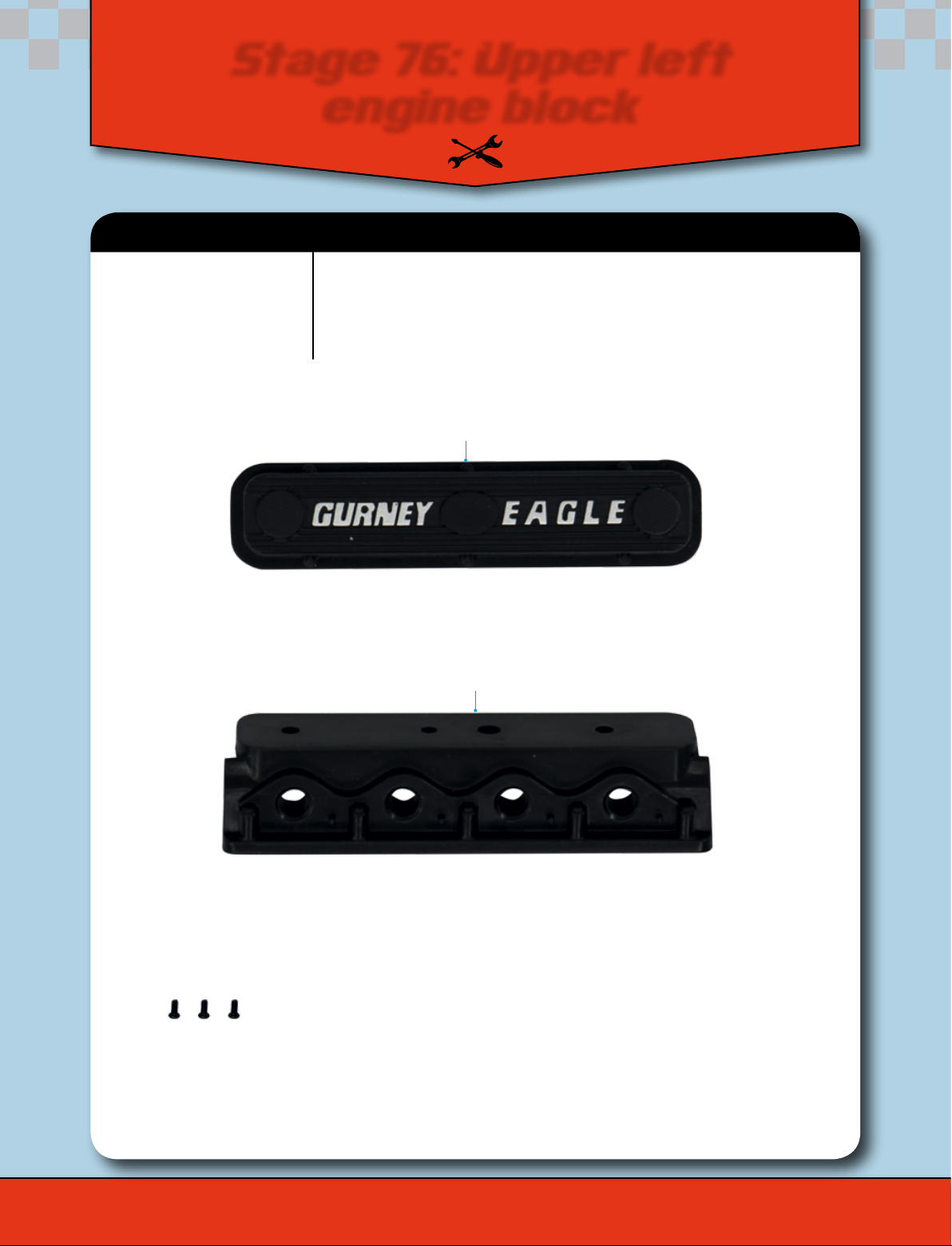

76-A Left cylinder head
76-B Upper left engine block
76-C FP01 2.3 mm x 4 mm Ø
3.8 mm screws
Your parts
Note: The parts may differ slightly from those in the photos.
76-A
76-B
FP01
Stage 76: Upper left
engine block

STEP BY STEP
290
STEP 76-1
Position the left cylinder
head (76A) over the
upper left engine block.
The cylinder head has two
different-sized linchpins
which must be aligned
with the corresponding
holes in the block.
STEP 76-3
Turn the structure over and
secure the pieces with two FP01
screws.
STEP 76-2
Attach the left cylinder
head (76A) to the upper
left engine block (76B)
and check that the two
parts are joined correctly.
76-A
76-B
Ergot
fin
Gros
ergot
FP01

291
Ford GT

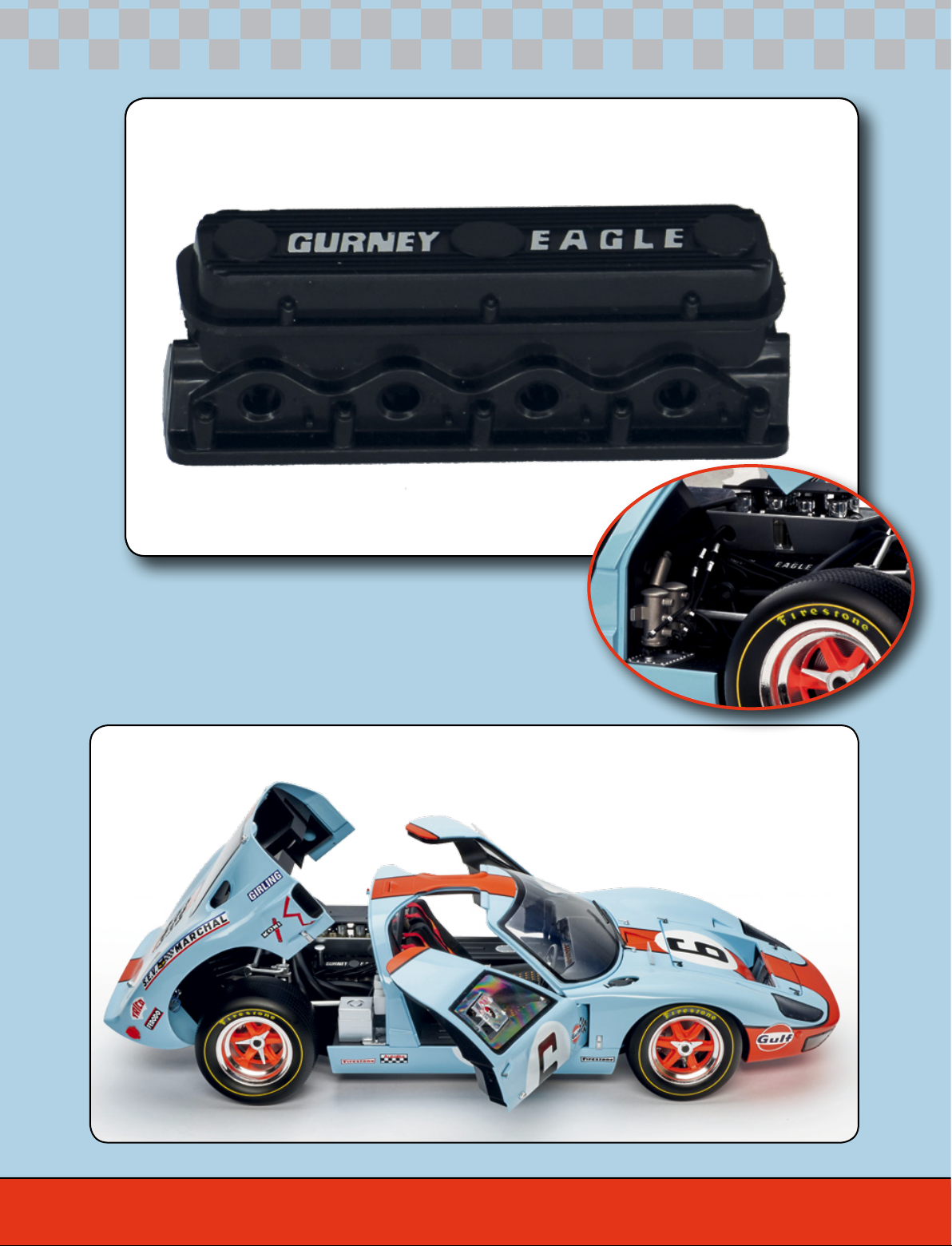

STAGE COMPLETE

STEP BY STEP
292
Faros y capÓ
77-A Left side of the engine
block
77-B Hydraulic brake hose
77-C FP02 1,8 x 4 mm Ø 3 mm
screws
Stage 77: Left side of the
engine block
Your parts
FP02
77-A
77-B

293
Ford GT
STEP 77-3
Now get the piece you
assembled in the previous
pack. Insert the linchpin
end of the hydraulic brake
hose (77B) into the hole
in the subframe (71A) you
received with the previous
pack, which is located
just below the left engine
mount (75A). Don’t press
too hard when inserting
the hose.
STEP 77-2
Turn the piece over and
secure the upper left engine
block (76B) to the left side of
the engine block (77A) using
two FP02 screws.
STEP 77-1
Get the piece you assembled
in the previous pack. Attach
the upper left engine block
(76B) to the left side of the
engine block (77A). To do
this, insert the square linchpin
in the centre of the upper
left engine block into the
corresponding hole in the left
side of the engine block, as
demonstrated.
Linchpin
77-A
77-B
77-A
FP02
76-B
76-B
71-A
75-A
Square
linchpin

STEP BY STEP
294

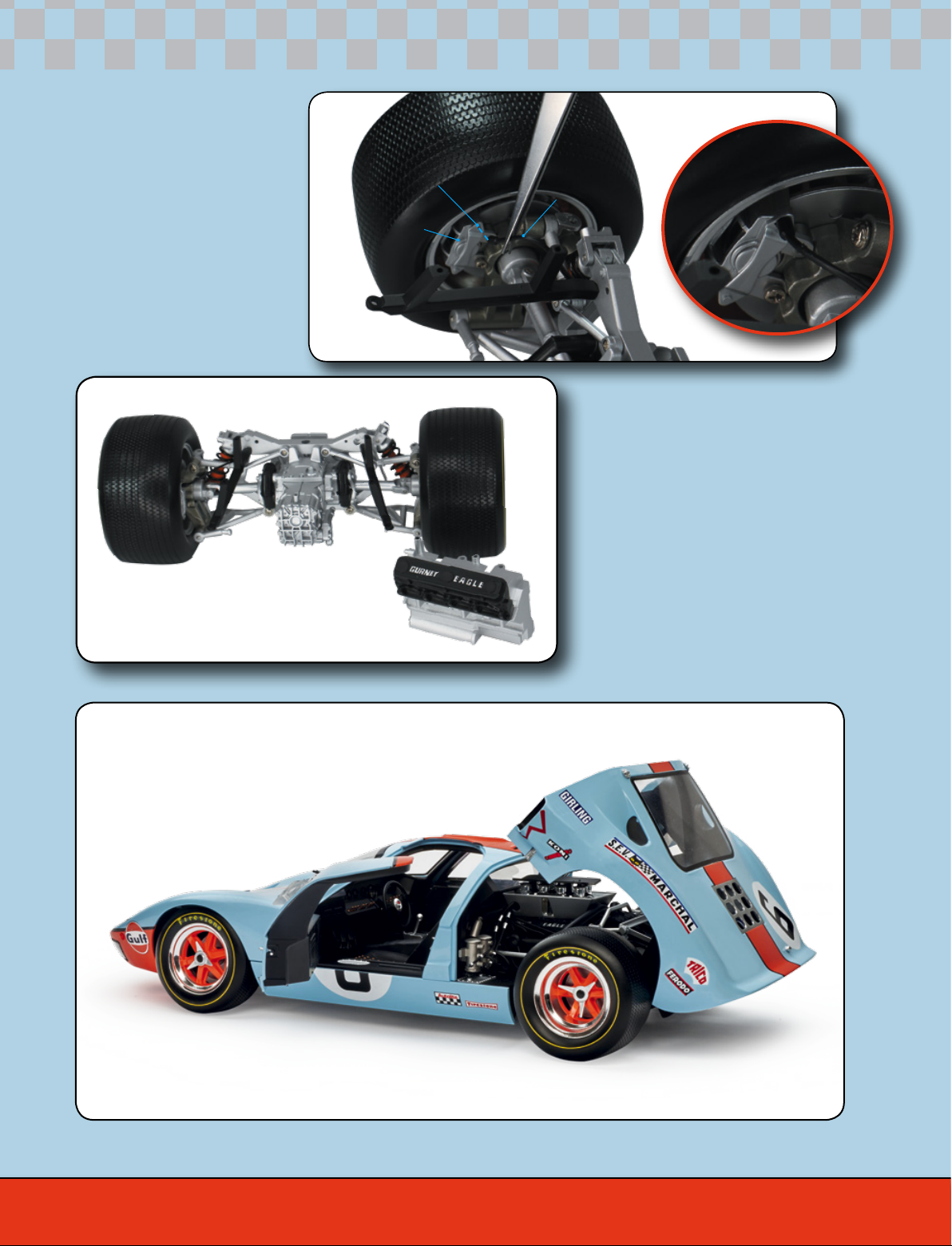

STEP 77-4
Slide the free end of
the hydraulic brake
hose (77B) onto the
linchpin on the outside
of the rear left brake
caliper (70D). Make
sure the hose fully
covers the linchpin.
STAGE COMPLETE
Linchpin
77-B
70-D

295
Ford GT
295
78-A Right cylinder head
78-B Upper right engine
block
78-C Oil filler tube
78-D FP01 2.3 x 4 mm Ø 3.8
mm screws
Your parts
78-A
78-B
78-C
FP01
Stage 78: Upper right
engine block

STEP BY STEP
296

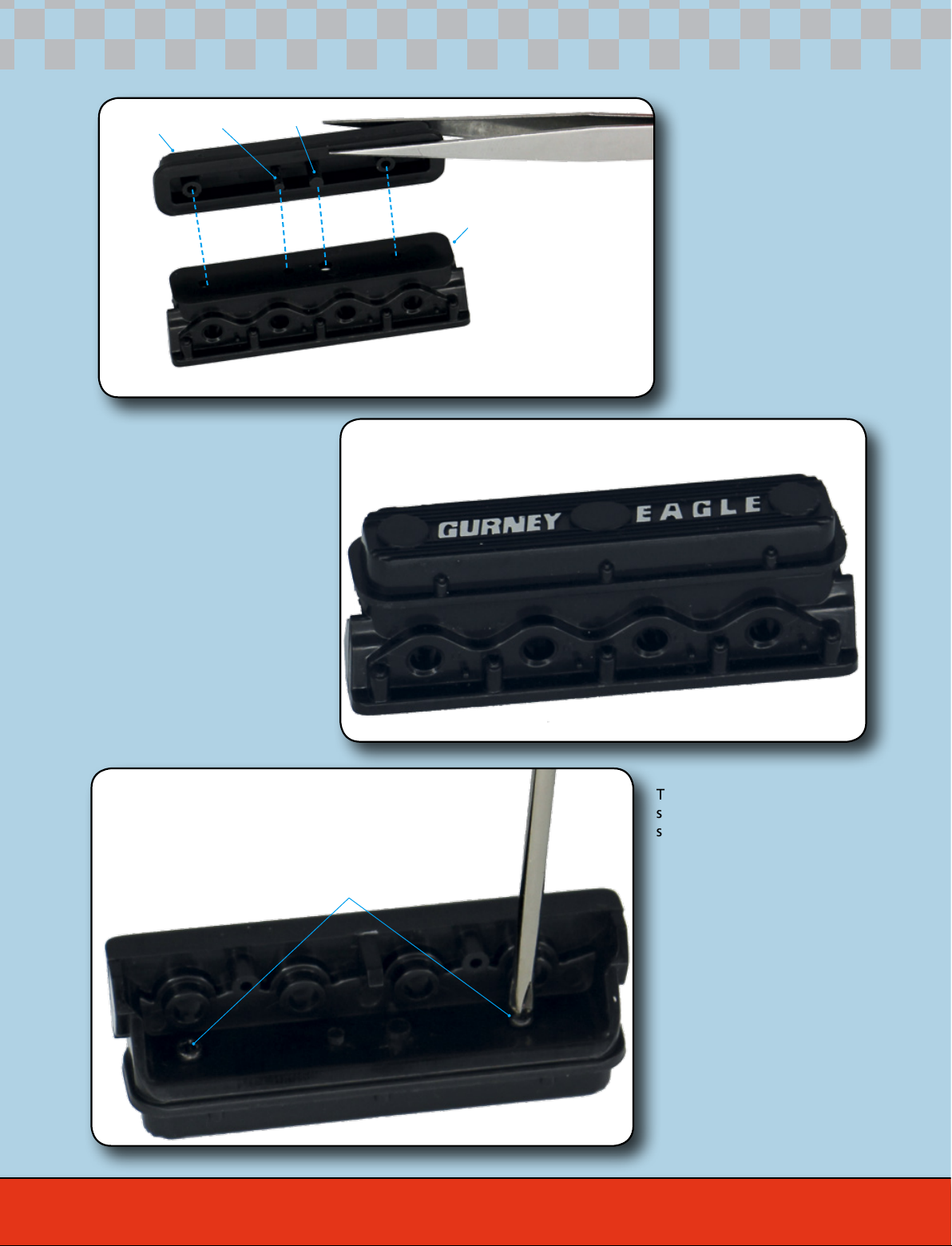

STEP 78-1
Position the oil ller tube
(78C) over the right cylinder
head (78A). Insert the tube
into the corresponding hole,
then turn the cylinder head
over and secure the tube
with a FP01 screw.
STEP 78-3
Turn the structure over and
secure the pieces with two FP01
screws.
STEP 78-2
Position the right cylinder head
(78A) over the upper right
engine block. The cylinder
head has two different-sized
linchpins which must be aligned
with the corresponding holes in
the block. Attach the cylinder
head to the upper right engine
block by pressing down rmly
and then check that the two
parts are joined correctly.
78-A
78-A
78-B
Thin
linchpin
Wide
linchpin
FP01
78-C
FP01
