Tech Novitas Propus PPS6KLR User manual

Propus UPS manual
User Manual
Uninterruptible Power Supply System
Model: Propus 6K-30KVA online industrial UPS

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 1 -
CONTENTS
CONTENTS.................................................................................................... - 1 -
1 INTRODUCTION...................................................................................- 2 -
2 SAFETY..................................................................................................- 3 -
3 APPEARANCE.......................................................................................- 4 -
4 POSITIONING........................................................................................- 7 -
5 INSTALLATION...................................................................................- 10 -
6 OPERATION.........................................................................................- 14 -
7 STATUS HANDLING.......................................................................... - 17 -
8 WORKING FLOW............................................................................... - 25 -
9 Monitoring software..............................................................................- 27 -
10 Propus Technical specification..............................................................- 29 -
11 Shipping list...........................................................................................- 31 -

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 2 -
1 INTRODUCTION
1.1 Thanks
Thank you for your purchasing of Propus UPS, its design is safe, reliable and
needless to maintain.
1.2 Reading
Please read this manual, it contains safe installation and operating introduction.
It helps you to get the optimal using life and service. The manual recounts UPS
internal working way and relative protection function.
1.3 Brief introduction
Propus series on-line UPS is a new generation intelligent-type UPS specially
designed for finance system, telecom system, electric power system, intelligent
building, working station to meet the high quality and high reliability
requirement of the system to power supply.
1.4 Characteristic
●computer port
UPS intelligent monitoring function can be got by the computer port. The
detail refers to the Section 9 and UPS intelligent monitoring software user
manual.
●LCD display
The running status, load capacity and battery capacity are clear at a glance on
LCD on UPS control panel. You can master the change of UPS power supply
quality of and running environment at any time.
●electron bypass switch
When UPS is faulty, the bypass will be activated at once and supply power to

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 3 -
load through the built-in static electron bypass switch, at the same time the
buzzer sounds alarm for long-time.
●intelligent battery charger
When UPS has found AC input, the high-power charger can automatically be
started up and float charge battery circularly after extending for 10ms, avoiding
mangle because it can’t be supplied in time after battery discharged.
Safety
2 SAFETY
●To reduce the danger of electric shock caused because load equipment isn’t
good connected to the grounding, when installing computer port signal cable,
please switch off the AC input power, only after all signal cables have good
connected, you can connect the power.
●There must be proper branch protector (Breaker) on UPS connecting to AC
input power with grounding. That of connecting to any other type socket will
cause electric shock and infringe local electrical rule.
●Do not attempt to maintain UPS, there isn’t any parts maintained by user in
UPS. There is potential damage voltage in UPS and the services can only be
performed by the trained regular person. If user make bold to maintain and refit
UPS, the warranty qualification will be canceled.

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 4 -
3 APPEARANCE

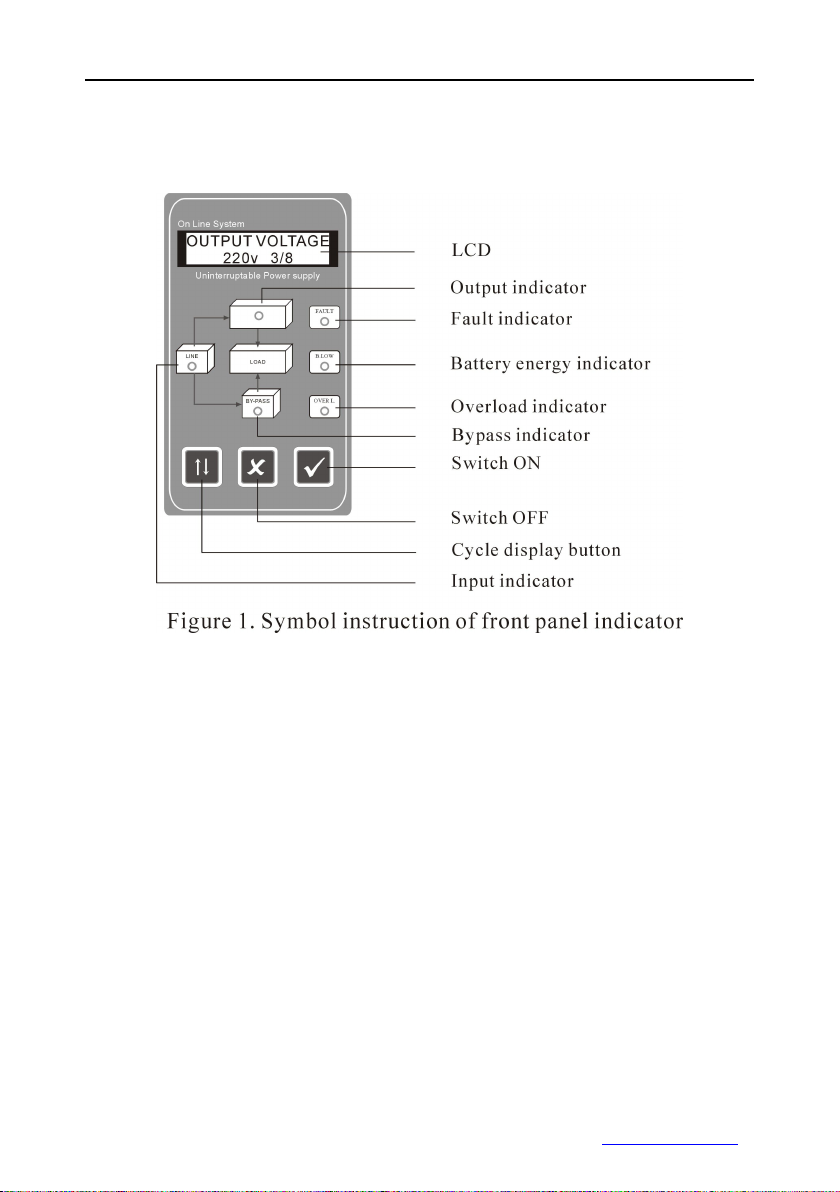

3.1. Display/Control panel(Figure 1)
1) Welcome screen
WELCOME TO
×××××××××
2) Display of system status
×××××
××KVA.
3) Display of input voltage value*
ON LINE
AC IN：220V
4) Display of input frequency value*
ON LINE
AC FRE：50Hz

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 5 -
5) Display of output voltage value*
ON LINE
OUTPUT：220V
6) Display of output frequency value
ON LINE
OUT FRE：50Hz
7) Display of output power Percent
ON LINE
LOAD：80%
8) Display of battery voltage value
ON LINE
BATTERY：218V
9) Temperature display in machine
ON LINE
TEMP：33℃
Note：ON BYPASS mode，the output voltage and frequency are
displayed be “0” .LED would display only after the unit is
switched on.
*These parameters vary with machine model.
10) LCD cycle display switch button: digital signal display items
switch button.
11) UPS switch button: UPS general switch button.
(1) Turn on UPS inverter by pressing the “ON” key. UPS
convert to UPS inverter power output 20s later, UPS pure
AC output power is supplied by UPS internal power supply
equipment.
(2) By keeping pressing the OFF switch for 3s，we can shut
down the inverter，turn the UPS to bypass mode.
The button acts as general switch mainly.

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 6 -
3.2. Machine appearance (Figure 2)
Figure 2
1). Display/Control panel.
2). Scattering heat ventilation hole:
The ventilation hole and other small long elliptic ventilation holes all need
to keep good ventilation.
3). RS232 communication interface receptacle.
The standard communication interface between UPS and computer.
4). Air blower.
5). Battery Switch.
6). MAIN INPUT switch
7). Wiring Terminal support
Power wiring Terminal support of input, output and battery.
8). Wiring inlet/outlet hole:
Wiring inlet/outlet hole of input, output and battery group
9). Active wheel:
There are four hidden active wheel, in favor of movement.

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 7 -
4 POSITIONING
4.1 Transit or movement
1.Please dismantle all barge-connecting cable firstly. (Perform after turn off)
2.Careful and light placement, forbid any hit.
3.Please do not move UPS inverted.
4.2 Placement

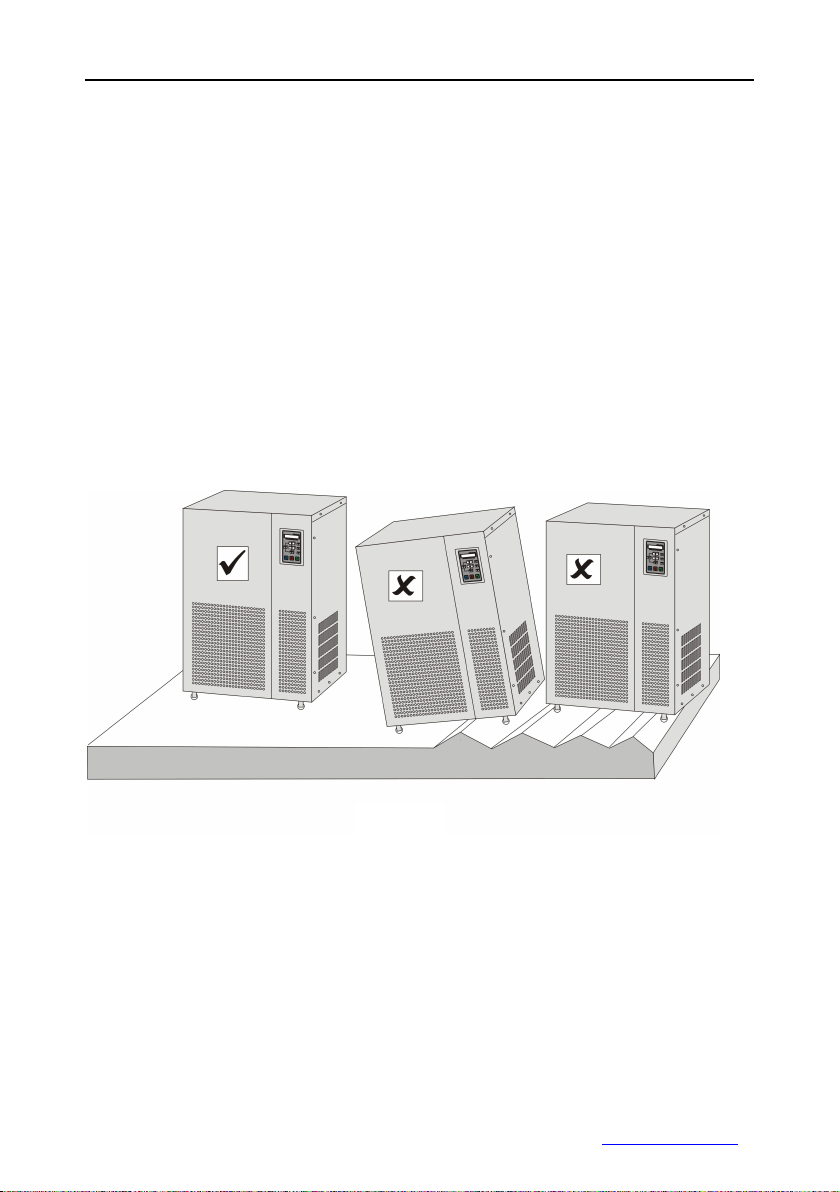

1. Do not place the UPS on slope or scraggy land. (Figure 3)
Figure 3

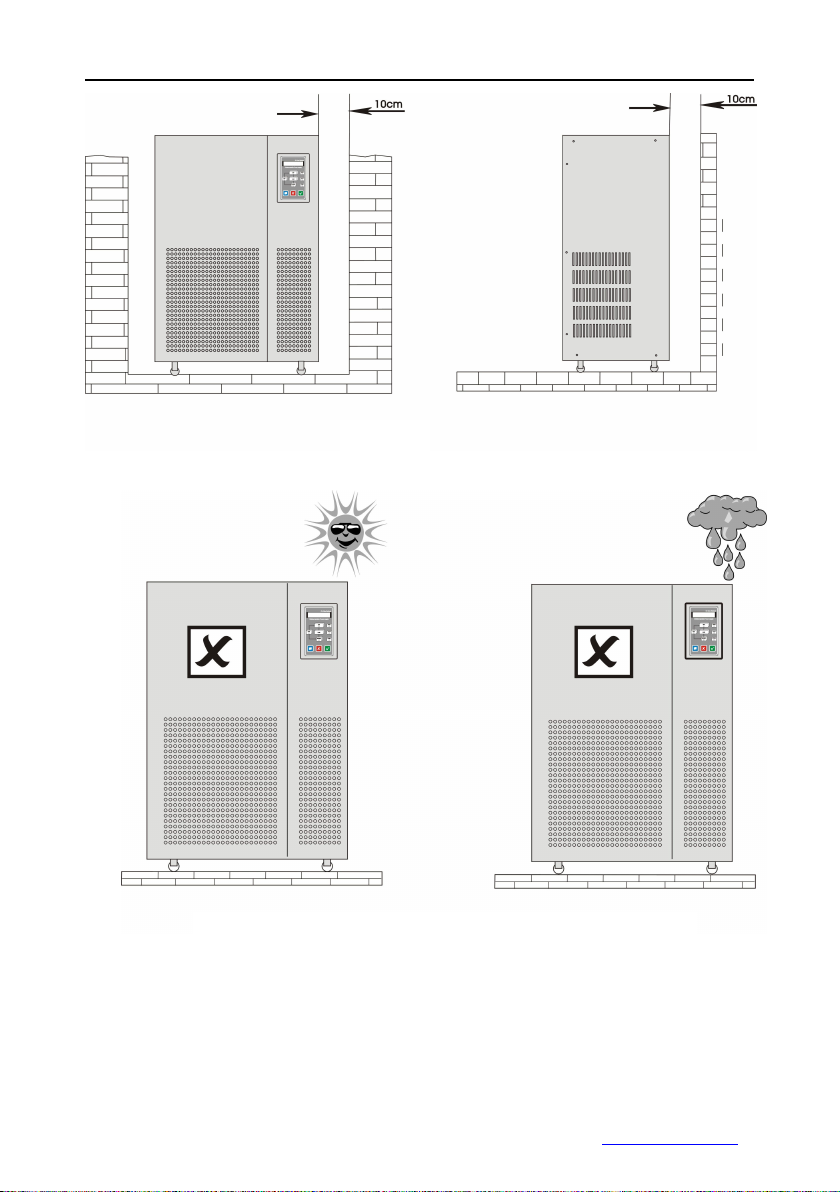

2. Please place the UPS in the place where keeps good ventilation, UPS’s
back face and side face should be more than 10cm away from the room
wall. (Figure 4)
3. Do not position UPS in sunshine, drain and damp place. (Figure 5, 6)

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 8 -
Figure 4
Figure 5 Figure 6
4. Please keep UPS away from fire source and high temperature avoiding
over-high temperature. (Figure 7)
5. Do not lay goods on the UPS. (Figure 8)

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 9 -
6. Do not position UPS in the place where contains caustic gas. (Figure 9)
7. Running environment temperature: 0℃-40℃
Figure 7 Figure 8
Figure 9

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 10 -
5 INSTALLATION
5.1 AC Input
1. Prohibit using general household receptacle, because the Max
current of general receptacle is 15A, the socket may be burned down
for overload.
2. Please connect UPS input terminal to utility power switchboard
close. (Figure 10).
Figure 10
Note: Don’t make anti-connection of polarity
3. Simple identification way of power polarity:
(1) Firing line (R, S,T): There is 380V voltage between Line and
Line.
(2) Neutral (N): there is 220V voltage to Firingline, there is 0.5-2V
voltage to Grounding.

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 11 -
(3) Grounding (G): Please find real connecting point to the
grounding of the switchboard.
4. If the difference between the neutral and the ground is more than 5V
or can’t meet the system requirement, please reinstall good
grounding system to maintain operating safety of system.
5. The power cable and the impaction terminal must be quality goods,
prohibit wrapping power cable on the terminal support directly.
6. Please follow the electrician principle when installation.
7. Avoid using same a switch with other equipment when connect to
switchboard, try to connect to utility terminal.(Figure 11)
8. AC input connect wiring position
Figure 11
AC INPUT Figure 12
3ф4w+GND Power utility 3 phase 4 wire input

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 12 -
5.2 AC Output
1. Please consult input installation principle about output principle.
2.Output power cable is designed according to load current, do not use
over-thin cable.
3.Avoid short-circuit and overload.
4. The grounding to the unit only acts as reference point, if the grounding
isn’t good, that may cause disturbance and false datum management and
affect UPS and computer, please ask professional personnel for handling
immediately.
5.User offers a good grounding system.
6.Try to make the grounding close to connection point of grounding club or
start point in switchboard.

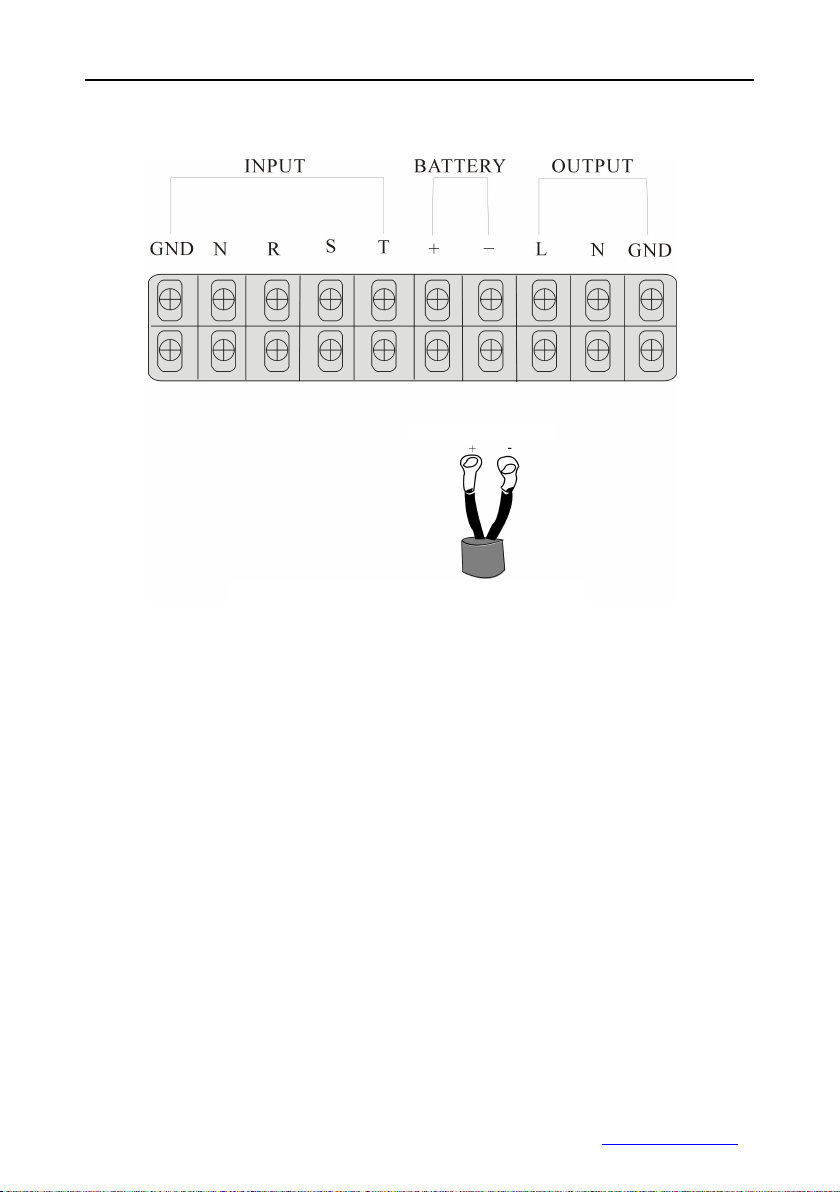

7.AC OUTPUT connect wiring position(Figure 13)
5.3 DC input wiring
Figure 13 AC OUTPUT

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 13 -
1. DC input connection please refer to AC input installation rules.
2. Connection way and position, please refer to figure 14.
5.4 Connecting position and way
1. Remove the cover screw on wiring terminal support with Philip Head.
2. Remove the cover and find the wiring terminal plate below the power switch.
3. According to connecting guide, draw AC power input cable, output cable
and battery pack power cable though the wiring outlet/inlet, then connect
to relevant terminal.
4. After connection, please carefully confirm if the connection is correct and firm.
5. After connection is correction, please relock the cover.
Figure 14 Battery wire

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 14 -
6 OPERATION
6.1 Preparing process before start-up.
To make UPS normal and correct running, please confirm the following
items. (Refer to figure 2)
1.Verify electric power switch on back panel is in the ‘OFF” position.
2.Verify the installation place again. (Figure 4 to 10)
3.Rock power cable with hand and see if there is any looseness, if
looseness, retighten the seizure screw.
4.Do not connect load.
5.Inspect input voltage is to meet the demand of UPS (220V±10%) with
ammeter.
6.2 Operation process at first start-up
After verify above items are correct, please start up UPS according to the
following ways:
1.Please switch electric power switch NO FUSE BREAKER (NFB) on the
back panel to the “ON” position. Input indicator light and bypass indicator
light on the front panel are lit on at the same time. As follows figure 15.
Figure 15

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 15 -
2. Plug the switch ON button on
front panel. As follow drawing.
The input indicator light and the
bypass indicator light are on
continuously. LCD display is lit.
Utility supplies power to output
via bypass.
Figure 16
3. After 20s, input indicator light
on front panel is lit, bypass ind-
icator light is off, output indica-
tor light is on the welcoming inf-
ormation is displayed on LCD ,
UPS inverter supplies power to
output.
Figure 17
4. Shutdown input power of UPS,
utility indicator light is off, the
welcoming information is
displayed on LCD, UPS inverter
supplies power to output., as
follow drawing. UPS sounds
every four seconds, which
indicates battery pack supplies
power to UPS at present. The
sound will automatically stop

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 16 -
90slater. Figure 18
UPS will sound alarm every 1s again when battery power is to be exhausted.
5. Utility indicator light will be on when UPS input power source is resumed.
Plug the LCD display cycle switch button to switch items displayed, see if
display value is normal, thus first start-up procedure has been completed.
Please measure output voltage and see if it meets the requirement, then connect
load to UPS output terminal. Use pure power provided by UPS formally.
6. After connect load, plug LCD display cycle switch button to switch items
displayed till display the item of output power display percent %. If the value
displayed is more than 100%, please dismantle the unimportant load till the
value displayed is less than 100%.
6.3 Daily switch ON/OFF operation procedure
If you want to switch on/off during daily using, please operate UPS according
to the following ways:
1. If you want to switch off UPS, you can switch off UPS by plugging the
“OFF’ button located on front panel. At the time UPS is under bypass condition,
utility supplies power to output and the batteries are under charging condition.
2. Always turn on UPS by plugging down the “OFF’ button when daily
operation.
6.4 Switch ON/OFF operation procedure when UPS hasn’t been will be
not used for long-time.
1. If the time in during UPS will be not used exceeds ten days, please first turn
off UPS by pushing the “off” button on front panel, then position the NFB on
back panel the position of “OFF”.
2. If the time that UPS doesn’t be used exceeds three months, please run UPS
for above 24 hours according to the process of first start-up and make the
battery on the full electrical position and extend battery life.

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 17 -

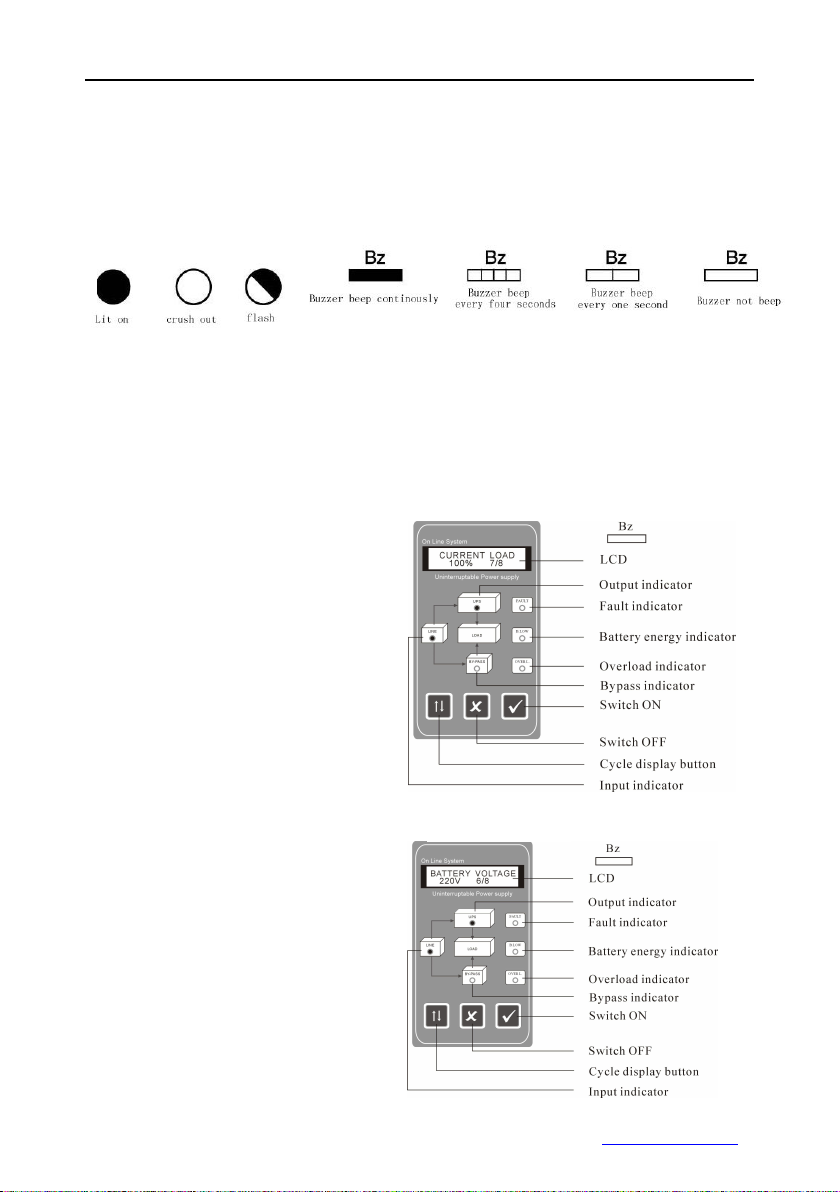

7 STATUS HANDLING
7.1. Symbol indicator:
Note: If indicator light flash, the flash period is synchronal with that of buzzer
sounds
7.2 UPS run status indicator and handling ways when normal
Please refer to indicator, LCD indicator value and buzzer sound on the panel,
you can see if UPS running is normal, if UPS is abnormal, please refer to the
handling thing according to panel
indicator status.
1. Panel indicator status is as the
right:
(1) UPS running status:
Utility is normal, UPS runs
normally and UPS is used under
full-load.
(2) Handling way: needless
handling.
2. panel indicator status is right:
(1)UPS running status:
Utility is normal, UPS runs
normally and battery capacitor is
above 90%.
(2) Handling way: needless
handling.
Figure 19

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 18 -
3. panel indicator status is right:
(1) UPS running status:
Utility supplies power 220Vac
normally and UPS runs normally.
(2)Handling way:
needless handling.
4. panel indicator status is right:
(1)UPS running status:
Utility supplies power normally,
UPS runs normally and battery
voltage is low.
(2)Handling way: needless handling.
The charger is fault, please replace
charging board.
Note: the indicated material
parameters vary with
the machine type.
5. panel indicator status is right:
(1)UPS running status
Utility power is normal and it is
transferred to utility mode. UPS
don’t start up until the startup
button on the panel of UPS is
pressed.
(2)Handling way: please deal with
it reference to status dealing flow
Figure 20
Figure 21
Figure 22

Propus UPS manual
Tech Novitas FZC: P. O. BOX No.: 8073, SAIF Zone, U.A.E. Phone: + 971 6 5529892 Fax:. + 971 6 5529897
Designed by Tech Novitas Corp. LLC ,Wyoming, U.S.A, www. technovitas.com Email us at: [e-mail]
- 19 -
chart 2. Figure 23

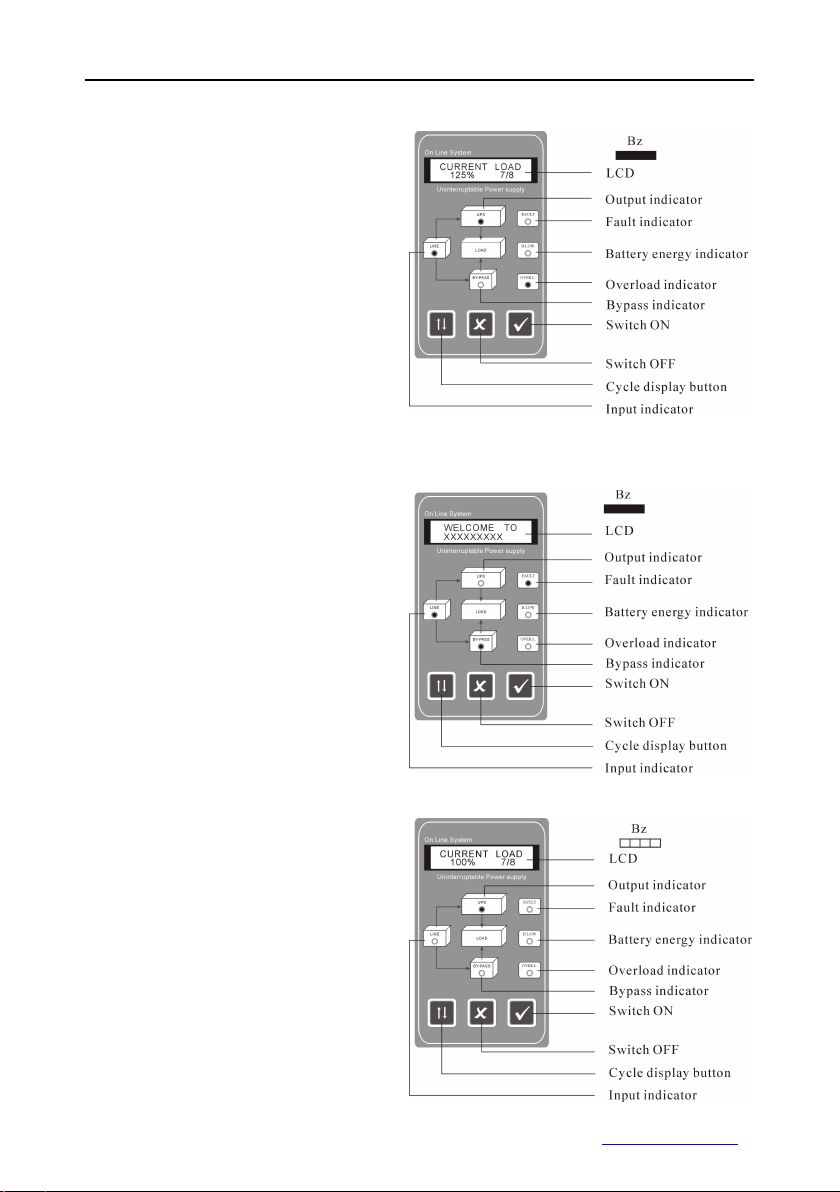

6.Panel indicator status is right:
(1)UPS running status:
Utility supplies power. Under
overload 125%, overload indicator
light is solid on and the buzzer
beeps continuously.
(2)Handing way:
Please release load to ensure the
indicated percent of LCD output
power is less than 100%. If the thing Figure 24
is still present after removing
load, please refer to flow chart 3
of status handling.
7.Panel indicator status is right:
(1)UPS running status:
Utility power is normal, UPS runs
abnormally and transfers to be
supplied power by utility.
(2)Handling way:
Please refer to flow chart 4 of Figure 25
status handling.
8.Panel indicator status is right:
(1)UPS running status:
Utility power is disconnected, UPS
is supplied power by battery and
load is full load. Buzzer beeps once
every fo- ur seconds.
The battery energy indicator light
Figure 26
