TF-3GSDI-CAM:
3G-SDI
Camera
User Manual
Megapixel CMOS Box & Module Camera
Version 1.4
www.techfury.com
sales@techfury.com
Page 2
3G-SDI Camera user manual
INFORMATION - This equipment has been tested and found to comply with limits for a Class A digital
device, pursuant to part 15 of the FCC Rules & CE Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his/her own expense.
WARNING - Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
CAUTION - To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than those specified.
Before You Start
This manual should help you in the installation and set-up of the camera; and we recommend that you
carefully follow the instructions described. To ensure that your warranty remains valid, please read the
manual carefully before using the camera.
Precautions
- Please DO NOT disassemble, modify or repair the camera. There are no user serviceable parts inside
and disassembling the camera may void the warranty. For prevention of fire or electric shock, DO NOT
removes screws or covers from the camera. (Only TF-3GSDI-CAM)
- Operation in a wet environment is NOT recommended. The camera SHOULD NOT be exposed to rain
or moisture.
3G-SDI camera user manual
Page 3
- For prolong life and the protection of the camera’s image sensor, do not point the camera directly at
the sun or a strong spotlight which may result in image sensor blooming and permanent damage.
- DO NOT operate the camera beyond the operation temperature range stated and AVOID usage in
conditions exceeding 90% humidity.
- DO NOT use an unregulated power supply source to prevent damage to the camera’s circuits.
- Use soft materials such as lens tissue or cotton tipped applicator with ethanol for image sensor
faceplate cleaning ONLY when necessary and AVOID contact with fingers or any hard object. Do not
use solvent, abrasives or detergent when cleaning the camera body.
- Warranty shall be voided for improper use of the camera caused by the user; or damage caused by
other equipment due to negligence.
Warranty
TECHFURY warrants the original components free of defects for one year from the purchase date. This
warranty covers failures and damage due to defect, which may occur during normal use. It does not
cover damages or failure resulting from mishandling, abuse, misuse or modification. An RMA number
must be obtained in advance for every repair or replacement.
Copyright
All the materials in this document are protected by copyright and other laws for intellectual property.
They are not allowed to be copied, reproduced or modified for any use without the permission of
TECHFURY. TECHFURY reserves the right to make changes in specifications, functions or designs at any
time and without any notice. The company names in this document may be the trademarks and trade-
names of their respective owner; and are hereby acknowledged.
Page 4
3G-SDI Camera user manual
1. Main Features
▶1/3” CMOS sensor
2.2M Pixels (Total) / 2.1M Pixels (Active)
▶Full HD Resolution
1920x1080@30/25p, 1920x1080@60/59.94/50i
1280x720@30/25p, 1280x720@60/59.94/50p,
1920x1080@60/59.94/50p
▶WDR (Wide Dynamic Range)
WDR allows a camera to filter the intense back light surrounding a subject and thus enhances the
ability to distinguish features and shapes on the subject.
▶DNR (Digital Noise Reduction, 2D/3D-NR)
DNR technology will supply you with outstanding clear images by reducing noise of picture. DNR
technology has excellent disk-saving effect. TECHFURY supports brilliant DNR technologies like
DNR, 3D-NR and 2D+3D.
▶AGC (Automatic Gain Control)
AGC is circuit that automatically adjusts the incoming signal to proper level for display or recording
and the sensitivity of pick-up object to render the most pleasing images. It improves performance
in low light conditions.
▶2 Auto (AE/AWB) Control
Slow Shutter control (Sens-Up), Color temperature Range (1800K ~ 10500K).
▶Dynamic Motion Detection (8 separable areas, Up to 1980-blocks, variable block size
control)
Motion can be detected and displayed in appointed area. It is possible to set up motion detection
zones user wish.
▶Privacy Zone Masking (8 Polygon windows)
The privacy zone function makes it possible to make specific areas of the scene from view.
▶Output
3G-SDI / HD-SDI (NTSC / PAL)
3G-SDI camera user manual
Page 5
2. Name and Function of Each Part

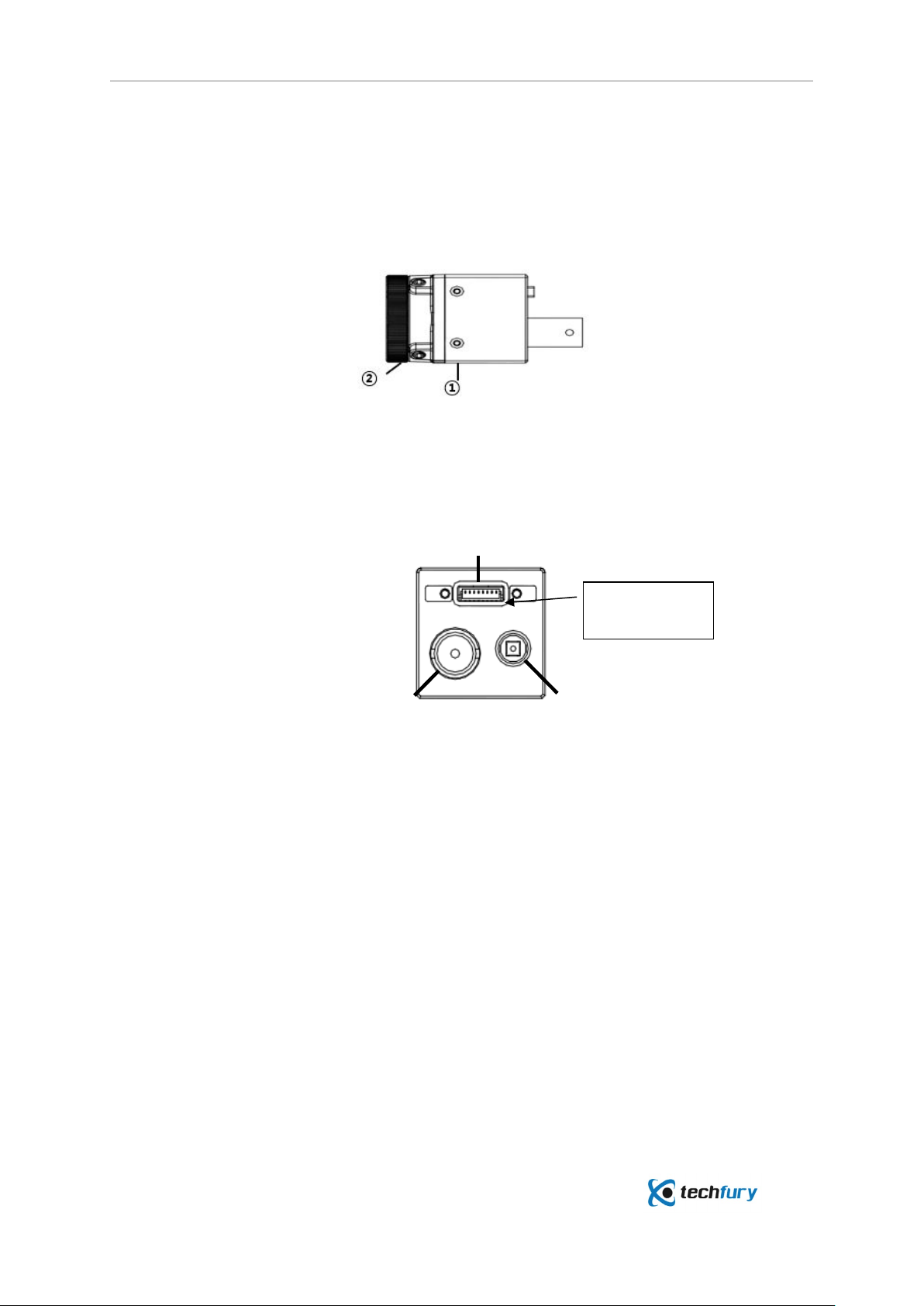

2.1. TF-3GSDI-CAM
Side
Name Function
▶Holder For attaching a bracket to the camera
▶Lens Mount Adaptor ring is tightened for C or CS mount lens
Rear
Name Function
▶RS-485 ▶RS485_A_D+ ▶RS485_A_D-
I/O Port ▶Trigger Signal Input(Act: High)
(Trigger Input Image Masking or Freeze/Play selectable)
▶Motion/Trigger Common GND
▶-
▶Motion Signal Output(Act: High)
Power ▶DC Power (+) ▶DC Power (-) Ground (DC12V ~ 24V)
▶HD-SDI Video Output BNC connector for HD-SDI video signal output
▶SETUP Switch Camera function control switch
Press and hold the switch for more than 2 seconds, then the main menu
will appear on the screen.
②
①
③
▶▶▶▶▶▶
▶ ▶
Page 6
3G-SDI Camera user manual
▶/▶Move from left side to right side, then the menu is moved
to upper menu or the parameter is changed
▲/▼Move up and down, then the menu is moved up and down
■Press and the feature is set
Press it, then it is moved to sub menu
2.2. TF-3GSDI-CAMS
3G-SDI camera user manual
Page 7
3. Other Device Connection
3.1. Monitor Connection
Connect the HD-SDI output of the monitor to the BNC connector of the camera by Coaxial
cable. The connector of TF-3GSDI-CAM is consist of MMCX(Board side) and BNC(Monitor side).
If the monitor does not support HD-SDI output, you must use HD-SDI converter.
Video output type could be set as NTSC or PAL.
3.2. Video Cable Connection
Refer to following table regarding the cable. If the distance between the camera and the
monitor is over maximum video transmission distance, separate video amp is required to use.
* Maximum HD-SDI transmission distance depends on cable manufacturer and installation
environment.
Maximum Transmission Distance Cable Requirement
100 ~ 140m 5C2V, 75ohm
200m L-6CHD, 75ohm (HDTV-SDI Cable)
3.3. Power Connection
For easy installation, TECHFURY provides special power cable to connect DC jack type of power
adapter. Connect the camera to the device, which its power is turned off.
* Camera operation guarantees power: DC 12V ~ 24V ±10%
HD-SDI
Monitor
Power Adaptor
I/O Port(N/A)
RS 485 Wire
HD-SDI
Monitor
OSD Joystick
Power Adaptor
2nd
Video(Analog)
RS 485
Trigger Input
Motion Output
TF-3GSDI-CAMS
TF-3GSDI-CAM
Page 8
3G-SDI Camera user manual
3.4. RS-485 Connection
Using RS-485 communication, it can be possible to control OSD menu and some features in
external device. Regarding features to control by RS 485, refer to register control document.
3.5. I/O Port Connection
Using Input Port, User can get triggered captured image with image marking and motion
output signal. Or according to firmware version, user can get freeze/play image.
4. OSD Menu
Press the OSD joystick of cameras rear side 1~2 seconds. Then OSD menu is shown up on
the screen.
1.
LENS
DC
INDOOR(Default TF-3GSDI-
CAM),OUTDOOR
Select DC Iris Lens(Not supported)
P-IRIS AUTO, MANUAL Select P-Iris Lens(Not supported)
MANUAL(Default TF-3GSDI-CAM)
Select Manual Iris Lens
VIDEO Select Video Iris Lens use(Not supported)
2. EXPOSURE
SHUTTER
AUTO(Default)
Select Auto Shutter Speed
FLK
Select in Flickering
1/30~1/50000
x2 ~ x30
Shutter Speed Manual Control
AGC Level 1-15 Adjust Auto Gain Level
SENS-UP
OFF, AUTO(Default)
The camera automatically detects the light
level
in night or dark area
x2~x30
Select the level of desired Sens-up
RIGHTNESS
0 ~ 100(Default: 40)
Adjust the screen brightness
D-WDR OFF(Default),LOW,MIDDLE,HIGH Adjust the level of dynamic range
DEFOG OFF(Default),ON
Adjust the level of defog function
Position/Size/Gradation adjustable
3.
BACKLIGHT
OFF(Default)
WDR
GAIN Low / Middle / High
WDR OFFSET
Select the level 0~255
BLC GAIN
High / Middle / Low
3G-SDI camera user manual
Page 9
AREA
Select Position & Size
DEFAULT
BLC Factory Reset
HSBLC
SELECT
Select the area (AREA1~AERA4)
DISPLAY Select the area maintain/remove (ON/OFF)
LEVEL
Select the level 0~100
MODE
Select the activation time(ALL DAY / NIGHT)
BLACK MASK
Select the black mask (ON/OFF)
DEFAULT
HSBLC Factory Reset
4
.
WHITE BAL
ATW(Default)
Auto Tracking White Balance
AWC →SET
Set the real environment white balance.
Use the white color object and select SET button
INDOOR Select this for indoor application
OUTDOOR Select this for outdoor application
MANUAL Select this to fine-tune White Balance manually
5
.
DAY & NIGH
(
H/W- Only TF-
3GSDI
-CAM)
AUTO
DELAY Select the duration time about changing the day/night mode
D →N (AGC)
Select the percent about changing Day to Night mode(AGC based)
N →D (AGC)
Select the percent about changing Night to Day mode(AGC based)
COLOR Select the color mode
B/W
BURST Select the bust signal on/off
IR SMART
Adjust LEVEL(0~15) / AREA(Position & Size)
IR LED
Select On/Off(Not Available)
IR PWM
Select the level 0~100(Not Available)
6.
DNR
2DNR Select On/Off
3DNR
SMART NR
Select the Smart NR mode
LEVEL
Select the level of 3DNR mode(0~100)
START. AGC
3DNR function Start percent(AGC based)(0~100)
END. AGC
3DNR function End percent(AGC based)(0~100)
7.
SPECIAL
CAM TITLE Enter the camera title (ON/OFF)
D-EFFECT
FREEZE
Freeze the image (ON/OFF)
MIRROR
MIRROR Mirror the image (ON/OFF)
V-FLIP
Flip the image vertically
ROTATE
Flip the image horizontally
Page 10
3G-SDI Camera user manual
D-ZOOM
x2 ~ x62 / PAN&TILT / DEFAULT
SMART D-
ZOOM
AREA 1/2 / DISPLAY / SENSITIVITY (0~60) / D-ZOOM(x2~x62)
TIME (0~26) / DEFAULT (Not Available)
NEG. IMAGE Select the negative image (ON/OFF)
DIS
Not Available
MOTION
SELECT Select the area 1 ~ 4
DISPLAY
Adjust the position & size (ON/OFF)
SENSITIVITY
Select the sensitivity of motion recognition (0~100)
MOTION VIEW
Display masks on the motion detected area (ON/OFF)
DEFAULT
Motion Factory reset
PRIVACY
SELECT
Select the area (1~8)
DISPLAY
Display the privacy area on the screen (ON/OFF)
COLOR
Select the color 0~15
TRANS
Transfer 0~3
DEFAULT
Privacy Factory reset
LANGUAGE
ENG, JPN, CHN1,CHN2, KOR, GER, FRA, ITA, SPA, POL, RUS, POR, NED, TUR,
HEB, ARB
DEFECT
LIVE DPC
Select the dead pixel compensation mode in real time
(AUTO/OFF)
LEVEL (0~100)
STATIC DPC
Select the dead pixel compensation mode in static points
(ON/OFF)
START / LEVEL (0~60) / SENS-UP (x2 ~ x30)
BLACK DPC
Select the dead pixel compensation mode in black points
(ON/OFF)
START / LEVEL (0~255) / DIFT. TH (0~255)
RS485
CAM ID
Select the number of camera (0~255)
ID DISPLAY
Select the display of CAM ID (ON/OFF)
BAUDRATE
Select the baud rate (2400~38400)
VERSION Display the current Camera Version
8
.
ADJUST
SHARPNESS Adjust the level of sharpness (0~15)
MONITOR
LCD
GAMMA / ADAPT. LEVEL / BLUE GAIN / RED GAIN
CRT
BLACK LEVEL / BLUE GAIN / RED GAIN
3G-SDI camera user manual
Page 11
5. Specifications
Items Description
Image Sensor
1/2.8” 2.38Megapixel Sony Exmor CMOS Sensor
Scanning System Progressive, Interlace
Effective Pixels Number 1,920(H) x 1,080(V), 2.07M Pixels (Full-HD)
Total number of pixels 1,952(H) x 1,116(V), 2.18M Pixels (Full-HD)
Lens Mount C/CS Mount (S mount DC Auto Iris D/N – TF-3GSDI-CAMS only)
Video Output Mode
HD-SDI: 1920x1080p(30/25fps), 1920x1080i(60/59.94/50fps),
1280x720p(30/25fps) 1280x720p(60/59.94/50fps)
3G-SDI: 1920x1080p(60/59.94/50fps)
Video Output Level
HD-SDI, 3G-HDI / 1.0 Vp-p (75Ω, Composite)
NTSC/PAL(Selectable)
Min. Illumination Color: 0.2Lux @ F1.2 / B/W : 0.01@F1.2
OSD Built-in
Electronic Shutter Speed Auto / Manual ( 1/30 ~ 1/50,000 )
White Balance ATW / AWC / Indoor / Outdoor / Manual
Back Light Compensation Off / WDR / BLC / HSBLC
D-WDR/ACCE Low / Middle / High / Off, 0~15 steps
AGC 0~15 steps
Adjust SHARPNESS / MONITOR / OSD / LSC / VIDEO OUT(NTSC/PAL)
LSC
Select Lens Shading Compensation Scan (ON/OFF)
RESOLUTION FULL-HD(Default) / HD
FRAMERATE A- Sensor Scanning 60P, B- Sensor Scanning 30P(Default)
60/30 & 50/25 depends on NTSC/PAL selection in advance
A-30/25P / A-60/59.94/50I(Only Full HD)
B-30/25P / A-60/59.94/50P
VIDEO.OUT Select NTSC/PAL
9. RESET
FACTORY
Reset the camera settings to the factory defaults
10. EXIT
Exit the Main SETUP menu (or Hidden Menu selection)
Page 12
3G-SDI Camera user manual
Language
ENG, JPN, CHN, KOR, GER, FRA, ITA, SPA, POL, RUS, POR, NED, TUB, HER,
ARB
(Directional Switches)
Day & Night Auto / B.W / Color / EXT (Selectable)
2D/3D-NR 2DNR / 3DNR / SMART NR
Digital Zoom / PIP On / Off (x2 ~ x64)
Privacy Masking On / Off (8 Zone Selectable)
Motion Detection On / Off (4 Zone Selectable)
Defect LIVE DPC / STATIC DPC / BLACK DPC
Defog Low / Middle / High / Off (Position/Size- User Setting)
Sens - up Auto (Selectable limit ~ x30) / Off
D –EFFECT Freeze / Mirror / D-Zoom / NEG.IMAGE
Protocol Pelco-D / Pelco-P
Communication RS-485[ Baud Rate: 2400~38400 ]
Power
DC12V ~ 24V ±10%,
2.3W(1080p/30fps), 3.3W(1080p/60fps)
Operating / Storage
Temperature
-5℃~ +50℃(Humidity: 0%RH ~ 80%RH)
-20℃~ +60℃(Humidity: 0%RH ~ 90%RH)
Dimension 29mm X 29mm X 29mm (Connector, C/CS mount excluded.)
Weight Approx. 40g
3G-SDI camera user manual
Page 13
6. Dimension
7. Technical Support
TECHFURY ensures the conformity of our product to be reliable and free from defects during
manufacturing by testing all the cameras before release. However, unexpected problems and
technical issues may come up due to the complexity of the product. In case you require
technical support; contact the agent near you or contact TECHFURY directly at the following
locations:
Webpage: http://www.techfury.com
Technical Support : sales@techfury.com
In case of an RMA, you must first contact TECHFURY and obtain an RMA Number before
sending the product to us. We are not responsible for any problems caused by not following
the RMA procedure.
Top View
Side View Back View
30mm
29mm
29mm
29mm
42.1mm
29mm
CS-Mount
TF-3GSDI-CAM
Table of contents
