Technibel Climatisation GRFMI 708 R7I User manual

2 WAY V.R.F. DC INVERTER-A- R410A- OUTDOOR UNIT
TEST RUN SERVICE MANUAL
April 2008

CAFM1V
CAFM1VS
CAFM2V
CAFM
MAFM
SPAFM
DSAFM
DSAFMHP
KFM
KFMNC
GRFMI
GRFM
K
2WAY MULTISET VRF DCI SYSTEMS
Line-up
R410A Models
Indoor Units
Indoor unit type
CAFM1V**
CAFM1VS**
CAFM2V**
CAFM*
MAFM
MPAFM
SPAFM
DSAFM
DSAFMHP **
KFM**
KFMNC**
KPAFM*
SDAFM*
1-Way Air Discharge
Semi-Concealed
1-Way Air Discharge
Semi-Conceal Slim
2-Way Air Discharge
Semi-Concealed
4-Way Air Discharge
Semi-Concealed
Wall-mounted
Ceiling-mounted
Concealed-Duct
Concealed-Duct
High-Static Pressure
Floor-standing
Concealed-Floor
Floor-Ceiling
Slim Ducted
7 9 12 16 18 22 25 36 48
CAFM1V74R CAFM1V94R CAFM1V124R
CAFM1VS94R CAFM1VS124R CAFM1VS184R CAFM1VS254R
CAFM1VS74R CAFM2V94R CAFM2V124R CAFM2V184R CAFM2V254R
CAFM75R CAFM95R CAFM125R CAFM165R CAFM185R CAFM255R CAFM365R CAFM485R
MAFM75R MAFM95R MAFM125R MAFM185R MAFM255R
SPAFM124R** SPAFM184R** SPAFM255R SPAFM365R SPAFM485R
DSAFM75R* DSAFM95R* DSAFM125R* DSAFM165R* DSAFM185R* DSAFM225R* DSAFM255R DSAFM365R DSAFM485R
DSAFMHP254R DSAFMHP364R DSAFMHP484R
KFM74R KFM94R KFM124R KFM184R KFM254R
KFMNC74R KFMNC94R KFMNC124R KFMNC184R KFMNC254R
KPAPM75R KPAFM95R KPAPM125R KPAFM165R KPAFM185R KPAFM225R
SDAFM76R SDAFM96R SDAFM126R SDAFM166R SDAFM186R SDAFM226R
Outdoor Units
GRFMI
DC Inverter units
GRFMI 708 R7I, GRFMI 908 R7I, GRFMI 1158 R7I, GRFMI 1308 R7I, GRFMI 1408 R7I
* For these Indoor Unit Types, please see the installation instructions inside the manual included in their package
** Indoor Unit Types not available
MPAFM78R MPAFM98R MPAFM128R
Standing
Optional controllers
Wired Remote Controller K70D036Z
Wireless Remote Controller (for CAFM type) K70D037Z
Wireless Remote Controller (for KPAFM type) K70D038Z
Wireless Remote Controller (for SP AFM type) K70D040Z
Wireless Remote Controller+receiver for all types of Indoor units K70D039Z
Wireless Remote Controller (for MAFM type) K70D041Z
Simplified Remote Controller K70D042Z
Remote sensor K70D050Z
System Controller K70D043Z
Schedule timer K70D046Z
K
Refrigerant R410A is used in the Outdoor units .

CONTENTS
1. Address Settings
(Outdoor Units) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1. Test Run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2. Settings of Indoor Unit Control PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
3. Auto Address Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
2. Remote Controller Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
1. Remote Controller Test Run Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2. Simple Settings Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
3. Detailed Settings Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
4. Remote Controller Servicing Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
3. Trouble Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
1. Contents of Remote Controller Switch Alarm Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
2. Outdoor Unit Control PCB LED Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
4. PCB Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
1. Outdoor Unit Control PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
5. Self-Diagnostics Function Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
1. Self-Diagnostics Function Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
6. Service Checker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
1. Outdoor Unit Maintenance Remote Controller (ACC-CH80U1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
7. Trouble Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
1. 2WAY MULTISET Alarm Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
2. Blinking (Inspection) Display on the Remote Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19

1 - 1
2-WAY MULTISET VRF SYSTEM
Address Settings
1
1. Address Settings
(Outdoor Units)
1. Test Run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2. Settings of Indoor Unit Control PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
3. Auto Address Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

1 - 2
2-WAY MULTISET VRF SYSTEM
Address Settings
1
YES
Make necessary corrections.
Check the alarm
contents.
Check the alarm contents.
Turn OFF the indoor and
NO
YES
NO
*1
*2
*3 *3
*2
CASE 1
CASE 2
CASE 3B CASE 3A
YES
YES
NO
YES
NO
NO
NO
YES
YES
NO
Recheck the items to check before the test run.
Have the outdoor sub units been connected?
Are the inter-unit control wires
connected to more than 1 refrigerant
system?
Is it possible to turn ON the power only
for the 1 refrigerant system where the
test run will be performed?
Will automatic address setting be
performed in Heating mode?
Is it OK to start the compressors?
Turn ON the indoor and
outdoor unit power.
Short-circuit the mode change pin
(CN101) on the outdoor main unit PCB.
At the same time, short-circuit the
automatic address pin (CN100) for 1
second or longer, then release it.
Short-circuit the automatic address
pin (CN100) on the outdoor main
unit PCB for 1 second or longer,
then release it.
Short-circuit the automatic address pin (CN100)
on the outdoor main unit PCB for 1 second or
longer, then release it.
Start indoor and outdoor unit
cooling operation.
LED 1 and 2 blink alternately.
Start indoor and outdoor unit
heating operation.
LED 1 and 2 blink alternately.
LED 1 and 2 blink alternately
(about 2 or 3 minutes).
Is it OK to start the compressors?
Turn ON the indoor and
outdoor unit power.
Turn OFF the indoor
and outdoor unit
Turn ON the indoor and
outdoor unit power for that
refrigerant system only.
Are LEDs 1 and 2 on the
outdoor unit PCB OFF?
Are LEDs 1 and 2 on the
outdoor unit PCB OFF?
Set the unit address.
Set the No. of outdoor units.
Set the No. of indoor units.
Set the system address.
When multiple outdoor main units exist, disconnect the terminals
extended from the shorted plugs (CN003) at all outdoor main unit
PCBs except for 1.
Alternatively, move the sockets to the OPEN side.
<Outdoor unit control PCB>
O/U ADD setting switch
(S007)
<Outdoor unit control PCB>
No. of O/U setting switch
(S006)
<Outdoor unit control PCB>
No. of I/U setting switch
(S004 and S005)
<Outdoor unit control PCB>
R.C. ADD setting switch
(S002 and S003)
Refer to Fig. 7-4
(Check the link wiring.)
*1 The unit with the unit
No. set to 1 is the
main unit. All other
units are sub units.
Note: It is not necessary to remove
the socket that is used to
short-circuit the terminal plugs
from the outdoor sub unit
Refer to “Table of
Self-Diagnostic Functions and
Description of Alarm Displays.”
*2 A minimum of 5 hours must have passed after the
power was turned ON to the outdoor unit.
*3 All indoor units operate in all refrigerant systems
where the power is ON.
Check that test run preparation is OK.
(Do not allow the short-circuited pins to remain short-circuited.)
Refer to the remote
controller test-run
settings.
Set the wired remote controller for test run.
Does system operate?
Return remote control to normal mode
Check and make corrections according to
“Table of Self-Diagnostic Functions.”
End test run.
Make necessary
corrections
Test Run Procedure
Use caution when making the settings. If there
are duplicated system addresses setting at
R.C. ADD switch, or if the settings for the Nos.
of the indoor units are not consistent, an alarm
will occur and the system will not start.
These settings are not made on the indoor unit
PCB.
1. Test Run

1 - 3
2-WAY MULTISET VRF SYSTEM
Address Settings
1
21
ON
3
ON
OFF
●Examples of the outdoor units settings
O/U ADD (S007)
(3P DIP switch, blue)
Unit No. 1
(factory setting)
Unit No. setting
21
ON
3
ON
OFF
Unit No. 2
21
ON
3
ON
OFF
Unit No. 3
1 ON
2 ON
1 & 2 ON
21
ON
3
ON
OFF
●Examples of the No. of outdoor units settings
NO. OF O/U (S006)
(3P DIP switch, blue)
1 unit (factory setting)
No. of outdoor units
21
ON
3
ON
OFF
2 units
21
ON
3
ON
OFF
3 units
1 ON
2 ON
1 & 2 ON
1
1
1
ON
123
ON
123
ON
123
ON
123
1
0
ON
123
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
●Examples of the No. of indoor units settings
No. of indoor units
NO. OF I/U (S005)
(3P DIP switch, blue) NO. OF I/U (S004)
(Rotary switch, red)
1 unit (factory setting)
11 units
21 units
31 units
All OFF
1 ON
2 ON
3 ON
1 & 3 ON
Set to 1
Set to 1
Set to 1
Set to 1
Set to 0
40 units
10 20 30
1
1
2
1
ON
2
1
ON
ON
12
2
1
ON
1
0
ON
OFF
ON
OFF
ON
OFF
ON
OFF
●Examples of system address settings (required when link wiring is used)
System address No.
R.C. ADD (S003)
(2P DIP switch, blue) R.C. ADD (S002)
(Rotary switch, black)
System 1 (factory setting)
Set to 1
Set to 1
Set to 1
Set to 0
System 11
System 21
System 30
Both OFF
1 ON
2 ON
1 & 2 ON
10 20

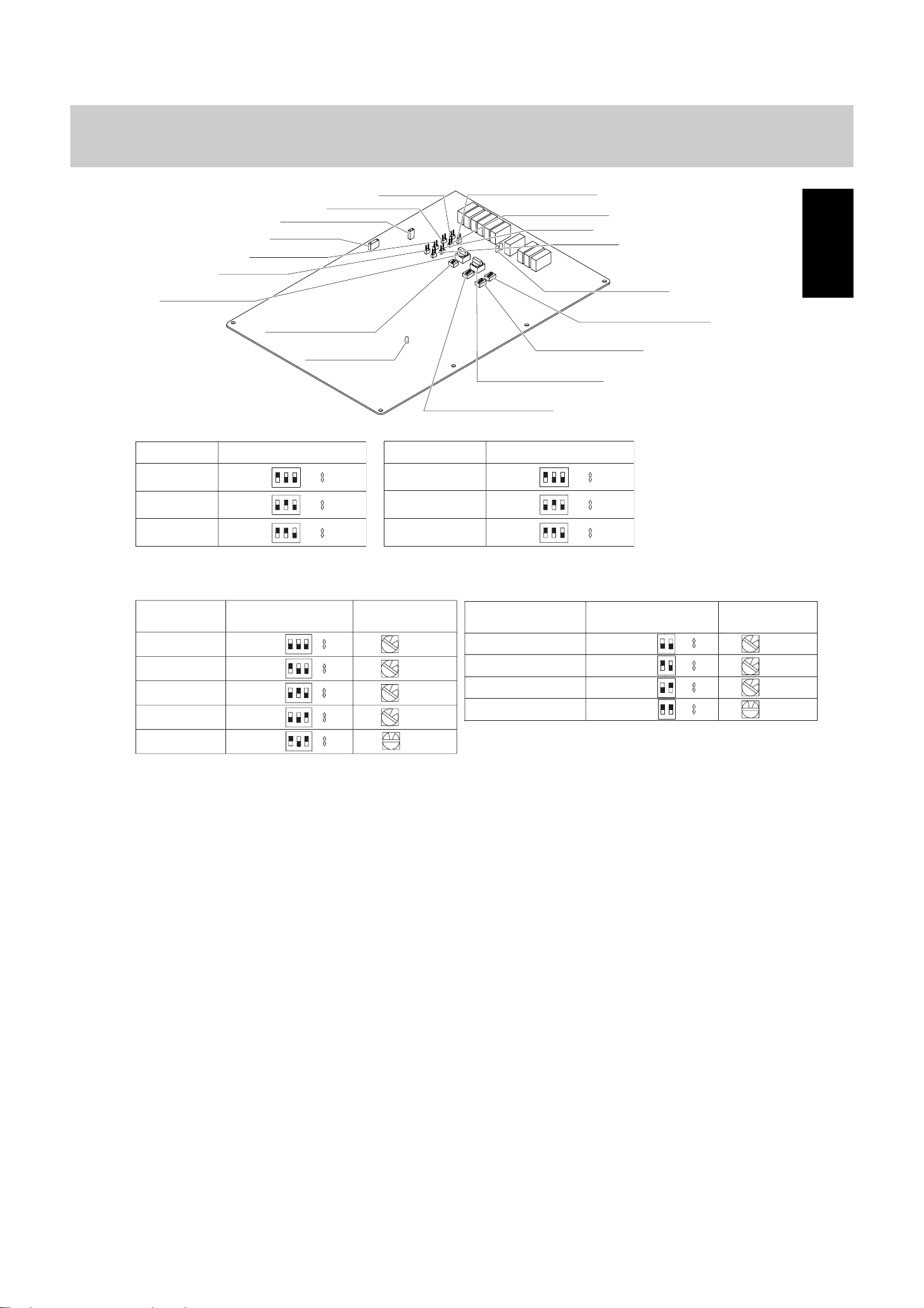

2. Settings of Indoor Unit Control PCB
OAC (CN105) A. ADD (CN100)
MODE (CN101)
STOP (CN104)
RUN (CN103)
LED1, 2
(D72, D75)
AP (CN102)
TERMINAL (2P, black)
CHK (CN023)
Power LED (D53)
O/U ADD (S007)
(3P DIP switch, blue)
No. of O/U (S006)
(3P DIP switch, blue)
NO. OF I/U (S004)
(Rotary switch, red)
NO. OF I/U (S005)
(3P DIP switch, blue)
TEST (CN022)
R.C. ADD (S002)
(Rotary switch, black)
R.C. ADD (S003)
(2P DIP switch, blue)
RC (CN006)
The number of outdoor units, number of indoor units, and system address shown below must be set at the No. 1 unit (main unit).
These settings are not necessary at all outdoor units other than the No. 1 unit. At these units, set only the unit number.
<General Explanation of the Switches on the Outdoor Unit Control PCB>
MODE (2P, white) Changes the operating mode (heating/cooling). (Can be used only at the main unit.)
(CN101) During normal operation: Short-circuiting these pins once will change all indoor units
in that system to either cooling mode or heating mode.
During automatic address setting: When the pins are not connected, the mode is
heating mode.
A. ADD (2P, white) Short-circuited for 1 s or longer →Automatic address setting begins when the pins
(CN100) are released. Short-circuiting these pins for 1 s or longer while automatic address
setting is in progress interrupts automatic address setting.
CHK (2P, white) When these pins are short-circuited, the mode is test run mode. (Test run mode is
(CN023) automatically canceled after 1 hour.) When the pins are released, test run mode is
canceled.
RC (3P, blue) The outdoor unit maintenance remote controller can be connected here to check the
(CN006) alarm details.
RUN (2P, white) Short-circuit these pins and apply a pulse signal to start all indoor units in that system.
(CN103)
STOP (2P, white) Short-circuit these pins and apply a pulse signal to stop all indoor units in that system.
(CN104) (If the pins are left short-circuited, it will not be possible to start operation from the
indoor unit remote controllers.)
AP (2P, white) These pins are used when applying vacuum to the outdoor unit.
(CN102)

2-WAY MULTISET VRF SYSTEM
Address Settings
1
1 - 4

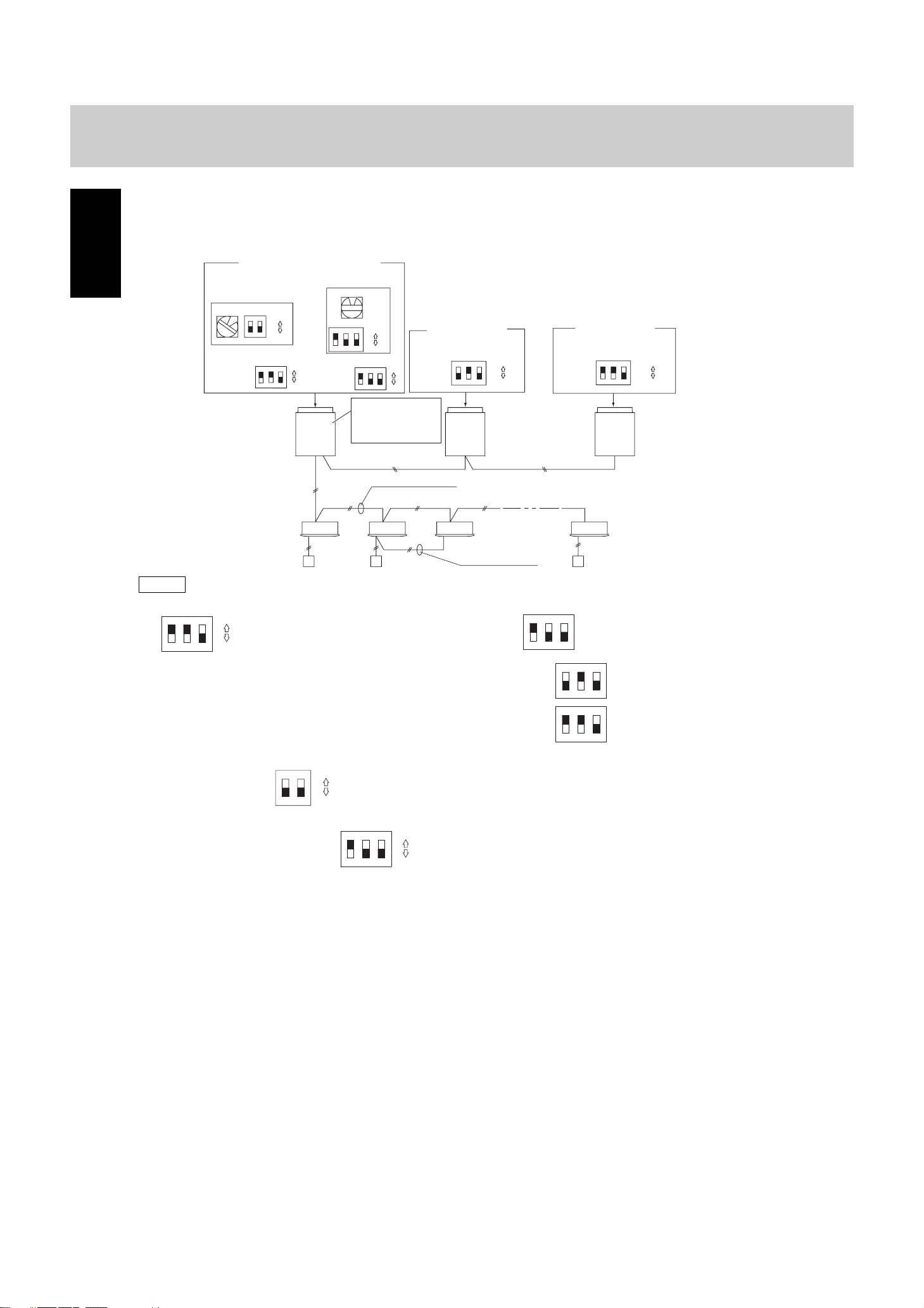

Auto Address Setting
Basic wiring diagram: Example (1)
ON
1 2 33
2 1
ON
1
ON
3 2
ON
1
2
2
ON
1
3
3
2
1
ON ON
ON
OFF
ON
OFF
ON
OFF
ON
OFF
OFF
(S006) (S007)
(S005)
(S004)
(S003)(S002)
0
1
1-1 1-2 1-3 1-10
• If link wiring is not used
(The inter-unit control wires are not connected to multiple refrigerant systems.)
Indoor unit addresses can be set without operating the compressors.
No. 1 (main outdoor unit) settings
No. 2 (sub unit)
settings
Unit
No. 2
Unit
No. 3
Unit
No. 1
(Main)
No. 3 (sub unit)
settings
Outdoor main/sub
control wiring
Outdoor Unit
Indoor Unit
Remote controller
Outdoor main/sub
control wiring
Inter-unit control wiring
Group control wiring
(S007)
ON
OFF
(S007)
System address
: R.C. ADD
(system 1 setting)
NO. OF I/U
(10 units setting)
No. of outdoor
units: NO. OF
O/U (3 units
setting)
Unit number
setting: O/U ADD
(Unit No. 1)
Unit number
setting:
O/U ADD
(Unit No. 2)
Unit number
setting:
O/U ADD
(Unit No. 3)
Leave the socket
that is used to
short-circuit the
terminal plug.
Automatic Address Setting from the Outdoor Unit
1. To set the number of outdoor units, on the outdoor main unit control PCB set the No. of outdoor units DIP switch (S006) to
(3 units), and set the unit address No. switch (S007) to (unit No. 1 – main outdoor unit).
2. On the No. 2 (sub) unit control PCB, set the unit address No. switch (S007) to (unit No. 2).
On the No. 3 (sub) unit control PCB, set the unit address No. switch (S007) to (unit No. 3).
3. On the outdoor main unit control PCB, check that the system address rotary switch (S002) is set to “1” and that the DIP
switch (S003) is set to “0.” (These are the settings at the time of factory shipment.)
4. To set the number of indoor units that are connected to the outdoor unit to 10, on the outdoor main unit control PCB set the No.
of indoor units DIP switch (S005) to “1,” and set the rotary switch (S004) to “0.”
5. Turn ON the power to the indoor and outdoor units.
6. On the outdoor main unit control PCB, short-circuit the automatic address pin (CN100) for 1 second or longer, then release it.
↓
(Communication for automatic address setting begins.)
↓
(Automatic address setting is completed when LEDs 1 and 2 on the outdoor main unit control PCB turn OFF.)
↓
7. Operation from the remote controllers is now possible.
* To perform automatic address setting from the remote controller, perform steps 1 to 5, then use the remote controller and
complete automatic address setting. For the necessary procedure, refer to “Automatic Address Setting from the Remote
Controller.”
ON
OFF
2 3
ON
1
ON ON
OFF
1 2
ON
1 2 3
3 2 1
ON
2 3
ON
1
ON
OFF
ON
1 2 3
Case 1
3. Auto Address Setting
* To cancel, again short-circuit the automatic address pin (CN100) for 1 second or longer, then release it.
The LED that indicates automatic address setting is in progress turns OFF and the process is stopped.
Be sure to perform automatic address setting again.

1 - 5
2-WAY MULTISET VRF SYSTEM
Address Settings
1
1-1 1-2
2-1 2-2 2-9
1-3 1-13
2
9
2 1
ON
3
ON
1 2 3
ON
1 2 3
3
2
1
ON
ON
1 2 3
ON
1 2
2
ON
1
3
1
1
ON
3 2
ON
1
2
2
ON
1
3
3
2
1
ON
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF OFF
ON
Automatic address setting in Heating mode
Automatic address setting in Cooling mode
* When multiple outdoor main units exist, remove the socket that
is used to short-circuit the terminal plug (CN003) from all
outdoor main unit PCBs except for one unit.
Alternatively, move the sockets to the “OPEN” side.
It is not necessary to change the terminal plug connecting
socket on the PCBs of any units other than the main outdoor
unit.
Leave the socket
that is used to
short-circuit the
terminal plug.
To other system
link wiring
• Indoor and outdoor unit power can be turned ON for each system separately.
Case 3A
Case 2
Case 3B
Make settings as appropriate for the cases listed below.
(Refer to the instructions on the following pages.)
Move the socket to
the “OPEN” side.
(S006) (S007)
(S005)
(S004)
(S003)(S002)
• If link wiring is used
No. 1 (main outdoor unit) settings
No. 2 (sub unit)
settings
Unit
No. 2
Unit
No. 3
Unit
No. 1
(Main)
Outdoor unit
system 1
Unit
No. 2
Unit
No. 1
(Main)
Outdoor unit
Indoor unit
Remote
controller
Indoor unit
Remote
controller
Outdoor main/sub
control wiring
Outdoor main/sub control wiring
Inter-unit control wiring
Inter-unit control wiring
Group control wiring
Group Control wiring
(S007)
No. 2 (sub unit) settings
(S007)
No. 3 (sub unit)
settings
(S007)
(S006) (S007)
(S005)
(S004)
(S003)(S002)
No. 1 (main unit) settings
System address : R.C. ADD
(system 1 setting)
System address: R.C. ADD
(system 2 setting)
NO. OF I/U
(13 units setting)
No. of indoor units: NO. OF I/U
(9 units setting)
No. of outdoor
units NO. OF
O/U (2 units
setting)
No. of outdoor
units: NO. OF
O/U (3 units
setting)
Unit number
setting: O/U
ADD (unit
No. 1)
Unit number
setting:
O/U ADD
(unit No. 2)
Unit number
setting:
O/U ADD
(unit No. 3)
O/U ADD
(unit No. 2)
O/U ADD
(unit No. 1)
system 2
• Indoor and outdoor unit power cannot be turned ON for each system separately.
No. 2
Refrigerant
circuit
No. 1 Refrigerant circuit
Basic wiring diagram: Example (2)
3. Auto Address Setting

1 - 6
2-WAY MULTISET VRF SYSTEM
Address Settings
1
Indoor and outdoor unit power can be turned ON for each system separately.
Indoor unit addresses can be set without operating the compressors.
Automatic Address Setting from Outdoor Unit
1. On the No. 1 (main) unit control PCB, set the unit address No. switch (S007) to (unit No. 1 – main outdoor unit).
On the No. 2 (sub) unit control PCB, set the unit address No. switch (S007) to (unit No. 2).
On the No. 3 (sub) unit control PCB, set the unit address No. switch (S007) to (unit No. 3).
2. To set the number of outdoor units on the outdoor main unit control PCB, set the No. of outdoor units DIP switch (S006) to
(3 units).
3. On the outdoor main unit control PCB, check that the system address rotary switch (S002) is set to “1” and that the DIP
switch (S003) is set to “0” . (These are the settings at the time of factory shipment.)
4. To set the number of indoor units that are connected to the outdoor unit to 13, on the outdoor main unit control PCB set the
No. of indoor units DIP switch (S005) to “1” , and set the rotary switch (S004) to “3.”
5. Turn on power to all indoor and outdoor units in the system.
6. Short-circuit the automatic address pin at the outdoor main unit (CN100) for 1 second or longer, then release it.
↓
(Communication for automatic address setting begins.)
↓
(Automatic address setting is completed when LEDs 1 and 2 on the outdoor main unit control PCB turn OFF.)
↓
7. Next turn the power ON only for the indoor and outdoor units of the next (different) system. Repeat steps 1 – 4 in the same
way to complete automatic address settings for all systems.
↓
8. Operation from the remote controllers is now possible.
* To perform automatic address setting from the remote controller, perform steps 1 – 4, then use the remote controller and
complete automatic address setting. For the necessary procedure, refer to “Automatic Address Setting from Remote
Controller.”
ON
OFF
2 3
ON
1
ON ON
OFF
1 2
ON
OFF
ON
1 2 3
ON
1 2 3
3 2 1
ON
2 3
ON
1
Case 2
* To cancel, again short-circuit the automatic address pin (CN100) for 1 second or longer, then release it.
The LED that indicates automatic address setting is in progress turns OFF and the process is stopped.
Be sure to perform automatic address setting again.
3. Auto Address Setting

1 - 7
2-WAY MULTISET VRF SYSTEM
Address Settings
1
Automatic Address Setting in Heating Mode
Indoor and outdoor unit power cannot be turned ON for each system separately.
In the following, automatic setting of indoor unit addresses is not possible if the compressors are not operating.
Therefore perform this process only after completing all refrigerant tubing work.
Automatic Address Setting from Outdoor Unit
1. Perform steps 1 – 4 in the same way as for .
5. Turn the indoor and outdoor unit power ON at all systems.
↓
6. To perform automatic address setting in , on the outdoor main unit control PCB in the refrigerant system
where you wish to set the addresses, short-circuit the automatic address pin (CN100) for 1 second or longer, then release it.
(Be sure to perform this process for one system at a time. Automatic address settings cannot be performed for more than
one system at the same time.)
↓
(Communication for automatic address setting begins, the compressors turn ON, and automatic address setting in
Heating mode begins.)
(All indoor units operate.)
↓
(Automatic address setting is completed when the compressors stop and LEDs 1 and 2 on the main unit control PCB turn
OFF.)
7. At the outdoor main unit in the next (different) system, short-circuit the automatic address pin (CN100) for 1 second or
longer, then release it.
↓
(Repeat the same steps to complete automatic address setting for all units.)
↓
8. Operation from the remote controllers is now possible.
* To perform automatic address setting from the remote controller, perform steps 1 – 5, then use the remote controller and
complete automatic address setting. For the necessary procedure, refer to “Automatic Address Setting from Remote
Controller.”
Heating mode
Case 2
Case 3A
* To cancel, again short-circuit the automatic address pin (CN100) for 1 second or longer, then release it.
The LED that indicates automatic address setting is in progress turns OFF and the process is stopped.
Be sure to perform automatic address setting again.
3. Auto Address Setting

1 - 8
2-WAY MULTISET VRF SYSTEM
Address Settings
1
Automatic Address Setting in Cooling Mode
Indoor and outdoor unit power cannot be turned ON for each system separately.
In the following, automatic setting of indoor unit addresses is not possible if the compressors are not operating.
Therefore perform this process only after completing all refrigerant tubing work.
Automatic address setting can be performed during Cooling operation.
Automatic Address Setting from Outdoor Unit
1. Perform steps 1 – 4 in the same way as for .
5. Turn the indoor and outdoor unit power ON at all systems.
↓
6. To perform automatic address setting in , on the outdoor main unit control PCB in the refrigerant system
where you wish to set the addresses, short-circuit the mode change 2P pin (CN101). At the same time, short-circuit the
automatic address pin (CN100) for 1 second or longer, then release it. (Be sure to perform this process for one system at a
time. Automatic address settings cannot be performed for more than one system at the same time.)
↓
(Communication for automatic address setting begins, the compressors turn ON, and automatic address setting in
Cooling mode begins.)
(All indoor units operate.)
↓
(Automatic address setting is completed when the compressors stop and LEDs 1 and 2 on the outdoor main unit control
PCB turn OFF.)
7. At the outdoor main unit in the next (different) system, short-circuit the automatic address pin (CN100) for 1 second or
longer, then release it.
↓
(Repeat the same steps to complete automatic address setting for all units.)
↓
8. Operation from the remote controllers is now possible.
* Automatic address setting in Cooling mode cannot be done from the remote controller.

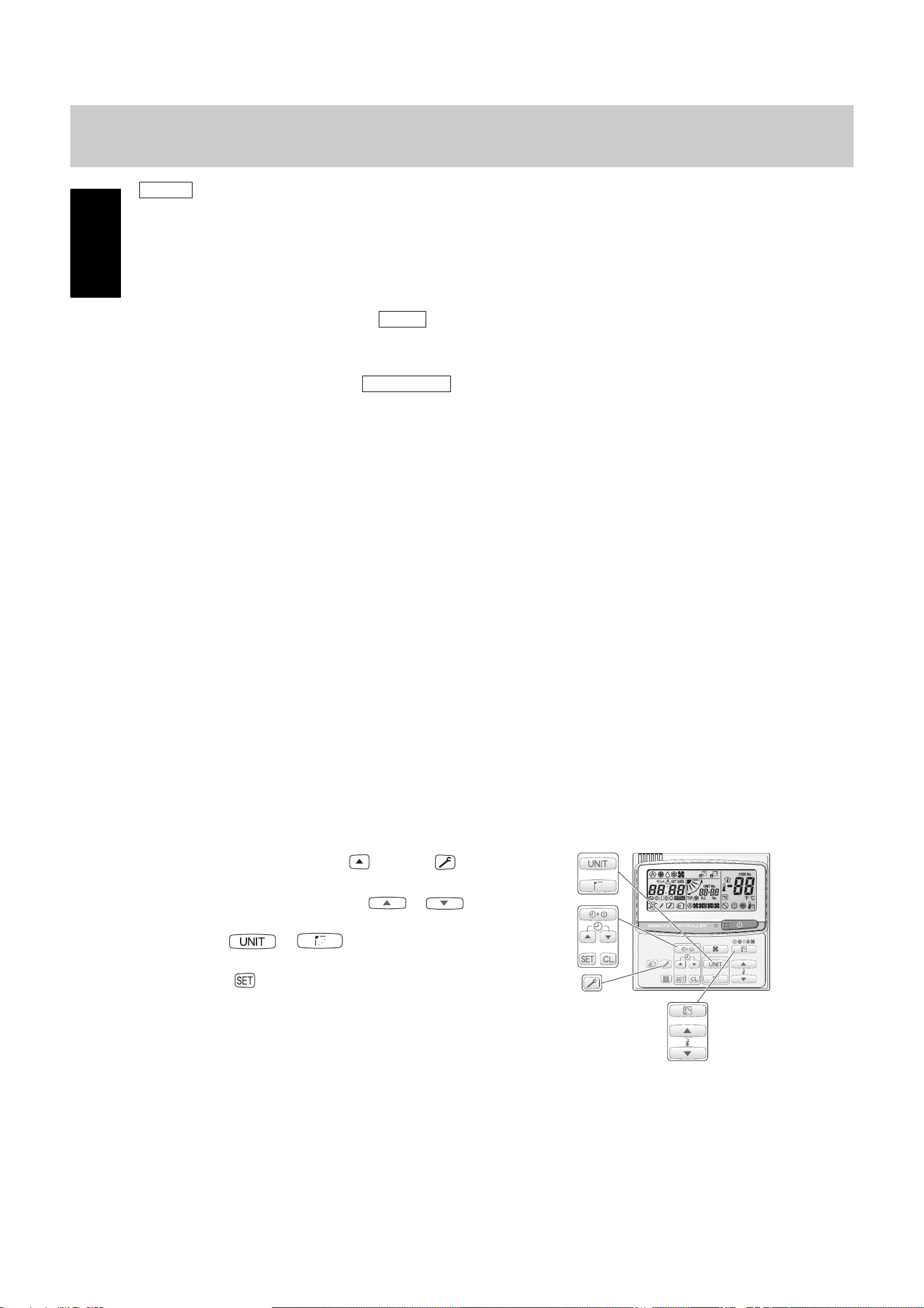

Automatic Address Setting* from the Wired Remote Controller
Selecting each refrigerant system individually for automatic address setting
---Automatic address setting for each system: Item code “A1”
1. Press the remote controller timer time button and button at the
same time. (Press and hold for 4 seconds or longer.)
2. Next, press either the temperature setting or button.
(Check that the item code is “A1.”)
3. Use either the or button to set the system No. to perform
automatic address setting.
4. Then press the button.
(Automatic address setting for one refrigerant system begins.)
(When automatic address setting for one system is completed, the system
returns to normal stopped status.) <Approximately 4 – 5 minutes is required.>
(During automatic address setting, “NOW SETTING” is displayed on the
remote controller. This message disappears when automatic address setting is completed.)
5. Repeat the same steps to perform automatic address setting for each successive system.
Cooling mode
Case 2
Case 3B
* To cancel, again short-circuit the automatic address pin (CN100) for 1 second or longer, then release it.
The LED that indicates automatic address setting is in progress turns OFF and the process is stopped.
Be sure to perform automatic address setting again.
3. Auto Address Setting

1 - 9
2-WAY MULTISET VRF SYSTEM
Address Settings
1
is blinking
LED 1 LED 2
( : ON : Blinking : OFF)
Display meaning
After the power is turned ON (and automatic address setting is not in progress), no communication with the indoor
units in that system is possible.
After the power is turned ON (and automatic address setting is not in progress), 1 or more indoor units are
confirmed in that system; however, the number of indoor units does not match the number that was set.
Alternating
Alternating
Automatic address setting is in progress.
Automatic address setting completed.
Simultaneous The number of indoor units did not match the number that was set.
Refer to “Table of Self-Diagnostic Functions and Description of Alarm Displays.”
Alarm display
LED 1 blinks M times, then LED 2 blinks N times. The cycle then repeats.
M = 2: P alarm 3: H alarm 4: E alarm 5: F alarm 6: L alarm
N = Alarm No.
Example: LED 1 blinks 2 times, then LED 2 blinks 17 times. The cycle then repeats.
Alarm is “P05.”
Display during automatic address setting
On outdoor main unit PCB
LED 1
2
Blink alternately
Remote controller display
* Do not short-circuit the automatic address setting pin (CN100) again while automatic address set-
ting is in progress. Doing so will cancel the setting operation and will cause LEDs 1 and 2 to turn
OFF. (LED 1 is D72. LED 2 is D75.)
* When automatic address setting has been successfully completed, both LEDs 1 and 2 turn OFF.
If automatic address setting is not completed successfully, refer to the table below and correct the
problem. Then perform automatic address setting again.
3. Auto Address Setting
Request concerning recording the indoor/outdoor unit combination Nos. after automatic address setting has been
completed, be sure to record them for future reference.
Indicate the indoor/outdoor unit combination Nos. in a location which is easily visible on the indoor unit.
Example: (Outdoor) 1 – (Indoor) 1-1, 1-2, 1-3… (Outdoor) 2 – (Indoor) 2-1, 2-2, 2-3…
These numbers are necessary for later maintenance. Please be sure to indicate them.
Display details of LEDs 1 and 2 on the outdoor unit control PCB

1 - 10
2-WAY MULTISET VRF SYSTEM
Address Settings
1
3. Auto Address Setting
Checking the indoor unit addresses
Use the remote controller to check the indoor unit address.
<If 1 indoor unit is connected to 1 remote controller>
1. Press and hold the button and button for 4 seconds or longer.
2. The address is displayed for the indoor unit that is connected to the remote controller.
(Only the address of the indoor unit that is connected to the remote controller can be checked.)
3. Press the button again to return to normal remote controller mode.
<If multiple indoor units are connected to 1 remote controller (group control)>
1. Press and hold the button and button for 4 seconds or longer.
2. “ALL” is displayed on the remote controller.
3. Next, press the button.
4. The address is displayed for 1 of the indoor units which is connected to the remote controller. Check that the fan of that
indoor unit starts and that air is blown out.
5. Press the button again and check the address of each indoor unit in sequence.
6. Press the button again to return to normal remote controller mode.
Number changesto indicate which indoor unit iscurrently selected.

2 - 1
2-WAY MULTISET VRF SYSTEM
Remote Controller Functions
2
2. Remote Controller Functions
1. Remote Controller Test Run Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2. Simple Settings Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
3. Detailed Settings Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
4. Remote Controller Servicing Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

2 - 2
2-WAY MULTISET VRF SYSTEM
Remote Controller Functions
2
Wired Remote Controller Test Run Settings
1. Press the remote controller button for 4 seconds or longer.
2. “TEST” appears on the LCD display while the test run is in progress.
3. Then press the button.
The temperature cannot be adjusted when in Test Run mode.
(This mode places a heavy load on the machines. Therefore use it only when performing the test run.)
The test run can be performed using the HEAT, COOL, or FAN operation modes.
Note: The outdoor units will not operate for approximately 3 minutes after the power is turned ON and after operation is
stopped.
If correct operation is not possible, a error code is displayed on the remote controller LCD display.
(Refer to “Table of Self-Diagnostic Functions” and correct the problem.)
4. After the test run is completed, press the button again. Check that “TEST” disappears from the LCD display.
To prevent continuous test runs, this remote controller includes a timer function that cancels the test run after 60 minutes.
The operation is possible even if the cassette-type ceiling panel has not been installed. (“P09” display does not occur.)
1. Remote Controller Test Run Settings

2 - 3
2-WAY MULTISET VRF SYSTEM
Remote Controller Functions
2

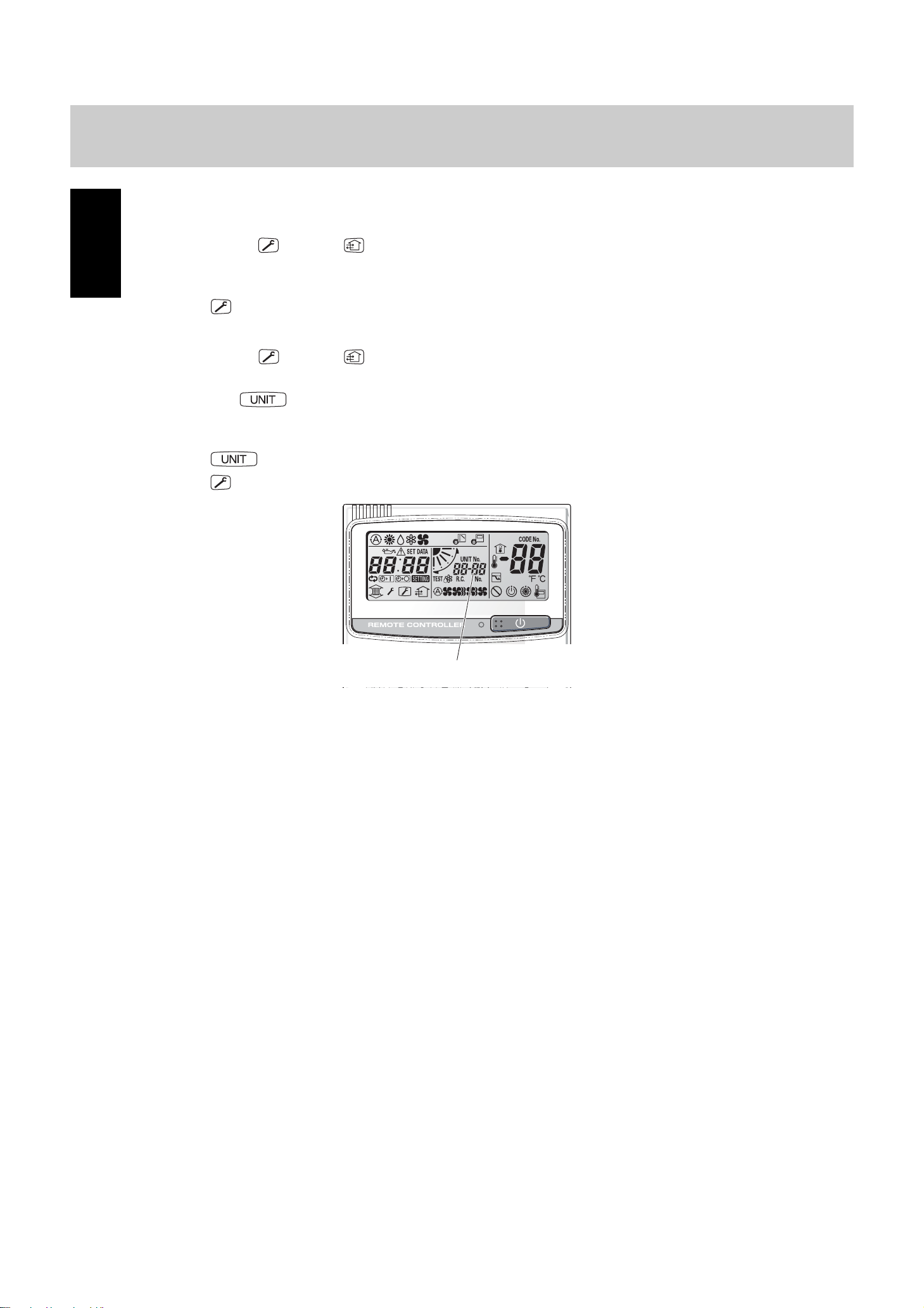

[Simple Settings Function]
• This allows the filter lifetime, operating mode priori-
ty change, central control address, and other set-
tings to be made for an individual or group-control
indoor unit to which the remote controller used for
simple settings is connected.
When this function is engaged, operation stops at
the individual or group-control indoor unit to which
the remote controller for simple settings is connect-
ed.
<Procedure>
Press and hold the and buttons
simultaneously for 4 seconds or longer.
“ ,” unit No. “ ” (or “ ” in the case of
group control), item code “ ,” and settings data
“ ” are displayed blinking on the remote
controller LCD display (Fig. 1). At this time, the
indoor unit fan (or all indoor unit fans in the case
of group control) begins operating.
If group control is in effect, press the
button and select the address (unit No.) of the
indoor unit to set. At this time, the fan at the
indoor unit begins operating.
* If unit No. “ ” is displayed, the same setting
will be made for all indoor units.
Press the temperature setting /
buttons to select the item code to change.
Press the timer time / buttons to select
the desired setting data.
* For item codes and setting data, refer to the
following page.
Press the button.
(The display stops blinking and remains lit, and
setting is completed.)
Press the button to return to normal remote
controller display.
Fig. 1
2. Simple Settings Function

2 - 4
2-WAY MULTISET VRF SYSTEM
Remote Controller Functions
2
0000 Not displayed
0001 150 hours
0002 2,500 hours
0003 5,000 hours
0004 10,000 hours
Filter sign ON time
(filter lifetime)
0005 Use the filter clogging sensor.
0000 Standard (setting at time of shipping)
Degree of filter fouling 0001 Highly fouled
(Filter sign ON time is reduced to one-half the set time.)
0001 Central control address 1
0002 Central control address 2
0003 Central control address 3
0064 Central control address 64
Central control address
0099 No central control address set (setting at time of shipping)
0000 Normal (setting at time of shipping)
Operating mode
priority change 0001 Priority
Compressor ON Compressor OFF
0000 MED 1 min., LO 3 min. LO
0001 MED LO
0002 LO LO
0004 MED 1 min., LO 3 min. MED
0005 MED MED
Fan speed when
heating thermostat is
OFF
0006 LO MED
0000 No shift
0001 Shifts intake temperature 1 C down.
0002 Shifts intake temperature 2 C down.
0003 Shifts intake temperature 3 C down.
0004 Shifts intake temperature 4 C down.
0005 Shifts intake temperature 5 C down.
Heating intake
temperature shift
0006 Shifts intake temperature 6 C down.
0000 No heater
Electric heater
installation 0001 Heater installed
0000 No (setting at time of shipping)
Hu
Change to remote
controller sensor
thermostat differential
Mode
dependency
midifying when
heater thermostat is
OFF 0001 Yes
0000 Thermostat OFF differential: –
1.0 deg (setting at time of shipping)
Thermostat OFF differential: –
0.5 deg0001
0000 Normal
0001
0000 Normal
Cooling-only 0001 Cooling only
List of Simple Setting Items
2. Simple Settings Function

2 - 5
2-WAY MULTISET VRF SYSTEM
Remote Controller Functions
2

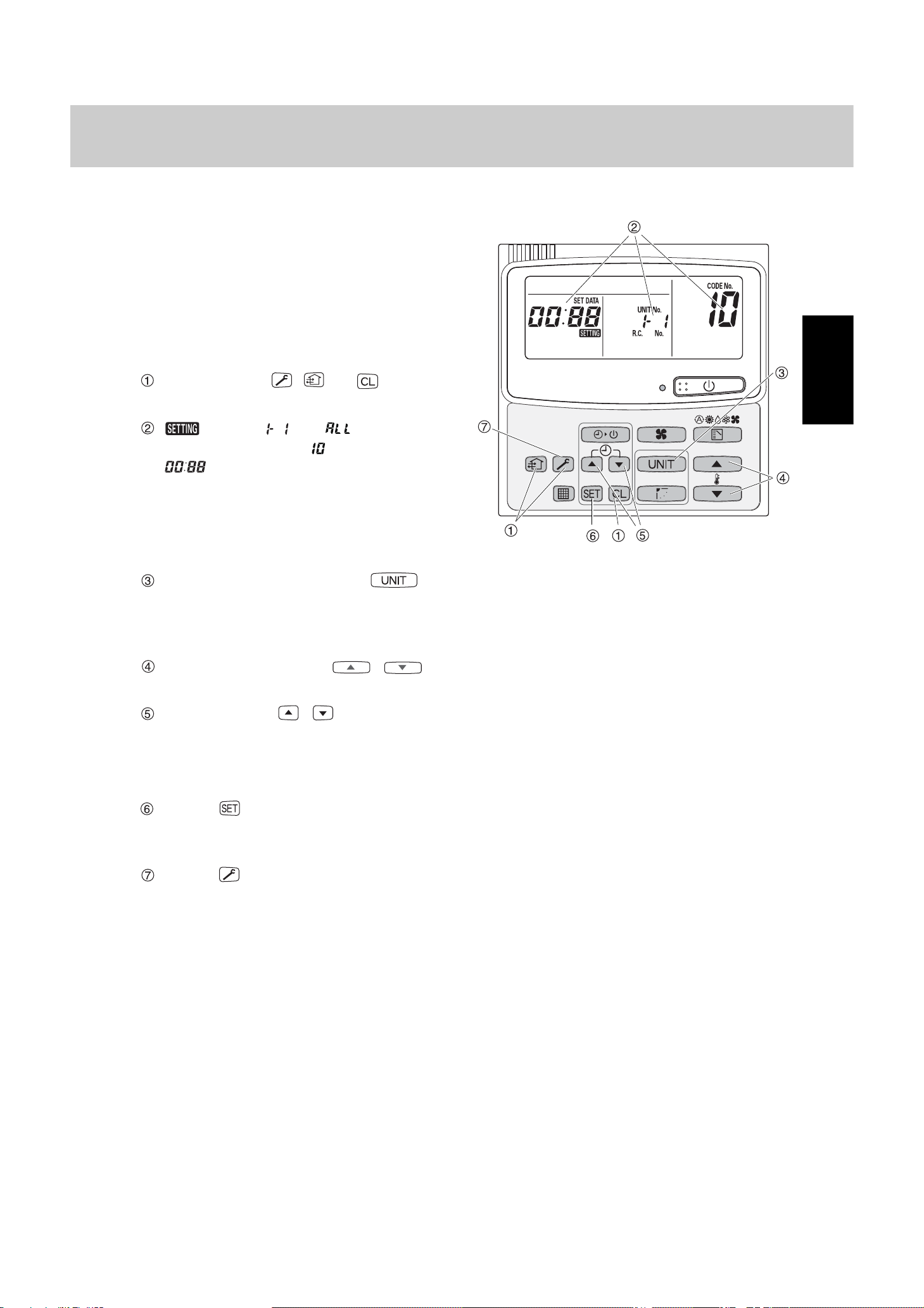

• This allows the system address, indoor unit
address, and other settings to be made for the indi-
vidual or group-control indoor unit to which the
remote controller used for detailed settings is con-
nected.
When detailed settings mode is engaged, opera-
tion stops at the individual or group-control indoor
unit where the remote controller used for detailed
settings is connected. Simple settings items can
also be set at this time.
<Procedure>
Press and hold the ,and buttons
simultaneously for 4 seconds or longer.
“ ,” unit No. “ ” (or “ ” in the case of
group control), item code “ ,” and settings data
“ ” are displayed blinking on the remote
controller LCD display (Fig. 2).
At this time, the indoor unit fan (or all indoor unit
fans in the case of group control) begins operat-
ing.
If group control is in effect, press the
button and select the address (unit No.) of the
indoor unit to set. At this time, the fan at the
indoor unit begins operating.
Press the temperature setting /
buttons to select the item code to change.
Press the timer time / buttons to select
the desired setting data.
* For item codes and setting data, refer to the
following page.
Press the button.
(The display stops blinking and remains lit, and
setting is completed.)
Press the button to return to normal remote
controller display.
Fig. 2
3. Detailed Settings Function

2 - 6
2-WAY MULTISET VRF SYSTEM
Remote Controller Functions
2

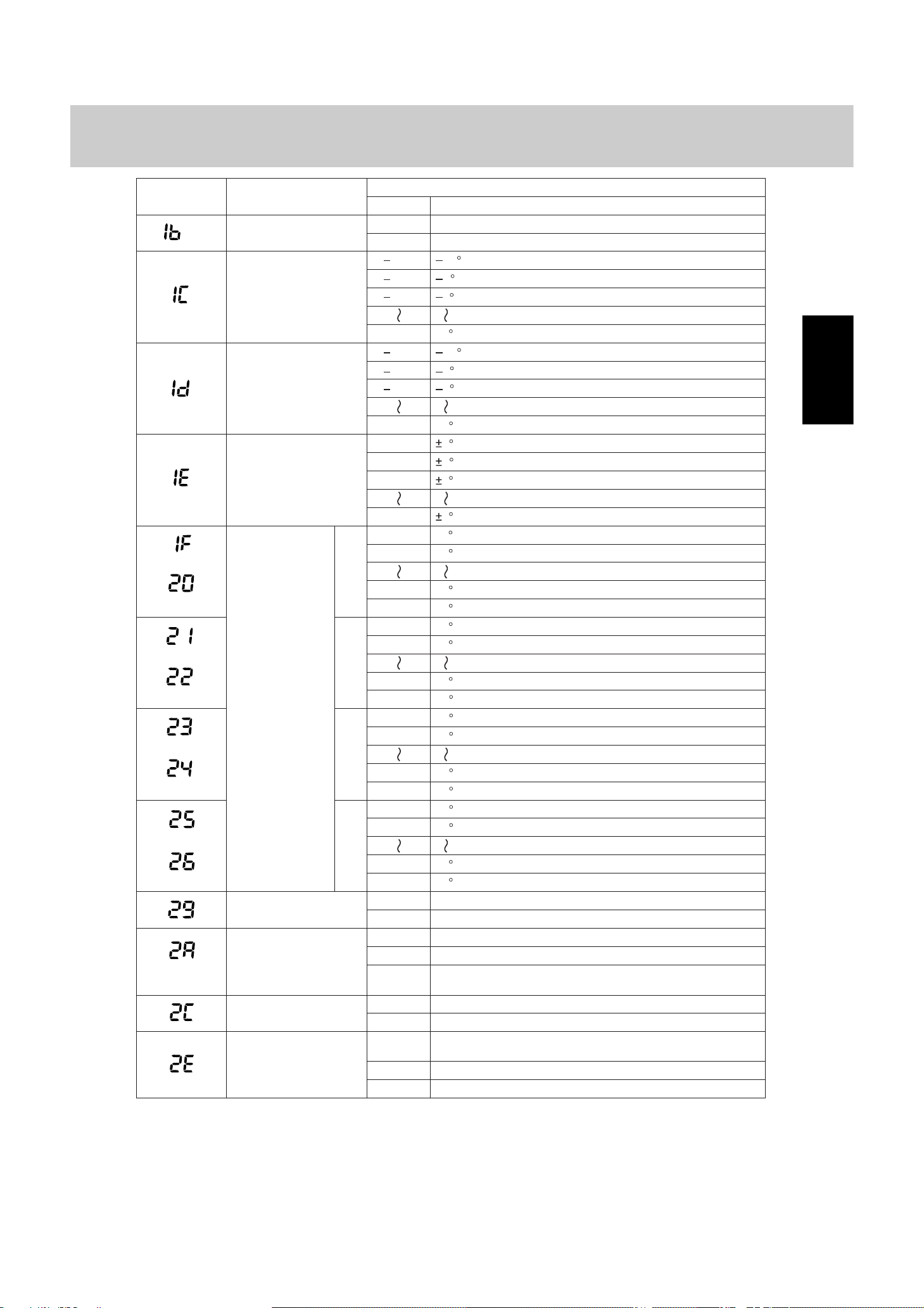

List of Detailed SettingItems
Item code Item No. Description
No. D
Settingdata
escription
0000 1-Way Air Discharge0001 4-Way Air Discharge
Semi-Concealed (CAFM)
2-Way Air Discharge
Semi-Concealed
0003
1-Way Air Discharge
Semi-Concealed 0005
0008
0002
0006
0007 0010
0011
Type
0001 22 (Type 75
80 (Type 255)
(Except For KFM-KFMNC)
)000328(Type 95)
0009 56 (Type 185) 0007 45 (Type 165)
0012 0017
0018160 (Type 605)
Indoor unit
capacity
0023
0001 Unit No. 1
0002 Unit No. 2
0003Unit No. 3
0030 Unit No. 30
System
address
0099 Not set
0001 Unit No. 1
0002 Unit No. 2
0003Unit No. 3
0064 Unit No. 64
Indoor unit
address
0099 Not set
0000 Individual (1:1 = Indoor unit with no group wiring)
0001 Mainunit (One of the group-control indoor units)
0002 Sub unit (All group-control indoor unitsexcept for mainunit)
Group
control
address
0099 Not set
010 Shiftsintake temperature by 10°C.
009 Shiftsintake temperature by 9°C.
001 Shiftsintake temperature by 1°C.
0000 No intake temperature shift
0001 Shiftsintake temperature by +1°C.
0009 Shiftsintake temperature by +9°C.
Cooling
intake
temperature
shift
0010 Shiftsintake temperature by +10°C.
0000 Functiondisabled
0001 Stopsautomatically 5 minutesafter operationstarts.
0002 Stopsautomatically 10 minutesafter operationstarts.
0123Stopsautomatically 615 minutesafter operationstarts.
0124 Stopsautomatically 620 minutesafter operationstarts.
Automatic
stop time
after
operation
start
*Canbe set
in5-minute
units.
0125 Stopsautomatically 625 minutesafter operationstarts.
Semi-Concealed (CAFM1V)
No. Description
Slim
Concealed-Duct (DSAFM)
Wall-mounted
Concealed-Duct High
Static Pressure (D)
Ceiling-Mounted Floor Standing (F)
Concealed Floor
Standing
0005
0011
0015
0021
36 (Type 125)
71 (Type 255)
For KFM-KFMNC
112 (Type 365)
224 (Type 765)
140 (Type 485)
280 (Type 965)
3. Detailed Settings Function

2 - 7
2-WAY MULTISET VRF SYSTEM
Remote Controller Functions
2
Settingdata
DescriptionNo.
Item
Item code
Forced thermostat ON
time
Cooling discharge
temperature shift
Heating discharge
temperature shift
Temperature shift for
cooling/heating change
in“Auto Heat/Cool” mode
Change to remote
control
temperature
setting range
CoolingHeatingDryingAuto heat/cool
Humidifier operation
Filter (CN70) input
switching
Indoor unit electronic
control valve
T10 terminal switching
(Upper limit)
(Lower limit)
(Upper limit)
(Lower limit)
(Upper limit)
(Lower limit)
(Upper limit)
(Lower limit)
(1B) 0000
0001
0010
0000
008
010
009
0010
008
010
009
0007
0003
0001
0002
0030
0029
0018
0019
0030
0029
0016
0017
0030
0029
0018
0019
0027
0026
0017
0018
0001
0000
0000
0001
0000
0002
0002
0000
0001
0002
5 minutes
4 minutes
10
10
10
1
2
3
7
18
19
29
30
16
17
29
30
18
19
29
30
17
18
26
27
9
8
10
9
8
Normal
None
Used for OFF reminder
Ignore heat exchanger temperature conditions.
Filter input (differential pressure switch input)
Alarm input (for trouble input about air cleaner or similar device)
Humidifier input (Operateslinked with drainpump
whenhumidifier isON.)
Present (Setting at time of shipping)
Normal (Used asoptional relay PCB or JEMA
standard HA terminal.)
Fire preventioninput
(Lower limit at time of shipping)
(Upper limit at time of shipping)
(Upper limit at time of shipping)
(Upper limit at time of shipping)
(Upper limit at time of shipping)
(Lower limit at time of shipping)
(Lower limit at time of shipping)
(Lower limit at time of shipping)
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
3. Detailed Settings Function
