Technical Pro LG46 User manual

User Manual for:
Multi Color Stage Effect Light
MODEL: LG46

WARNING!
CAUTION:TOREDUCETHERISKOFELECTRICSHOCK,DONOTREMOVETHECOVERONTHIS SPEAKER.THEREARENO
USER-SERVICEABLE PARTS INSIDE. REFERALL SERVICINGTOAQUALIFIED TECHNICIAN
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of "dangerous" voltage
within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to humans. Users should exhibit extra safety
when this symbol appears in this instruction manual and follow all precautions as they are stated.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance
(servicing) instructions in this manual.
1- Read these instructions thoroughly before using this item.
2- Keep these instructions for future reference.
3- Heed all warnings.
4- Follow all instructions.
5- WARNING: To prevent fire or electric shock, do not expose this equipment to rain or moisture. Do not store or operate this product near any liquids.
6- Clean only with a dry cloth.
7- Do not store or operate this product near any heat sources such as radiators, heat registers, stoves, or other apparatuses (including amplifiers) that produce
heat.
8- Do not defeat the safety purpose of the polarized or grounding-type plug.Apolarized plug has two blades with one wider than the other. Agrounding plug
has two blades and a round grounding prong. The wide blade or third prong is provided for your safety. If the provided plug does not fit your outlet, consult an
electrician for the replacement of the obsolete outlet.
9- Protect the all wires connected to this unit from being walked on or pinched, particularly plugs and the point where they exit from the unit. When removing
the cord from the power outlet, remove it by holding the plug not by pulling the cord.
10- Unplug the unit during lightning storms or when unused for long periods of time.
11- When wiring this unit and all other equipment used in connection to this unit make sure that all of your equipment is turned OFF.
12- This product is intended for indoor use only! To prevent risk of fire or shock, do not expose fixture to rain or moisture.
13- Make sure the distance between the fixture and the lighted object is not less than 0.5 meters. Make sure there are no combustible or explosive objects 0.5
meters around the fixture. Be sure that no ventilation slots are blocked.
14- Always disconnect from power source before servicing or replacing fuse and be sure to replace with same fuse source.
15- Secure fixture to fastening device using a safety chain.
16- Maximum ambient temperature (Ta) is 104° F (40° C). Do not operate fixture at temperatures higher than this.
17- In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by
unskilled people can lead to damage or malfunction. Please contact Technical Pro for the nearest authorized technical assistance center.
18- Never connect the device to a dimmer pack.
19- Make sure the power cord is never crimped or damaged.
20- Never disconnect the power cord by pulling or tugging on the cord.
21- Never carry the fixture directly from the cord. Always use the hanging/mounting bracket.
22- Avoid direct eye exposure to the light source while it is on.
23- Once installation and wiring is complete power on all your equipment with the volume and level controls turned DOWN. Once all the equipment is ON
slowly raise the volume or level controls to their proper positions.
24- When grounding this unit, be sure to do so correctly, so as not to defeat the built-in grounding in this unit.
25- Before placing, installing, rigging, or suspending any product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment
for damage.Any missing, corroded, deformed, or non-load rated component could significantly reduce the strength of the installation, placement or array. Any
such condition severely reduces the safety of the installation and should be immediately corrected. Use only hardware which is rated for the loading
conditions of the installation and any possible short-term, unexpected overloading. Never exceed the rating of the hardware or equipment.
26- Consult a licensed, Professional Engineer regarding physical equipment installation. Ensure that all local, state and national regulations regarding the
safety and operation of equipment are understood and adhered to.
27- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
Introduction
Congratulations and thank you for your purchase of this Technical Pro LED stage effect light. To get the most from your unit it is
recommended that you review all of the information provided in this instruction manual before operating this equipment.
LG46

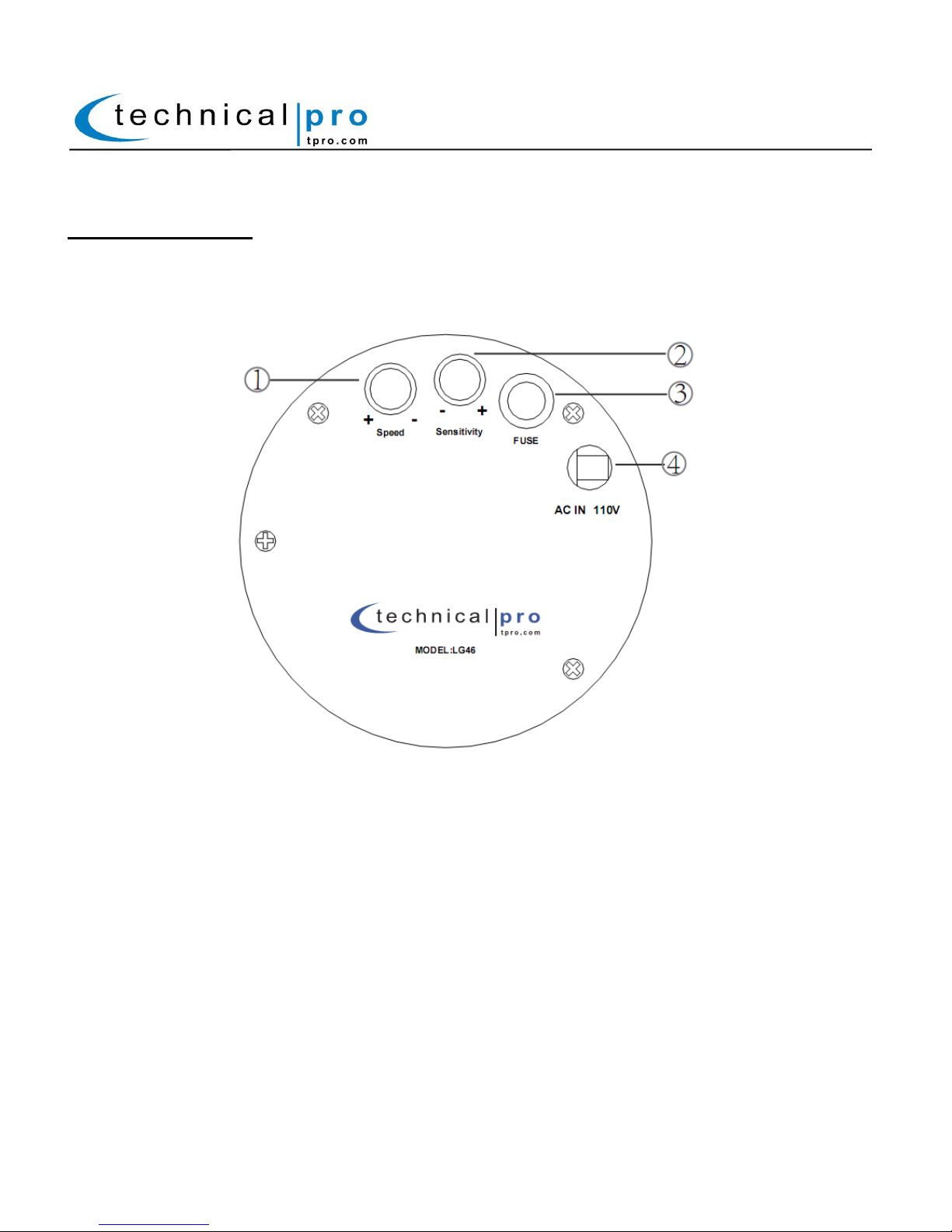

LG46 Rear Panel
1. Light Change Speed: This knob can used to adjust the speed at which the light change colors.
2. Sensitivity knob: This knob used adjust the sound sensitivity of the fixture’s motor. If set to maximum, the
motor will rotate along with sound, if set to minimum, the motor will be fixed.
3. Fuse: If there is a high current, the fuse will blow to protect the fixture. If the fuse is blown the unit will not
power on. Always disconnect from power source before servicing or replacing fuse and be sure to replace
with same fuse source.
4. Power Plug: Connect the plug to the AC Mains to power on the fixture.
LG46

AC Power:
This fixture runs on 110 VAC, 50/60 Hz. Before powering on the unit, make sure the line voltage to which you
are connecting it is within the range of accepted voltages.
Always connect the fixture to a switched circuit. Never connect the fixture to a rheostat (variable
resistor) or dimmer circuit, even if the rheostat or dimmer channel is used only as a 0 to 100% switch.
To determine the power requirements for a particular fixture, see the label affixed to the back plate of the
fixture or refer to the fixture’s specifications chart. A fixture’s listed current rating indicates its average
current draw under normal conditions.
Always connect the fixture to a circuit with a suitable electrical ground.
To connect the power cord to the LG46 plug the female side of the power cord into the power cord input which is on the
rear of the unit. Then plug the male side of the power cord to an electric outlet. When linking LG46 units to each other
connect the power output on the first unit to power input on the next unit.
TheAC power cords supplied purposefully have 2 blades. If your outlet is not equipped to handle this type of plug, do not
attempt to forcefully plug thisAC power cord into the outlet, and do not alter the plug so that it can fit in the outlet. Be
sure that the plug is well connected so that it does not disconnect in the middle of usage. If at any point in time the
supplied AC power cord is punctured or damaged replace it with a new power cord from a local electrician.
Technical Parameters:
LED Light
Red/Green/Blue
LED source:
46pcs*1W (Red:12 , Green:18 , Blue:16 )
Control Mode
Auto, Sound-Activated
Power Supply
AC110V
Power
10W
Product dimension
9.45’’X4.7’’X4.7’’
LG46
