Technical Pro LGLASER48 User manual

User Manual
Professional Laser Light
MODEL: LGLASER48

P-1
WARNING!
CAUTION:TOREDUCETHERISKOFELECTRICSHOCK,DONOTREMOVETHECOVERONTHIS DEVICE .THEREA RE NOUSER -
SERVICEABLEPARTSINSIDE. REFER ALL SERVICINGTOAQUALIFIEDTECHNICIAN
NEVERLOOK DIRECTLY INTOLASERBEAM
USE OF CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHERTHAN THOSE SPECIFIED HEREIN MAYRESULT IN HAZARDOUS
RADIATIONEXPOSURE
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of "dangerous"
voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to humans. Users
shoul d exhibit extra safety when this symbol appears in this instruction manual and follow all precautions as they are stated.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operat ing and
mainten ance (servicing) instructions in this manual.
1- Read these instructions thoroughly before using this item.
2- Keep these instructions for future reference.
3- Heed all warnings.
4- Follow all instructions.
5- WARNING: To prevent fire or electric shock, do not expose this equipment to rain or moisture. Do not store or operate this
product near any liquids.
6- Clean only with a dry cloth.
7- Do not store or operate this product near any heat sources such as radiators, heat registers, stoves, or other apparatuses
(including amplifiers) that produce heat.
8- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the
other. A grounding plug has two blades and a round grounding prong. The wide blade or third prong is provided for your safety. If
the provided plug does not fit your outlet, consult an electrician for the replacement of the obsolete outlet.
9- Protect the all wires connected to this unit from being walked on or pinched, particularly plugs and the point where they exit from
the unit. When removing the cord from the power outlet, remove it by holding the plug not by pulling the cord.
10- Unplug the unit during lightning storms or when unused for long periods of time.
11- Keep away from all flammable or explosive substances.
12. Keep a distance of at least 1” between the unit and the wall.
13- When grounding this unit, be sure to do so correctly, so as not to defeat the built-in grounding in this unit.
14- This unit is intended for indoor use only and should be prevented from water, moisture and from being shaken.
15- Before placing, installing, rigging, or suspending any product, inspect all hardware, suspension, cabinets, transducers, brackets
and associated equipment for damage. Any missing, corroded, deformed, or non-load rated component could significantly reduce
the strength of the installation, placement or array. Any such condition severely reduces the safety of the installation and should be
immediately corrected. Use only hardware which is rated for the loading conditions of the installation and any possible short-term,
unexpected overloading. Never exceed the rating of the hardware or equipment.
16- Consult a licensed, Professional Engineer regarding physical equipment installation. Ensure that all local, state and national
regulations regarding the safety and operation of equipment are understood and adhered to.
17- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such
as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
Introduction
Congratulations and thank you for your purchase of this Technical Pro Professional Laser Light, the LGLASER48. To get the
most from your unit, it is recommended that you review all of the information provided in this instruction manual before
operating this equipment.
Accessories: User manual, remote, power supply, mounting arm.
NOTE: Use for less than 4 hours continuously to extend the lifetime of this device.
LGLASER48

P-2
Warning:
Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and
have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts
appear damaged from shipping or the carton itself shows signs of mishandling. Save the carton and all packing materials. In the
event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and
packing.
Attention!
This unit is perfect condition before delivery, please check all accessories when unpacking the
un it, user should followed this user manual to operate this unit, and make sure that you are clear
on all laser safety information and unit operation before power it on. Any wrong operation will
make this unit out of warranty.
Carefully move after receiving it, checking whether there is any damage from shipping, and all
the accessories in it.
Safety Instructions:
To protect the environment, please try to recycle the packing material as much as possible.
The fixture is for indoor use only, IP20, use only on dry locations, keep this device away from rain and moisture, excessive heat,
humidity and dust. Do not allow contact with water or any other fluids, or metallic objects.
Don’t show this product away just as general trash, please deal with the product follow the abandon electronic product regulation
in your country.
Locate the fixture in a well ventilate spot, away from any flammable materials and/or liquids, the fixture must be fixed at l east
20cm from surrounding walls.
● To avoid condensation to be formed inside, allow this unit to adapt to the surrounding temperatures when bringing it into a warm
room after transport.
● Condense sometimes prevents the unit from working at full performance or may even cause damages.
● Don’t install it on flammable object.
● Don’t use it when maximum ambient temperature is higher than 40 degree.
● Unplug the unit when it is not used for a longer time or before replacing the bulb.
● Don’t open the top cover to avoid unit damage.
● Please use the original packing when the device is to be transported.
● Never expose the lens to direct sunlight, even for a short period, this may damage the light effect or even cause fire!

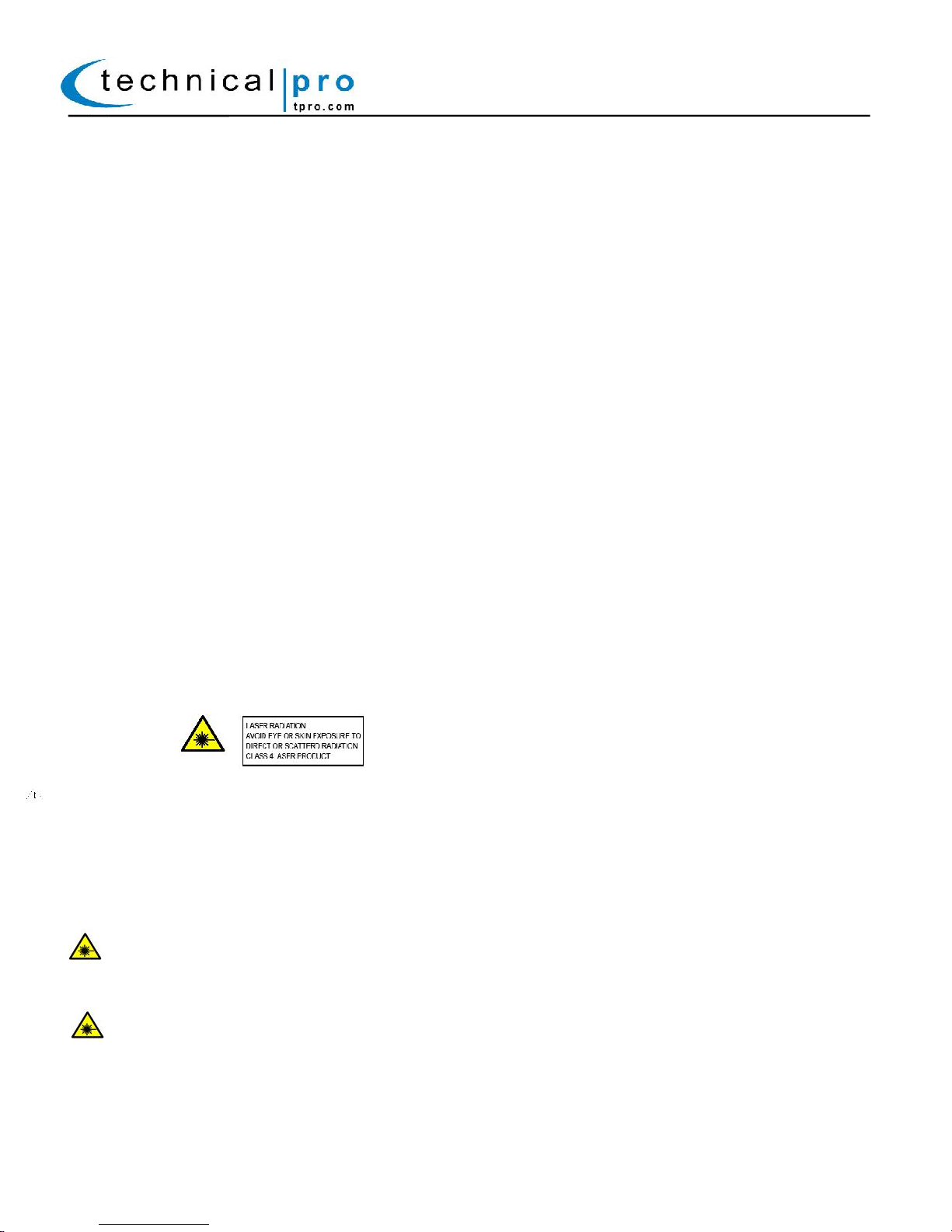

Laser Safety
According to EN60825-1:2007, this product belongs to CLASS 3B, direct eye contact may cause injury.
● This product is for laser show only. The class 3B laser light should be operated by professional operator only.
● This is so-called show laser, emitting radiation with a wavelength spectrum between 400 and 700nm and producing lighting
effects for shows.
● International laser safety regulations require that the vertical height from installment to ground is more than 3 meters, horizontal
distance is 2.5meters from audience.
● Never direct the laser beam to people or animals and never leave this device running unattended.
● The legal requirements for using laser entertainment products vary from country to country. The user is responsible for the legal
requirements at the location/country of use.
Warning: Avoid direct eye contact with laser beams during operations, especially when the laser beams stay still, or injury
to eyes may occur.
Laser safety protection
Caution: The laser security measures are designed according to the specific terms of the relevant international laser safety
standards and has the following laser safety protection means.
Laser key switch: Laser is available only when the key is turned on.
Laser Emergency Switch: Remote connecting switch, it will cut off ther laser light path emergently once the device in potential
hazard.
Laser safety label: the labels of according with European standard are sticked on the device only.
LGLASER48

P-3
Overhead Rigging
Attention: the installation must be carried out by qualified service personal only. Improper
installation can result in serious injuries and/ or damage to property. Overhead rigging require
extensive experience! Working load limits should be respected, certified installation materials
should be used, the installed device should be inspected regularly for safety.
Make sure the area below the installation place is free from unwanted persons during rigging, de-
rigging and servicing.
Locate the fixture in a well-ventilated spot, far away from any flammable materials and/or liquids,
the fixture must be fixed at least 50cm from surrounding walls.
The device should be installed out of reach of people and outside areas where persons may walk
by or be seated.
The device should be well fixed, a free swinging mounting is dangerous and may not be
considered!
Do not cover any ventilation opening as this may result in overheating.
Before the first time use, it must be inspected by professional staff to make user safety,
inspection regularly every year.
Never expose the lens to direct sunlight, even for a short period, this may damage the light effect
or even cause fire!
AC Power:
Please use the attached power, not that power voltage and frequency are the same as the
marked voltage and frequency of device when connecting power, every device’s power should be
connected separately, so that device can be controlled individually.
LGLASER48

P-4
LGLaser48 Front Panel:
1. Laser Aperture: The Red and Green lasers will be emitted from these locations. NEVER LOOK DIRECTLY
INTO THE LASER BEAM.
2. LED Output: The LED background lighting will be emitted from this location.
3. Mode Selector Button: Press this button to choose between the 4 different operating modes or to turn off
the LEDs.
4. Remote Sensor: Point the remote that this sensor. For most efficient operation keep the area in front of
this sensor clear.
5. Operating Mode LED Indicator: When set to Auto mode LED indicator will be solid Red.
When Set to Music 1 LED indicator will flash Orange.
When Set to Music 2 LED indicator will be Solid Red and Flash Green.
When Set to Music 3 LED indicator will be Solid Green and Flash Red.
When Set to OFF the LED indicator will turn off.
LGLaser48 Rear Panel:
6. Microphone: This built-in microphone will pick up any sounds when the unit is being operated in
sound-activated mode. The fixture will illuminate changes according to the sound.
7. 12V DC Power Supply: Connect the power cable to this input.
8. Cooling Speed Fan: Keep this fan clear so the fan can properly cool the unit
LGLASER48
q
q
w
e
r
t
y
u
i

P-5
LGLaser48 Remote:
ON/OFF: Use this button to turn the power on and off.
Auto: Press this button to set the unit to Auto Mode. When operating in Auto mode, the unit will display slow
rotation, flashing frames, and the LED will be flashing.
Music 1:Press this button to set the unit to Sound activated Operating mode 1 (Music1). When operating
in Music 1 mode, the laser and LED will flash at the same time.
Music 2:Press this button to set the unit to Sound activated Operating mode 2 (Music2). When operating
in Music 2 mode, there will be rapid rotation and flashing on the laser lights and the LED will flash.
Music 3:Press this button to set the unit to Sound activated Operating mode 3 (Music3). When operating
in Music 3 mode, there will be slow rotation and flashing on the laser lights and the LED will flash.
Laser ON/OFF: Use this button to turn the lasers on and off.
Flash:Press this button to set the unit to set the unit to Flash mode, where both the lasers and LEDs will
flash.
RED:Press this button to turn on the RED Laser, the LED will be flashing.
Green:Press this button to turn on the GREEN Laser, the LED will be flashing.
RED & Green:Press this button to turn on the RED & GREEN Laser, the LED will be flashing.
LED ON/OFF: Use this button to turn the LED on and off.
No user serviceable parts inside do not attempt repairs. In the event your unit should fail, contact your dealer for service
information.
This Laser product complies with the CDRH/BRH Radiation Performance Standards. 21 CFR Subchapter J.
This Product must not be used for audience scanning. To prevent fire or shock hazard, do not expose this product to a high
temperature or high humidity area.
This device is in conformance with FDA, CE & RoHS regulations and standards
LGLASER48
