Technics SA-DA10 User manual

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p01.htm
Service Manual
TOP NEXT
Order No. MD0006112C1
A2
AV Control Stereo Receiver
SA-DA10
Color
(K) ... Black Type
(N) ... Gold Type
PP ... U.S.A. and Canada
FM Tuner Section
Frequency range 87.9-107.9 MHz
Sensitivity 11.2 dBf (2•V, IHF’58)
50 dB quieting sensitivity
MONO 18.3 dBf (4.5•V, IHF’58)
STEREO 38.3 dBf (45•V, IHF’58)
Total harmonic distortion
MONO 0.2%
STEREO 0.3%
S/N
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p01.htm (1 of 3) [21/01/2007 13:46:55]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p01.htm
MONO 73 dB
STEREO 67 dB
Frequency response 20 Hz-15 kHz,+1 dB, -2 dB
Alternate channel selectivity 65 dB
Capture ratio 1.5 dB
Image rejection at 98 MHz 40 dB
Spurious response rejection at 98 MHz 75 dB
AM suppression 50 dB
Stereo separation
1 kHz 40 dB
10 kHz 30 dB
Antenna terminal 75Ω(unbalanced)
AM Tuner Section
Frequency range 530-1710 kHz
Sensitivity 20•V, 330•V/m
Selectivity 55 dB
IF rejection (at 1000 kHz) 50 dB
Video Section
Output voltage at 1 V input (unbalanced) 1±0.1 Vp-p
Maximum input voltage 1.5 Vp-p
Input/output impedance 75Ω
Amplifier Section
Rated minimum sine wave RMS power output
20 Hz-20 kHz both channels driven
0.09% total harmonic distortion 100 W per channel (6Ω)
1 kHz continuous power output both channels driven
0.05% total harmonic distortion 105 W per channel (6Ω)
Total harmonic distortion
rated power at 20 Hz-20 kHz 0.09% (6Ω)
half power at 1 kHz 0.03% (6Ω)
Power bandwidth
both channels driven, -3 dB 10 Hz-70 kHz (6Ω, 0.9%)
Power output at the DVD 6CH operation
20 Hz-20 kHz (each channels driven)
0.09% total harmonic distortion
Front 2 x 100 W (6Ω)
Center 100 W (6Ω)
Surround 2 x 100 W (6Ω)
Low frequency damping factor 30 (6Ω)
Load impedance
Front
A or B 4 - 8Ω
A and B 8Ω
BI-WIRE 6 - 8Ω
Center 6 - 8Ω
Surround 6 - 8Ω
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p01.htm (2 of 3) [21/01/2007 13:46:55]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p01.htm
Frequency response
PHONO RIAA standard curve±0.8 dB
CD, DVD, TV, VCR1, VCR2, VCR3, TAPE 10 Hz-100 kHz,±3 dB
Input sensitivity
PHONO 0.4 mV (3 mV, IHF’66)
CD, DVD, TV, VCR1, VCR2, VCR3, TAPE 27 mV (200 mV, IHF’66)
S/N (IHF A) (VGCA ON)
PHONO 80 dB (80 dB, IHF’66)
CD, DVD, TV, VCR1, VCR2, VCR3, TAPE 113 dB (IHF A, Rated Power, S=2 V)
90 dB (100 dB, IHF’66)
Input impedance
PHONO 47 kΩ
CD, DVD, TV, VCR1, VCR2, VCR3,TAPE 22 kΩ
Tone controls
BASS 50 Hz,+10 to -10 dB
TREBLE 20 kHz,+10 to -10 dB
Subwoofer frequency response (-6 dB) 7 - 200 Hz
Digital input (OPTICAL) CD, DVD, TV
General
Power supply AC 120 V, 60 Hz
Power consumption 310 W
Dimensions (W x H x D) 430 x 180 x 370 mm
(16-15/16” x 7-3/32” x 14-9/16”)
Mass 12.7 kg (28.0 lb.)
Power consumption in standby mode: 1 W
DIN POWER (1 kHz T.H.D. 1%) 2 X 100W (6Ω)
Notes:
1. Specifications are subject to change without notice./Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum analyzer.
* Manufactured under license from Dolby Laboratories.“Dolby”,“Pro Logic” and the double-D simbol are trademarks of Dolby Laboratories.
** Manufactured under license from Digital Theater System.“DTS” and“DTS Digital Surround” are trademarks of Digital Theater Syatem.
© 2000 Matsushita Electronics (S) Pte. Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.
•@
TOP NEXT
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p01.htm (3 of 3) [21/01/2007 13:46:55]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p02.htm
Table Of Contents
COVER
1 Safety Precaution
2 Before Repair and Adjustment
3 Protection Circuitry
4 Accessories
5 Front Panel Controls
5.1 Front Panel
5.2 Remote Control
6 Operation Checks and Main Component Replacement Procedures
6.1 Checking Procedure for each major P.C.B.
6.2 Main Component Replacement Procedures
6.2.1 Replacement of the Power IC and Regulator Transistor
6.2.2 Installation of the bottom cover after replacement
7 Type Illustrations of ICs, Transistors& Diodes
8 Terminal Functions of ICs
9 Block Diagram
10 Schematic Diagram
11 Printed Circuit Board
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p02.htm (1 of 2) [21/01/2007 13:47:30]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p02.htm
12 Wiring Connection Diagram
13 Parts Location and Replacement Parts List
13.1 Cabinet
13.1.1 Cabinet Parts Location
13.1.2 Cabinet Parts List
13.2 Electrical Parts List
13.3 Packing Materials& Accessories Parts List
13.4 Packaging
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p02.htm (2 of 2) [21/01/2007 13:47:30]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p03.htm
1 Safety Precaution
TOP PREVIOUS NEXT
(This“Safety Precaution” is applied only in U.S.A.)
1. Before servicing, unplug the power cord to prevent an electric shock.
2. When replacing parts, use only manufacturer’s recommended components for safety.
3. Check the condition of the power cord. Replace if wear or damage is evident.
4. After servicing, be sure to restore the lead dress, insulation barriers, insulation papers, shields, etc.
5. Before returning the serviced equipment to the customer, be sure to make the following insulation
resistance test to prevent the customer from being exposed to a shock hazard.
Insulation Resistance Test
1. Unplug the power cord and short the two prongs of the plug with a jumper wire.
2. Turn on the power switch.
3. Measure the resistance value with ohmmeter between the jumper AC plug and each exposed
metal cabinet part, such as screw heads, antenna, control shafts, handle brackets, etc. Equipment
with antenna terminals should read between 3MΩand 5.2MΩtoall exposed parts*. (Fig 1)
Equipment without antenna terminals should read approximately infinity to all exposed parts. (Fig
2)
*Note: Some exposed parts may be isolated from the chassis by design. These will read infinity.
4. If the measurement is outside the specified limits, there is a possibility of a shock hazard. The
equipment should be repaired and rechecked before it is returned to the customer.
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p03.htm (1 of 2) [21/01/2007 13:47:05]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p03.htm
•@
TOP PREVIOUS NEXT
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p03.htm (2 of 2) [21/01/2007 13:47:05]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p04.htm
2 Before Repair and Adjustment
TOP PREVIOUS NEXT
Disconnect AC power, discharge Power Supply Capacitors C1702 through a 10Ω, 5 W resistor to
ground. DO NOT SHORT-CIRCUIT DIRECTLY (with a screw driver blade, for instance), as this may
destroy solid state devices.
After repairs are completed, restore power gradually using a variac, to avoid over current.
Current consumption at AC 120 V, 60 Hz in NO SIGNAL mode should be 750~1050 mA.
•@
TOP PREVIOUS NEXT
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p04.htm [21/01/2007 13:47:05]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p05.htm
3 Protection Circuitry
TOP PREVIOUS NEXT
The protection circuitry may have operated if either of the following conditions are noticed:
No sound is heard when the power is turned on.
Stops during a performance.
The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative
speaker connection wires are“shorted”, or if speaker systems with an impedance less than the indicated
rated impedance ofthe amplifier are used.
If this occurs, follow the procedure outlines below:
1. Turn off the power.
2. Determine the cause of the problem and correct it.
3. Turn on the power once again after one minute.
Note:
When the protection circuitry functions, the unit will not operate unless the power is first turned off and
then on again.
•@
TOP PREVIOUS NEXT
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p05.htm [21/01/2007 13:47:06]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p06.htm
4 Accessories
TOP PREVIOUS NEXT

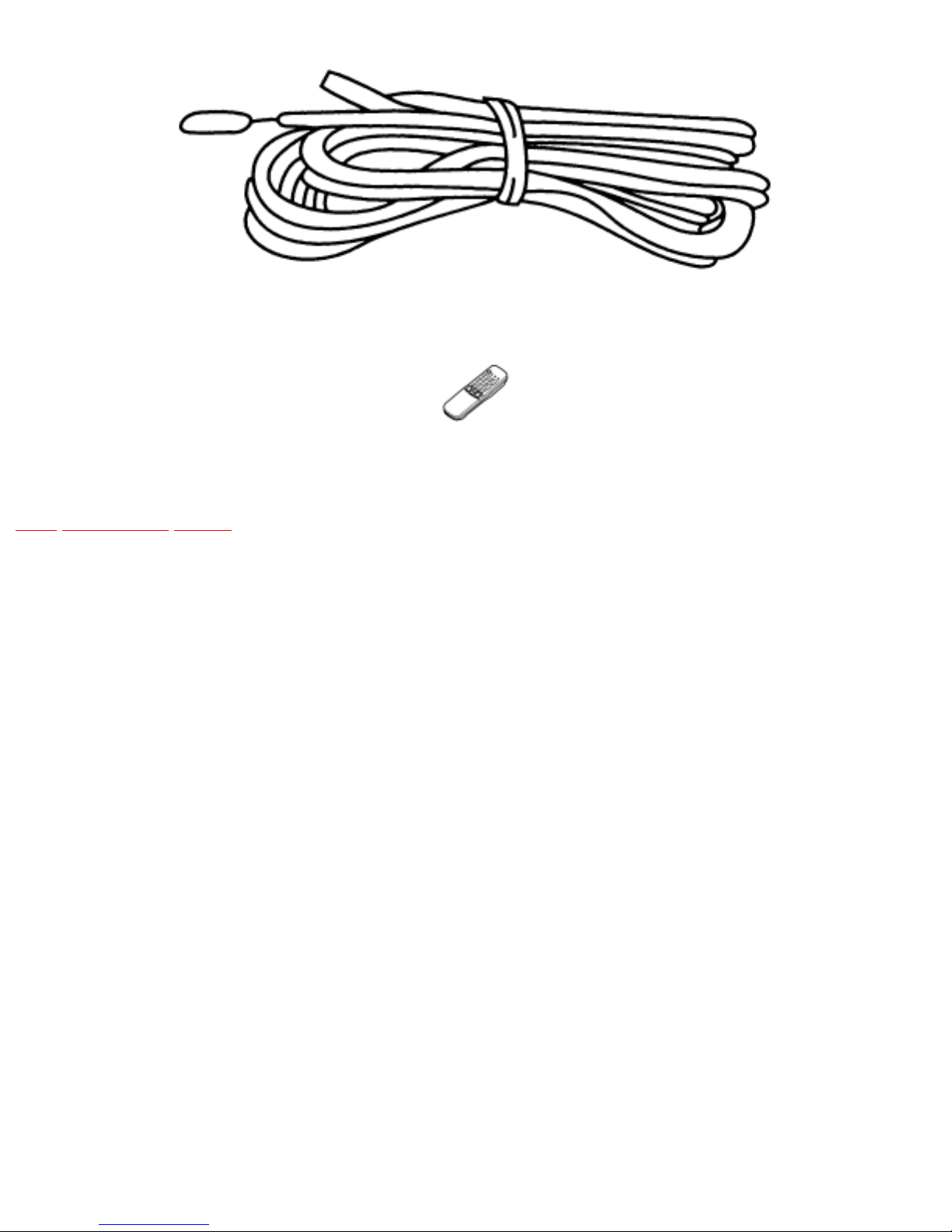

AC power supply cord... 1 pc.
AM Loop Antenna Set/... 1 set.
FM Indoor Antenna... 1 pc.
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p06.htm (1 of 2) [21/01/2007 13:47:06]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p06.htm
Remote Control/Transmitter... 1 pc.
•@
TOP PREVIOUS NEXT
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p06.htm (2 of 2) [21/01/2007 13:47:06]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p07.htm
5 Front Panel Controls
TOP PREVIOUS NEXT
5.1 Front Panel
5.2 Remote Control
•@
TOP PREVIOUS NEXT
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p07.htm [21/01/2007 13:47:06]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p08.htm
5.1 Front Panel
TOP PREVIOUS NEXT
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p08.htm (1 of 2) [21/01/2007 13:47:07]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p08.htm
•@
TOP PREVIOUS NEXT
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p08.htm (2 of 2) [21/01/2007 13:47:07]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p09.htm
5.2 Remote Control
TOP PREVIOUS NEXT
•@
TOP PREVIOUS NEXT
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p09.htm [21/01/2007 13:47:07]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p10.htm
6 Operation Checks and Main
Component Replacement Procedures
TOP PREVIOUS NEXT
“ATTENTION SERVICER”
Some chassis components maybe have sharp edges. Be careful when diassembling and servicing.
1. This section describes procedures for checking the operation of the major printed circuit boards
and replacing the main components.
2. For reassembly after operation checks or replacement, reverse the respective procedures./Special
reassembly procedures are described only when required.
3. Select items from the following index when checks or replacement are required.
Content
Checking Procedure for each major P.C.B.
................................................................................................................. P.g. 8~12
Main Component Replacement Procedures
1. Replacement of the Power IC and Regulator
Transistor........................................................................................ P.g. 13~14
2. Installation of the bottom cover after
replacement....................................................................................................... P.g. 15
6.1 Checking Procedure for each major P.C.B.
6.2 Main Component Replacement Procedures
6.2.1 Replacement of the Power IC and Regulator Transistor
6.2.2 Installation of the bottom cover after replacement
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p10.htm (1 of 2) [21/01/2007 13:47:07]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p10.htm
•@
TOP PREVIOUS NEXT
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p10.htm (2 of 2) [21/01/2007 13:47:07]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p11.htm
6.1 Checking Procedure for each major
P.C.B.
TOP PREVIOUS NEXT
Step 1& Step 2 Unscrew and remove top cabinet as shown.
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p11.htm (1 of 17) [21/01/2007 13:47:10]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p11.htm

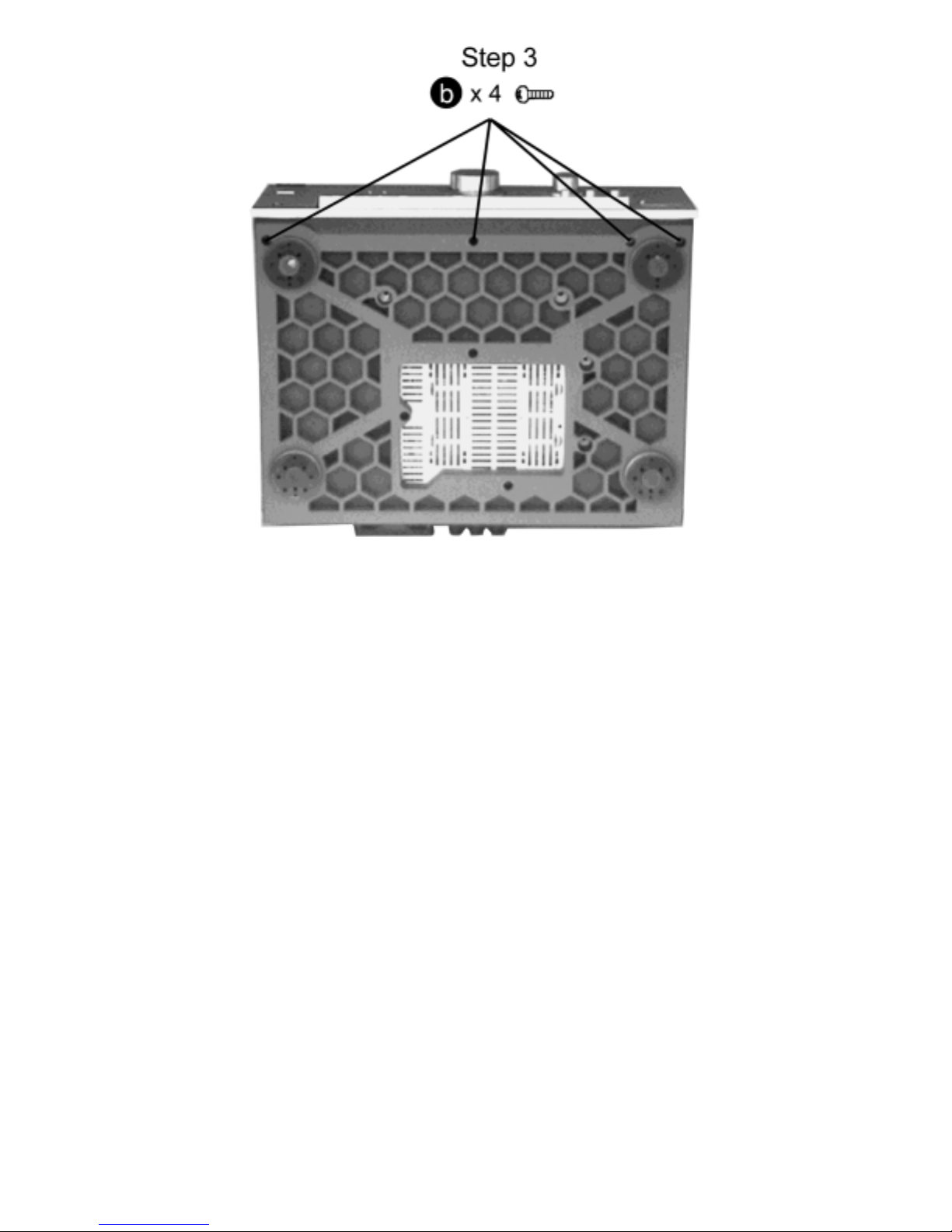

Step 3 Remove all the screws.
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p11.htm (2 of 17) [21/01/2007 13:47:10]

file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p11.htm

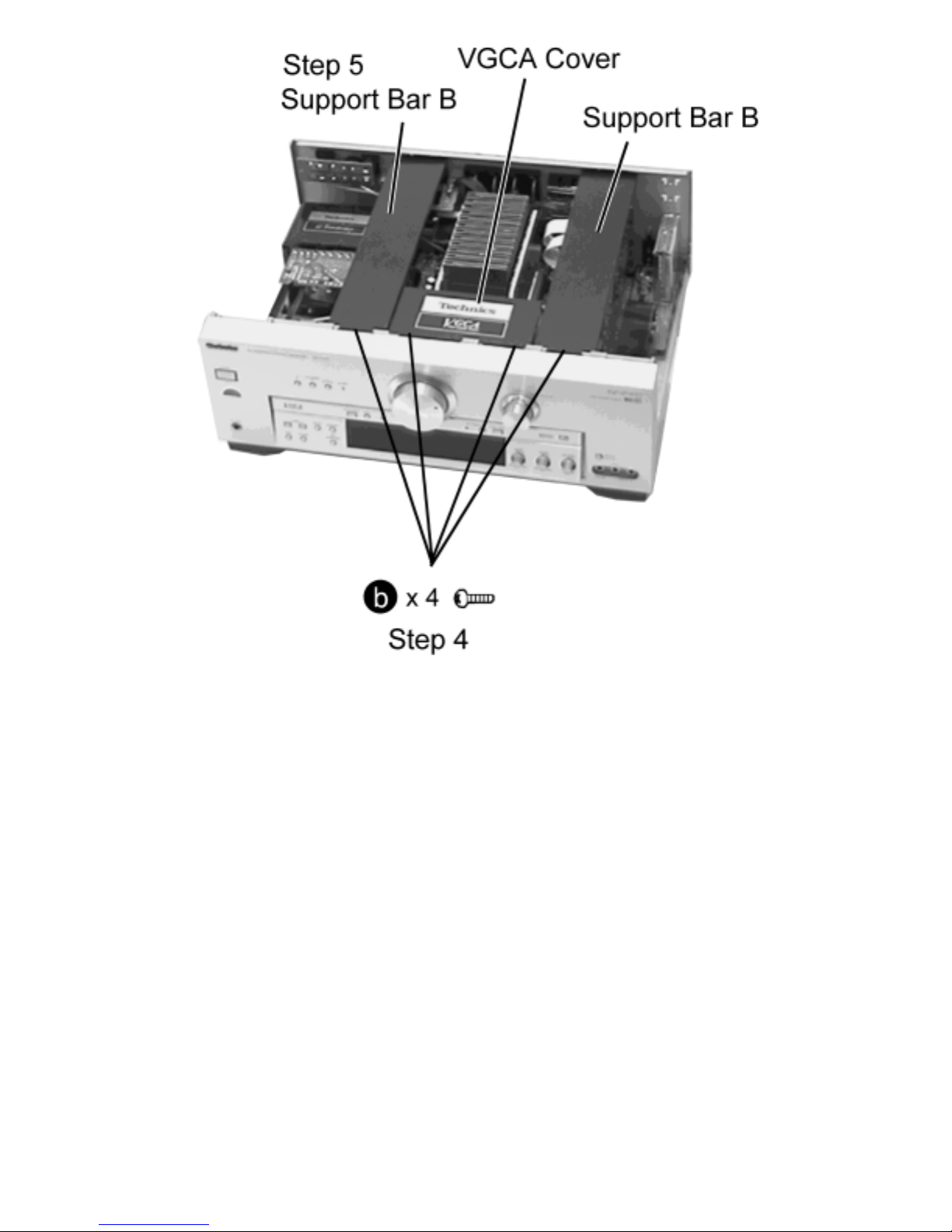

Step 4 Remove all the screws.
Step 5 Remove the two support bars and VGCA cover.
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p11.htm (3 of 17) [21/01/2007 13:47:10]
