Technika Twdc84 User manual

Washer Dryer

Instruction for Use

TWDC84

ENGLISH 3-18

GB

3

SM2828

NOTES AND ADVICE FOR THE USER 4-5

DESCRIPTION OF THE APPLIANCE 5

INSTALLING THE WASHING MACHINE 6-8

• Unpacking the washing machine and removing the locking devices 6

• Levelling the washing machine 6

• Connecting to the mains water supply 7

• Connecting to the mains electricity supply 8

USING THE WASHING MACHINE 8-15

• Recommendations prior to use 8

• Use of detergents 9

• How to remove some stains 10

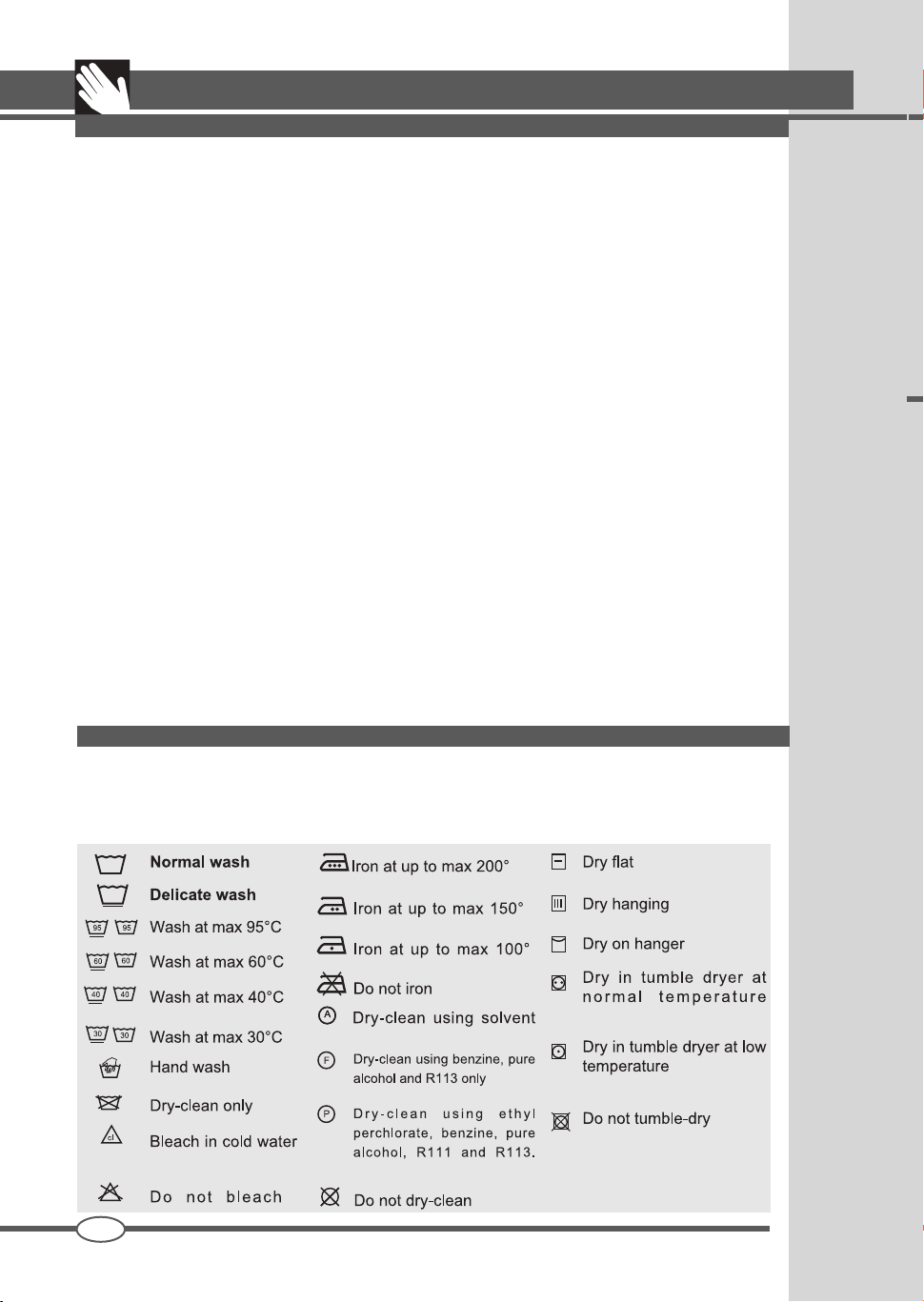

• International clothing care symbols 10

• “Easy logic” technology 11

• Washing cycle 11

• Variable spin 12

• Display and duration of the washing cycle 12

• Delayed start button 12

• Start button 12

• “Stop” on the program selector 12

• Optional functions 13

• Pre-wash 13

• Energetic wash 13

• Additional rinse 13

• Drying 13

• How to use the washer-dryer 13

• Using the drier 13

• Continuous wash/dry program (cotton and synthetics) 13

• Manual dry program 14

• Program tables 14+15

• Technical speciﬁcations 15

MAINTENANCE 16-17

• Cleaning the washing machine 16

• Cleaning the ﬁlter 16

• Resolving problems 17

CONTENTS

ENGLISH

Dear Customer,

Thank you for choosing our product.

Please read these instructions carefully before connecting and us-

ing the appliance.

Knowledge of the operating principles will help guarantee correct and safe use of the appliance. This

instruction booklet contains the technical characteristics of the washing machine and is full of useful

information regarding its operation, all designed to help you get the best out of your appliance. If the

appliance is sold or handed over for use by others, remember to give the new user the instruction booklet.

MODEL: ................................................................................................. DATE OF PURCHASE: .............../.............../.............................

SERIAL NUMBER: ...........................................................................................................................................................................................

GB

This appliance is marked as complying with European Directive 2002/96/EC,Waste Electrical and

Electronic Equipment (WEEE). Make sure that the product is disposed of in a correct manner.

The user is obliged to contribute towards preventing negative consequences for health and the

environment.

The symbol afﬁxed to the product or accompanying documents signiﬁes that the product

must not be treated as normal domestic refuse, but must be delivered to an authorised collection

centre to enable the electric and electronic equipment to be recycled. When disposing of the ap-

pliance, comply with local waste disposal regulations. For further information on the treatment,

recovery and recycling of this product, refer to the appropriate ofﬁces, local domestic waste col-

lection service or the retailer from where the appliance was purchased.

4

SM2828

NOTES AND ADVICE FOR THE USER

▼This appliance has been designed for use as

a domestic washing machine. Any other use is

considered as improper and therefore danger-

ous.

▼Any modiﬁcations or attempts to interfere with

the washing machine can be dangerous for the

user and may damage the appliance itself.

▼Considering the substantial weight of the wash-

ing machine, speciﬁc safety standards must be

observed during handling.

▼The washing machine must not be used by

children unless supervised.

▼This appliance is not intended for use by per-

sons (including children) with reduced physical,

sensory or mental capabilities, or lack of expe-

rience and knowledge, unless they have been

given supervision or instruction concerning use

of the appliance by a person responsible for

their safety.

▼Any modiﬁcations to the mains water or elec-

tricity supply must be carried out by authorised

technicians only.

▼When positioning the washing machine, ensure

that the power supply cable is not kinked or

squashed and is accessible.

▼Before using the washing machine, remove all

the packing and locking devices used for the

transport (locking screws). If this is not done,

serious damage may be caused to both the

appliance and your home.

▼If the washing machine is installed on a car-

peted ﬂoor, leave sufﬁcient space between the

appliance and the ﬂoor to guarantee the free

circulation of air.

▼Do not overload the washing machine.

▼When the appliance is in operation, avoid

any contact with the water being discharged

through the drain hose, as it may be very hot.

Do not touch the door glass either, as this will

tend to heat up during washing.

▼Use the washing machine for machine-washa-

ble items only. In the case of any doubts, refer

to the manufacturer’s instructions on the label

attached to the item to wash (see “Clothing care

symbols”)

▼Before placing the washing in the washing

machine, make sure that all pockets are empty.

Hard or pointed objects such as coins, pins,

nails, screws, stones, lighters and matches can

cause serious damage to the appliance.

▼Never wash items that have been soiled with

substances containing petrol. In the case where

stains have been removed using vaporising

products, wait until these substances have fully

evaporated from the surface of the material

before loading into the washing machine.

▼The use and quantities of detergent, softener

and bleach must comply with the instructions

reported on the packaging.

▼Do not use detergents designed for hand wash-

ing, in that the excessive suds produced could

damage the internal components.

▼After washing mats, blankets or any other long-

ﬁbre materials, remove the ﬁlter and clean it if

necessary.

▼It is advisable to leave the door open at the end

of the wash cycle.

▼Do not attempt to repair any appliance faults

alone, in that repairs carried out by a non-pro-

fessional may cause serious damage and will

invalidate any rights to repairs under guarantee.

▼Repairs to the appliance can only be carried

out by personnel authorised by the customer

service centres. All repairs must make use of

original spare parts only.

GB

▼Never dry unwashed items.

▼Do not dry items that have been washed or had

stains removed using chemical products.

▼Never dry items that have been soiled with

substances such as cooking oil, petroleum,

acetone, alcohol, petrol, kerosene, stain

removers, turpentine, wax.

▼Remove these substances in a hot wash us-

FOR WASHER/DRIER VERSIONS ONLY:

ing an abundant quantity of detergent prior

to loading the items in the drier.

▼Do not dry items such as foam rubber, latex,

raincoats, waterproof fabrics, rubber mats,

preformed items, clothes or cushions with

foam rubber padding, as these may melt and

damage other items in the washing or even

the appliance itself.

Before connecting the appliance read these instructions carefully.

Repairing the failure arising from inappropriate connections or use of the appliance

is not covered by the guarantee.

WARNING!!! The ﬁnal part of a drying cycle is the cooling down phase. Consequen-

tly, never switch off the drier before the cycle has been completed. Otherwise, the

washing must be taken out quickly and hung out to allow the heat to dissipate.

5

SM2828

NOTES AND ADVICE FOR THE USER

DESCRIPTION OF THE APPLIANCE

A- Door

B- Filter

C- Adjustable feet

D- Top cover

E- Drum

F - Control panel

G - Detergent drawer

1

GB

C

F

E

B

THE MANUFACTURER WILL NOT BE HELD RESPONSIBLE FOR ANY INCIDENTS RESULT-

ING FROM NON-COMPLIANCE WITH SAFETY STANDARDS OR THE REQUIREMENTS OF

THIS INSTRUCTION BOOK.

▼The washing machine has been constructed

in steel panels which have been treated

and painted to guarantees that its aesthetic

qualities remain unaltered over time.

▼The motor and all moving parts have been

designed and manufactured to guarantee

the minimum possible noise levels

▼The large easily-accessible stainless steel

drum will ensure a better quality wash and

help to prolong the life of your washing

▼The easy to use control panel will satisfy all

washing and drying needs (see control panel

and programme table).

▼The wide door makes loading and unloading

the washing much easier.

▼The very high stability of the appliance is the

result of constant research by our technicians

into the equilibrium of masses in movement.

A

GD

Never insert or remove

the plug from the mains

socket with wet hands.

When servicing or

cleaning the washing

machine, remember to

disconnect it from the

mains electricity supply.

Do not pull the power sup-

ply cable to unplug the

washing machine from

the mains supply. Pull the

plug only.

It is advisable to unplug

the washing machine

from the mains electric-

ity supply and close-off

the water supply after

each wash.

Do not expose the ap-

pliance to atmospheric

agents.

The washing machine

must be connected to a

mains socket ﬁtted with

an efﬁcient earth comply-

ing with current safety

standards.

Do not use extension

leads or multiple plug

adapters to connect the

washing machine to the

mains electricity supply.

The washing machine

can only be opened once

the led or display in-

dicates that the cycle

has finished. On some

models, this is signalled

by a ﬂashing start button.

6

SM2828

LEVELLING THE WASHING MACHINE

After having selected the most suitable location for the appliance, make sure it is

level by regulating the adjustable feet (Fig. 6).

Pay particular attention to the positioning and levelling of the washing machine and

make sure that the lock nuts are tight.

If the appliance is not levelled correctly, it will be unstable and

noisy and may cause damage.

If the washing machine is installed on a carpeted ﬂoor, leave sufﬁcient space between

the appliance and the ﬂoor to guarantee the free circulation of air.

It is not advisable to install the appliance in rooms where the temperature could fall

below 0°C.

In the under-worktop versions, screw in the feet until the spring is fully

compressed, thus allowing the appliance to be installed under the worktop

(Fig. 6B).

For transport reasons, the washing machine’s oscillating group

is locked in place by 4 spacers and screws. Before using the ma-

chine, remove the spacers and locking screws. Keep the screws

and spacers for future use.

Close off the holes using the plugs supplied. The plugs can be

found in the bag containing the documents.

For transport reasons, the washing machine’s oscillating group

is locked in place by 4 spacers and screws. Before using the

machine, remove the locking screws with a suitable tool.

Insert a screwdriver in the holes and lever out the 4 plastic spacers

as shown in the ﬁgure.

INSTALLING THE WASHING MACHINE

(according to the model)

Installation must be carried out by qualiﬁed personnel in line with the instructions supplied by the manu-

facturer. Incorrect installation may result in damage and injury.

The appliance can be installed anywhere providing that the ambient temperature is not less than 3°C

and that the wires or pipes on the rear of the machine are not squashed.

2

3

WARNING!! The washer/drier version must not be installed behind a locked door,

a sliding door or with a hinged door on the opposite wall to the washer/drier itself.

4

5

6

6B

GB

7

SM2828

INSTALLING THE WASHING MACHINE

CONNECTING THE WATER SUPPLY

The mains water pressure must be between 0.05 and 1.00 Mpa

(0.5 - 10 bar.)

▼Before connecting the washing machine, open the valve and allow a certain

quantity of water to ﬂow out in order to clean the pipes of any sand or rust.

This operation is particularly important in the case where the washing machine

has been left standing for a long time or when connecting to a new water supply

system.

▼The ﬁll hose must be connected to the mains supply using a ¾” threaded con-

nection.

N.B. On electronic washing machines ﬁtted with a dual solenoid

valve (hot and cold water), connect the red hose to the hot water

supply valve and the other hose to the cold water supply valve.

If a hot water supply is not available, both hoses must be connected to the

cold supply using the ﬁtting supplied (see ﬁg. 8)

▼Connect the ﬁll hose (ﬁg. 9).

N.B. Washing machines and condensation type washer/driers

must be connected to the mains water supply using the new hoses

provided with the appliance. The old hoses must not be re-used.

▼During the wash, the water supply valve must be fully open.

▼The drain hose must be positioned at a height of between 60 cm and 90 cm

(ﬁg. 10).

▼If the water is drained directly into the drainage system, the free end of the

drain hose must be inserted in a pipe of internal diameter not les than 40 mm.

▼The drain hose connection to the drainage system must not be hermetically

sealed, as this would cause a build up of air in the siphon and allow water to

leak out.

▼If the wash water is drained into a washbasin, sink or other similar system, the

free end of the hose must be reinforced at the bend using the bracket supplied

with the washing machine. Place the hose over the edge of the washbasin and

anchor the bracket in such as manner that prevents the hose from falling (ﬁg.

11).The washbasin outlet must be clean and must allow the water to ﬂow freely.

8

10

11

9

7

GB

8

SM2828

INSTALLING THE WASHING MACHINE

USING THE WASHING MACHINE

RECOMMENDATIONS PRIOR TO USE

Warning: Before carrying out the ﬁrst wash, allow the washing

machine to effect a short wash cycle without any washing.

This will allow the operation of the washing machine to be checked

and will clean the drum.

Before each wash make sure that:

▼the water connections are correct, the drain hose is properly positioned (see

connecting to the water supply) and that the water supply valve is open.

▼with dry hands, insert the plug in the mains socket.

▼sort the wash into types of fabric (refer to clothing care symbols).

▼check that there are no objects left in any of the pockets of the items to wash,

as these may damage the washing, the appliance or the ﬁlter.

12

13

Make sure that the voltage indicated on the identiﬁcation plate

attached to the inside of the ﬁlter door corresponds to that of the

mains supply (ﬁg. 12).

All cut-outs, electric wiring and mains sockets must have a rating such that

enables them to support the maximum load indicated on the identiﬁcation plate.

Once the appliance has been installed, it must be connected to the mains supply

through a single-pole switch.

The mains supply to which the appliance is connected must be ﬁtted with an

earthing system. If this is not the case, the manufacturer will not be held liable

for any incidents that may occur (ﬁg. 13).

If the mains socket to which the appliance is connected is faulty or unsuitable,

it must be replaced by a qualiﬁed electrician.

The washing machine must not be connected to the mains supply using indirect

methods such as extension leads or multiple adapters.

During maintenance work, the washing machine must be disconnected from

the mains electricity supply.

Do not insert or remove the plug from the mains socket with wet hands.

If the power supply cable is damaged in any way, contact the appropriate spe-

cialised service centre.

The plug used to connect the machine to the power supply must never be ﬁxed

behind the machine, but must be in a position easily accessible in an emergency.

14

15

Open

Closed

GB

CONNECTING TO THE MAINS ELECTRICITY SUPPLY

9

SM2828

USING THE WASHING MACHINE

USE OF DETERGENTS

The washing machine is ﬁtted with a three-compartment detergent drawer

compartment for pre-wash or soak soap powder (1)

compartment for normal wash soap powder (2)

softener compartment (3)

Use a low-suds detergent and softener (if required) recommended for automatic

washing machines. Follow the dosage instructions written on the packet.

N.B. Too much detergent can produce excessive suds and may

result in a poor wash.

Too little detergent will produce an unsatisfactory wash.

N.B.When adding detergent to the dispenser, remember to avoid

any spillage into the softener compartment, in that this would

create a soapy rinse and stain the fabrics white. Vice versa, if

softener is added to the detergent compartment, the quality of

the wash will be compromised.

N.B. When using a liquid detergent (recommended for pro-

grammes without pre-wash) proceed as follows: remove the bafﬂe

from its housing at the front of compartment 2 and insert it in the

guides near the centre of the same compartment.

▼close the detergent drawer before starting the wash.

Warning! Do not attempt to remove the detergent drawer while

the washing machine is in operation, as this will cause water to

ﬂow out.

20

16

1

2

3

NO

YES

19

17

18

GB

10

SM2828

USING THE WASHING MACHINE

Stains exist that cannot be removed by machine washing alone. Before trying to remove any type of

stain by hand, ﬁrst try the removal procedure on a small area of hidden fabric. Start from the edge of

the stain and working inwards, this will prevent a dark ring from forming around the site of the stain. A

few methods to adopt for removing stains are reported below.

▼W

AX: Scrape the wax using a rounded point

in order not to damage the fabric. Then, with

the fabric placed between two pieces of ab-

sorbent paper, run a hot iron over the stain.

▼B

ALL POINT PENS AND FELT-TIP PENS: clean using

a soft cloth soaked in ethyl alcohol.Take care

not to spread the stain.

▼D

AMP AND MOULD: if the fabric supports the

use of bleach, carry out a wash cycle adding

bleach. Otherwise, soak the soiled part in

hydrogen peroxide (10 volumes) and leave

for 10 to 15 minutes.

▼L

IGHT SCORCH MARKS LEFT BY IRONING: follow the

instructions for mould and damp.

▼RUST: use products specially designed for rust

stains, following the manufacturer’s instruc-

tions written on the packet.

▼C

HEWING GUM: rub ice over the fabric, scrape

away as much chewing gum as possible

and then rub with a piece of cotton soaked

in acetone.

INTERNATIONAL CLOTHING CARE SYMBOLS

Before placing the clothes in the washing machine and selecting the wash programme, examine the

symbols on the manufacturer’s label. The table reported below will provide a useful guide to reading

the symbols.

▼PAINT: do not allow the paint to dry. Rub the

area with the solvent recommended by the

paint manufacturer (e.g. water, turps, trichlo-

roethylene), soap and then rinse.

▼L

IPSTICK: stains on cotton or wool can be elimi-

nated using a cloth soaked in ether. Stains

on silk require the use of trichloroethylene.

▼N

AIL VARNISH: place a sheet of absorbent

paper on the stained material, then dampen

the back of the fabric with acetone, frequently

changing the absorbent paper placed over

the stain. Continue in this manner until the

stain has disappeared.

▼T

AR OR DIRT: spread a little fresh butter over

the stain, allow to stand and then wash with

oil of turpentine.

▼G

RASS: delicately soap the stain, use diluted

bleach. Good results can be obtained on

woollen fabrics using 90% alcohol.

▼B

LOOD: put into soak in cold water with added

salt, then wash with washing soap.

HOW TO REMOVE SOME STAINS

GB

11

SM2828

PRINCIPAL FUNCTIONS OF THE WASHING MACHINE

A LED Start

B Display

C Optional functions button

H Spin selection button

L Start button

I Delayed Start button

P Program and temperature knob

GB

MODEL:

14WD8-5

USE OF THE WASHING MACHINE

WASHING CYCLE:

“EASY LOGIC”TECHNOLOGY

The electronic washing machine is equipped with an “EASY LOGIC”system that recognises the

quantity of clothes put in, consequently adjusting the quantity of water to be used and reducing

the washing time proportionally. The result is a saving in water, time and energy. In the case in

which the quantity of clothes to be washed is less than the maximum recommended load (see

technical speciﬁcations table), the quantity of water used for the wash will be reduced by 2

litres for each kg less of laundry. In the case of washes that are half load or less, the machine

will automatically perform one rinse less than programmed. N.B. The “EASY LOGIC” function

only works on the cotton programs.

HI LC

BAP

(If this sequence of operations is followed, the washing machine will carry out the washing

cycle that is set)

1. Open the door.

2. Load the laundry into the drum and carefully close the door.

Warning:You must not overload the washing machine. It is not recommended to wash articles

that absorb a large amount of water, for example carpets.

3. Pour the low-suds washing powder and the fabric conditioner for automatic washing machines into

their respective compartments (see the “USE OF DETERGENTS” chapter)

4. Close the detergent compartments, making sure that they are not removed while the washing

machine is running, because the water could come out.

5. Turn the program selector knob (P) choosing the desired program and temperature to match the

type of fabric to be washed (see: PROGRAM TABLES”).

N.B.When the knob is set, the duration of the chosen cycle in minutes appears on the display.

During the cycle the time shown decreases until ‘END’ appears, indicating the end of the

program.

6. Choose the desired spin speed pressing button (H) (see “VARIABLE SPIN”).

7. Select the buttons (C) with the functions to be used (see “OPTIONAL FUNCTIONS”).

the time shown on the display will vary according to the functions that are set.

8. Press button (I) if required (see “DELAYED START”).

9. Press button (L) to start the washing cycle (see “START BUTTON”).

10. At the end of the wash, turn the program selector knob (P) to “STOP”.

11. Open the door and remove the laundry.

12. With dry hands, remove the washing machine plug from the mains socket.

13. Close the water supply tap.

12

SM2828

USE OF THE WASHING MACHINE

VARIABLE SPIN:

fig.1

fig.2

DISPLAY AND DURATION OF THE WASHING CYCLE:

DELAYED START BUTTON:

The machine is equipped with a function that enables you to delay the wash for up

to a maximum of 16 hours; each time button (I) is pressed, the display will show the

hours to wait from 1...to 16 before the machine begins the washing cycle. When key

(L) is pressed, the washing machine will wait the set number of hours and will then

automatically begin the washing cycle.

Activation of the delay is indicated by the ﬂashing of the dots on the display.

GB

With each program selected with the knob (P), the corresponding spin speed and

the duration of the cycle will appear on the display; this time will decrease until it

arrives at zero when the program is ﬁnished and “END” appears on the display. At

this point it will be possible to take out the laundry.

N.B. In the “Cotton” programs, the duration of the washing cycle initially

shown by the display can vary, since it can be affected by various factors

such as temperature, water inlet pressure and quantity of laundry loaded

in the drum. During the wash, the machine’s electronics will automatically

alter the time needed for the cycle set according to these factors, thus

achieving the best performance in the best time.

After having carried out all the operations described in points 1 to 8 in the paragraph

“WASHING CYCLE” press this button and the washing machine will begin its washing

cycle. The relative LED will light up after 2-3 seconds, to indicate that the door is

locked and the program has started.

STOP

START BUTTON:

“STOP” ON THE PROGRAM SELECTOR:

The function of stop is to reset the washing machine. If for any reason during the

washing cycle you decide to vary it, or decide later to add more laundry, all you have

to do is turn the knob of the program selector to the “STOP” position, then reset the

knob to the new program chosen and press the “START” button.

The machine offers a wide choice of spin settings that can be selected before starting

the program. To vary the spin setting just press button (H) until the desired value is

reached (ﬁg. 1); if you wish to exclude the spin, press the button until “00” appears

on the display (ﬁg. 2).

N.B.The maximum spin speed varies according to the model and is shown

on the machine display. The maximum spin speed that can be selected

decreases with the program that is set.

Out of balance spin protection for the load:

This washing machine is equipped with a special electronic control system for the correct balancing of

the load. Before each spin, the system makes the clothes arrange themselves in the drum in the most

even way possible. In case of irregular distribution of the laundry, for safety reasons the spin speed

is reduced and in cases of the load being greatly out of balance, the spin cycle will not be effected.

Warning!! It is recommended to use this function only if strictly necessary and solely if the

program to be reset has started not more than 3 minutes previously. Before being able to open

the door after a reset, you must wait 2 minutes for it to be unlocked.

13

SM2828

OPTIONAL FUNCTIONS

GB

If one of the buttons listed below is selected, its symbol will appear on the display. While if

you realize that you have selected it by mistake or you have changed your mind, to cancel the

option, press it again.

PRE-WASH:

When this button is pressed, a short pre-wash with a maximum temperature of 40°C

lasting for about 10 minutes is provided.

This function can only be used on the “COTTON, SYNTHETICS and DAILY” programs.

N.B. If you use this option, the detergent must also be poured

into the appropriate compartment for the pre-wash.

INTENSIVE WASH:

When this button is pressed, the machine will carry out a wash at the set tempera-

ture but which lasts longer. This button works on the “COTTON and SYNTHETICS”

programs.

EXTRA RINSE:

The washing machine has been built so that water consumption is reduced to a mi-

nimum. For areas with very soft water or in the case possible residues of detergent

are noticed at the end of the cycle, pressing this button the machine will carry out

an additional rinse.

DRYING:

This button allows the drying time to be programmed which then appears on the

display.

HOW TO USE THE WASHER-DRYER

USING THE DRIER:

The drying cycle can either be programmed to run automatically at the end of the “Cotton” and “Syn-

thetics” wash programs, or it can be started manually (in the case of hand washing, for example). When

using the manual drying function, the washing must always be spun ﬁrst at a minimum of 800 rpm. (see

table “RECOMMENDED DRYING QUANTITIES AND TIMES”)

CONTINUOUS WASH/DRY PROGRAM (COTTON AND SYNTHETICS):

Place the washing in the tub (see table “RECOMMENDED DRYING QUANTITIES AND TIMES”). Select

the required wash program using the programmer knob. Set the required functions using the various

buttons. Program the drying function by pressing the button with the symbol. Then press the Start

button. When the delay button (I) is pressed, the wash and dry program will start after the programmed

delay time.

N.B. Use of the optional functions is restricted by the

type of program chosen; so, if the program does not

allow the function, it will not be possible to enable

the button (see PROGRAM TABLE).

14

SM2828

HOW TO USE THE WASHER-DRYER

PROGRAM TABLES

MANUAL DRY PROGRAM:

The manual drying cycle can be effected as follows: If a wash load of cotton has been washed elsewhere, it

must be spun before drying. Place the wet washing in the drum and set the spin program to spin at not less

than 800 rpm (a low spin speed will increase the percentage of humidity in the fabrics). On completion, place

the knob indicator on the dry program and select the drying time (see table “RECOMMENDED DRYING

QUANTITIES AND TIMES”) using the appropriate button . Press the Start button.

GB

COTTON Fabrics with delicate colours

slightly dirty laundry

SYNTHETICS Heavily soiled synthetic

fabrics with resistant colours

SYNTHETICS Lightly soiled synthetic fabrics

with delicate colours

SYNTHETICS Lightly soiled synthetic fabrics

with delicate colours

DELICATES Delicate cotton fabrics

viscose and mixed delicates

DELICATES Delicate cotton fabrics

viscose and mixed delicates

30

60

40

30

40

30

Machine washable

woollen fabrics

Machine washable

woollen fabrics

WOOL

30

PROGRAM

SELECTOR

WORKING

TEMPERATURE

TYPES OF FABRICS

LABEL

LINGS

BUTTONS ENABLED

Detergent

compart

ments

COTTON

Heavily soiled white cotton

fabrics, with stains also of

an organic nature.

COTTON

For very dirty sheets, shirts,

tablecloths, towels made of

resistant fabrics

COTTON For very dirty sheets, shirts,

tablecloths, towels made of

resistant fabrics

COTTON Heavily soiled resistant whites

and coloureds

90

75

60

40

FUNCTION ENABLED OPTIONAL WITH THE PRE-WASH BUTTON PRESSED

FUNCTION DISABLED

40

15

SM2828

PROGRAM TABLES

TECHNICAL SPECIFICATIONS

When washing a full load, the drying must be carried out in two lots.

GB

Delicate fabrics

To rinse

and freshen the laundry

Final drain and spin

COLD

DRAIN

AND SPIN

RINSES

COLD

WASH

PROGRAM

SELECTOR

WORKING

TEMPERATURE

TYPES OF FABRICS

LABEL

LINGS

BUTTONS ENABLED

Detergent

compart

ments

DRY For manual drying

Machine washable

woollen fabrics

COLD

WOOL

Lightly soiled delicate cotton

fabrics viscose and mixed

delicates, 35/40 min wash

Delicate cotton fabrics

delicate coloureds slightly

dirty of daily use

35

40

QUICK

WASH

DAILY

WASH*

DELICATES

FUNCTION ENABLED OPTIONAL WITH THE PRE-WASH BUTTON PRESSED

FUNCTION DISABLED

Max Kg. 4.0

Max Kg. 2.0

190’

wardrobe dry

The recommended times are purely indicative and depend heavily on the type of fabric and the experience of the user.

RECOMMENDED DRYING TIMES

Cotton

Synthetics

140’ - 160’ iron dry

120’ - 140’

wardrobe dry

100’ - 110’ iron dry

see rating plate

min. 0,05 MPa - max. 1 MPa

Width cm:

Height cm:

Depth cm:

Dimensions:

Max spin speed: (rpm)

Maximum load

recommended

during the wash:

Water pressure

Max input power/ electrical connection

MODEL

TWDC84

8,0 Kg

4,0 Kg

2,0 Kg

1400

59.5

85.0

60.0

* Programme setting for testing to Standard AS/NZS 2040.1.

16

SM2828

CLEANING THE FILTER

WARNING!! Before starting the operations described below, make sure

that the washing machine is empty. Do not remove the ﬁlter

while the washing machine is running, or when full of water.

Place a cloth or tray under the ﬁlter to collect any water that may still be inside Open

the ﬁlter door, unscrew the ﬁlter and remove it by turning it in an anticlockwise direc-

tion (ﬁg. 24-25).

The ﬁlter must be cleaned periodically.

Rinse the ﬁlter under running water to eliminate any residues. Replace the ﬁlter by

screwing it in clockwise, making sure it closes and seals properly.

CLEANING THE WASHING MACHINE

The washing machine has been speciﬁcally designed to reduce maintenance to a

minimum. Nevertheless, it is important that it is cleaned regularly.

Before cleaning, make sure that the appliance has been disconnected from the power

supply and that the water supply valve has been closed.

The external structure and the parts of the washing machine in plastic must be

cleaned with a soft damp cloth only.

WARNING!! Never use chemicals, abrasive products, alcohol, soap, petrol

or other solvents to clean the appliance as these may cause

damage. (ﬁg. 21)

After washing, leave the door open for a short time to allow rubber parts to dry.

Periodically wash out the detergent compartments. To do this, remove the detergent

compartment and rinse it under running water (ﬁg. 22). Then replace it.

REMOVING THE DETERGENT DRAWER

▼open the detergent drawer;

▼press on the word “PUSH” with the right hand and pull out the drawer with the

left hand (ﬁg. 23).

22

23

21

24

25

MAINTENANCE

GB

17

SM2828

MAINTENANCE

GB

RESOLVING PROBLEMS

If, after all these checks have been carried out, the appliance still does not work, inform the near-

est customer service centre. When contacting the service centre, inform them of the appliance

model, serial number and type of fault.The data relating the appliance can be found on the rating

plate afﬁxed to the inside of the ﬁlter door. This information will help the service centre operator

in procuring the necessary spare parts, thus guaranteeing a speedy and efﬁcient repair.

The washing machine does not work (warning

lights are off) (Display off)

• Make sure that:

1) The mains power supply is working

2) The plug is inserted correctly in the socket

3) The On/Off button has been pressed, or if not

present, check that the programming knob is

positioned on a programme.

The washing machine does not work (warning

lights are off) (Display lit)*

• Make sure that:

1) The programme has been selected

2) The door is closed properly

3) The “Start” button has been pressed (elec-

tronic models only)

4) Refer to the information provided for “The

washing machine does not ﬁll with water”

The washing machine does not ﬁll with water*

• Check that:

1) There is water in the water supply system

2) The water ﬁll pipe is connected to the washing

machine

3) The mains water supply valve is open

4) The ﬁlter is not blocked If it is, clean the ﬁlter

after ﬁrst unplugging the appliance from the

power supply

The washing machine continuously ﬁlls and

drains the water**

• Check that:

1) The drain hose has been installed at the cor-

rect height (60-90 cm)

2) The end of the drain hose is not under water

The washing machine does not drain or spin**

• Check that:

1) The drain hose is properly connected

2) The drain hose is not kinked

3) The drain ﬁlter is not blocked

4) The no-spin function has not been selected

5) The Stop with water function has not been

selected.

The washing machine vibrates and is noisy

• Make sure that:

1) All the locking elements used for transporta-

tion have been removed.

2) The washing machine is perfectly level

3) Bulky items such as sheets, tablecloths etc.

are not all bundled in one part of the drum

The door will not open

• Make sure that:

1) The wash cycle has ﬁnished.

2) The Stop with water function has not been

selected (automatic on some models).

The washing has not been spun properly

• Make sure that:

1) The washing is evenly distributed in the drum

2) The correct spin speed has been selected

The washing machine stops during a wash

• Make sure that:

1) The mains power supply is working

There is still a lot of detergent in the compart-

ment

• Make sure that:

1) The mains water supply valve is open

2) The ﬁlter between the valve and the supply

hose is clean

The washing is not clean at the end of the

wash cycle

• Make sure that:

1) The drum has not been overloaded

2) The correct amount of detergent has been

used

3) The correct programme has been selected

The washing has shrunk or faded

• Make sure that:

1) The correct washing programme has been

selected

2) The correct washing temperature has been

selected

The washing machine does not dry (washer-

dryer models only)

• Make sure that:

1) The mains water supply valve is open

2) The drain ﬁlter is clean

3) The washing machine is switched on (indicator

light or display lit)

4) The drying program has been selected

5) The drying time has been set

If the appliance is not working properly, check through the following troubleshooting guide before call-

ing for technical assistance. In some models malfunctions are indicated by an error code displayed at

the end of the cycle.

Code: E:00 Carry out all the checks listed in paragraphs marked with *

E:01 Carry out all the checks listed in paragraphs marked with **

E:02 Technical malfunction “Call Customer Service”

E:03 Technical malfunction “Call Customer Service”

18

SM2828

NOTES

...............................................................................................................................................................................................................

..............................................................................................................................................................................................................

...............................................................................................................................................................................................................

..............................................................................................................................................................................................................

...............................................................................................................................................................................................................

..............................................................................................................................................................................................................

...............................................................................................................................................................................................................

461308195 CF SM2828/01 18/10/2012

GB

Technika TWDC84 User manual

Popular Washer Dryer manuals by other brands
