Dexter Laundry C Series Quick start guide

8533-086-001 (2/15)
Dexter Commercial C-Series Vended Stack
Washer Dryer
Parts & Service Manual
ommercial C Series Ven

2Part#8533-086-001 2/15
Section 5:
Dryer Parts Data

3
Description Part Number Qty
1Loading Door Compleate SS/Chrome/Blk 9960-256-035 1
1Loading Door Complete SS/Brushed/Blk 9960-256-034
2Door Assy, Loading (Ring only) Brushed SS 9960-255-008 1
2Door Assy, Loading (Ring only) Chrome 9960-255-016 1
3Plate Assy, Hinge (SS) 9982-280-012 1
4Screw Hinge to Door 9545-012-015 4
*Nut, Hinge to Door 8640-413-002 4
5Glass, Door 9212-002-003 1
6Gasket, Door Glass (Black) 9206-413-001 1
*Support Door Glass 9548-117-000 2
7Gasket, Door Outer Rim (Black) 9206-420-003 1
8Handle, Loading Door 9244-082-001 1
*Screw, Handle 9545-018-017 2
*Stud Door Catch 9531-033-001 1
*Nut-Hex, #10-32 8640-413-001 1
*Nut, Acorn 8640-413-003 1
*Catch, Loading Door 9086-015-002 1
9Strap, Hinge (Black) 9544-047-011 1
10 Screw, Hinge to Door 9545-052-001 1
11 Washer-Fiber/Plastic 8641-436-003 1
12 Front Pannel Assy 9989-553-001 1
*Insulation-Front Panel, Top Half 9277-053-001 1
*Insulation-Front Panel, Bottom Half 9277-053-002 1
13 Name Plate-Dryer, SWD (Blue) 9412-202-002 1
13 Name Plate-Dryer, SWD (Black) 9412-202-001 1
14 Escutcheon-Dryer Coin 9141-154-001 1
*Screw-TRHD Torx, 6BSDx1/2,BLK 9545-031-009 10
15 Overlay-Escutcheon, Coin SWD (Blue) 9435-041-002 1
15 Overlay-Escutcheon, Coin SWD (Black) 9435-041-001 1
16 Lock & Key Assy 8650-012-003 1
*Key, Electronic Control (6324) 6292-006-007 1
*Cam-Lock 9095-041-001 1
*Washer-Flat Shim 8641-581-010 1
*Washer-Flat 8641-581-041 1
17 Cover-Hinge, Black 9074-341-002 1
18 Screws-TRHDCR, 10B x 3/8, Black 8636-018-001 2
Dryer Cabinet Group
Part#8533-086-001 2/15

4
1
2
3
5
6
7
8
10
11
12
13
14
15
16
4
9
3
5
6
7
18
17
Part#8533-086-001 2/15

5
Key Description Part Number Qty
1Control Assy-Stack Washer Dryer (Blue) 9857-199-001 1
1Control Assy-Stack Washer Dryer (Black) 9857-199-003 1
*Button-Push,Control (Blue) 9035-062-001 1
*Button-Push,Control (Black) 9035-062-002 1
2Lint Drawer Assy Compleate W/Front (Blue) 9866-004-001 1
2Lint Drawer Assy Compleate W/Front (Black) 9866-004-011 1
*Lint Screen Assy w/o Front 9805-029-002 1
*Lint Drawer Front (Aluminum) 9974-010-001 1
3Overlay, Lint Drawer (Blue) 9435-003-009 1
3Overlay, Lint Drawer (Black) 9435-029-001 1
*Screen (Course) 9555-057-002 1
*Screen (Fine Mesh) 9555-057-003 1
*Felt-Seal (back of lint screen) 9532-074-003 1
*Screw-Lint screen strap hold down 9545-008-001 14
4Lock & Key Assy 8650-012-004 1
*Key (6101) 6292-006-010 1
*Cam, Lock 9095-043-001 1
*Washer 8641-581-041 1
5Door Switch 9539-487-001 1
*Bracket Assy, Temp Sensor 9985-175-001 1
7Temp Sensor 9501-004-003 1
*Gromet 9209-037-002 1
*Wire-Nut Gray 8640-276-002 2
*Harness-Main Harness 9627-913-001 1
*Harness-Door & Coin Switches 9627-783-003 1
*Cabinet Cover 9074-261-001 1
*Insulation, Cabinet Cover 9277-041-011 1
*Coin Vault Assy (Black) 9942-027-015 1
*Screw - #10Bx1/2 9545-008-026 4
8Coin Box (Blue Front) 9807-099-001 1
8Coin Box (Black Front) 9807-099-003 1
9Coin Accecptor 9021-009-001 1
*Switch, Coin Mech 9539-466-005 1
*Return, Coin Acceptor 9486-145-001 1
*Screw, Retainer 9545-053-002 4
Dryer Cabinet Group Continued
Part#8533-086-001 2/15

6
1
23
4
7
8
9
5
Part#8533-086-001 2/15

7
Part#8533-086-001 2/15
Notes

8
Key Description Part Number Qty
1Guard, Drive 9208-064-001 1
2Panel, Drive Guard, LH 9454-887-001 1
1
3Panel, Drive Guard, RH 9989-649-001 1
4Panel, Drive Guard Bottom 9454-739-001 1
*Screw 9545-008-024 8
5Warning, Lable 8502-600-001 1
6Lable, Instructions 8502-645-001 1
7Lighting and Clearence, Lable 8527-112-001 1
8Lable, Guard Removal 8502-710-001 1
1
2
3
4
5
6
7
8
Dryer Back Panels and Guards
Part#8533-086-001 2/15

9
Key Description Part Number Qty
* Housing Assembly, Burner 9803-199-001 1
1 Panel-Burner Housing Front & Back 9454-831-001 1
* Panel-Burner Housing, Side Left 9454-789-001 1
2 Panel-Burner Housing, Side Right 9454-790-001 1
*Baffle-Burner Housing 9049-080-001 1
* Connector Assembly- Burner 9828-015-001 1
3 Panel-Burner Housing, Top 9454-791-001 1
4 Cover Burner Housing, Top 9074-307-001 1
* Screw, 10Bx1/4 9545-008-001 4
* Screw, 10ABx3/8 9545-008-006 23
* Plate, Recirculation Cover 9452-729-001 1
* Screw, 10Bx1/4 9545-008-001 6
* Shield, Burner Inlet 9550-173-001 1
* Screw, 10ABx3/8 9545-008-024 3
5 Burner, Main 9048-020-001 2
* Panel- Burner Housing, Back 9454-816-001 1
* Screw, 10Bx1/4 9545-008-001 4
6 Electrode-Ignition 9875-002-003 1
* Screw, 8Bx1/4 9545-045-001 2
7 Thermostat-HI-Limit 9576-203-002 1
* Bracket-Hi-Limit 9029-192-001 1
* Spacer-Hi-Limit 9538-142-001 2
* Screw, 8Bx3/4 9545-045-007 2
* Wire Assy-BRN, 31” 8220-001-415 1
* Wire Assy-ORG, 31” 8220-095-018 1
* Thermostat-Over Temp, Manual Reset 9576-207-008 1
* Screw, 10ABx3/8 9545-008-006 2
* Bushing, Over Temp 2114-008-000 2
8 Cover Assembly, OverTemp Thermostat 9825-057-002 1
* Screw, 10ABx3/8 9545-008-006 2
9 Control Assy,Gas Valve 9857-134-001 1
10 Manifold Assy 9381-012-001 1
*Orfice-Natural, #32 9425-069-009 2
*Orfice-LP, #50 9425-069-008 2
11 Bracket-Manifold, Gas 9029-257-001 1
12 Bracket-Manifold, Gas 9029-258-001 1
* Screws, 9545-008-006 4
13 Duct Assy, Recirculation 9973-033-001 1
13 Valve-Gas Shutoff, 9379-196-001 1
14 Plug, Manifold 1
Dryer Burner Housing Group
Part#8533-086-001 2/15

10
1
2
3
4
5
6
8
11 12
13
6
7
9
10
14
Part#8533-086-001 2/15

11
Key Description Part Number Qty
1 Housing, Bearing 9241-161-002 1
2 Bearing, Ball (Front & Rear) 9036-130-001 2
3 Washer, Flat 3/8 8641-581-009 4
4 Lock Washer Spring, 3/8 8641-582-003 4
5 Screw, 3/8-24x3/4 9545-049-002 4
6 Nut, 3/8-24 8640-415-002 2
7 Screw, 3/8-24x1 9545-049-001 2
8 Nut, 5/16-24 8640-400-002 4
* Spacer, Bearing 9538-139-002 1
* Shim, Tumbler 9552-013-003 4
* Bearing Housing Complete Assy (Includes bearings & Spacer) 9803-160-003 1
Bearing Housing Assembly
Part#8533-086-001 2/15

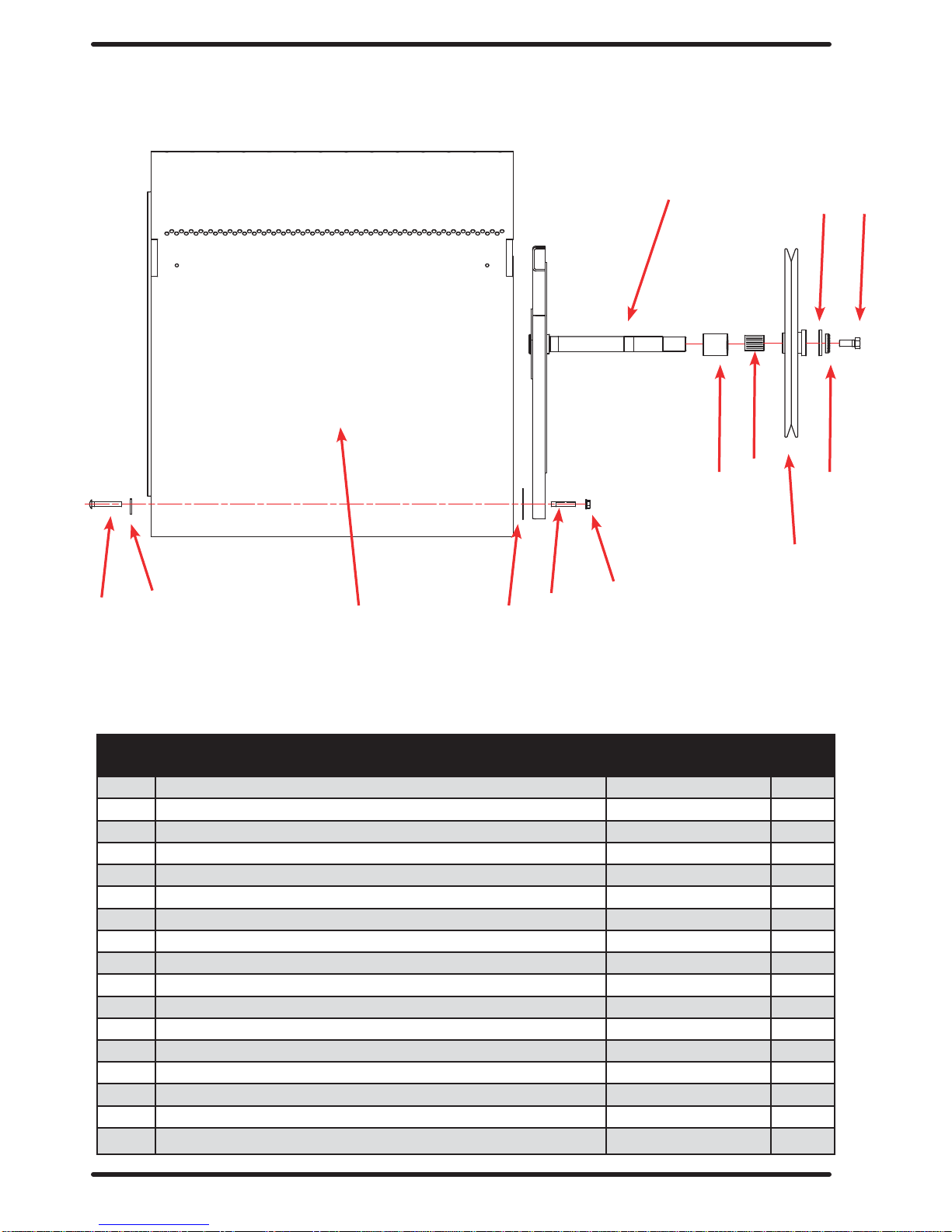

12
Key Description Part Number Qty
1 Tumbler Assy Compleate W/Spider (GALV) 9848-142-001 1
1 Tumbler Assy (Galvinized) 9848-126-001 1
1 Tumbler Assy Compleate W/Spider (SS) 9848-142-002 1
1 Tumbler Assy (Stainless) 9848-126-002 1
2 Spider Assy 9568-015-001 1
3 Rod, Tumbler 9497-019-003 3
4 Nut, Wiz Lock 8640-415-004 3
5 Shim 9552-013-000 AR
6 Washer, Special 8641-554-001 3
7 Spacer-Shaft 9538-164-002 1
8 Tolerance Ring 9487-234-005 1
9 Pulley, Driven 9908-049-002 1
10 Washer-Flat 8641-581-026 1
11 Lockwasher-IntTooth, 1” 8641-582-016 1
12 Screw, 1/2-13x1 1/4 9545-017-009 1
Spyder Trunion & Cylinder
1
2
34
35
6
78
9
10
11
12
Part#8533-086-001 2/15

13
Key Description Part Number Qty
1 Motor, Drive 9376-309-001 1
2 Plate, Motor Mounting 9452-766-001 1
* Screw-Hex, 3/8-16x3/4 9545-029-008 4
* Screw, Motor to Plate to Housing Back 9545-018-019 5
* Lock Washer 8641-582-007 5
* Spacer 9538-163-006 5
* Flat Washer 8641-581-017 15
* Rubber Grommet 9209-086-002 5
* Grommet Spacers, Metal 9538-166-006 5
* Pulley, Motor 9453-157-001 1
* Screw, Set Motor Pulley 9545-028-013 2
3 Back Assy, Blower Housing 9962-015-002 1
* Impeller, W/Set Screws 9278-039-001 2
4Belt, Drive Motor 9040-073-009 1
5Belt, Driven-Tumbler 9040-077-001 1
6Pulley, Driven 9908-040-001 1
*Key- Woodruff 9306-006-000 1

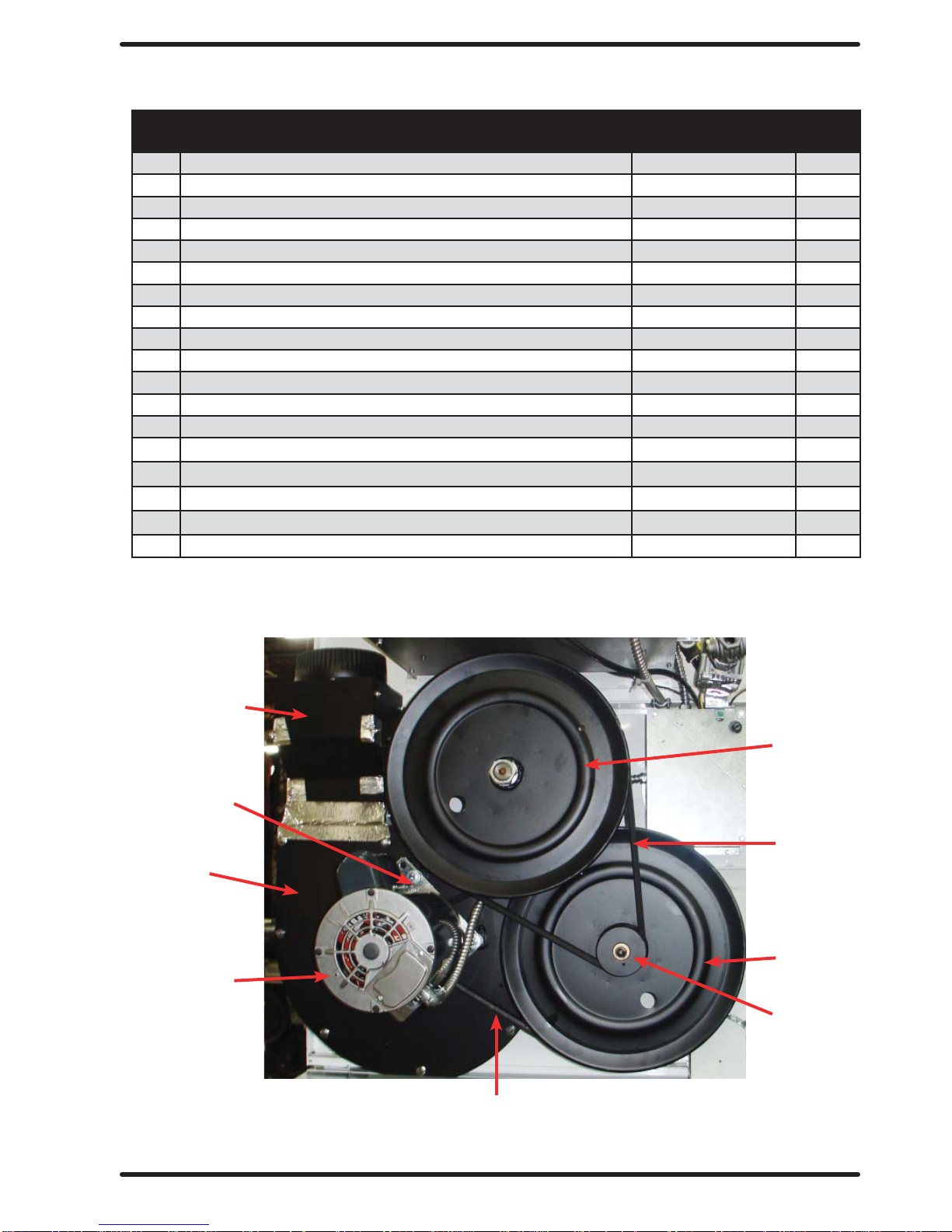

Dryer Rear View
1
3
4
5
6
9
14
10
2
Part#8533-086-001 2/15

14
Key Description Part Number Qty
7Support Assy, Intermediate Pulley 9991-053-001 1
*Bolt, Rd Hd 3/8-16x1 1/4 9545-029-010 3
*Bolt 3/8-16x 1 1/2 9545-029-003 1
*Nut 8640-415-004 3
*Washer Flat 8641-581-035 4
8Arm Assy-Tension, Compleate 9861-022-001 1
*Washer Flat 8641-581-035 3
*Ring-Retaining 9487-200-003 3
9Pulley Assy, Intermediate 9908-039-004 1
10 Bushing, Bronze 9036-145-002 2
*Spacer, Shaft 9538-164-001 1
*LockWasher - IntTooth, 1” 8641-582-015 1
*Washer -Flat 8641-581-035 1
*Nut-Hex, 1” -14 8640-222-000 1
11 Spring, Tension 9534-319-002 1
12 Chain, Tension 9099-012-002 1
13 Hook, Tension 9248-022-002 1
14 Housing-Assy, Damper 9803-184-002 1
*Damper 9125-003-001 1
*Pin, Hinge Damper 9451-146-004 2
*Nut, Spring 8520-141-000 4
15 Switch Assembly, Air Flow 9801-060-001 1
16 Switch, Air Flow 9539-461-009 1
17 Bracket, Switch-Air Flow 9029-044-001 1
18 Acuator, Switch 9008-007-001 1
* Pin, Cotter 9451-169-002 1
* Screw 9545-020-001 2
* Nut, Special Twin 8640-401-001 1
* Shield, Switch 9550-169-003 1
19 Bracket, Actuator Stop 9029-046-001 1
* Screw 9545-008-024 4
7
8
18 11
12
13
15
16
17
19
7
8
Part#8533-086-001 2/15

15
Key Description Part Number Qty
1Control Assembly-Ignition, Compleate (2-9 included) 9857-128-021 1
2Box- Ignition Control 9807-109-001 1
3Control, Ignition 9857-128-024 1
4Terminal Block-Power 9897-026-003 1
5Transformer 120/24VAC 8711-011-001 1
*Wire Assy-Red, 9” 8220-001-225 1
6Wire Assy- Hi Voltage 9631-403-009 1
7Fuse Holder 9200-001-002 1
*Fuse, 1.5 Amp 8636-018-001 1
*Insulation, Electrical Box (back) 9277-041-013 1
8Relay 5192-288-002 1
Electrical Box / Ignition Control
1
2
3
4
5
6
7
9
8
Part#8533-086-001 2/15

16
Electrical Box / Ignition Control After
Part#8533-086-001 2/15

17
Coin Handling Group
Key Description Part Number Qty
Harness, Main 9627-782-001 1
*Harness, Coin Switch 9627-783-001 1
*Harness, Low Voltage 9627-678-001 1
*Transformer, 120V/24V 8711-011-001 1
*Terminal Block 9897-026-001 1
*Hi Voltage Leed 9631-403-002 1
*Diagram, Wiring 9345-898-001 1
*Schematic, Wiring 9345-897-001 1
9Accecptor, Micro Switch 9021-009-001 1
9Switch, Coin 9539-466-005 1
*Accecptor Chute Assy w/o penny rejector 9119-025-002 1
8(optional) Accecptor Chute Assy w/ penny rejector 9119-025-001 1
*Retainer, Coin Accecptor 9486-145-001 1
*Screw, Torx 9545-053-002 4
*Screw-Height Bar, 3mm 9545-039-002 2
Part#8533-086-001 2/15

18 Part#8533-086-001 2/15

19
Part#8533-086-001 2/15
Section 6:
Electric Heated
Dryer:
Wiring Diagram
and Parts Data

20
Wiring Schematic for Electric Dryer -79
5(7$,17+,6(/(&75,&$/6&+(0$7,&)256(59,&(
,03257$17
Part#8533-086-001 2/15
