Techno Trade L2D Quick start guide
L2D converter
IFSF protocol with LON interface
to DART protocol with RS-485 interface
TECHNICAL GUIDE
Review date: 1 December, 2021
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 2 from 22
CONTENT
PURPOSE OF THE DOCUMENT ..............................................................................................................................3
TECHNICAL FEATURES...........................................................................................................................................4
Appointment ................................................................................................................................................. 4
Technical characteristics................................................................................................................................ 5
Communication ............................................................................................................................................. 5
CONNECTIONS.......................................................................................................................................................6
Connectors overview..................................................................................................................................... 6
Connection diagram ...................................................................................................................................... 8
MECHANICAL DIMENTIONS ................................................................................................................................11
USER INTERFACE .................................................................................................................................................12
S1 and S2 buttons........................................................................................................................................ 12
Indication LEDs ............................................................................................................................................ 12
LEDs for X9 connector ................................................................................................................................. 12
Control keys................................................................................................................................................. 13
CONFIGURATION.................................................................................................................................................14
Menu description ........................................................................................................................................ 14
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 3 from 22
PURPOSE OF THE DOCUMENT
This Technical Guide is intended for studying of L2D converter. It contains basic information regarding its
appointment, technical characteristics, software features, set-up parameters and operation modes.
Information regarding connection to specific fuel dispensers and correspondent configuration of L2D
controller can be received upon request to Technotrade LLC company.
During the system development process given Technical Guide is also expanded and updated and new
chapters are added. Latest version of this Technical Guide can be downloaded from the L2D converter web-
page: https://www.technotrade.ua/ifsf-lon-dart-converter.html.
Technotrade LLC hereby permits reproduction of this document as may be required by any of the
customers or OEMs wishing to use it.
This document has been carefully prepared and is believed to be accurate. However, Technotrade LLC, its
employees and its agents do not assume responsibility for its use either directly or indirectly. Technotrade
LLC shall not be liable for technical or editorial errors or omissions which may appear in this document.
Technotrade LLC reserves a right to make changes to this document at any time without notice. Prospective
users of this document should contact Technotrade LLC at the time they wish to use L2D converter together
with their products to become aware of any updates that may apply.
In case if you find any mistakes, omissions in this document or have any suggestions on improvements to
this document, please feel free to e-mail them to our support mailbox: support@technotrade.ua. We will
be grateful to you for this valuable information.
All technical questions regarding the L2D converter are welcome to be asked on support mailbox:
support@technotrade.ua. Our support team will be glad to help you.
Also, you can call to us or visit us on:
Technotrade LLC
Ukraine, 04114 Kiev, Priorska str. 10, office 1
Tel: +38-044-502-46-55, +38-044-502-46-77
Web: www.technotrade.ua
Mail: mail@technotrade.ua
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 4 from 22
TECHNICAL FEATURES
Appointment

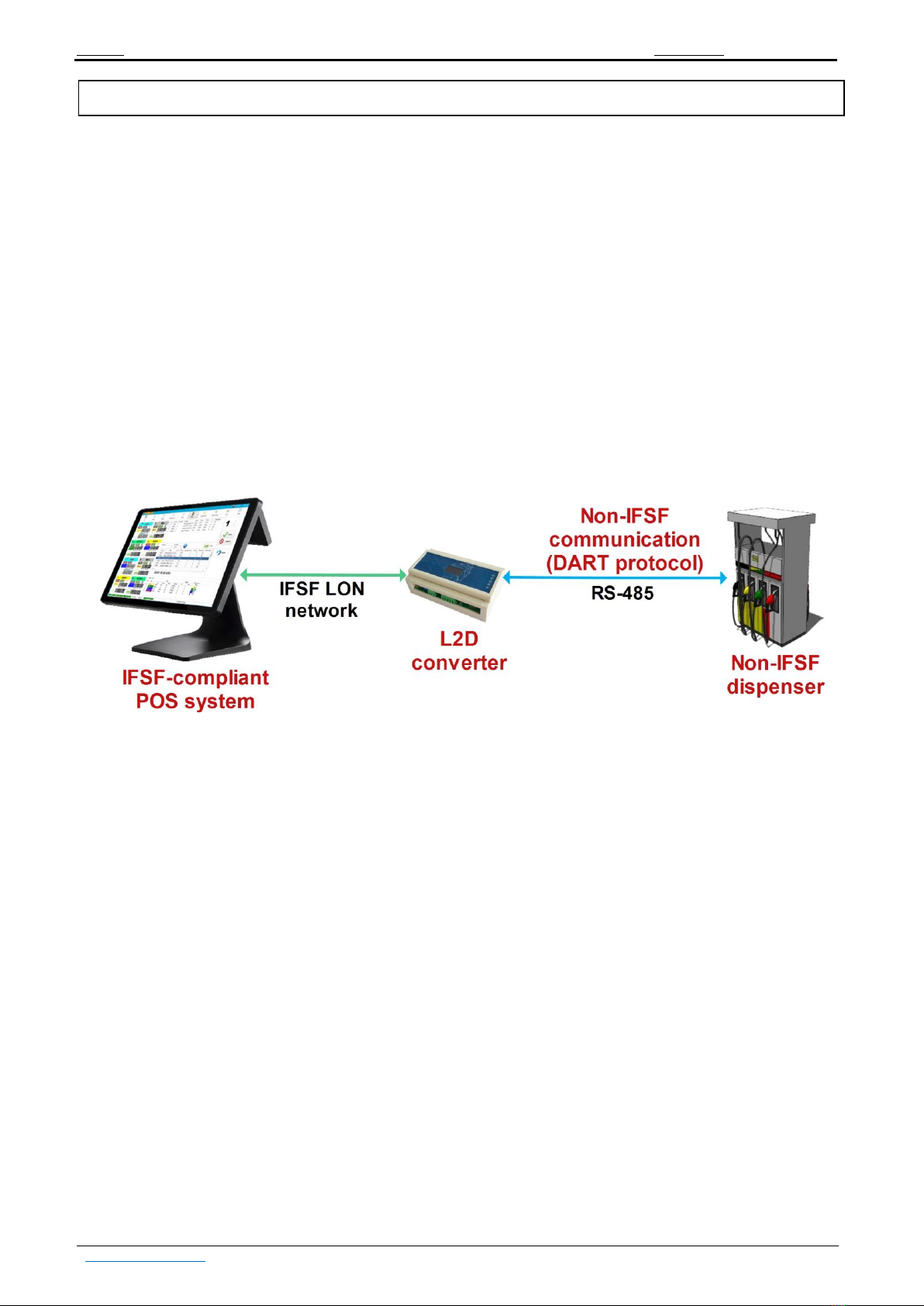

L2D converter converts from IFSF protocol with LON interface to any dispenser, which supports DART
protocol with RS-485 interface and backwards. It allows POS systems and forecourt controllers, which use
only IFSF-LON, to communicate with any dispenser using DART communication protocol. L2D device is
absolutely transparent in communication providing only conversion of the protocol and interface, so the
POS system thinks that it communicates with IFSF-LON dispenser, no changes from POS are needed.
L2D interface converter can be applied with any POS system able to work with IFSF protocol LON interface
for provision of control over dispensers.
L2D converter is an embedded device that successfully transforms IFSF-LON communication from POS into
DART protocol. It is designed to connect any type of IFSF-LON compatible POS to a non-IFSF dispenser.
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 5 from 22
Technical characteristics
##
PARAMETER
VALUE
1
Power supply voltage
100 V –270 V AC
2
Sealing
IP20
3
Material
ABS Plastic
4
Temperature range
from 0°C to +40°C
5
Weight
0.45 kg
6
Overall dimensions
160 x 95 x 55 mm
Communication
##
PARAMETER
VALUE
1
Input protocol for connection to POS
IFSF
2
Interface for POS connection
LON
3
Output protocol for dispensers
DART
4
Interface for dispenser connection
RS-485
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 7 from 22
Connector X15
X15 is the connector where the main power is connected to L2D.
CONNECTOR
DESCRIPTION
E
Earth
N
Neutral
L
Line
CAUTION! High voltage is supplied to the device. A potential of shock hazard exists. Always connect and
disconnect the power terminals only when the main power supply is turned off!
Connector X8
X8 is the connector for RS-485 interfaces of the dispenser using DART protocol.
PINS
DESCRIPTION
1
Line A in RS-485 interface
2
Line B in RS-485 interface
3
Common for connection to cable shield or foil
4
-
5
-
Connector X9
LON interface connector for connection to LON network of POS. As the LON interface is two-wire
differential there is no polarity of the terminals.
PINS
DESCRIPTION
1
Earth
2
Line A
3
Line B
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 8 from 22

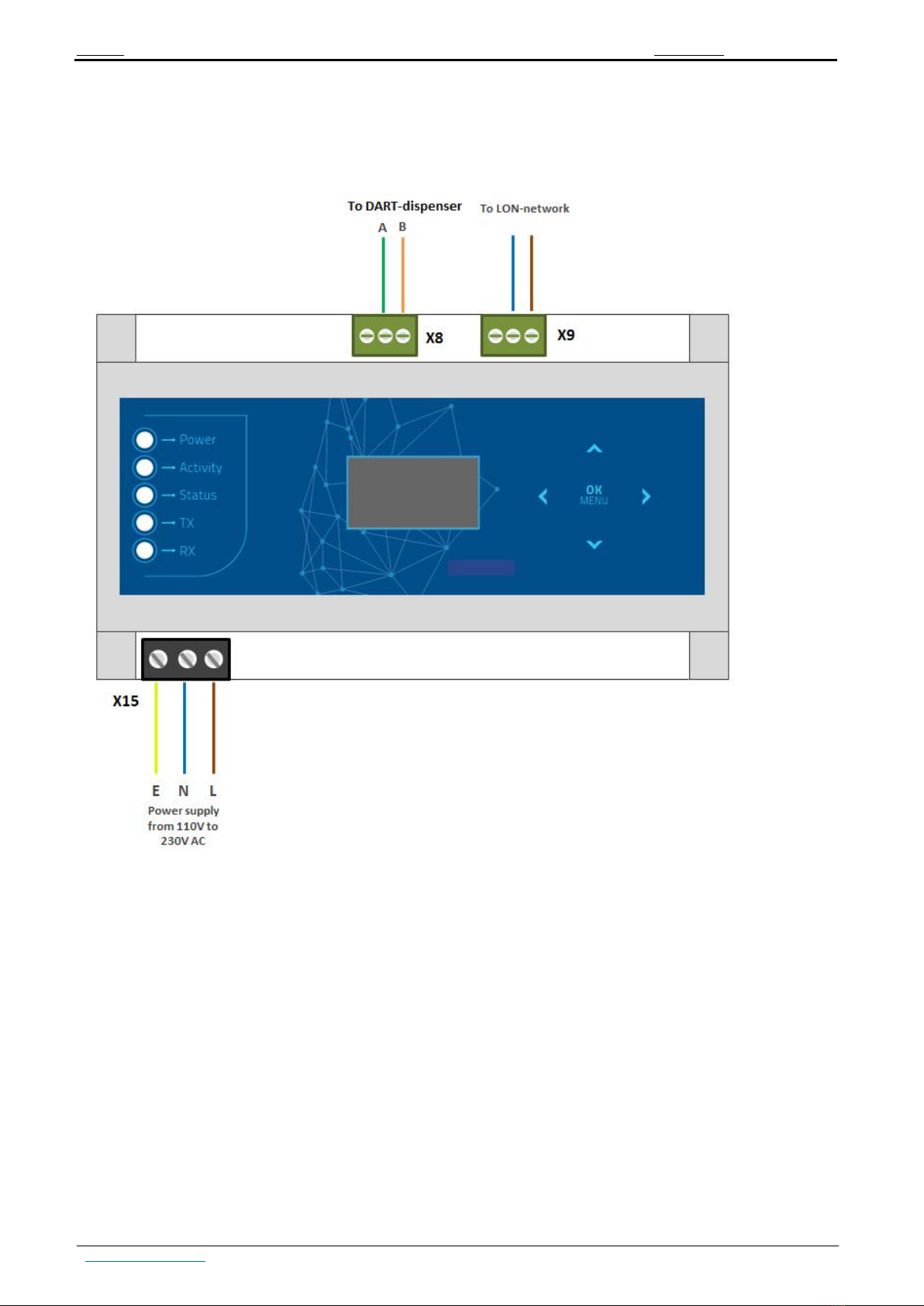

Connection diagram
The below diagram describes graphically the way of connecting L2D for bridging the DART dispenser with
the IFSF-LON network where the POS systems(s) and the other fuel dispensers are.
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 12 from 22
USER INTERFACE
S1 and S2 buttons
Buttons S1 and S2 are used to set the L2D converter in preliminary defined state according to IFSF-LON
specification. By pressing and keeping both of these buttons pressed in power-off state at powering on the
device all of the configuration parameters are reset to their default values.
Indication LEDs
LED NAME
FUNCTION
ON CONDITION
OFF CONDITION
COLOR
POWER
Indicates when the
main power is applied
Main power
presence
Main power
is off
Orange
Activity
Indicates proper
activity
Blinking with 1
second interval
Green
Status
Indicates system error
Green color for OK
Red color for error
TX
Indicates transmitting
over RS-485 interface
Green
RX
Indicates reception
over RS-485 interface
Red
LEDs for X9 connector
LED NAME
FUNCTION
ON CONDITION
OFF CONDITION
COLOR
H6 - LON RST
LON Reset state
Reset is applied
Reset is released
Red
H7 - LON SVC
Service message
Service message is
ongoing
Green
H8
LON Rx
Red
H9
LON Tx
Green
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 13 from 22

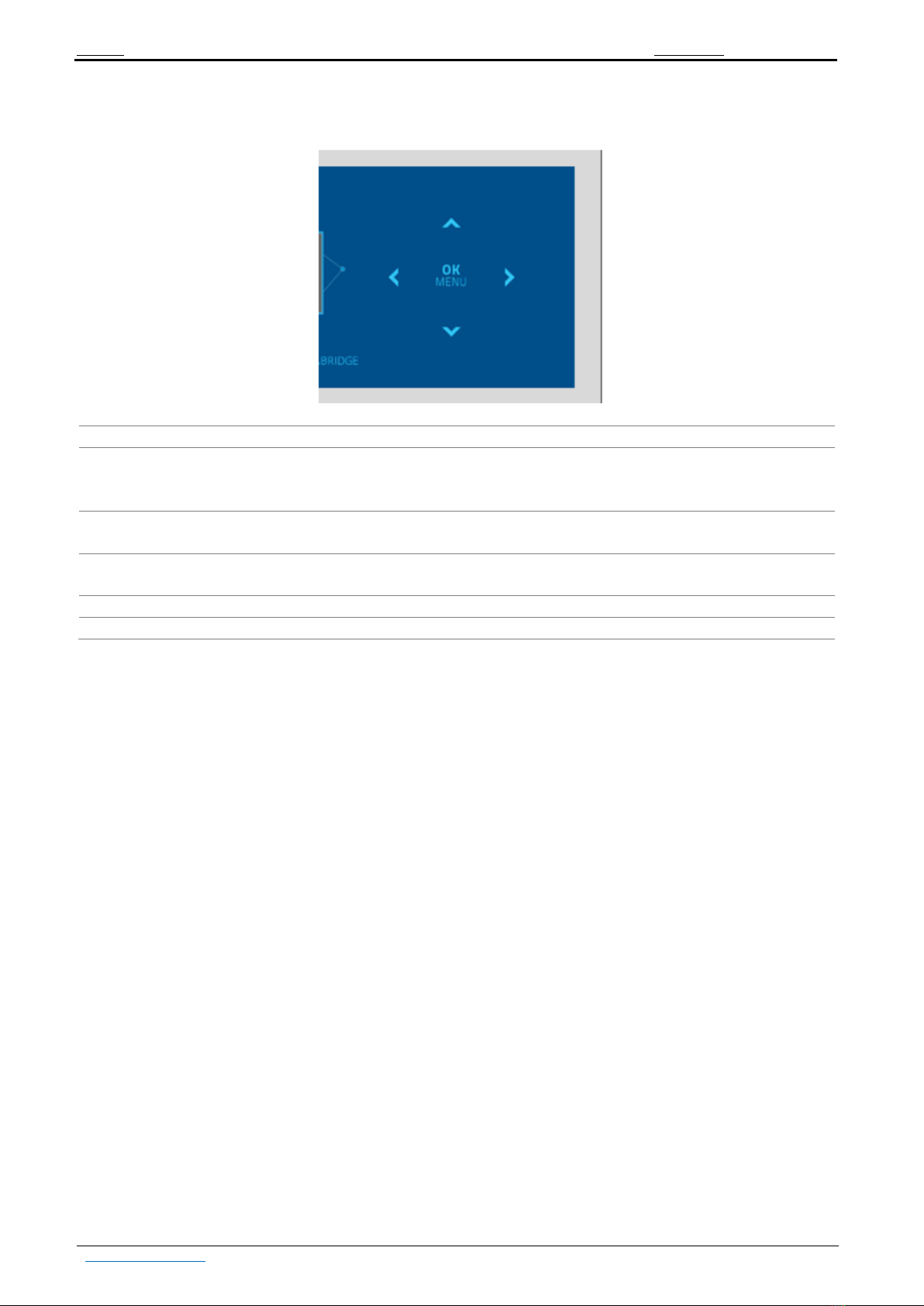

Control keys
NAME
FUNCTION
OK / MENU
When L2D converter is in the main screen pressing on this key leads to
entering the menu. When modifying a parameter from the settings
pressing this key confirms the changes.
UP
Navigates through menus or parameters up increasing the value of the
parameter with 1
DOWN
Navigates through menus or parameters down decreasing the value of
the parameter with 1
LEFT
Goes back from sub-menu. Confirms a parameter change.
RIGHT
Go to a sub-menu. Select a parameter to be modified.
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 14 from 22
CONFIGURATION
Menu description
Main screen
Fields description:
1. The number of filling points (FPs) configured to be active (from 1 to 4);
2. Status of each FP –‘X’ – disconnected, ‘R’ – ready (online), etc.
3. LON POS status –describes whether the POS over IFSF-LON is online or offline.
4. LON PUMP Status –describes what pump status is sent by L2D over the IFSF-LON network;
5. LON-line events –shows all related events (like heartbeats) over the IFSF-LON network;
Main menu
Pressing the OK/MENU key on the front panel causes the device to show the first level of the main-menu
options:
##
SUB-MENU
DESCRIPTION
1
SETTINGS
Includes all device settings in set of sub-menus
2
DEVICE INFO
Current software revision of L2D converter
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 15 from 22

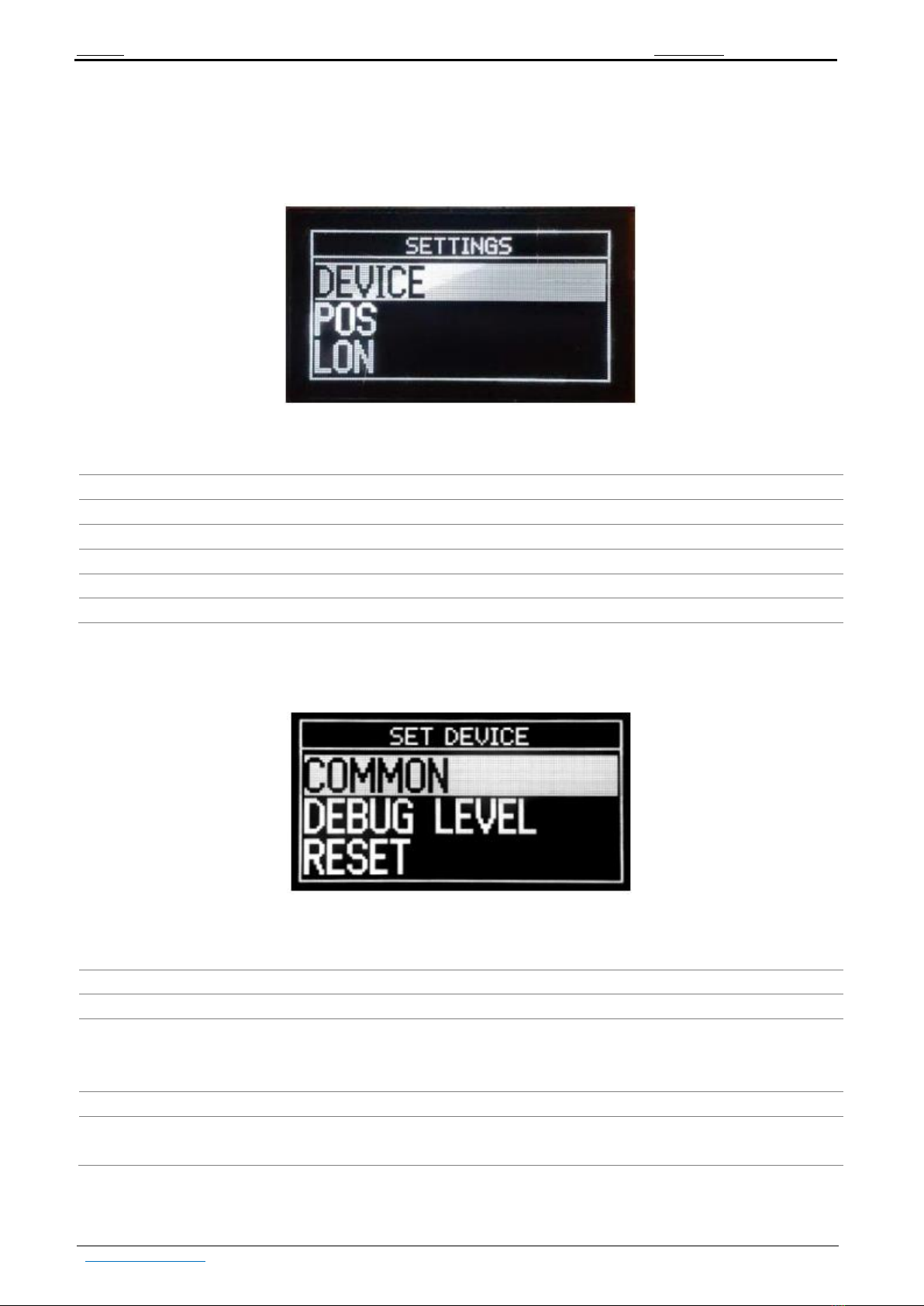

SETTINGS
SETTINGS menu is accessed by pressing the OK/MENU key while in main-menu level and the cursor is on
“SETTINGS” row (you see it inversed).
This menu contains the following sub-menus:
##
SUB-MENU
DESCRIPTION
1
DEVICE
Set device parameters
2
POS
Set POS-side parameters
3
LON
Set LON-network parameters
4
IFSF
Set IFSF-protocol parameters
5
PUMP
Set PUMP specific parameters
SETTINGS > DEVICE
This menu contains the following sub-menus:
##
SUB-MENU
DESCRIPTION
REMARK
1
COMMON
Set device common features.
2
DEBUG LEVEL
Set POS and LON communication debug
levels.
These parameters only affects the
service logging. No impact on the
normal communication flow.
3
RESET
Performs software reset of L2D Bridge.
4
COLD START
Cold start will bring the device to factory
default setting
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 16 from 22
SETTINGS > DEVICE > COMMON
This menu allows adjustment of the following device-parameters:
##
PARAMETER
DESCRIPTION
OPTIONS
DEFAULT VALUE
1
LANGUAGE
Set the default menu language for the
device
ENG –English
SWH –Not
supported
ENG
2
LCD CONTRAST
Set LCD contrast.
1-9
8
3
LCD FADE EN
Enable fading the LCD-contrast after the
set time expired and no activity is
detected.
YES / NO
YES
4
LCD FADE TIME
Set the time in seconds after which the LCD
starts fading.
1 - 250
30
5
LCD BLACKOUT
EN
Enable turning-off the LCD after the set
time expired and no activity is detected.
It is strictly recommended to keep this
option enabled. The LCD screen may be
damaged (burned-in) if it stays always on
with a static image on it.
YES / NO
YES
6
LCD BLACKOUT
TIME
Set the time in seconds after which the LCD
turns OFF.
1 - 250
30
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 17 from 22

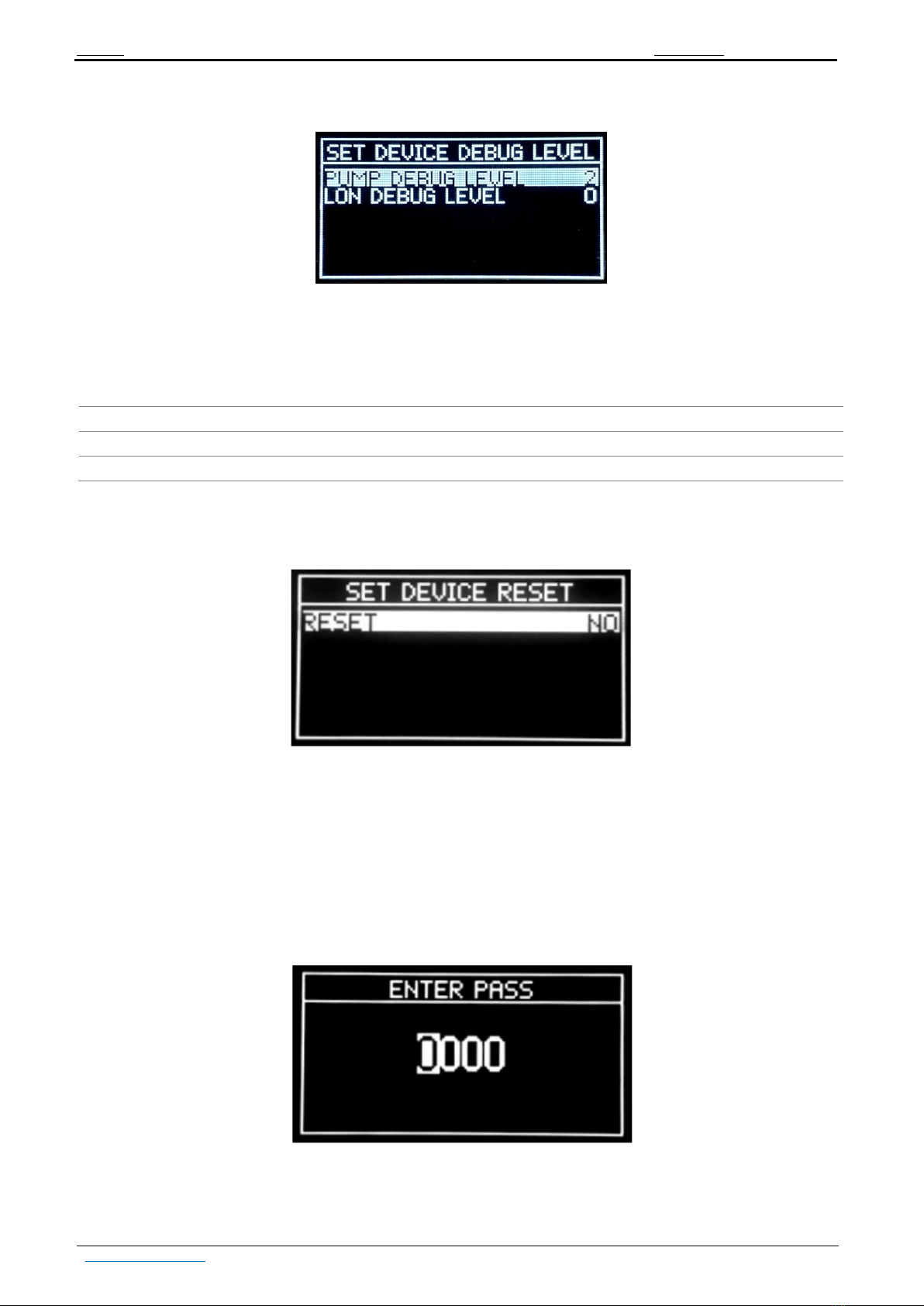

SETTINGS > DEVICE > DEBUG LEVEL
Adjust device debug levels. These parameters are used only for service purposes during logging and do not
affect the normal communication of L2D with the other devices. Below the parameters included in the
menu:
##
SUB-MENU
DESCRIPTION
REMARK
1
PUMP DEBUG LEVEL
Set pump debug level.
0-4
2
LON DEBUG LEVEL
Set LON debug level.
0-2
SETTINGS > DEVICE > RESET
Device reset. For activating the reset press OK and then by up/down keys select ‘YES’ and then push OK
button. The reset is executed when quitting this menu.
SETTINGS > DEVICE > COLD START
Perform a cold start on the device. A cold start will bring the device to factory default configuration. A 4
digits password is needed to enter to that option (default password is 2345).
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 18 from 22
After entering the password the screen and actions are similar to RESET menu. The Cold Start is executed
when quitting this menu:
SETTINGS > POS
SETTINGS > POS > DECIMALS
A 4 digits password is needed to enter to that option (default password is 2345).
After entering the proper password the following parameters are seen:
##
PARAMETER
DESCRIPTION
OPTIONS
DEFAULT VALUE
1
AMOUNT
DECIMALS
Set the amount number of digits after the
decimal point.
0-2
0
2
VOLUME
DECIMALS
Set the volume number of digits after the
decimal point.
0-3
2
3
PRICE
DECIMALS
Set the price number of digits after the
decimal point.
0-2
0
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 19 from 22
SETTINGS > LON
Adjust communication parameters with the POS system.
SETTINGS > LON > COMMON
Set the LON-network node address. It is important to make sure that the device is set with a unique address
in the connected LON-network. From POS-system prospective the L2D-bridge appears as dispenser and its
node-address.
##
PARAMETER
DESCRIPTION
OPTIONS
1
NODE ADDRESS
Set LON node address
1-127
SETTINGS > IFSF
##
SUB-MENU
DESCRIPTION
1
COMMON
Set the common IFSF parameters
2
FP
Set FP parameters
L2D CONVERTER TECHNICAL GUIDE
Revision: R01 Review date: 1 December, 2021
www.technotrade.ua page 20 from 22
SETTINGS > IFSF > COMMON
Specifies the pump parameters that are needed for the proper work of the IFSF-protocol and they (or some
of them) are not provided by the real dispenser over the protocol.
##
PARAMETER
DESCRIPTION
OPTIONS
DEFAULT VALUE
1
NB FP
Set the number of filling points in use.
0-4
4
2
NB PRODUCTS
Set the number of products in use.
0-4
4
3
COUNTRY CODE
Specifies the country code.
0000 - 9999
0255
SETTINGS > IFSF > FP
Specifies the FP (filling point) parameters that are needed for the proper work of the IFSF-protocol. This is
in case if some of these parameters are not provided by the real dispenser over the protocol.
##
SUB-MENU
DESCRIPTION
OPTIONS
DEFAULT VALUE
1
NB FP
Filling point number that the other
parameters are related
1-4
1 (use the keys to select)
2
NB LOGICAL
NOZZLE
Number of logical nozzles for that FP
1-4
4
3
NOZ
Nozzle number of that FP
1-4
1 (use the keys to select)
4
NB PROD
Product assigned to that nozzle
1-4
Same as nozzle number
Table of contents
Other Techno Trade Media Converter manuals
