Ace Plus EX-G065 User manual

EX-G065
Component to HD/SD-SDI Converter
User Manual
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
Page 1 of 7

Safety and Notice
The EX-G065Component to HD/SD-SDI Converter has been tested for conformance to safety
regulations and requirements, and has been certified for international use. However, like all electronic
equipments, EX-G065should be used with care. Please read and follow the safety instructions to
protect yourself from possible injury and to minimize the risk of damage to the unit.
zFollow all instructions and warnings marked on this unit.
zDo not attempt to service this unit yourself, except where explained in this manual.
zProvide proper ventilation and air circulation and do not use near water.
zKeep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
zUse only the power adapter and power cords and connection cables designed for this unit.
zDo not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
Page 2of 7

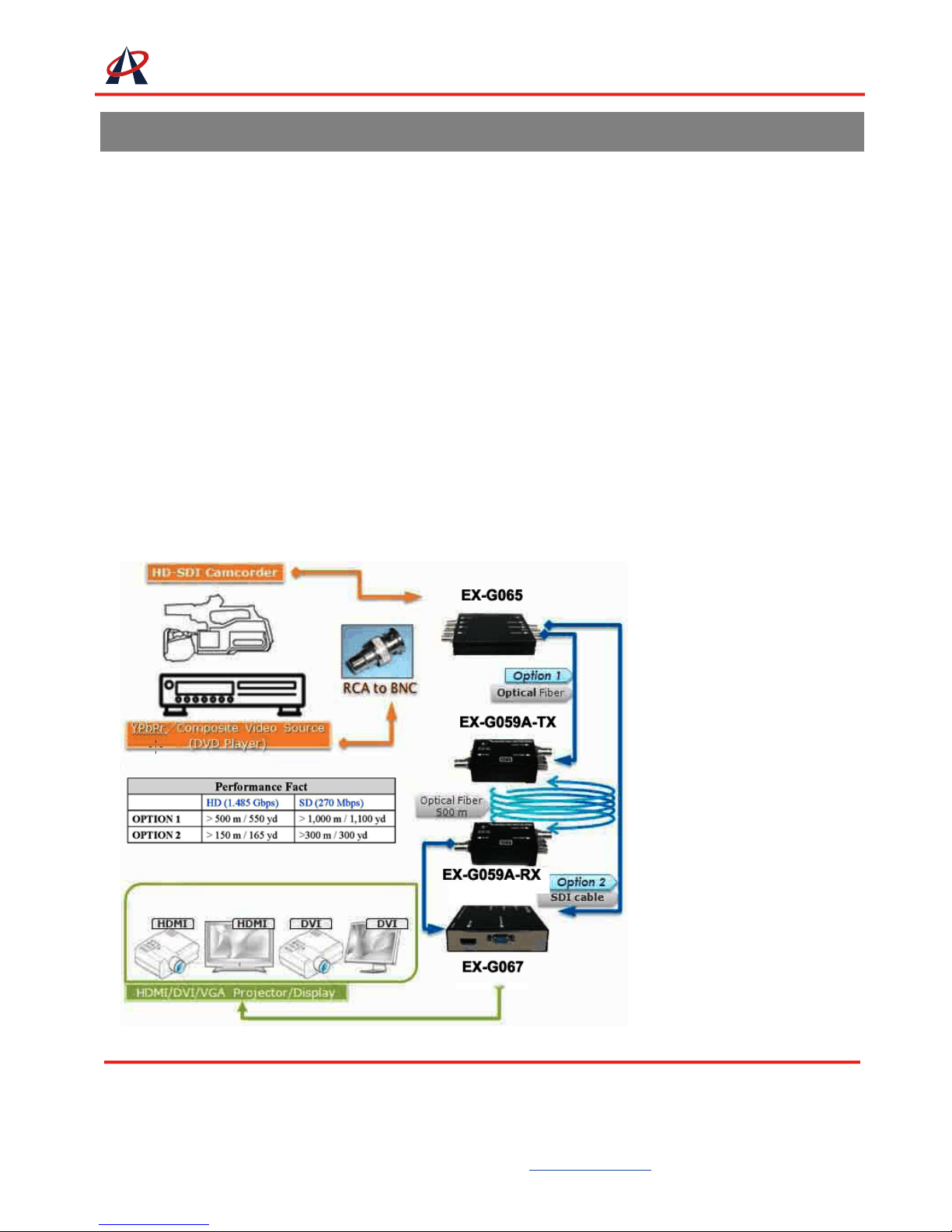

Introduction
The EX-G065provides high quality 12-bit conversion between analog component and composite
inputs and SDI video digital output. The EX-G065supports both SD-SDI and HD-SDI formats (SMPTE
259M, SMPTE 292M, and SMPTE 296M), and also features 3 SMPTE compliant HD/SD-SDI outputs.
Features
zSupported HD formats: 1080i @50/59.94/60Hz; 1035i @50/59.94/60Hz; 720p@50/59.94/60Hz;
1080p@24/30Hz
zSupported SD formats: NTSC @59.94Hz; PAL @50Hz
zExcellent quality 12-bit A/D conversion
zThree HD/SD-SDI outputs
zAuto HD/SD-SDI detection
zEquipped with two extra equalized loop-outs
zEasy installation
zExternal DIP switch configuration
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
Page 3of 7

Specifications & Package Contents
Model Name EX-G065
Technical
SDI standards SD-SDI & HD-SDI
Auto HD/SD-SDI
detection Yes
Video bandwidth [1.485Gpbs & 1.485/1.001Gbps]
Video support
[HD] 720p50/59.94/60, 1035i50/59.94/60, 1080i50/59.94/60,
1080p24/30
[SD] [email protected], PAL@50Hz
Input signal Component video
Output signal [SD-SDI] SMPTE 259M
[HD-SDI] SMPTE 292M, 296M
Output impedance 75Ω
Analog/digital
conversion 12 bits
Synchronization mode Internal synchronization or external synchronization
Cable transmission [HD-SDI] greater than 125m (410ft)
[SD-SDI] up to 300m (1000ft)
Loop-out None
Audio support No audio
PCB stack-up 6-layer board [impedance control — differential 100Ω; single 50Ω]
Input 3x BNC [component Y / Pb / Pr]
1x BNC [external sync.]
Output 3x BNC [SDI]
BNC connector 75Ωinter-locked socket
DIP switch 8-pin – [SW1] Color space mode / [SW2] Sync mode / [SW3&4] Input
format
Mechanical
Housing Metal case
Model 160 x 110 x 25mm [6.3”x4.3”x1”]
Package 270 x 175 x 80mm [10.6”x6.9”x3.2”]
Dimensions
(L x W x H) Carton 450 x 370 x 300mm [1’5.7”x1’2.6”x11.8”]
Model 476g [1.0 lbs]
Weight Package 994g [2.2 lbs]
Fixedness Inter-locked power supply
Power supply 5V 4A DC
Power consumption 10 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
Package Contents 1x EX-G065
1x 5V power adapter
1x User Manual
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
Page 4of 7

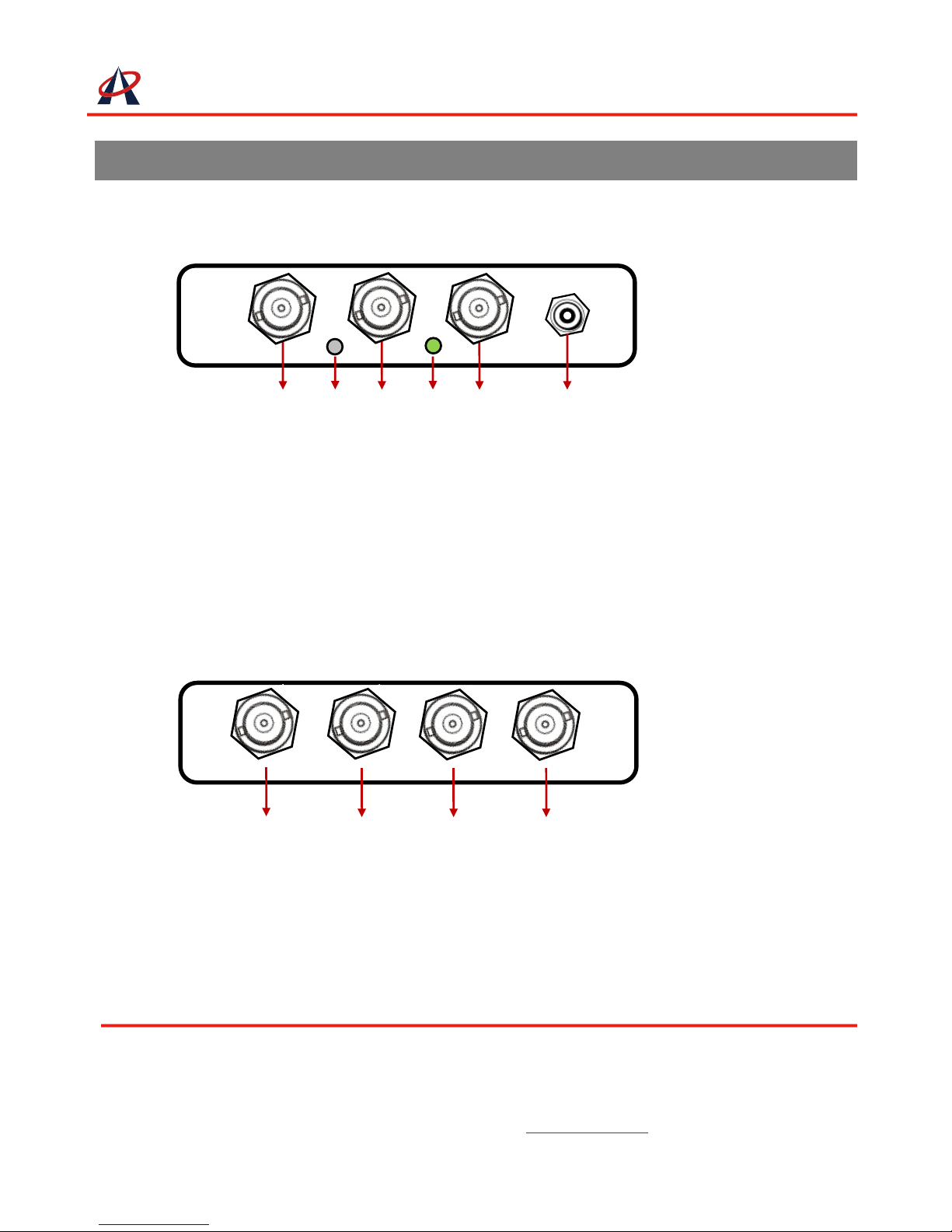

Panel Descriptions
Front Panel
6
1234
5
1. HD/SD-SDI output 1 4. Power indicator LED
2. HD/SD LED (HD: Green / SD: Orange) 5. HD/SD-SDI output 3
3. HD/SD-SDI output 2 6. 5V Power
Rear Panel
10
9
87
7. External synchronization
8. Y of component video
9. Pb of component video
10. Pr of component video
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
Page 5 of 7

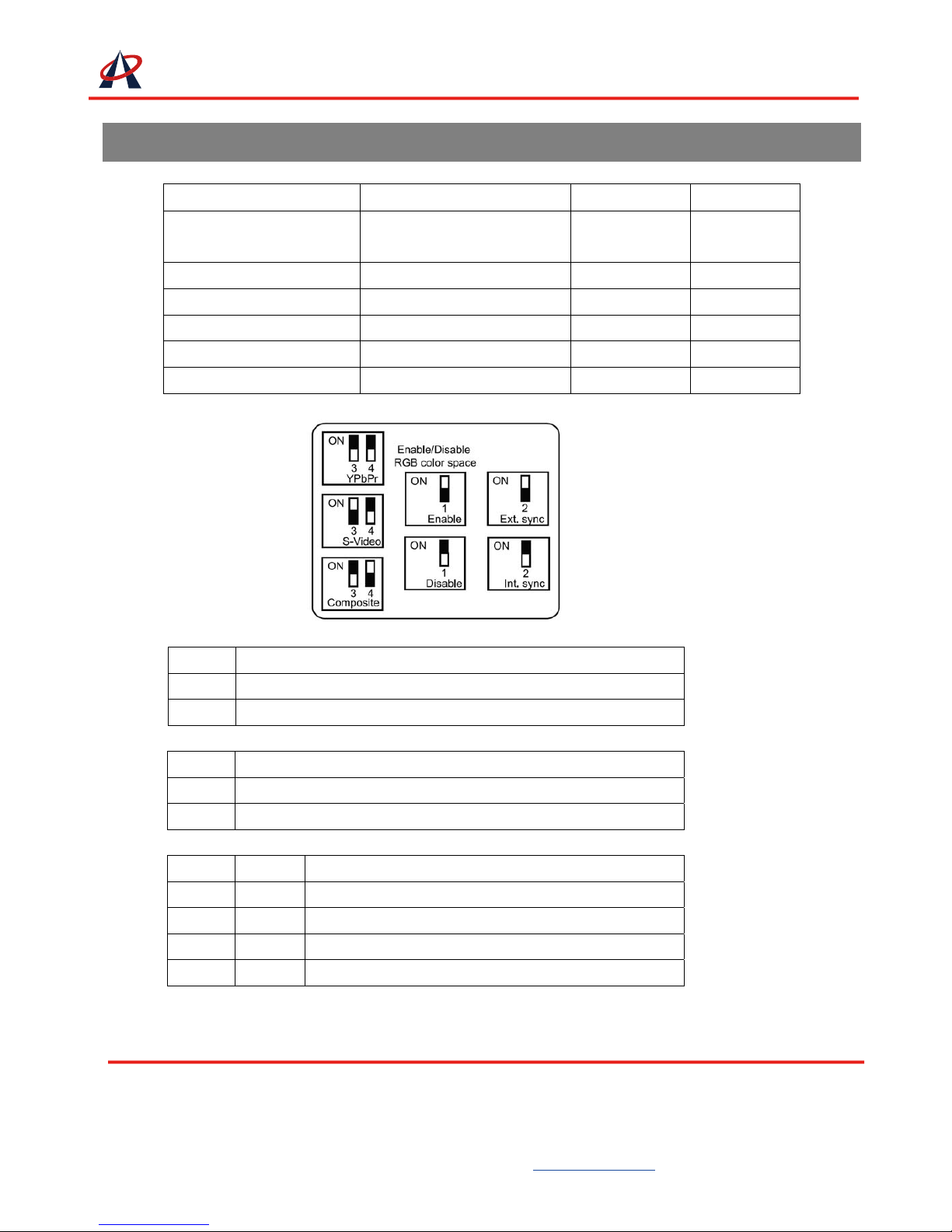

Supported Resolutions
HD INPUT Component
Composite*
720p @60/59.94/50Hz SMPTE 296M -1, -2,
RP-133
5
1035i @60/59.94/50Hz SMPTE RP-133 5
1080i @60/59.94/50Hz SMPTE RP27.1, RP-133 5
SD INPUT
NTSC SMPTE 259M 5
PAL SMPTE 259M 5
DIP Switch
SW1 Color Space Mode
On YPbPr Color Space (Default)
Off RGB Color Space
SW2 Sync Mode
On Internal Sync (Default)
Off External Sync
SW3 SW4 Input Format
On On Component (Default)
On Off Composite*
Off On S-Video*
Off Off Reserved
*Not recommended for this model, for reference only
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
Page 6of 7

Limited Warranty
The SELLER warrants the EX-G065Component to HD/SD-SDI Converter to be free from
defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an
authorized dealer. Should this product fail to be in good working order within 1 year warranty period,
The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to
accident, disaster, abuse or any unauthorized modifications including static discharge and power
surges.
Unit that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of
reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or
assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a
return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations,
any other implied warranty or fitness or merchantability for any particular purpose, all of which are
expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables are limited to a 30 day warranty and
cable must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual.
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages
resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
Also, the technical information contained herein regarding the EX-G065features and specifications is
subject to change without further notice.
