TECHWOOD TRIC-1440 User manual


2 IN 1 “RAP’ TOUT” &
ICE DESSERT MACHINE
INSTRUCTION MANUAL
1

IMPORTANT SAFEGUARDS
❑Please read these instructions carefully before use.
❑Keep present instructions for future references.
❑Check that your mains voltage corresponds to that stated on
the appliance.
❑Only use the appliance for domestic purposes and household
or similar applications such as :
-staff kitchen areas, in shops, offices and other working
environments ;
-by clients in hotels, motels and other residential type
environments ;
- Environment type like :
• Farm Houses • Bed and Breakfast.
❑Only use the appliance in the way indicated in these
instructions.
❑Never use this unit near bathtub, shower, wash-hand
basins or other containers with water.
❑Never use this apparatus near water projections.
❑Never use this apparatus with the wet hands.
❑If, unfortunately the apparatus is wet, immediately withdraw the
cord of the socket-outlet.
❑Inform potential users of these instructions.
❑Never leave the appliance unsupervised when in use.
❑The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage caused by
incorrect use or improper handling.
❑Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
❑This appliance shall not be used by children.
❑Keep the appliance and its cord out of reach of children.
2

❑Appliances can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and if they
understand the hazards involved.
❑Children shall not play with the appliance.
❑In order to ensure your children‘s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
❑Caution ! Do not allow small children to play with the foil :
THERE IS A DANGER OF SUFFOCATION !
❑From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
❑Never immerse the appliance in water or any other liquid for
any reason whatsoever.
❑Never place it into the dishwasher.
❑Never use the appliance near hot surfaces.
❑If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly Competent qualified
person(*) in order to avoid a hazard.
❑Disconnect the power source cable before any operation of
cleaning of maintenance and accessories assembly.
❑Never use the appliance outside and always place it in a dry
environment.
❑Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and risk
to damage the appliance.
❑Never use any other connector than the one provided.
❑Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
❑Never wind the cord around the appliance and do not bend it
3

❑Ensure that the power cord does not come into contact with hot
parts of this unit.
❑Make sure the appliance has cooled down before cleaning and
storing it.
❑The temperature of accessible surfaces may be very high when
the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.
❑Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc...& the power
cord and plug do not come in contact with water.
❑Before cleaning, always unplug the appliance from the power
supply and let it cool down.
❑This appliance is not intended to be operated by means of an
external timer or separate remote-control system.
❑Always place the unit on a flat surface. Ensure, also, not to
cover the device and not to put anything on it.
❑Always remove the plug from the wall socket when the
appliance is not in use.
❑When using an extension lead always make sure that the entire
cable is unwound from the reel. Use solely CE approved
extension leads. Input power must be at least 16A, 250V,
3000W.
❑Incorrect operation and improper use can damage the appliance
and cause injury to the user.
❑This device, designed for home use, complies with standards
relating to this type of product.
❑The item is not to be used, if it has been dropped or if there are
visible signs of damage or if it is leaking.
❑Regarding the instructions for cleaning, thanks to refer to the
below paragraph of the manual.
❑This appliance is only intended for household use.
4

❑Avoid spillage on the connector.
❑Potential injury from misuse
❑The heating element surface is subject to residual heat after
use.
(*) Competent qualified person : after sales department of the
producer or importer or any person who is qualified, approved and
competent to perform this kind of repairs.
GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation to
read important things contained in the record.
The symbol "BIN" crossed out, abbreviation WEEE
(Waste of Electrical and Electronic Equipment) means
that at the end of life, it should not be discarded with
household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.
The symbol "CE" is the guarantee of compliance with
harmonized European standards, voluntary, reflecting
the essential requirements into technical specifications.
These standards are not mandatory but are guarantees
of compliance with essential requirements.
The symbol ROHS (Restriction of use of some Hazardous
Substances) on the Environmental Protection, certifies
that for each of the five hazardous substances • Lead •
Mercury • (hexavalent) chromium • products for
protection against flames PBB and PBDE, the peak
5

concentration is equal to or less than 0.1% of the weight
of homogeneous material, and 0.01% for the 6th •
cadmium.
The symbol "DOUBLE SQUARE" means a double
insulated. A basic insulation and supplementary
insulation. This device requires no connection to the
mass of a protective conductor grounded. The
materials are said : double insulation class II.
The symbol "TUB / SHOWER" crossed out means to
never use the unit in a bathroom, a shower in or near
water spray. (IP20 Minimum distance 3M.)
The symbol "GLASS / FORK" means that the device is
compatible and can come into contact with foodstuffs.
The symbol "TRIMAN" indicates that the consumer is
invited to dispose the product as part of a separate
collection (eg recycling bin, waste, voluntary intake
point).
For more information : http://www.quefairedemesdechets.fr
SPECIAL WARNING FOR CHOPPER
Caution !
6

• Always disconnect from power supply if it is left unattended and
before assembling, disassembling or during cleaning.
• Switch off the appliance and disconnect from supply before
changing accessories approaching parts that move in use.
• Potential injuries can occur with misuse. Care shall be taken
when handling the sharp cutting blades, emptying the bowl and
during cleaning, as they are extremely sharp.
• Regarding the instructions for cleaning surfaces in contact with
food or oil, thanks to refer to the below paragraph
" CLEANING AND MAINTENANCE " in manual.
• Regarding the instructions for the use of accessories, operation
times and speed settings, refer to the below paragraphs.
• Potential injuries can occur with misuse. Care shall be taken
when handling the sharp cutting blades, emptying the bowl and
during cleaning, as they are extremely sharp.
•the device shall not be not used continuously more than 10
minutes and shall rest at least for 20 minutes.
BEFORE THE FIRST USE
• Remove the appliance and all accessories gently, paying attention to sharp
accessories.
• Clean all accessories and bowls with soapy water and wipe them thoroughly.
• Clean the exterior of the appliance with a damp sponge or cloth and wipe it.
Unwind the power cord completely.
• Check that the voltage in the country where you are, corresponds to the voltage
indicated on the device.
• Plug the unit into a good electrical outlet, (earthed if the device is class I), to avoid
danger.
• Disconnect the power cable from the power supply before performing any
maintenance cleaning and accessory fitting.
• Always place the appliance on a table or horizontal flat surface.
• Never modify the device.
• The device should not be left unattended when connected to the main power
supply.
7

• The appliance must not be used if it has dropped and shows visible signs of
damage or leakage.
KNOWING ITS UNIT

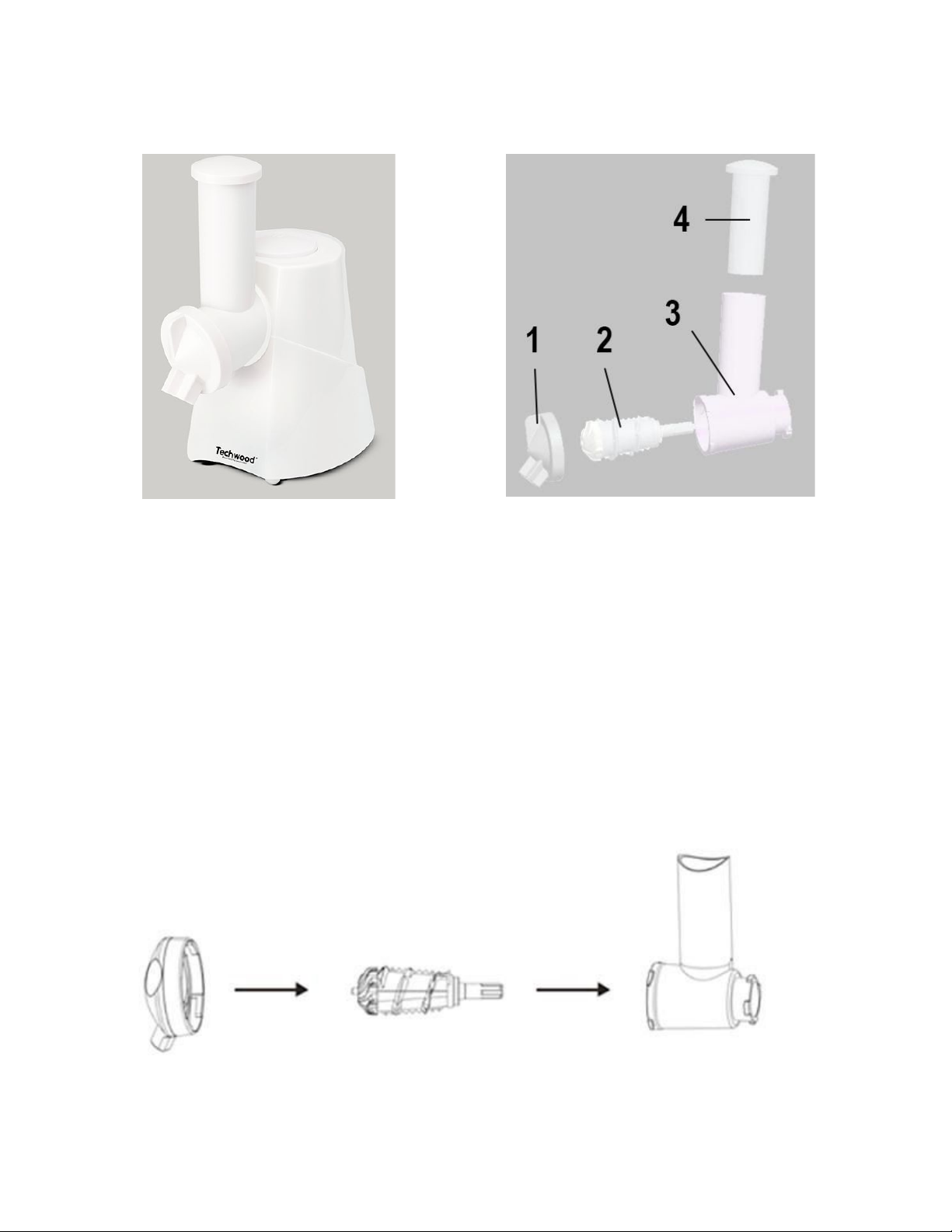

RAPTOUT
1. Cone clamping screw when in place
2. Cutting cone (slicer)
3. Chimney for entrance of vegetables
4. Pusher
5. On / off push button
6. Base + Engine
7. 8. 9. 10. Different types of cones
ACCESSORIES
Blue cone : to cut thin slices.
Red cone : to cut thick slices.
Green cone : fine grater.
Yellow cone : grater with big holes.
These 2 accessories are suitable for grating, carrots, zucchini, potatoes, peppers,
hard cheese (parmesan) or chocolate to cook.
Purple cone : to grind the ingredients
This accessory is suitable, for example, for grinding dried fruits such as hazelnuts,
walnuts, almonds or coconut. (without the shells !!!)
It can also grind hard cheese (parmesan), chocolate or other hard and dry
ingredients.
8

INSTALLING THE CONE HOLDER
Or
THE ICE DESSERT MACHINE
1. Hold the cone holder inclined at 1/4 turned to the right and insert it into the
motor base (on the front).
2. Turn the cone holder 1/4 turn to the left until it clicks.
3. Insert the chosen cone into the cone-holder
4. Screw in the clamping screw inside and in the centre of the cone.
Note: To remove the cone and the cone holder perform the reverse operation.
CONE INSTALLATION
1. Ensure that the cone holder is in place and secured.
2. Select the cone suitable for intended use.
3. Unscrew and remove the screw cone of the axis. (if necessary)
9

4. Insert the cone in the cone holder by checking the position of the axis.
5. Screw the Cone clamping screw (to the left), to secure the cone.
Note : the cone should not be free on its axis if properly installed.
6. After use, to remove the cone and the cone holder perform the reverse
operation.
USE OF “RAPTOUT” MACHINE
1. Place the unit on a flat level, slip if possible.
2. Connect the equipment into an outlet properly installed.
3. Place a bowl under the opening of the cone holder to recover the shredded food.
Note : Press the “On” switch briefly once or twice before placing food in the feed
tube. This will ensure that the cone is properly attached to the drive shaft of the
motor.
4. Hold down the "On" pusher and introduce the food to be grated or sliced into the
tube.
Note: When releasing the button, the unit will stop automatically.
5. Use the pusher (if necessary) to push food inside the tube.
At the end of the use,
1. Release the Start / Stop button to stop the unit.
2. Remove the electric plug from the outlet.
3. Remove the cone as described above.
4. Clean the device and accessories after each use, as described below.
Tip: Wash removable parts immediately under the tap, because once dry, fruit pulp
or leftover vegetable can be removed with more difficulty.
ACCESSORY TO MAKE ICE DESSERTS
1. Spout and system lid
2. Grinding auger
10
