Tecnare Sound Systems IBZA Series User manual

Keep these important operating instructions.
Check www.tecnare.com for updates.
Operation Manual
Full-Range Compact Multipurpose Loudspeaker
IBZA6
IBZA Series
Version 2.5

Operation Manual
IBZA Series | rev.
2.50 2
General Information
IBZA6 Operation Manual
Ver.: 2.5_UK 11/2016
©EXEL ACOUSTICS SL; all right reserved
The information contained in this manual has been
carefully checked for accuracy, at the time of going to
press, however no guarantee is given with respect to
the correctness.
Exel Acoustics SL accepts no responsibility for any
errors or inaccuracies that may appear in this manual
or the products and software described in it. Technical
specifications, dimensions, weights and properties do
not represent guaranteed qualities. As manufacturers
we reserve the right to make alterations and
modifications within the framework of legal provisions,
as well as changes aimed at improving quality.
EXEL ACOUSTICS SL
CL Encinar, 282 – Pol. Ind. Monte Boyal
45950 Casarrubios del Monte (Toledo) Spain
Phone: [phone] Fax:
e-mail: [e-mail] www.tecnare.com

Operation Manual
3IBZA Series | rev.
2.50
IMPORTANT SAFE INSTRUCTIONS
Before using our product, be sure to carefully read the manual and safe Instructions. Keep this document with the device all
time.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all SAFETY INSTRUCTIONS as well
DANGER and OBLIGATION warnings.
5 Only use attachments / accessories
specified by the manufacturer.
6 Use only with the cart, tripod, bracket or
table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart / apparatus
combination to avoid injury from tip-over.
7 If the equipment is used in a manner not
specified by the Exel Acoustic, the protection
by the equipment may be impaired.
8 Read the entire Product Information
document before exploiting the system.
9 Read the Rigging Manual before installing
the system. Use the rigging accessories
described in the rigging manual a follow the
associated procedures.
CAUTION: Rigging should only be done by experience
professionals.
10 This speaker enclosure is capable of
creating a strong magnetic field. Please use
caution around the enclosure with data
storage devices such as phones, computers
or hard drivers.
11 Handles are for moving the system only.
12 Beware of sound levels. Never stand in the
immediate vicinity of loudspeaker driven at
high level. Professional loudspeaker
systems are capable of causing a sound
pressure level (SPL) detrimental to human
health. Hearing damage can also occur with
prolonged exposure to sound: 8h at 90
dB(A), 30 min at 110 dB(A), less than 4 min
at 130 dB(A) Source: European Directive
relating to the assessment and management
of noise 2002/49/CE
13 When setting up the loudspeaker or
loudspeaker stand, make sure they are
standing on a firm surface. If you place
several enclosures on top of one another,
use straps to secure them against
movement.

Operation Manual
IBZA Series | rev.
2.50 4
DECLARACIÓN DE CONFORMIDAD
DECLARATION OF CONFORMITY
EXEL ACOUSTICS SL
CL Encinar, 282. Polígono Industrial Monte Boyal. 45950 – Casarrubios del Monte (Toledo),
España (Spain).
Declara que el producto IBZA6 y sus respectivas opciones, cumple con las Directivas:
Declare under our sole responsibility that devices in the IBZA6 range of products, comply with
relating Directives:
(1) Directiva de Baja Tensión - 2006/95/CE
(2) Directiva de Compatibilidad Electromagnética - 2004/108/CE
(3) Directiva RoHS - 2011/65/UE
(4) Directiva RAEE - 2012/19/UE
(1) Low Voltage Directive 2006/95/CE
(2) EMC 2004/108/CE
(3) RoHS Directive 2011/65/UE
(4) WEEE Directive 2012/19/UE

Table of Contents
5IBZA Series | rev.
2.00
Table of Contents
IMPORTANT SAFE INSTRUCTIONS......................................................................................... 3
DECLARACIÓN DE CONFORMIDAD ........................................................................................ 4
1Introduction ........................................................................................................................ 6
1.1 Welcome to Tecnare.................................................................................................... 6
1.2 IBZA Series .................................................................................................................. 7
1.3 The IBZA6 Compact Loudspeaker............................................................................... 8
1.4 Connections ................................................................................................................. 9
1.5 Processing and Amplification..................................................................................... 10
2Loudspeaker Configuration............................................................................................ 11

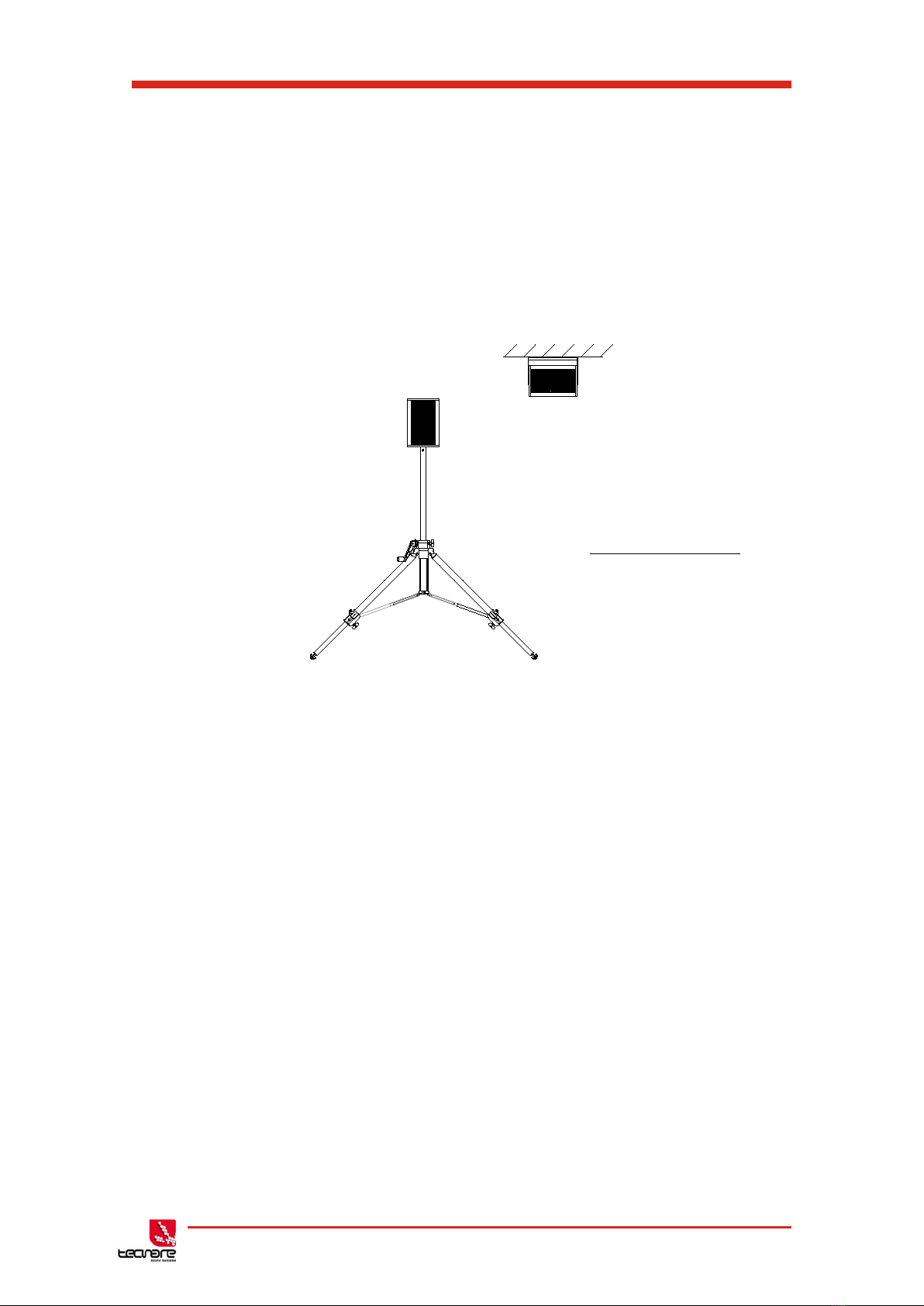

2.1 Point Source............................................................................................................... 11
2.2 Point Source with low-frequency element.................................................................. 11
3Configuration .................................................................................................................... 13

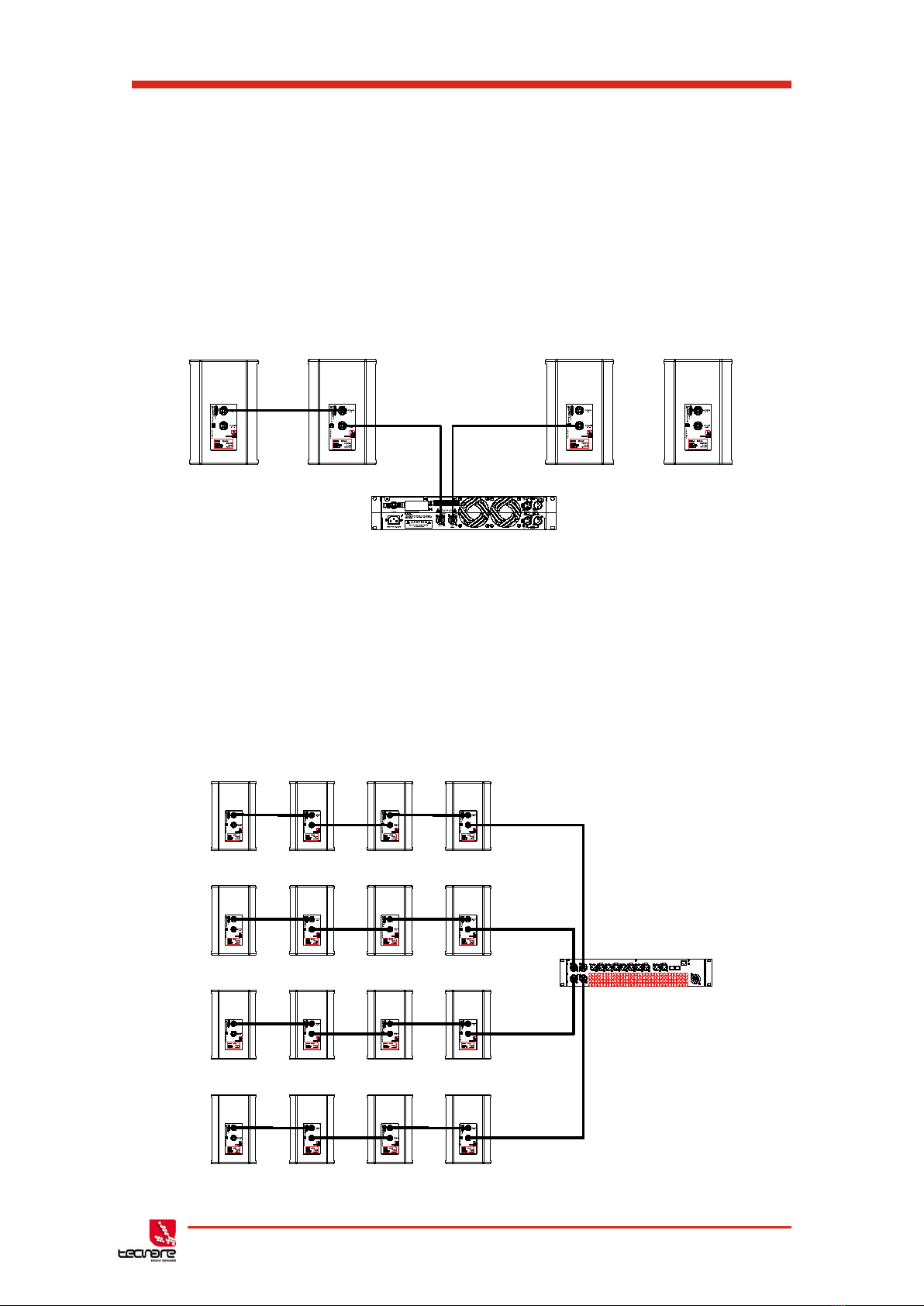

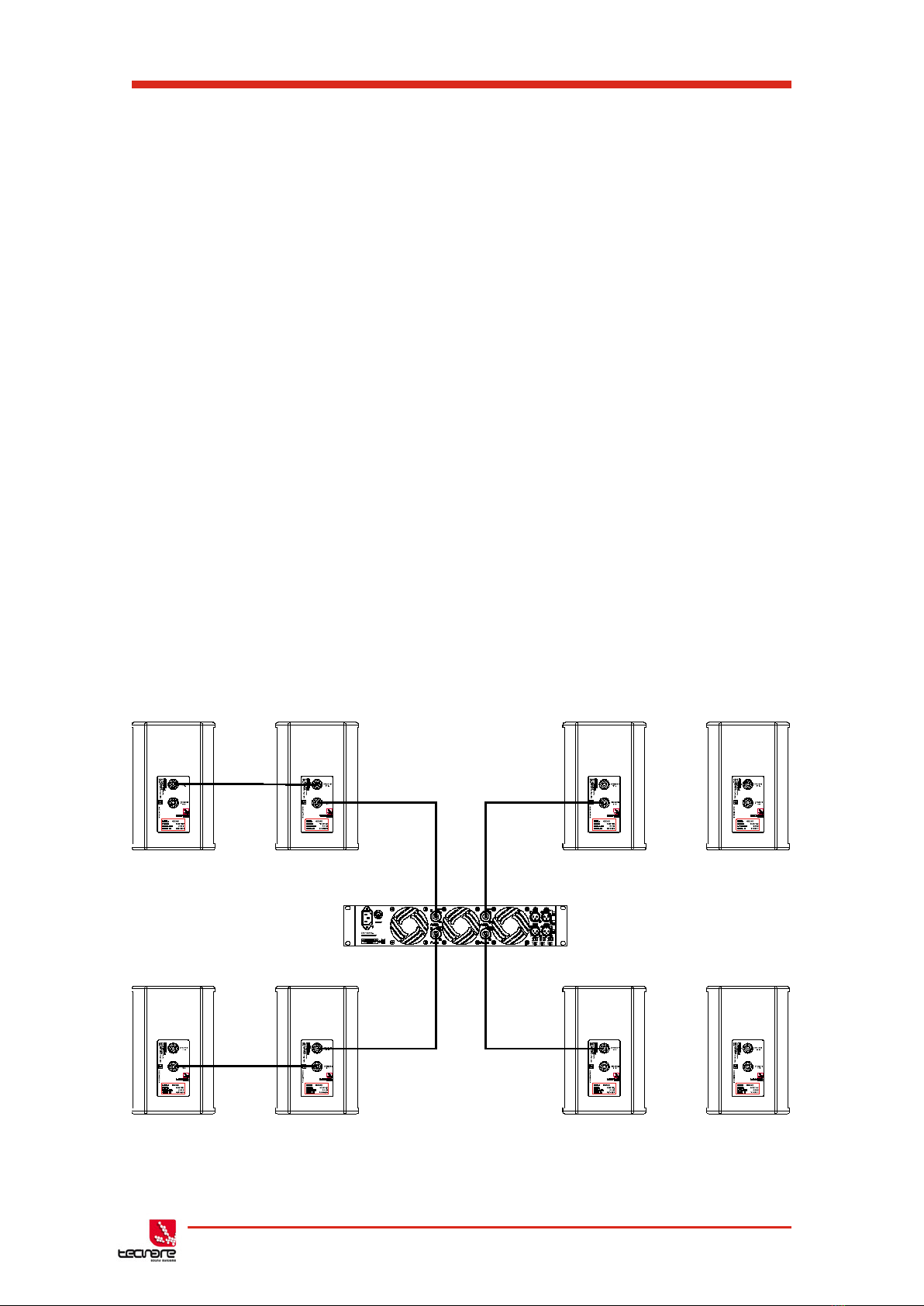

3.1 Connection to PA4.450 .............................................................................................. 13
3.2 Connection to PA900 ................................................................................................. 14
3.3 Connection to T-44 Series ......................................................................................... 14
4Integrating IBZA6 Using Subwoofers.......................................................................... 15
4.1 Integrating IBZA6 Loudspeakers Systems with Tecnare Subwoofers....................... 15
4.2 Signal Delay ............................................................................................................... 15
5Technical specifications .................................................................................................. 16

Operation Manual
IBZA Series | rev.
2.00 6
1Introduction
1.1 Welcome to Tecnare
Thank you for choosing the high-quality Tecnare®IBZA6 System “Made in Spain” from
EXEL ACOUSTICS SL.
Please spare a little time to study the contents of this manual, so that you obtain the best
possible performance from this unit.
All Tecnare®products are carefully engineered for world-class performance and reliability.
If you would like further information about this or any other Tecnare®product, please
contact us. We look forward to helping you in the near future.
As part of a continuous evolution of techniques and standards, Exel Acoustics
SL as manufacturer of Tecnare®products reserve the right to change the specifications
of its products and the content of its documents without prior notice.
Updates and supplementary information are available on the Tecnare®website:
http://www.tecnare.com
Tecnare Technical Support is available at:
•(T): [phone] - [phone]
•(e-mail): [e-mail]
Thank you again for placing your confidence in Tecnare®products.

Introduction
7IBZA Series | rev.
2.50
1.2 IBZA Series
IBIZA Series is the ultimate reference for rental productions, fixed installations and dance
clubs environments. It is a combination of high-end audio, sound quality, stunning aesthetics,
extreme sound pressure level and reliability. IBZA is a family of distinct format of loudspeaker
systems, engineered for different short-throw applications, including FOH systems, distributed
systems, side-fill monitors, complementary fills and, of course, dance environments, where high-
output, low-distortion, and the highest quality sound are required.
The series is formed from:
•IBZA P204, passive ultra-compact loudspeaker, 120º axis-symmetric, 80Hz-20KHz.
•IBZA6, passive compact loudspeaker, 80º axis-symmetric, 82Hz-20KHz.
•IBZA6 Plus, passive ultra-compact loudspeaker, 70º axis-symmetric, 85Hz-18KHz.
•IBZA8, passive compact loudspeaker, 110º axis-symmetric, 65Hz-18KHz
•IBZA10, passive compact loudspeaker, 70ºx50º, 45-18KHz
•IBZA12, passive/active enclosure, (50ºx100º)x60º, 56Hz-18KHz
•IBZA15, passive/active enclosure, 80ºx50º, 48Hz-18KHz
IBZA Series constitutes a broad range of point source, full range loudspeakers that
providing high SPL, different directivities patterns and a good sonic performance off-axis.
The IBZA Series is suited to various sound reinforcement applications as a main or
complementary system.
IBZA Series enclosures are easy to integrate, combining sonic character with style. Its
aesthetic appearance makes it ideal for the most demanding architectural environments.
The DP Series Processor and T-Series amplified controllers are the heart of the
system. Thanks to their dedicated factory presets, they constitute an extremely advanced and
precise drive system for the enclosures.
Applications:
•Dance Clubs.
•Theatre and corporate events.
•Houses of worship.
•Touring.
•Live music venues.
Main Characteristics:
•Built in proprietary hardware for simple, fast and safe rigging.
•Enclosures made with the latest techniques ensuring a perfect and rigid construction.
•Weatherized finish is provided, as the cabinet is coated with rugged Durawound texture
finish and protected with specially treated grills.
•16mm or 18mm birch plywood. Finished in black semi-matt textured Durawood
weatherized coating. One recessed carrying handle.
•Powder coated perforated steel grid with acoustically transparent reticulated foam.

Operation Manual
IBZA Series | rev.
2.50 8
1.3 The IBZA6 Compact Loudspeaker
The IBZA6 is a small trapezoidal compact full-range loudspeaker of studio quality, designed
to be used in a wide variety of audio applications requiring a small, inconspicuous cabinet that
also delivers high sound pressure levels, low distortion, and uniform directional control.
The IBZA6 offers exceptional audio performance in a compact package. As a standalone
loudspeaker, the IBZA6 can be used for vocal reinforcement, front-fill coverage, and delay
coverage for under-balcony applications. Its wide conical directivity pattern gives smooth off-
axis response - assuring the best sound where most of the audience is located. The IBZA6 can
also be paired with an optional subwoofer to create a full-range system.
Available series in a grey colour or white custom colour, the IBZA6 can be easily integrated
into any building style for ultimate discretion, satisfying the most demanding architectural needs.
Rigging options include wall mount, ceiling-mount and pole-mount in various orientations for
integration into any possible situation.

Introduction
9IBZA Series | rev.
2.50

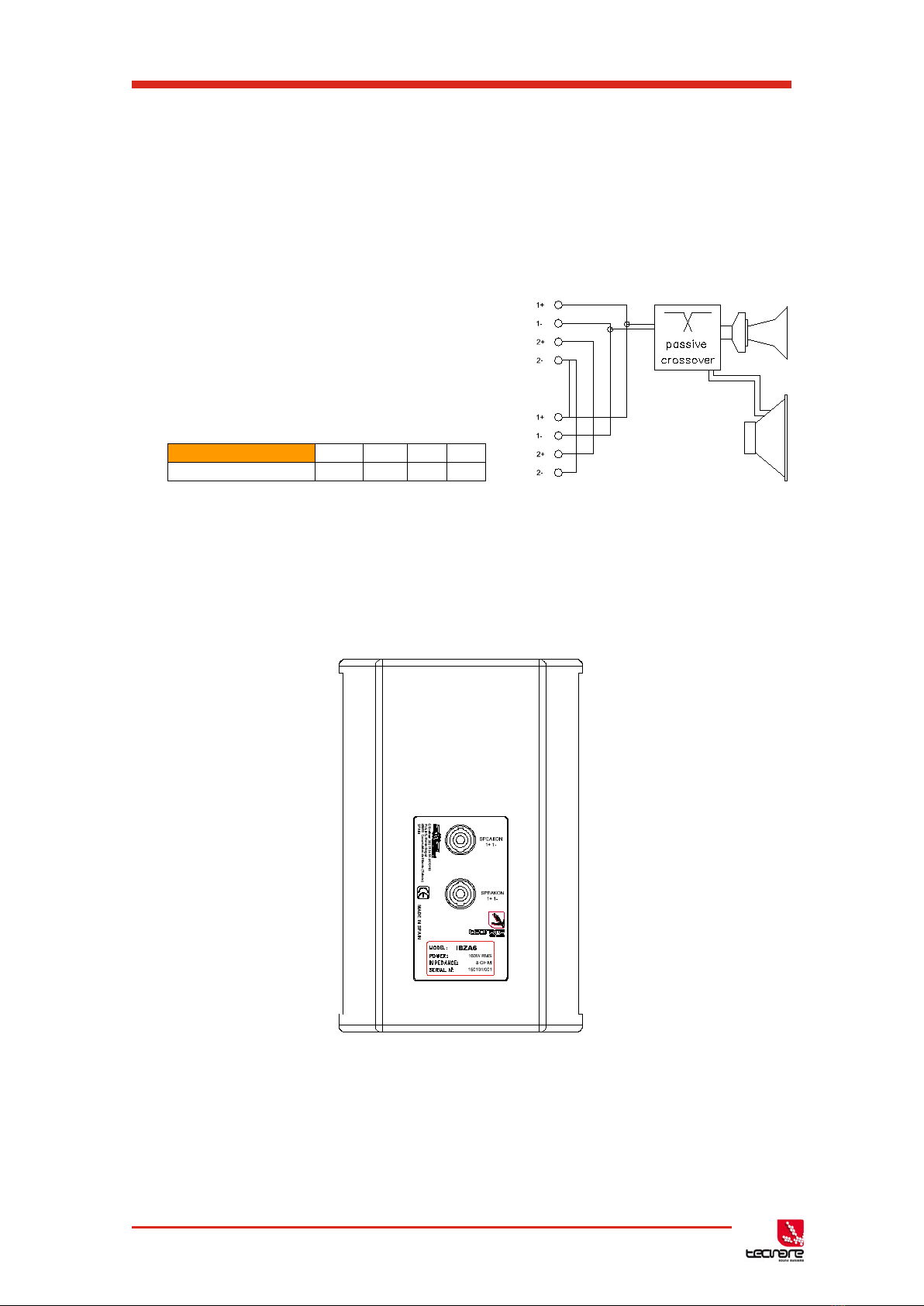

1.4 Connections
IBZA6 loudspeaker utilizes Neutrik®SpeakON®connectors. There are two NLT4
connectors on the rear of each IBZA6. These connectors mate with Neutrik®NL-4 or NL-4
compatible in-line cable connectors. Only two pins (1+/1- ) of both connectors are wired in
parallel. The following subsections describe the electrical connections. Other configuration
should be requested at the purchase time.
The IBZA6 uses the pin assignment 1+/1+.
Using one as the input, the second connector allows
for direct connection to a second cabinet in parallel.
IN speakON®point
1+
1-
2+
2-
Connection
LF +
LF -
NC
NC
Internal pinout for IBZA6 enclosures

Operation Manual
IBZA Series | rev.
2.50 10
1.5 Processing and Amplification
Only operate Tecnare loudspeaker with a correctly configured Tecnare preset. Tecnare
offer a complete solution that guarantees the highest level of performance. A complete range of
controllers, amplified and amplified controller with DSP are available to get this objective.
Otherwise, there is a risk of damaging the loudspeaker components.
1.5.1 Processing
There are two options using our digital controllers. The DP2696 or DP4896 are the
approved processor for use whit IBZA Series. The options vary depending on the final
application. Refer to DP2696 or DP4896 user manual.
You may obtain the settings from the DP Series at http://www.tecnare.com website
1.5.2 Amplification
To power IBZA Series, Tecnare recommends amplifiers with the power ratings enough
to feed the loudspeakers. For high power or live applications, it is recommended to
oversize the amplifiers relative to the nominal AES output of the loudspeakers. A lower
power amplifier will not reduce the chances of driver damage due to over-excursion,
and may actually increase the risk of thermal damage due to sustained clipping.
In certain specific cases it is possible to slightly under-power the subs or loudspeakers
as long as the amplifier will not be driven to its limits.
In any case, the Tecnare processors should be deployed in front of the amp to ensure
that the amplifiers to not go into clip.
The TSeries amplifier or DP4896 processors also include:
-Virtual Xover Limiter for passive systems
- Thermal protection from power surges or overload
- Xmax Excursion displacement protection
The T10-44/T6-44 and T-48 Series amplifier is the ideal companions for maximum
performance of the IBZA Series loudspeakers. These Advanced System Amplifierscontrolled
with DSP offer a complete both preset and protection solution for any application.

Operation Manual
IBZA Series | rev.
2.00 11
2Loudspeaker Configuration
2.1 Point Source
In this configuration the system operates over the nominal frequency range of the
enclosure.
IBZA6 enclosure is driven by the PA4.450, PA900 amplifier with the DP Series Processor or
T-44/T-48 Series amplifier controller both with factory preset.
IBZA6 Standalone mode
2.2 Point Source with low-frequency element
In this configuration, the frequency response of the IBZA6 is extended in the low end.
IBZA6 enclosure is driven by the PA4.450, PA900 amplifier with the DP Series Processor or
T-44/T-48 Series amplifier controller both with same factory preset as in point source
configuration. The subwoofer will be operating with its corresponding factory preset. The upper
frequency limit must be 110 Hz for an optimal acoustic coupling with the enclosure.
If your IBZA6 loudspeakers and subwoofers are separated by a greater distance - or delay
must be used between them - a measurement system such as SMAART should be used to
determine the correct delay and polarity.
Frequency Range (+/- 6dB)
82- 20Hz

Operation Manual
IBZA Series | rev.
2.50 12
IBZA6 + SW-118M
Frequency Range (+/- 6dB)
40- 20Hz
Recommended ratio
1xSW-118M: 4xIBZA6

Operation Manual
IBZA Series | rev.
2.00 13
3Configuration
Tecnare®Sound Systems recommended operating the IBZA6 loudspeaker together
Tecnare loudspeaker controllers.
Tecnare®only recommends using preset/amplifier developed by Tecnare; otherwise there is
a risk of damaging the loudspeaker components. DP Series Loudspeaker Controller, PA Series
amplifier and T-Series amplifier are ideal for this purpose.
Ensure that the right preset was selected before connecting the loudspeaker with the
amplifier.
Operating with an incorrect preset can damage part of the loudspeaker.
Ensure that the amplifier is properly size according to requirements. Under-power or
oversize power amplifier without the supervision of an expert may damage the loudspeaker.
Please note the technical specification section.
3.1 Connection to PA4.450
MAXIMUM OF 4 ENCLOSURES PER PA4.450
2 x IBZA6 can be connected to each output channel on the PA4.450. Therefore, a single
PA4.450 amplifier controller can drive up to 8 enclosures.
Impedance load: 8Ω for 1 enclosure, 4Ω for 2 enclosures.

Operation Manual
IBZA Series | rev.
2.50 14
3.2 Connection to PA900
MAXIMUM OF 4 ENCLOSURES PER PA900
2 x IBZA6 can be connected to each output channel on the PA900. Therefore, a single
PA900 amplifier controller can drive up to 4 enclosures.
Impedance load: 8Ω for 1 enclosure, 4Ω for 2 enclosures.
3.3 Connection to T-44 Series
MAXIMUM OF 16 ENCLOSURES PER T-44.
4 x IBZA6 can be connected to each output channel on the T-44/T-48 Series amplifier.
Therefore, a single T-44 amplifier controller can drive up to 16 enclosures. A single T-48
amplifier controller can driven 32 enclosures
Impedance load: 8Ω for 1 enclosure, 4Ω for 2 enclosures, 2Ω for 4 enclosures.
T-44 Series Amplifie

Operation Manual
IBZA Series | rev.
2.00 15
4Integrating IBZA6 Using Subwoofers
4.1 Integrating IBZA6 Loudspeakers Systems with Tecnare
Subwoofers
An IBZA6 loudspeaker system can be deployed in combination with Tecnare's subwoofers
likes a SW-12, SW115, SW118M. These subwoofers can achieve very low frequency response
extending system response appreciably and increasing the overall acoustic power of a system
in the lowest frequencies.
The ideal ratio of IBZA6 loudspeakers to subwoofers depends on the configuration of the
system, the application, and the frequency content of the signal being reproduced.
For most application, a ratio of two IBZA6 for each SW-12 subwoofer and four IBZA6 for
each SW115 or SW-118M subwoofer yield good results in frequency response and headroom.
4.2 Signal Delay
If IBZAs loudspeaker and subwoofers are used in their full-range configuration together DP-
Series Loudspeaker controlled or T-Series Amplifier, use the factory preset setting if they are
co-planar or near to each other.
For other configuration or if they are separated by a great distance it will usually be
necessary to determine the signal delay and polarity setting with a measurement system such
as SMAART audio analyzer.
NOTE: If the subwoofer’s amplifier/DSP Limit LED begins to light before
reaching the required SPL, consider adding more subwoofers to meet the
SPL requirements without exposing the drivers to excessive heat and
excursion.

Technical Specifications
16 IBZA Series | rev.
2.50
5Technical specifications
IBZA6 FULL-RANGE COMPACT LOUDSPEAKER SPECIFICATIONS
ACOUSTICAL
Operating Frequency Range
82Hz -20 kHz±3dB, measured on axis. 95Hz-18kHz Recommended operating frequency range.
Response depends on loading conditions and room acoustics
Axial Sensitivity 93 dB (1w/1m)
Calculated SPL 116 dB continuous/122 Peak
Nominal Dispersion 80º Axis-symmetric
Power Handling 200 W AES / 400 Continuous
COMPONENTS
Low Frequency
1 x 6-inch cone driver ferrite magnets, direct radiation, bass-reflex
Nominal impedance: 8Ω
Voice coil size: 1.46-inch
Power Handling Capability: 170 W AES / 340 W continuous
Note: Power Handling measured using AES Standards= 2 hours test made with continuous pink noise
signal (6 dB crest factor).
High Frequency
1 x 1-inch dome tweeter on symmetric horn
Nominal impedance: 8Ω
Voice coil size: 1-inch
Power Handling Capability: 30 W AES / 60 W continuous
Note: Power Handling measured using AES Standards= 2 hours test made with continuous pink noise
signal (6 dB crest factor).
AUDIO INPUT
Connectors IN: 1 x NL4 SpeakON®LINK: 1 x NL4 SpeakON®
Wiring Pin 1+/-: Input Signal ; Pin 2+/- : Parallel
PHYSICAL
Enclosure 16mm birch plywood. Finished in Polyurea surface.
Protective Grille Powder-coated perforated steel with acoustically transparent reticulated foam
Rigging 2 x M6 insert for TUB-6 U-Bracket
Dimensions (HxWxD) 330mm x 215mm x 207mm (13.07” x 8.46” x 8.11”)
Weight 4,5 Kg. (14.10 lbs)
Custom finish White code available on request Without charge. RAL code on special order.
Application information is presented for guidance only. Exel Acoustics SL reserves the right to make any necessary
changes to the products and the published specifications. As part of the ongoing development program Exel Acoustics
SL tries to maintain the highest degree of product compatibility.

Operation Manual
17 IBZA Series | rev.
2.50
IBZA6 Dimensions

Operation Manual
IBZA Series | rev.
2.50 18

Operation Manual
19 IBZA Series | rev.
2.50
Reinventing The Rules
©2016
Tecnare Sound Systems. All rights reserved.
IBZA6 Operation manual
The contents of this manual are furnished for informational purposes only, are subject to change without notice, and
should not be construed as a commitment by Exel Acoustics SL. Exel Acoustics assumes no responsibility or liability for
any errors or inaccuracies that may appear in this manual. Except as permitted by applicable copyright law, no part of
this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic,
mechanical, recording or otherwise, without prior written permission from Exel Acoustics. Tecnare and PCC-Net are
trademarks of Exel Acoustics SL. Podware, System Engineer, BvNet, Smaart and all third-party trademarks mentioned
herein are the property of their respective trademark holders.
Printed in Spain.
