TECNARE IBZA Series User manual

Keep these important operating instructions.
Check www.tecnare.com for updates.
Operation Manual
Wide Coverage Loudspeaker
IBZA15
IBZA Series
Version 2.5

Operation Manual
IBZA Series | rev.
2.5 2
General Information
IBZA15 Operation Manual
Ver.: 2.5_UK 12/2017
©EXEL ACOUSTICS SL; all right reserved
The information contained in this manual has been
carefully checked for accuracy, at the time of going to
press, however no guarantee is given with respect to
the correctness.
Exel Acoustics SL accepts no responsibility for any
errors or inaccuracies that may appear in this manual
or the products and software described in it. Technical
specifications, dimensions, weights and properties do
not represent guaranteed qualities. As manufacturers
we reserve the right to make alterations and
modifications within the framework of legal provisions,
as well as changes aimed at improving quality.
EXEL ACOUSTICS SL
CL Encinar, 282 – Pol. Ind. Monte Boyal
45950 Casarrubios del Monte (Toledo) Spain
Phone: [phone] Fax:
e-mail: [e-mail] www.tecnare.com

Operation Manual
3IBZA Series | rev.
2.5
IMPORTANT SAFE INSTRUCTIONS
Before using our product, be sure to carefully read the manual and safe Instructions. Keep this document with the device all
time.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all SAFETY INSTRUCTIONS as well
DANGER and OBLIGATION warnings.
5 Only use attachments / accessories
specified by the manufacturer.
6 Use only with the cart, tripod, bracket or
table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart / apparatus
combination to avoid injury from tip-over.
7 If the equipment is used in a manner not
specified by the Exel Acoustic, the protection
by the equipment may be impaired.
8 Read the entire Product Information
document before exploiting the system.
9 Read the Rigging Manual before installing
the system. Use the rigging accessories
described in the rigging manual a follow the
associated procedures.
CAUTION: Rigging should only be done by experience
professionals.
10 This speaker enclosure is capable of
creating a strong magnetic field. Please use
caution around the enclosure with data
storage devices such as phones, computers
or hard drivers.
11 Handles are for moving the system only.
12 Beware of sound levels. Never stand in the
immediate vicinity of loudspeaker driven at
high level. Professional loudspeaker
systems are capable of causing a sound
pressure level (SPL) detrimental to human
health. Hearing damage can also occur with
prolonged exposure to sound: 8h at 90
dB(A), 30 min at 110 dB(A), less than 4 min
at 130 dB(A) Source: European Directive
relating to the assessment and management
of noise 2002/49/CE
13 When setting up the loudspeaker or
loudspeaker stand, make sure they are
standing on a firm surface. If you place
several enclosures on top of one another,
use straps to secure them against
movement.

Operation Manual
IBZA Series | rev.
2.5 4
DECLARACIÓN DE CONFORMIDAD
DECLARATION OF CONFORMITY
EXEL ACOUSTICS SL
CL Encinar, 282. Polígono Industrial Monte Boyal. 45950 – Casarrubios del Monte (Toledo),
España (Spain).
Declara que el producto IBZA15 y sus respectivas opciones, cumple con las Directivas:
Declare under our sole responsibility that devices in the IBZA15 range of products, comply with
relating Directives:
(1) Directiva de Baja Tensión - 2006/95/CE
(2) Directiva de Compatibilidad Electromagnética - 2004/108/CE
(3) Directiva RoHS - 2011/65/UE
(4) Directiva RAEE - 2012/19/UE
(1) Low Voltage Directive 2006/95/CE
(2) EMC 2004/108/CE
(3) RoHS Directive 2011/65/UE
(4) WEEE Directive 2012/19/UE

Table of Contents
5IBZA Series | rev.
2.5
Table of Contents
IMPORTANT SAFE INSTRUCTIONS......................................................................................3
DECLARACIÓN DE CONFORMIDAD .....................................................................................4
1Introduction....................................................................................................................6
1.1 Welcome to Tecnare ................................................................................................6
1.2 IBZA Series..............................................................................................................7
1.2 The IBZA15 Compact Loudspeaker ..........................................................................8
1.3 Connections .............................................................................................................9
1.4 Processing and Amplification..................................................................................10
2Loudspeaker Configuration.........................................................................................11
2.1 Point Source ..........................................................................................................11
2.2 Point Source with low-frequency element ...............................................................12
2.3 Recommended Speaker Cables .............................................................................13
3Amplifier Configuration...............................................................................................14
3.1 Connection to PA4.1500.........................................................................................14
3.2 Connection to PA2100/PA3000 ..............................................................................15
3.3 Connection to T-44 Series ......................................................................................15
4Integrating IBZA15 Using Subwoofers .....................................................................16
4.1 Integrating IBZA15 Loudspeakers Systems with Tecnare Subwoofers ....................16
4.2 Signal Delay...........................................................................................................16
5Technical specifications...............................................................................................17

Operation Manual
IBZA Series | rev.
1.0 6
1Introduction
1.1 Welcome to Tecnare
Thank you for choosing the high-quality Tecnare®IBZA15 System “Made in Spain” from
EXEL ACOUSTICS SL.
Please spare a little time to study the contents of this manual, so that you obtain the best
possible performance from this unit.
All Tecnare®products are carefully engineered for world-class performance and reliability.
If you would like further information about this or any other Tecnare®product, please
contact us. We look forward to helping you in the near future.
As part of a continuous evolution of techniques and standards, Exel Acoustics SL as
manufacturer of Tecnare®products reserve the right to change the specifications of its
products and the content of its documents without prior notice.
Updates and supplementary information are available on the Tecnare®website:
http://www.tecnare.com
Tecnare Technical Support is available at:
•(T): [phone] - [phone]
•(e-mail): [e-mail]
Thank you again for placing your confidence in Tecnare®products.

Introduction
7IBZA Series | rev.
2.5
1.2 IBZA Series
IBIZA Series is the ultimate reference for rental productions, fixed installations and dance
clubs environments. It is a combination of high-end audio, sound quality, stunning aesthetics,
extreme sound pressure level and reliability. IBZA is a family of distinct format of loudspeaker
systems, engineered for different short-throw applications, including FOH systems, distributed
systems, side-fill monitors, complementary fills and, of course, dance environments, where high-
output, low-distortion, and the highest quality sound are required.
The series is formed from:
•IBZA P204, passive ultra-compact loudspeaker, 120º axis-symmetric, 80Hz-20KHz.
•IBZA6, passive compact loudspeaker, 80º axis-symmetric, 82Hz-20KHz.
•IBZA6 Plus, passive ultra-compact loudspeaker, 70º axis-symmetric, 85Hz-18KHz.
•IBZA8, passive compact loudspeaker, 110º axis-symmetric, 65Hz-18KHz
•IBZA10, passive compact loudspeaker, 70ºx50º, 45-18KHz
•IBZA12, passive/active enclosure, (50ºx100º)x60º, 56Hz-18KHz
•IBZA15, passive/active enclosure, 80ºx50º, 48Hz-18KHz
IBZA Series constitutes a broad range of point source, full range loudspeakers that
providing high SPL, different directivities patterns and a good sonic performance off-axis.
The IBZA Series is suited to various sound reinforcement applications as a main or
complementary system.
IBZA Series enclosures are easy to integrate, combining sonic character with style. Its
aesthetic appearance makes it ideal for the most demanding architectural environments.
DP Series Processorsand T-Series amplified controllers are the heart of the system.
Thanks to their dedicated factory presets, they constitute an extremely advanced and precise
drive system for the enclosures.
Applications:
•Dance Clubs.
•Theatre, corporate and live events.
•House of Worship.
•Touring.
•Live music venues.
Main Characteristics:
•Built in proprietary hardware for simple, fast and safe rigging.
•Enclosures made with the latest techniques ensuring a perfect and rigid construction.
•Weatherized finish is provided, as the cabinet is coated with rugged Durawound texture
finish and protected with specially treated grills.
•16mm or 18mm birch plywood. Finished in black semi-matt textured Durawood
weatherized coating.
•Powder coated perforated steel grid with acoustically transparent reticulated foam.
•Max SPL: Up to 133dB Continuous.

Operation Manual
IBZA Series | rev.
2.5 8
1.2 The IBZA15 Compact Loudspeaker
The IBZA15 is a trapezoidal compact two-way full-range loudspeaker high-performance,
wide-bandwidth system in a compact and efficient package. The LF/MF section comprises a 15-
inch loudspeaker loaded in a vented-bass cabinet and the HF section is one 3-inch diaphragm
horn driver.
IBZA15 has an exceptional power/size ratio, great clarity in sound reproduction and a highly
aesthetics. The wooden enclosure features a recessed Neutrik®SpeakON®connectors and
threaded inserts, allowing the use of a 4mm steel bracket for flying or wall/ceiling-mount
purposes (optional TUB-15). A pole mount socket on the bottom and “Array Frames” are also
available to stand up position or array suspension (TAF-15 and TAF3-15. And in addition, the
IBZA15 is equipped with air cargo rigging tracks over which double stud fittings or flying
brackets can easily be mounted without tools. See all rigging options in the rigging manual).
Dedicated preset for DP Series processors or T-Series amplifiers are available to operate
the IBZA15 in full-range mode or combined with Tecnare® subwoofers.
The full-range compact IBZA15 loudspeaker offers total versatility among all types of near-
field listening applications: drum-fill; distributed systems; in-fill/near-fill/delay etc; PA with or
without subwoofers.
Available series in a grey colour or white custom colour, the IBZA15 can be easily
integrated into any building style for ultimate discretion, satisfying the most demanding
architectural needs.

Introduction
9IBZA Series | rev.
2.5
1.3 Connections
IBZA15 loudspeaker utilizes Neutrik®SpeakON®connectors. There are two NLT4
connectors on the rear of each IBZA15. These connectors mate with Neutrik®NL-4 or NL-4
compatible in-line cable connectors. Only two pins (1+/1-) of both connectors are wired in
parallel. The following subsections describe the electrical connections. Other configuration
should be requested at the purchase time.
The IBZA15 uses the pin assignment 1+/1+.
Using one as the input, the second connector allows
for direct connection to a second cabinet in parallel.

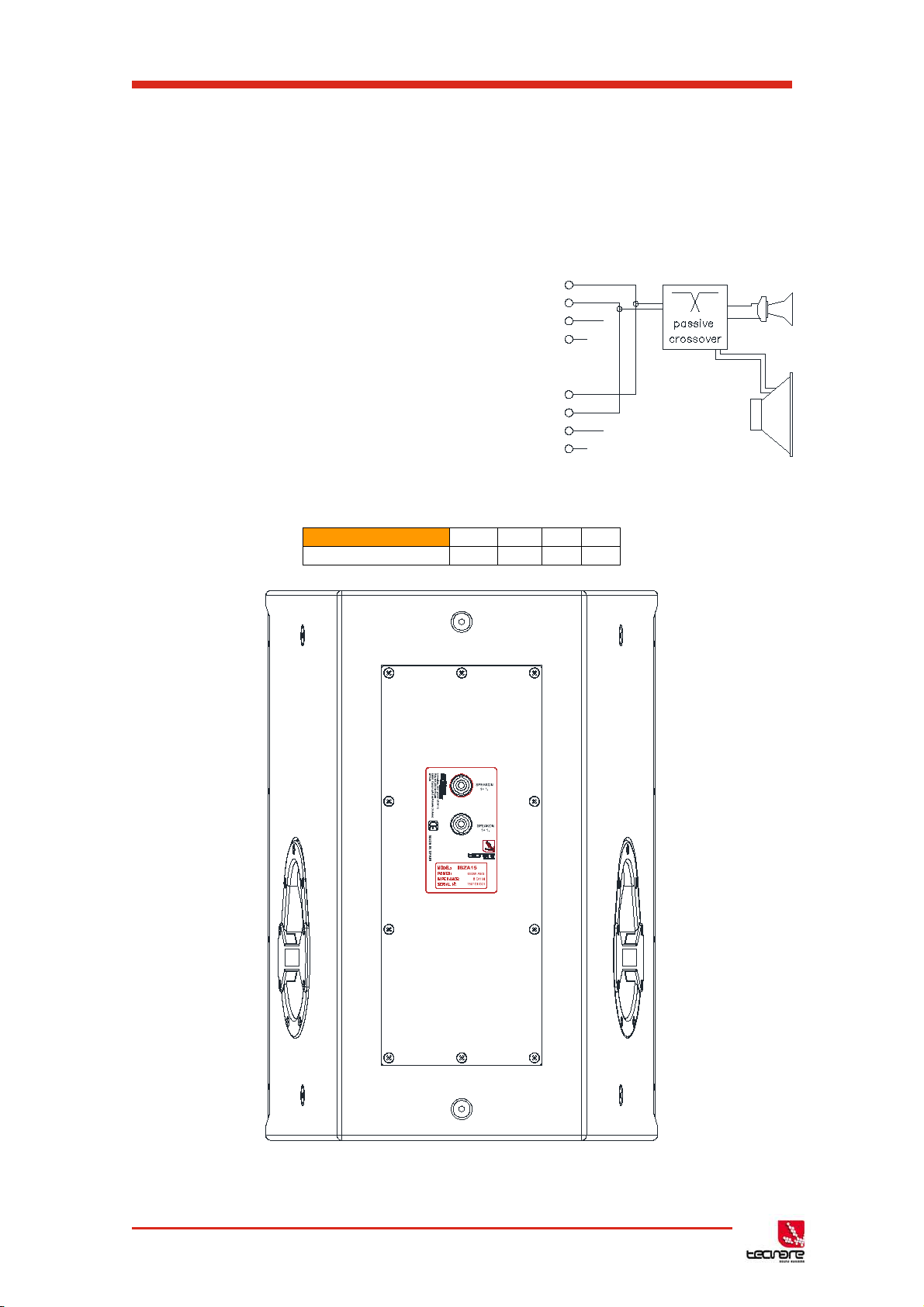

Internal pinout for IBZA15 enclosures
IN speakON®point
1+
1-
2+
2-
Connection
LF +
LF -
NC
NC
1+
2-
1+
1-
2+
2-
2+
1-

Operation Manual
IBZA Series | rev.
2.5 10
1.4 Processing and Amplification
Only operate Tecnare®loudspeaker with a correctly configured Tecnare preset. Tecnare
offer a complete solution that guarantees the highest level of performance. A complete range of
controllers, amplified and amplified controller with DSP are available to get this objective.
Otherwise, there is a risk of damaging the loudspeaker components.
1.4.1 Processing
There are two options using our digital controllers our DP2696 or our DP4896. The
options vary depending on the final application. Refer to DP2696 or DP4896 user
manual.
1.4.2 Amplification
To power IBZA Series, Tecnare recommends amplifiers with the power ratings enough
to feed the loudspeakers. For high power or live applications, it is recommended to
oversize the amplifiers relative to the nominal AES output of the loudspeakers. A lower
power amplifier will not reduce the chances of driver damage due to over-excursion,
and may actually increase the risk of thermal damage due to sustained clipping.
In certain specific cases it is possible to slightly under-power the subs or loudspeakers
as long as the amplifier will not be driven to its limits.
In any case, the Tecnare processors should be deployed in front of the amp to ensure
that the amplifiers to not go into clip.
.
The DP4896 processors also include:
−Virtual Xover Limiter for passive systems
−Thermal protection from power surges or overload
−Excursion displacement protection
The T10-44/T6-44 and T-48 Series amplifier is the ideal companions for maximum
performance of the IBZA Series loudspeakers. This amplifier controller with DSP offer a
complete both preset and protection solution for any application.

Operation Manual
IBZA Series | rev.
1.0 11
2Loudspeaker Configuration
2.1 Point Source
The IBZA15loudspeakers are designed for standing in vertical operation. A variety of
accessories is available from Tecnare®to securely attach the loudspeaker, e.g. on stands or
suspended horizontally from trusses and motor lifts. Vertical array configurations can be
performed although they will create very narrow horizontal coverages.
In this configuration the system operates over the nominal frequency range of the
enclosure.
Ensure that the loudspeakers are securely attached to prevent personal injury
and property damage.
NOTE
TECNARE recommends using only the accessories specified by TECNARE to
secure the loudspeakers.
IBZA15 Standalone mode
Frequency Range (+/- 6dB)
48Hz- 18KHz

Operation Manual
IBZA Series | rev.
2.5 12
2.2 Point Source with low-frequency element
In this configuration, the frequency response of the IBZA15 is extended in the low end.
IBZA15 enclosure is driven by the PA4.1500, PA2100 or PA3000 amplifier with the DP
Series Processor or T-44/T-48 Series amplifier controller both with same factory preset as in
point source configuration. The subwoofer will be operating with its corresponding factory
preset. The upper frequency limit must be between 80 to120 Hz for an optimal acoustic coupling
with the enclosure.
If your IBZA15 loudspeakers and subwoofers are separated by a greater distance - or delay
must be used between them - a measurement system such as SMAART should be used to
determine the correct delay and polarity.
SW 215
SW 215
IBZA15 + SW-215
Frequency Range (+/- 6dB)
38- 18KHz
Recommended ratio
2xSW -215: 4xIBZA15

Loudspeaker Configuration
13 IBZA Series | rev.
2.5
2.3 Recommended Speaker Cables
Choosing the right wire gauge for your installation is utmost importance to ensure you will
get the maximum potential of your system.
The two primary things resistance affects in the amplifier-to-loudspeaker connection are:
insertion loss and damping factor, both of which are dependent upon cable resistance. Too
small a cable section will increase both its serial resistance and its capacitance; this reduces the
electrical power delivered to the loudspeaker and can also induce response (damping factor)
variations.
INSERTION LOSS
Insertion loss is the measure of the loss of load power at the speaker due to excessive
resistive losses of the cable or any additional component attached between the amplifier and
the loudspeaker. We typically express this loss in decibels (dB) using the following formula:
20 log Rload IL
Rload Rcable

= • 
+

DAMPING FACTOR
Damping factor is a ratio of rated loudspeaker impedance (ZL) to the source impedance
(Zs). In this case our source impedance is (Rcable + Ramplifier).
Damping Factor = ZL/ZS
The table below indicates the cable valour recommended by Tecnare®.
Recommended maximum length
cable cross-section
8 Ω
4 Ω
2 Ω
mm²
SWG
AWG
m
ft
m
ft
m
ft
2,5
15
13
30
100
15
50
10
33
4
13
11
50
160
25
80
17
53
6
11
9
74
240
37
120
25
80
10
9
7
120
390
60
195
40
130

Operation Manual
IBZA Series | rev.
1.0 14
3Amplifier Configuration
Tecnare®Sound Systems recommended operating the IBZA15 loudspeaker together
Tecnare loudspeaker controllers.
Tecnare®only recommends using preset/amplifier developed by Tecnare; otherwise there is
a risk of damaging the loudspeaker components. DP Series Loudspeaker Controller, PA Series
amplifier and T-Series amplifier are ideal for this purpose.
Ensure that the right preset was selected before connecting the loudspeaker with the
amplifier.
Operating with an incorrect preset can damage part of the loudspeaker.
Ensure that the amplifier is properly size according to requirements. Under-power or
oversize power amplifier without the supervision of an expert may damage the loudspeaker.
Please note the technical specification section.
3.1 Connection to PA4.1500
MAXIMUM OF 4 ENCLOSURES PER PA4.1500
2 x IBZA15 can be connected to each output channel on the PA4.1500. Therefore, a single
PA4.1500 amplifier controller can drive up to 8 enclosures.
Impedance load: 8Ω for 1 enclosure, 4Ω for 2 enclosures.

Configuration
15 IBZA Series | rev.
2.5
3.2 Connection to PA2100/PA3000
MAXIMUM OF 4 ENCLOSURES PER PA2100/3000
2 x IBZA15 can be connected to each output channel on the PA2100/PA3000. Therefore, a
single PA2100/PA3000 amplifier controller can drive up to 4 enclosures.
Impedance load: 8Ω for 1 enclosure, 4Ω for 2 enclosures.

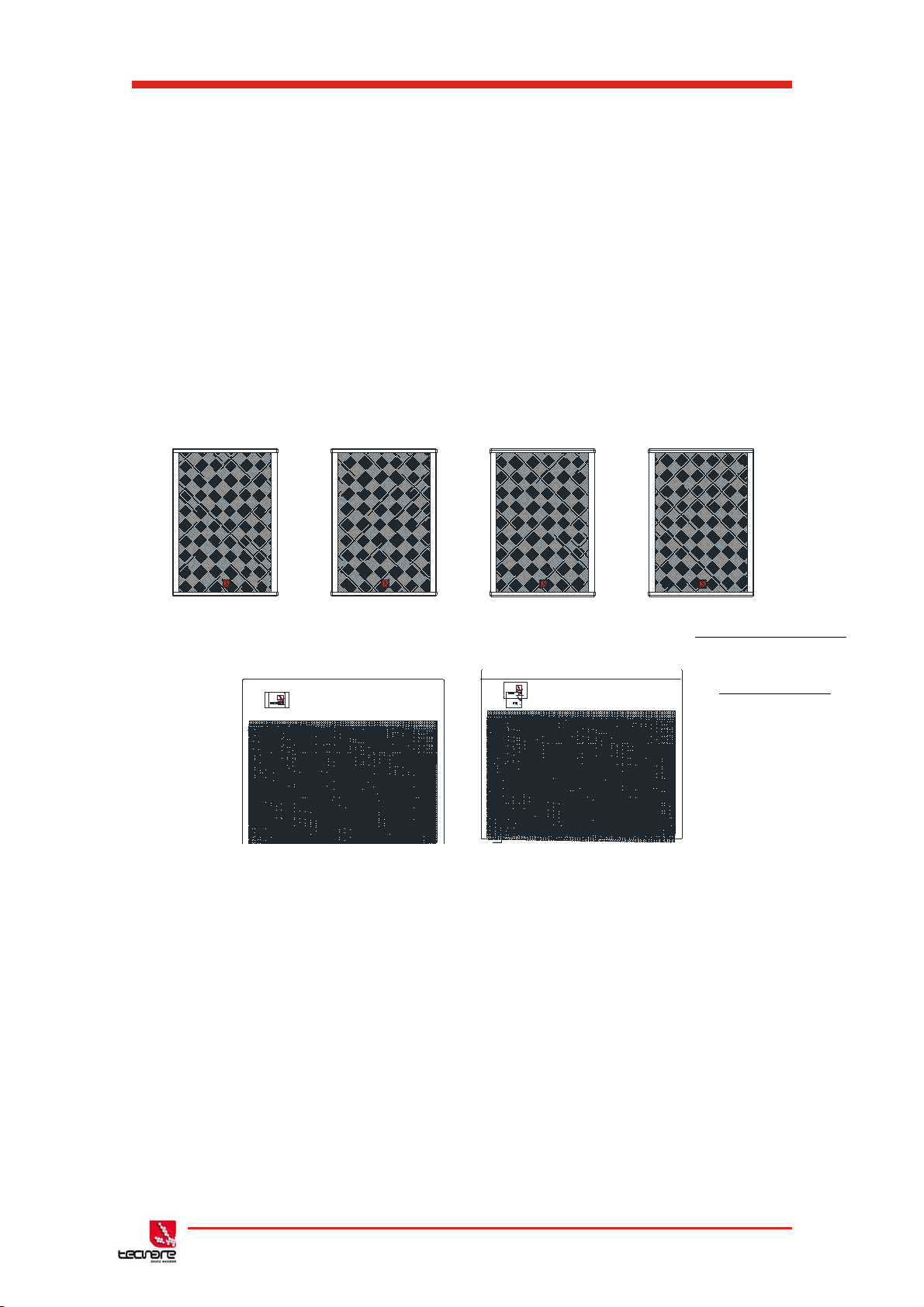

IBZA15
650WA E S
8OH
M
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OH
M
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OH
M
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OH
M
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
N
AO
IC
O
SE
E
CI
RO
O N
IL
P
T
TH
D
RF E
T O
U
CC S K
N
K O

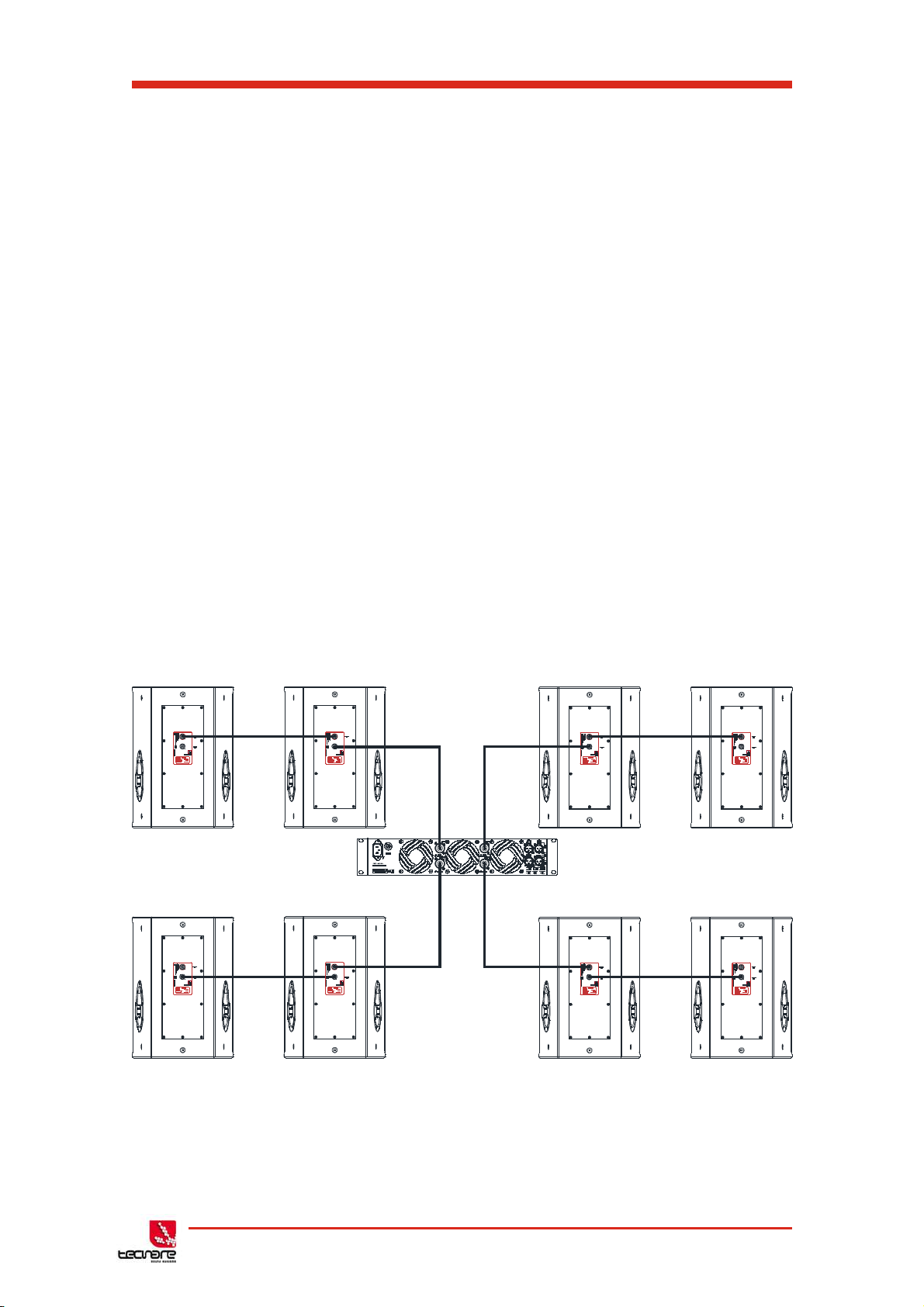

3.3 Connection to T-44 Series
MAXIMUM OF 16 ENCLOSURES PER T-44 Series
4 x IBZA15 can be connected to each output channel on the T-44/T-48 Series amplifier.
Therefore, a single T-44 amplifier controller can drive up to 16 enclosures. A single T-48
amplifier controller can driven 32 enclosures
Impedance load: 8Ω for 1 enclosure, 4Ω for 2 enclosures, 2Ω for 4 enclosures.
IBZA15
650WA E S
8OHM
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OHM
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OHM
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OHM
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OH
M
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OH
M
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OH
M
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OH
M
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OHM
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OHM
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OHM
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OHM
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OHM
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OHM
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OHM
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
IBZA15
650WA E S
8OHM
150101/001
SPEAKON
1+1-
SPEAKON
1+1-
T-44 Series Amplifier

Operation Manual
IBZA Series | rev.
1.0 16
4Integrating IBZA15 Using Subwoofers
4.1 Integrating IBZA15 Loudspeakers Systems with
Tecnare Subwoofers
An IBZA15 loudspeaker system can be deployed in combination with Tecnare's subwoofers
likes a SW215, SW118M, SW-18VR. These subwoofers can achieve very low frequency
response extending system response appreciably and increasing the overall acoustic power of
a system in the lowest frequencies.
The ideal ratio of IBZA15 loudspeakers to subwoofers depends on the subwoofer model,
configuration of the system, the application, and the frequency content of the signal being
reproduced.
For most application, a ratio of two IBZA15 for each SW-215 subwoofer and one IBZA15 for
each SW118M subwoofer yield good results in frequency response and headroom.
4.2 Signal Delay
If IBZAs loudspeaker and subwoofers are used in their full-range configuration together DP-
Series Loudspeaker controlled or T-Series Amplifier, use the factory preset setting if they are
co-planar or near to each other.
For other configuration or if they are separated by a great distance it will usually be
necessary to determine the signal delay and polarity setting with a measurement system such
as SMAART audio analyzer.
NOTE: If the subwoofer’s amplifier/DSP Limit LED begins to light before
reaching the required SPL, consider adding more subwoofers to meet the
SPL requirements without exposing the drivers to excessive heat and
excursion.

Technical Specifications
17 IBZA Series | rev.
1.0
5Technical specifications
IBZA15 WIDE COVERAGE LOUDSPEAKER SPECIFICATIONS
ACOUSTICAL
Operating Frequency Range 48Hz -18 kHz±4dB, measured on axis.
Axial Sensitivity 101 dB (1w/1m)
Calculated SPL 129 dB continuous/135 Peak
Nominal Dispersion 80º Horizontal x 50 Vertical on a CD horn
Power Handling 650 W AES / 1300 Continuous
COMPONENTS
Low Frequency
1 x 15-inch cone driver Ferrite magnet material, direct radiation, bass-reflex
Nominal impedance: 8Ω
Voice coil size: 3-inch
Power Handling Capability: 600 W AES / 1200 W continuous
Note: Power Handling measured using AES Standards= 2 hours test made with continuous pink noise
signal (6 db crest factor).
High Frequency
1x1.4-inch compression driver. Titanium Diaphragm material
Nominal impedance: 8Ω
Throat diameter: 1.4-inch / 3-inch (75 mm) aluminium voice coil diameter
Power Handling Capability: 80 W AES / 160 W continuous
Note: Power Handling measured using AES Standards= 2 hours test made with continuous pink noise
signal (6 db crest factor).
AUDIO INPUT
Connectors IN: 1 x NL4 SpeakON®LINK: 1 x NL4 SpeakON®
Wiring Pin 1+/-: Input Signal ; Pin 2+/- : NC
PHYSICAL
Enclosure 18mm birch plywood. Finished in Polyurea surface.
Protective Grille Powder-coated perforated steel with acoustically transparent reticulated foam
Rigging and handling
2xhandle, 4 x M10 insert for TUB-I15 U-Bracket and Horizontal Array Frame. 2xM10 insert. Pole
mount socket on the bottom. Air cargo rigging track on the top. See the rigging manual before
installing and additional information. Use the rigging accessories described in the rigging manual and
follow the associated procedures.
Dimensions (HxWxD) 640mm x 460mm x 482,1 mm (25.60” x 18.11” x 18.98”)
Weight 34,8 Kg. (76.72 lbs)
Custom finish White code available on request Without charge. RAL code on special order.

Operation Manual
IBZA Series | rev.
2.5 18
IBZA15 Dimensions

Operation Manual
19 IBZA Series | rev.
2.5
Reinventing The Rules
©2017
Tecnare Sound Systems. All rights reserved.
IBZA15 Operation manual
The contents of this manual are furnished for informational purposes only, are subject to change without notice, and
should not be construed as a commitment by Exel Acoustics SL. Exel Acoustics assumes no responsibility or liability for
any errors or inaccuracies that may appear in this manual. Except as permitted by applicable copyright law, no part of
this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic,
mechanical, recording or otherwise, without prior written permission from Exel Acoustics. Tecnare and PCC-Net are
trademarks of Exel Acoustics SL. Podware, System Engineer, BvNet, Smaart and all third-party trademarks mentioned
herein are the property of their respective trademark holders.
Printed in Spain.
