Pro-3200
Smart Portable Vibration
Diagnosis Instrument
Operation Manual

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 2
Table of contents
Measurement and diagnosis........................................................................................................4
Overview ............................................................................................................................................5
Pro-3200 portable vibration diagnosis instrument...............................................................7
1. System structure ..............................................................................................................7
2. System composition .......................................................................................................7
3. System capacity................................................................................................................8
4. Equipment wiring ............................................................................................................9
5. RS485 wiring ...................................................................................................................10
6. Power bank wiring.........................................................................................................11
7. Equipment dimension..................................................................................................12
8. Pro3200 portable vibration diagnosis instrument view.....................................12
9. AG-300 Plus2 view.........................................................................................................13
10. Power supply and cord of power bank view ......................................................14
11. VB-200STU view.........................................................................................................15

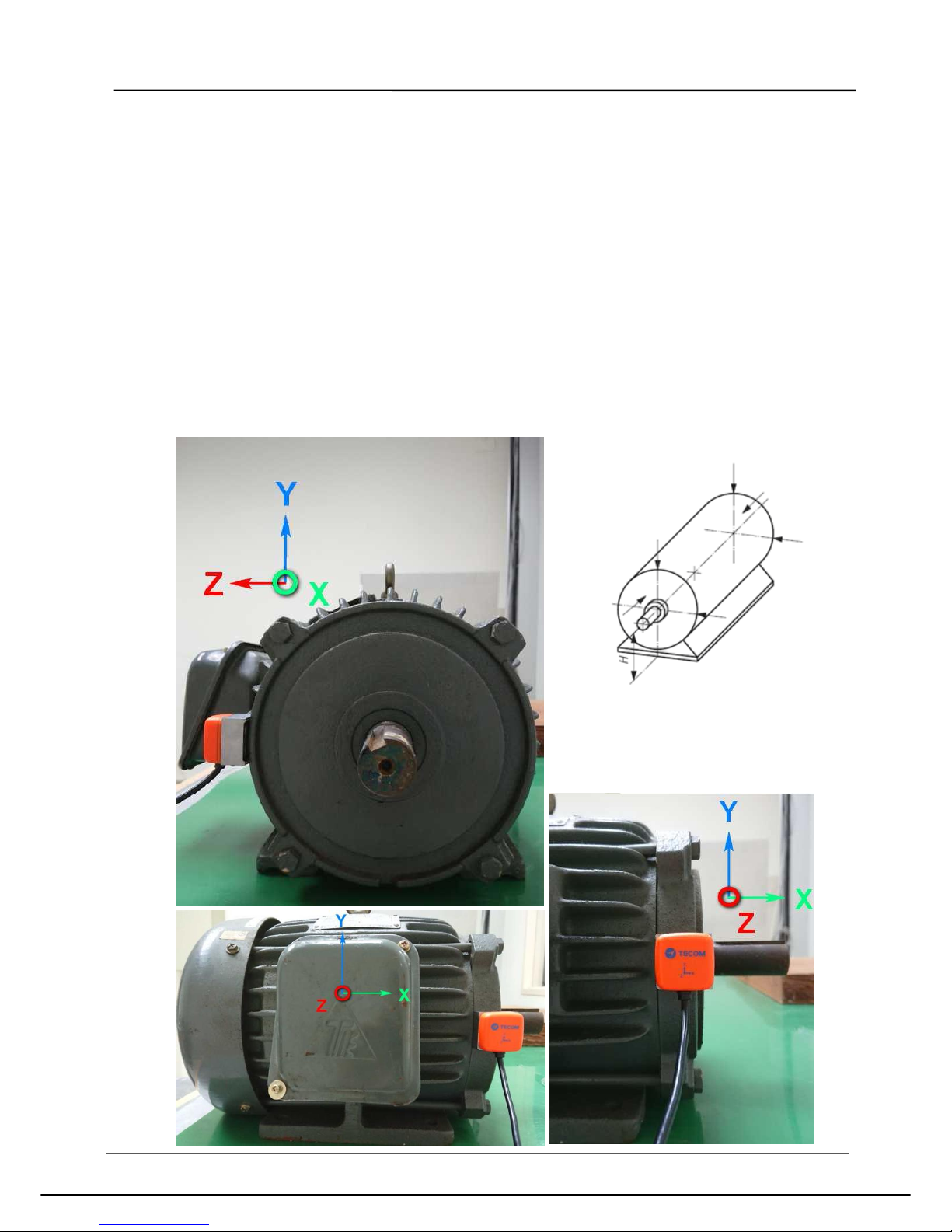

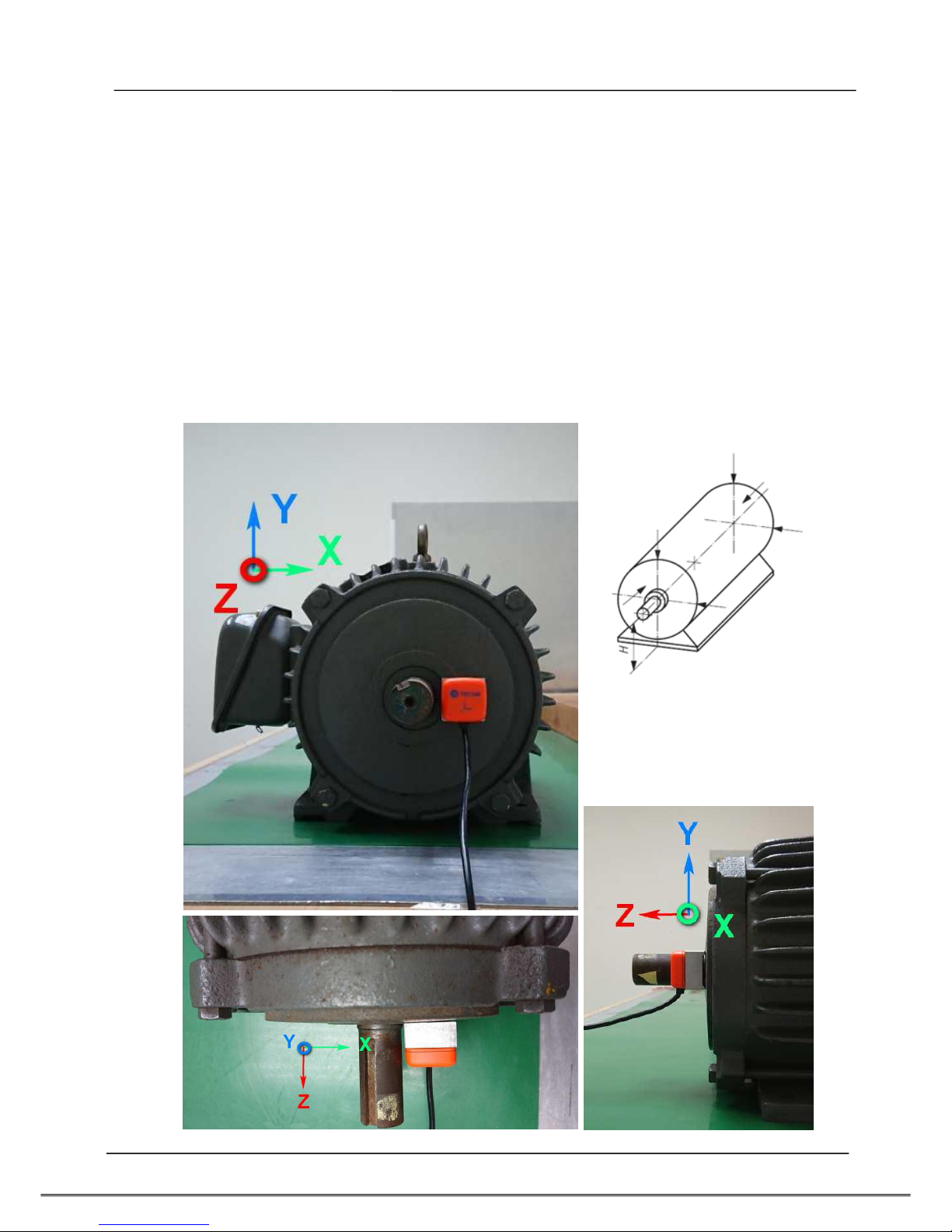

12. Vibration gauge installation position (recommended)..................................16
13. Installation Precautions ...........................................................................................17
14. Installation Reference...............................................................................................18
Equipment setup............................................................................................................................21
1. Network setup................................................................................................................21
2. Account setup.................................................................................................................23
3. VB200 setup ....................................................................................................................25
4. Wireless setup ................................................................................................................28
4.1 The wireless AP mode configuration (WiFi mode setup) .........................28
4.2 WiFi mode setting................................................................................................33
5. Hardware setup..............................................................................................................37
APP software operation...............................................................................................................38

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 3
Pro-3200 Installation and Measurement Quick Guide 1-2-3
APP download and installation
Search and download [Pro-3200] from Apple Store or Google Play to install it on your
smartphone. Make sure the latter is connected to the Internet in advance.
Set up and connect your product in 5 steps
Open the instrument box, remove e-Gateway AG-300 Plus2, power bank, and vibration
gauge, follow the following 1~5 steps to get your product installed.
1. Connect output of power bank to DC input of e-Gateway AG-300 Plus2, switch on
the power bank.
2. Wait until the green WLAN LED indicator lights up to proceed with WiFi connection
setup for your smartphone.
3. In [Setup], [WiFi] menu of your smartphone, look for WiFi access point name
"TECOM_XXXXXX", the 6-digit number "XXXXXX" contained in the name should
be the same of the last 6-digit of MAC address shown in SN label on the side of the
e-Gateway AG-300 Plus2; if so, the WiFi network found by your smartphone is the
same one of your different; press "TECOM_XXXXXX" to start connecting; the
smartphone and your device connected successfully once the message
"Connected" prompted.
USB
(Built-in WiFi)
Power bank
1
3
4
2
1
RS485 (industrial standard)
Vibration gauge
Gateway
Mobile device
5
Connection between the two can be
established only if this 6-digit number
matches the one shown in
"TECOM_XXXXXX" shown in your WiFi
network.
1
2
1

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 4
4. Connect vibration gauge USB port to the 1st and 2nd RS485 port of e-Gateway AG-
300 Plus2.
5. Mount magnetic vibration gauge to right position of equipment for measurement.
Once step 1~5 executed successfully the connection is set and the smartphone is
ready for diagnosis operation.
Measurement and diagnosis
This device provides [Plug-and-play] fast connection diagnosis. Please power on the
power bank and e-Gateway AG-300 Plus2 once step 2 [Setup and connection] is done.
1. Enable the [Vibration diagnosis] APP on your smartphone
2. Auto log in the WiFi connected e-Gateway AG-300 Plus2 without any parameter
setup as shown in figure below:
3. Execute vibration diagnosis operation with the help of APP wizard
Note: 1. Network security verification is required by remote login, which may include account setup
and registration; please consult technical service experience and refer to advanced operation
manual for this.
2. APP can choose 「MOTOR」, 「OTHERS」two categories of equipment,
「Motor」equipment can provide Real-Time Measurement, Measurement Analysis Diagnosis
and Report Management functions;
「OTHERS」provides functions such as Real-Time Measurement, Measurement and
Measurement report management, but does not provide Analysis and Diagnosis functions.
Click the Pro-3200
icon
3
1

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 5
Overview
Tecom smart portable vibration diagnosis instrument is one of the most innovative
mobile maintenance products in the world. By making the most of IoT, sensor, and
management software technology it is designed to measure vibration of running E&M
equipment without extra power cord or network cable. With fully PnP based
convenience, it is ideal for small and medium size manufacturers and enterprises in
pursuing productivity 4.0.
Featuring IoT WiFi gateway (AG-300 Plus2), integrated vibration gauge VB-200STU,
power bank, and iOS and Android platform available diversified smartphone APP
(which can be downloaded, installed, and used immediately), Tecom smart portable
vibration diagnosis instrument system is ideal for equipment installation or
maintenance engineers for measuring temperature and vibration at equipment power
contact, E&M, rotary machinery, and motor on the spot. In addition, it combines
measurements made on site with interactive analysis and diagnosis of the system to
provide instant, helpful, and effective target E&M equipment health analysis which, in
turn, not only enable easy manufacturing E&M equipment management and upkeep
in healthy status but also prevent hazardous system shutdown from happening.
Tecom smart portable vibration diagnosis instrument may connect up to 2 vibration
gauges for multiple diagnosis at the same time. With a breakthrough in vibration
measurement concept, it integrates vibration measurement, analysis, and diagnosis
operation in one portable device to save working hours and reduce onsite
maintenance and repair time significantly.
Tecom smart portable vibration diagnosis instrument system may help acquiring full
first commissioning operation data that is critical for later maintenance and big data
analysis for manufacturer in future product release.

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 6
In situ and instant vibration diagnosis information
Productivity 4.0
grade

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 7
Pro-3200 portable vibration diagnosis instrument
1. System structure
2. System composition
(1) AG-300 Plus2: IoT Gateway x1
(2) VB-200STU: magnetic external vibration sensor (with USB cable) x2
(3) Power bank x1
(4) Power supply x1
(5) Smartphone APP (iOS, Android) (need to download and install on your own)
(6) Quick installation guide (electronic file)
(7) Portable vibration diagnostic carrying case and belt
(8) Other connection related accessories
VB-200STU
vibration gauge
IR temperature
sensor
VB-200STU
vibration gauge
Mobile
communication
gateway AG-300 Plus 2
Power bank
Tecom smart portable
vibration diagnosis instrument
Motor
Compressor
motor
Fan
mot
or
Generator
motor
Pump
(Built-in WiFi)
Vibration
diagnosis
instrument APP
Installation
Measure-
ment
Analysis
Diagnosis
Report
Target E&M
Equipments

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 8
Vibration diagnostic equipment picture
3. System capacity
1. The e-Gateway AG-300 Plus2 of this portable vibration diagnosis instrument
may connect and sync up to:
2 vibration gauge (USB interfaced)
sensor type: VB-200 STU
2. The smartphone may monitor up to 10 AG-300 Plus2 device at the same time
3. This portable vibration diagnosis instrument supports up to 20 users for
concurrent diagnosis
4. Capacity of power bank: 10050mAh
5. Fully charged power bank may support portable vibration diagnosis
instrument for 12 hours without stop

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 9
4. Equipment wiring

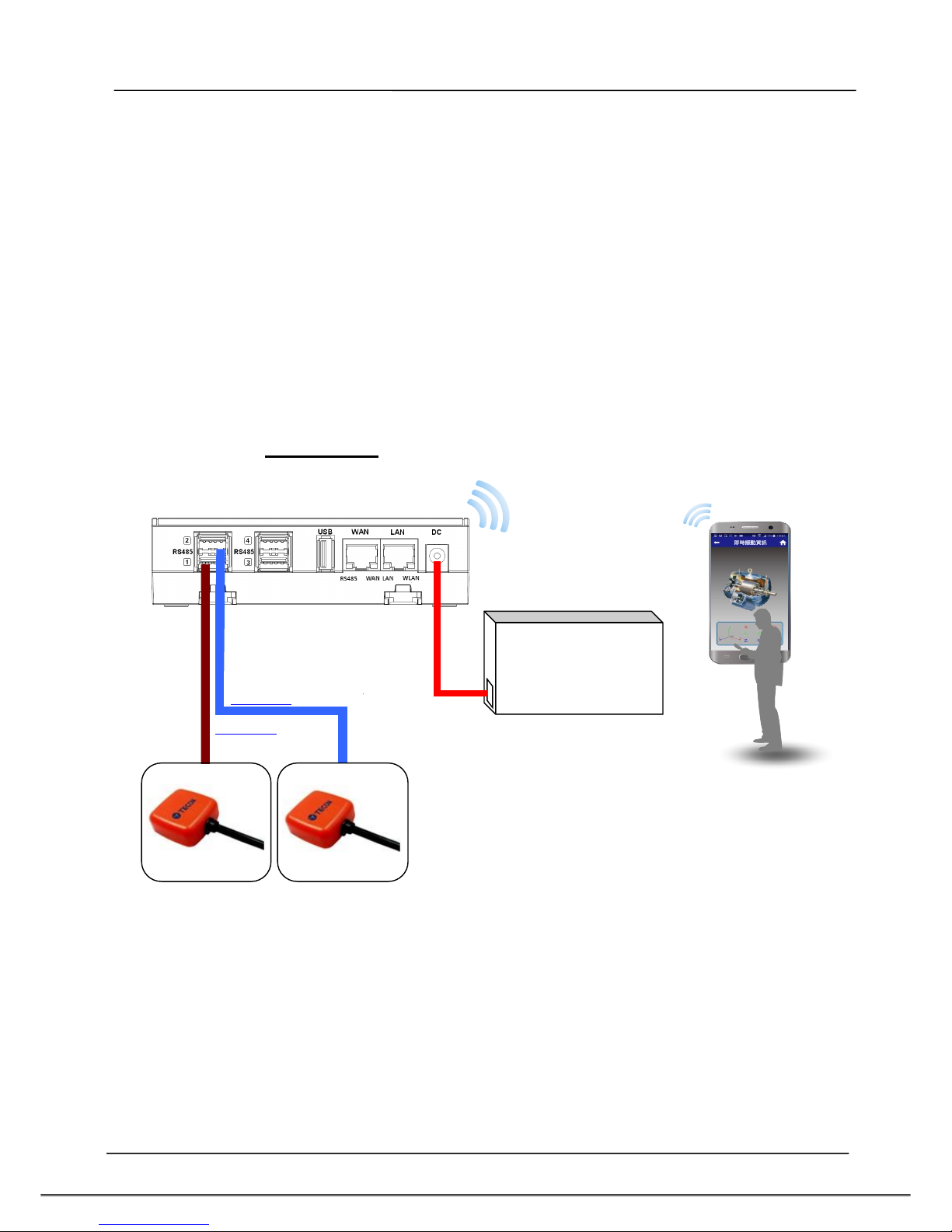

Open portable vibration diagnosis instrument carrying case and belt, and connect
them according to wiring diagram shown below.
A. Connect AG-300 Plus2 to VB-200STU with RS485(1/2)
B. Connect AG-300 Plus2 DC Jack to power bank to the power cord
C. WiFi connect smartphone to built-in WiFi router of AG-300 Plus2
D. Mount (magnetic) vibration gauge to target equipment according to its installation
guidelines
Once wired according to aforementioned diagram, your smartphone is now ready to
execute test, analysis, and diagnosis over target equipment with the "vibration
diagnosis" APP; follow the following diagram and steps E~F for computer and the
Internet connection as required.
E. Connect AG-300 Plus2 WAN port (blue) and LAN port of ADSL modem with
network cable
F. Connect AG-300 Plus2 LAN port (yellow) and PC with network cable (for system
RS485#1
RS485#2
A
B
C
RS485
AG-300 Plus2
e-Gateway
VB-200STU
Vibration gauge
VB-200STU
Vibration gauge
Power
bank
B-1
B-2

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 10
setup only)
5. RS485 wiring
(1) AG-300 Plus2
E-gateway AG-300 Plus2 supports up to 4 vibration gauge with RS485 (USB)
connection as shown in figure below:
A
B
C
RS485
C
A
AG-300 Plus2
ADSL modem
The Internet
e-Gateway
Comput
er
RS485 (USB) set 1
VB-200STU
RS485 (USB) set 2
VB-200STU
RS485 (USB) set 3
Reserved
RS485 (USB) set 4
Reserved

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 11
(2) VB-200STU
This portable vibration diagnosis instrument comes with 2 built-in vibration gauges
VB-200STU; featuring integrated RS485 cable and USB connector the latter may direct
connect to e-gateway AG-300 Plus2 as shown inthe figure below:
6. Power bank wiring
This portable vibration diagnosis instrument comes with power bank power cord,
please connect DC Plug to DC jack of AG-300 Plus2 and USB connector to USB port in
power bank as shown in figure below:
VB-200STU
VB-200STU vibration gauge
RS485(USB)
Magnetic vibration gauge
AG-300 Plus2
Target E&M
equipment (motor)
Power bank power cord
Power bank
e-gateway AG-300 Plus2
DC power plug
USB

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 12
7. Equipment dimension
(1) AG-300 Plus2 dimension: 130mm (length) x 90mm (width) x 36 mm (height)
(2) VB-200STU dimension: 30.5mm (length) x 30.5mm (width) x 11.5mm (height), 3M
cable
(3) Power bank dimension: 90.5mm (length) x 59mm (width) x 22mm (height)
(4) Power supply dimension: 70mm (length) x 29mm (width) x 40mm (height)
(5) Vibration diagnosis instrument dimension: 320mm (length) x 236mm (width) x
76mm (height)
8. Pro3200 portable vibration diagnosis instrument view

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 13
9. AG-300 Plus2 view

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 14
10. Power supply and cord of power bank view

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 15
11. VB-200STU view
VB-200STU body with USB cable view:

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 16
12. Vibration gauge installation position (recommended)
Vibration measurement must observe the following rules according to ISO-10816
standard.
1. Close to the bearing
2. In direction either vertical or horizontal rather than 45-degrees or tilted
direction
3. See diagram below for recommended installation position where the arrow
symbol indicates direction and letter "x" the installation position.
Vibration gauge 3-axis direction
Vertical
Vertical
Horizontal
Axial
Axial
Axial
Vertical
Vertical
Axial
3 Axials X/Y/Z Position
3 Axials X/Y/Z Installation Location
安裝位置圖
Horizontal
Horizontal
Horizontal
VB-200STU
Direction
identification
Direction
identification
Direction
identification
Direction
identification
Direction
identification
Direction
identification
Direction
identification
Direction

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 17
13. Installation Precautions
(1) The vibration gauge wire must be loosened. The wire close to the vibration gauge
body can not be tightened. Therefore, pay attention when handling the wire, and
leave some flexibility to allow the wire to move freely without affecting the
vibration.
(2) After vibration gauge installation is completed, you can shake the vibration gauge
by hand, the vibration gauge must be very solid, no shaking phenomenon,
otherwise the vibration value will increase, but also increases the frequency of
unpredictable. In practice, the vibrating gauge mounted with a magnet will be
secured with quick-drying glue.
(3) The point of installation must be thick steel, such as a motor body. Do not install on
fan covers or heat sink fins or thin iron plates because they are too thin and easy
to resonate, vibration values increase, and produce unexpected frequencies.
(4) Generally, the vibration value will be less than 10 mm / s. If the vibration of the
motor itself is not large and the vibration value is large, please re-check if the
installation point and the vibration gauge are installed securely.
(5) This vibration frequency response frequency range is 1-1130Hz.

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 18
14. Installation Reference
14-1 Vertical
When the vibration gauge is installed in the vertical direction, it should be placed
just above the rotating shaft. At this time, the Z-axis of the vibration gauge is the
vertical direction. Please note that the two legs of the magnet are parallel to the
rotating shaft so that they can be fixed on the arc surface of the motor on.
Y
X
Y
X
Z
Y
X
Z
Y
X
X
Z
X
X
Z
X
When using the vertical installation
position, the figure represents the
measured correct X, Y, Z vibration axis.

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 19
14-2 Horizontal
When the vibration gauge is installed in the horizontal direction, it should be
placed on the level of the rotation axis, does not put too high, so as not to
increase the vibration value. Put the higher position, the greater the value of the
horizontal vibration. At this time, the Z axis of the vibration gauge is the
horizontal direction. If you measure only one point, it is recommended to use this
point. Vibration measurement of the vertical direction, to be placed on top of the
rotating shaft, then the vibration of the Z-axis is the vertical direction, please note
that the two legs of the magnet parallel to the axis of rotation, it can be fixed in
the motor arc on.
Z
X
Z
X
Y
X
Y
X
X
Z
X
X
Z
X
When using a horizontal mounting
position, the figure represents the
correct measured axial direction of
vibration.

Tecom Smart Portable Vibration Diagnosis Instrument operation manual
Page 20
14-3 Axial
When the vibration gauge measurement value is the axial direction, it must be
placed on the level of the rotation axis, do not put too high, so as not to increase
the vibration value. Put the higher position, the greater the value of the
horizontal vibration. At this time, the Z axis of the vibration gauge is the
horizontal direction. If you measure only one point, it is recommended to use this
point. Vibration measurement of the vertical direction, to be placed on top of the
rotating shaft, then the vibration of the Z-axis is the vertical direction, please note
that the two legs of the magnet parallel to the axis of rotation, it can be fixed in
the motor arc on.
X
X
Y
X
Y
X
Z
X
Z
X
When using the axial installation
position, the figure represents the
measured correct vibration axis.
