LEISTUNG LUFT 3 AP User manual

Position the mast on the base making sure it is
located in front of the slot for the
thermo-humidifier, and fit in the mast on the base,
on the slot that matches its shape.
This side
down
1
2
3
Hold the mast carefully to prevent it from falling,
and adjust the screws from underneath the base.
Front
Back
QUICK START-UP AND ASSEMBLY GUIDE
LUFT3 AP
USER Manual
Before operating this equipment, please read the User
Manual carefully for a safe and effective use of the
intensive care ventilator Luft 3 AP.
ASSEMBLY Set the orientation of the mast. The side facing
downwards will be indicated by the cap of the
thermo-humidifier supporting structure.
1
23

Front
Back
Position the grip at 360° on the mast on the
base. Please verify the mast is facing towards
the right direction before you proceed. Next,
fix by adjusting the screws from above the
grip.
Once the pedestal is fully assembled, position
the equipment on top. Make sure the holes on
the pedestal match the holes on the equipment.
Adjust the 4 screws that are below the 360° grip
and attach the pedestal on the equipment.
Assembly
4
5

User Interface
• Read from the user manual carefully:
Chapter 1: Warnings, cautions, and notes
Chapter 2: Specifications

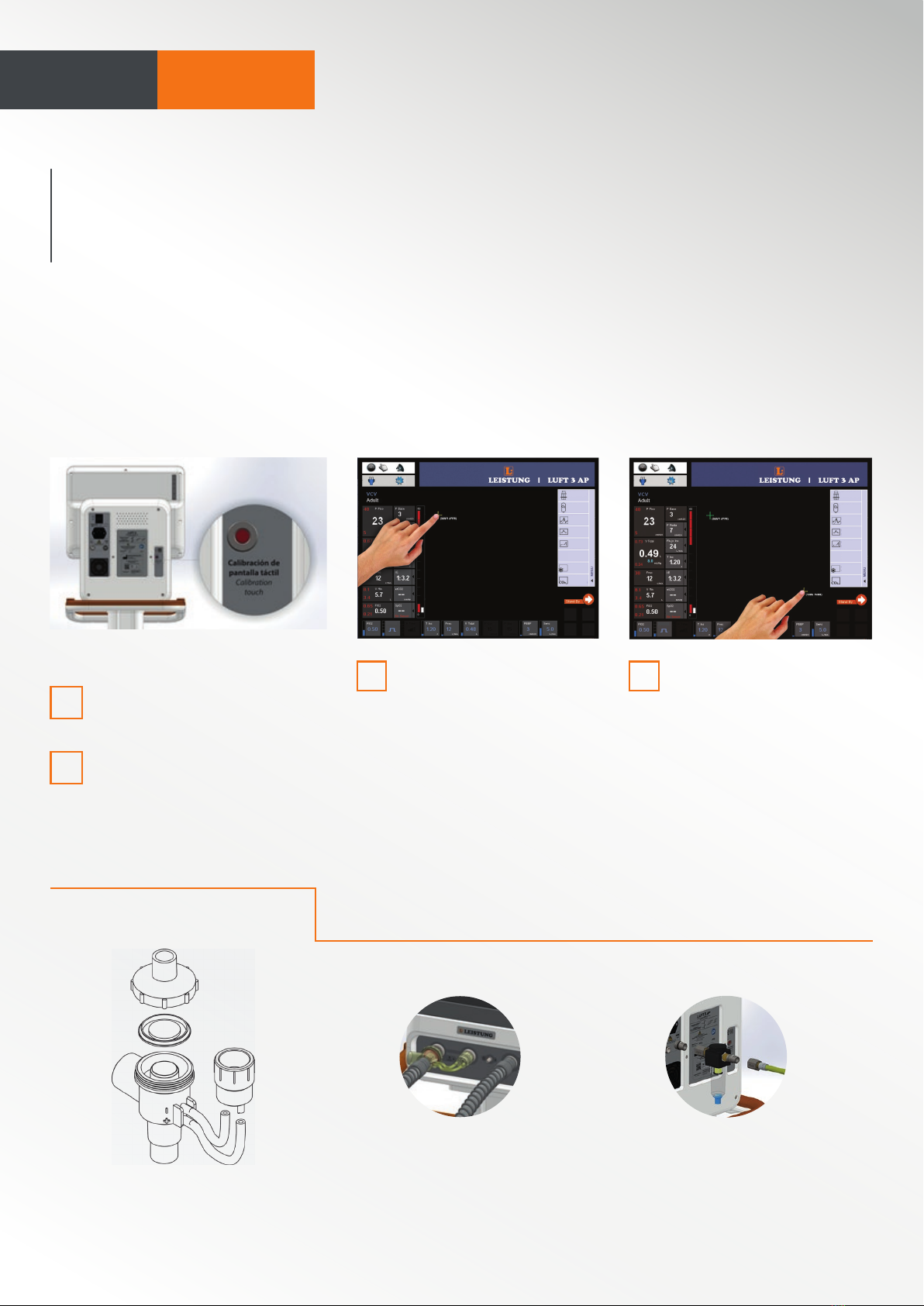

Calibration Touch
Chapter 3: Assembly and Connections
Switch on the equipment.
1
The touch screen calibration
button is located on the back
of the unit.
2
When the button is pressed, a
yellow cross with coordinates at
the bottom appears on the
screen. It must be held down for
4 seconds until another yellow
cross appears diagonally below
it. The upper cross turns green.
3
Press and hold for 4 seconds on
the lower yellow cross until it
turns green. Again, it returns to
the graphic that was before the
calibration and the procedure is
finished.
4
Connection of filter,
equipped with
water trap, to
the unit air intake.
Patient circuit
connection.
Expiratory valve
assembly.
Nebulizer
Oxygen
100%
Manual
Trigger
Detect
Capnography
Inspiratory
Pause
Expiratory
Pause
Expiratory
Sensitivity
Graphs
Freeze
Nebulizer
Oxygen
100%
Manual
Trigger
Detect
Capnography
Inspiratory
Pause
Expiratory
Pause
Expiratory
Sensitivity
Graphs
Freeze
Nebulizer
Oxygen
100%
Manual
Trigger
Detect
Capnography
Inspiratory
Pause
Expiratory
Pause
Expiratory
Sensitivity
Graphs
Freeze
Waveform Waveform

Chapter 4: Operating instructions
It allows selection of patient to be
treated (adult, pediatric), patient’s
gender (female or male), height,
actual or estimated weight, and
ventilatory volume per kilogram.
Home Screen
Icons
Information
Settings
Alarms Main menu
and shortcuts
Selection Controls
Dynamic
monitoring and
alarm setup
[email protected]
www.leistungargentina.com.ar
LEISTUNG BRASIL
Rua João Ropelatto 202
CEP: 89265-520 Jaraguá Do Sul – SC
Fone: [phone] | 3371-926
[email protected]
TECHNICAL SUPPORT [phone]
[email protected]
LEISTUNG ARGENTINA
Bv. Los Venecianos 6595
Córdoba (X5022RWT)
Tel: [phone]
[email protected]
1695NW 110 Av.
Zip Code 33172 Miami – FL, USA
Phone: [phone]
[email protected]
LEISTUNG USA
Nebulizer
Oxygen
100%
Manual
Trigger
Detect
Capnography
Inspiratory
Pause
Expiratory
Pause
Expiratory
Sensitivity
Graphs
Freeze
Waveform
Adult Male Height Tube Diameter
Female Ideal Weight Cannula
Active
Passive
Start tests
Last patient
Pediatric
Neonatal Volume Mask
PATIENT CIRCUIT
PATIENT CIRCUIT TEST
