TEFAL STEAM N PRESS DV86 Series User manual

EN
AR
MS
TH
VI
DV86XX
www.tefal.com

1
2
8
3
4
5
6
12
7
9
10
11

fig. 1 fig. 2 fig. 3
fig. 4b fig. 5
fig. 6 fig. 7 fig. 8
fig. 4a

2
1
IMPORTANT SAFETY
INSTRUCTIONS
When using your appliance, basic precautions
should always be followed, including the
following:
•Read all instructions before using this product.
•To reduce the risk of contact with hot water
emitting from steam vents, check appliance
before each use by holding it away from body
and operating steam button.
•Use appliance for its intended use only.
•This product has been designed for domestic
or indoor use only. Any commercial use,
inappropriate use or failure to comply with
the instructions, the manufacturer accepts no
responsibility and the guarantee will not apply.
•To protect against a risk of electric shock, do
not immerse the appliance in water or other
liquids.
•Do not direct steam at people, animals or iron
clothes while they are being worn.
•Always turn the appliance off before plugging
or unplugging the iron from the electrical
outlet. Never pull on the cord to disconnect the
iron from the electrical outlet; instead, grasp

2
1
EN
the plug and pull on the plug to disconnect the
appliance.
•Always unplug appliance from electrical outlet
when filling with water, emptying or when not
in use.
•Do not operate appliance with a damaged cord
or if appliance has been dropped or damaged.
•To avoid the risk of electric shock, do not
disassemble or attempt to repair the
appliance. Take it to the nearest authorized
TEFAL approved service center for examination
and repair. Incorrect reassembly or repair can
cause a risk of fire, electrical shock or injuries to
persons when the appliance is used.
•This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
are under supervision or have been provided
instructions concerning use of the appliance by
a person responsible for their safety.
•Children should be supervised to ensure that
they do not play with the appliance.
•Theappliancemaybeusedbychildrenaged8or
overandpersonslackingappropriateknowledge
or experience or persons with reduced impaired

4
3
physical sensory or mental capabilities provided
that they have been thoroughly instructed
regarding use of the appliance, are supervised
and understand the risks involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made by
children without supervision. Keep the iron
and its cord out of reach of children less than
8 years of age when it is energized or cooling
down.
•Never leave the appliance unattended when it
is connected to the mains. Before storing the
appliance, once it is unplugged, please wait
until it has cooled down (around 1 hour).
•Close supervision is necessary for any appliance
being used by or near children.
•Care should be taken when using the appliance
due to the emission of steam; burns could
occur from touching hot metal parts, hot water
or steam. Use care when you empty a steam
appliance.
•There may be hot water in the reservoir.
•The use of other accessory attachments than
those provided by TEFAL is not recommended
and may result in fire, electric shock or personal
injury.

4
3
EN
•If an extension cord is absolutely necessary, a
cord with an ampere rating equal to or greater
than the maximum rating of the iron shall
be used. A cord rated for less amperage can
result in a risk of fire or electric shock due to
overheating. When using an extension cord
extra precaution should be taken to ensure
that the cord cannot be tripped over or pulled
on.
•Keep the iron and its cord out of reach of
children less than 8 years of age when it is
energized or cooling down.
•The plug must be removed from the socket
before the water tank is filled with water.
•Do not allow cord to touch hot surfaces. Let
Appliance cool completely down before putting
away. Loop cord loosely around appliance
when storing.
•The iron must be used and rested on a stable
surface.
•When placing the iron on its stand, ensure
that the surface on which the stand is placed
is stable.
•The iron must not be used if it has been
dropped, if there are visible signs of damage or
if it is leaking.

6
5
•The appliance complies with the technical
rules and standards for safety currently in force
(electromagnetic compatibility, low voltage,
environment)
•Check the electrical power cord for signs of
ware or damage prior to use. If the electrical
power is damaged, it must be replaced at an
approved service center to avoid any danger.
•WARNING ! The voltage of your electrical
installation must correspond to that of the
iron (220-240V). Connecting to the wrong
voltage may cause irreversible damage to the
iron and will invalidate the guarantee.
The surfaces which are marked or close to
with this sign are very hot during the use of
the appliance. Do not touch these surfaces
before the appliance has cooled down.
SAVE THESE INSTRUCTIONS

6
5
EN

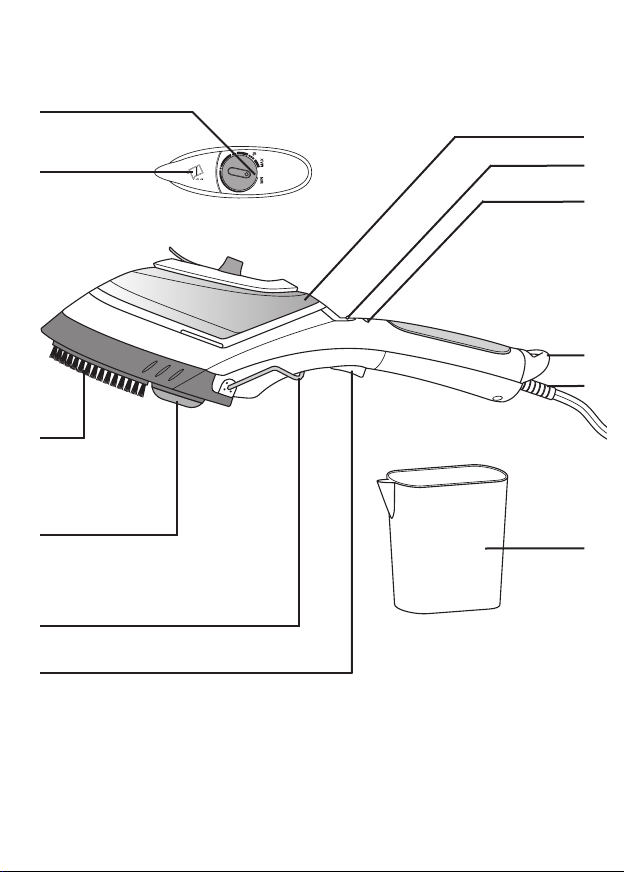

DESCRIPTION
1. Water tank cover
2. Temperature control
3. Removable water tank
4. Water tank release button
5. Temperature ready light
6. Cord protector
7. Beaker
8. Steam burst trigger
9. Iron rest support
10. Lint pad
11. Fabric brush accessory
12. Storage
BEFORE USE
Please read the instructions for use and important safeguards carefully.
• Remove any packaging from the appliance.
• Do not plug in or turn on until assembly is complete.
It is normal for a small amount of smoke to be produced the first time the appliance is
used. This will quickly disappear. This product is tested with water, some residual water
may still be in the water tank.
• Your steam brush has been designed to operate using untreated tap water. If your water is
very hard (check with your local water authority) it is possible to mix tap water with store-
bought distilled or demineralised water in the following proportions:
- 50% untreated tap water,
- 50% distilled or demineralised water.
Warning ! Never use 100% distilled or demineralised water as this can cause the
appliance to spit and leak.
Filling with water
Important: Heat concentrates the elements contained in water during evaporation.
The types of water listed below may contain organic waste, mineral or chemical
elements that can cause spitting, brown staining, or premature wear of the appliance:
water from clothes dryers, scented or softened water, water from refrigerators,
batteries, air conditioners, rain water, boiled, filtered or bottled water. Also use distilled
or demineralised water only as advised above.
• Remove the water tank by pulling the button and lifting the water tank (Fig.1).
• Remove the water inlet cover.
• Fill the water tank to the top with water until Max mark fig.2 and close it securly. Make sure
that the cover is properly pushed in place - fig.3.
• Completely unwind the power cord. Plug in your steam brush.

8
7
USE
During use or while unit is heating or cooling, do not rest appliance on its soleplate.
Place the product on its iron rest support (- fig. 4B), heat resistant , flat surface, as the
soleplate will be hot. As the appliance heats, the housing becomes warm. This is normal.
• Once the appliance is plugged in, the light is on. Set the thermostat control dial to the
desired setting - fig.4a.
• After the light turns off, you can begin use as the appliance has reached the appropriate
temperature.
• To begin steaming, press the steam button with the appliance facing away from you, holding
it in a vertical position - fig.7. Press by successive pressure.
The soleplate of the 2 in 1 Steam’n Press will smooth out tough wrinkles from clothes and press
in sharp creases and pleats.
When the 2 in 1 Steam ‘n Press is plugged in the soleplate heats.
Do not touch or remove the soleplate cover accessory without letting the soleplate cool
down.
• Plug in the appliance, place it on the iron rest support and wait approximately one minute for
it to reach full temperature before using. The temperature light will turn off.
2. Selecting the temperature
Set the thermostat control dial according to the type of fabric you are ironing. Check the fabric
label for the appropriate setting. (Fig.5)
Fabric temperature regulator
Synthetics
nylon
polyester
•
(low temperature)
Silk
wool
••
(medium temperature)
cotton
linen
•••
(high temperature)
Start at low temperature • and graduate to high temperature •••. For delicate fabrics we
recommend carrying out a test on a non-visible part of the garment (inner seam). Steam can
only be produced when the thermostat is aligned to ••• setting or more.
As appliance is very hot: never attempt to remove creases from a garment while it is
being worn.
1. Starting Up

8
7
EN
Steaming clothes
Before removing or attaching the accessory, unplug your appliance and let it cool down
for one hour minimum.
The 2 in 1 Steam’n Press is equipped with a fabric brush accessory.
• To insert the accessory and slide forward until it locks into place. (Fig.6)
• You can use the appliance with or without the accessory. (Fig.5 to 8)
• Hang the creased garment on a clothes hanger.
• Pull the garment tight with one hand far from steaming area and place the appliance on the
creased area, beginning at the top of the garment.
As steam is very hot: never attempt to remove creases from a garment while it is being
worn, always hang garments on a clothes hanger.
• For steam, apply press on steam trigger. - fig.8.
• The combination of steam and fabric brush will gently remove the creases.
• After treatment, let the garment cool down on the hanger before wearing.
Tips: Check the fabric’s label for recommendations. We recommend that you test
fabrics in an inconspicuous area to ensure these fabrics are not damaged by hot steam.
Do not touch silk or velvet with steam head. Some articles can be steamed better from
inside. Heavier fabrics may require repeated steaming. Exercise caution at all times. To
avoid damage on clothes, keep a distance of 1.5 inches between the steam head and
the fabrics. We recommend that before the first use or after the appliance has been
stored for some time to test the burst of steam on an old garment.
Warning: Never store the appliance until the steam head and unit cools completely.
AFTER USE
• Unplug the appliance. Empty the water remaining in the tank and leave unit on its side to
cool.
After the appliance has cooled down (minimum one hour), it may be stored in the bag provided
or hang by rear hook.
Threads, lint and hair can easily be removed with the lint pad by brushing the clothes slowly
up & down.
The pad can be cleaned by brushing in the opposite direction down & up on a piece of old
cloth.
The lint pad must not be used when attached to appliance.
Lint pad

10
9
IS THERE A PROBLEM ?
Problems Possible causes Solutions
There is no steam. The steamer is not plugged
in.
Check that your appliance is
correctly plugged in.
The water level is too low. Remove tank and refill it.
The steam button trigger
has not been primed.
Press the steam button trigger
successively for a few seconds to
begin steaming.
You use the appliance for
the first time.
When the appliance is new, press
the steam button trigger a few
times.
The water tank is not in
place.
Ensure that the water tank snaps in
when put into place (full lock).
Plug in your appliance.
The appliance is not hot
enough.
Adjust temperature dial and wait for
stable temperature.
The appliance is jammed
by calc.
Apply "Maintenance descaling
procedure".
The appliance does
not heat.
It is not plugged in. Allow your steam brush to heat for
approximately 60 seconds before
using.
Water leaks or spits. The water tank is not in
place.
Ensure that the temperature dial is
at 3 dots or more.
Your appliance is not hot
enough.
Wait for 60 seconds so that the
appliance is ready to steam.
The steam leaves
stains on the fabric.
You are using water with
additives.
Never add any product additives in
the water tank.
Warning: never forget to unplug the steam brush and empty the water in horizontal
position after your ironing session. While not in use, you can hang your steambrush by
its hook. Wait for an hour before hanging.
Please note that water can come out of the inlet cover if you hanging it vertically.

10
9
EN
Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.
Environment protection first !
MAINTENANCE AND CLEANING
This process should be made every 6 monthes or as soon as you feel that the steam output
performances are decreasing.
Only use white vinegar to descale your product. All other chemical products are strictly
forbidden.
• Unplug the appliance.
• Separate the tank from the housing : Unlock it and pull up to remove.
• Descale the appliance with cold preparation of white vinegar +water.
– Remove the tank cap, then fill the tank with 50% of vinegar and 50% of water, to
maximum level .
– Set the tank-cap, then set the tank on the appliance, lock it .
– Plug the appliance, set thermostat knob to max temperature.
– Wait the light switches OFF, then pump until the tank is empty.
• Rinse appliance with cold water.
– Rinse with cold water and repeat.
• Your appliance is now ready to use.
Cleaning
• Clean the main unit with a damp cloth.
• Do not use any cleaning products such as soap or detergents.
Note : as some scale particules can move out from the soleplate, do this operation in
air in a basin, and protect yourself from debris by setting appliance far from you.

12
11




•
•
•
–50%50%
–
–
–
•
–
•

•
•





12
11
AR














60



3
60






  


14
13



•
•
•
•


•.
•
•




1.5



•






14
13
AR




•.
•
•





•



 



•



••



•••






16
15



3
4
5
6
 7
8
9


 


•
•



•


50% -
50% -
100%






•.
•  
•
.
•

16
15
AR
     

•



•
.)-      







18
17


•
•TEFAL


•

          

       

•       
8

•        

•
           

•
•
•

•
