Instruction Manual
NOC60CC-P / NOC90CC-P

2
Note: REFRIGERANT R290
Besure to keep the opening clear ventilation system free from closures or
obstacles.
It is forbidden to set up or install the device near external ignitionsources.
Pay special attention to the minimum capacity (volume) (cubic capacity)
of the room in which the device will be installed. Minimum 1m3 for every 8g
refrigerant R290 (amount of refrigerant given on the nameplate).
Repairs in the refrigeration system may only be performed by trained
technical personnel authorized to work with flammableagents (R290).
In devices it is necessary to pay special attention when working that they are located on flat and level
ground. It is unacceptable to set the devices in an inclined position - on uneven surface – this may make it
difficult to drain condensate and lead to failure.
The compressor of the device is adapted to work at a mains voltage not lower than 220 V and not higher than
240 V.
Operating the device outside of these power supply parameters can lead to irreparable damage to the unit.
In the case of contamination of the unit condenser, and at least once a month, it should be cleaned with a soft
brush along the ribs, removing dust, powder, remains of package, etc.
For damage of compressor caused by contaminated/polluted condenser, the manufacturer doesn’t take any
responsibility.
If the non-detachable power cord is damaged, it should be replaced by the manufacturer or by a specialist
repair facility or by a qualified person in order to avoid a hazard
Do not cover the ventilation holes of the condenser refrigeration unit.
Do not use any mechanical or electrical means during defrosting.
Protect the refrigeration circuit against damage
For proper operation of the device and low energy consumption, the doors should be closed.
Do not setting the device in a place exposed to direct sunlight.

3
TABLE OF CONTENTS
1. APPLICATIONS .............................................................................................. 5
2. EXPLOITATION .............................................................................................. 5
2.1. Refrigerating system....................................................................................... 6
Compressor ................................................................................................... 6
2.2. Electrical installation and power supply ............................................................. 6
2.3. Installation and use ...............................................................................................7
2.4. Turning on the device...................................................................................... 8
Change of the temperature setting ................................................................... 8
Change of the temperature setting ................................................................... 8
Additional defrosting ...................................................................................... 8
Operating diodes and thermostat messages ...................................................... 8
Alarm functions .............................................................................................. 9
2.6. Operating the thermostat – Dixell .................................................................... 9
2.7. Individual decoration panel building of devices .................................................10
2.8. Transport .....................................................................................................10
3. MAINTENANCE ...............................................................................................10
4. CONDITIONS FOR SAFETY AND WORKING HYGIENE .........................................12
5. WARANTY REPAIRS ........................................................................................12
6. COMMENTS AND WARNINGS ..................................................................... 13
7. INFORMATION ON THE DISPOSAL OF THE EQUIPMENT......................................15
CHECK BEFORE YOU CALL A SERVICE.............................................................. 16

4

5
1. APPLICATIONS
Refrigeration devices such as pastry counters are intended for displaying previously cooled food pro-
ducts and sale in retail trade.
The construction of the device ensures obtaining optimal operating parameters, provided that all in-
structions contained in this manual are met. In order to ensure correct operation and obtain the best
possible parameters, the manufacturer recommends familiarizing users with the operation, mainte-
nance of the device and basic issuesrelated tothesafety of use. Accurateadherencetothe instructions
of the instructions will allow you to eliminate accidental damage.
2. EXPLOITATION
These products bear the marking to confirm compliance with the applicable legislation.
The Propane (R290) is a natural gas that does not affect the environment, but is flammable.
The manufacturer sends the device complete, assembled, packaged and marked with a nameplate.
After receiving the device, check the technical condition of any possible damage, notify the seller
within 24 hours.
In the place of use, level the device, if the product has wheels, lock the brakes;
Keep the device in good technical condition;
Products intended for display in a refrigeration device must be placed in the device in a cooled
condition to the storage temperature;
Do not overload the device. Ensure that the products are loaded in accordance with the technical
data of the device and do not exceed the permissible load of 20 kg/m² of the shelf. (Fig. 1)
Do not block grills !
Fig. 1 Fig. 2
The device can be filled up with products after the device has been cooled down.
Set the products inside such a way as to allow the air to circulate inside the device, do not block the air
inlets and outlets holes (Fig. 2).
Washing should be done after disconnecting the device from the mains, using warm water and soft
cloth or sponge. Use anti-static materials for cleaning.

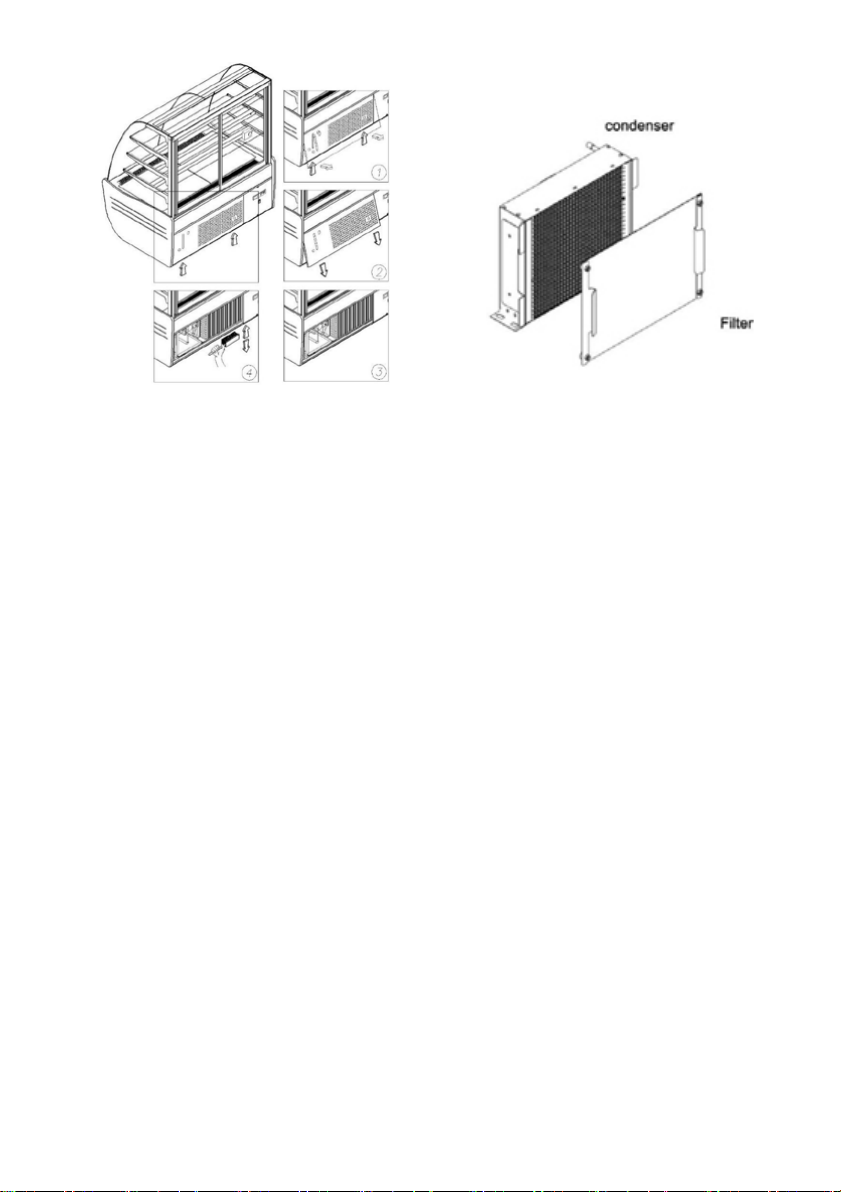

The front surface of the condenser at least once for a month, in the case of greater dustiness, perform
this operation more often (Fig. 7, 8).

6
WARNING!
It is forbidden to:
Tilting the device at an angle of more than 45°,but if it is necessary, wait about 1 hour before starting
the compressor, until the oil flows to the compressor.
WARNING!
Replacing the light source only after disconnecting from the power supply. The power of the light
sources is given on the product nameplate. In the event of a lamp failure, it should be replaced only
after disconnecting from the power supply, the defective light source should be replaced with new
ones of identical parameters
2.1. Refrigerating system
The device is equipped with a single-stage compressor refrigeration circuit controlled by an electronic
temperature controller with an automatic defrosting system - defrosting takes place every 4–6 hours.
The cooling installation is filled with natural refrigerant R290.
The system does not require any maintenance operations except for periodical cleaning of the
condenser.
Compressor
The compressor is equipped with an internal redundant (thermal) switch that protects the motor aga-
inst accidentaloverloads.
In the case of unnatural, noisy work or difficult start of the compressor, turn the device off, check the
condition of the condenser (in case it is dirty, clean it). If the compressor is hot – wait for it to cool and
re-start.
2.2. Electrical installation and power supply
The power supply should be made from a low voltage circuit (230V / 50Hz) terminated with a socket
equipped with a protective (grounding) pin.
It is unacceptable to use a device connected to a socket not equipped with a protective conductor.
The installation should be made in accordance with current standards, it should be protected by
aresidual currentcircuit breaker andanovercurrent switch adaptedtotheelectric power of the device
Do not connect the device to mains using extension cords.
The electrical installation should be made by a qualified electrician.
If the power cord is damaged, it should be replaced by the manufacturer or by a specialist repair facility
or by a qualified person in order to avoid a hazard.
An improperly made electrical installation may lead to electric shock or fire.

7
The compressor of the device is adapted to work at a mains voltage not lower than 220 V
and not higher than 240 V.
Operating the device outside of these power supply parameters can lead to irreparable
damage to the compressor.
2.3. Installation anduse:
1. When installing refrigerated device, remember that they give off a lot of heat. If the store room is
not sufficiently ventilated, this leads in a short time to excessive increase in the room temperature
and, as a consequence, to too high temperature and condensation pressure and a decrease in
the efficiency of the entire device. The compressor then works under overload conditions and in
extreme cases it can lead to permanent damage to the refrigerant unit. For these reasons, it is
recommended to:
–
Ensure good ventilation of the store room.
–Do not install the device in a place exposed to direct exposure of sunlight.
–
Be sure to keep the openings ventilation holes devices, free from closures
or obstacles.
–Periodic (frequent) checking of condenser unit condition
–
Setting the refrigeration unit away from heat sources (e.g. radiators, etc.)
and in a place not exposed to sunlight
–
Do not setting the furniture in the immediate operating range of the fans
(e.g ceiling fans, air conditioner fans).
It is forbidden to set or install the device near external ignition sources.
2. Accurate leveling of the device contributes to the reduction of the noise level of the unit, allows
correct positioningof theglass and guaranteescompleteremovingcondensatefromthedriptrays.
It is forbiddento set the devicein sloping position it may make itdifficultto drain condensate
and lead to failure.

8
2.4. Turning on the device
1. Connect the device to the electric supply.
2. Turn on the main switch of refrigerant system (red switch – 1). The Carel/Dixell electronic contro-
ller with the programmed temperature is automatically switched on (setting). After max. 1 minute
the compressor is started.
3. Turn on the lightening (green switch – 2).
Fig. 3
2.5. Operating the thermostat – Carel
Fig. 4
Change of the temperature setting
1. Press SET button for 1 seconds; the set value will show at the display, after 2 seconds the value
will start flashing.
2. Increase or decrease the temperature using the  or  buttons to achieve the new value.
3. Press the SET button again to confirm the new temperature value.
Additional defrosting
The device works in automatic defrosting mode at 4–6 hours intervals. If you notice incomplete
defrosting, perform manual defrost, press and hold the button for about 5 seconds.
Operating diodes and thermostat messages
Compressor operation LED – urns onwhen the compressor isrunning.
Defrost LED
– turns on whenthe device is in the process of defrosting.

9
Alarm functions
„E0” – temperature sensor failure.
„E1” – defrost sensor failure.
Iftheword OFF appears, pressandhold thebutton for about 3 seconds.
In the event of an alarm, report to the nearest service center.
2.6. Operating the thermostat – Dixell
Fig. 5
Change of the temperature setting
1. Press the button SET for 2 seconds: the temperature value will appear on the screen, the LED °C
or °F will start flashing.
2. Increase or decrease the temperature using the and buttons to achieve the new value.
3. Press again SET button or wait 5 seconds to confirm the new temperature value.
Additional defrosting
The device works in automatic defrosting mode at 4–6 hours intervals. If you notice incomplete
defrosting, perform manual defrost, press and hold the button for about minimum 2 seconds.
Operating diodes and thermostat messages
Compressor operation LED – turns onwhen the compressoris running.
Defrost LED– turns on when the device is in the process of defrosting.
Fan LED – turns on when the fan is working.
Alarm functions
„P1” – temperature sensor failure.
„P2” – defrost sensor failure.
In the event of an alarm, report to the nearest service center.

10
2.7. Individual decoration panel building of devices
The manufacturer allows the individual housing (installation) of the device provided that:
• Ensure proper air circulation in the device;.
• Do not install, cover the rear of the condenser and the control panel.
• Ensure free access and the possibility of removing the rear grille for periodic cleaning of the
condenser.
• Ensure that the compressor can be serviced, for this purpose the possible „front” installation should
be disassembled in order to ensure free access to the refrigeration system components. Ensure
the possibility of pulling the entire device out of the body.
• In the case of the installation of the front grille, ensure the air flow through appropriate
openings, air ducts, whose position and surface should be located parallel to the existing openings
in the device. The area of holes in a new building cannot be smaller than the area of existing holes.
EXACT GUIDELINES FOR INSTALLATION OF INDIVIDUAL
DECORATIONS IN DEVICES – CONTACT WITH THE MANUFACTURER.
2.8. Transport
The device in transport requires careful protection against the effects of shocks, as well as accidental
overturning. Glass elements and varnished coatings are particularly vulnerable.
The device should be in a horizontal position both during transport and transfer or removing time.
If the device must be tilted:
1. Disassemble the glass in a specific order and secure the connecting elements against loss,
2. After installing and setting the device in a specific place, reassemble the glass in reverse order.
The connection to the mains should be made after a minimum of 6 hours to allow draining the
compressoroil.
3. MAINTENANCE
1. The current maintenance of the device is carried out by the user on their own through periodic
cleaning of the body, display part, glass, etc.
2. Washing should be done after disconnecting the device from the mains, using warm water without
detergent. Use anti-static materials for cleaning
3. Window cleaning:
Do not leave the device with open front window unattended.

11
A special care is required when performing the tilting window
cleaning operation due to its weight.
Window cleaning operation that require the windshield to be ope-
ned should be performed by two service staff (one person holds
thetiltedglass,theother person cleans internal glasssurfaces, see
(Fig. 6).
Fig. 6
Lines attached to the glass are not security, but only
determine the degree of opening the windshield.
Do not spray water or detergent on electrical components and equipment.
1. Do not use sharp tools to remove dirt from the external and internal surfaces of the device.
2. The electrical installation does not require any maintenance
3. Do not use sharp tools to remove dirt from the external and internal surfaces of the device.
4. The refrigeration system does not require any maintenance except for periodic cleaning
of thecondenser.
The condenser is serviced from the front or back of the device depending on the model.
Checking the purity of the condenser should be done:
• at least once a month,
• if necessary, e.g. in case of obstructed compressor start, abnormal noise or hot air exhausted
underneath the unit or considerable reduction of cooling effectiveness.
If the unit condenser is contaminated / dirty, and at least once a month, clean it. To do this:
• disconnect the device from the power supply
• remove perforated plate or grille covering the refrigerating unit (Fig. 7)
• clean the filter mat (figure 8) mechanically with a brush or by a vacuum cleaner, removing dust,
packaging waste,etc.;
• Mount again perforated plate or grille covering the refrigerating unit.
IN THE CASE OF CONTAMINATION OF THE UNIT CONDENSER,
THERIBS, REMOVING DUST, POWDER,REMAINS OF PACKAGE, ETC.
THE MANUFACTURER DOESN’T TAKES ANY RESPONSIBILITY.

12
Fig. 7 Fig. 8
4. CONDITIONS FOR SAFETY AND WORKING HYGIENE
1. Do not connect the device to the electrical network until protective devices have been installed.
2. Installation of the electrical installation should be made by a qualified electrician.
3. All repairs and adjustments in the electrical system may only be carried out by an authorized
electrician. In the event of malfunctions such as: power punctures, sparking, etc., the device should
be immediately disconnected from the power supply and an electrician should be called in to
remedy the fault.
4. Wash and clean the device only after disconnecting from the power supply.
5. If the power cord is damaged, it should be replaced by the manufacturer or by a specialist repair
facility or by a qualified person in order to avoid a hazard
6. In the event of refrigerant leakage, avoid using open flames or sources of ignition near the leak.
7. Repairs in the refrigeration system may only be performed by trained technical personnel
authorized to work with flammable agents (R290).
5. WARANTY REPAIRS
1. The user, when purchasing the device, receives a warranty card with the serial number and the
date of production of the product. This data should be in accordance with the data on the
device’s rating plate
2. If the device is purchased from a wholesaler distributing JUKA’s products, the Warranty Card
that does not have the date of purchase and the Seller’s stamp will not be honored.
3. The warranty repairs are performed by the manufacturer or the nearest authorized plant
performing service services
The warranty period is extended by the duration of the repair

13
WARNING!
STRICT COMPLIANCE WITH THE RULES CONNECTED IN THE MANUAL IS GUARANTEEING
THE DURABILITY AND RELIABILITY OF THE DEVICE.
THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGERESULTING
FROM THE CAUSES OF OPERATION OF THE UNIT WITHOUT DESTINATION,
WITHOUT A CHARACTERISTIC AND WITHOUT THESE INSTRUCTIONS.
The warranty does not cover:
• damage caused during transport, unloading/loading;
• damage caused by unprofessional operation and operation of the device not in accordance with
the operatinginstructions;
• damage of glass and elements subject to natural wear and tear: fluorescent lamps, igniters,
wheels etc.
WARNING!
6. COMMENTS ANDWARNINGS
The company cannot be held liable in any way for any damage caused to people, animals or the product
in the case of:
• Improper use of equipment or use by inadequate or unauthorized personnel.
• Incorrect installation or power supply for the device.
• Failure to follow this instruction.
• Unauthorized modification of the device.
• Installation of non-original spare parts on equipment.
• Installation and use of equipment for purposes different from those given in this document
• Manipulation or damage to the power cable.
• Interference of people without qualifications to perform service activities.
EQUIPMENTSHIPPEDOUTSIDEPOLANDISNOTCOVEREDBYTHEGUARANTEE.

14
7. INFORMATIONONTHEDISPOSALOFTHEEQUIPMENT
In accordance with Directive 2012/19/EU, it is forbidden to dispose of used electrical appliances
together with normal waste. Such equipment should be handed over to the collection points designated
by the local authorities.

1

1
CHECK BEFORE YOU CALL A SERVICE…
Possible failure Possible cause Solution
The device does
not turn on
Power cord is disconnected.
Connect the power cord.
Power cord is damaged. Call electric service.
Main switch is turned off.
Turn on the main switch (check the fuse).
Too high
temperature
in display
or exposition
Ambient conditions not inaccordance
with the instructions
–
device exposed to sunlight
– drafts (wind)
– air conditioning disturbs
the air circulationin the device.
Change the device location
and ambient conditions
to the guidelines in the instructions.
Dirty condenser. Clean the condenser.
Furniture installation of the device
does not complywiththe guidelines.
Increase the area hot air inlets / outlets
from the condenser.
Check the air temperature
in front of the condenser.
Iced evaporator. Turn on additional defrost
(see instructions).
Loading level exceeded. Change loading according
to the level indicators.
Condensation
on the windows
/ glasses
Ambient conditions notinaccordance
with the instructions.
Ensure proper operating conditions
(see instructions).
Bad air circulation.
Ensure proper air circulation.
Remove the obstacles on the intake
and air outlet.
Water on the floor
PTC heater failure.
Call service.
Ambient conditions notinaccordance
with the instructions.
Ensure proper operating conditions
(see instructions).
A sudden
appearanceofsteam
or condensation
on the interior
parts of the glass
Defrost process was initiated
automatically or manually.
After the defrost process, the steam,
condensation will disappear.
The sound
of cracking,
clicking
Defrost process was initiated
automatically or manually.
During the defrost process
thereappearstressesresulting
fromtemperaturedifferences.
At the end of the process,
the sounds will disappear.
