TEINNOVA TEGRAS ifoam User manual

user manual EN
Smart active foam generator
ifoam
Original manual translation

Smart active foam generatorifoam 2-32
introduction
Dear Client:
Thank you for placing your trust in a quality product from TEINNOVA.
This product has been made using modern manufacturing techniques and
comprehensive quality assurance measures.
We strive to do everything we can to make sure you are satisfied with
this product and can work with it without problems. Should you have any
questions about this product, please contact your dealer or contact the
company directly.
Before starting up the machine, carefully read the instructions for use of your
equipment.
Treat this manual as part of the machine and always keep it handy for future
reference.
Our training services have been designed to support our clients in achieving
their goals and, together, we develop training programs to fit their
strategy.
We offer the option of providing companies with specific training in the use
of our equipment and to educate their operators so they provide the best
service and thus contribute to the success of their final customers. Aspects
such as knowing how to prepare a good, objective, quotation, to respond
to specific problems that may arise, or to offer a more professional and
efficient service.
Because we manufacture our own cleaning equipment we can
continuously control the quality and performance of every machine we
make, and this is why we have very low repair ratios, and repairs
have always been solved by our in-house Technical Support Service,
managed by the same team as the factory, and to do it quickly.
We have all kinds of spare parts for your equipment, as well as related
accessories.
This instruction manual is protected by copyright. We reserve all rights, especially the rights to produce,
translate and prepare it using electronic systems.
Training service
Technical service
941445056941445056

Smart active foam generatorifoam 3-32
contents
symbols used
safety warnings
conditions of use
know your machine
control panel
remote control
accessories and related equipment
operating instructions
use of chemical products
5-32
6-32
7-32
8-32
9-32
11-32
12-32
16-32
24-32

Smart active foam generatorifoam 4-32
contents
transport
maintenance and care
waste management
troubleshooting guide
technical specifications
guarantee conditions
declaration of conformity “CE”
25-32
26-32
28-32
29-32
30-32
31-32
32-32

Smart active foam generatorifoam 5-32
symbols used
All the symbols used in this manual, as well as those on the equipment, are explained in this
section. It is important to read the text associated with these symbols carefully, since it is about
personal safety and equipment safety.
DANGER!
This symbol warns you of a potentially dangerous situation which could result in
serious injury or even death if the instructions given are not followed properly.
Make sure you read all the instructions in the ”Safety information” section.
WARNING!
This symbol warns you of a potentially dangerous situation that could
result in minor or moderate injury, or property damage resulting in injury to people
if proper instructions are not followed.
CAUTION!
This symbol warns you of a situation that may cause damage to property, without
causing injury, if the instructions given are not followed properly.
IMPORTANT!
This symbol alerts you to information about the best way to use the equipment
avoiding any possible improper operation.

Smart active foam generatorifoam 6-32
The IFOAM equipment should NOT be used for anything other than the uses covered in this instruction
manual.
Make sure all the electrical connections and connections for liquids are correct before starting the
equipment.
Do not aim the jet from the lances at people.
Make sure your equipment is placed on a stable, flat surface. Apply the front wheel brakes to keep the
machine stable.
Everybody who uses this equipment must be properly trained.
Mechanical protection gloves and an overall should be worn when using the equipment.
Full face protection equipment must be used to prevent possible chemical splashes reaching the
operator's eyes.
Make sure the machine is properly supported in an upright position and lock the wheels during
transport in a vehicle.
Do not open the casing of your IFOAM nor handle any of the internal parts of the equipment. In the
event of a fault please contact the TEINNOVA Technical Assistance Service.
safety warnings
941445056941445056

Smart active foam generatorifoam 7-32
conditions of use
LEGEND
low pressure chemical and rinse
power supply
compressed air
low pressure foam and high pressure rinsing
mains water
The IFOAM is a machine for producing and applying active foam, and then for rinsing with water. It is
suitable for work in kitchens and food handling companies, and can also be used with aggressive chemicals.
It can also be used in fume exhaust ducts and extraction hoods.
It can be used together with a TEGRAS FORTE or TEGRAS MULTIPRO, or with a manual lance.
AR20
Compressed air
generator
IFOAM PRO
Active foam generator
and rinser
TEGRAS MULTIPRO
Pneumatic duct-cleaning
brushing machine
Any other use is strictly forbidden
without the written permission of the
manufacturer.
Under no circumstances place the
machine in a horizontal position, as this
will cause the machine to malfunction.
Unless otherwise indicated, the
degreasing chemical used must be that
recommended by the manufacturer,
COMEGRAS BOX.
The use of any other chemical will void
the warranty and may cause irreparable
damage to your TEGRAS equipment.

Smart active foam generatorifoam 8-32
know your machine
1
7
6
2
10
5
8
Components:
1- Emergency stop
2- Control screen
3- Brakes
4- Front wheel
5- Side Cover
6- Transport handle
7- Lance and pistol grip
8- Rear wheel
9- Nozzle compartment
10- Chemical compartment
11- Mains water inlet
12- High pressure outlet
13- Low pressure outlet
14- Lance storage
15- Lance supports
16- Supply support
17- Power connection
18- Remote support auxiliary connection
3
4
12 1713 1114
15
16
18
9

Smart active foam generatorifoam 9-32
control panel
1
2
3

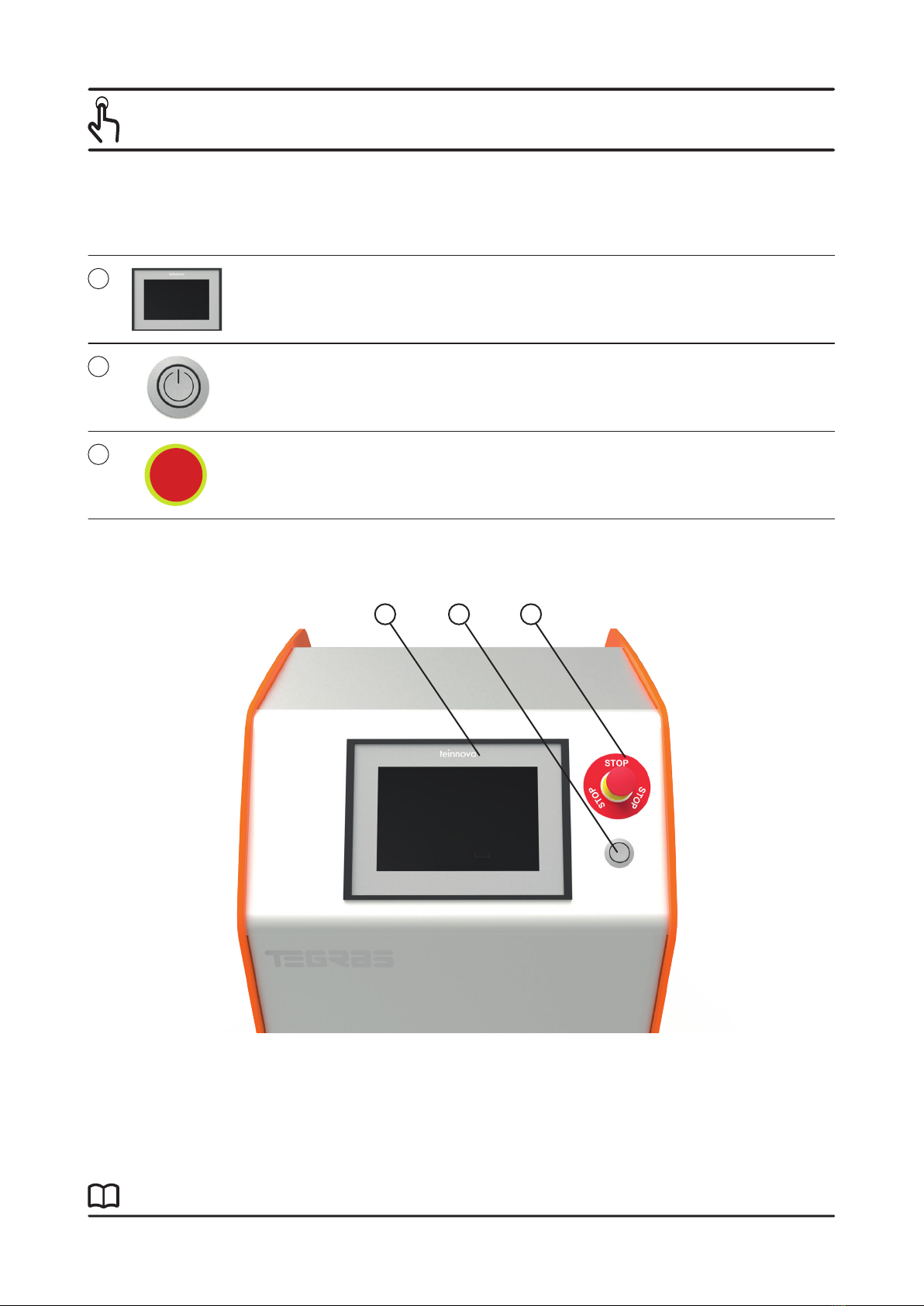

Main control panel:
Main Switch
Touch Screen
Emergency Stop
Button
Turning the equipment on and off
Emergency stop
The equipment is controlled using the touch screen
1 2 3

Smart active foam generatorifoam 10-32
control panel
Main control panel:
Starting control panel:
Eco Mode
For reducing chemical use in the active foam mixture. This
option is suitable for use when there is little dirt (the instal-
lation has been continuously maintained).
Brushing Machine Mode
Rinsing Option Activates the rinsing system
Modo Lanza Manual
Stop Stops all operational systems.
Foaming Option Activates the active foam creation system and its 6 bar
injection.
For working with low pressure foam and rinsing using the
brushing machine head.
For working with low pressure foam and high pressure
rinsing using the pistol grip lance

Smart active foam generatorifoam 11-32
remote control
1
3
4
5
2
6
7
Remote control panel:
STOP
Rotate Right
Unlock button
Foam
Rotate Left
Centring Button
Rinse
This stops the machine immediately.
Operates the Tegras brushing machine motor so that its rotation
is counter-clockwise.
Used to open/close the Tegras Multipro brushing machine
centring system.
Controls the machine’s foaming function.
Controls the machine’s low pressure rinse function.
Operates the Tegras brushing machine motor so that its rotation
is clockwise.
This is a safety measure to avoid unwanted operations. You
have to keep the unlock button pressed to activate any of
the modes or options, except for the STOP button that works
without having to press and hold the unlock button.
2 12V Batteries.
Type 23A
Battery cover
Strap
Support
1
2
3
6
4
5
7

Smart active foam generatorifoam 12-32
accessories and related equipment
Accessories included:
Lance with adjustable angle of foam injection and high pressure rinsing.
Code AC3303340
Adjustable lance and water brushing
8 meter long hose, with standard connectors, specifically for supplying
high pressure liquids to the high pressure lance supplied by Teinnova. The
connectors match those used by the TEINNOVA equipment.
Code AC3303220
8 meter long hose, with standard connectors, specifically for supplying
MULTIPRO TEGRAS and TEGRAS FORTE liquids.
The connectors match those used by the TEINNOVA equipment.
Code AC3303221
High pressure liquid feed hose
Low pressure liquid feed hose

Smart active foam generatorifoam 13-32
accessories and related equipment
Nozzle for high pressure water injection with a dispersal angle of 40°.
This nozzle can be found in the upper rear part of the equipment.
Code 370004005
Nozzle for high pressure water injection with a dispersal angle of 15°.
This nozzle can be found in the upper rear part of the equipment.
Code 370001505

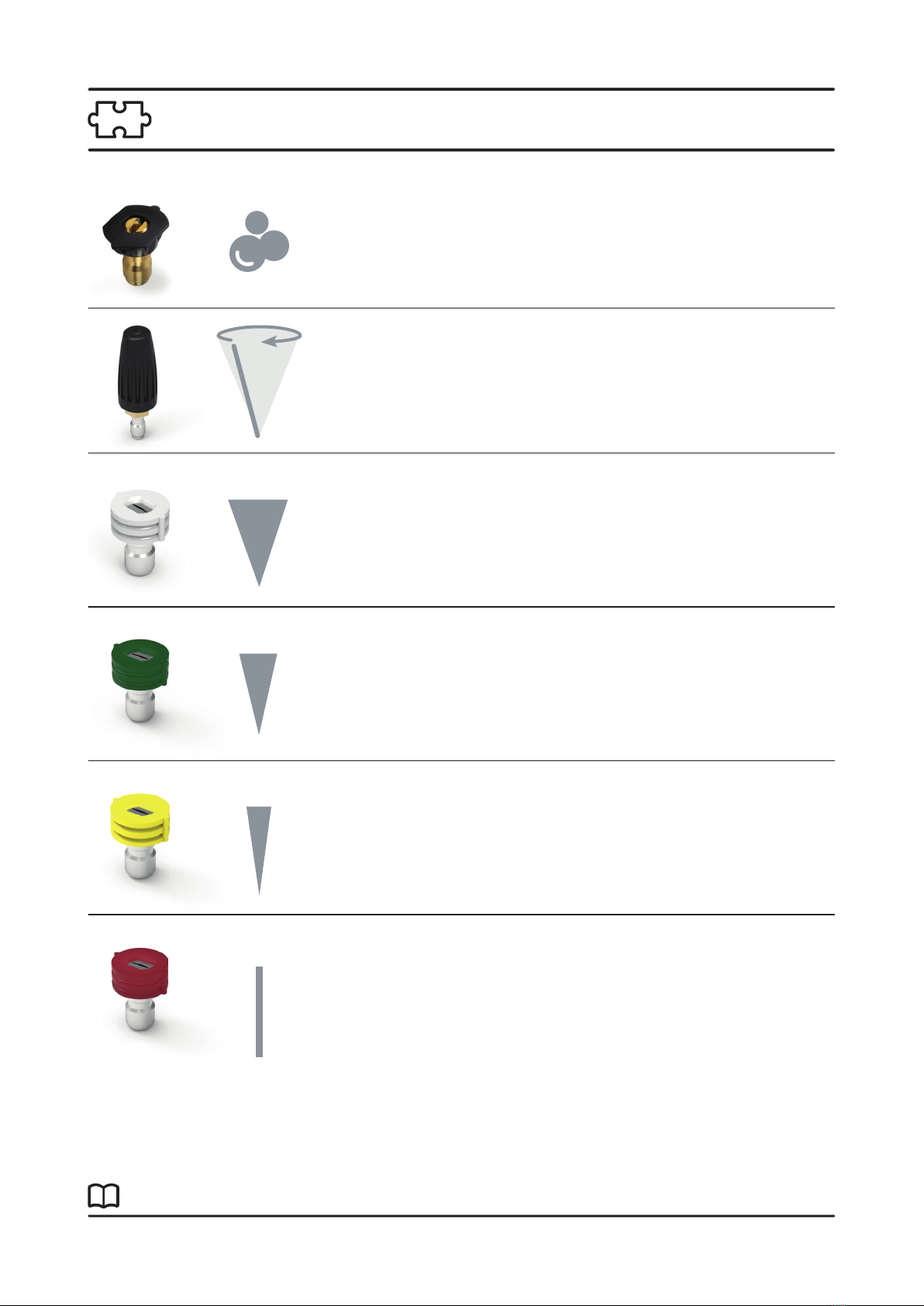

White high pressure rinsing nozzles
Yellow high pressure rinsing nozzles
Nozzle for high pressure water injection with a dispersal angle of 25°.
This nozzle can be found in the upper rear part of the equipment.
Code 370002505
Green high pressure rinsing nozzles
Nozzle for high pressure water injection with a dispersal angle of 0°.
This nozzle can be found in the upper rear part of the equipment.
Code 370000005
Red high pressure rinsing nozzles
Black foam nozzle
Narrow jet rotary nozzle for high pressure rinsing. Removes the most
recalcitrant grease from surfaces.
Code AC3303310
Foam nozzle for use with the manual lance.
Code 370006540
“Rotojet” rotating nozzle
40°
25°
15°
0°

Smart active foam generatorifoam 14-32
accessories and related equipment
Optional accessories:
Hose reel allowing mains water to be taken from a mains outlet far from the
cleaning area. The hose is 15 meters long.
Code HE7300200
Tap connector for connecting the mains water hose to threaded taps.
Code AC6200005
Adapter for connecting the mains water hose to un-threaded round taps.
Code AC6200004
Adapter for connecting the mains water hose to square taps.
Code AC6200003
Chemical for dissolving grease. The foaming agent is highly alkaline.
Code PQ8100121
Mains water hose reel
Tap connector for threaded taps
Adapter for un-threaded round taps
Adapter for square taps
The comegras box chemical
Remote control for the Tegras Multipro brushing machine and its IFOAM.
Code AC3303120
Remote control

Smart active foam generatorifoam 15-32
accessories and related equipment
Pneumatic duct-cleaning brushing machine.
Code TG3310102
Pneumatic duct-cleaning brushing machine.
Code TG3310203
Related equipment:

Smart active foam generatorifoam 16-32
operating instructions
Connect the hose to a water supply with a pressure of at least
0.1 bar, adapters are available for different taps, which are
offered as optional accessories.

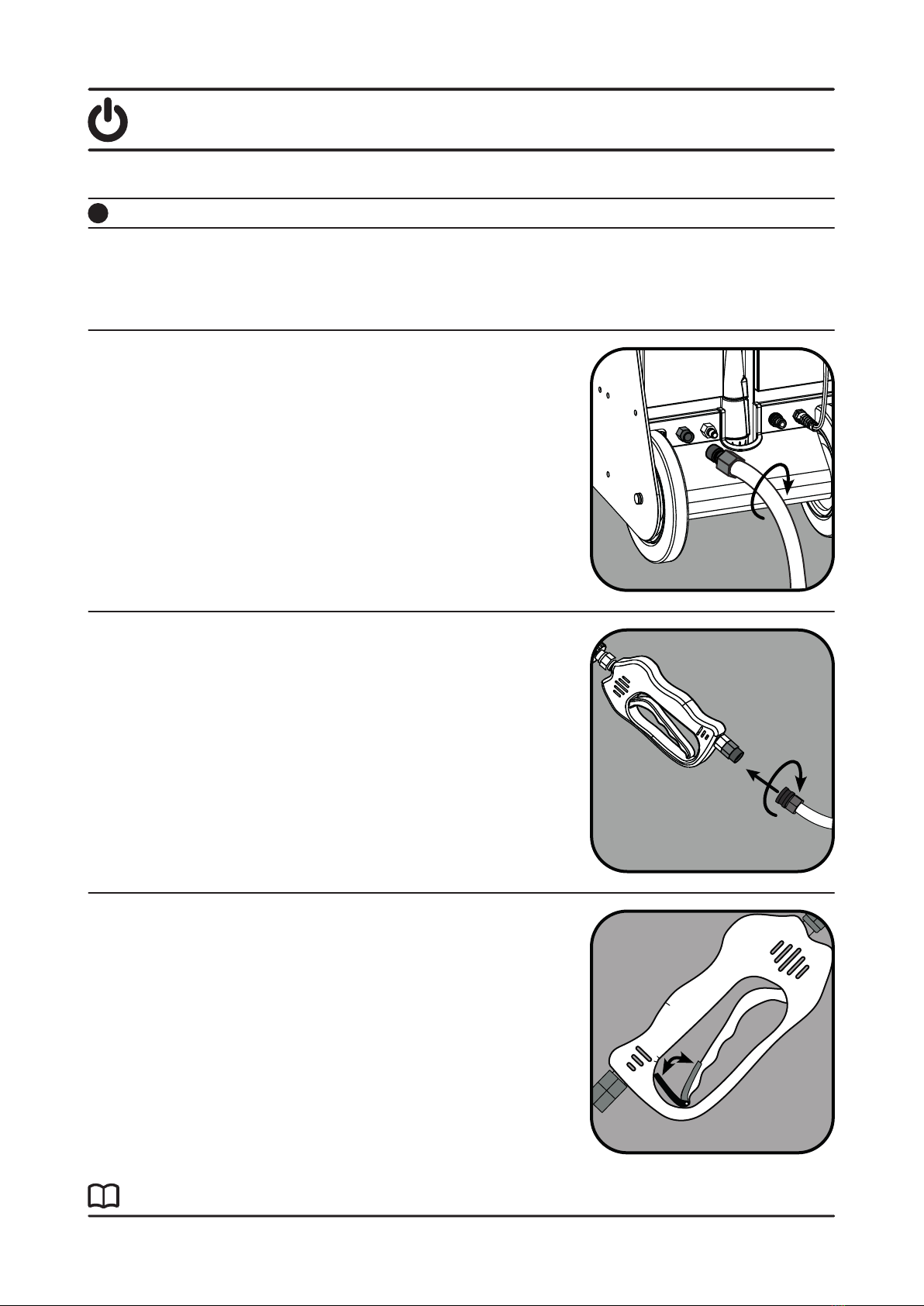

Connect the hose to your IFOAM water inlet connector.
Steps for a correct ifoam installation:

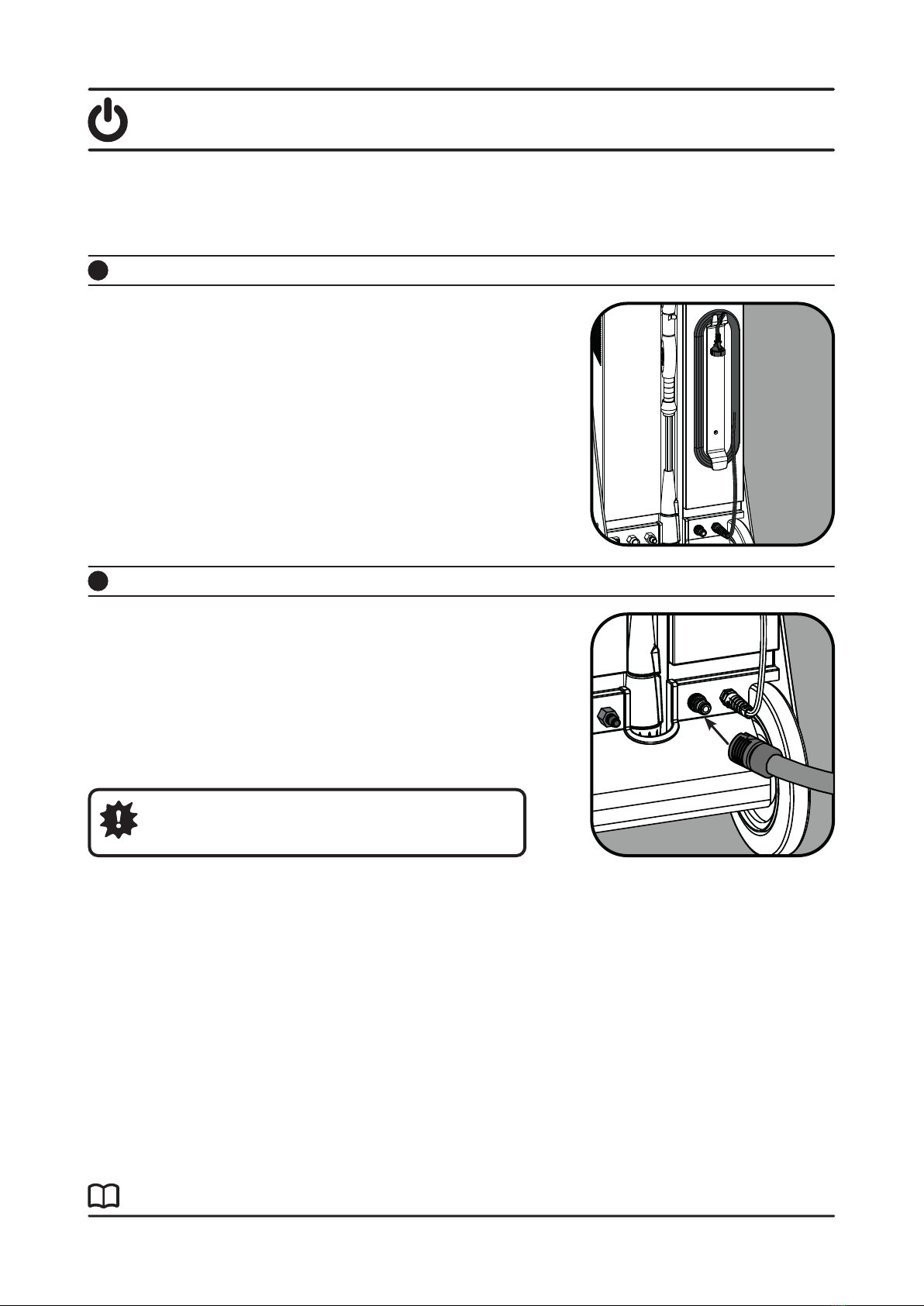

Connection to the water supply:
Connection to mains power:
1
If the water pressure is less than 0.1 bar, the
equipment will not operate.
2
The connection is done using an electric cable attached to the
equipment.

Smart active foam generatorifoam 17-32

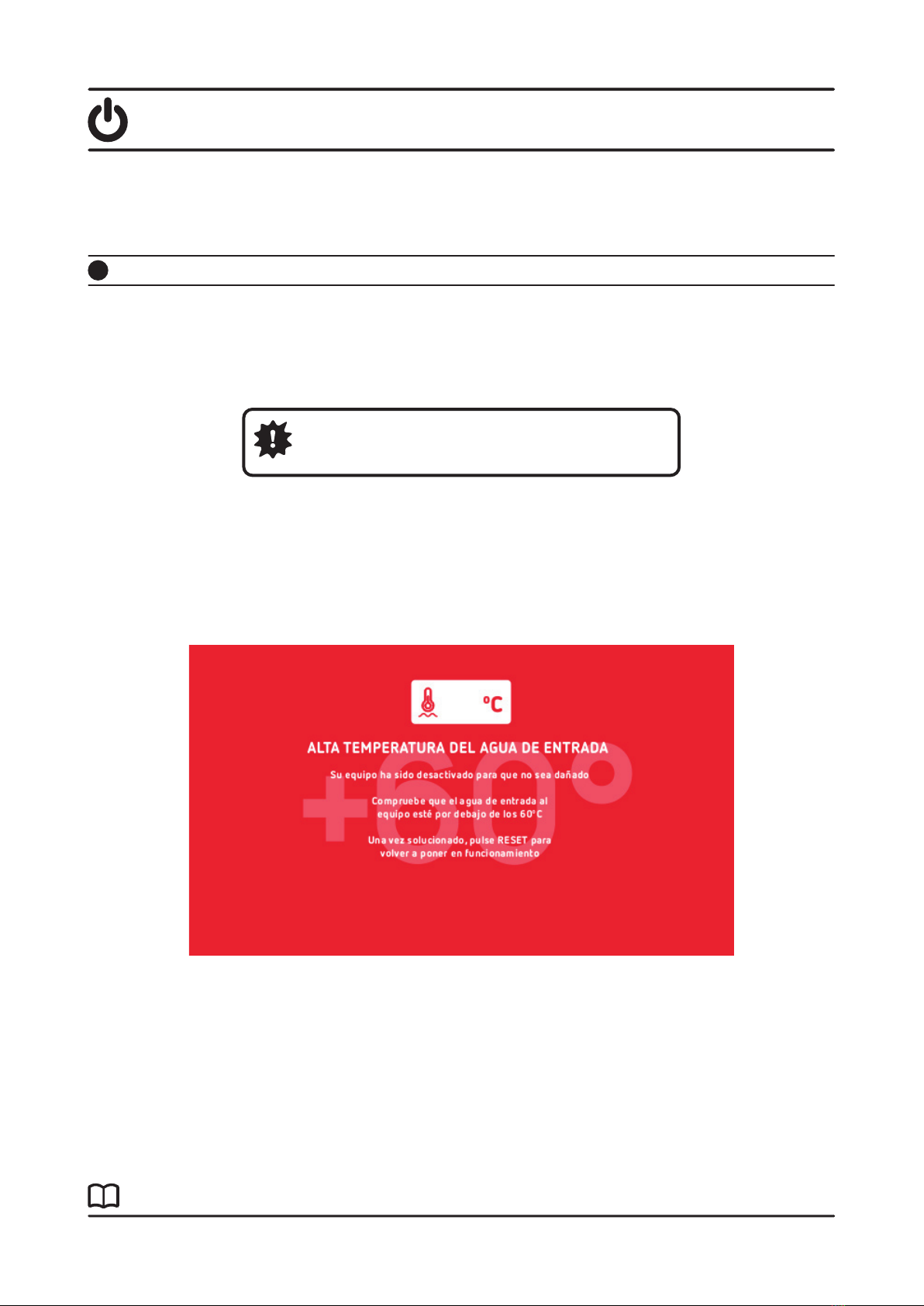

The IFOAM has a safety system for high inlet water temperature. If the water temperature is above 60 oC, it
may cause faults in the equipment’s internal components.
Therefore the equipment will go into hibernation mode, it will not operate and it will display a high water
temperature warning on the control screen.
operating instructions
Steps for a correct ifoam installation:
Inlet temperature control:
3
The inlet temperature of the mains water must be
no higher than 60 oC.
The equipment will become active again and operate correctly when the inlet water temperature falls below
60 degrees and the reset button is pressed.

Smart active foam generatorifoam 18-32
operating instructions

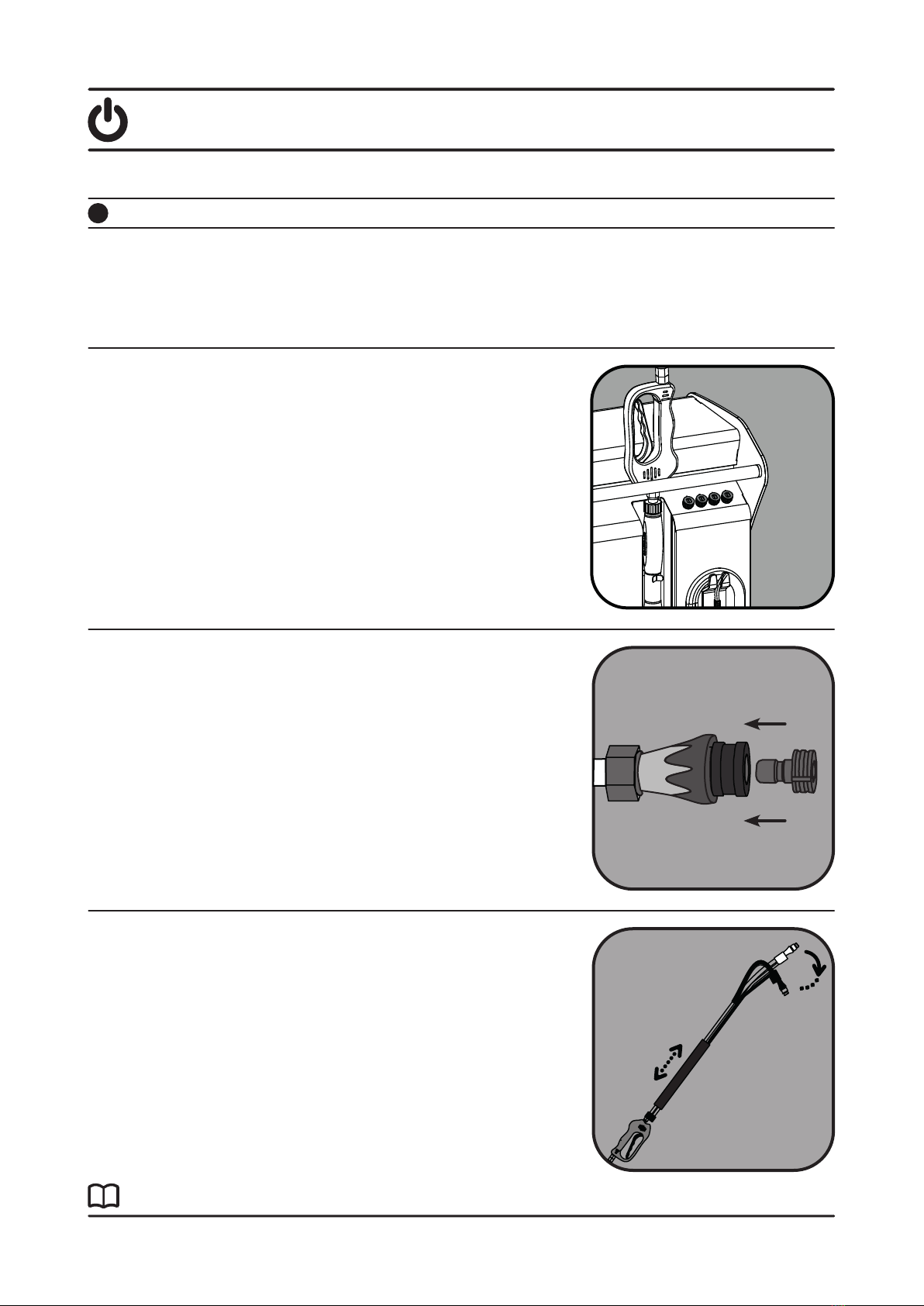

The high-pressure lance enables high-pressure rinsing using a manual lance. It is connected directly to the
Ifoam through a high pressure hose that is connected to the machine at a connector located in the lower rear
part of the equipment. The connection and disconnection must be done with the equipment switched off.
Connect the high pressure hose to the high pressure lance.
To stop it being accidentally activated, the pistol grip has a
safety system for the trigger. This system is released by turning
the safety and fitting it into the trigger.
Connect the hose to the Ifoam.
Connecting the high-pressure manual lance:
4

Smart active foam generatorifoam 19-32
operating instructions
The high pressure lance can be used not only for high pressure rinsing, but also for low pressure foaming,
with no need to change the lance or the pistol grip.
Both options are selected on the equipment’s control panel.
Using the high-pressure manual lance:
Once the lance and pistol grip assembly is connected, the
correct nozzle is fitted for the required water dispersal angle.
These nozzles can be found in the upper rear of the equipment.
There are four nozzles for high pressure rinsing and one nozzle
for low pressure foaming.
The connection of the nozzle to the lance is done as shown in
the figure.
5
The lance angle of incidence is set by moving its handle forward and
backwards. The working range is from 20 to 140 degrees.

Smart active foam generatorifoam 20-32
operating instructions
This connection is done using a low pressure hose. The connection must be done with both devices turned off.
Connect the low pressure hose to the Tegras brushing machine
liquid inlet connector.
Make sure the tap for the Tegras equipment supply is shut off
while the connection is being made.
Open the tap once the connection has been made.
Connect the low pressure hose to the Ifoam.
Connection to the Tegras brushing machine:
6
