Tekno RC ET48 2.0 Instruction Manual

Introduction
Disclaimer: Tekno RC is not responsible or liable for any property or personal damage, loss, or injury incurred as a
result of using this product. This kit is meant for use by persons 14 years of age or older and in the strict connes of
a legally permitted RC track or facility.
Warnings: Always double-check that your radio gear is working properly before operating vehicle. Never operate the
vehicle indoors (unless the RC track is an indoor facility). Use caution while operating vehicle so as not to collide with
people who may be turn marshalling or who might otherwise not be aware that a fast moving RC vehicle is in the vicinity.
Warranty: We warrant that the parts included in this kit are free from defects. If you nd a defective part in your kit,
please contact us at [email protected] and we will help to resolve the issue. If you modify any part prior to contacting
us, the warranty claim will be void. We do not warranty parts that may be broken during operation of the vehicle
or otherwise. Refer to the end of this instruction manual for a listing of spare/replacement and option parts.
All spare parts and other info are available on our website (www.teknorc.com) and through our network of
domestic and international dealers and distributors.
Thank you for purchasing the Tekno RC ET48 2.0 1/8th 4WD competition electric truggy kit.
We are always working on new projects, so please check our website regularly at www.teknorc.com
or visit us on Facebook at www.facebook.com/teknorc for all the latest news, parts, and kits.
Take your time! When you work your way through these building instructions, keep an eye out
for the following important indicators below:
•
RED TEXT - This indicates important areas of the build process that should be observed.
•
YOUTUBE - We also have many useful build videos on Youtube, so be sure to check these out!
https://www.youtube.com/c/teknorc
Thread Lock icons
Thread lock is always used when a screw is inserted into any metal part. (Included with kit)
Thread
Lock
Grease icons
Grease is usually used on areas with movement and for sealing. (Included with kit)
Grease
Additional equipment and parts needed:
•
Paint for body
•
1/8th scale ESC and motor system
•
High torque steering servo (at least 300 oz/in)
•
4s (4 cell, 14.8v) LiPo battery (at least 5000mAh)
•
1/8th scale truggy tires, wheels & CA glue (or premounts)
•
MOD1 Pinion 15 tooth - 25 tooth (TKR4175 - TKR4185)
Tools needed:
•
Hex drivers 1.5mm, 2.0mm, 2.5mm
•
Nut drivers 5.0mm (TKR1107, 5.5mm (TKR1108), 7.0mm (TKR1109)
•
Hobby knife
•
Needle-nose pliers
•
Shock tool (TKR1115) OR adjustable (Crescent) wrench (for shock assembly)
•
17mm Wheel Wrench (TKR1116)
•
4mm turnbuckle wrench (TKR1103) - 5.5/7.0 two sided wrench (TKR1119)

TKR5145B
TKR5144

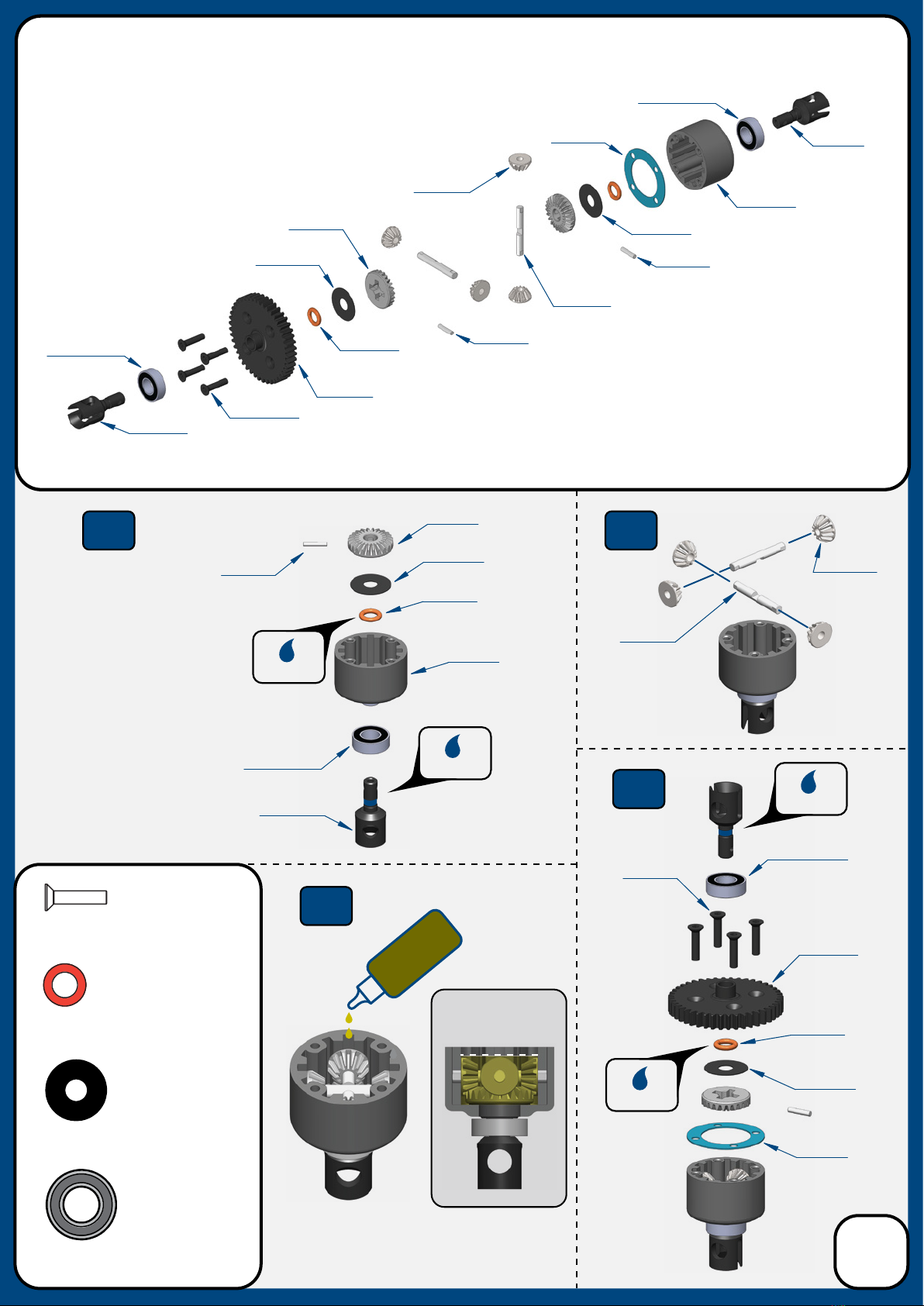

Bag A
Center Dierential
(overview)
TKR1325
X 4pcs
TKR9149
TKR9150
TKR5145B
TKR9114
TKR5144
TKR5145B
TKR9143
Step
A-2
Step
A-4
Fill Level
Step
A-3
Step
A-1
TKR5144
Dierential 0-rings
x2
TKR5145B
Dierential Shims (6x17mm)
x2
TKR1325
M3x14mm Flat Head Screw
x4
TKRBB08165
TKR9115
TKR9150
TKR9149
Di
Oil
TKR9237
TKR9237
TKR9143
TKRBB08165
TKRBB08165
TKR9114
TKR9114
TKR9150
TKR5145B
TKR9150
TKR1325 x4
TKR9114
TKR5144
TKR9115
TKR9114
3
Grease
Grease
Grease
Grease
Fill with #20,000 CST oil to
1mm below full
DO NOT OVER FILL
Note: Apply grease to the
groove in the outdrive.
Note: Apply grease to the
recess inside TKR9115,
where the o-ring is placed
as well as the o-ring itself.
TKR9114
TKRBB08165
TKRBB08165
Ball Bearing (8x16x5)
x2
*TKR5114XB
(option)
*TKR5114XB
(option)
*TKR9117
(option)
*TKR9117
(option)
*TKR5114XB
(option)

TKR5145B
TKR5144
Bag B
Front and Rear Dierential
(overview)
TKR1325
X 4pcs
TKR9149
TKR9150 TKR5145B
TKR9115
TKR5144
TKR5145B
TKR9143
Step
B-2
Step
B-4
Fill Level
Step
B-3
Step
B-1
TKR5144
Dierential 0-rings
x4
TKR5145B
Dierential Shims (6x17mm)
x4
TKR1325
M3x14mm Flat Head Screw
x8
TKRBB08165
TKR9115
TKR9150
TKR9149
Di
Oil
TKR9452
TKR9114
TKR9143
TKR9150
TKRBB08165
TKR9114
*TKR5114XB
(option)
*TKR5114XB
(option)
*TKR5114XB
(option)
TKR5145B
TKR9150
TKR5144
TKR5144
TKR9452
TKR1325 x4
4
Grease
Grease
Grease
Grease
Fill with #20,000 CST oil FRONT
Fill with #10,000 CST oil REAR
to 1mm below full
DO NOT OVER FILL
Note: Apply grease to the
groove in the outdrive.
Note: Apply grease to the
recess inside TKR9115,
where the o-ring is placed
as well as the o-ring itself.
TKR9114
TKRBB08165
TKR9114
TKRBB08165
Ball Bearing (8x16x5)
x4
Repeat for rear diRepeat for rear di
Repeat for rear di
Repeat for rear di

Note: Do not Over-tighten.
Note: Apply a small
amount of black grease
to the ring gear teeth.
Note: TKR1222 may
not be required. Check
fitment and add if needed.
TKR1603
TKR1301
TKR1301
TKR1301
TKR5401
TKR5401
TKR9453
TKR9412
TKR1529 x 2pcs
TKR8727
TKR9428
TKR9412
TKR1525
TKR5401
TKR1525
TKR9428
TKR8727
TKR5075
TKR5075
TKR1226
TKR9412
TKR1222
TKR1222
TKR9017
TKR1212
TKR1212
TKR1525
x 4pcs
TKR1529
TKR9017
TKR1301
TKR9453
TKR1603
TKR9412
TKRBB05114
TKRBB05145
TKR1226
TKRBB05114
TKRBB05145
Step
C-1
Step
C-3
Step
C-4
Step
C-2
TKR1222
13x16x.1mm Shim
x2
TKR1301
M2.5x6mm Flat Head Screw
x2
TKR1525
M3x14mm Cap Head Screw
x6
TKR1529
M3x20mm Cap Head Screw
x2
TKR1603
M5x4mm Set Screw
x1
TKR1226
M5x7x.2mm Shim
x1
TKRBB05114
Ball Bearing (5x11x4)
x1
TKRBB05145
Ball Bearing (5x14x5)
x1
Grease
TKR1212
M4 Lock Nut Flange
x2
Thread
Lock
Bag C Front Gearbox (overview)
5

Note: Do not Over-tighten.
TKR1603
TKR1301
TKR1301
TKR1201 x 4pcs
TKR9429
TKR9453
TKR1525 x 4pcs
TKR9416
TKR1529
TKR1222
TKR1525 x 4pcs
TKR1525 x 4pcs
TKR1525 x 4pcs
TKR1525
TKR8727
TKR9181T
TKR9676
TKR9416
TKR9017
TKR9017
TKR1525
TKR1212
TKR1212 TKR8727
TKR1529
TKR9181T
TKR1301 TKR1201 x 4pcs
TKR1301 TKR9416
TKR1222
TKR9453
TKR5401
TKR1603
Thread
Lock
TKR9416
TKRBB05145
TKR1226
TKRBB05145
TKR9676
TKR1226
TKR5401
TKR9429
TKRBB05145
TKRBB05145
Step
D-1
Step
D-3
Step
D-4
Step
D-2
TKR1222
13x16x.1mm Shim
x2
TKR1301
M2.5x6mm Flat Head Screw
x2
TKR1525
M3x14mm Cap Head Screw
x10
TKR1529
M3x20mm Cap Head Screw
x2
TKR1603
M5x4mm Set Screw
x1
TKRBB05145
Ball Bearing (5x14x5)
x2
TKR1226
M5x7x.2mm Shim
x1
TKR1201
M3 Locknut Black
x4
TKR1212
M4 Lock Nut Flange
x2
Note: TKR1222 may
not be required. Check
fitment and add if needed.
Note: Wing mount height is now
adjustable by moving it up or down
on the tower.
Note: Stock position is + 7mm.
Note: Apply
a small amount of
black grease to
the ring gear teeth.
Grease
TKR1529
Bag D Rear Gearbox (overview)
6
+ 12mm
+ 7mm (stock)
0mm

Note: With center dot inserts,
Rear Toe = 2.5°
Note: The D block
is wider than
the A block.
Note: This is the droop screw.
Final adjustment will be made later.
Note: With center dot inserts,
Anti-Squat = 1.5°
TKR1601
TKR9055
TKR1445
TKR9017
TKR1601
TKR1443
TKR9464
TKR5165
Bag E
Rear End
Assembly
Optional Sway Bars
(sold separately)
*TKR9494 - 1.6, 1.7, 1.8, 1.9, 2.0mm
*TKR9495 - 2.1, 2.2, 2.3, 2.4, 2.5mm
*TKR9496 - 2.6, 2.7, 2.8, 2.9, 3.0mm
TKR1601
TKR5165
TKR5049A
TKR9059
TKR1529
TKR9055
TKR9463
TKR1238
TKR9430
TKR5165
TKR9020
TKR5079A
TKR9017
TKRBB050825
TKRBB050825
TKR9495 - 2.3mm
Step
E-1
Step
E-2 Step
E-3
Step
E-4
TKR1238
M4x10mm Droop Screw
x2
TKR1443
M4x10mm Button Head Screw
x1
TKR1445
M4x14mm Button Head Screw
x2
TKR1529
M3x20mm Cap Head Screw
x2
TKR1601
M3x4mm Set Screw
x4
TKRBB050825
Ball Bearing (5x8x2.5)
x2
7
Stock Position
(”D” Block)
Stock Position
(”C” Block)
Thread
Lock

TKR9034
TKR1201
TKR1601
TKR9165
TKR5165
TKRBB08165F
TKR1603
TKR9671 (+2mm)
TKR1201
TKR9165
TKR8073
TKR9166
TKR9040
TKR9166
TKR9040
TKR9472
TKR8070
TKRBB15214
TKR8073
x4
TKR1601
M3x4mm Set Screw
TKRBB08165F
Flanged Ball Bearing (8x16x5)
x2
TKR1201
M3 Locknut Black
x4
TKRBB15214
Ball Bearing (15x21x4)
x2
Step
F-1
Step
F-2
Grease
Thread
Lock
TKR1603
M5x4mm Set Screw
x2
Note: Do not overtighten .
Bag F
Rear Hub/Camber Link
8
LOW
HIGH
ROLL CENTER
HUB INSERTS
1 (L+)
2 (L)
3 (M)
4 (H)
5 (H+)
Static Toe
Active Toe
(Right Arm)
0° 0° 0°1° in 1° in
1° in 1° in1° out 1° out
1° in
0°0°
ARM INSERTS
*TKR9673 (+4mm)
(Option)
Note: Make two of these assemblies.
Note: Repeat on other side.

TKR1201
TKR1211
TKR1534
TKR1534
Step
F-3
5
8
1
2
3
4
9
10
11
12
Stock position is 6/B
Step
F-4
Build Note: Hold the turnbuckle stationary
with pliers and push the rod end hard onto
the turnbuckle while turning at the same
time. Keep in mind that one end of the
turnbuckle has normal threads and the
other has reverse threads. Start the rod
end straight and it will thread on straight.
Build Tip: Use some grease or
Chapstick on the threads
to help prevent “pop-o” when
adjustments are being made.
Right
Left
TKR8052A
TKR5187B
TKR8052A
TKR5187B
TKR5187B
TKR9450
TKR9450TKR5187B
TKR8052A
TKR8052A
Bag F
Rear Camber Links
9
TKR1201
M3 Locknut Black
x2
TKR1211
M3 Lock Nut Flange Black
x2
TKR1534
M3x22mm Cap Head Screw
x4
69.50mm
Note: Notch always
goes on left side of vehicle.
Actual Size

Note: With center dot inserts,
Arm Sweep = 0°
Note: With center dot inserts,
Kick Up = 10°
TKR1601
TKR1445
TKR9017
TKR1601
TKR1445
TKR5165
TKR9018

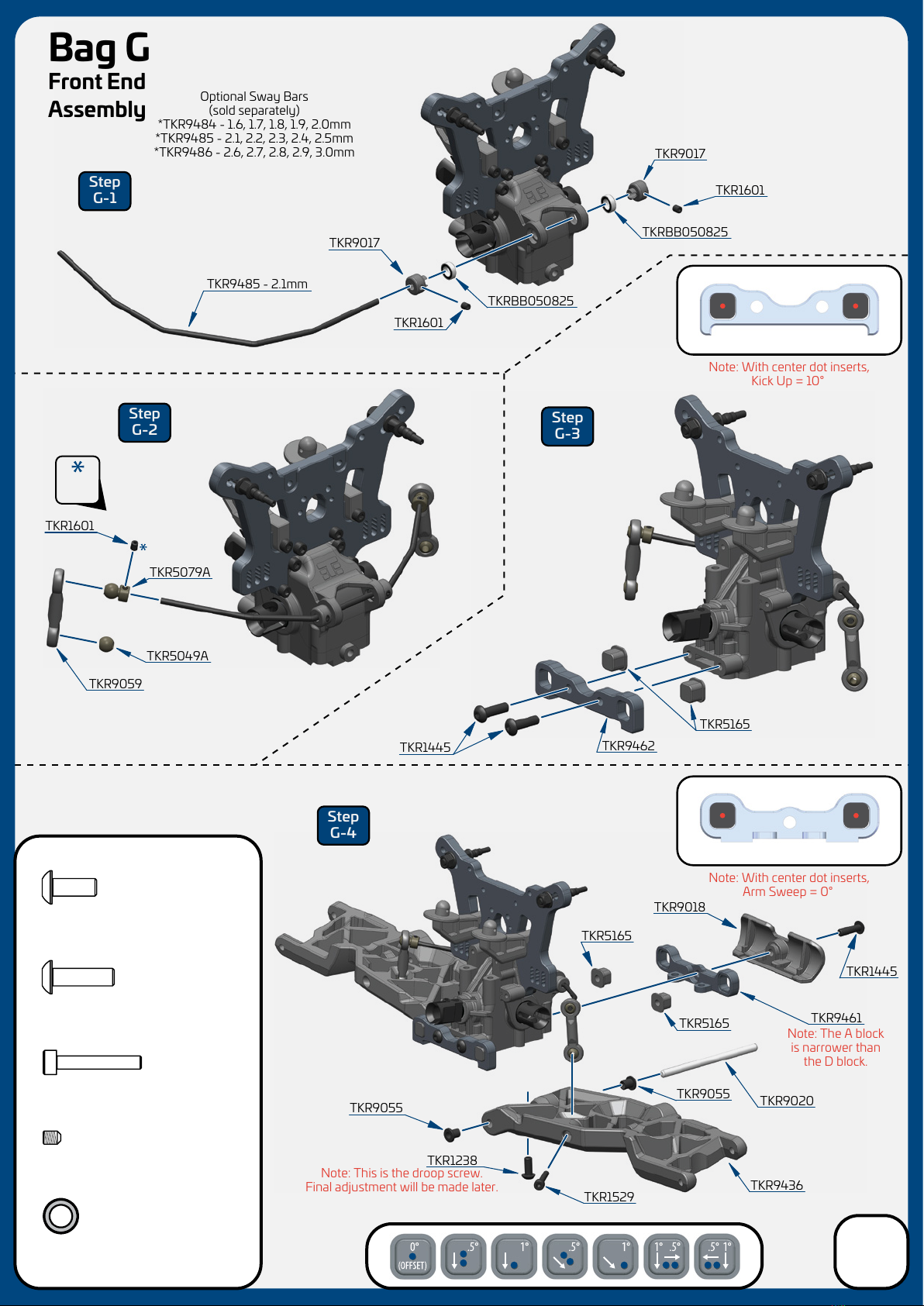

Bag G
Front End
Assembly
TKR1601
TKR5165
TKR5049A
TKR1529
TKR9055
TKR9462
TKR9436
TKR5165
TKR9020
TKR9461
TKR9059
TKR5079A
TKR9017
TKRBB050825
TKRBB050825
TKR9485 - 2.1mm
Step
G-1
Step
G-2 Step
G-3
Step
G-4
TKR1238
M4x10mm Droop Screw
x2
TKR1445
M4x14mm Button Head Screw
x3
TKR1529
M3x20mm Cap Head Screw
x2
TKR1601
M3x4mm Set Screw
x4
TKRBB050825
Ball Bearing (5x8x2.5)
x2
Optional Sway Bars
(sold separately)
*TKR9484 - 1.6, 1.7, 1.8, 1.9, 2.0mm
*TKR9485 - 2.1, 2.2, 2.3, 2.4, 2.5mm
*TKR9486 - 2.6, 2.7, 2.8, 2.9, 3.0mm
Note: The A block
is narrower than
the D block.
Note: This is the droop screw.
Final adjustment will be made later.
TKR9055
TKR1238
10
Stock Position
(”A” Block)
Stock Position
(”B” Block)
Thread
Lock

Build Note: Hold the turnbuckle stationary
with pliers and push the rod end hard onto the
turnbuckle while turning at the same time.
Keep in mind that one end of the turnbuckle has
normal threads and the other has reverse threads.
Start the rod end straight and it will thread on straight.
Build Tip: Use some grease or Chapstick
on the threads to help prevent “pop-o” when
adjustments are being made.
Bag H
Front CVA / Spindle &
Carrier Assembly
Step
H-1
Step
H-2
Step
H-3
TKR8073
TKR8073
TKR8070
TKR9041
TKRBB15214
TKRBB08165F
TKR9673 (+4mm)
TKR1603
TKR9472
TKR9041
Grease
TKR1401
M3x6mm Button Head Screw
x2
DO NOT SKIP
THIS STEP!
Note: These are steering
stop screws. They provide
a mechanical limit to the
steering throw and make
the car easier to drive
by greatly improving the
consistency of the steering.
TKR1401
Thread
Lock
*TKR9671 (+2mm)
(Option)
TKR1603
M5x4mm Set Screw
x2
TKRBB08165F
Flanged Ball Bearing (8x16x5)
x2
TKRBB15214
Ball Bearing (15x21x4)
x2
Note: Make left and right side assemblies.
11
Right
Left
TKR9450
TKR8052A
TKR8052A
TKR5187B
TKR5187B
TKR8052A
TKR8052A
TKR5187B
TKR5187B
TKR9450
Front Camber Links
69.50mm
Note: Notch always
goes on left side of vehicle.
Actual Size

Bag H
Front Camber Links
Step
H-4
Step
H-5
Step
H-6
TKR1534
M3x22mm Cap Head Screw
x4
TKRBB05104
Ball Bearing (5x10x4)
x4
TKR1211
M3 Lock Nut Flange Black
x4
TKR9043
TKR1534
TKR1534
TKR1601
TKR1211
TKR1211
TKR9043
Thread
Lock
TKR9048A
*TKR9048B
(Option)
TKR8042
TKR8042
TKRBB05104
TKRBB05104
TKR1601
Note: Do not
overtighten .
Note: Repeat on
the other side.
x8
TKR1601
M3x4mm Set Screw
12
D
KP
E
5
8
1
2
3
4
9
10
11
12
Stock position is 2/E

Right
Left
TKR8052A
TKR9059
TKR8052A
TKR9059
TKR9423
TKR9059 TKR9423
TKR9059
TKR8052A
TKR8052A
Steering Links
Thread
Lock
Thread
Lock
Step
I-1
Step
I-2
Step
I-3
Step
I-4
TKR5103 TKR1403
TKRBB050825
TKRBB06103
TKR1529
TKR1403
M3x10mm Button Head Screw
x2
TKR5101X
* OR TKR5231
TKR9104
TKRBB06103
TKR5231
TKR8100B
TKRBB050825
TKRBB050825
TKR9104
TKR1403
TKR5122
TKR5231
TKR1201
TKR1221
X 4pcs
Note: Tighten nut all the
way down, then back it o
2 full turns.
Note: Do this for both sides.
Note: Fit this
o-ring inside
the groove
of the nut
above it.
Note: Can use
17mm wheel
wrench here.
TKR1201
M3 Lock Nut Black
x2
TKRBB06103
Ball Bearing (6x10x3)
x4
TKRBB050825
Ball Bearing (5x8x2.5)
x4
TKR1529
M3x20mm Cap Head Screw
x2
TKR1221
M3x8mm Washer
x8
Note: This piece is included
in the kit, and can be used
in the place of the servo
saver assembly, however
it can damage your servo.
Run at your own risk.
Bag I
Steering
Assembly
71.50mm
Note: Notch always
goes on left side of vehicle.
Actual Size
Stock Position
(is middle hole)
(front of vehicle)
13

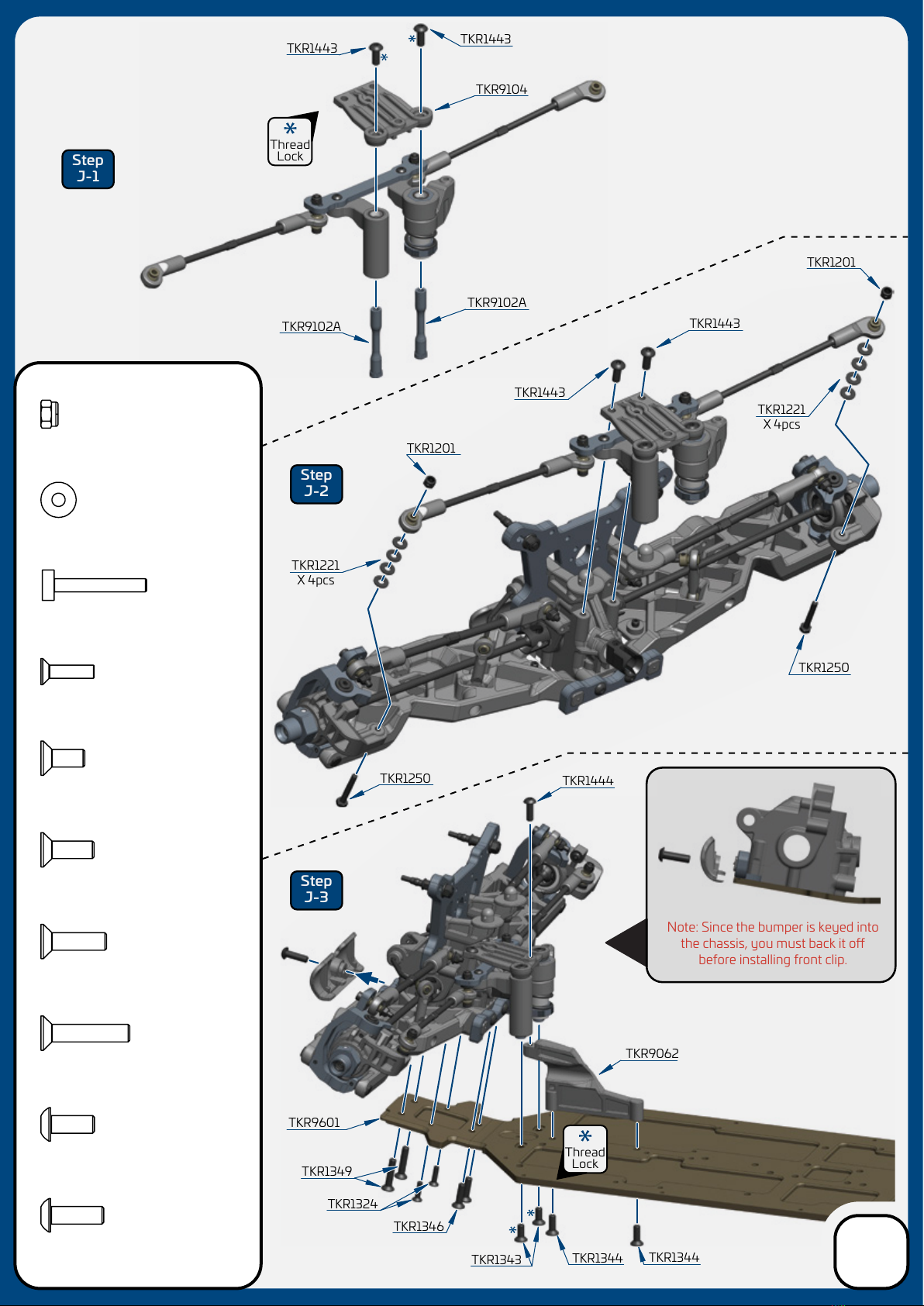

Step
J-3
Thread
Lock
Step
J-1
Step
J-2
TKR1221
X 4pcs
TKR1221
X 4pcs
TKR1250
TKR1250
TKR1443
TKR1443
TKR9104
TKR9102A
TKR9102A
TKR1201
TKR1201
TKR1443
TKR1443
TKR1201
M3 Lock Nut Black
x2
TKR1443
M4x10mm Button Head Screw
x4
TKR1221
M3x8mm Washer
x8
TKR1250
M3 Steering Link Screw
x2
TKR1344 TKR1344
TKR9062
TKR9601
TKR1349
TKR1444
TKR1324
TKR1343
TKR1346
Thread
Lock
Note: Since the bumper is keyed into
the chassis, you must back it o
before installing front clip.
TKR1324
M3x12mm Flat Head Screw
x2
TKR1343
M4x10mm Flat Head Screw
x2
TKR1344
M4x12mm Flat Head Screw
x2
TKR1346
M4x15mm Flat Head Screw
x2
TKR1349
M4x20mm Flat Head Screw
x2
TKR1444
M4x12mm Button Head Screw
x1
Bag J
Front End Assembly
14

TKR9262
TKR9010
TKR9191
TKR9062
TKR1343
TKR9262
TKR1524
TKR1343
TKR1344
TKR1447
TKR1524

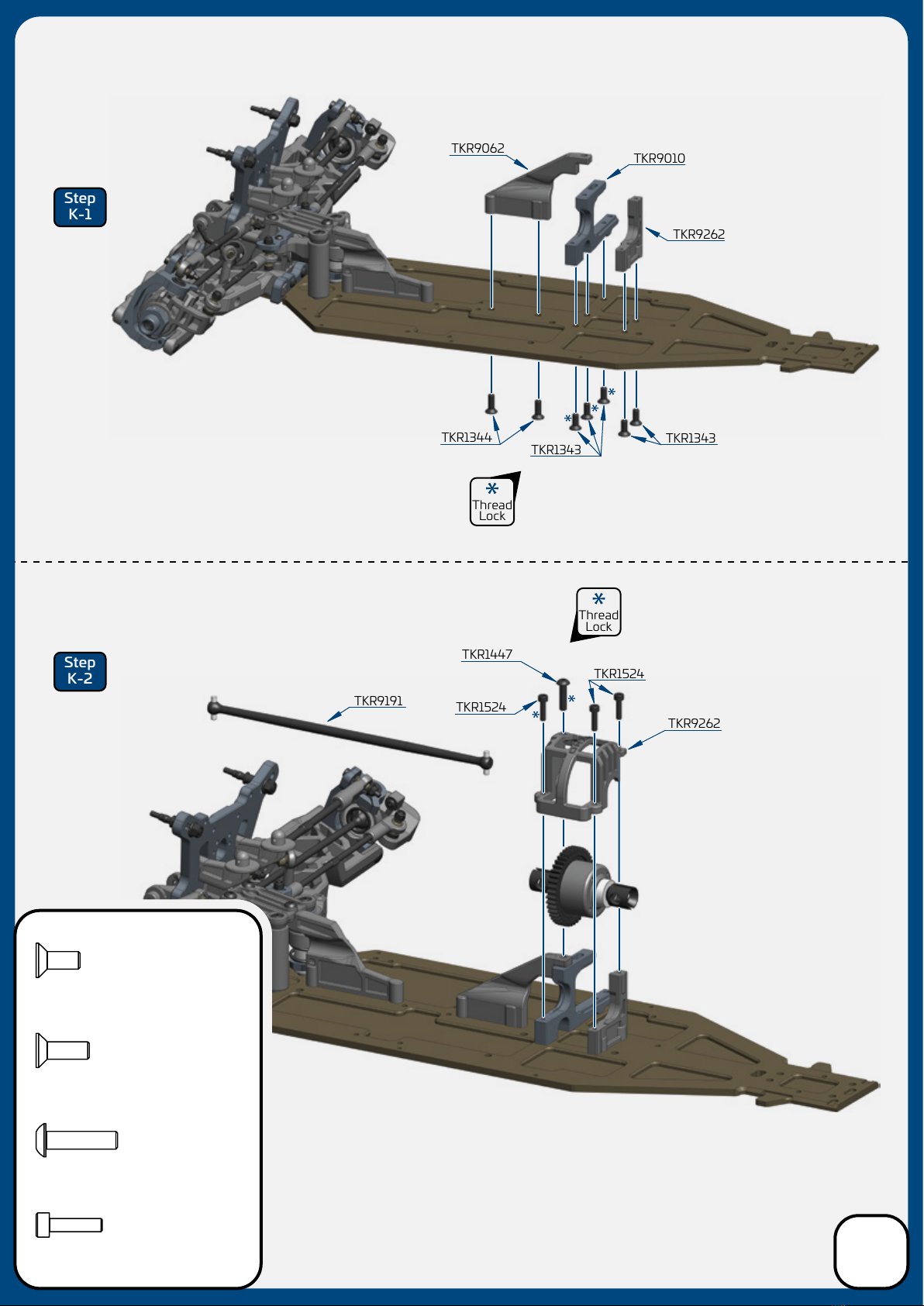

Step
K-2
Step
K-1
Thread
Lock
Thread
Lock
TKR1524
M3x12mm Cap Head Screw
x3
TKR1343
M4x10mm Flat Head Screw
x5
TKR1344
M4x12mm Flat Head Screw
x2
TKR1447
M4x16mm Button Head Screw
x1
Bag K
Center
Assembly
15

TKR1528
TKR9062
TKR9062
TKR1344

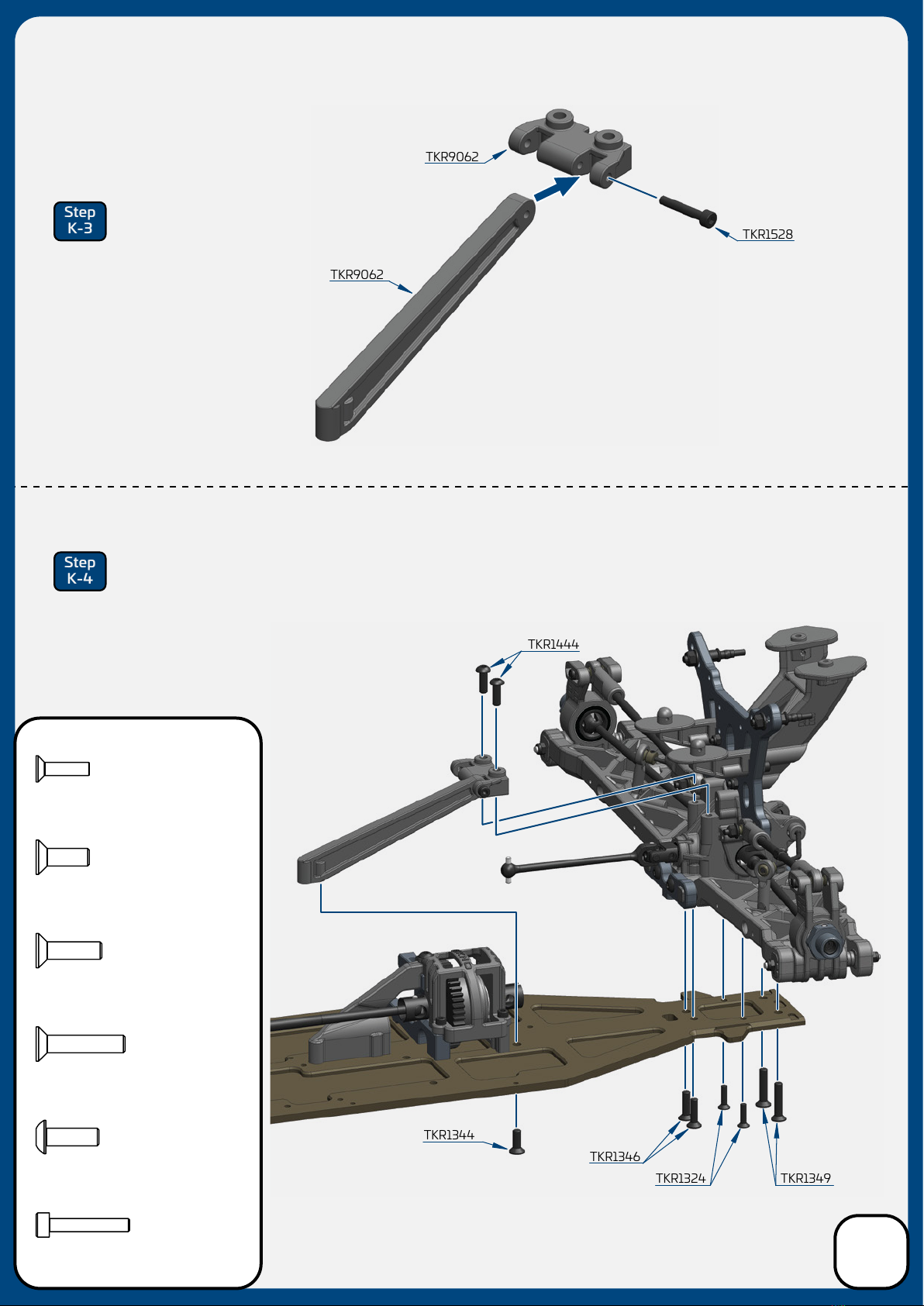

Step
K-4
Step
K-3
TKR1324
M3x12mm Flat Head Screw
x2
TKR1344
M4x12mm Flat Head Screw
x1
TKR1346
M4x15mm Flat Head Screw
x2
TKR1349
M4x20mm Flat Head Screw
x2
TKR1444
M4x12mm Button Head Screw
x2
TKR1528
M3x18mm Cap Head Screw
x1
TKR1346
TKR1324 TKR1349
TKR1444
Bag K
Rear Assembly
16

TKR1240
Note: Slot in spring
perch should face
outside of vehicle.
Note: Black screw
is RH threaded
and goes on
left side.
Silver screw is
LH and goes
on right side.
TKR1211
Thread
Lock
Stock shock position is middle
hole on the arm, and second
from inside on the tower
Stock front ride height is 32mm
Shock length (droop) is 121mm
M2.5 Lock Nut Zinc
TKR1200
x2
TKR1240
M3x18mm Shock Mnt Screw
x2
TKR1248
M2x4mm Emulsion Screw
x2
TKR1211
M3 Lock Nut Flange Black
x2
TKR1605
M3x10mm Set Screw
x2
TKR1200
TKR6180
TKR6017
TKR6140C
TKR5049A
*TKR6017T
(Option)
*TKR6160
*TKR6163
(Option)
Note: Use green
slime or oil on
shock shaft
threads AND
O-rings to
prevent tearing
and leaking.
TKR6144
Note: Shock boots
must be installed
BEFORE attaching
rod end.
TKR1605
TKR6092
*TKR6090
*TKR6091
*TKR6093
(Option)

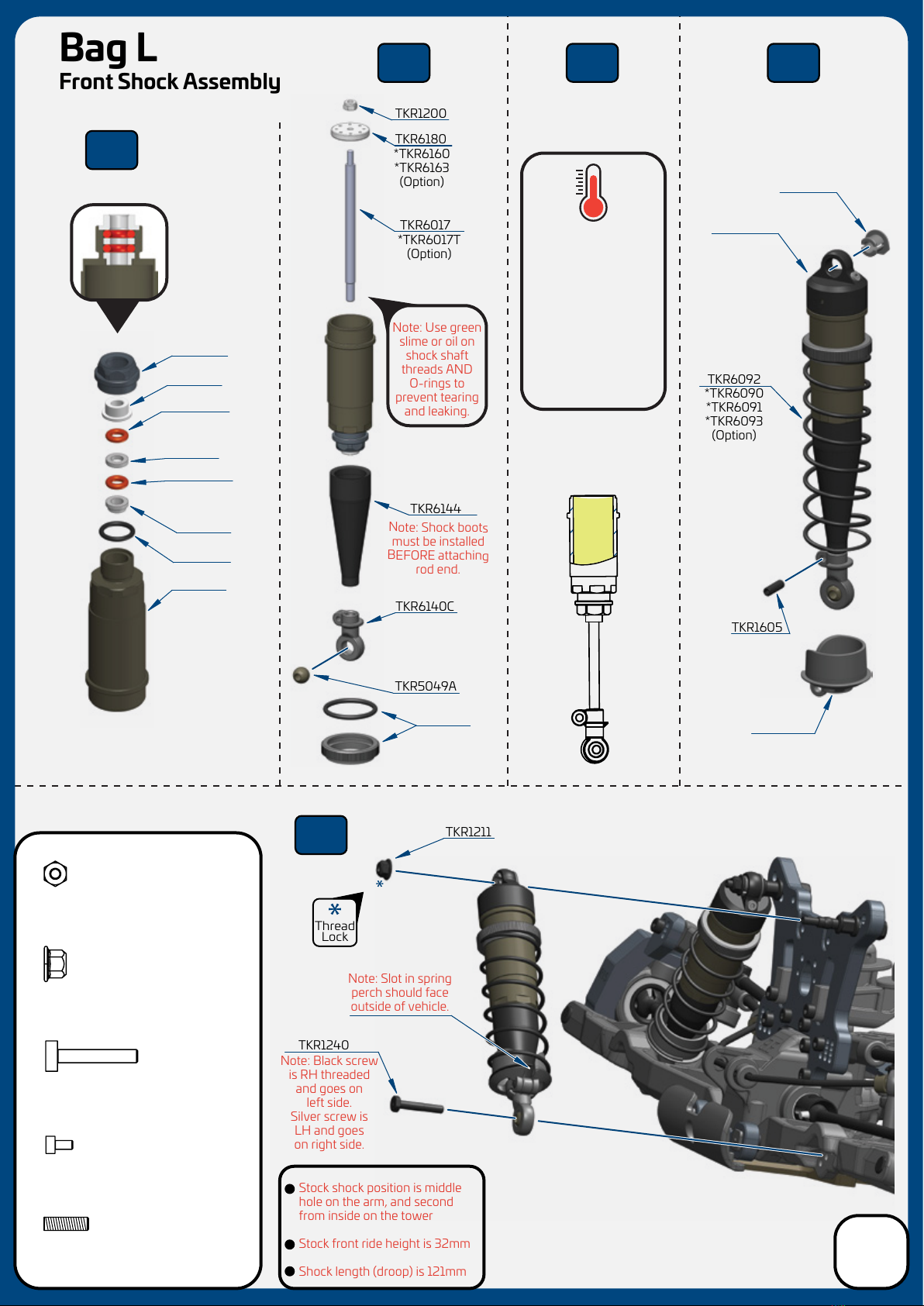

Bag L
Front Shock Assembly
TKR8702
TKR8730
*TKR6003
*TKR6003B
(Option)
Use #700 CST oil
FRONT
700
TKR6013
Refer to filling instructions
on page 19 during this step.
TKR6016
TKR6009
TKR6009
TKR6009
*TKR6009B
(Option)
*TKR6009B
(Option)
TKR6146
TKR6146
TKR6146
TKR6015
Step
L-1
Step
L-2
Step
L-3
Step
L-4
Step
L-5
TKR6140C
17
Note: The kit supplied
oil is a great starting
point when the
ambient temperature
is ~75° F.
If it is cooler you
may need to use
thinner oil. LIkewise,
if it is warmer
you may need to use
thicker oil.

TKR1240
Note: Slot in spring
perch should face
outside of vehicle.
Note: Black screw
is RH threaded
and goes on
right side.
Silver screw is
LH threaded and goes
on left side.
TKR1211
Thread
Lock
Stock shock position is middle
hole on the arm, and second
from the inside on the tower
Stock rear ride height is 36mm
Shock length (droop) is 134mm
M2.5 Lock Nut Zinc
TKR1200
x2
TKR1240
M3x18mm Shock Mnt Screw
x2
TKR1248
M2x4mm Emulsion Screw
x2
TKR1211
M3 Lock Nut Flange Black
x2
TKR1605
M3x10mm Set Screw
x2
TKR1200
TKR6180
TKR6061
TKR6140C
TKR5049A
*TKR6061T
(Option)
*TKR6160
*TKR6163
(Option)
Note: Use green
slime or oil on
shock shaft
threads AND
O-rings to
prevent tearing
and leaking.
TKR6145
TKR1605
TKR6082
Bag M
Rear Shock Assembly
TKR8702
*TKR6003
*TKR6003B
(Option)
Use #600 CST oil
REAR
600
TKR6013
Note: Shock boots
must be installed
BEFORE attaching
rod end.
Step
M-1
Step
M-2
Step
M-3
Step
M-4
Step
M-5
TKR6140C
18
*TKR6080
*TKR6081
*TKR6083
(Option)
TKR8730
Refer to filling instructions
on page 19 during this step.
Note: The kit supplied
oil is a great starting
point when the
ambient temperature
is ~75° F.
If it is cooler you
may need to use
thinner oil. LIkewise,
if it is warmer
you may need to use
thicker oil.
TKR6060
TKR6009
TKR6009
TKR6009
*TKR6009B
(Option)
*TKR6009B
(Option)
TKR6146
TKR6146
TKR6146
TKR6015

Step 1. Prepare caps by inserting bladders. Also at this time, install the small TKR8725 o-rings onto the TKR1248 screws.
Do not install the TKR1248 rebound screw into the shock cap during this step.
Step 2. Extend the shock shaft all the way down. Fill the shock with oil until the body is approximately 90% full.
Step 3. Slowly pump the shock shaft up and down 3-5 times to release air bubbles from underneath the piston.
Step 4. Let the shock rest vertically with the shock shaft fully extended for five minutes or until all the air bubbles have
released. After the air has escaped, top o the shock with oil (about 1-2mm below the top). If you overfill the shock, it
won’t hurt performance, it will just spill out and make a little bit of a mess.
Step 5A. Push the shock shaft into the shock body about halfway (about 1” or 25mm of the shaft exposed) to set a
base rebound. Pushing the shaft in further will decrease the base rebound and pulling the shaft out more will increase
it. Be careful to not position the shaft too far out or too far in because it will hydrolock or suck the bladder into the body
during use. Final rebound will be set in Step 6.
Step 5B. Place the cap on the shock and slowly screw down about half way. Oil will start to ooze out of the bleeder hole
on the side of the shock cap. Hold the cap and continue to fully secure it by slowly turning the shock body. The shock
will continue to bleed oil. Wipe excess oil from the shock once the cap is fully tightened down.
Step 6. Set your final rebound by holding the shock shaft in the desired position and installing the small rebound screw
assembly. Fully extending the shock shaft and installing the screw will produce the maximum amount of rebound. Fully
pushing the shaft into the shock body and installing the screw will produce the minimum amount of rebound. You can
now tune your rebound quickly by repeating this step.
We've found it's easiest to complete steps 1-4 on each shock before moving on to step 5.
By the time you've finished step 4 on the last shock, the first one will be ready for step 5.
Step
1
Step
2
Step
3
Step
4
Step
5
Step
6
Prepare caps by
inserting bladders
AND
Push small
screws into small
o-rings
(use a drop of
oil to help
prevent a tear)
TKR6009
TKR1248
TKR8725
TKR8702
Fill 90% with oil.
(stock)
Let rest about
5 minutes.
100% rebound
50% rebound
0% rebound
Push shaft in
halfway, then
screw cap on
slowly. Fully
tighten.
Set desired rebound
and hold shaft position
while screwing in
bleeder screw.
Slowly pump up
and down
3-5 times.
Slowly pump up
and down
3-5 times.
Shock Filling Instructions
For both front and rear shocks
TKR1248
19

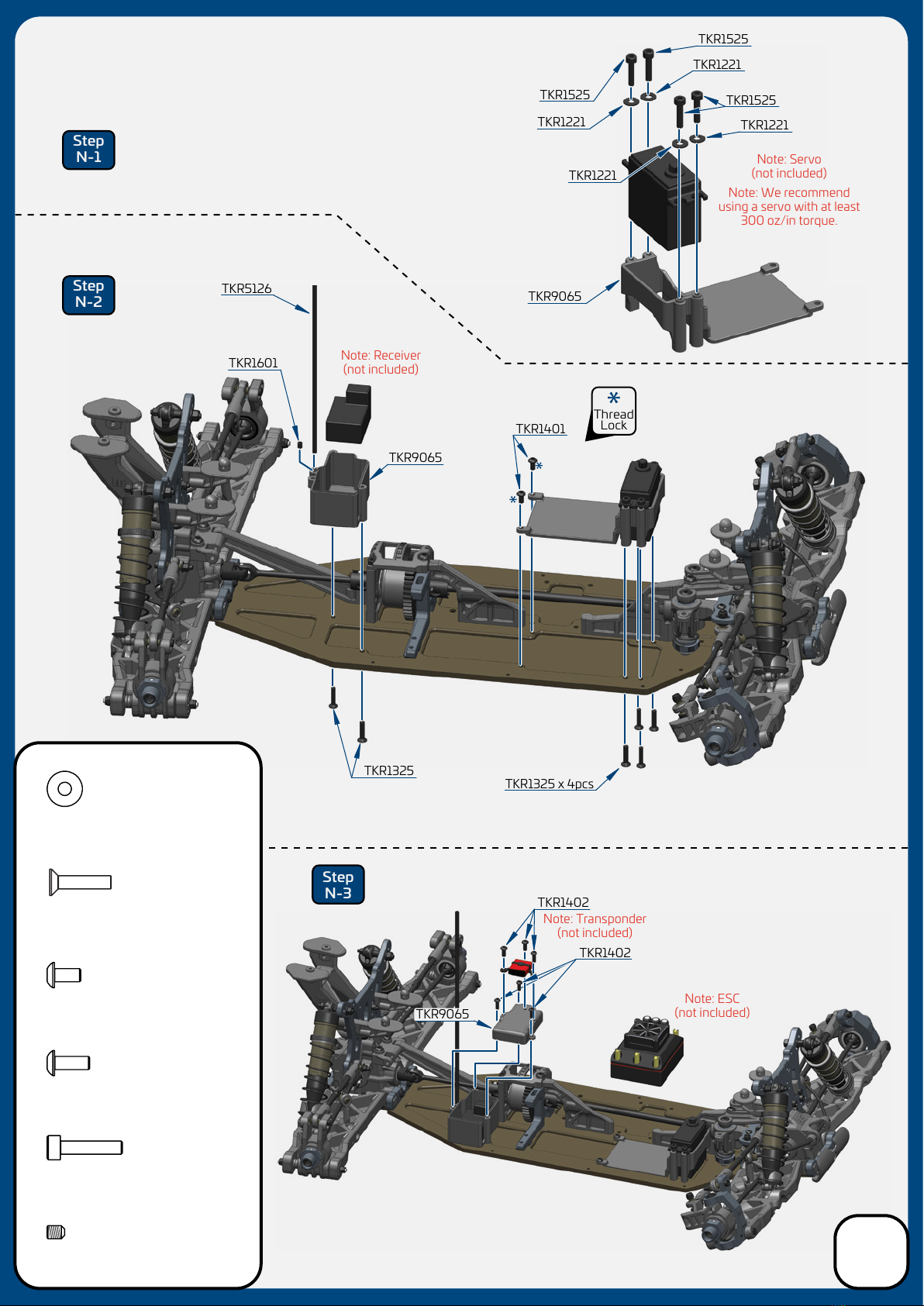

Step
N-1
Step
N-2
Step
N-3
TKR1525
TKR1221
TKR1221
TKR9065
TKR9065
TKR5126
TKR1601
TKR1525
TKR1525
TKR9065
TKR1221
TKR1221
TKR1325 x 4pcs
TKR1325
TKR1402
TKR1402
TKR1401
TKR1221
M3x8mm Washer
x4
Note: Receiver
(not included)
Note: ESC
(not included)
Note: Transponder
(not included)
Note: Servo
(not included)
Note: We recommend
using a servo with at least
300 oz/in torque.
TKR1401
M3x6mm Button Head Screw
x2
TKR1525
M3x14mm Cap Head Screw
x4
Thread
Lock
TKR1601
M3x4mm Set Screw
x1
TKR1325
M3x14mm Flat Head Screw
x6
TKR1402
M3x8mm Button Head Screw
x6
Bag N
ESC/Radio Tray install
20
