Tekset RGB 5050 User manual

| RENT: OPALED |
| OPALED |
via GIUSEPPE DI VITTORIO 9
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSET.IT
via NAZARIO SAURO 13/A
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSETRENTAL.IT
TekSet Rental S.r.l.

| RENT: OPALED |
| OPALED |
via GIUSEPPE DI VITTORIO 9
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSET.IT
via NAZARIO SAURO 13/A
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSETRENTAL.IT
TekSet Rental S.r.l.
Informazioni

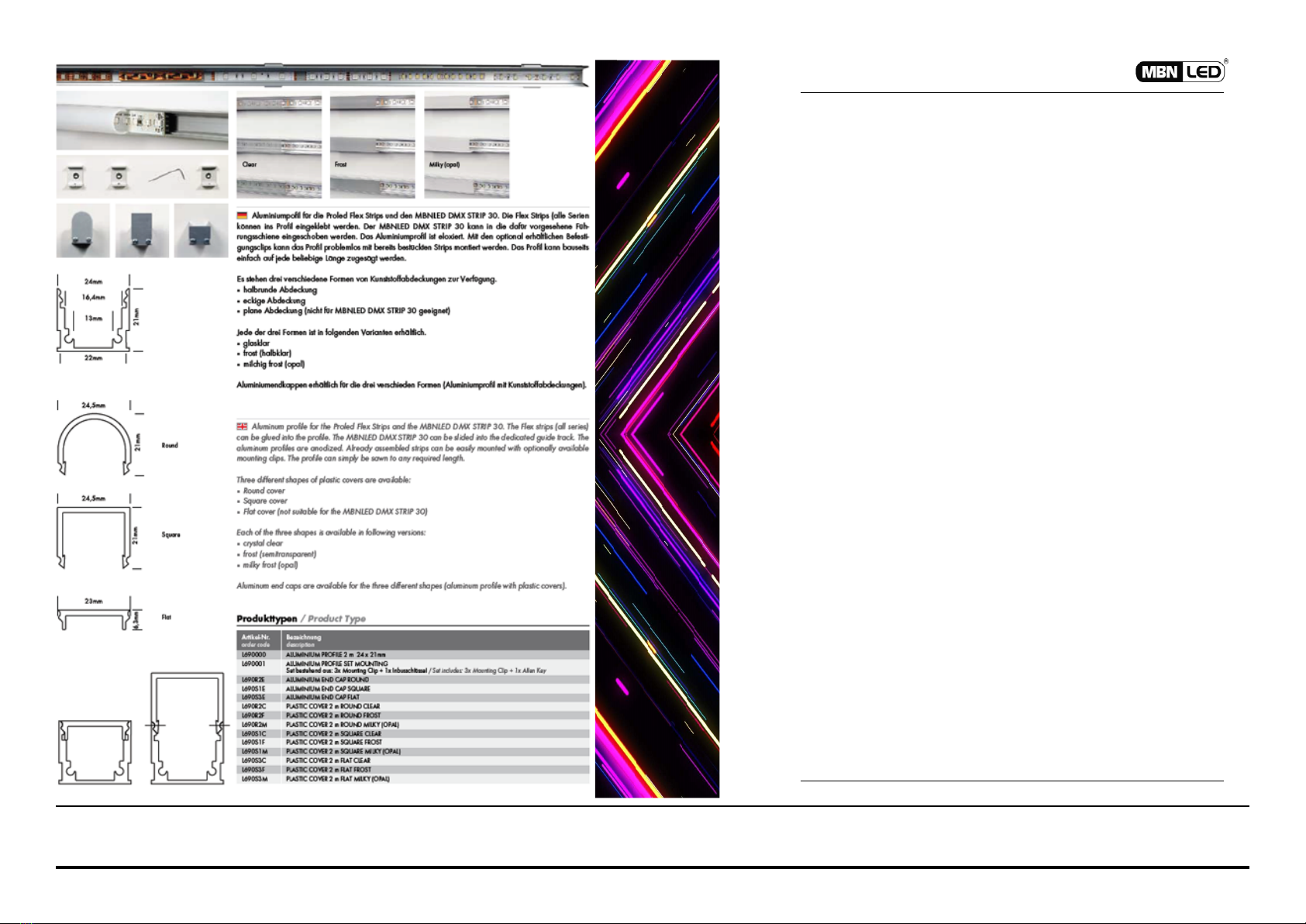

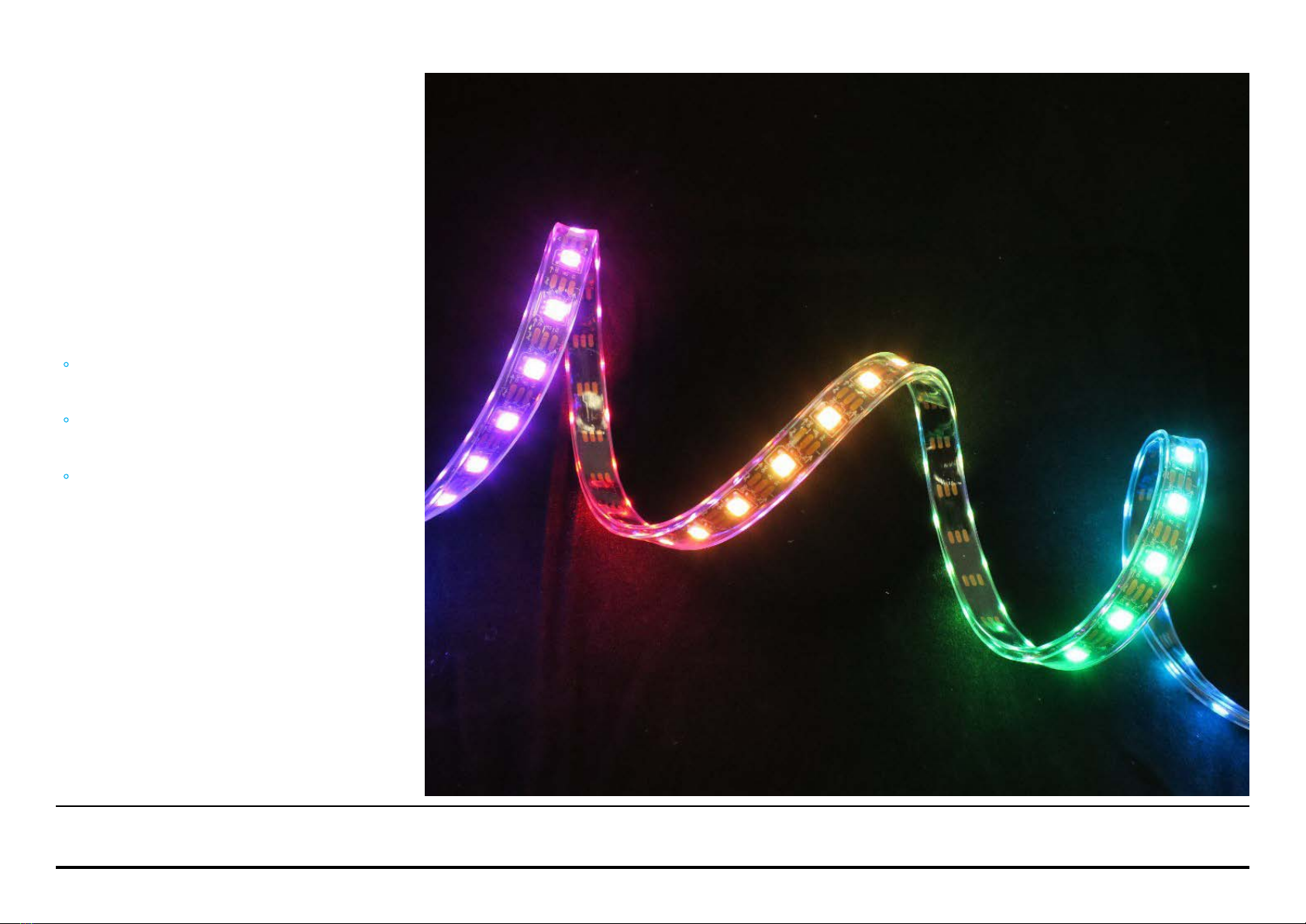

OPALED è un sistema Custom con Strip Led
RGB 5050 realizzato da Tekset, composto da
una canalina in alluminio silver nel quale risiede
il led e a copertura un diusore opale.
Dati tecnici:
12 V
7,2 W / m
RGB
Possibilità di realizzazione custom su misura

| RENT: OPALED |
| OPALED |
via GIUSEPPE DI VITTORIO 9
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSET.IT
via NAZARIO SAURO 13/A
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSETRENTAL.IT
TekSet Rental S.r.l.
RGB DMX POWER SUPPLY 2G
rev: 04 14 www.mbnled.com
CONTENTS
SPECIFICATIONS ................................................................................................ 15
Inputs and Outputs ............................................................................................15
SWITCHING ON ................................................................................................... 16
MAIN MODE ......................................................................................................... 17
MAIN MODE – DMX ADDRESS ........................................................................... 18
MAIN MODE – MANUAL ...................................................................................... 18
MAIN MODE – SINGLE ........................................................................................ 19
MAIN MODE – MASTER ...................................................................................... 19
MAIN MODE – SETUP ......................................................................................... 20
SETUP – CHANNELS – MINIMUM ...................................................................... 20
SETUP – CHANNELS – MAXIMUM ..................................................................... 20
SETUP – CHANNELS – DEFAULT ...................................................................... 21
SETUP – CHANNELS – CHARACTERISTIC ....................................................... 21
SETUP – CHANNELS – WHITE BALANCE ......................................................... 21
SETUP – CHANNELS – OUTPUT FREQUENCY ................................................ 22
SETUP – CONFIGURATION – DMX PRIORITY .................................................. 22
SETUP – CONFIGURATION – OVERHEAT PROTECTION ................................23
SETUP – CONFIGURATION – INFRARED INPUT ..............................................23
SETUP – OPTIONS – LANGUAGE ...................................................................... 23
SETUP – OPTIONS – DISPLAY ILLUMINATION ................................................ 24
SETUP – OPTIONS – FACTORY SETTINGS ..................................................... 24
SETUP – INFORMATIONS .................................................................................. 24

| RENT: OPALED |
| OPALED |
via GIUSEPPE DI VITTORIO 9
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSET.IT
via NAZARIO SAURO 13/A
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSETRENTAL.IT
TekSet Rental S.r.l.
RGB DMX POWER SUPPLY 2G
rev: 04 15 www.mbnled.com
RGB DMX POWER SUPPLY
USER’S MANUAL
Please read this manual carefully before switching on to ensure an optimal operation
of your device.
In case of a malfunction or mechanical damages at the device or at the connection
wires please switch off the device immediately and contact the technical support.
Installation and electrical connection must be performed by a qualified technician.
When installing the device, make sure that the air ventilation is sufficient to prevent
overheating in continuous operation.
On the rear side of the casing supply voltage and load wires are connected. Please
use cables with the required wire cross section.
SPECIFICATIONS
Voltage supply: 1-phase 220 - 240V, 50 - 60Hz.
With connected load up to 10 Amps (dependent on the
model).
Max. power consumption: 330VA or 1000VA at the 19“ X3 version
Input : DMX 512-A - RDM
Output : DMX 512-A in master mode
2 outputs with max. 300W load (dependent on the model
and unit at 19“ X3)
Casing: Metal case für operation in dry rooms (IP 30)
Ambient temperature: 0 C° ... 40 C°. (Higher ambient temperatures are possible
at lower output loads)
Dimensions: Width 240 mm x height 75 mm x depth 300 mm
19“: Width 482 mm x height 88 mm (2 U) x 410 mm
Weight: max. 3,3 kg / 19“ X3 max. 10,1 kg
Specifications are subject to change.
Inputs and Outputs
DMX Input:
The dimmer can be controlled by a standard DMX-512 signal. Connect a DMX
controller to the DMX input and select the desired DMX start address. After the DMX
controller is connected, operation of the dimmer will now be controlled by the DMX
signal.
DMX Output:
The device can transmit DMX-512 signals and control additional devices in master
mode.
RGB DMX POWER SUPPLY 2G
rev: 04 16 www.mbnled.com
IR – Remote control:
When the IR module is used, stand alone programs can also be selected with the
remote control.
SWITCHING ON
When the device is connected to the mains supply, the dimmer is ready for operation.
During initalzation the MBNLED Logo is displayed for a short time.
After 3 secons the display proceedes automatically. The controller is now in one of
the five main modes.
DISPLAY
The display is divided in three parts:
Left the data of the current mode are shown
In the middle is the bar graph for the RGB outputs
Right generic informations of the device are displayed
Generic Informations
Top right of display:
NO LED POWER – No voltage for LED units is measured
OVERHEAT – The device is above the rated maximum temperature
WRONG CONFIG – Internal wiring CA/CC on the power board not correct
FAULT – A not specified error. Please contact the technical service
5V/12V/24V - CA/CC – SYNC/85-125Hz – Correct function
Right middle display:
Current temperature of the device

| RENT: OPALED |
| OPALED |
via GIUSEPPE DI VITTORIO 9
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSET.IT
via NAZARIO SAURO 13/A
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSETRENTAL.IT
TekSet Rental S.r.l.
RGB DMX POWER SUPPLY 2G
rev: 04 17 www.mbnled.com
Lower right display:
Various icons
DMX – DMX signal present at the input
MST – Device is in master mode and sends a DMX signal
IR – IR module is activated
IR displayed inverted – an IR signal is received from the remote control
MAIN MODE
Setup – Access to the setup menu items
DMX Address (1-510)
Manual – Desired colour can be adjusted manually with the buttons
Single – Standalone programs can be selected
Master Mode – Standalone programs can be selected and the DMX signal is sent to
additional devices for sonchronization.
Select main mode:
With the UP-DOWN buttons the main mode is selected. On the right side a little
menu with the main menu items is displayed. By pressing the UP-DOWN buttons you
can select the menu items. When the item is highlighted, the function can be
activated by pressing the ENTER button. When you press the ESC button or if no
button is pressed for 10 seconds, the device will revert to the perviously selected
main mode.
RGB DMX POWER SUPPLY 2G
rev: 04 18 www.mbnled.com

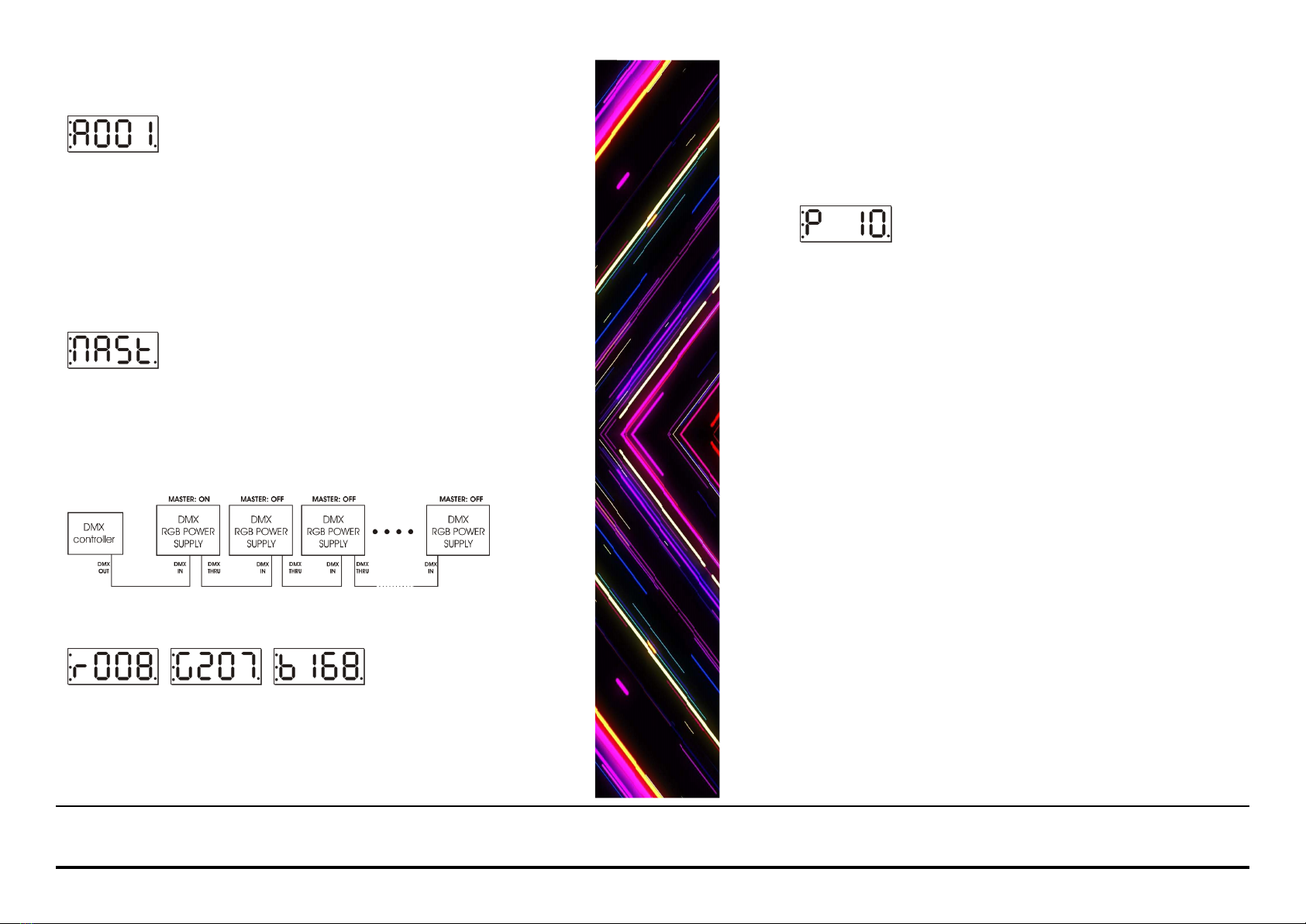

MAIN MODE – DMX ADDRESS
The three large numbers indicate the DMX address.
As long as the digits are flashing, no DMX signal is received. When the display stops
flashing, a DMX signal is present.
DMX address setting:
Press the ENTER button.
With the UP-DOWN buttons you can now select the address from 1-510. By pressing
the ENTER button once more, the slave addresses of the slave devices can be
selected faster and easier. The difference between slave device and DMX address
is, that when configuring the slave devices the DMX address is always changed in
steps of 3. This is a simplification when you have to configure many devices (e.g. in
master-slave mode). One master can control up to 19 slave devices.
Press the ENTER button to save the changes. You can leave this mode at any time
without saving changes by pressing ESC button.
MAIN MODE – MANUAL
Here the current intensity values of the channes (RGB) are displayed. The numbers
indicate the intensities from 0 to 100% and the DMX value from 0-255.
Press the ENTER button and channel red, green or blue starts flashing. Now you can
adjust the value with the UP-DOWN buttons. By pressing the ENTER button again
you can select the next channel. After the last channel all channels are flashing. Here
you can change the values of all three channels together.
If DMX prority is activated (see: SETUP MENU – DMX PRIORITY) these manually
entered values are overwritten by the DMX values.
You can leave this mode at any time without saving changes by pressing the ESC
button.

| RENT: OPALED |
| OPALED |
via GIUSEPPE DI VITTORIO 9
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSET.IT
via NAZARIO SAURO 13/A
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSETRENTAL.IT
TekSet Rental S.r.l.
RGB DMX POWER SUPPLY 2G
rev: 04 19 www.mbnled.com
MAIN MODE – SINGLE
Here various stand alone programs can be selected.
On the display you can see the current program number, maximum number of steps
and the current step number. ‚S’ and ‚W’ are meaning SPEED time (speed of colour
change) and WAIT time (delay between steps). The SPEED time indicates the
changing speed from one step to the next one. The wait time indicates the delay
time, until the change to the next step is performed. During the wait time the original
channel values remain unchanged.
By pressing the ENTER button several parameters can be selected: program
number, SPEED time and WAIT time. The selected parameter flashes and can be
modified with the UP-DOWN buttons.
You can leave this mode at any time without saving changes by pressing the ESC
button.
If DMX priority is activated (see: SETUP MENU – DMX PRIORITY), the current
program is overwritten by the DMX signal. As soon as the DMX signal stops, the
selected program will automatically be resumed.
MAIN MODE – MASTER
Same functions and operation as in single mode, but an additional DMX signal for the
slave units is generated (master-slave mode). Up to 19 slave devices with different
DMX addresses can be controlled. The number of slave devices with identical DMX
address is virtually unlimited.
RGB DMX POWER SUPPLY 2G
rev: 04 20 www.mbnled.com
MAIN MODE – SETUP
Here you can adjust additional parameters.
Setup menu:
CHANNELS
MINIMUM
MAXIMUM
DEFAULT
LINEAR CHARACTERISTIC
WHITE BALANCE
OPUTPUT FREQUENCY
KONFIGURATION
DMX PRIORITY
OVERHEAT PROTECTION
INFRARED INPUT
OPTIONS
LANGUAGE
DISPLAY BRIGHTNESS
FACTORY SETTINGS
INFORMATIONS
SETUP – CHANNELS – MINIMUM
Minimum channel intensity adjustment (0-127)
Here you can enter the minimum value for the specific channel. The channel output
will not get below the adjusted minimum value.
Press the UP-DOWN buttons to select the desired minimum value.
SETUP – CHANNELS – MAXIMUM
Maximum channel intensity adjustment (128-255)
Here you can enter the maximum value for the specific channel. The channel output
will not get above the adjusted maximum value.
Press the UP-DOWN buttons to select the desired maximum value.

| RENT: OPALED |
| OPALED |
via GIUSEPPE DI VITTORIO 9
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSET.IT
via NAZARIO SAURO 13/A
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSETRENTAL.IT
TekSet Rental S.r.l.
RGB DMX POWER SUPPLY 2G
rev: 04 21 www.mbnled.com

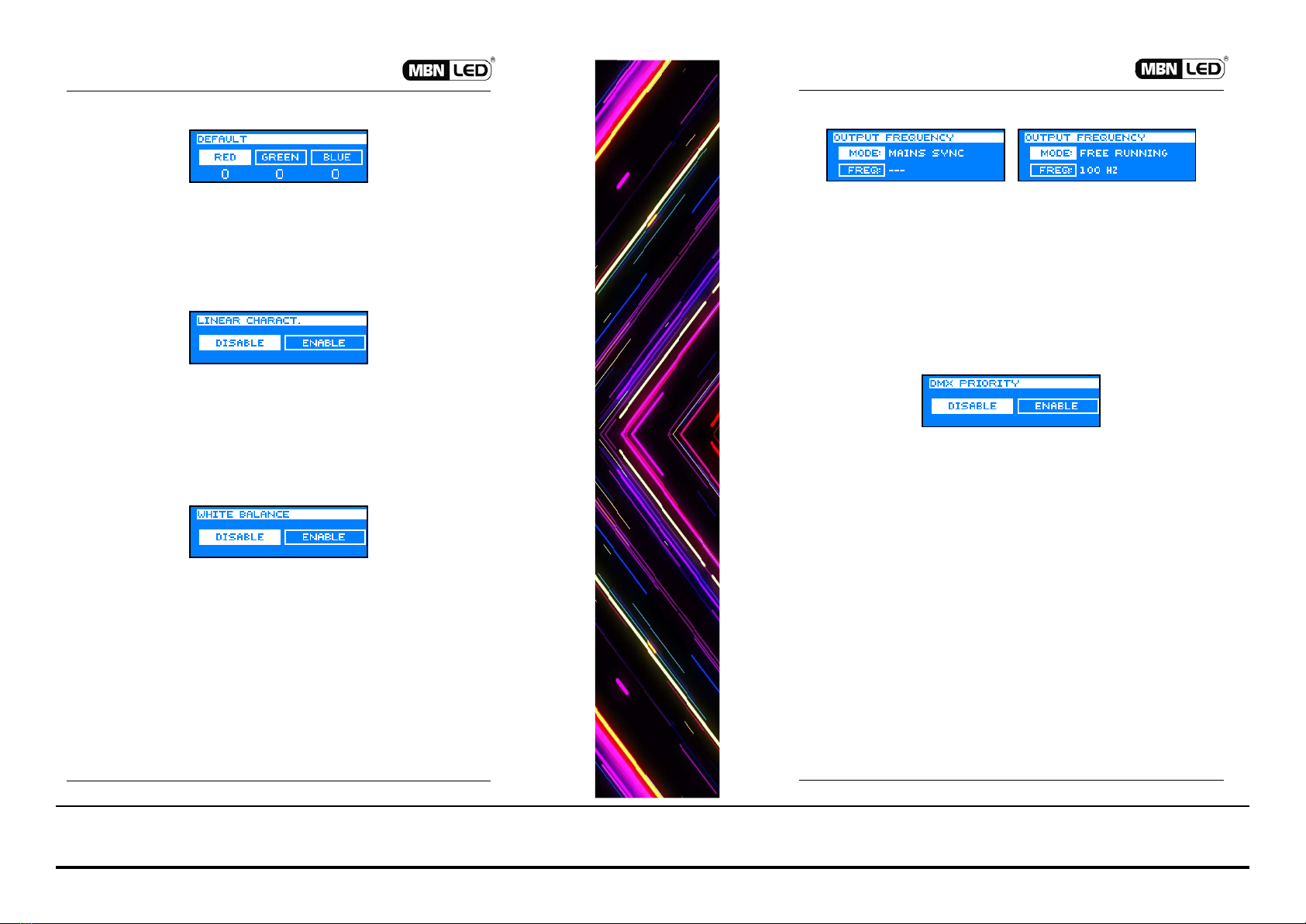

SETUP – CHANNELS – DEFAULT
Default channel intensity adjustment (0-255)
Here you can enter a default value. After switching on the device this value will be
present at the output (fixed colour adjustment – default colour). Select the channel
with the UP-DOWN buttons and press the ENTER button. With the UP-DOWN
buttons you can now adjust the default value of the selected channel.
SETUP – CHANNELS – LINEAR CHARACTERISTIC
Here you can select the output chracteristc. With the UP-DOWN buttons you can set
the LINEAR dimming characteristic off or on. Press the ENTER button to save the
setting and leave this menu.
You can leave this mode at any time without saving changes by pressing the ESC
button.
SETUP – CHANNELS – WIHTE BALANCE
Here you can switch the white balance function off or on. Press the ENTER button to
save the setting and leave this menu.
You can leave this mode at any time without saving changes by pressing the ESC
button.
RGB DMX POWER SUPPLY 2G
rev: 04 22 www.mbnled.com
SETUP – CHANNELS – OUTPUT FREQUENCY
LEDs are controlled by a PWM signal (pulse width modulation). The PWM frequency
can be set in this menu or sychronized via AC mains frequency.
Select MODE and FREQ with the UP-DOWN buttons and press ENTER.
In MODE menu you can choose beween mains synchronisation or free running
(internal snchronisation).
In FREQ menu you can enter your own frequency, if you have selected FREE
RUNNING in MODE menu. Frequency values are adjustable from 85 Hz to 125 Hz.
SETUP – CONFIGURATION – DMX PRIORITY
Here you can enable or disable the DMX priority function. Select your choice with the
UP-DOWN buttons and press ENTER to save the setting.
You can leave this mode at any time without saving changes by pressing the ESC
button.
DMX PRIORITY OFF: When a single program is running or a manual colour is
selected and a DMX signal is present at the same time, the DMX signal will be
ignored and the single program will continue running or the manual colour will still be
displayed.
DMX PRIORITY ON: When a single program is running or a manual colour is
selected and a DMX signal is present at the same time, the single program or the
manual colour selection will be ignored and the DMX signal will now control the
output signal. As soon as the DMX signal isn’t present anymore, the device will
automatically return to the single program or the manual colour selection.

| RENT: OPALED |
| OPALED |
via GIUSEPPE DI VITTORIO 9
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSET.IT
via NAZARIO SAURO 13/A
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSETRENTAL.IT
TekSet Rental S.r.l.
RGB DMX POWER SUPPLY 2G
rev: 04 23 www.mbnled.com

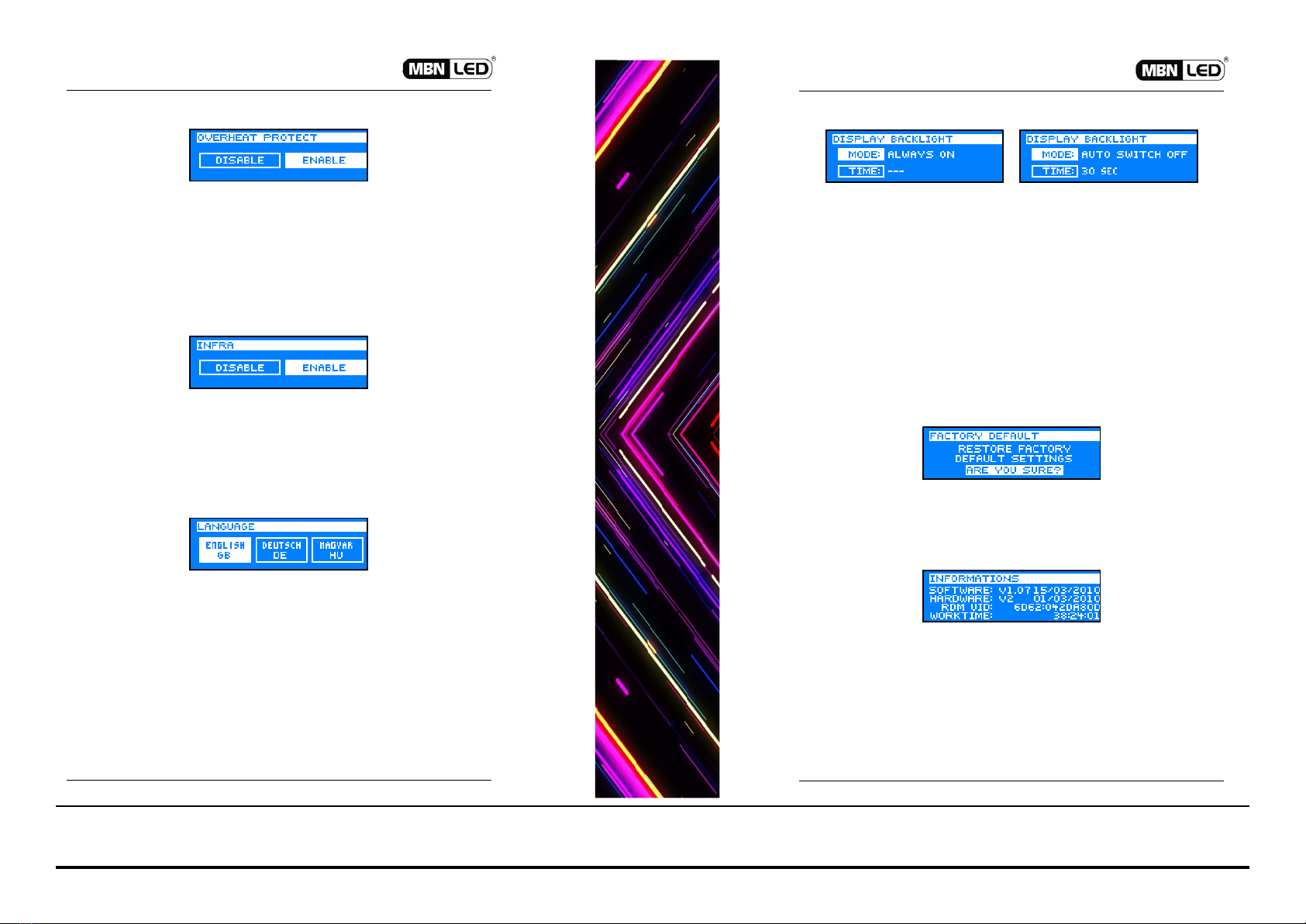

SETUP – CONFIGURATION – OVERHEAT PROTECTION
Here you can enable or disable the overheat protection. Select the function with the
UP-DOWN buttons and press ENTER to save your choice. You can leave this mode
at any time without saving changes by pressing the ESC button.
Overheat protection ON: at a temperature over 80° C the device will switch off the
outputs.
As soon as the device has cooled down to 75° C, the outputs are switched on again.
SETUP – CONFIGURATION – INFRARED INPUT
Here you can enable or disable the infrared input. Select the function with the UP-
DOWN buttons and press ENTER to save your choice. You can leave this mode at
any time without saving changes by pressing the ESC button.
Infrared ON: programs can also be controlled via infrared remote control.
SETUP – OPTIONS – LANGUAGE
Here you can select the display language. Select the desired language with the UP-
DOWN buttons and press ENTER to save your choice. You can leave this mode at
any time without saving changes by pressing the ESC button.
Following languages are available:
English
German
Hungarian
RGB DMX POWER SUPPLY 2G
rev: 04 24 www.mbnled.com
SETUP – OPTIONS – DISPLAY ILLUMINATION
Here you can configure the display backlight illumination. In the mode ALWAYS ON
the LCD display is illuminated continuously.
Select the function with the UP-DOWN buttons and press ENTER to save your
choice. You can leave this mode at any time without saving changes by pressing the
ESC button.
- ALWAYS ON
LCD display continuously illuminated
- AUTO SWITCH OFF
In this mode you can enter a time. After the last keystroke the LCD display is
automatically switched off after the selected time. When pressing a button, the
display backlight is automatically switched on again.
SETUP – OPTIONS – FACTORY SETTINGS
Here you can restore the factory default settings. Press the ENTER button to restore
the factory settings.
SETUP – INFORMATIONS
Gereric informations:
Software version
Software date
Hardware version
Hardware date
RDM identification number
Operation time counter

| RENT: OPALED |
| OPALED |
via GIUSEPPE DI VITTORIO 9
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSET.IT
via NAZARIO SAURO 13/A
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSETRENTAL.IT
TekSet Rental S.r.l.
RGB DMX POWER SUPPLY 2G
rev: 04 25 www.mbnled.com
Versions of MBNLED RGB DMX POWER SUPPLIES
5V 50 Watts Common Anode
5V 50 Watts Common Cathode
5V 90 Watts Common Anode
5V 90 Watts Common Cathode
12V 90 Watts Common Anode
12V 90 Watts Common Cathode
12V 180 Watts Common Anode
12V 180 Watts Common Cathode
12V 300 Watts Common Anode
12V 300 Watts Common Cathode
24V 90 Watts Common Anode
24V 90 Watts Common Cathode
24V 180 Watts Common Anode
24V 180 Watts Common Cathode
24V 300 Watts Common Anode
24V 300 Watts Common Cathode
MBN GmbH
Engelschalkstraße 5, 86316 Friedberg, Germany
Tel. [phone], Fax [phone]
E-Mail: [email protected]
Internet: www.proled.com
RGB DMX POWER SUPPLY
Version 6.0 13 www.mbnled.com
User´s Manual
SPECIFICATIONS ................................................................................................ 14
INPUTS AND OUTPUTS ...................................................................................... 14
SWITCHING ON ................................................................................................... 14
MENU ITEMS ....................................................................................................... 15
MENU MODE  DMX ADDRESS ......................................................................... 15
MENU MODE  MASTER..................................................................................... 16
MENU MODE  CHANNEL LEVEL (R,G,B) ......................................................... 16
PROGRAM MODE  SETUP MENU .................................................................... 17
SPEED ADJUSTMENT  SETUP MENU ............................................................. 18
MENU MODE  SETUP MENU ............................................................................ 18
SETUP MENU ITEMS........................................................................................... 18
SETUP MENU MODE  MINIMUM LEVEL........................................................... 19
SETUP MENU MODE  HIGH  MAXIMUM LEVEL ............................................ 20
SETUP MENU MODE  DEFAULT  BASIC LEVEL............................................ 20
SETUP MENU MODE  REVERSE DMX............................................................. 21
SETUP MENU MODE  MASTER ........................................................................ 21

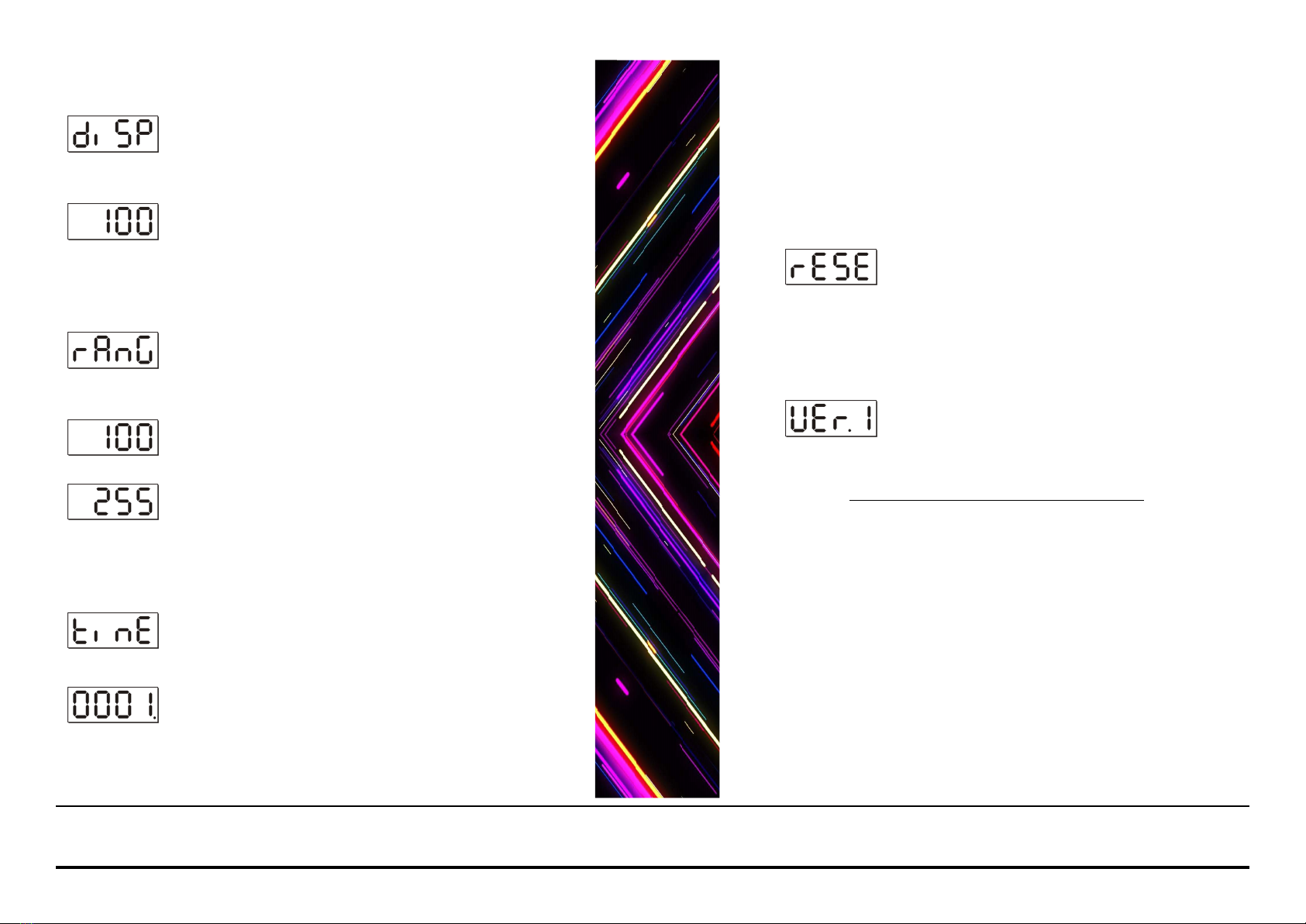

SETUP MENU MODE  DISPLAY........................................................................ 22
SETUP MENU MODE  RANGE.......................................................................... 22
SETUP MENU MODE  TIME  OPERATING TIME............................................ 22
SETUP MENU MODE  RESET........................................................................... 23
SETUP MENU MODE  SOFTWARE VERSION ................................................. 23
VERSIONS OF THE MBNLED RGB DMX POWER SUPPLIES........................... 23

| RENT: OPALED |
| OPALED |
via GIUSEPPE DI VITTORIO 9
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSET.IT
via NAZARIO SAURO 13/A
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSETRENTAL.IT
TekSet Rental S.r.l.
RGB DMX POWER SUPPLY
Version 6.0 14 www.mbnled.com
RGB DMX POWER SUPPLY
USER´S MANUAL
Please read this manual carefully before switching on to ensure an optimal operation
of your device.
In case of a malfunction or mechanical damages at the device or at the connection
wires please switch off the device immediately and please contact the technical
support.
Installation and electrical connection must be performed by a qualified technician.
When installing the device, make sure that the air ventilation is sufficient to prevent overheating in
continuous operation.
On the lower side of the casing supply voltage and load wires are connected. Please use cables with
the required wire cross section.
SPECIFICATIONS
Supply voltage: 220-240V, 50 - 60Hz.
Input: DMX 512 / 1990
Output: DMX 512 / 1990 in master mode
Casing: Metal wall mount case for operation in dry rooms (IP 30)
Ambient temperature: 0 C° - 40 C° (Higher ambient temperatures at lower output power
are possible  please ask for details)
Dimensions: Width 240 mm x height 75 mm x depth 300 mm
Weight: 2,5 - 3,0 kg according to version
Subject to change.
INPUTS AND OUTPUTS
DMX Input:
The dimmer can be controlled by a standard DMX-512 signal. Connect a DMX
controller to the DMX input and select the DMX start address. After the DMX
controller is connected, operation of the dimmer will be automatically controlled by
the DMX signal.
SWITCHING ON
When the device is connected to the mains supply and switched on, your dimmer is
ready to operate.
RGB DMX POWER SUPPLY
Version 6.0 15 www.mbnled.com
Initialising on the display: CC means common cathode version (common negative) or
CA means common anode version (common positive).
3seconds after this process the display automatically changes. The device is now in
menu mode.
Menu Mode:
During normal operation the current DMX address is indicated on the display. With
the buttons UP and DOWN you can select the menu items.
MENU ITEMS
DMX address (1-510)
Master mode
1. Channel level RED (0-100% or 0-255)
1. Channel level GREEN (0-100% or 0-255)
1. Channel level BLUE (0-100% or 0-255)
Programs (1-10 or  for selecting fixed RGB levels)
Program speed (0-255)
Setup  access the setup menu items.

| RENT: OPALED |
| OPALED |
via GIUSEPPE DI VITTORIO 9
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSET.IT
via NAZARIO SAURO 13/A
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSETRENTAL.IT
TekSet Rental S.r.l.
RGB DMX POWER SUPPLY
Version 6.0 16 www.mbnled.com
MENU MODE  DMX ADDRESS
The indication A stands for DMX address and the following numbers are
corresponding to the selected address value.
When the point on the lower right is blinking, a DMX signal is present.
Selecting the DMX address:
Press the ENTER button and the A starts blinking. Now you can select the desired
DMX address from 1 to 512 with the buttons UP and DOWN.
Pressing the ENTER button again will save the changes. You can leave this mode at
any time by pressing the ESC button without saving any changes.
MENU MODE  MASTER
When the master mode is activated in the setup menu, MASTER is indicated on the
display. As soon as a DMX signal is received, the device automatically switches to
the DMX mode. If no DMX signal is present, the device will automatically return to the
MASTER mode.
IMPORTANT! If more than one devices are connected to the DMX link, only the first
controller may be set to the MASTER mode. All other devices must remain in SLAVE
mode (DMX address 001).
MENU MODE  CHANNEL LEVEL (R,G,B)
Here the current intensity levels of the channels are displayed. The digits 2 to 4 are
showing the intensity from 0 to 100% or the DMX value from 0 to 255.
RGB DMX POWER SUPPLY
Version 6.0 17 www.mbnled.com
Press the ENTER button and the first digit r G or b starts to blink. With the UP
and DOWN buttons you can now adjust the intensity levels of the corresponding
colours.
Pressing the ENTER button again will save the changes. You can leave this mode at
any time by pressing the ESC button without saving any changes
PROGRAM MODE  SETUP MENU
With the UP and DOWN buttons you can access the program mode. After pressing
the ENTER button you can select a program with the UP and DOWN buttons.
There are 10 programs available (1-10). Confirm the selected program by pressing
the ENTER button. If you select - - , no program will be started and you can adjust
the R G B values manually.
If a program is selected, it will run automatically, even when the device is restarted.
So the program selected once will be running again even after a power loss.
PROGRAM 1 Step 1/1: Red fixed colour 100%
PROGRAM 2 Step 1/1: Green fixed colour 100%
PROGRAM 3 Step 1/1: Blue fixed colour 100%
PROGRAM 4 Step 1/3: Red 100% with fade to
Step 2/3: Green 100% with fade to
Step 3/3: Blue 100% with fade to Step 1
PROGRAM 5 Step 1/6: Red 100% with fade to
Step 2/6: Red + Green 100% with fade to
Step 3/6: Green 100% with fade to
Step 4/6: Green + Blue 100% with fade to
Step 5/6: Blue 100% with fade to
Step 6/6: Blue + Red 100% with fade to Step 1
PROGRAM 6 Step 1/4: Red 100% with fade to
Step 2/4: Red 100% + Green 100% + Blue 100% with fade to
Step 3/4: Green 100% with fade to
Step 4/4: Red + Green 100% with fade to Step 1
PROGRAM 7 Step 1/6: Red 100% with fade to
Step 2/6: dark with fade to
Step 3/6: Green 100% with fade to
Step 4/6: dark with fade to
Step 5/6: Blue 100% with fade to
Step 6/6: dark with fade to Step 1
PROGRAM 8 Step 1/2: dark with fade to
Step 2/2: Red + Green + Blue 100% with fade to Step 1

| RENT: OPALED |
| OPALED |
via GIUSEPPE DI VITTORIO 9
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSET.IT
via NAZARIO SAURO 13/A
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSETRENTAL.IT
TekSet Rental S.r.l.
RGB DMX POWER SUPPLY
Version 6.0 18 www.mbnled.com
PROGRAM 9 Step 1/3: Red + Green 100% with fade to
Step 2/3: Green + Blue 100% with fade to
Step 3/3: Blue + Red 100% with fade to Step1
PROGRAM 10 Step 1/1: Red + Green + Blue 100%
SPEED ADJUSTMENT  SETUP MENU
With the UP and DOWN buttons you can access the speed adjustment menu. After
pressing the ENTER button you can select the speed with the UP and DOWN
buttons. By adjusting this value you can select the speed of the running program.
There are 255 different speeds selectable. Speed 0 means, that the program stops,
speed 1 is the slowest speed and speed 255 is the fastest speed. Press the ENTER
button to confirm the adjusted speed. The selected program will now always run with
the speed entered here.
MENU MODE  SETUP MENU
With the UP and DOWN buttons you can access the setup mode. After pressing the
ENTER button you can select a sub-menu item with the UP and DOWN buttons.
In setup mode you can adjust and modify lots of parameters.
SETUP MENU ITEMS
Minimum channel intensity adjustment (0-39%)
Maximum channel intensity adjustment (49-100%)
Default channel intensity adjustment (0-100%)
RGB DMX POWER SUPPLY
Version 6.0 19 www.mbnled.com
Swap DMX channel intensity (a high DMX value effects low light intensity, a low DMX
value effects high light intensity)
Switch master mode on and off
Display adjustment (contrast 10-100%)
Range adjustment (display channel intensity either as 0-100 % or as 0-255 bit value)
Display operating time (0-9999 hours)
Reset, restore factory settings
Display software version number
SETUP MENU MODE  MINIMUM LEVEL
Here you can adjust the minimum values. Channel outputs can not drop below the
adjusted minimum level. Press the ENTER button and select one of the three
channels (R G B) with the UP and DOWN buttons. After pressing the ENTER button
again you can adjust the selected channel minimum value.

| RENT: OPALED |
| OPALED |
via GIUSEPPE DI VITTORIO 9
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSET.IT
via NAZARIO SAURO 13/A
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSETRENTAL.IT
TekSet Rental S.r.l.
RGB DMX POWER SUPPLY
Version 6.0 20 www.mbnled.com
The level is displayed in 0-39%. Press the ENTER button to change the minimum
level. The indication begins to blink. Now you can adjust the value from 0% - 39%.
Pressing the ENTER button again will save the changes. You can leave this mode at
any time by pressing the ESC button without saving any changes.
SETUP MENU MODE  HIGH  MAXIMUM LEVEL
Here you can adjust the maximum levels. This function allows to limit a channel to a
maximum level. Press the ENTER button and first select the desired channel (R G B)
with the UP and DOWN buttons. After pressing the ENTER button again, you can
adjust the maximum level for the selected channel.
The level is displayed in 50-100%. Press the ENTER button to change the maximum
level. The indication begins to blink. Now you can adjust the value from 49% - 100%.
Pressing the ENTER button again will save the changes. You can leave this mode at
any time by pressing the ESC button without saving any changes.
SETUP MENU MODE  DEFAULT BASIC LEVEL
Here you can adjust the default intensities of the three channels (R G B). As soon as
the device is switched on, this level (saved fixed colour) will be restored and
automatically shown on the output. Press the ENTER button and first select the
desired channel (R G B) with the UP and DOWN buttons. After pressing the ENTER
button again, you can adjust the default level for the selected channel.
The level is displayed in 0-100%. Press the ENTER button to change the default
level. The indication begins to blink. Now you can adjust the value from 0% - 100%.
Pressing the ENTER button again will save the changes. You can leave this mode at
any time by pressing the ESC button without saving any changes.
RGB DMX POWER SUPPLY
Version 6.0 21 www.mbnled.com
SETUP MENU MODE  REVERSE DMX
Here you can invert the values coming from the DMX input. Press the ENTER button
and the display will show the current setting, either on or off.
on means reverse DMX active. Now a high DMX value will effect
alow light intensity level. When the DMX value (level) decreases, the LED brightness
will increase. You can activate this setting by pressing the UP and DOWN buttons.
Press the ENTER button to save the changes. You can leave this mode at any time
by pressing the ESC button without saving any changes.
oFF means DMX standard. Press the UP and DOWN buttons to
select this setting.
Press the ENTER button to save the changes. You can leave this mode at any time
by pressing the ESC button without saving any changes.
SETUP MENU MODE  MASTER
Here you can activate or deactivate the master mode. Press the ENTER button and
the display will show the current setting, either on or off.
on means master activated. If no DMX signal is present, the
device will generate a DMX signal by itself according to the current colour or the
current program and controls the slave devices. You can activate this setting by
pressing the UP and DOWN buttons.
Press the ENTER button to save the changes. You can leave this mode at any time
by pressing the ESC button without saving any changes.
oFF means master deactivated. Press the UP and DOWN
buttons to select this setting.
Press the ENTER button to save the changes. You can leave this mode at any time
by pressing the ESC button without saving any changes.

| RENT: OPALED |
| OPALED |
via GIUSEPPE DI VITTORIO 9
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSET.IT
via NAZARIO SAURO 13/A
20037 PADERNO DUGNANO (MI) ITALY
CONTACT US: ([phone] - WWW.TEKSETRENTAL.IT
TekSet Rental S.r.l.
RGB DMX POWER SUPPLY
Version 6.0 22 www.mbnled.com
SETUP MENU MODE  DISPLAY
Here you can adjust the brightness of the display from 10 -100%. Press the ENTER
button and the current brightness is indicated on the display.
The display brightness can now be adjusted with the UP and
DOWN buttons.
Press the ENTER button to save the changes. You can leave this mode at any time
by pressing the ESC button without saving any changes.
SETUP MENU MODE  RANGE
Here you can change the display range of the indicated intensities (% or bit). Press
the ENTER button and the current setting is indicated on the display.
The selected range is %, channel levels are indicated on the
display from 0-100%. Press the UP and DOWN buttons to change the setting.
The selected range is bit, channel levels are indicated on the
display from 0-255. Press the UP and DOWN buttons to change the setting.
Press the ENTER button to save the changes. You can leave this mode at any time
by pressing the ESC button without saving any changes.
SETUP MENU MODE  TIME  OPERATING TIME
Here you can read, how many hours the device was in operation.
The blinking point shows the seconds.
Press the ESC button to leave this mode.
RGB DMX POWER SUPPLY
Version 6.0 23 www.mbnled.com
SETUP MENU MODE  RESET
Here you can reset all settings to the factory preset parameters. Press the ENTER
button and the display begins to blink. Now you have to press the ENTER button
once more and keep it pressed for five seconds until the blinking stops. After this
procedure the device is reset to the initial factory settings.
SETUP MENU MODE  SOFTWARE VERSION
The last digit indicates the current software version number.
Versions of the MBNLED RGB DMX POWER SUPPLIES:
5V 50 Watts Common Anode
5V 50 Watts Common Cathode
5V 90 Watts Common Anode
5V 90 Watts Common Cathode
12V 90 Watts Common Anode
12V 90 Watts Common Cathode
12V 180 Watts Common Anode
12V 180 Watts Common Cathode
12V 300 Watts Common Anode
12V 300 Watts Common Cathode
24V 90 Watts Common Anode
24V 90 Watts Common Cathode
24V 180 Watts Common Anode
24V 180 Watts Common Cathode
24V 300 Watts Common Anode
24V 300 Watts Common Cathode
MBN Eventproducts GmbH
Engelschalkstraße 5, D-86316 Friedberg
Tel. [phone], Fax [phone]
E-Mail: [e-mail]
Internet: www.mbngermany.de
RGB DMX POWER SUPPLY
Version 6.0 23 www.mbnled.com
SETUP MENU MODE  RESET
Here you can reset all settings to the factory preset parameters. Press the ENTER
button and the display begins to blink. Now you have to press the ENTER button
once more and keep it pressed for five seconds until the blinking stops. After this
procedure the device is reset to the initial factory settings.
SETUP MENU MODE  SOFTWARE VERSION
The last digit indicates the current software version number.
Versions of the MBNLED RGB DMX POWER SUPPLIES:
5V 50 Watts Common Anode
5V 50 Watts Common Cathode
5V 90 Watts Common Anode
5V 90 Watts Common Cathode
12V 90 Watts Common Anode
12V 90 Watts Common Cathode
12V 180 Watts Common Anode
12V 180 Watts Common Cathode
12V 300 Watts Common Anode
12V 300 Watts Common Cathode
24V 90 Watts Common Anode
24V 90 Watts Common Cathode
24V 180 Watts Common Anode
24V 180 Watts Common Cathode
24V 300 Watts Common Anode
24V 300 Watts Common Cathode
MBN Eventproducts GmbH
Engelschalkstraße 5, D-86316 Friedberg
Tel. [phone], Fax [phone]
E-Mail: [e-mail]
Internet: www.mbngermany.de
