K4000 Transport Cart Instructions i
Table of Contents
General Safety Summary iii...................................
Introduction 1..............................................
Tools 1..........................................................
Parts Identification 1...............................................
Base Assembly 5............................................
Bottom Shelf 9..............................................
Keyboard Shelf 11...........................................
Top Shelf 14.................................................
Drawer 16..................................................
Skyhook 18.................................................
Nylon Straps 20..............................................
Leg Caps 21.................................................
Stop Bar 22.................................................
Monitor Clamps 23...........................................
Instrument Mounts 24........................................
Customization 26............................................
Replaceable Parts 27..........................................
Specifications 28.............................................
29...................................

Table of Contents
ii K4000 Transport Cart Instructions
List of Figures
Figure 1: Identification of Small Parts 2........................
Figure 2: The K4000 Transport Cart 4..........................
Figure 3: Preparing the Strut for Base Assembly 6................
Figure 4: Aligning the Leg Assemblies and the Strut 7.............
Figure 5: Installing the Casters 8..............................
Figure 6: Preparing the Bottom Shelf 9.........................
Figure 7: Aligning the Bottom Shelf 10..........................
Figure 8: Preparing the Keyboard Shelf 11.......................
Figure 9: Aligning the Keyboard Shelf 13........................
Figure 10: Preparing the Top Shelf 14...........................
Figure 11: Aligning the Top Shelf 15.............................
Figure 12: Installing the Drawer 16.............................
Figure 13: Installing the Press Stud Retainers 17..................
Figure 14: Installing the Skyhook 19............................
Figure 15: Installing the Nylon Straps with Buckles 20.............
Figure 16: Installing the Leg Caps 21............................
Figure 17: Installing the Stop Bar 22............................
Figure 18: Installing the Monitor Clamps 23......................
Figure 19: Installing the Instrument Mounts 25...................

K4000 Transport Cart Instructions iii
General Safety Summary
Observe these safety precautions when using the K4000 Transport Cart.
Keep the K4000 Level
Keep the K4000 level at all times, especially when it is loaded with instruments.
The cart is designed to be very stable, but it can fall over if tilted to extremes.
Observe this precaution especially in these cases:
HWhen rolling the cart across uneven floors.
HWhen rolling the cart through doorways with uneven thresholds.
HWhen lifting the cart wheels over cables.
HWhen rolling the cart up or down ramps.
Do Not Overload Shelves
Do not put more weight on any cart shelf than is listed in the specifications.
Load the top of the cart evenly.
Observe Electrical Safety
All parts of the cart must be treated as electrical conductors, even if they appear
to be nonconducting. Do not rely on the casters to provide insulation between the
cart and the surface it stands on. Conversely, do not rely on the casters to provide
a conductive ground path for the cart.
Test the Stability of Custom Configurations
Changes in shelf location and loading can affect the balance of the cart. If you
arrange the shelves differently from the configuration described in this manual,
test the cart carefully for stability before using it.

General Safety Summary
iv K4000 Transport Cart Instructions

K4000 Transport Cart Instructions 1
Introduction
The Tektronix K4000 Transport Cart requires some assembly. This manual tells
how to assemble and use the cart.
You can assemble the K4000 Transport Cart by yourself, but it is easier if you
have another person to help you.
You will need a large flat area to assemble the cart. The area should be level and
large enough to move the various parts into place. A carpeted floor space is ideal.
Assembly will require approximately 2 hours.
Tools
You will need a 3/4 inch (19 mm) open--end wrench, or an adjustable wrench that
can be adjusted to that size.
Other tools are included with the K4000 Transport Cart. These include a 3/16
inch Allen wrench and a circular bubble level.
Parts Identification
The large pieces of the K4000 Transport Cart are packed separately in the
shipping carton. A bag of small parts is packed in a box with the casters and
other small parts. The included tools are also packed in this bag. Figure 1 on
page 2 shows the small parts you will be using.
Table 1 on page 3 lists all the parts needed to assemble the cart, including the
large pieces and assemblies. Take an inventory now to familiarize yourself with
the parts for the assembly process.

Introduction
2K4000 Transport Cart Instructions
Press On Probe Holder

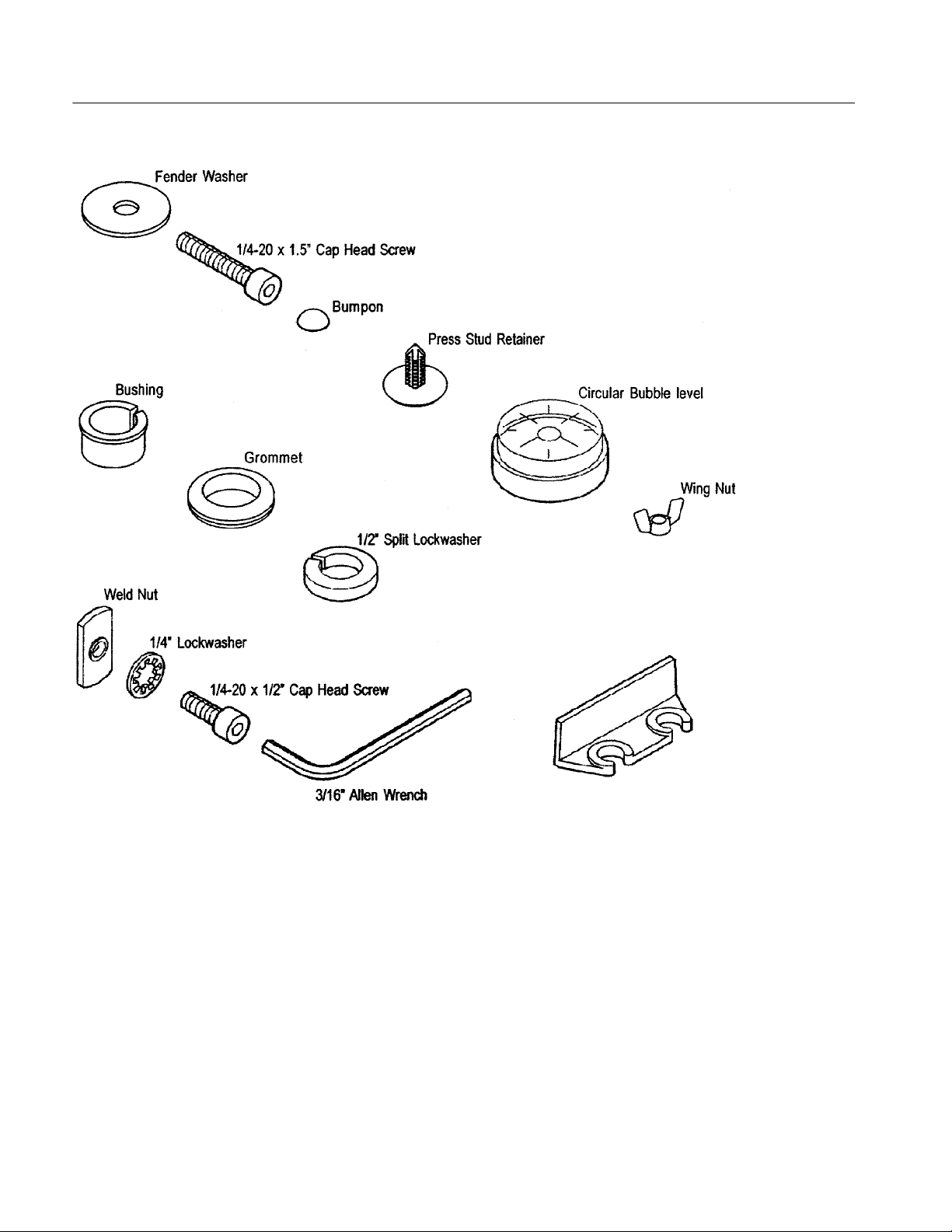

Figure 1: Identification of small parts

Introduction
K4000 Transport Cart Instructions 3
Table 1: Parts list
Quantity Description
Large Parts
2Locking Casters
2Non--Locking Casters
1Top Shelf
1Keyboard Shelf
1Bottom Shelf
1Drawer
1Strut
2Leg assemblies
2Upright Caps
4Nylon Straps with buckles
1Skyhook
1Skyhook Mount
1Skyhook Adjustment Knob
1Skyhook Sleeve
1Stop Bar
4Monitor Clamps
2Instrument Mounts
4End C aps
2Brackets, Scope Cart
1Instructions Manual
Small Parts in Bag
41/2 inch Split Lockwashers
22 1/4--20 x 1/2 inch Cap Head Screws
22 1/4 inch Tooth Lockwashers
22 Weld Nuts
2Press--Stud Retainers
6#8--32 Wing Nuts
41/4--20 x 1--1/4 inch Cap Head Screws
41 inch Fender Washers
1Press On Probe Holder
4#6--32 X 0.250 machine screw, PNH, T--15 TORX DR
Small Tools in Bag

Introduction
4K4000 Transport Cart Instructions
Table 1: Parts list (Cont.)
Quantity Description
13/16 inch Allen Wrench
1Circular Bubble Level
Figure 2: The K4000 Transport Cart

K4000 Transport Cart Instructions 5
Base Assembly
Begin assembling the cart by joining the leg assemblies using the strut, and then
putting on the casters. You will use these parts:
H2 Locking Casters
H2Non--LockingCasters
H2 Uprights
H2Legs
H4 End Caps
H1Strut
H4 1/2 inch Split Lockwashers
H4 1/4 20 Cap Head Screws, 1/2 inch length
H4 1/4 inch Tooth Lockwashers
H4 1/4 20 Cap Head Screws, 1--1/4 inch length
H4 1 inch Fender Washers
H4WeldNuts
H4 Bumpons
You will use a 3/4 inch (19 mm) wrench or adjustable wrench, and the 3/16 inch
Allen wrench included with your cart.
1. Prepare the strut as shown in Figure 3. Position the weld nut with the raised
threaded flange toward the strut. Leave each screw assembly loose; do not
screw the weld nut onto the cap head screw more than one full turn.

Base Assembly
6K4000 Transport Cart Instructions
Front
Weld Nut
1/4 inch Tooth Lockwasher
1/4-20 Cap Head Screw

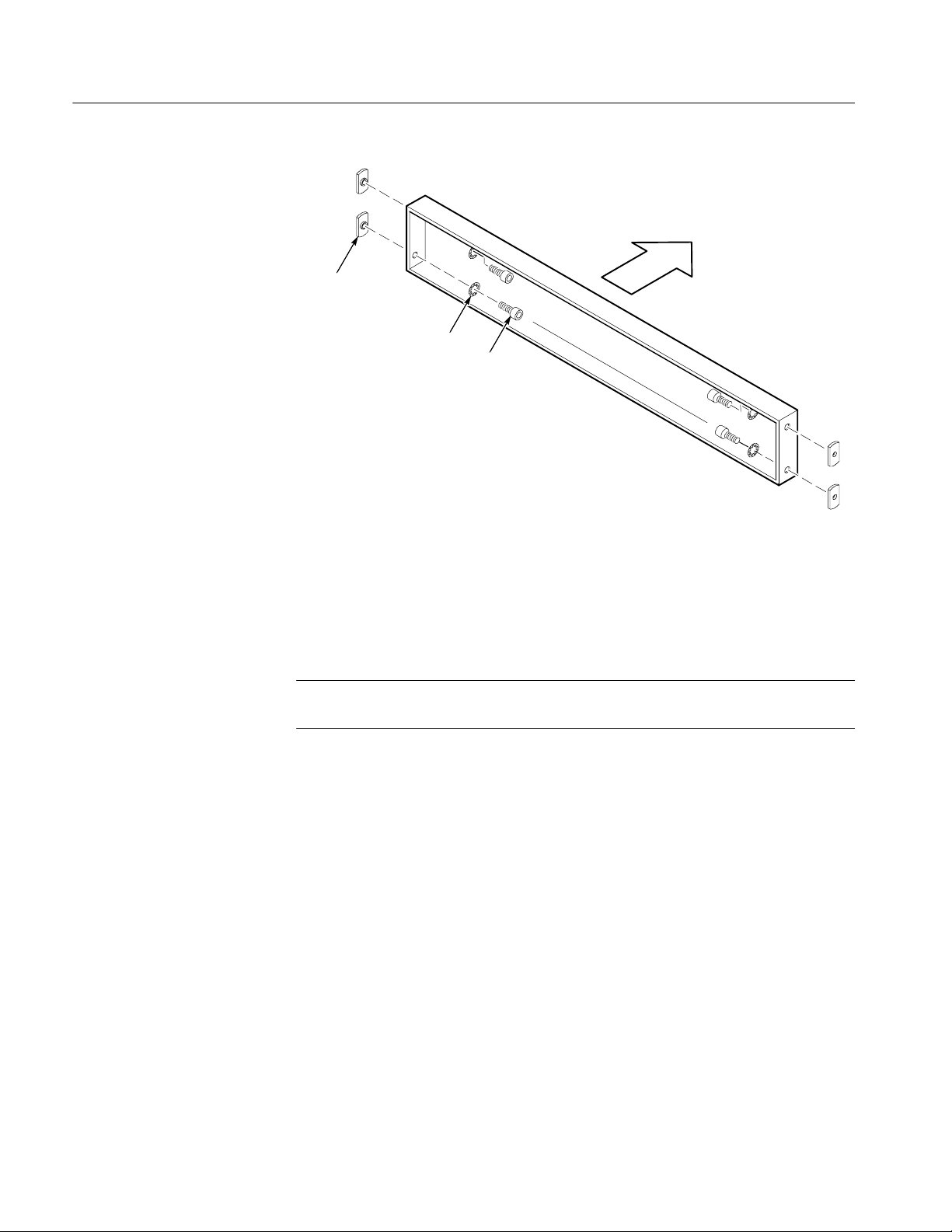

Figure 3: Preparing the strut for base assembly
2. Attach legs to the upright using the 1/4--20 x 1--1/4 inch cap head screws and
the 1 inch fender washers provided. Place the endcaps in the ends of the legs
and press in using firm pressure.
NOTE. Position each leg so that the two large holes face down when attaching
legs to uprights.
3. Place four bumpons in--line as indicated by Figure 4. Two of the bumpons
are placed on the inside top surface of each leg and in--line with the back
groove. The remaining two bumpons are placed on top of the strut in--line
with the back groove.

Base Assembly
K4000 Transport Cart Instructions 7
Pencil Marks: first line should be 10 inches
from the bottom of the extrusion. For the first
leg assembly, turn extrusion so pencil marks
are on the inside. For second leg assembly,
pencil marks are also on the inside.
Bumpons are on the
inside of the extrusions.
Note: Leg tube can be crushed if screw is over
tightened; maximum torque is 3-6 foot/pounds.
Clear Plastic Buttons (1 on each leg assembly)

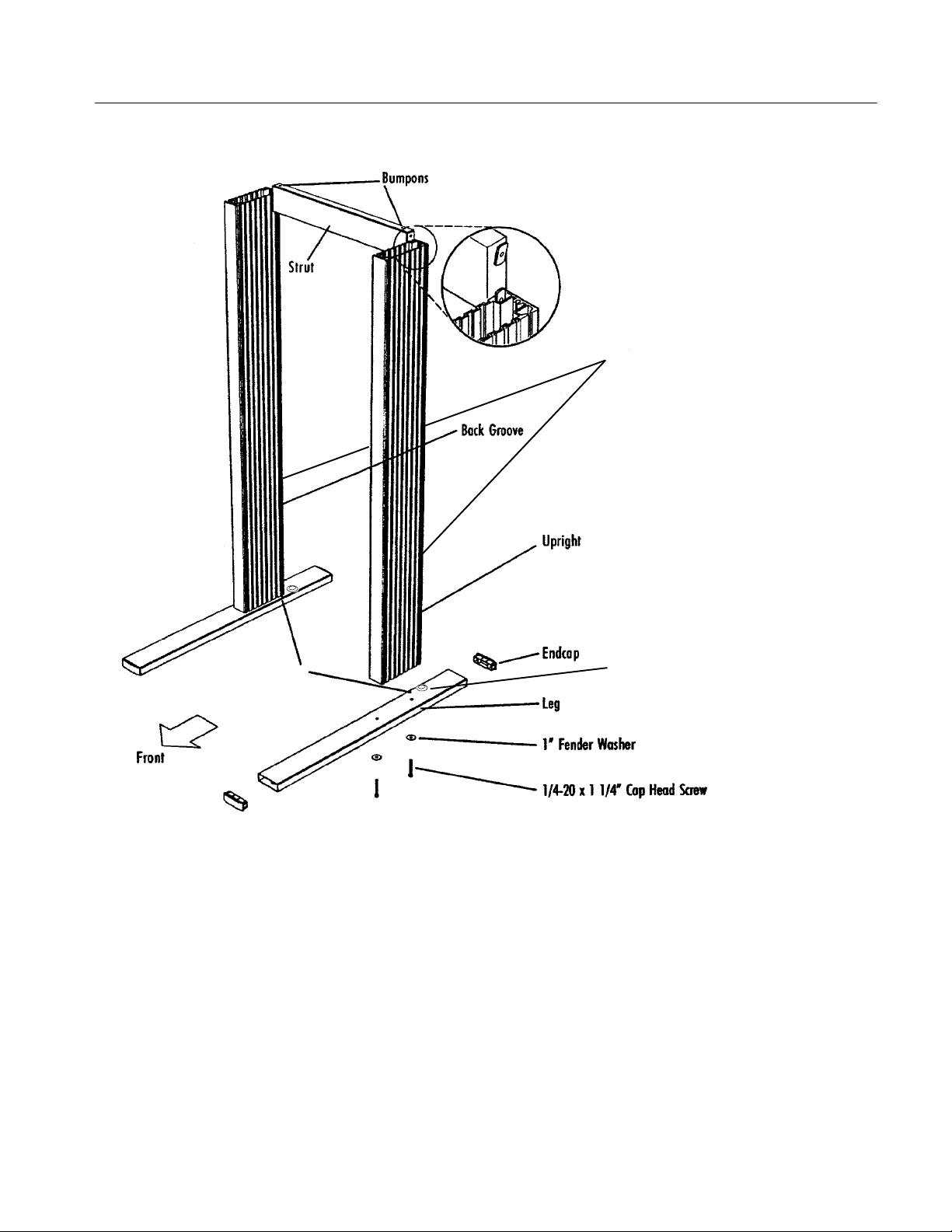

Figure 4: Aligning the leg assemblies and the strut
4. Position the strut horizontally between the leg assemblies, as shown in
Figure 4, with the open side of the strut to the back. Line up the weld nuts
with the back grooves of each upright. Slide the strut down to the base of the
cart, adjusting the distance between the leg assemblies as needed. When
complete, make sure the strut is resting tight against the bumpons placed on
the legs.
5. Use the 3/16 inch Allen wrench to tighten the cap head screws. Tighten them
first snugly, then go back and tighten them firmly.

Base Assembly
8K4000 Transport Cart Instructions
NOTE. If you have a torque wrench available, tighten these and all shelf screws
to 60 in.... lb (6.8 N.... m) torque.
6. Tip the cart onto its back as shown in Figure 5, resting it on the work surface
by the tops and backs of the leg assemblies.
7. Identify which casters are locking and which are non--locking. The locking
casters, which go on the front of the cart, have an extra tab that you step on
to lock the wheels.
Front
Locking
Casters
1/2inch Split
Lockwashers
Non-
Locking
Casters
Figure 5: Installing the casters
8. On the locking casters, place a 1/2 inch split lockwasher on each threaded
shaft, then install the casters into the two front holes in the bottoms of the
leg assemblies. Tighten the casters only until they are snug using the 3/4
inch (19 mm) wrench.
9. On the non--locking casters, place a 1/2 inch split lockwasher on each
threaded shaft, then install the casters into the two back holes in the bottoms
of the leg assemblies. Tighten the casters only until they are snug.
10. Return the cart to the upright position.

K4000 Transport Cart Instructions 9
Bottom Shelf
Installing the bottom shelf. You will use these parts:
H1 Bottom Shelf
H4 1/4 20 Cap Head Screws, 1/2 inch length
H4 1/4 inch Tooth Lockwashers
H4WeldNuts
You will use the 3/16 inch Allen wrench and the circular bubble level included
with your cart.
1. Prepare the bottom shelf as shown in Figure 6 by installing a cap head screw,
a tooth lockwasher, and a weld nut in each of the four side holes of the shelf.
Leave each screw assembly loose; do not screw the weld nut onto the cap
head screw more than one full turn.
Figure 6: Preparing the bottom shelf

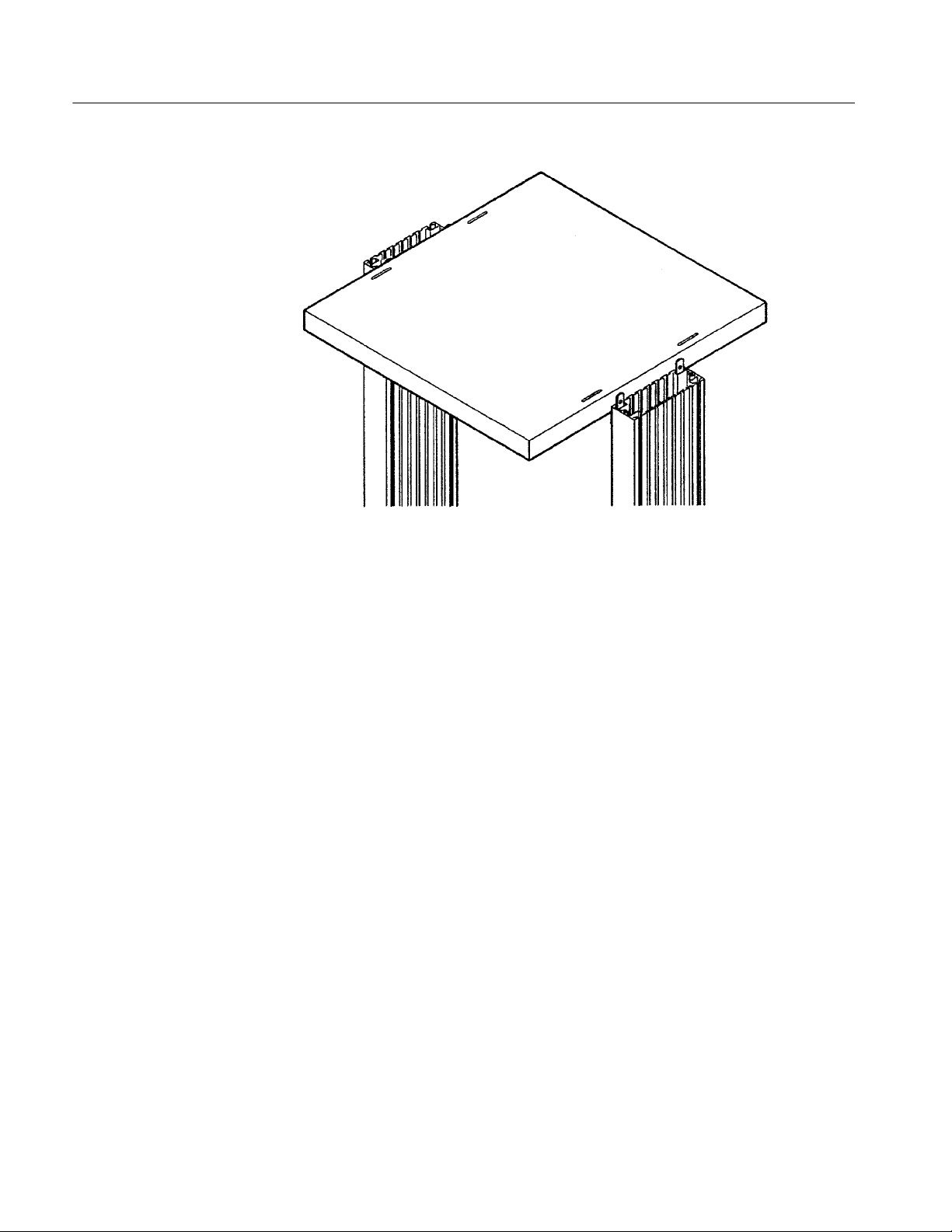

2. Position the bottom shelf horizontally between the leg assemblies, as shown
in Figure 7. Ensure that the cable tie hole pattern is facing the rear of the
cart.

Bottom Shelf
10 K4000 Transport Cart Instructions
Figure 7: Aligning the bottom shelf
3. Slide the bottom shelf down to into position. A light pencil line has been
marked on the insides of the leg assemblies at this position. Slide the bottom
shelf slowly between the leg assemblies to avoid scratching the paint. Use
the circular bubble level to make sure the shelf is level.
If you have another person helping you, that person can hold the shelf at the
proper height as you tighten the screws. If you are assembling the cart by
yourself, tighten each screw in turn just enough to hold, and then adjust the
heights one by one until the shelf is positioned properly.
4. Use the 3/16 inch Allen wrench to tighten the cap head screws. Tighten them
first snugly, then go back and tighten them firmly.

K4000 Transport Cart Instructions 11
Keyboard Shelf
Installing the keyboard shelf. You will use these parts:
H1 Keyboard Shelf
H8 1/4 20 Cap Head Screws, 1/2 inch length
H8 1/4 inch Tooth Lockwashers
H8WeldNuts
You will use the 3/16 inch Allen wrench and the circular bubble level included
with your cart.
1. Prepare the keyboard shelf as shown in Figure 8 by installing a cap head
screw, a tooth lockwasher, and a weld nut in each of the eight side holes of
the shelf. Leave each screw assembly loose; do not screw the weld nut onto
the cap head screw more than one full turn.
Figure 8: Preparing the keyboard shelf

Keyboard Shelf
12 K4000 Transport Cart Instructions
2. Position the keyboard shelf horizontally between the leg assemblies, as
shown in Figure 9. Position the shelf so that the long end of the shelf is
positioned to the front of the cart.
3. Slide the keyboard shelf down to into position. (A light pencil line has been
marked on the insides of the leg assemblies at the keyboard shelf position.)
Slide the keyboard shelf slowly between the leg assemblies to avoid
scratching the paint. Use the circular bubble level to make sure the shelf is
level.
If you have another person helping you, that person can hold the shelf at the
proper height as you tighten the screws. If you are assembling the cart by
yourself, tighten each screw in turn just enough to hold, and then adjust the
heights one by one until the shelf is positioned properly.
4. Use the 3/16 inch Allen wrench to tighten the cap head screws. Tighten them
first snugly, then go back and tighten them firmly.
