Teledyne GV 400 User manual

GV 400
Vision System
Installation Manual
405-00083-00
1GV 400 Installation Version 1.3; 2020-5-14

Notice
GV 400 Installation Manual
Document Number 405-00083-00
Copyright 2020 Teledyne Imaging.
All rights reserved.
All copyrights in this manual, and the hardware and software described in it, are the
exclusive property of Teledyne Imaging and its licensors.
Claim of copyright does not imply waiver of Teledyne Imaging or its licensors other
rights in the work. See the following Notice of Proprietary Rights.
NOTICE OF PROPRIETARY RIGHTS
This manual and the related hardware and software are confidential trade secrets
and the property of Teledyne Imaging and its licensors. Use, examination,
reproduction, copying, transfer and/or disclosure to others of all or any part of this
manual and the related documentation are prohibited except with the express
written consent of Teledyne Imaging.
The information in this document is subject to change without notice. Teledyne
Imaging makes no representations or warranties with respect to the contents of this
manual and specifically disclaims any implied warranties of merchantability or
fitness for a particular purpose. Teledyne Imaging assumes no responsibility for
errors or omissions in this document.
iNspect, Sherlock, and the Teledyne Imaging logo are trademarks of Teledyne
Imaging. All other trademarks are the property of their respective owners.
Teledyne Digital Imaging US, Inc.
Information: [e-mail]
Support: [e-mail]
Web: http://www.teledynedalsa.com/ipd
700 Technology Park Drive
Billerica, MA, USA 01821
Tel [phone] Fax [phone]
2GV 400 Installation Version 1.3; 2020-5-14

Certifications
Declaration of Conformity
Manufacturer Teledyne Digital Imaging US, Inc.
700 Technology Park Drive
Billerica MA 01821
USA
CE We declare that this product has been tested to comply
with the EC Directive for a class A digital device in
accordance with EN55022/CISPR22
FCC We declare that this product has been tested and found
to comply with the limits for a class A digital device,
pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and may cause harmful interference to
radio communication.
Other
CFR 21 Part 11 This product provides tools needed for users to
implement an auditing program that could be in
compliance with CFR 21 Part 11. These tools include:
•System or software backup and restore
•System software security (password login and access
limits)
•Protection of system backup files from modification.
•Record of actions by users with time stamp information
•Time stamp information on data output.
3GV 400 Installation Version 1.3; 2020-5-14

Care should always be exercised when handling and operating your GV 400 System.
Even though the system is encased within a rugged, industrial enclosure, incorrect use
or handling can result in damage to your investment. To prevent this, we recommend
the following precautions:
Handling Precautions
•Avoid “hot-plugging” cables and devices. Be sure to shut the system down and
remove power before connecting or disconnecting anything to it.
•Do not use in a “Free-standing” operation. Mount the system properly to prevent it
from falling accidentally. Mounting hardware is provided with the system.
•Always use system in an environment within the recommended operating conditions.
Refer to the complete specifications on page 23.
•Do not install the system in a location that will expose it to excessive heat, humidity,
vibration, impact, corrosive substances, or flammable substances.
•Do not attempt to service or modify the GEVA system by opening the enclosure.
Electro Static Discharge
Avoid the damage that ESD can cause. Never expose the internal electronics to a
potentially hazardous environment by opening the enclosure. Doing so may cause
serious damage.
User Service Warning
This product has no field-replaceable components. Tampering with the unit will void the
product warranty.
Warranty
Teledyne Imaging warrants the GV 400 Vision System against defects in materials and
workmanship for a period of Twelve (12) months from the date of delivery. Teledyne
Imaging and its representatives expressly disclaim any and all other warranties.
Your sole remedy shall be repair or replacement of the GV 400 Vision System product
and associated optional components, provided that the defective product is returned
within the warranty period.
If you need to return the GV 400 Vision System, you must contact the Teledyne Imaging
representative who sold you the product. Do not return your product to Teledyne Digital
Imaging US without prior authorization.
Teledyne Imaging assumes no liability for damages resulting from the use of this
manual.
4GV 400 Installation Version 1.3; 2020-5-14

Table Of Contents
Introduction GV 400 Vision System ………………............................... 6
Product Support ………………............................... 6
Components ………………............................... 7
Installation Connecting the GV 400 ………………............................... 8
Rear Connections ………………............................... 8
Front Connections ………………............................... 9
GigE Cameras ………………............................... 10
Typical Configuration using
the PL-USB
………………............................... 11

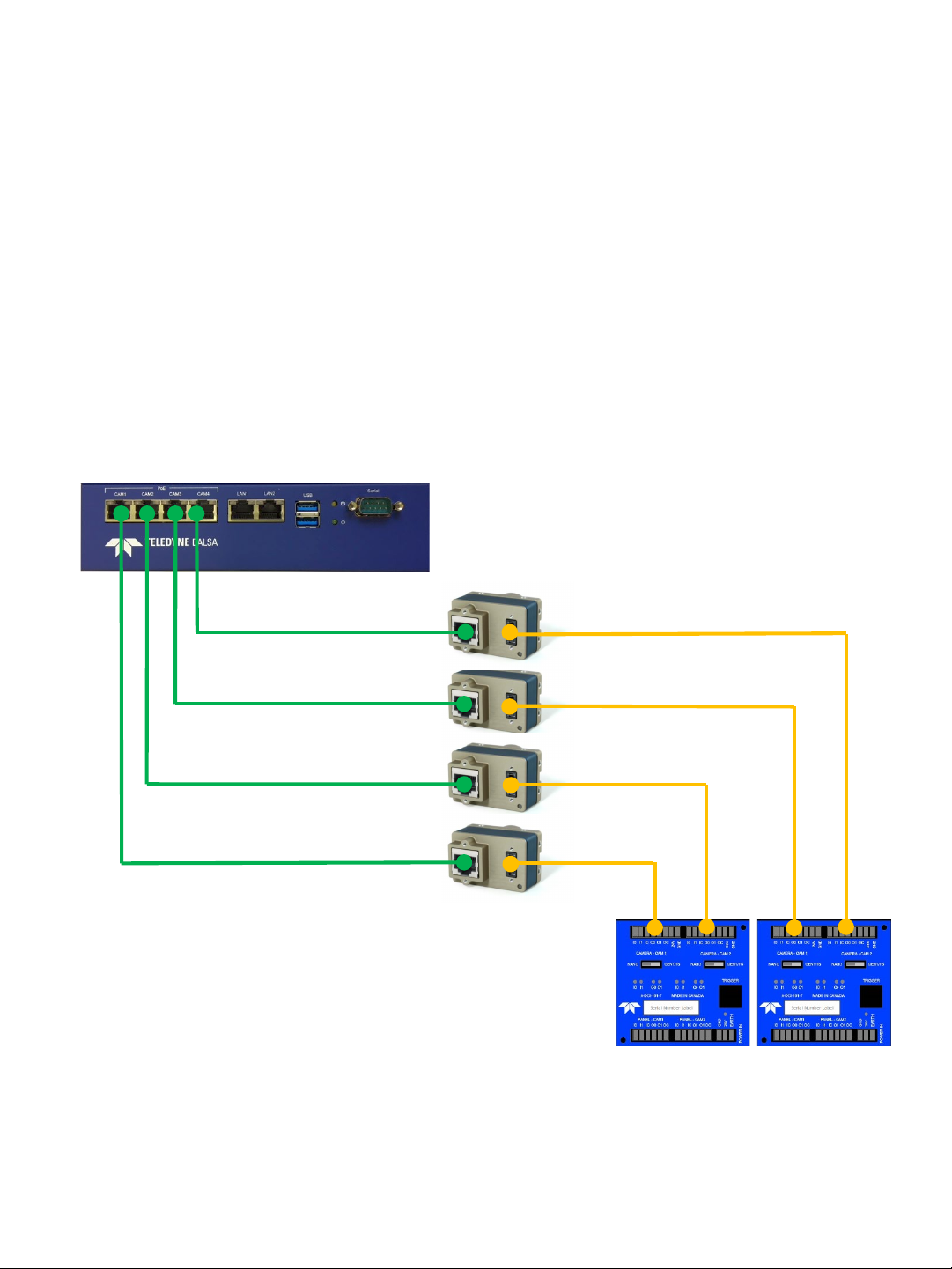

Typical Configuration using
the DCI-101
………………............................... 12
Software Getting Started ………………............................... 13
Directory Structure ………………............................... 13

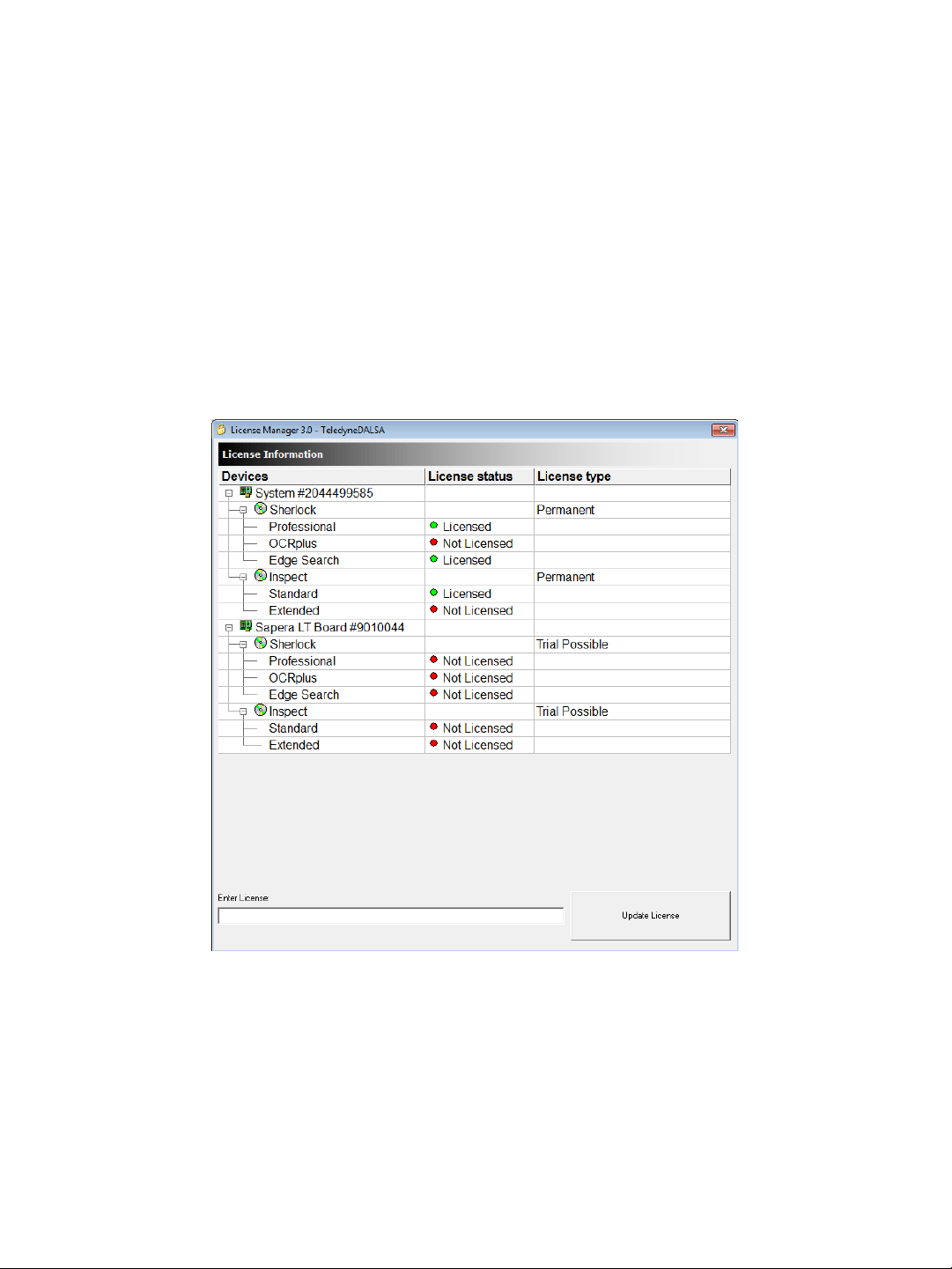

The License Manager ………………............................... 14
iNspect Express Setup ………………............................... 15
iNspect Express Configurator ………………............................... 16
iDiscover Genie …………………………………… 17
Sherlock Setup ………………............................... 18
Sapera CamExpert ………………............................... 19
Sapera Acquisition Wizard ………………............................... 20
Changing Camera Order ………………............................... 21
Enhanced Write Filter ………………............................... 22
Acronis True Image Software ………………............................... 22
Specifications GV 400 Specifications ………………............................... 24
Mechanical Drawings …………………………………….. 25
I/O Modules PL-USB Overview …………………………………..... 26
DCI-101 Overview …………………………………..... 27
5GV 400 Installation Version 1.3; 2020-5-14

Introduction
The GV 400 is a compact vision system that supports image acquisition, processing,
display and communications. The system is equipped with 4 PoE compliant Ethernet
ports for interfacing GigE style cameras and 2 standard Ethernet ports for interfacing
complementary devices and the factory network. The low power GV 400 uses industrial
grade components encased within a fanless aluminum enclosure. It is offered with
either panel or DIN mountable hardware.
GV 400 Vision System Overview
Product Support
This manual will assist you with the installation and setup of your GV 400 product and
the embedded inspection software. It describes what the product supports and how to
connect the external interfaces. If your questions are not answered in this reference,
please contact your local Teledyne Imaging representative.
In addition to this installation manual, support is available as follows:
1. Fingertip help is available on every screen (panel) of the iNspect Express or
Sherlock User Interface.
2. The software User Manual is included on the system hard drive.
3. Email factory support at [e-mail]
4. Call or email your local representative who sold you the product.
6GV 400 Installation Version 1.3; 2020-5-14

GV 400 vision systems are shipped with the components listed below. Take a few
moments to verify that everything has arrived in good condition. If your product has
been visibly damaged during shipment or is missing parts, please contact your Teledyne
Imaging representative immediately.
GV 400 Vision System Components
Component Description
GV 400 Vision System
GV400-03 or
GV400-04
Fully integrated vision system with iNspect Express (-03) or
Sherlock (-04) embedded software, and DIN mounting hardware.
Standard components (ship with every GV 400 Vision System):
7
Component Description
A-CAM-G3-XXXX-XX Genie Nano Series GigE cameras.
A-CAB-GE-X GigE CAT5e camera cables (video data, network
communication).
A-PL-USB USB breakout module for camera interfacing and additional I/O.
A-DCI-101 Breakout module for camera interfacing.
A-CAB-G3-IO-X Genie Nano IO/Power/Trigger cable (for free wire, PL-USB or
DCI-101).
Optional components (sold separately):
Note: The PL-USB uses camera Input2 as the trigger and Output2 as the strobe.
GV 400 Installation Version 1.3; 2020-5-14

Installation
This section details the physical connections on the GV 400 vision system. The GV 400
provides connectors on both the rear and front and surfaces.
Connecting the GV 400 Vision System
1
23
5
Rear Connections
1. Reset button –recessed behind the front plate. Use blunt pointed object and hold
for 5 seconds to reset the unit.
2. Power connector –Supports 12-36 VDC @ 60W.
3. VGA display port
4. HDMI display port (preferred)
5. Two USB 2.0 ports. Typically used to connect Keyboard/Mouse or flash drive.
4
8GV 400 Installation Version 1.3; 2020-5-14
-+

1
2
3
Front Connections
1. Serial Port –Configured as COM1 device at 11520,8,0,1,0.
2. LEDs: Power/HDD
3. Two USB 2.0 ports. Typically used to connect PL-USB I/O module.
4. Two Gigabit Ethernet ports for network and 3rd party device connections. Default IP
settings as follows:
Marking Connection
LAN1 Dynamic IP Address DHCP enabled LAN network 1
LAN2 Static IP Address 192.168.15.1 LAN network 2
5. Four Gigabit PoE compliant Ethernet camera ports. Note: POE cannot be disabled.
Default IP settings are as follows (these can optionally be changed through the
Windows network “change adapter settings” interface):
Marking Connection
CAM1 Static IP Address 192.168.11.1 Camera port 1
CAM2 Static IP Address 192.168.12.1 Camera port 2
CAM3 Static IP Address 192.168.13.1 Camera port 3
CAM4 Static IP Address 192.168.14.1 Camera port 4
LAN left LED: Off = 10 Mbits/s; GREEN = 100 Mbits/s; ORANGE = 1000 Mbits/s
LAN right LED: ON = port active; BLINK = port traffic
Note: Camera Ethernet cables must be type Cat5e. Use A-CAB-GE-X.
9
5 4
GV 400 Installation Version 1.3; 2020-5-14

The GV 400 supports Teledyne Imaging’s family of Genie Nano cameras and the PIC-
2592 camera for image acquisition. The Linea GigE line scan series is technically
compatible, but not recommended for this platform.
The following should be noted when matching your application camera needs to the GV
400:
1. The GV 400 has 4 camera ports.
2. Sherlock has no limit on the number of cameras supported.
3. iNspect Express “Extended” license on the GV 400 supports up to 8 cameras.
4. The GV 400 hardware design does not limit how multiple cameras are connected.
In theory, multiple cameras could be connected through Ethernet switches to each
of the GV 400 camera ports. However, in practice, the effective throughput of the
system will decrease as you add more cameras, or cameras with higher resolution
or color formatting. Consult your Teledyne Imaging representative on applications
requiring more than 4 cameras or high inspection speeds.
iNspect Express and Sherlock use different software drivers to interface to Genie Nano
cameras. iNspect Express uses a driver called IFC, whereas Sherlock uses one called
Sapera LT. The setups associated with each will be described later in the manual.
Generally, Sapera offers additional flexibility over IFC, but requires additional steps to
setup. The PIC2592 camera uses IFC in both Sherlock and iNspect Express.
Two cables are needed in the setup of each camera. The data cable (A-CAB-GE-X)
connects the camera’s Ethernet port to one of the GV 400 camera ports. The I/O cable
provides power to the camera and access to the camera’s I/O, including trigger.
Note: By default, iNspect Express and Sherlock assume Genie camera Input2 is the
trigger input and Genie camera Output2 is the strobe output.
GigE Cameras
10GV 400 Installation Version 1.3; 2020-5-14

Typical Configuration using the PL-USB module
Genie Nano
GV 400
11
PL-USB module
NOTES:
1. Camera ports 1-4 provide POE (Power Over Ethernet). Do not connect the Genie Nano
camera’s power and ground to the PL-USB.
2. Power connections to the PL-USB and GV 400 are not shown.
3. Use A-CAB-GE-X for camera Ethernet connections.
4. Use A-CAB-G3-IO-X for I/O connections between Genie Nano and PL-USB. Camera
Input2 is the expected trigger, Output2 is the strobe. Cable wiring diagrams appear in the
PL-USB Quick Start Guide and PL-USB Install Manual.
USB link
GV 400 Installation Version 1.3; 2020-5-14

Typical Configuration using the DCI-101 module
Genie Nano
GV 400
NOTES:
1. Camera ports 1-4 provide POE (Power Over Ethernet). Do not connect the Genie Nano
camera’s power and ground to the DCI-101.
2. Power connections to the DCI-101 and GV 400 are not shown.
3. Use A-CAB-GE-X for camera Ethernet connections.
4. Use A-CAB-G3-IO-X cables for Genie Nano I/O. Camera Input1 is the expected trigger.
Cable wiring diagrams appear in the DCI-101 Quick Start Guide.
5. Use one A-DCI-101 for every 2 cameras.
12
DCI-101 modules
GV 400 Installation Version 1.3; 2020-5-14

Software Interface
The GV 400 vision system is supplied with 64-bit Windows 10 IoT operating system and
either iNspect Express or Sherlock vision software licensed for use. These applications
offer a suite of vision capabilities that satisfy a diverse range of automated inspection
needs. The following shows how to configure the GV 400 to work with either interface.
Refer to the respective software user manual for more information.
Note: The -03 models ship with iNspect Express licensed. The -04 models ship with
Sherlock licensed.
Getting Started
Software Directory Structure
iNspect Express, Sherlock and associated software applications are installed in various
directories on the GV 400. For reference, the following table lists the location and
association of core programs and data directories that are referenced in this manual:
Note: iNspect Express and Sherlock have a Start Menu shortcut to the User Files
directory, which includes \Drivers, \Programs and \Images. The directory
C:\ProgramData or C:\Users\Teledyne\AppData (and everything below it) is normally
hidden per Windows rules. You can change permissions and hidden folder views.
13
•The “ProgramData” paths apply when iNspect Express is installed with the (default) option
“for all users”. The path becomes “Users\Teledyne\AppData\Local” when installed for the
“current user only”.
GV 400 Installation Version 1.3; 2020-5-14
iNspect Express Program Files and Directories
iNpsect Express Configurator C:\Program Files\Teledyne Dalsa\iNspectExpress x64\iNspectExpressConfig.exe
iNspect Express C:\Program Files\Teledyne Dalsa\iNspectExpress x64\Express.bat
Solution Files* C:\ProgramData\Teledyne Dalsa\iNspectExpressVA\Solutions
Emulator Images* C:\ProgramData\Teledyne Dalsa\iNspectExpressVA\Images
iDiscover C:\Program Files\Teledyne Dalsa\iNspectExpress x64\iDiscoverGenie.exe
License Manager C:\Program Files\Teledyne Dalsa\iNspectExpress x64\IdpLicMgr.exe
Sherlock Program Files and Directories
Sherlock C:\Program Files\Teledyne Dalsa\Sherlockx64\bin\IpeStudio.exe
Sherlock Drivers* C:\ProgramData\Teledyne Dalsa\Sherlockx64\Drivers
Sherlock Programs* C:\ProgramData\Teledyne Dalsa\Sherlockx64\Programs
Sherlock Emulator Images* C:\ProgramData\Teledyne Dalsa\Sherlockx64\Images
Sapera Acquisition Wizard C:\Program Files\Teledyne Dalsa\Sherlockx64\bin\IpeSaqAcqWiz.exe
Sapera CamExpert C:\Program Files\Teledyne Dalsa\Sapera LT\CamExpert\CamExpert.exe
iDiscover C:\IPD Install Files\Utilites\iDiscoverGenie.exe
License Manager C:\Program Files\Teledyne Dalsa\Sherlockx64\bin\IpdLicMgr.exe

The License Manager
The software installed on the GV 400 is license protected. The license is applied to the
unit system number before it ships from the factory. Make sure that the product license
matches what you ordered before going any further. Open the license manager from the
“start menu” as follows:
Start➔All Programs➔Teledyne DALSA➔iNspect Express➔License Manager
Start➔All Programs➔Teledyne DALSA➔Sherlock➔License Manager
In this example, “System #2044499585” is the system drive and “Sapera LT Board
#9010044” is a Genie Nano Camera. Both Sherlock and iNspect Express are licensed
on the System drive. Your system may have only one of these licenses.
If the license does not reflect what you purchased, consult your Teledyne Imaging sales
representative. The license is field upgradable by entering a new string in the “Enter
License” box.
14GV 400 Installation Version 1.3; 2020-5-14

Follow these steps to configure the system to run iNspect Express:
1. Connect cameras as shown in the hardware installation.
2. Verify a valid license is installed (run License Manager).
3. Open the iNspect Express Configurator and configure preferences; Select “GigE”
in the camera menu.
4. Click on the iDiscover button to detect and configure cameras connected to the
system.
5. Save Camera set (select which connected cameras you want to use).
6. Close iDiscover and launch iNspect Express (run panel shown below).
iNspect Express Setup
15GV 400 Installation Version 1.3; 2020-5-14

This program is a front-end configuration tool for iNspect Express. Launch from the icon
on the GV 400 desktop. Select the language, camera type (always GigE for GV 400)
and custom features for your application. These features are peculiar to the iNspect
Express software and are detailed in the software users manual.
From the camera selector tool you can launch both iDiscover and iNspect Express as
shown below. To launch the emulator simply select the “Emulator” and launch iNspect
Express.
The iNspect Express Configurator
Click to
launch
iDiscover
Genie
Click to
launch
iNspect
Express
16GV 400 Installation Version 1.3; 2020-5-14

The iDiscoverGenie utility is provided for discovering GigE cameras connected to the
GV 400 camera ports. Use the iDiscoverGenie interface to change the camera IP
settings to match the IP setting of the camera port. A shortcut to the iDiscoverGenie
program is available on the GV 400 desktop. This utility applies to both Genie Nano and
PIC-2592 cameras.
Click on one of the detected cameras to populate the associated network configuration
on the right. You can then modify the camera IP address to match the camera port IP
segment at the top. Note: Conflicting IP addresses will be designated by a red camera
icon in the detected camera menu.
Click the “Apply” button to save changes. The Genie and PIC-2592 cameras will
reappear configured at the new address.
Select cameras to use in your iNspect Express configuration by clicking and moving
them to the left panel using the arrow buttons. You can change the camera order by
using the up/down arrow buttons on the left control bar. Save the corrected camera list.
The iDiscoverGenie Utility
Click to save
configuration
Click to return to the
Configurator
17GV 400 Installation Version 1.3; 2020-5-14

Follow these steps to configure the system to run Sherlock:
1. Connect cameras as shown in the hardware installation.
2. Verify a valid license is installed (run License Manager).
3. Run the iDiscover program to detect and configure cameras connected to the
system (icon shortcut on the desktop).
4. Run the Sapera CamExpert utility if you want to change settings in any of the Genie
Nano cameras such as exposure, strobe or white balance. (does not apply to PIC-
2592.)
5. Run the Sapera Acquisition Wizard to verify Genie Nano cameras are shown as
expected and save the configuration file SaperaLTDrv.ini by clicking the “save”
button. (does not apply to PIC-2592)
6. Launch Sherlock using the shortcut on the desktop (Sherlock GUI shown below).
7. Go to the Options menu and select Acquisition. In the “Configure Driver Loading”
section enable “Sapera LT” for Genie cameras.
8. Enable “Ifc” for the PL-USB or PIC-2592 cameras. Edit the “IfcDrv.ini” file to point to
a valid PL-USB or PIC2592 configuration file. A full path is required. Refer to the PL-
USB Installation Manual, or the PIC2592 Quick Start Guide. Note: Sherlock will fail
to run if you enable Ifc but fail to point to a valid configuration file!
9. Close and reopen Sherlock. Driver changes only take effect when Sherlock opens.
Sherlock Setup
18GV 400 Installation Version 1.3; 2020-5-14

Genie Nano cameras store their configuration settings (I/O, shutter speed, white
balance) in memory (EEPROM). iNspect Express overrides these settings according to
the solution file, whereas Sherlock loads them from the camera or a stored
configuration file during program initialization. You can change these parameters and
save them on the camera and/or a configuration file using the Sapera CamExpert utility.
This does not apply to the PIC-2592 camera. Refer to the PIC-2592 Quick Start Guide.
You can configure the camera to load either your saved settings, or the factory settings,
at power up. The preferred method is to save your settings to both the camera and a
configuration file. Sherlock can load a configuration file at startup. If multiple
configurations are needed, you can save them to different camera configuration files.
Some example configuration files are included on the GV 400.
Note: Changes to the camera settings are temporary, unless saved to the
camera memory or to a configuration file.
The Sapera CamExpert Utility
19GV 400 Installation Version 1.3; 2020-5-14

The Sapera Acquisition Wizard detects all available Genie Nano Cameras, and creates
a file “SaperaLTDrv.ini” that identifies them in Sherlock. You can enable or disable
camera ports, and select camera configuration files using this utility. Note: If a
configuration file does not match the number of cameras, the Sapera LT and Genie
drivers will not load and Sherlock will not run saved programs. Instead, Sherlock will
open a new investigation (solution) file. This does not apply to the PIC-2592 camera.
Please refer to the PIC-2592 Quick Start Guide.
The Sherlock application uses the settings stored in the camera, or in camera
configuration files. You can also use Sherlock instructions to change Gain, Exposure
(shutter time) or Strobe pulse width (IO:Camera:SetNumberFeature) programmatically.
When you launch the wizard you will see the dialog below. All cameras connected to the
GV 400 should be listed in the device window. Click the “save” button to store the
configuration in the SaperaLTDrv.ini file.
The example below shows one Genie camera. This example is already set up to use
the Genie camera configuration file located in the default location for Sapera LT.
The Sapera Acquisition Wizard
20GV 400 Installation Version 1.3; 2020-5-14
