Telefunken TF-LED28S19 User manual

Table of contents
3
LED TV/
Телевизор цветного
изображения c
жидкокристаллическим
экраном
TF-LED28S19
Instruction manual
Руководство по
эксплуатации

Table of contents
2Table of contentsTable of contents Before you start Utilization of the product Important safeguardsInstallationWall mountingStand installationConnectionConnectionOutdoor antenna connectionOther connectionsOperationControl elements Front panel Back panelRemote controllerChanging the batteryGeneral operationsTeletext operationsOSD operationPicture settingSound settingSetting page Geometry settingChannel settingUSB operationGeneral informationFile playbackGeneral informationTroubleshootingCauses of interferenceAccessoriesSpecificationsDear customer!Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.23334445555666677888991010101111111313131414

Before you start
3Before you startIf you want to dispose of this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.Utilization of the productImportant safeguards•Before plugging the power cord make surethat the voltage designation of the LED TV corresponds to the local electrical supply.•Please unplug the power cord from the ACoutlet and contact a service center for repair if the following occurs: any obvious abnormality appears in the unit, such as smoke, peculiar smell or strange sound; liquid has been spilled or other objects have fallen into the unit; no picture or sound; cover or panel is broken; although you have operated the unit following the operating instructions, it still cannot work normally.•This unit can be connected to a powersupply outlet without the third ground contact as well as with a ground contact.•Always disconnect the power cord andantenna during a storm.•Do not fix the power cord with a metal nail.•Unplug the power cord from the AC outlet;also unplug the signal cables from the input ports when the unit is unused for long periods of time.•When pulling the plug, always hold thewide slot, do not touch the metal part, and do not destroy, refit, twist, pull or burn the power cord.•Please contact the service centerimmediately if you found that the cable core is bare or has been broken.•Please replace the AC outlet if the metalbolt cannot be inserted into the power socket completely or it cannot be fastened even when it was pushed in, otherwise, any accidents of shocks and fires would happen.•Never touch the antenna lie or power plugif it stars to thunder.•Do not touch the power plug with wethands.•Do not use any non-rated power socketwith numerous devices jointed on one power socket or cable device. The wire of non-designated capacity may cause the fire due to the generation of heat.•All instructions must be read andunderstood well before you operate the unit. Heed all warnings and follow all instructions.•Please use the accessories providedby the manufacturer. Using inadequate accessories may result in accidents.•Please adjust the product through thepanel buttons or the remote controller, do not remove the cover or attempt to service the product by yourself. Do not disassemble back cover and do not make maintenance by yourself to avoid the electric shock.•Over-pressing the panel may destroy theproduct.•Do not place the product on an unstablecart, stand surface, tripod, bracket, or table. The product may fall, causing serious accidents as well as the damage to the product. •Please place the product on a flat surfacein a well-ventilated location. Keep it away from

Before you start
44Before you startthe burning-light, direct sunlight, vibration, high-temperature and humidity.•Do not place any vase, potted plant, cup,medicine and any container with water on this product. If the liquid is spilt, it may cause the fire, electric shock or breakdown.•Do not install it at the place on the strongmagnetic field or current field. It may cause break down. This equipment may be observed deterioration of the picture by electromagnetic radiation in electromagnetic environment.•Fasten the wheel of the product or shelfwith wheels when installing this product. If it moves or is tipped over, it may be damaged.•Do not place any fire source such as
candlelight close to this product or place it on this product. If it is tipped over or fallen down, it may cause damage or fire.
•Do not place the unit into closed spaceof TV for better ventilation; it can reduce the product lifetime. Keep a space at least 10 cm at above, left and right of the TV.•Please place all the signal cords behind ofrear panel.•Do not overexert or touch the panel whenyou convey the product. Do not transfer the LED TV up or down display direction.•Do not transport it with the power cordconnected. If you move this product with the power cord or the connection cable connected, the damaged power cord, connection cable or connection terminal may cause the fire, the electric shock or breakdown.•2 persons or more shall transport thedevice, which is heavier than 18 kg. If you drop or tip over the device, it may damage it.•The temperature of the product’s bodybecomes a little higher after a long period use. This phenomenon indicates that heat exchange in normal working mode, thus please do not let children or anyone who is sensitive of temperature to touch.All images provided herein are schematic drawings and may differ from of real objects.InstallationWall mountingFor wall mounting the back panel of this unit is equipped with a VESA slot. Use it to fix the unit to the VESA wall-mounting bracket. The wall-mounting bracket is not included and should be acquired separately. Manufacturer is not responsible for improper mounting resulting in a damage to the unit.Stand installation

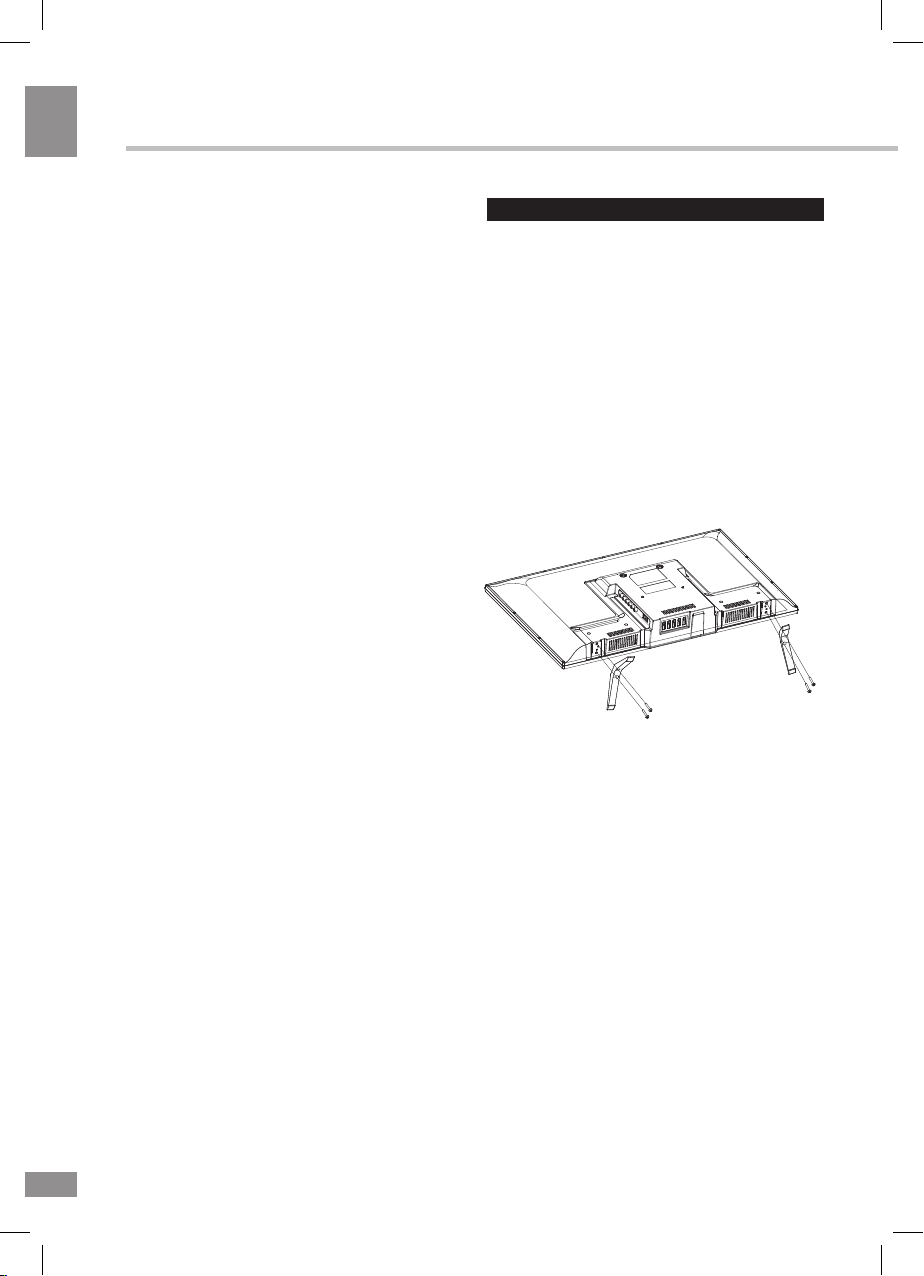

Insert the stands into the unit, then fix
the stands with 4 supplied screws as
shown below.
WARNING
In order to avoid damage, make sure
to secure the unit on the wall
according to the wall mounting
instruction.

Before you start
55Before you startConnectionOutdoor antenna connectionUse 75Ω cable plug or 300-75Ω impedance converter to plug in antenna input terminal on the rear of the cabinet.Other connections•Connect a video source to the Compositevideo input jack with RCA cable (not included).•Connect an audio source to the properAudio input jacks (left and right).•When using the unit as a computerscreen, connect the PC to the VGA jack of the unit by the relevant cable to get the video signal from the PC. For audio signal from the PC, connect the left and right jacks of the VGA/Component audio input of this unit to the audio output jack of the PC by using relevant connector (not included).•If the video source has a HDMI outputjack, you can connect the signal to the unit by HDMI cable (not included).•Component input is intended for receivingcomponent video signal if connected to the component output of external signal source.•Connect an external device (e.g., VCR-/DVD-recorder) to the proper Audio/Video output jacks of this unit with AV RCA cable (not included). Please note that AV2 and component input (YPbPr) share the same socket so make sure that if the one or the other input is used, you choose the corresponding source signal (press the SOURCE button).TVRF antenna
socket75 OHM-VHF/UHF cablePower cable socket
External aerial (antenna)

Operation
6
6
Operation
Control elements
Front panel 1. IR sensor/power indicator
3. AC IN power input
12. VGA input
13-14. HDMI input
4-6. Component input
7-8. AV/PC/Component audio input
10. TVRF antenna input
11. AV out
1
2. Button panel:
VOL +/- button
PRO +/- button
STANDBY/MENU button
VOL. PRO.
PRO.
2
SPDIF AC IN ~
PC/AV
CO MPO NE NT
AUDIO IN
COMPONENT IN
CO MPO NE NT IN/AV
R L Y/VIDEO
PR/CR
PB/CB
ANTENNA INAV OUTVGA IN
HDMI 1HDMI 2
USB
3
4
5
6
7
8
9
10
11
12
13
14
15
9. SPDIF output
15. USB port

Operation
77OperationRemote controller (RC)12345678910111213141516171819202122Index
Size Rev. Hold. Sub
1.button2. Number buttons3. INFO button4. SOURCE button5. Cursor (UP/DOWN/LEFT/RIGHT) buttons/OK button6. TXT button7. VOL+/VOL- buttons8. USB button9. SCALE/SIZE button10. PICTURE/REV button11. MTS button/Red button12. Green button13. POWER button14. RETURN button15. MENU button16. EXIT button17. INDEX button18. CH+/CH- buttons19. FREEZE/SUB button20. SOUND/HOLD button21. Blue button22. Yellow buttonChanging the battery1. Remove the battery compartment coveron the back of the RC.2. Insert the batteries into the batterycompartment making sure that the correct polarity is observed.3. Install the cover back.•Use two AAA batteries for the RC. The RCshould be pointed at remote sensor within 8 meters and within 30 degrees at the left or the right side.•Take the battery out of the RC if it is notused for a long time.•Do not mix new and used batteries ordifferent types of batteries. Weak batteries can leak and severely damage the RC.•Do not expose the RC to shock, liquids,and do not place it in an area with high humidity.12

Operation
88Operation
General operations•Connect the terminal of the power cordto the power cord input of the TV (the position of the input is given in paragraph Connection above). Connect the plug of the power cord to the power supply outlet, the power indicator will light showing that the unit is in standby mode. To switch on the unit, press POWER button on the panel or on the RC; when the TV is on, the power indicator is off. Press POWER button again to switch the unit to the standby mode, the power indicator will light up. To switch off the unit completely, disconnect the power cord plug from the power supply outlet.•Press VOL- button on the unit or onthe RC repeatedly to decrease the volume; press VOL+ button on the unit or on the RC repeatedly to increase the volume.•Press RETURN button on the RC to selectfrom the present channel and the previously displayed channel.•Press button to mute sound, pressthis button again or adjust volume to resume sound.•In TV mode press CH+/CH- buttons onthe RC or PROG+/PROG- on the unit to select previous or next channel; or press number buttons to enter a channel number directly.•Press PICTURE button repeatedly to cyclethrough the available video picture modes from the following types: Standard => Dynamic =>
Mild => User.•Press SOUND button repeatedly to cyclethrough the available sound modes from the following types: Standard => Music => Movie
=> Sports => User.
•Press INFO button to display the presetTV channel information.•In TV mode press MTS button to switchNICAM sound mode (not available for some channels).•Press SCALE button repeatedly to selecta screen display size from the available list: 16:9, 4:3, Zoom1, Zoom2, Auto, Panorama.Available aspects may differ for different signal sources.•Press FREEZE button to freeze the pictureon or off.Press SOURCE button, then press cursor buttons on the RC to select a source from available source list: TV => AV => YPbPr => PC => HDMI1 => HDMI2. You can press USB button to access Media source mode directly; you can press TV button to access TV source mode directly.TELETEXT operations (option)•Select the TV source mode. Then pressCH-/CH+ buttons to select TV channel in order to pick up the picture signal of Teletext.•Teletext button functions are as follows:TXT: Press this button to enter into Teletext mode. Press this button to mix the teletext and current TV signal image. Press this button again to return to the channel you are watching.HOLD: Press this button to stop the move to the next page. Press this button again to cancel operation.INDEX: Press this button to go to the index page.SIZE: Press this button to enlarge the top part of the page. Press this button again to enlarge the bottom part of the page. Press this button third time to normal size text page view.REV. (Reveal): Press this button to reveal the cancelled information. Press this button again to cancel the information.SUB. (Subpage): Press this button to select sub-page. Input the number of sub-page and use numeric buttons in the format 0001 for sub page 1. The teletext will search for the sub page. Press SUBPAGE button again to exit the subpage mode.Red/Green/Yellow/Blue buttons: Press these 4 color buttons to access directly to corresponding color page displayed at the lower parts of teletext screen.

Operation
99Operation
OSD operation1. Press MENU button to enter the settingmenu displayed on the screen.2. Press LEFT/RIGHT cursor buttons on theRC to select setting page.3. Press OK button on the RC to go to theparameter list.4. Press UP/DOWN cursor buttons on theRC to select a parameter to adjust.5. Press LEFT/RIGHT cursor buttons on theRC to adjust the selected parameter.6. Press MENU button to return to theprevious menu page. Press EXIT button on the RC to quit the menu. Some menu items may be in grey color, in this case they are not adjustable. Pictures of OSD menu are for reference only; they may differ from the real screens.Picture setting pagePictureBacklightPicture modeAspect ratioBrightnessContrastColorSharpnessTintColor temperatureNoise reduction•Backlight: adjust the brightness of screenbacklight depending on environmental lighting.•Picture Mode: Standard/Dynamic/Mild/User.•Aspect ratio: 16:9, 4:3, Zoom1, Zoom2,
Auto, Panorama.•Brightness, Contrast, Color,Sharpness, Tint (tint available only for NTSC system).•Color temperature: Select colortemperature mode of the picture - Normal/Warm/Cool.•Noise reduction: Digital noise reductioneffect for reducing the video noise level: Off/Low/Middle/High, if the broadcast signal received is weak.Sound setting pageSound
Sound mode
Balance
EQ
•Sound mode: User/Standard/Music/Movie/
Sports.
•Balance: adjust balance between left and
right speaker.
Option pageOption
•Lock:this function allows you to effectively stop
anyone without the correct password from
watching TV.
When you select the Lock System is On, the
menu is changed, the options include Set
Password, Block Program.Set Password: sets a new password for
operating TV. The default password is "0000".
Block Program: locks a selected program.
Note: If you forget the password, enter 0812 to
override any existing codes.
•Startup setting: you can select the defaultSPDIF mode
Surround sound
•SPDIF mode: select between Auto and PCM.
Lock
OSD Language
Startup Setting
Sleep Timer
Auto Sleep
TTX Language
Screen
Default Setting
Software Update(USB)
•OSD Language: select the language of the
OSD menu. •EQ: adjust the audio frequency settings.
•Surround sound: select between Off and On.

Operation
1010Operation
startup picture or captured picture.
•TXT Language: select the language of theteletext subtitles. If selected teletext language does not correspond to the program language, subtitles can be diplayed incorrectly. •Default Setting: reset the parametersto initial factory settings. Geometry setting (only for PC mode)GeometryAuto adjustH positionV positionAD clockPhase•Auto adjust: automatical setting of theparameters.•Horizontal Position: adjust horizontalposition of the image.•Vertical Position: adjust vertical positionof the image.•AD clock: adjust the image frequencymanually.•Phase: adjust the phase manually.Channel settingChannelAuto Tuning
Intelligent Tuning
Manual Tuning
Programme Edit
•Auto tuning: press OK button to start
automatic search of available channels. To
stop the process press MENU or EXIT button.
•Intelligent tuning: This operation will
keep all the existed channels and add newly
found channels to the end of the channel list.
To stop search, press MENU button;
detected channels will be stored.
•Manual tuning: Press OK button to enter
into manual tuning menu. The function
manually searches and stores the channel in
analog mode that have not been stored
after automatic tuning.
•Programme Edit:
Delete, edit, move or skip a channel.• Sleep timer: sets a period of time after
which the TV set goes into standby mode.
Press the right direction or OK button to enter
the selectable options, then press the up or
down direction button to scroll through the
options, press the OK button to confirm. To
disable this function, select Off.
• Auto Sleep: options include On, Off.
Select On, the TV will enter standby mode at
the specific time that you set.
Note: It turns off automatically without input
after 10 minutes (except in the VGA mode).
•Screen: the function is only available in
VGA mode. It adjusts the picture settings.
•Software Update (USB): updates the TV
software from a USB storage drive.
