Teletek electronics TTE Combo User manual

•Installation and Programming Manual
•Operation Instruction
•User Guide
TTE Combo
LAN Communication Module
Rev. 4.1.x
Release 01/2020
Attention:
This manual contains information on limitations regarding product use and
function and information on the limitations as to liability of the manufacturer.
The entire manual should be carefully read.
The information in this manual is a subject to change without notice!

TTE Combo Communication Module – Installation and Programming Manual
2
Table of contents
1. INTRODUCTION ......................................................................................................................................... 4
1.1 General Information...................................................................................................................... 4
1.1.1 Functional Features................................................................................................................ 5
1.1.2 Technical Specifications.......................................................................................................... 5
1.1.3 Operation Block Diagrams...................................................................................................... 6
Operation with a Burglary Alarm Control panel.......................................................................... 6
Operation as Stand-Alone Device................................................................................................ 7
1.2 Before you start............................................................................................................................. 7
2. HARDWARE INSTALLATION...................................................................................................................... 8
2.1 Connection to Burglary Alarm Control Panel ................................................................................ 8
2.2 Internal Structure of the Outputs.................................................................................................. 8
2.3 Basic Installation Steps.................................................................................................................. 9
2.4 TTE Combo Module LED Indication ............................................................................................. 10
2.5 Restore to Factory Settings ......................................................................................................... 11
3. PROGRAMMING WITH ProsTE............................................................................................................... 12
3.1 Reading a Configuration.............................................................................................................. 12
3.2 General Settings Menu................................................................................................................ 13
3.3 GPRS Settings Menu.................................................................................................................... 16
3.4 LAN Settings Menu ...................................................................................................................... 16
3.5 Receiver Settings Menu............................................................................................................... 17
3.6 Saving a TDF File.......................................................................................................................... 18
3.7 Writing a Configuration............................................................................................................... 18
4. AJAX WEB User Interface ....................................................................................................................... 19
4.1 Creating an Account .................................................................................................................... 19
4.2 Adding a System to Account........................................................................................................ 20
4.3 Online Connection with AJAX SP Pro Server ............................................................................... 23
4.4 Operation with System................................................................................................................ 23
5. TTE Combo – Installation Summary ...................................................................................................... 26
6. USER GUIDE ............................................................................................................................................. 27
6.1 AJAX WEB User Interface ............................................................................................................ 27
6.1.1 Remote Access ..................................................................................................................... 27
6.1.2 Main Menus.......................................................................................................................... 27
6.1.3 Communication Module....................................................................................................... 28
6.1.4 Edit Parameters Menu.......................................................................................................... 28
6.2 Mobile TTE Smartphone Application........................................................................................... 29
6.2.1 Adding a System to Mobile TTE............................................................................................ 29
6.2.2 Connection to a System........................................................................................................ 30
6.2.3 Operation with outputs........................................................................................................ 30
6.2.4 System Main Menu .............................................................................................................. 31
7. APPENDIX – SIA CODES........................................................................................................................... 34

TTE Combo Communication Module – Installation and Programming Manual
3
DOCUMENTATION FEEDBACK
If you have any comments or suggestions on our products’ manuals or installation instructions you can email us on:
[e-mail]
Your feedback on product documentation will help us to improve the contents of our manuals and stickers and keep them
up-to-date.
Please, include in your feedback email the product name, the revision of the manual or instruction (8-digit number with
Revision and date of issue) and the page number.

TTE Combo Communication Module – Installation and Programming Manual
4
1. INTRODUCTION
1.1 General Information
TTE Combo is a universal communication module, that can be connected to any panel capable to
transmit CID events, including Eclipse Series. The general application of the module is to transmit the
incoming events from the panel (the events recorded into the panel’s memory log file) to AJAX SP
Pro server and/or SIA-DC09 Receiver station via several reporting channels – LAN/GPRS/PSTN
(communication media) – using alternative or parallel reporting type.
TTE Combo is a module for emulation of a standard PSTN line or Receiver Station. The module
receives the events from the connected alarm control panel and returns a confirmation for the
successful receiving. TTE Combo is equipped with an internal loop buffer with capacity of 256 events.
In case of overflow of the internal buffer, the module stops the confirming of successfully received
events. In this way the untransmitted events will be kept into the log buffer of the alarm control
panel and would not be lost. These events will be transmitted when the module’s buffer is unloaded
during the next successful transmitting of events to AJAX SP Pro server or SIA-DC09 Receiver station.
The received CID (Contact ID) events are converted internally into SIA code.
Reporting via “SIA over IP” protocol is realised via standard GPRS and/or LAN channel. The user can
use one or both reporting channels. When the both reporting channels are used, the user can set
their priority of using – setting one for main and the other for a backup – alternative reporting type.
There is also an option for using a parallel reporting type, as the events are transmitted via the both
reporting channels.
When the control panel is additionally equipped with a digital communicator, the standard PSTN
telephone line can also be used for backup channel for transmitting of events, as the TTE Combo is
connected directly to the digital communicator terminals of the panel. The hardware connection with
the panel is monitored and in case of fault or trouble with the line the module will report to the
monitoring station.
In case of connection to Eclipse series control panel, TTE Combo is fully compatible and can operate
in configuration with Eclipse VD (voice dialer) mounted on slot to the panel’s PCB. The user can use
the full functionality of the Voice Management Mode and the monitoring via TTE Combo through the
available PSTN line.
The user also can remotely control the outputs of TTE Combo via AJAX WEB software application and
MobileTTE smartphone application.
According the application, TTE Combo can be powered up directly from the control panel (±AUX
terminals, 9-30VDC) or from a stand-alone power supply unit. The module can be mounted directly
into the panel’s box or into a separate small plastic box (SB-U) suitable for wall mounting according
the application.
TTE Combo is programmed via ProsTE software or remotely via AJAX Web User Interface.

TTE Combo Communication Module – Installation and Programming Manual
5
1.1.1 Functional Features
•Compatible with control panels capable of sending Contact ID (CID)
•Control panel communication supervision
•AES 128 encryption
•Supports 2G networks
•Communication channels – PSTN, LAN and/or GPRS
•Main and Back-up reporting channels
•Connecting to AJAX SP PRO through IP or DNS address
•Supports operation with SIA-DC09 IP protocol messages
•LAN settings – Manual or Automatic (DHCP)
•1 input (TAMPER/NC to GND)
•2 outputs OC type
•Internal buffer for 256 events
•Micro USB input for direct PC connection
•Jumper for restoring of the default factory settings
•Reversed polarity protection
1.1.2 Technical Specifications
•Main power supply: ......................................................9-30VDC (no tolerance)
•Current consumption:
oNormal operation mode (standby): ...........100mA
oMaximal consumption: ...............................200mA
•Time for filtration of signals incoming at I/O: ...............0.3 seconds
•GPRS working frequencies: ..........................................850/900/1800/1900 MHz
•Antenna connector (internal mounted): ......................SMA 50Ohm
•Operating temperature: ...............................................-20°C ÷ +60°C
•Dimensions (PCB): .........................................................73x108mm
Important note:
The purpose of this manual is to give directions for programming the TTE Combo module and its
operation with AJAX SP Pro server. You can refer to the installation manual of the module
(applied into the packing box) for details about its elements and PCB hardware.
Find out more materials also at www.teletek-electronics.com.

TTE Combo Communication Module – Installation and Programming Manual
6
1.1.3 Operation Block Diagrams
Operation with a Burglary Alarm Control panel
1. TTE Combo communication module and burglary alarm control panel. The control panel is
compatible to transmit CID events – see item 2.1 Connection to Burglary Alarm Control Panel.
2. Program the TTE Combo module with ProsTE – see item 3. Programming with ProsTE.
3. Standard telephone line connected to PSTN Station.
4. Monitoring station for receiving of events via RS232 communication protocol.
5. SIA over IP communication protocol.
6. AJAX SP Pro Server. This is a computer with installed AJAX SP Pro Server administrative interface.
Usually it is situated into a Monitoring station of a service security provider.
7. AJAX WEB. This is a User interface (web site) for management and control of panels and
communication modules produced by Teletek Electronics JSC. After registration the User can review
the status and to control (switch ON/OFF) the outputs of TTE Combo attached to his account.
8. Mobile TTE. This is a smartphone application for management and control of panels and
communication modules produced by Teletek Electronics JSC, which are attached to a User account
at AJAX WEB. The smartphone application is compatible with iOS and Android platforms.
9. SIA DC-09 Alarm Receiver and Monitoring Software. Monitoring station of a service security
provider operating with SIA-DC09 IP reporting to monitoring software.
10. SURGARD MLR 2 communication protocol,providing message transfer via LAN or RS 232
between AJAX SP Pro server and Monitoring software.

TTE Combo Communication Module – Installation and Programming Manual
7
Operation as Stand-Alone Device
This configuration is suitable for realizing of home automation applications where the User wants to
control different electrical appliances via the outputs of the module. In this case, TTE Combo must be
powered up from and external power supply unit providing 9-30VDC. The outputs can be switched
ON/OFF remotely via AJAX WEB or MobileTTE.
1.2 Before you start
Before starting you need the following equipment (full configuration):
- ProsTE Programming Software installed on a local computer or laptop for reading, writing and
saving the module’s configuration.
- Standard USB-Micro USB data cable.
- Valid SIM Card supporting 2G networks with disabled PIN protection code.
- Router.
- CAT-5 Ethernet cable, max. 90 m (not included into the kit).
- Access to WAN/LAN available and enabled network.
- Control panel with digital communicator (supporting CID protocol).
- Access to PSTN available network.
- Resistor 220k (included in the kit of the supplied equipment) for termination of the terminals of the
digital communicator for phone device connection (in case the phone device is not used).
And also, is helpful to have prepared:
- A valid account registration in AJAX WEB User interface*.
- An installed Mobile TTE application on your smartphone**.
* For monitoring and management of burglary control panels Eclipse series and module’s outputs. Ask your
local distributer or security provider how to access the AJAX WEB site and to register an account.
** You can download the application from Google Play or App Store according your smartphone model. You will
be able to review all attached systems to your AJAX WEB account after adding them into the Mobile TTE
application.
The manufacturer also recommends:
- Review the status of the burglary alarm panel to which the TTE Combo module is going to be
connected. Check the programming and settings for operation with communication equipment. Set
the phone numbers: one for communication with the Central Monitoring Station, and other for
connection with TTE Combo module. Set CID protocol for transferring of events.
- Check the subscription plan of the used SIM card and network coverage. The SIM card must support
2G network. To be able to connect to AJAX SP Pro Server and use the Mobile TTE application on your
smartphone, your plan must include a mobile internet (at least 100MB data traffic per month).
- In case the TTE Combo is going to be used as a stand-alone device, equip it with a suitable external
power supply unit providing 9-30VDC.
- Connect the “In1” terminal of the module to the TAMPER switch of the control panel (or to a
TAMPER Zone type).
- Equip your Router device for access to WAN/LAN network with an uninterruptable power supply
(UPS) unit.
Important note:
When only LAN communication media of TTE Combo module is going to be used for reporting of
events in your burglary alarm system for security, it is obligatory to equip your Router device with
a UPS unit. In this way, in case of a main power supply failure in the protected site, the router will
stay powered on and will be able to send messages for “AC lost” and “Burglary Alarm” to the
monitoring station and/or the end user.

TTE Combo Communication Module – Installation and Programming Manual
8
2. HARDWARE INSTALLATION

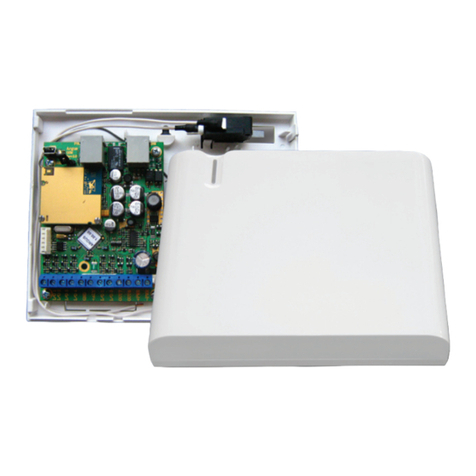

TTE Combo is a universal communication module which provides the opportunity for connection to
different types of control panels and reporting for events to a monitoring station and/or end User.
2.1 Connection to Burglary Alarm Control Panel
TTE Combo is mounted into the panel’s installation box. The module can be powered on directly
from the +/- AUX outputs (required 9-30VDC) of the control panel as observing the polarity; or from
an external power supply unit.
Important note:
If the terminals A1 and B1 (on the presented diagram) are not used for connection of a telephone
device, the terminals must be terminated with a 220k resistance! If the A1 and B1 terminals are
missing the resistance of 220k must be connected to A and B terminals!
2.2 Internal Structure of the Outputs
TTE Combo has 2 outputs OC type that can be used for small home automation projects.
The Internal structure of the output is presented on the following schematic diagram:
Digital
communicator
TTE Combo
Attention:
All electrical connections must be
done ONLY when the mains and back-
up power supplies of the module are
switched off!
Burglary Alarm Control Panel
Connection of a Tamper switch (optional)

TTE Combo Communication Module – Installation and Programming Manual
9
2.3 Basic Installation Steps
(for full configuration)
1. Turn off the main and backup power supply of the control panel.
2. Connect the power supply of the module (9-30VDC) – from the control panel or external power
unit.
3. Run the CAT-5 Ethernet cable for LAN connection through any suitable cable opening of the box
and connect it to the LAN connector of the module.
4. Switch off the PIN protection code of the SIM card and place it into the SIM interface holder of TTE
Combo module.
5. Run the PSTN cable through any suitable cable opening of the box and connect it to the LINE
connector of the module.
6. Connect the digital communicator of the control panel (A and B terminals) to ALARM PANEL
terminals of TTE Combo.
7. Connect the phone device to A1 and B1 terminals of the control panel; in case the phone device is
not used – terminate the A1 and B1 terminals with 220k resistor.
8. Connect t a TAMPER switch (or TAMPER zone) to IN1 terminals of TTE Combo.
9. Turn on the main and backup power supply of the panel.
10. Wait for the connection with the Main and/or Backup Receiver station - up to 90 sec the
Main/Backup Receiver LEDs are blinking in red. The established connection is indicated with blinking
in green.
11. Check the signal strength - 2 or 3 RSSI LEDs are lighting on in green. If the signal strength is poor,
change the location of the module or use external antenna.
12. The module is in normal operation mode - the PSTN LED lights on in green, and Main/Backup
Receiver LEDs are blinking in green (depends on the application).
13. Set the parameters of ТТЕ Combo module using ProsTE programming software – see also
3. Programming with ProsTE.

TTE Combo Communication Module – Installation and Programming Manual
10
2.4 TTE Combo Module LED Indication
The LED indication of TTE Combo communication module has the following meaning during
operation.
The LED Indication has the following meaning:
LED
Action
Description
PSTN
(green)
Lights OFF
The PSTN line is missing or it is unavailable.
Lights ON
The PSTN line is available.
RSSI
Signal
Strength
●○○
The signal strength is poor (from -111 to -91 dBm).
●●○
The signal strength is good (from -90 to -70 dBm).
●●●
The signal strength is very good (from -69 to -51 dBm).
Main
Receiver
Blinking
Slow
(1 sec)
Green
Successful connection with the Main Receiver station via the Main
IP address and the Main communication media (GPRS/LAN).
Red
No connection with the Main Receiver station. Possible problem
with the used communication media GPRS or LAN.
• Possible troubles with the SIM card (GPRS media):
1. The SIM card is missing.
2. The SIM card could not register to the available GSM/GPRS
network.
3. Active PIN code for verification.
• No signal/link.
• Wrong configuration (Server type, IP, Port, Encr. Key, etc.)
Orange
There is at least 1 transmitted and received (confirmed) event in a 3
sec. time interval.
Blinking
Fast
(0.25 sec)
Green-
Orange
Successful connection with the Main Receiver station via the Main
IP address and the Backup communication media (GPRS/LAN).
Backup
Receiver
LED indication for the Backup Receiver station. The description is the same as the one for
the Main Receiver.
RJ-45
(LAN
connector
indication)
LAN Status
①
LED LAN Action. The LED is blinking when there is activity on the
link; otherwise, the LED is on.
②
LED LAN Link. The LED is lit on when there is a link to an Ethernet
device; otherwise the LED is off.
1. PSTN - LED for presence of PSTN telephone line.
2. RSSI – 3 LEDs for the signal strength of the available
GSM/GPRS network.
3. Main/Backup Receiver - LED for Main/Backup
Receiver status.
4. LAN LEDs – LEDs for LAN network status.

TTE Combo Communication Module – Installation and Programming Manual
11
2.5 Restore to Factory Settings
This function is for restoring of the default parameters of the module set by the manufacturer.
The Reset Jumper is situated on the left side of the SIM card holder. To perform restoring of the
factory settings:
1. Turn off the power supply of the module.
2. Place a jumper on Reset Jumper terminals.
3. Turn on the power supply of the module.
4. Wait for 10 seconds and remove the Reset Jumper.
5. Wait for the Main/Backup Receiver LED to start blinking in green – the initial startup can
take up to 90 seconds.
6. Program the module with ProsTE software according the application.
Reset Jumper
Terminals

TTE Combo Communication Module – Installation and Programming Manual
12
3. PROGRAMMING WITH ProsTE
ProsTE is a specialized software for programming of panels and modules produced by Teletek
Electronics JSC. The installer can quickly read the current configuration, to set new parameters and
to write it back to the panel or module.
Attention: Always use the latest version of ProsTE software downloaded from
www.teletek-electronics.com or ask your local distributer for more information and details.
To connect the TTE Combo to a local computer or laptop for programming, use a standard USB-Micro
USB data cable.
Note: The TTE Combo module must be powered up during programming! After connecting to the
computer, you may be asked to wait until the system is installing some USB drivers.
3.1 Reading a Configuration
Run the ProsTE software and choose in sequence using the right mouse button: System – Add – TTE
Combo.
The TTE Combo menus are loaded at the left side as a tree structure. Select the module and using the
right mouse button again choose in sequence: TTE Combo – Read.
Read is a command for downloading
the current module’s parameters and
settings into ProsTE software.

TTE Combo Communication Module – Installation and Programming Manual
13
A new window with options for Reading is opened:
In Com Port field, select the number of USB port to which the module is physically connected. Press
OK button to continue. Next you have to enter a Password code – “1234” by default.
If the downloading is successful a message “Download from hardware finished successfully!” will
appear on the screen.
3.2 General Settings Menu
Click on the “+” icon in front of TTE Combo module to expand the programming menus. Select
General Settings menu. The possible settings are displayed on the right side on the screen:
Important Note. According the used way for monitoring, there are two general approaches for
programming of the Account Number and System ID fields.
- For Monitoring stations. Enter into the fields the specific information for the site according
the used software for monitoring. See the description of the fields below.
- For AJAX SP Pro Server. Leave empty. The fields will be filled in automatically after the
registration of the TTE Combo as standalone device to a User account at AJAX WEB.

TTE Combo Communication Module – Installation and Programming Manual
14
Description of the fields
•“Ademco CID Panel Phone”– Enter a phone number for connection between the control
panel and TTE Combo. The phone number can be up to 16 digits long, as spaces, letters
and special symbols are not allowed.
Note: You must set the same phone number to the control panel, in the digital communicator
programming menus. The “Contact ID (CID)” communication protocol must be set for
reporting in the digital communicator menus also.
Useful Tip: In case of connection to Eclipse control panel, enter into engineering programming
menus “8. COMMUNICATION – 1. DIGITAL COMM – 5. PHONES – 1.PHONE – 1.PHONE
NUMBER” and set the same phone number set in the “Ademco CID Panel Phone” field. Save
and enter in the next submenu “2.PROTOCOL” to set “CID” type for the communication
protocol.
•“Panel Line Test Period”– Enter a time interval in minutes (from 2 to 10080) for periodic
test of the connection between the control panel and TTE Combo module. The purpose
of the test is to check the physical connection presence between terminals “A” and “B”
on the digital communicator of the control panel and “ALARM PANEL” terminals of TTE
Combo – see item 2.1 Connection to Burglary Alarm Control Panel.
In case of trouble with the connection (broken line, disconnection between panel and
module, absence of 220k resistor), a trouble message “Service Required” (“YX” SIA code)
will be sent to the monitoring station. When the connection is restored the monitoring
station will receive a message “Service Completed” (“YZ” SIA code).
When TTE combo is used as standalone device or the testing of the connection with the
control panel is not necessary, the periodic test can be disabled with setting “0” in the
field.
Example: For periodic test at every hour, enter 60; for periodic test at 24 hours – enter
1440, etc.; to disable the periodic test – enter 0.
Useful Information: The used SIA codes and their description are presented in item
7. APPENDIX – SIA CODES.
•“Account number” - This is the number of the protected site (up to 6 digits), where the
module TTE Combo is installed. In AJAX WEB, this is the number of the registered TTE
Combo module.
•“Password”– User access code for reading/ writing parameters to the module via
ProsTE. The default set code is 1234. To change it you must enter a new 4-digit code into
the field. The code is used also when connecting to AJAX WEB and MobileTTE
application.
•“System ID” –This is a unique name for identification (up to 15 symbols – digits, letters
and special characters), between module and user in the monitoring software.
•“Reporting channels”– Use the drop-down menu to set the type and the way of
reporting of used channels (also called media) for transmitting of events to Receiver
Monitoring station/Server (AJAX SP Pro or SIA-DC09). The user can choose among several
option according the application and needs.
o“LAN is main; GPRS is backup” – The both communication media are used for
reporting. The Alternative reporting is applied for transmitting of events. LAN
media is the Main media for reporting and GPRS is the Backup one.
o“GPRS is main; LAN is backup” – The both communication media are used for
reporting. The Alternative reporting is applied for transmitting of events. GPRS
media is the Main media for reporting and LAN is the Backup one.
o“Use only GPRS media” – Only the GPRS channel is used for reporting of events.

TTE Combo Communication Module – Installation and Programming Manual
15
o“Use only LAN media” – Only the LAN channel is used for reporting of events.
o“Both GPRS and LAN media are main (Ver.<4.0)” – This option can be applied for
TTE combo with software version 4.0.0 and higher. The both communication
media are used for reporting. The Parallel reporting is applied for transmitting of
events. The both media are Main.
Note: According the set reporting channels it is obligatory to set properly also the
submenus “GPRS Settings” and/or “LAN Settings”!
Definitions
•Alternative Reporting. In alternative reporting, to the available communication media
are set priorities for using. One of the media is set with the highest priority for using –
Main, and the other(s) are set with lower priority – Backup. In case of an event in the
system, it is transmitted first through the Main media and if the transmitting is
successful, the event is not transmitted further. If the transmitting through the Main
media is failed, the event is transmitted through the Backup media. In alternative
reporting is important the events to be successfully transmitted through only one of the
set communication media, starting with the Main one. The User sets the priority of the
used communication media.
•Parallel Reporting. In parallel reporting, the events are transmitted through all used
communication media. All reporting channels are Main in priority and are used for
transmitting. If the transmitting through one of the media is failed, the incoming events
will be stored in the loop buffer of the module (TTE Combo). When the transmitting
through the media is restored, all the stored events will be sent. In parallel reporting is
obligatory the events to be successfully transmitted through all communication media.
Important: In case the option “LAN is main; GPRS is backup” or “GPRS is main; LAN is
backup” is set, and the module uses Alternative reporting type for transmitting of events,
is applied a special internal test for availability and presence of the used media. The test
is performed on every hour and its purpose is to inform the Monitoring station for
possible problems with both Main and Backup media.
In case of a problem with any of the media, a message “Communication trouble” (“YC”
SIA code) will be sent to the monitoring station, as the type of the media is presented
with “1” for GPRS and “2” for LAN. For example, the SIA code “YC1” means that there is
problem with the used GPRS media of TTE Combo.
The restoring event is “Communication Restore” (“YK” SIA code).
•“Test message (minutes)” – Enter a time in minutes (from 3 to 10080) for a time period
for sending test message from the module to a monitoring station. You can disable the
sending of test messages with setting “0” in the field.
Example: For sending a test message every hour, enter 60; for sending a test message
every 24 hours – enter 1440, etc.
•“Software version” – The current software revision of the TTE Combo module. The field
is not accessible for changing.
Confirm with “Apply” button.

TTE Combo Communication Module – Installation and Programming Manual
16
3.3 GPRS Settings Menu
Select the GPRS menu, click on “+” icon in front of it and expand the GPRS Settings submenu. In the
fields must be set some specific information for the mobile service provider.
Important Note. There are two general approaches for programming of the GPRS Settings submenu.
- For Monitoring stations. Enter into the fields the specific information for the Net Settings
of the mobile operator:
o“Net APN” –Enter the APN (Access Point Name) of the GPRS network.
o“User Name” –Enter valid user name for access to the GPRS network.
o“Password” –Enter valid password for access to the GPRS network.
- For AJAX SP Pro Server. Leave empty. The fields will be filled in automatically after the
registration of TTE Combo module to a User account at AJAX WEB – the user sets the mobile
service provider according the selected country.
3.4 LAN Settings Menu
Select the LAN menu, click on “+” icon in front of it and expand the LAN Settings submenu. You can
choose between Automatic and Manual settings of the network characteristics.
If you are not sure about your server type choose the option “Manual Settings” from the drop-down
list and enter manually the parameters of the network – IP address, Subnet Mask and Gateway.
Confirm with “Apply” button.
The “Automatic Settings (DHCP)”
option is set by default; it is
recommended for a network using
DHCP server. In this case the Combo
module will take the network settings
directly from the server.

TTE Combo Communication Module – Installation and Programming Manual
17
3.5 Receiver Settings Menu
This is a menu for setting the options for connection with Monitoring station server (AJAX SP Pro
and/or SIA-DC09). There are two sections: for Main Receiver and for Backup Receiver.
Important Note. There are two general approaches for programming of the Main Receiver Settings
fields.
- For Monitoring stations. Enter into the fields the specific information for the main receiver
according the used equipment and network. See the description of the fields below.
- For AJAX SP Pro Server. Leave the default settings. The fields for Main Receiver will be filled
in automatically after the registration of TTE Combo module as a standalone device, to a User
account at AJAX WEB.
Here is a short description of the fields
•“Keep Alive Message (seconds)”– This is а time period, in which the TTE Combo module
sends its status to AJAX SP Pro server to keep the communication alive. The default set
period between two messages is 170 seconds, but it can be changed according the
system requirements – from 20 to 200 seconds.
•“Main Receiver” Section –These are the settings for the Main Receiver Server for
monitoring.
o“Enable Main Receiver” – Enabling the communication with the Main Receiver
server for monitoring.
o“Server 1 Type” – The type of the server for monitoring: AJAX SP Pro or SIA-DC09
Receiver*.
o“IP Address 1” – The IP address of the Main Receiver server for monitoring.
o“Main Receiver Port” – The Port of the Main Receiver server for monitoring.
o“Encryption Key 1” – A special security encrypted key for the connection. The
key is 32-symbols long and must be set one and the same at the TTE Combo and
the server for monitoring for proper operation.
* For SIA09 Receiver the settings must be set manually. There is no option for automatic settings.
•“Backup Receiver” Section –These are the settings for the Backup Receiver Server for
monitoring in case of the Main Receiver failure. The settings in this section have the
same description as those for the Main Receiver.
Note: The settings for the
Backup Receiver must be
set manually just in case of
using a second backup
server for monitoring.

TTE Combo Communication Module – Installation and Programming Manual
18
Important Note
An internal algorithm for the reporting of events is applied for operation,
when both Main and Backup Receivers are used.
Server Type 1
Server Type 2
Reporting Type
AJAX Pro
AJAX Pro
Alternative
AJAX Pro
SIA-DC09
Parallel
SIA-09
AJAX Pro
Parallel
SIA-DC09
SIA-DC09
Alternative
3.6 Saving a TDF File
When you complete with all parameters setting of TTE Combo you have to save the module’s
configuration as TDF file. TDF (Teletek Data File) is a file format for ProsTE software.
To save the current opened module configuration, press the “Save as” button on the ProsTE ribbon
bar and browse a place on your local computer. It is recommended in one TDF file to save only one
TTE Combo module configuration.
3.7 Writing a Configuration
To upload the settings from ProsTE to the TTE Combo module you have to write them to the
currently connected module. Select TTE Combo main menu and choose using the right mouse button:
TTE Combo – Write.
In the Write window select the USB port number to which you are physically connected and press OK
button. The software will ask for a password. The default password is 1234:
Note: The “Password” is set at General Settings Menu -3.2 General Settings Menu.
A system message will inform if the writing of the new configuration in the TTE Combo module is
successful.
Write is a command for
uploading the current
ProsTE settings to the
device configuration.

TTE Combo Communication Module – Installation and Programming Manual
19
4. AJAX WEB User Interface
AJAX WEB User Interface is a web service for monitoring of burglary alarm panels and
communication modules produced by Teletek Electronics JSC. It is configured as a web application
(web page) during the installation of AJAX SP Pro Cloud Server.
Ask your security provider, the monitoring company or your local distributor, whether and how you
can access AJAX WEB User Interface. You can also visit www.teletek-ajax.com for review and test*.
* Note: All previewed examples and screens below are based on this web application.
4.1 Creating an Account
To be able to control your TTE Combo communication module, first you must have a User account
registered to AJAX WEB User Interface (hereafter referred to as AJAX WEB).
On the home page of AJAX WEB, the User must login with his personal User Name and Password or
to create a new account:
To create a new account, click on “I am new user” and fill in the registration form:

TTE Combo Communication Module – Installation and Programming Manual
20
Attention: It is important to enter a valid e-mail address, so to be able to complete the registration
and to receive in the future the information for the registered systems to your account at AJAX WEB.
When you complete the form, press the Register button. You will be returned to the main home page
with the following information message:
Go to your personal e-mail box and confirm the received link. The Home page of AJAX WEB is loaded
automatically and in case of successful registration you will see the following confirmation message
over the login section:
Then you can login the AJAX WEB.
Note: In case you receive a message for browser incompatibility, you have to proceed with
registration pressing the option “Ignore and save this decision”. Then, return to your e-mail box and
confirm the received link again.
4.2 Adding a System to Account
After login, a system list for the User account is shown on. You will see your First and Last names
from the registration form on the upper right corner of the screen. Next to it is the menu for editing
your personal details.
For the new registered Users, the System List will be empty at the very beginning.
To add a system for monitoring press New Module button on the right.
A new window “New Module Registration” with addition information for describing the security
system is opened.
