General Description of DBX Communication Scheme and Failure Modes
DBX Wiring and Communications
The DBX cards in all system are wired such that if you could unplug the DBX cards with their port wiring intact
and lay them out on the ground untangled, the DBX cards and the wiring connections would form a giant circle.
If all the links in a DBX system are up and running, it is possible for a DBX card to send a message out its
PORT A, and receive the same message back on its PORT B after the message had passed through every
other DBX card in the system (assuming that every card that received a message on one port then transmitted
the message on its other port).
The purpose of this configuration is to allow any DBX card to have at least two paths to every other DBX card
using coax only. A card can transmit out either of its ports to reach another card as long as all links are up. If
a single link goes down (a link being a pair of coax cables for TX and RX), every card can still reach every
other card using coax only by going out either its PORT A or its PORT B since a broken circle still has all the
points connected by a single line.
Only when two or more links are broken is it possible to isolate one or more DBX cards from other cards on
the coax, but even in this case it is often possible to reach the isolated cards (which will be described later).
A DBX card can transmit and/or receive messages on either of its ports, as well as the control bus. However,
a DBX card only transmits on the control bus to the destination card (the card who is the ultimate target of the
message). All messages transmitted by a DBX card go out one of its ports, unless the target card is in the
same frame as the DBX card, in which case the DBX card will use the control bus to make final delivery of the
message.
This means that the “active” DBX card in the first frame can send a message to any DBX or AIO card in the
system, as long as it has a coaxial path to the destination frame. If the “active” DBX card can reach the
destination frame via coax hops, then the message can be delivered on the control bus by the DBX card in the
destination frame.
This does NOT guarantee, however, that the destination card can send a message back to the “active” DBX
card in the first frame. Each slave frame has an “active” DBX card who is responsible for polling the AIO cards
and reporting status changes to the “active” DBX card in the first frame. All the AIO cards in a slave frame
keep track of the “active” DBX card in their frame, and messages that need to go to the first frame are sent to
the “active” DBX card in the slave frame for forwarding.
The asymmetry in message paths occurs because the DBX card in the slave frame, which delivered a mes-
sage to the AIO card, may not be the “active” DBX card. The “active” DBX card may not have a coaxial path
to the first frame, even though the “active” DBX card in the first frame does have a coaxial path to the destina-
tion frame. For this to occur, there has to be more than one link failure.
It might be possible to allow intermediary control bus hops in routing a message, however, the number of
possible message routes becomes enormous, and it requires that every DBX card be aware of the link status
of every other DBX card which becomes extremely difficult to do when you are trying to use link status to
determine message routing, but you need to use message routing to pass link status back and forth.
An even worse consequence of allowing arbitrary message routing is that it becomes difficult to predict the
order of arrival of transmitted message. In the case of crosspoint messages, the order is critical; suppose two
messages are sent, one to turn a crosspoint on, the other to turn it off; now suppose the messages end up
taking different routes because of a link status change, and the second message arrives first. The AIO card
that receives the messages turns the crosspoint off (it already was off), and then turns it on, and the crosspoint
is left in the wrong state!

ADAM Dual Bus Expander
10
Failure Modes
In general, communications between two frames (called control) can occur when the “active” DBX card in the
first frame has a coaxial path to the destination frame, AND the “active” DBX card in the destination frame has
a coaxial path to the first frame.
Audio between frames will exist as long as there is a single valid link between the two frames. In redundant
systems, there are two links between each frame, so losing either one will not affect audio (aside from a small
glitch as the fault is recognized and corrected). In non-redundant systems, there is only one link between
each frame, so if it goes down, the audio between the two frames is lost.
Control in a frame (i.e. the ability to talk to keypanels and act on keypresses) will exist as long as there is a
coaxial path between the frame and the “active” DBX in the first frame, AND, there is a coaxial path between
the “active” DBX in local frame and the first frame.
If a frame loses contact with the first frame, the crosspoints that have already been made will stay. If contact is
restored before any critical messages need to be sent (such as crosspoints or key presses), the frame will
resume normal operation. If a critical message needed to be sent but couldn’t be delivered, the frame’s panels
will go to (****) and come back when contact is finally restored.
In a redundant system, it is possible to pull any one DBX card, or cut any one link (RX or TX or both), and the
system will continue to operate normally (other than a small glitch in audio as faults are detected and the
redundant resources kick in). It is even possible to pull other DBX cards, and/or cut other links without ad-
versely affecting system operation, as long as there is at least one link between each frame (to provide audio),
and as long as the “active” DBX cards in each slave frame have a valid coaxial path to the first frame, and the
“active” DBX card in the first frame has a valid coaxial path to each slave frame (to allow for control opera-
tions).
In a non-redundant system, the same rules for control apply, however every cut link causes the audio between
the affected frames to be lost, and every pulled DBX card loses the audio between that frame and the two
frames it was connected to. This is because every link in a non-redundant system carries audio.
If a frame was completely isolated because all its links were down, any crosspoints that already existed within
the frame would stay made, but no new crosspoint changes could occur.
Lastly, every frame needs at least one DBX card to operate because the DBX cards provide the clock to the
frame and, as with SBX systems, slave frames must have at least one link up that can trace its clock origin
back to the first frame in order for the audio in that frame to be synched to the audio in other frames.
Definitions
Redundancy: We talk about DBX systems as being either “Redundant Audio”, or “Non-Redundant Audio”
where we’ve defined redundant audio as meaning that it is possible to cut any one DBX coaxial link without
losing any audio between frames.
In order for redundant audio to exist, there must be two coaxial links between every pair of frames. In a three
frame system, that means two links between frames 1 and 2, two links between frames 2 and 3, and two links
between frames 1 and 3 (or six links in total). A non-redundant three frame system needs only one link
between each pair of frames, (1-2, 2-3, and 1-3, or three links in total).
When there are two links between a pair of frames, only one link is required to pass audio (although both carry
the audio between frames, the audio is only used from one link). So, if one link is cut, the other link can
immediately be used to provide the same audio.
Because a DBX card can connect to two other frames, both ports on a DBX card are only needed when there
are an odd number of frames. When there are an even number of frames, there will be one DBX card in each
frame that has a port that is unused. However, since our message passing scheme requires that all the DBX
cards be connected in a big loop, the unused ports on the DBX cards are connected to each other anyway
which leads to “Partial Redundancy” of audio in systems with an even number of frames.

ADAM Dual Bus Expander
11
For instance, the 4 frame “Non-Redundant Audio” system (480x480) is actually “Partially Redundant” because
there are two links between frames 1 and 2, and two links between frames 3 and 4. Similarly the 6 frame
“Non-Redundant Audio” system (672x672) is also partially redundant because there are two links between
frames 1 and 2, between frames 3 and 4, and between frames 5 and 6.
These configurations are partially redundant because you can cut a link between frames 1 and 2 (or frames 3
and 4, or frames 5 and 6) without losing any audio, but cutting a link between frames 2 and 3 (for instance)
would cause a loss of audio between those frames.
Link: A connection between two DBX cards consisting of 2 coaxial cables (one for TX and one for RX).
Path: A way to get from one DBX card to another by travelling only on links (not on the control bus). A path
consists of a series of connected DBX cards. A message travels along a path when it is received by a DBX on
one port, and transmitted by the same DBX card on its other port. The DBX intercom wiring scheme creates
one long circular path between all the DBX cards. This allows the circular path to be broken (by removing one
link), and yet still allow a continuous path between all the DBX cards. This gives us fault tolerance for
messaging, in that any ONE link can fail without preventing any messages from being delivered.
Active DBX: One DBX card in each frame is the Active DBX. The Active DBX card will be in either slot 8 or
slot 9. In the first frame, the Active DBX card is in charge of the entire intercom. It handles crosspoints,
volumes, and all intercom functionality. It is the only DBX card which originates messages to AIO cards. In a
DBX system, the Active DBX card in the first frame plays the role normally played by the Active MC in a
standard intercom. In a slave frame, the Active DBX is the contact point for AIO cards trying to send
messages back to the Active DBX in the first frame.
Control: The ability of the Active DBX in the main frame to send messages to, AND receive messages from,
AIO cards in slave frames. In order to send a message from one frame to another, a DBX card must have a
continuous coaxial path from its frame to the destination frame. Note that because, in most cases, there are
more than one DBX card per frame, it is possible for a message to be received by a DBX card in the
destination frame and delivered to the target AIO card on the control bus even if that DBX card isn’t the Active
DBX card in that frame. A return message generated by the AIO card would be transmitted to the Active DBX
card in its frame for delivery via a continuous coaxial path to a DBX card in the first frame who will then deliver
the message to the Active DBX card in the first frame on the control bus (assuming that the DBX card in the
first frame that received the message on one of its ports isn’t already the Active DBX). This means that the
message routing between an AIO card in a slave frame and the Active DBX card in the first frame is not
symmetrical. Depending on which links are up or down, it may be possible for the Active DBX card to transmit
to an AIO card, but impossible for the AIO card to send a return message (or vice-versa). So, in order for there
to be “Control” between the first frame and a slave frame, there must be a valid continuous coaxial path
between the Active DBX card in the first frame and any DBX card in the slave frame, AND, a return path
between the Active DBX card in the slave frame, and any DBX card in the first frame.
When there are at least two DBX cards per frame, we have “Redundant Control”, in that any ONE DBX card
can fail, and another DBX card will take over for the failed card. In systems with only one DBX card per frame,
there is no redundant control.
Audio Clock: There is only one master clock used for audio in the entire intercom. This clock is provided by
one of the cards in slot 8 or slot 9 in the first frame (usually a DBX card, although it could be an AIO card in slot
8 in systems that have only 1 DBX card per frame). In order for stable audio to be present in a frame, it must
have access to the master audio clock. The audio clock is passed from the first frame to slave frames via the
links. A slave frame with a valid direct link to the first frame from a DBX card in slot 8 or slot 9 will always have
access to the audio clock. The audio clock can also be passed from one slave frame to another if the link
between the slave frames has the proper link master/slave relationship, and the link slave card is in slot 8 or
slot 9 of the second slave frame (the DBX cards will always try to create links with the proper orientation of the
links).

ADAM Dual Bus Expander
12
Audio: There will be stable audio between frames if both frames have a valid audio clock, AND there is a valid
link between the frames
If both of the frames also have “control” (i.e. round-trip communications with the Active DBX card in the first
frame), then the audio between frames is “dynamic”, meaning that crosspoints between the two frames can
change dynamically when keypanel keys are pressed or other intercom events occur. If one frame has
“control”, but the other doesn’t, then ports in the frame with “control” will be able to listen to ports in the other
frame, but not talk to them. The frame without control will have “static” audio, meaning that only crosspoints
that existed before control was lost will still exist, and that no new crosspoints can be made until control is
restored.
If “control” between the first frame and a slave frame disappears for more than about 5-10 seconds, then the
panels in the slave frame will “go to stars”. This will happen sooner if there are any “important” messages that
need to be sent between frames, but that cannot be delivered. “Important” messages are things like key
presses or crosspoint closures. The panels are forced to stars when “important” messages are missed in
order to ensure that all crosspoints are in the correct state when “control” is restored. When there are two
links between each frame we have “Redundant Audio”, in that any ONE of the two links between two frames
can fail and the audio between the frames can still be carried on the other link.
In a redundant audio system, it is possible to pull any one DBX card, or cut any one link, and the system will
continue to operate normally (other than a small glitch in audio as faults are detected and the redundant
resources kick in). It is even possible to pull other DBX cards, and/or cut other links without adversely
affecting system operation, as long as there is at least one link between each frame (to provide audio), and as
long as the Active DBX cards in each slave frame have a valid coaxial path to the first frame, and the Active
DBX card in the first frame has a valid coaxial path to each slave frame (to allow for control operations).
In a non-redundant audio system, the same rules for control apply, however every cut link causes the audio
between the affected frames to be lost, and every pulled DBX card loses the audio between that frame and the
two frames it was connected to (because every link in a non-redundant system carries audio).
Test Audio: “Test Audio” is artificially generated audio by the SBX/DBX that it can produce, publish, forward,
receive, and test. It is used by the SBX/DBX to ensure that the links are passing valid audio between frames.
If the SBX/DBX detects that the link is up, but that the audio is corrupt (which does occur), the SBX/DBX tears
down the link and builds it up again (which almost always solves the problem).
The need for Test Audio was discovered when the SBX was introduced. It was observed that it was possible
to bring up the coax link with valid frame sync, but that no audio would be produced. The same situation
occurs with the DBX cards. Test audio allows the SBX/DBX cards to detect when the link is not passing audio
even when the frame sync is OK.
The use of Test Audio is necessary to ensure that the coax links are properly passing audio, however, the use
of Test Audio also can affect the number of available ports in some system configurations.
An SBX/DBX link can forward 128 timeslots, but Test Audio requires 4 timeslots per link. In the 256x256 (2
frame SBX or DBX), and 384x384 (3 frame DBX) systems which have only 1 SBX/DBX card per frame, all
timeslots per link are needed for real audio, but if Test Audio is enabled, the last 4 timeslots in each frame are
not available, which means that only 124 timeslots of real audio can be passed between frames.
This means that the last four ports in each frame can listen to, but not talk to ports in other frames. Similarly,
ports in other frames can talk to, but not listen to the last four ports in each frame. Within any frame, any port
can talk or listen to any other port in that frame, the timeslots are only lost going between frames.

ADAM Dual Bus Expander
13
Partial Redundancy: (4 & 6 Frame Non-Redundant Systems only) Consider the 4-frame non-redundant
system. Each frame requires 3 links - one to each of the other frames. That requires 2 DBX cards, which gives
us 4 links, i.e. one spare link per frame. The wiring table is such that there will be 2 links between frames 1 &
2, and 2 links between frames 3 & 4; there is a single link between each other pair of frames.
Similarly, the same condition exists in the 6 frame non-redundant system. Looking at the wiring table it can be
noticed there are 2 links between frames 1 & 2, 2 links between frames 3&4, and 2 links between frames 5&6
and single links between each other pair of frames.
The DBX system will handle these links automatically: if one link fails, the other link automatically provides the
audio.
System Sizes:
2 Frame Non-Redundant
•256 x 256 with Test Audio disabled.
•248 x 248 with Test Audio enabled *.
(256 ports, but only 124 ports per frame have full connectivity).
•2 DBX cards total (1 per frame).
•4 coax interconnections.
•this system actually has redundant audio on its two links.
•however it does not have redundant control.
•losing one link has no effect.
•losing the slave DBX means losing frame 2.
•losing the master DBX means losing the whole intercom.
2 Frame Redundant
•240 x 240 with or without Test Audio.
•4 DBX cards total (2 per frame).
•8 coax interconnections.
•this system has both redundant control and redundant audio.
•any one of the four links can carry all the audio.
•losing one DBX in each frame has no effect.
•losing up to three links has no effect (as long as the Active DBX has at least one link up).
3 Frame Non-Redundant
•384 x 384 with Test Audio disabled.
•372 x 372 with Test Audio enabled *.
•(384 ports, but only 124 ports per frame have full connectivity).
•3 DBX cards total (1 per frame).
•6 coax interconnections.
•no redundant audio or control.
•losing a slave DBX card means losing a frame.
•losing the master DBX card means losing the whole intercom.
•losing a link means losing audio between two frames.
* The last 4 ports per frame are not available for normal intercom use due to Test Audio enabled. These ports,
however, may be used as monitor outputs only if desired.
For all systems that follow, the failure modes are described in the previous discussion of Control and Audio.

ADAM Dual Bus Expander
14
3 Frame Redundant
•360 x 360 with or without Test Audio.
•6 DBX cards total (2 per frame).
•12 coax interconnections.
•redundant control and audio
•Loosing any single DBX card has no effect.
•Loosing any single link has no effect.
•Loosing either Master Controller in primary frame has no effect.
•If both Master Controllers in primary frame are lost the intercom will remain functional,
however, the following peripheral devices will be dysfunctional:
PAP(s) Trunk Masters
UIO256s AZedit
LCP(s) Programming from keypads at panels
In general, any keypanel which was operational prior to a failure such as this will retain its functionality within
the intercom.
The above also applies to any multi-frame redundant system.
4 Frame Non-Redundant
•480 x 480 with or without Test Audio.
•8 DBX cards total (2 per frame).
•redundant control.
•partially redundant audio.
(there are two links between frames 1 and 2, and
also between frames 3 and 4).
4 Frame Redundant
•448 x 448 with or without Test Audio.
•12 DBX cards total (3 per frame).
•redundant control and audio.
5 Frame Non-Redundant
•600 x 600 with or without Test Audio.
•10 DBX cards total (2 per frame).
•redundant control.
•no redundant audio.
5 Frame Redundant
•520 x 520 with or without Test Audio.
•20 DBX cards total (4 per frame).
•redundant control and audio.
6 Frame Non-Redundant
•672 x 672 with or without Test Audio.
•18 DBX cards total (3 per frame).
•redundant control.
•partially redundant audio.
(there are two links between frames 1 and 2,
frames 3 and 4, and also frames 5 and 6).
7 Frame Non-Redundant
•784 x 784 with or without Test Audio.
•21 DBX cards total (3 per frame).
•redundant control.
•no redundant audio.
8 Frame Non-Redundant
•832 x 832 with or without Test Audio.
•32 DBX cards total (4 per frame).
•redundant control.
•partially redundant audio (not detailed yet).
•NOT CURRENTLY SUPPORTED IN DBX
FIRMWARE.
•NO WIRING TABLE HAS BEEN
GENERATED.
9 Frame Non-Redundant
•936 x 936 with or without Test Audio.
•36 DBX cards total (4 per frame).
•redundant control.
•no redundant audio.
•NOT CURRENTLY SUPPORTED IN DBX
FIRMWARE.
•NO WIRING TABLE HAS BEEN
GENERATED.

ADAM Dual Bus Expander
15

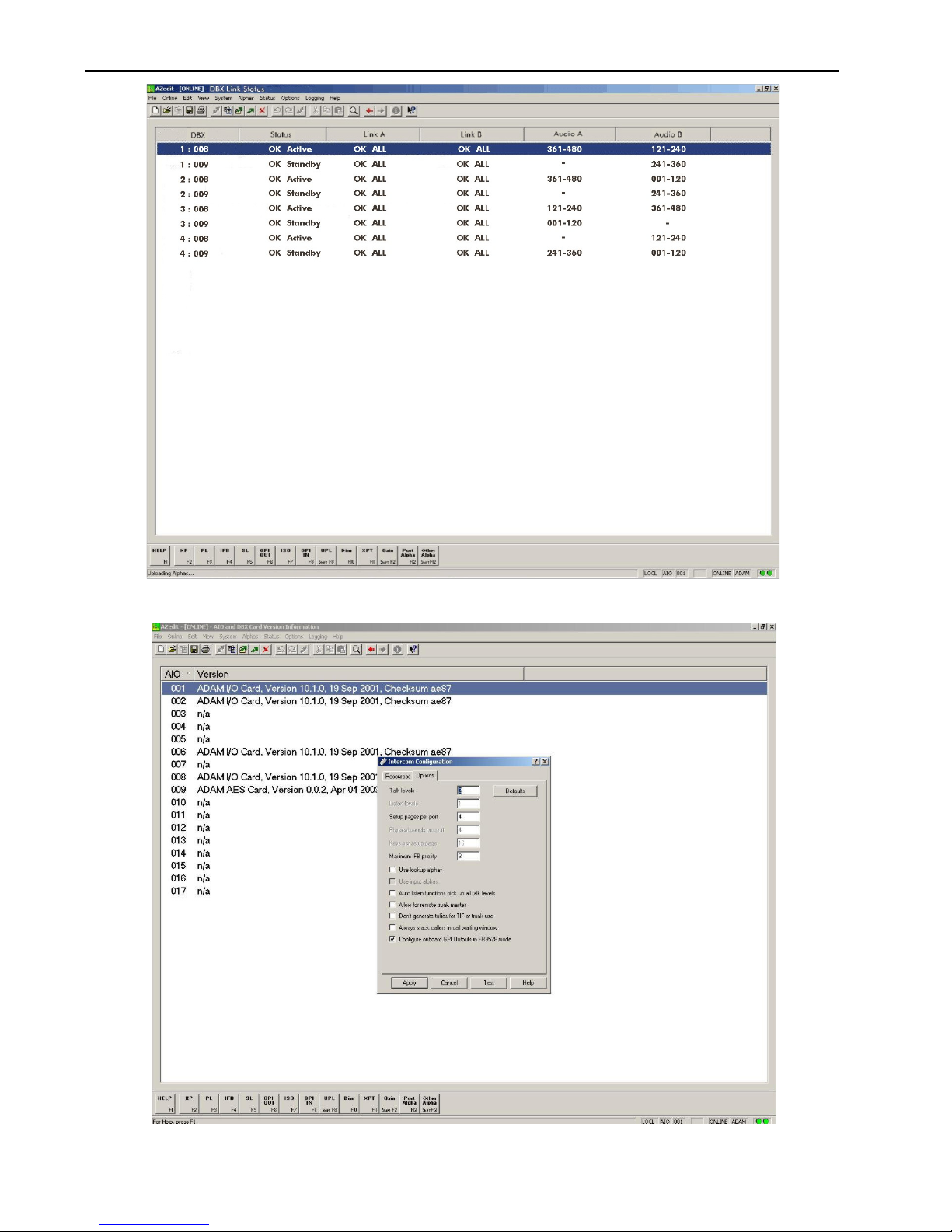

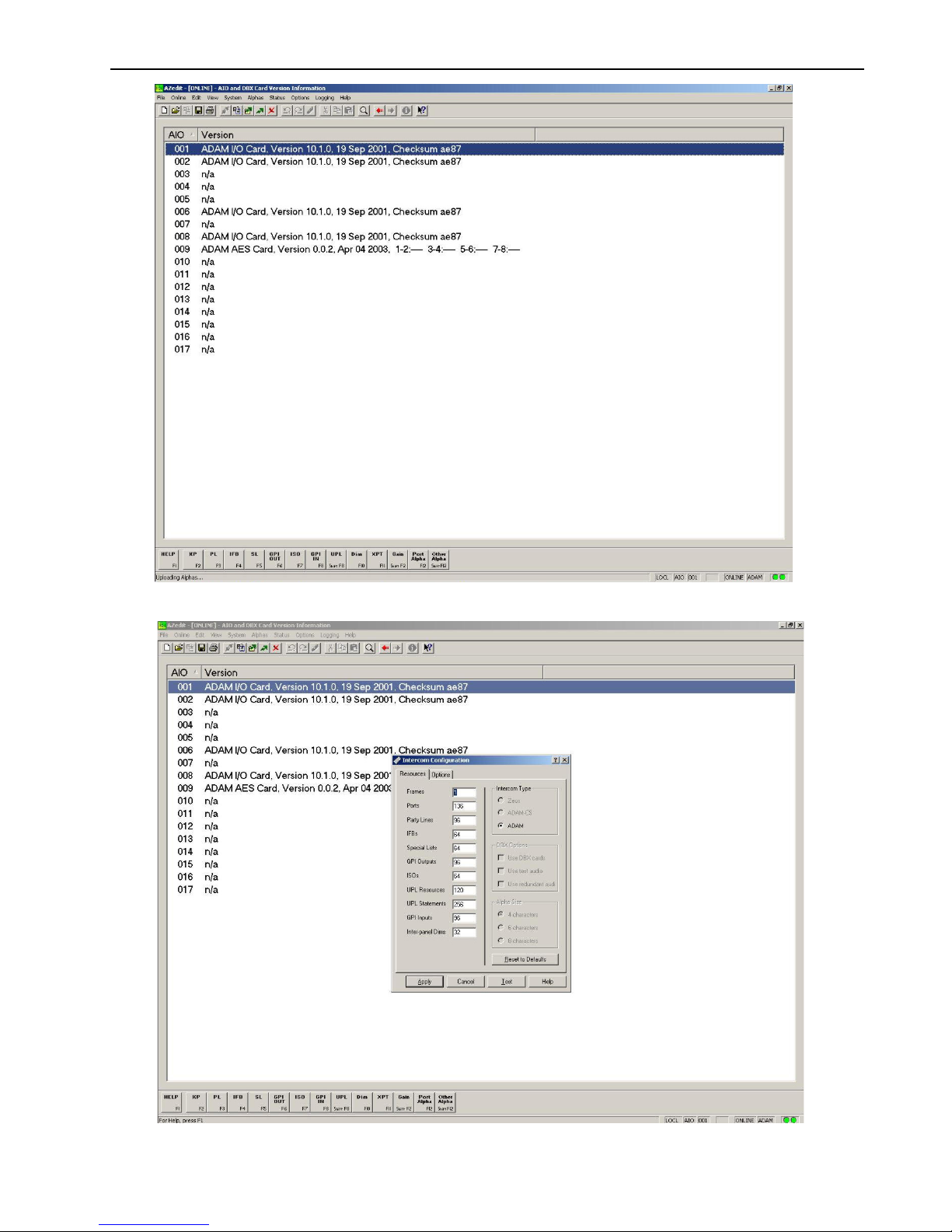

An ADAM Intercom System can communicate with up to 3 separate AZedit sessions, all running on separate computers.
Multiple sessions are not supported for ADAM CS or Zeus. To use this feature, you must configure the Advanced
communications settings on the computer running the primary AZedit session. This is the computer connected to J1 of the

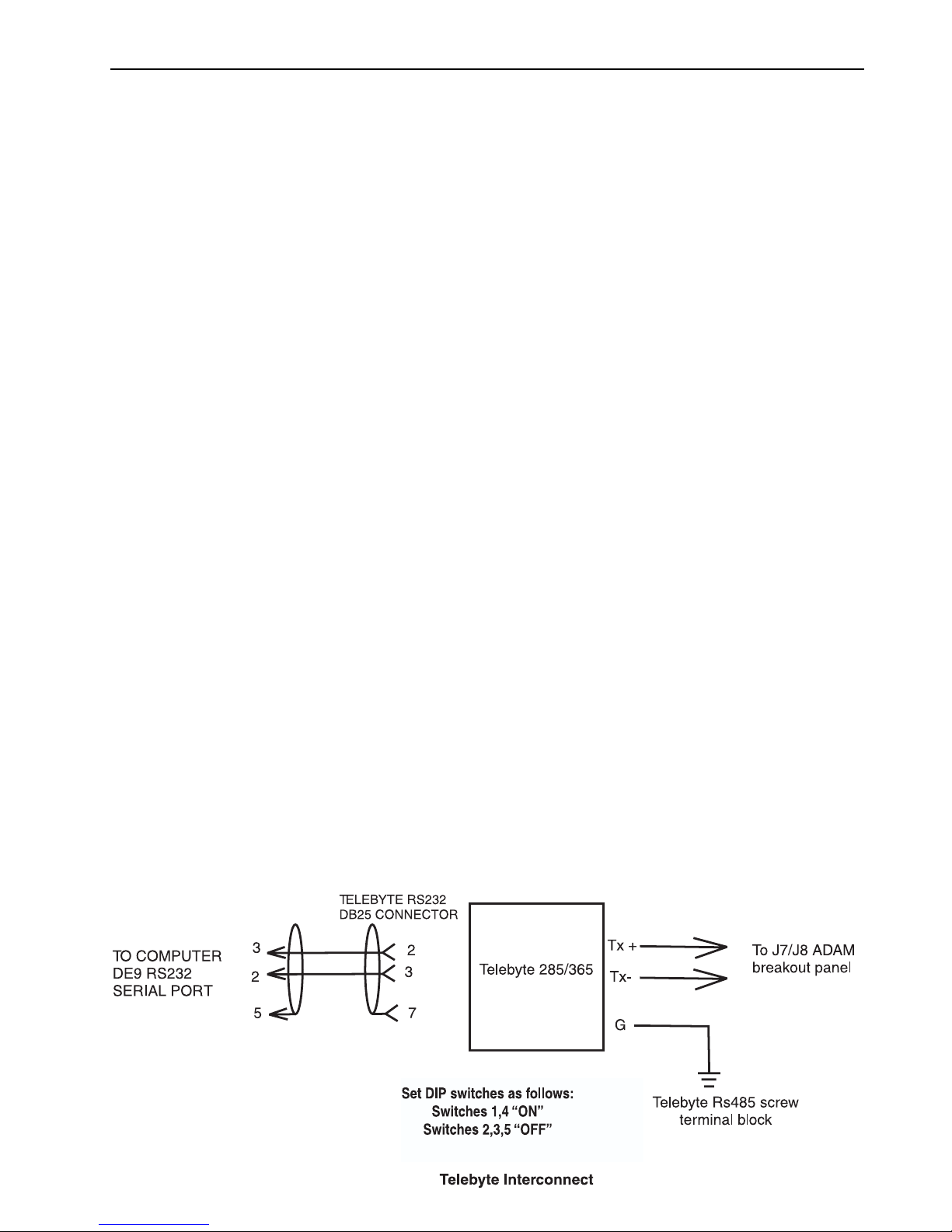

XCP-ADAM-MC Master Controller Breakout Panel. Second and third computers can then be connected to J9 and J10 of
the Master Controller Breakout Panel as explained below.
If you are running AZedit together, it is best to have AZedit on J1. This is because the J1 port has to be used to configure
J9 and J10 (baud rate, which ports are enabled, and what protocols are supported), and only AZedit supports this. Once
the primary AZedit has been configured, each AZedit port may be operated independently from one another.
The standard AZedit connection is via J1 of the ADAM breakout panel supporting baud rates of 9600 and 38.4K (selected
via DIP switch 1-1 on each MC). The auxiliary ports also support 19.2K (configured by the AZedit session connected to
J1).
There are limitations on the baud rates of the auxiliary ports.
In SBX and single frame ADAM intercoms, a baud rate of 38.4K for the auxiliary ports will usually work, but
communications errors will occasionally cause AZedit to be bumped off-line. A baud rate of 19.2K is recommended for
these ports.
In DBX intercoms, communications errors will occur on J9 and J10, even at 9600 baud. However, J7 and J8 can be used
in place of J9 and J10, by closing DIP switch 1 position 6 on both peripheral controller cards (frame 1). These ports have
FIFO buffers built into them, which significantly reduces the number of communications errors. However, communications
errors can still occur if multiple AZedit sessions are active, which can cause AZedit to go off-line.
Note that J7 and J8 are RS-485 ports and require an external converter (e.g. a Telebyte model 285M or 365M) to connect
each of these ports to a computer’s RS-232 serial port.
The following is a procedure for setting up AZedit communications with up to three separate computers in a DBX system.
PROCEDURE: (see figures 1 & 2, AZedit Screen Views)
Minimum Software Requirements:
AZedit = 2.06.02
Peripheral Controller (PC) = 10.2.x
DBX (U21, U22) = 1.1.1, Altera 1.1
AIO = 10.0.2
• Set dip switch S1-1 for each of the two PC cards in frame 1 to select desired baud rate for primary
AZedit. (ON = 38.4k)
• Set dip switch S1-6 to “on” for each PC card in frame 1 to enable ports J7 & J8 AZedit support.
• Run AZedit and go on-line.
• Select “OPTIONS”
• Select “COMMUNICATIONS”
• Select “ADVANCED” – (must be connected to matrix to see this screen, see Figure 1.)
• Then Communication screen (see Figure 2.), Secondary AZedit Sessions J9/J10
• Advanced Settings (ADAM Only)
Remember, operationally J9 becomes J7 & J10 becomes J8 when PC dip switch S1-6 is “ON”. AZedit will
not change these port screen designations

ADAM Dual Bus Expander
16
DBX Multiple AZedit Sessions
Baud Rate: Select the highest baud rate that will work correctly. Unlike the baud rate setting for the primary AZedit
session, which is set by a master controller DIP switch, the baud rates for second and third computers are set in software,
and there are no DIP switches for this.
This configuration information is stored in configuration flash, (U3/U5), so the intercom will remember it. However, if the
intercom loses its config flash for any reason (e.g. it gets a 1st birthday, perhaps because a new version of firmware is
downloaded to it), it will come up with J9 and J10 disabled by default.
Figure 2
Figure 1
J9 &J10 are in reality J7 & J8 on
ADAM controller breakout panel

ADAM Dual Bus Expander
17
ADAM DBX Upgrade
Single frame ADAM to multi-frame ADAM DBX or existing multi-frame SBX to DBX
Caution: Read entire procedure before attempting upgrade
Important: Be aware there can be a 2 minute period for each group of cards selected during the
download process where the master controller will take each Audio I/O card off line and
reprogram its firmware. Any disruption during this period (loss of power, card removal,
manually resetting cards) will result in I/O card failure! If this happens, you will either have to
return the affected cards for replacement, or you will have to remove the EEPROM chips from
the affected cards and manually reprogram them with an EEPROM programmer. Since this
could potentially result in a major disruption in communications, we recommend that you only
update a limited number of I/O cards at a time, and updating should be performed during non-
critical periods of intercom usage.
Make sure AZedit is the active window, and not the help file. (Click anywhere on the AZedit window
to make it the active window.) Then, press Ctrl+Shift+D on the computer keyboard. This will open the
Firmware Download dialog.
Note: If Ctrl+Shift+D does not work, firmware download may be disabled. To enable this feature, go
to the Options menu and select Preferences. Then, click on the Advanced tab. In the
Advanced settings, place a check next to Allow firmware download, then click Apply. Click OK
to exit.You should now be able to use the firmware download feature.
UPGRADE PROCEDURE
Minimum requirements:
a) Master Controller cards must have Altera ver 4.1 or higher and RAM installed in U10-U13 & U15-U18.
If Master Controllers have ver 8.x firmware, a M/C card swap is necessary to bring the Masters up to
the level capable of a DBX upgrade.
b) DBX cards must have firmware ver 1.2.1 or higher and Altera ver 1.1 or higher.
c) AIO cards ver 10.0.3 (or higher).
d) UIO256 requires firmware ver 2.0 (checksum 78b5, wired in a multi-drop mode, dip switch S1-2
closed and RS485 data going to J2 of each UIO256 (or higher).
e) PAP940, 951, 952 requires firmware ver 7.3.x (or higher).
f) Trunking, requires firmware ver 7.4.0 and CStrunk ver 7.3.1 (or higher). Trunking should be upgraded
first before the DBX’s.
g) LCP102’s require ver 1.4 (or higher).
h) AZedit ver 1.07.06 (or higher).
DBX Upgrade
1. Save current intercom setup file to disk (very important).
2. If trunking, disconnect from Trunk Master.
3. Download ver 10.0.2 or higher AIO firmware to all AIO cards half a frame at a time with older existing
SBX controller cards still in frames. Confirm successful download with AZedit in Status/Software
Versions/AIO Cards. (fig. 1)
•If physically changing MC and DBX flash, continue with steps 4-16. If downloading, skip these steps
and proceed to steps 17-28.
4. Power down entire system.
5. Change existing back cards in the appropriate frame slots to DBX back cards. See frame layout
drawings relating to DBX system size and install coax links per cable diagram.
6. Remove all slave frame Master Controller cards and back cards. These slots will remain blank and
never used again. DO NOT use for spare card storage.
7. In frame 1 only, change Master and Standby Controller flash U2 & U4 to new DBX Peripheral
Controller flash ver 10.2.x. These cards will be heretofore referred to as “Peripheral Controllers” (PC).

ADAM Dual Bus Expander
18
8. Put only one DBX card in frame 1, slot 9 (turn on DIP 7), and one PC card in frame 1, slot 19 (also
needs dip 7 on).
9. Power up frame 1 ONLY and ensure AZedit goes on line. Resize to new final system size under
Options/Intercom Configuration. Default is 3 frame redundant audio system. (fig. 2)
10. Check “use DBX cards” in Options/Intercom Configuration/Resources, if not already detected, always
check “use test audio”.You can also “use redundant audio” only if it is appropriate for the system
being set up]. (fig. 2) Also check Options page to be sure number of talk levels, remote trunk master
( not to be confused with local trunking ), and other options are set now, otherwise the system will first
birthday again if you need to change them later. (fig 4)
11. If applicable, select “Apply” and the system will reconfigure itself and re-start.
12. After system has settled down, plug in the standby DBX into slot 8 of frame 1 and let it update. Next
plug in the standby PC into slot 20 of frame 1, (remember both dips 7 need to be on) and let it update.
13. Insert all remaining DBX cards in each slave frame (dips 7 must be off) and power up all frames. This
may take a little time - be patient. Verify I/O cards can be seen with proper versions in Status/
Software Versions/AIO Cards. (fig. 1)
14. Check DBX Link Status. (fig 3)
15. Send saved intercom setup file from step 1 above if necessary.
16. Re-connect Trunk Master if appropriate.
If Downloading PC’s and DBX Cards
(If steps 1-16 above have been performed, ignore this section)
17. Pull MC #1 (slot 19), ensure AZedit is on line, and download MC #2 (slot 20). Pull MC #2 (slot 20)
and put back MC #1 (slot 19), ensure AZedit is on line, and download it.
18. After downloading both MC’s (now PC’s), leave only PC #1 in slot 19.
19. Power down system and install DBX back cards in the appropriate card slots in frame 1.
20. Install a DBX card in slot 9 of frame 1 and power up. Download this card and when completed,
remove it and install another in the same slot 9 and download it.
21. Resize to new final system size under Options/Intercom Configuration. Default is 3 frame redundant
audio system. (fig. 2)
22. Check “use DBX cards” in Options/Intercom Configuration/Resources, if not already detected, always
check “use test audio”.You can also “use redundant audio” only if it is appropriate for system being set
up].(fig. 2) Also check Options page to be sure number of talk levels, remote trunk master ( not to be
confused with local trunking ), and other options are set now, otherwise the system will first birthday
again if you need to change them later. (fig. 4)
23. If applicable, select “Apply” and the system will reconfigure itself and re-start.
24. When the resize is done, you can install the first downloaded DBX into slot 8 and plug in the second
PC into slot 20 as well.
25. Install DBX back cards and DBX controller cards in all slave frames, power up these frames and
download all slave DBX’s. Verify I/O cards can be seen with proper versions in Status/Software
Versions/AIO Cards. (fig. 1)
Note: Switch 7 should be in the OFF position for the slave frames on the DBX card.
26. Check DBX Link Status. (fig 3)
27. Re-send saved setup file from step 1 if required.
28. Re-connect Trunk Master if appropriate.
Special Note: In 2 & 3 frame non-redundant systems, the last 4 ports in each frame will be unusable
due to test audio. This will affect overall system layout breakout cabling.

ADAM Dual Bus Expander
19
Figure 1. Verify software versions (steps 3,13, 25)
Figure 2. Set up frame size and DBX options (steps 9,19, 20)

ADAM Dual Bus Expander
20
Figure 4. Set up Options page (steps 10, 20)
Figure 3. DBX Link Status (steps 14)
