Tellur TLL331341 User manual

WiFi Smart RGB Bulb
TLL331341
User manual
Compatible with Alexa Amazon and
Google Assistant
This manual is available in more
languages on smart.tellur.com

Technical specs
Voltage: 220-240V
Power consumption: 9W
Lumens +/-10%: 800lm
Dimmable: Yes
Beam Angle: 270°
Socket: E27
Color temperature:
2700K-6500K + RGB 16 mil. colors
Lifetime: 15000h
Wireless frequency: 2.4GHz
WiFi standard: IEEE 802.11b/g/n
Security: WPA-PSK/ WPA2-PSK /WPA/W-
PA2/WEP/WPS2/WAPI
Encryption type: WEP/TKIP/AES
Standby consumption: ≤0.5W
CRI: Ra>80
Working condition temperature: -20~40°
Working condition humidity: ≤90%
Compatibility: Devices with Android 4.1 / iOS
8 or higher
Package include: Wifi Smart Bulb
User Manual
Product dimensions: D60mm*115mm
Product weight: 40g

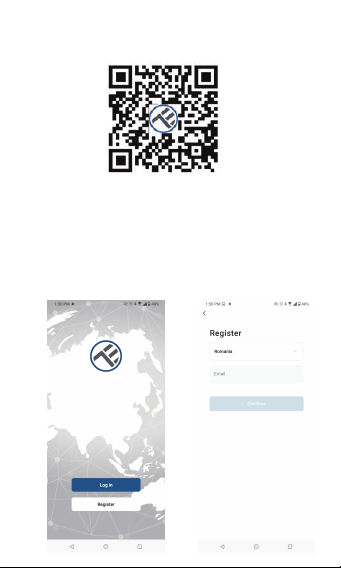

Download and install Tellur Smart app for
either iOS or Android devices.
Once downloaded, the app will ask you to
register your device. Enter your email, select
the country you live in and create a
password for your Tellur Smart account.

Turn on the light and make sure the bulb is
flashing quickly. If the bulb is not flashing,
refer to the “How to reset device” section.
Open Tellur Smart app, click "+" and select
Smart Bulb (WiFi) from the list.

If you allow Bluetooth for
Tellur Smart app, a a
pop-up window will
inform you about the
existing products in
pairing mode.
Select your WiFi
network and input the
network's password.
Only 2.4Ghz networks
are compatible.

Once Tellur Smart
app is installed on
your device and you
have added your
smart device to
your app you will be
able to control it.

Failed to add device?
1. Make sure the device is powered on.
2. Check the WiFi connection of your phone.
3. Check if the device is in pairing mode.
Reset your smart device to enter pairing
mode. Please refer to the "How to reset
device" section.
4. Check router or related:
If you use a dual-band router, select the
2.4GHz network to add the device. You also
need to enable the router's broadcasting
function. Set encryption method as
WPA2-PSK and authorization type as AES or
set both on "auto".
5. Check if the WiFi signal is strong enough.
To maintain the signal strong, keep your
router and the smart device as close as
possible.
6. Wireless mode should be 802.11.b/g/n
7. Make sure you do not exceed the maximum
number of registered devices supported by
the app (150).
8. Check if the router's MAC filtering function
is enabled. If so, remove the device from the
filter list and make sure the router is not
prohibiting the device connection.
9. Make sure the WiFi password entered in
the app is correct.
EZ and AP connection modes:
Smart devices can be connected manually
using two modes:
EZ represents the easiest way of connecting
and enabling a smart device. You will need to
have the device, active wireless network
through with login password and Tellur
Smart APP installed on a smartphone /
tablet.
AP mode can be used to configure and enable
a smart device first with the smartphone /
tablet and later with the Wi-Fi network.
How to reset device?
1. Reset procedure for devices with reset
button (power strip, plugs etc.) -> Long press
the reset button for 5 seconds until the LED
indicator flashes, indicating successful reset.
If the LED indicator flashes quickly (2 times
per second), the device has entered EZ
pairing mode. If the indicator flashes slowly
(one time /3 seconds), the device has entered
AP pairing mode. Under EZ mode, press the
reset button for 5 seconds until the LED
flashes slowly, indicating the AP mode (and
vice versa).
2. Reset procedure for lighting devices ->
Start by turning off the lights. Switch light
following these exact steps: on-off-on-off-on
(the time interval between switches should
not exceed 10 seconds). When the lights are
flashing, the device has been successfully
reset. If the light is not flashing, repeat the
steps above. When the lights flash quickly (4
times/second), the device is in EZ mode. If
the lights flash slowly (2 times/3 seconds),
the device is in AP mode. Under EZ mode,
repeat the steps above until the light starts
flashing slowly, indicating that the device
has entered AP mode (and vice versa).
How to add device under EZ mode?
1. Make sure the LED indicator/light flashes
quickly.
2. Make sure the phone is connected to WiFi.
3. Tap "Add device" in Tellur Smart app and
enter the WiFi's network password.
4. In the device list, select the device you
want to pair and add it.
How to add device under AP mode?
1. Make sure the LED indicator/light flashes
slowly.
2. Tap "Add device" in Tellur Smart app and
select "AP mode" from the top-right corner.
Connect to the device's hotspot first and
then proceed to connect it to the WiFi
network.
3. Tap "Next" to add device.
Can I control the device with 2G/3G/4G
network?
When adding the device for the first time, the
device and the phone need to be connected to
the same WiFi network. Once the device has
been successfully paired with Tellur Smart
app, you can remotely control it via 2G/3G/4G
networks.
How can I share my device with family?
Open Tellur Smart app, go to "Profile" ->
"Device sharing" -> "Sharing sent", tap "Add
sharing" and share the device with the added
family members.
Notice - users must install the Tellur Smart
app on their device to see shared devices.
How can I manage the devices shared by
others?
Open App, go to "Profile" > "Device Sharing" >
"Sharings Received", then you can find the
devices shared by other users. To delete a
shared device, swipe left.

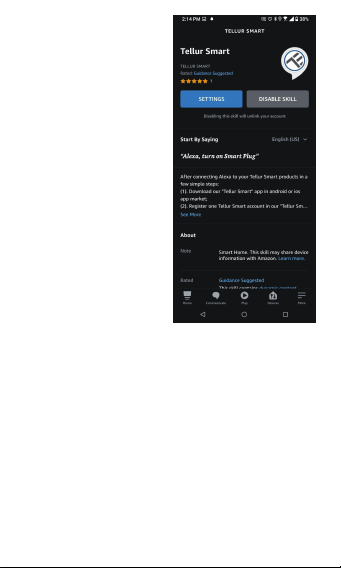

Alexa integration
1. Go to Home menu on Alexa app.
2. Select "Skills" / "Skills & Games".
3. Type Tellur Smart in the search bar.
4. Select Tellur Smart and click "Enable" to
activate Tellur Smart.

Failed to add device?
1. Make sure the device is powered on.
2. Check the WiFi connection of your phone.
3. Check if the device is in pairing mode.
Reset your smart device to enter pairing
mode. Please refer to the "How to reset
device" section.
4. Check router or related:
If you use a dual-band router, select the
2.4GHz network to add the device. You also
need to enable the router's broadcasting
function. Set encryption method as
WPA2-PSK and authorization type as AES or
set both on "auto".
5. Check if the WiFi signal is strong enough.
To maintain the signal strong, keep your
router and the smart device as close as
possible.
6. Wireless mode should be 802.11.b/g/n
7. Make sure you do not exceed the maximum
number of registered devices supported by
the app (150).
8. Check if the router's MAC filtering function
is enabled. If so, remove the device from the
filter list and make sure the router is not
prohibiting the device connection.
9. Make sure the WiFi password entered in
the app is correct.
EZ and AP connection modes:
Smart devices can be connected manually
using two modes:
EZ represents the easiest way of connecting
and enabling a smart device. You will need to
have the device, active wireless network
through with login password and Tellur
Smart APP installed on a smartphone /
tablet.
AP mode can be used to configure and enable
a smart device first with the smartphone /
tablet and later with the Wi-Fi network.
How to reset device?
1. Reset procedure for devices with reset
button (power strip, plugs etc.) -> Long press
the reset button for 5 seconds until the LED
indicator flashes, indicating successful reset.
If the LED indicator flashes quickly (2 times
per second), the device has entered EZ
pairing mode. If the indicator flashes slowly
(one time /3 seconds), the device has entered
AP pairing mode. Under EZ mode, press the
reset button for 5 seconds until the LED
flashes slowly, indicating the AP mode (and
vice versa).
2. Reset procedure for lighting devices ->
Start by turning off the lights. Switch light
following these exact steps: on-off-on-off-on
(the time interval between switches should
not exceed 10 seconds). When the lights are
flashing, the device has been successfully
reset. If the light is not flashing, repeat the
steps above. When the lights flash quickly (4
times/second), the device is in EZ mode. If
the lights flash slowly (2 times/3 seconds),
the device is in AP mode. Under EZ mode,
repeat the steps above until the light starts
flashing slowly, indicating that the device
has entered AP mode (and vice versa).
How to add device under EZ mode?
1. Make sure the LED indicator/light flashes
quickly.
2. Make sure the phone is connected to WiFi.
3. Tap "Add device" in Tellur Smart app and
enter the WiFi's network password.
4. In the device list, select the device you
want to pair and add it.
How to add device under AP mode?
1. Make sure the LED indicator/light flashes
slowly.
2. Tap "Add device" in Tellur Smart app and
select "AP mode" from the top-right corner.
Connect to the device's hotspot first and
then proceed to connect it to the WiFi
network.
3. Tap "Next" to add device.
Can I control the device with 2G/3G/4G
network?
When adding the device for the first time, the
device and the phone need to be connected to
the same WiFi network. Once the device has
been successfully paired with Tellur Smart
app, you can remotely control it via 2G/3G/4G
networks.
How can I share my device with family?
Open Tellur Smart app, go to "Profile" ->
"Device sharing" -> "Sharing sent", tap "Add
sharing" and share the device with the added
family members.
Notice - users must install the Tellur Smart
app on their device to see shared devices.
How can I manage the devices shared by
others?
Open App, go to "Profile" > "Device Sharing" >
"Sharings Received", then you can find the
devices shared by other users. To delete a
shared device, swipe left.
Alexa integration
1. Go to Home menu on Alexa app.
2. Select "Skills" / "Skills & Games".
3. Type Tellur Smart in the search bar.
4. Select Tellur Smart and click "Enable" to
activate Tellur Smart.

Failed to add device?
1. Make sure the device is powered on.
2. Check the WiFi connection of your phone.
3. Check if the device is in pairing mode.
Reset your smart device to enter pairing
mode. Please refer to the "How to reset
device" section.
4. Check router or related:
If you use a dual-band router, select the
2.4GHz network to add the device. You also
need to enable the router's broadcasting
function. Set encryption method as
WPA2-PSK and authorization type as AES or
set both on "auto".
5. Check if the WiFi signal is strong enough.
To maintain the signal strong, keep your
router and the smart device as close as
possible.
6. Wireless mode should be 802.11.b/g/n
7. Make sure you do not exceed the maximum
number of registered devices supported by
the app (150).
8. Check if the router's MAC filtering function
is enabled. If so, remove the device from the
filter list and make sure the router is not
prohibiting the device connection.
9. Make sure the WiFi password entered in
the app is correct.
EZ and AP connection modes:
Smart devices can be connected manually
using two modes:
EZ represents the easiest way of connecting
and enabling a smart device. You will need to
have the device, active wireless network
through with login password and Tellur
Smart APP installed on a smartphone /
tablet.
AP mode can be used to configure and enable
a smart device first with the smartphone /
tablet and later with the Wi-Fi network.
How to reset device?
1. Reset procedure for devices with reset
button (power strip, plugs etc.) -> Long press
the reset button for 5 seconds until the LED
indicator flashes, indicating successful reset.
If the LED indicator flashes quickly (2 times
per second), the device has entered EZ
pairing mode. If the indicator flashes slowly
(one time /3 seconds), the device has entered
AP pairing mode. Under EZ mode, press the
reset button for 5 seconds until the LED
flashes slowly, indicating the AP mode (and
vice versa).
2. Reset procedure for lighting devices ->
Start by turning off the lights. Switch light
following these exact steps: on-off-on-off-on
(the time interval between switches should
not exceed 10 seconds). When the lights are
flashing, the device has been successfully
reset. If the light is not flashing, repeat the
steps above. When the lights flash quickly (4
times/second), the device is in EZ mode. If
the lights flash slowly (2 times/3 seconds),
the device is in AP mode. Under EZ mode,
repeat the steps above until the light starts
flashing slowly, indicating that the device
has entered AP mode (and vice versa).
How to add device under EZ mode?
1. Make sure the LED indicator/light flashes
quickly.
2. Make sure the phone is connected to WiFi.
3. Tap "Add device" in Tellur Smart app and
enter the WiFi's network password.
4. In the device list, select the device you
want to pair and add it.
How to add device under AP mode?
1. Make sure the LED indicator/light flashes
slowly.
2. Tap "Add device" in Tellur Smart app and
select "AP mode" from the top-right corner.
Connect to the device's hotspot first and
then proceed to connect it to the WiFi
network.
3. Tap "Next" to add device.
Can I control the device with 2G/3G/4G
network?
When adding the device for the first time, the
device and the phone need to be connected to
the same WiFi network. Once the device has
been successfully paired with Tellur Smart
app, you can remotely control it via 2G/3G/4G
networks.
How can I share my device with family?
Open Tellur Smart app, go to "Profile" ->
"Device sharing" -> "Sharing sent", tap "Add
sharing" and share the device with the added
family members.
Notice - users must install the Tellur Smart
app on their device to see shared devices.
How can I manage the devices shared by
others?
Open App, go to "Profile" > "Device Sharing" >
"Sharings Received", then you can find the
devices shared by other users. To delete a
shared device, swipe left.
Alexa integration
1. Go to Home menu on Alexa app.
2. Select "Skills" / "Skills & Games".
3. Type Tellur Smart in the search bar.
4. Select Tellur Smart and click "Enable" to
activate Tellur Smart.

Failed to add device?
1. Make sure the device is powered on.
2. Check the WiFi connection of your phone.
3. Check if the device is in pairing mode.
Reset your smart device to enter pairing
mode. Please refer to the "How to reset
device" section.
4. Check router or related:
If you use a dual-band router, select the
2.4GHz network to add the device. You also
need to enable the router's broadcasting
function. Set encryption method as
WPA2-PSK and authorization type as AES or
set both on "auto".
5. Check if the WiFi signal is strong enough.
To maintain the signal strong, keep your
router and the smart device as close as
possible.
6. Wireless mode should be 802.11.b/g/n
7. Make sure you do not exceed the maximum
number of registered devices supported by
the app (150).
8. Check if the router's MAC filtering function
is enabled. If so, remove the device from the
filter list and make sure the router is not
prohibiting the device connection.
9. Make sure the WiFi password entered in
the app is correct.
EZ and AP connection modes:
Smart devices can be connected manually
using two modes:
EZ represents the easiest way of connecting
and enabling a smart device. You will need to
have the device, active wireless network
through with login password and Tellur
Smart APP installed on a smartphone /
tablet.
AP mode can be used to configure and enable
a smart device first with the smartphone /
tablet and later with the Wi-Fi network.
How to reset device?
1. Reset procedure for devices with reset
button (power strip, plugs etc.) -> Long press
the reset button for 5 seconds until the LED
indicator flashes, indicating successful reset.
If the LED indicator flashes quickly (2 times
per second), the device has entered EZ
pairing mode. If the indicator flashes slowly
(one time /3 seconds), the device has entered
AP pairing mode. Under EZ mode, press the
reset button for 5 seconds until the LED
flashes slowly, indicating the AP mode (and
vice versa).
2. Reset procedure for lighting devices ->
Start by turning off the lights. Switch light
following these exact steps: on-off-on-off-on
(the time interval between switches should
not exceed 10 seconds). When the lights are
flashing, the device has been successfully
reset. If the light is not flashing, repeat the
steps above. When the lights flash quickly (4
times/second), the device is in EZ mode. If
the lights flash slowly (2 times/3 seconds),
the device is in AP mode. Under EZ mode,
repeat the steps above until the light starts
flashing slowly, indicating that the device
has entered AP mode (and vice versa).
How to add device under EZ mode?
1. Make sure the LED indicator/light flashes
quickly.
2. Make sure the phone is connected to WiFi.
3. Tap "Add device" in Tellur Smart app and
enter the WiFi's network password.
4. In the device list, select the device you
want to pair and add it.
How to add device under AP mode?
1. Make sure the LED indicator/light flashes
slowly.
2. Tap "Add device" in Tellur Smart app and
select "AP mode" from the top-right corner.
Connect to the device's hotspot first and
then proceed to connect it to the WiFi
network.
3. Tap "Next" to add device.
Can I control the device with 2G/3G/4G
network?
When adding the device for the first time, the
device and the phone need to be connected to
the same WiFi network. Once the device has
been successfully paired with Tellur Smart
app, you can remotely control it via 2G/3G/4G
networks.
How can I share my device with family?
Open Tellur Smart app, go to "Profile" ->
"Device sharing" -> "Sharing sent", tap "Add
sharing" and share the device with the added
family members.
Notice - users must install the Tellur Smart
app on their device to see shared devices.
How can I manage the devices shared by
others?
Open App, go to "Profile" > "Device Sharing" >
"Sharings Received", then you can find the
devices shared by other users. To delete a
shared device, swipe left.
Alexa integration
1. Go to Home menu on Alexa app.
2. Select "Skills" / "Skills & Games".
3. Type Tellur Smart in the search bar.
4. Select Tellur Smart and click "Enable" to
activate Tellur Smart.

Failed to add device?
1. Make sure the device is powered on.
2. Check the WiFi connection of your phone.
3. Check if the device is in pairing mode.
Reset your smart device to enter pairing
mode. Please refer to the "How to reset
device" section.
4. Check router or related:
If you use a dual-band router, select the
2.4GHz network to add the device. You also
need to enable the router's broadcasting
function. Set encryption method as
WPA2-PSK and authorization type as AES or
set both on "auto".
5. Check if the WiFi signal is strong enough.
To maintain the signal strong, keep your
router and the smart device as close as
possible.
6. Wireless mode should be 802.11.b/g/n
7. Make sure you do not exceed the maximum
number of registered devices supported by
the app (150).
8. Check if the router's MAC filtering function
is enabled. If so, remove the device from the
filter list and make sure the router is not
prohibiting the device connection.
9. Make sure the WiFi password entered in
the app is correct.
EZ and AP connection modes:
Smart devices can be connected manually
using two modes:
EZ represents the easiest way of connecting
and enabling a smart device. You will need to
have the device, active wireless network
through with login password and Tellur
Smart APP installed on a smartphone /
tablet.
AP mode can be used to configure and enable
a smart device first with the smartphone /
tablet and later with the Wi-Fi network.
How to reset device?
1. Reset procedure for devices with reset
button (power strip, plugs etc.) -> Long press
the reset button for 5 seconds until the LED
indicator flashes, indicating successful reset.
If the LED indicator flashes quickly (2 times
per second), the device has entered EZ
pairing mode. If the indicator flashes slowly
(one time /3 seconds), the device has entered
AP pairing mode. Under EZ mode, press the
reset button for 5 seconds until the LED
flashes slowly, indicating the AP mode (and
vice versa).
2. Reset procedure for lighting devices ->
Start by turning off the lights. Switch light
following these exact steps: on-off-on-off-on
(the time interval between switches should
not exceed 10 seconds). When the lights are
flashing, the device has been successfully
reset. If the light is not flashing, repeat the
steps above. When the lights flash quickly (4
times/second), the device is in EZ mode. If
the lights flash slowly (2 times/3 seconds),
the device is in AP mode. Under EZ mode,
repeat the steps above until the light starts
flashing slowly, indicating that the device
has entered AP mode (and vice versa).
How to add device under EZ mode?
1. Make sure the LED indicator/light flashes
quickly.
2. Make sure the phone is connected to WiFi.
3. Tap "Add device" in Tellur Smart app and
enter the WiFi's network password.
4. In the device list, select the device you
want to pair and add it.
How to add device under AP mode?
1. Make sure the LED indicator/light flashes
slowly.
2. Tap "Add device" in Tellur Smart app and
select "AP mode" from the top-right corner.
Connect to the device's hotspot first and
then proceed to connect it to the WiFi
network.
3. Tap "Next" to add device.
Can I control the device with 2G/3G/4G
network?
When adding the device for the first time, the
device and the phone need to be connected to
the same WiFi network. Once the device has
been successfully paired with Tellur Smart
app, you can remotely control it via 2G/3G/4G
networks.
How can I share my device with family?
Open Tellur Smart app, go to "Profile" ->
"Device sharing" -> "Sharing sent", tap "Add
sharing" and share the device with the added
family members.
Notice - users must install the Tellur Smart
app on their device to see shared devices.
How can I manage the devices shared by
others?
Open App, go to "Profile" > "Device Sharing" >
"Sharings Received", then you can find the
devices shared by other users. To delete a
shared device, swipe left.
Alexa integration
1. Go to Home menu on Alexa app.
2. Select "Skills" / "Skills & Games".
3. Type Tellur Smart in the search bar.
4. Select Tellur Smart and click "Enable" to
activate Tellur Smart.

5. Enter your Tellur
Smart account and
password. Now you
have finished the
integration with
Alexa.
Tellur Smart app is
now skilled with
Alexa and you can
vocally control the
devices added in
Tellur
Remember - if you
rename your smart
devices, use a simple
name that Alexa can
recognize.
To control your smart devices through
Alexa, use simple and concise voice
commands. Here is an example for bedroom
lighting:
“Alexa, turn off bedroom light”
“Alexa, turn on bedroom light”
“Alexa, dim bedroom light”
“Alexa, set bedroom light to red”

Google Home integration
Before using Google Home to control your
devices, make sure you meet the following
conditions:
•You have a Google Home device or an
Android device with Google Assistant.
•You have the newest version of Google
Home app.
•You have the newest version of Google app
(Android only).
•The device display language is set to
English US.
•You have the Tellur Smart app and a related
account.
Add devices in Tellur Smart app (refer to app
instructions) – you can skip this part if you
have already added some devices to your
Tellur Smart account. Make sure your
devices' names are easily recognizable.

Link account in Home Control

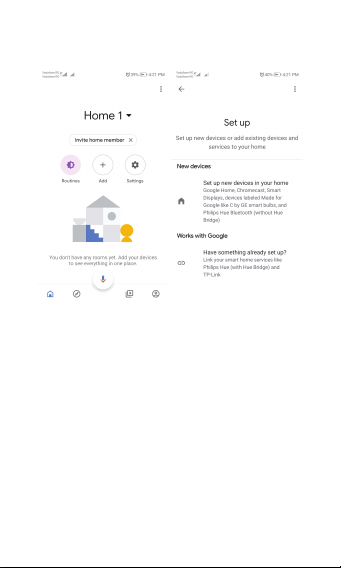

1.Go to Google Home's homepage and tap
"+".

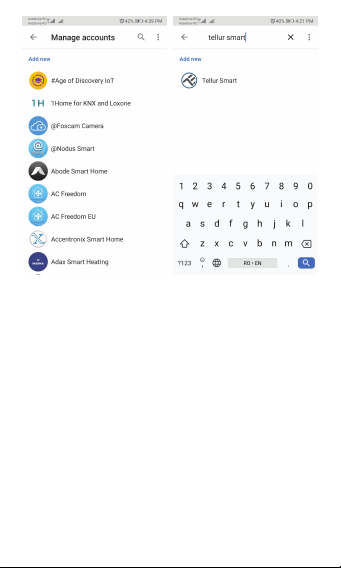

2. Hit the "Add new" button, enter Tellur
Smart in the search bar and select the app
from the list. Next, select your Tellur
Smart account's region, enter your Tellur
Smart account and password, and tap
"Link now". After you assign rooms for
devices, your devices will be listed in the
Home Control page.

Now you can control your smart devices
through Google Home. Take bedroom light
as example – the supported voice
commands are as below:
• Ok Google, turn on/off bedroom light.
• Ok Google, set bedroom light to 50
percent.
• Ok Google, brighten bedroom light.
• Ok Google, dim bedroom light.
• Ok Google, set bedroom light to red.

DISPOSAL AND RECYCLING INFORMATION
The crossed-out wheeled-bin symbol on your
product, battery, literature or packaging reminds
you that all electronic products and batteries must
be taken to separate waste collection points
at the end of their working lives; they must not be
disposed of in the normal waste stream with
household garbage. It is the responsibility of the
user to dispose of the equipment using a
designated collection point or service for separate
recycling of electrical and electronic equipment
waste (WEEE) and batteries according to local laws.
Proper collection and recycling of your
equipment helps ensure EEE waste is recycled in a
manner that conserves valuable materials and
protects human health and the environment.
Improper handling, accidental breakage,
damage, and/or improper recycling at the end of its
life may be harmful for health and environment.
