Teltonika TST100 Installation guide

Quick Manual
E-scooter tracker
TST100

2
TST100 | Wiki
Table of Contents
Table of Contents .......................................................................... 2
Know your device .......................................................................... 3
Pinout................................................................................................. 4
Set up your device......................................................................... 5
How to insert Micro-SIM card and connect the battery................ 5
PC Connection (Windows)............................................................... .5
How to install USB drivers (Windows)............................................. 6
Configuration (Windows) ................................................................. 6
Quick SMS configuration.................................................................. 8
Installation instructions............................................................... 9
LED indications ............................................................................ 10
Characteristics............................................................................. 10
Basic characteristics ....................................................................... 10
Electrical characteristics................................................................. 11
Safety information...................................................................... 12
Certification and Approvals ....................................................... 13

3
TST100 | Wiki
Know your device
Figure 1 TST100 device view

4
TST100 | Wiki
Pinout
Table 1 TST100 pinout
Pinname
Description
VCC (8-50)V
Power supply (8-50) V DC (+).
GND (-)
Ground pin. (8-50) V DC (-)
Power control wire
RX
Data received pin
TX
Data transmitter pin

5
TST100 | Wiki

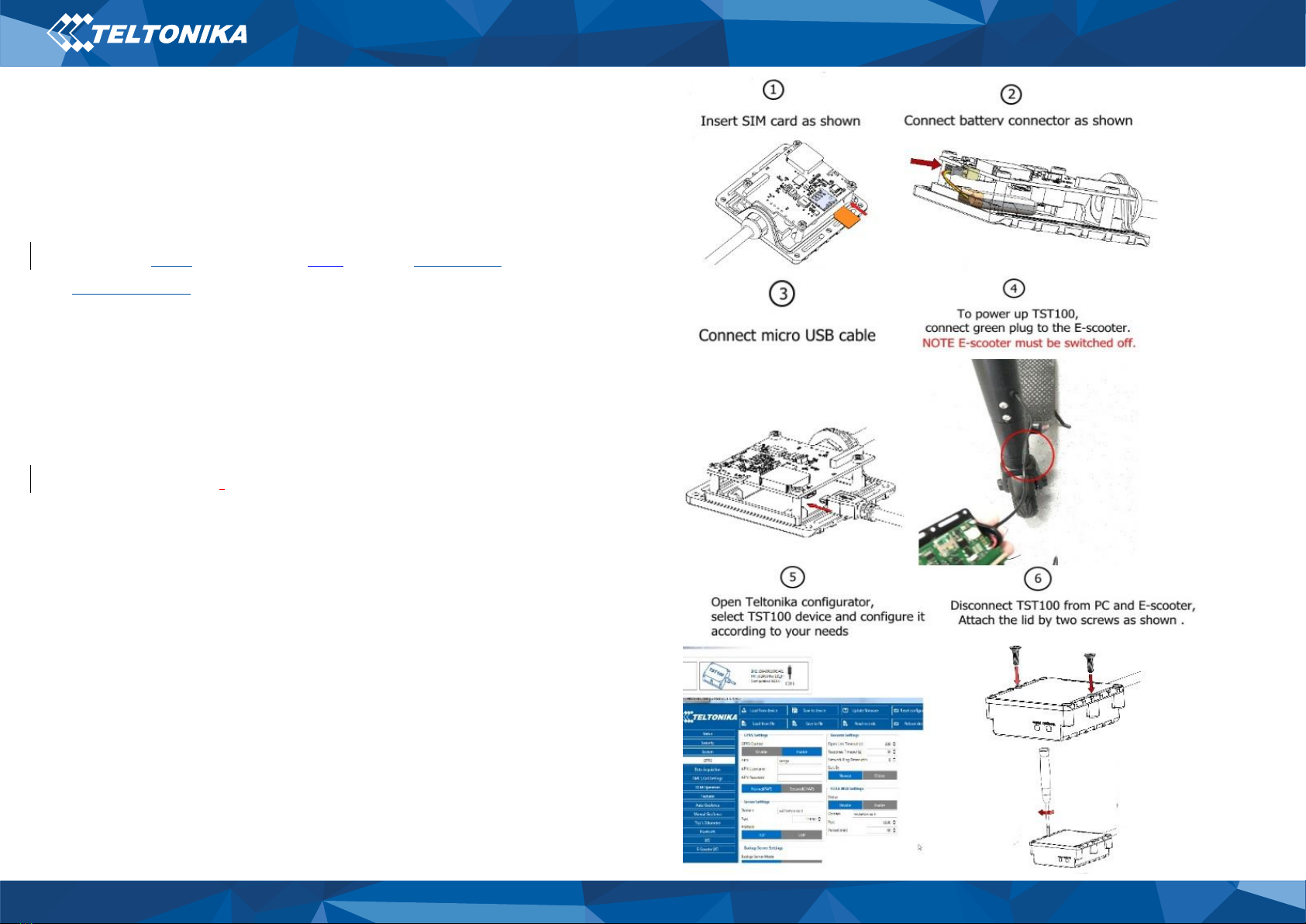

Set up your device
1. Insert Micro-SIM card as shown with PIN request disabled or
read our Wiki how to enter PIN later in Teltonika
Configurator. Make sure that Micro-SIM card cut-off corner is
pointing forward to slot.
2. Connect battery as shown to device.
3. Connect micro usb cable as shown
4. To power up TST100, connect green plug to the E-scooter
5. Open Teltonika configurator, select TST100 device and
configure it according to your requirements (how to install
drives on page 6).
6. Once all done, disconnect TST100 from PC and E-scooter. Attach
the lid by two screws as shown
NOTE: E-scoter Firmware should be V3.1.1 or higher. Please
contact Segway-Ninebot for firmware updates.
How to insert Micro-SIM card and
connect the battery

6
TST100 | Wiki
How to install USB drivers
(Windows)
1. Please download COM port drivers from here.
2. Extract and run TeltonikaCOMDriver.exe.
3. Click Next in driver installation window.
4. In the following window click Install button.
Setup will
continue
installing the driver
and eventually the
confirmation window will appear. Click Finish to complete the
setup.

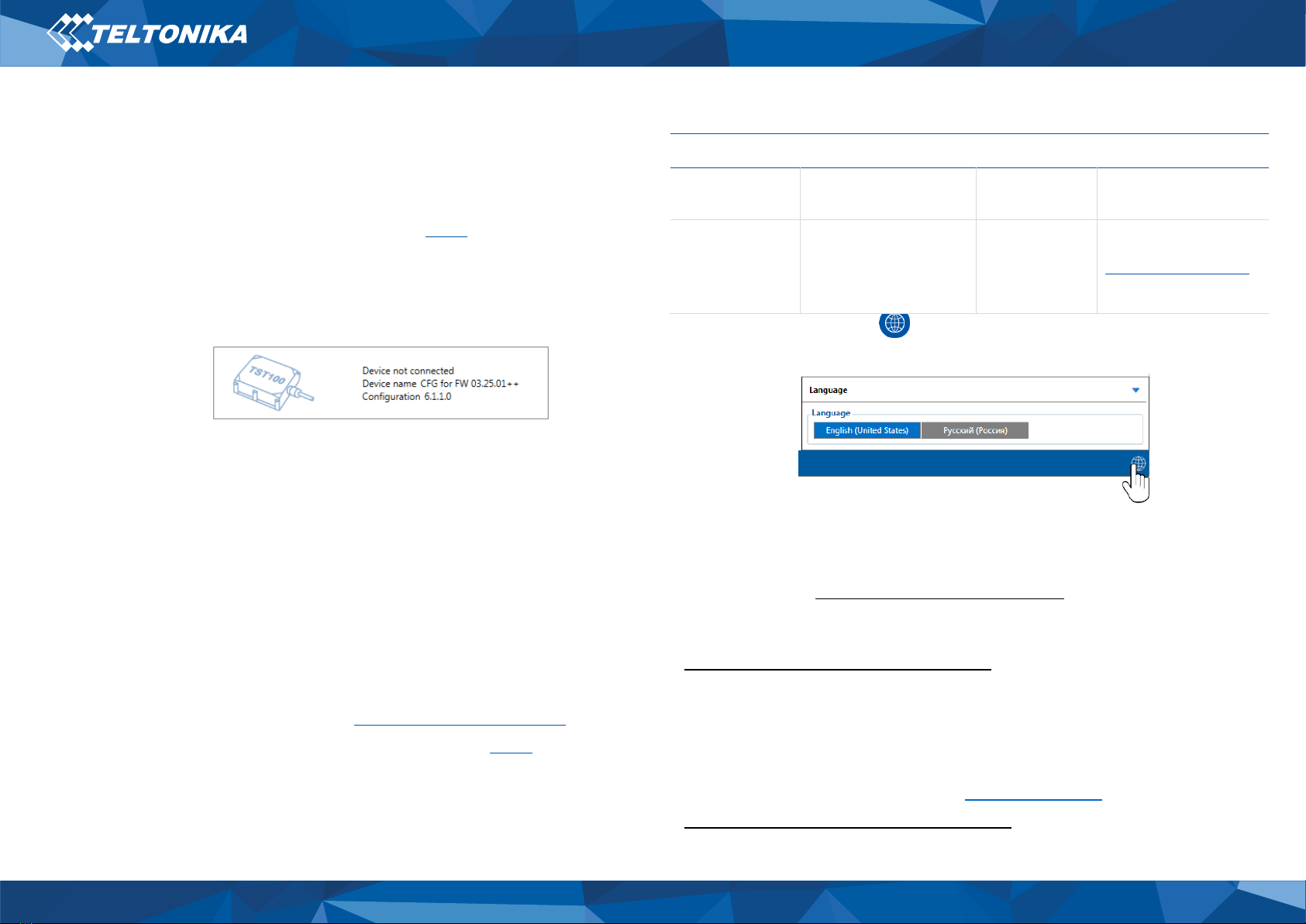

Configuration (Windows)
At first TST100 device will have default factory settings set. These
settings should be changed according to the user's needs. Main
configuration can be performed via Teltonika Configurator
software. Get the latest Configurator version from here.
Configurator operates on Microsoft Windows OS and uses
prerequisite MS .NET Framework. Make sure you have the correct
version installed.
Table 2 MS .NET requirements
MS.NETrequirements
Operating
system
MS .NET Framework
version
Version
Links
Windows Vista
Windows 7
Windows 8.1
Windows 10
MS .NET Framework
4.6.2
32 and 64 bit
www.microsoft.com
Downloaded Configurator will be in compressed
archive. Extract it and launch Configurator.exe. After launch
software language can be changed by clicking in the right
bottom corner (Figure 2 Language selection).
Configuration process begins by pressing on connected device
(Figure 4 Device connected via USB).
After connection to Configurator Status window will be displayed
(Figure 3 Configurator Status window).
Figure 2 Language selection

7
TST100 | Wiki

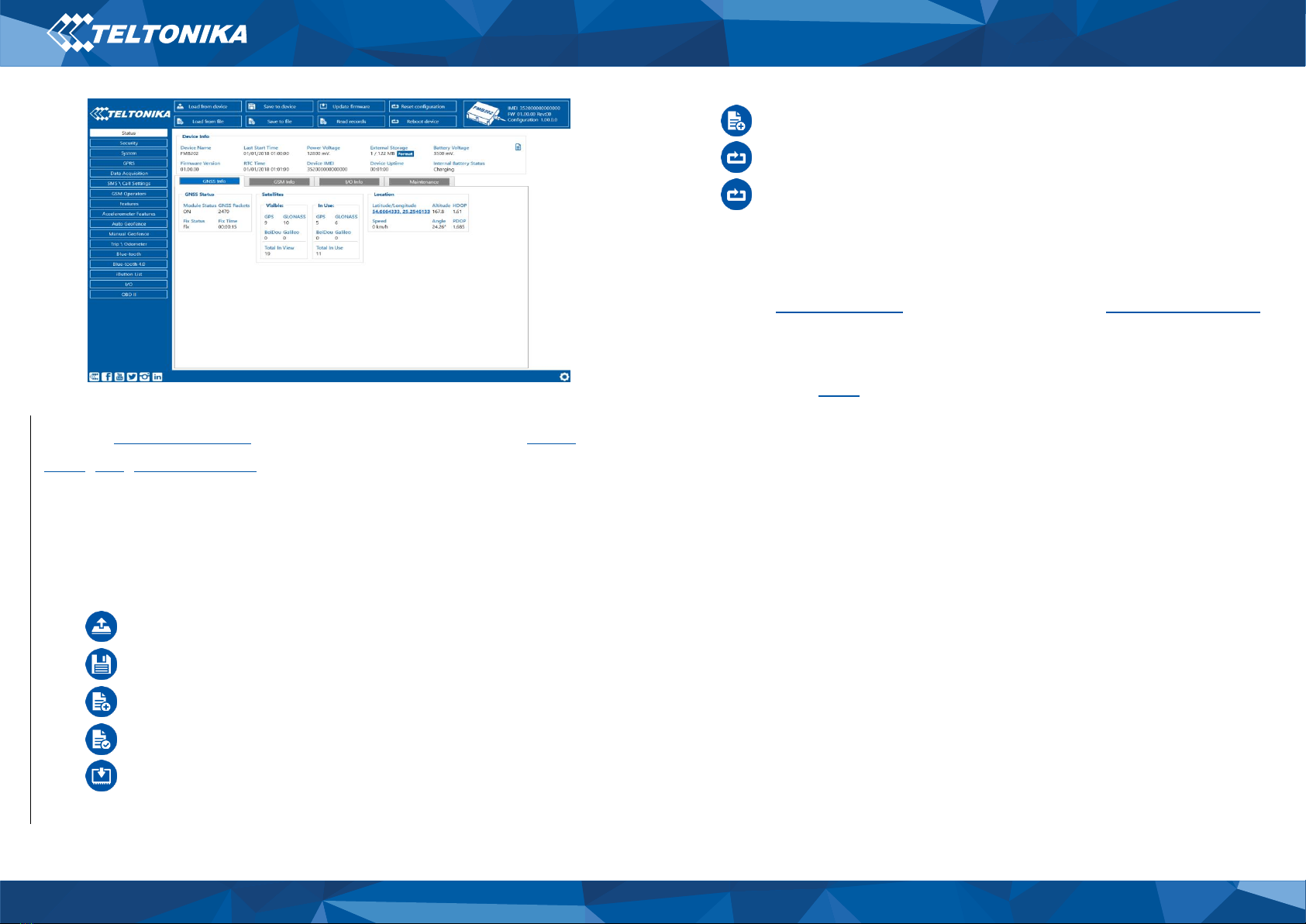

Various Status window tabs display information about GNSS,
GSM,I/O, Maintenance and etc. FMB202 has one user editable
profile, which can be loaded and saved to the device. After any
modification of configuration the changes need to be saved to
device using Save to device button. Main buttons offer following
functionality:
1. Load from device –loads configuration from device.
2. Save to device –saves configuration to device.
3. Load from file –loads configuration from file.
4. Save to file –saves configuration to file.
5. Update firmware –updates firmware on device.
6. Read records –reads records from the device.
7. Reboot device –restarts device.
8. Reset configuration –sets device configuration to
default.
Most important configurator section is GPRS –where all your
server and GPRS settings can be configured and Data Acquisition
–where data acquiring parameters can be configured.
More details about FMB202 configuration using Configurator can
be found in our Wiki.
Figure 4 Device connected via USB
Figure 3 Configurator Status window

8
TST100 | Wiki

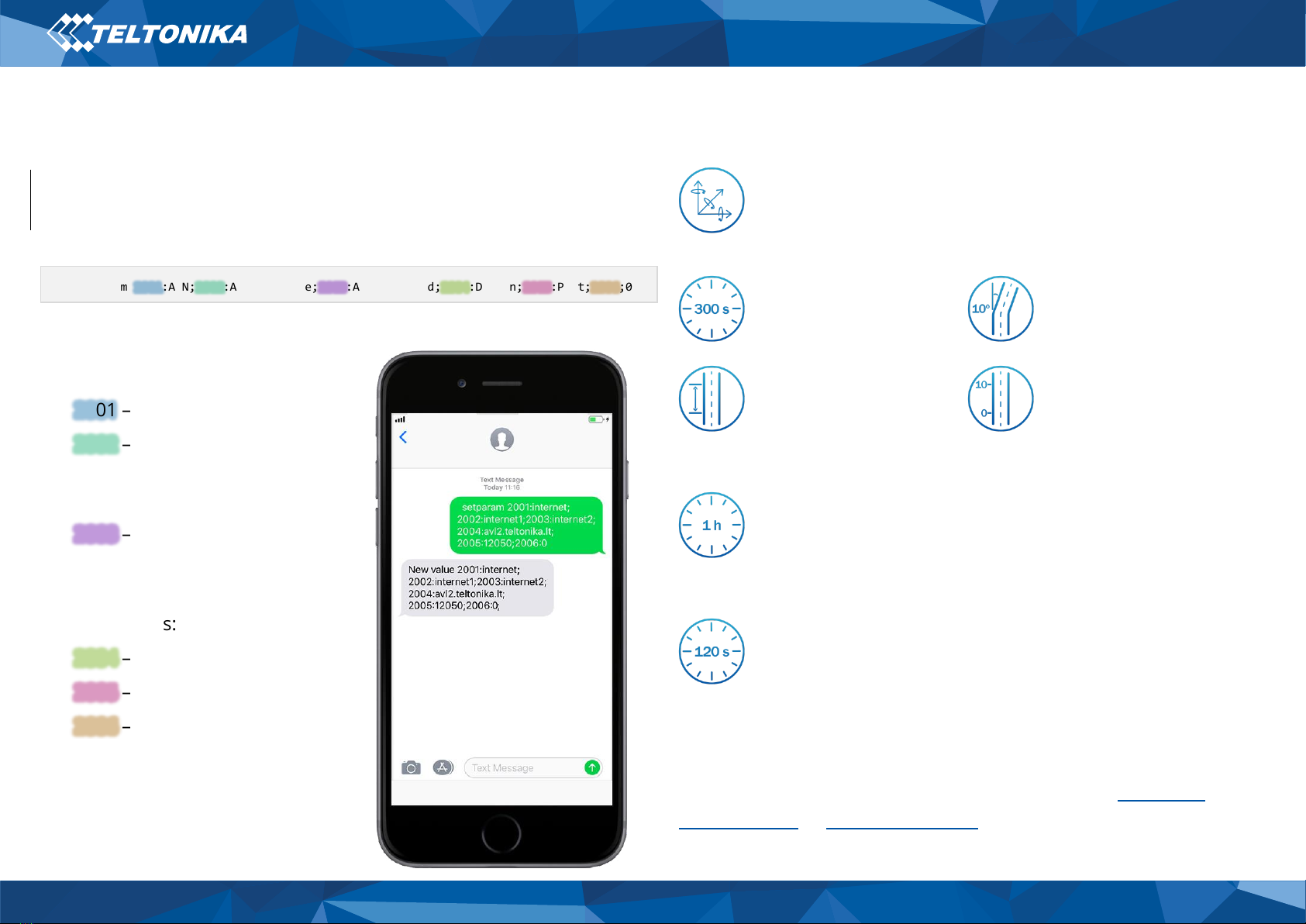

Quick SMS configuration
Default configuration has optimal parameters present to ensure
best performance of track quality and data usage.
Quickly set up your device by sending this SMS command to it:
Note: Before SMS text, two space symbols should be inserted.
GPRS settings:

2001
–APN
–APN username (if there
2002
are no APN username, empty
field should be left)
–APN password (if there
2003
are no APN password, empty
field should be left)
Server settings:
–Domain
2004
–Port
2005
–Data sending protocol
2006
(0 –TCP, 1 –UDP)
Default configuration settings
Movement and ignition detection:
E-scooter movement
will be detected by
accelerometer
Device makes a record On Moving if one of these events happen:
300 seconds passes
E-Scooter turns 10
degrees
E-scooter moves 100
meters
Speed difference
between last coordinate
and current position is
greater than 10 km/h
Device makes a record On Stop if:
1 hour passes while E-
scooter is stationary
and switched is off
Records sending to server:
If device has made a
record it is sent to the
server every 120
seconds
After successful SMS configurationTST100 device will synchronize
time and update records to configured server. Time intervals
and default I/O elements can be changed by using Teltonika
Configurator or SMS parameters.
" setparam :APN;
2001
:APN_username;
2002
:APN_password;
2003
:Domain;
2004
:Port;
2005
;0"
2006

9
TST100 | Wiki
Installation instructions
PAY ATTENTION! E-scotter should be
swithched off when connecting TST100 plug.
To avoid any damage double check if cable
and plug are placed correctly before
attaching bracket to the
E-scooter .

10
TST100 | Wiki
LED indications
Table 3 Navigation LED indications
Table 4 Status LED indications
Behaviour
Meaning
Permanently switched on
GNSS signal is not received
Blinking every second
Normal mode, GNSS is working
Off
GNSS is turned off because:
Device is not working or Device is in
sleep mode
Blinking fast constantly
Device firmware is being flashed
Characteristics
Basic characteristics
Table 5 Basic characteristics
Module
Name
TM2500
Technology
GSM, GPRS, GNSS, BLUETOOTH
GNSS
GNSS
GPS, GLONASS, GALILEO, BEIDOU,
SBAS, QZSS, DGPS, AGPS
Receiver
33 channel
Tracking sensitivity
-165 dBM
Accuracy
< 3 m
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
Cellular
Technology
GSM
2G bands
Quad-band 850 / 900 / 1800 / 1900
MHz
Data transfer
GPRS Multi-Slot Class 12 (up to 240
kbps), GPRS Mobile Station Class B
Data support
SMS (text/data)
Behaviour
Meaning
Blinking every second
Normal mode
Blinking every two seconds
Sleep mode
Blinking fast for a short time
Modem activity
Off
Device is not working or Device is in
boot mode

11
TST100 | Wiki
Power
Input voltage range
8-50 V DC with overvoltage protection
Back-up battery
170 mAh Li-ion battery 3.7 V
Power consumption
TBD
Interface
RX
1
TX
1
Power control wire
1
GNSS antenna
Internal High Gain
GSM antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
2 status LED lights
SIM
Micro-SIM
Memory
128MB internal flash memory
Physicalspecification
Dimensions
78X75X70 (L,W,H)
Weight
250 g
Operatingenvironment
Operating temperature (without
battery)
TBD
Storage temperature (without battery)
TBD
Operating humidity
TBD
Ingress Protection Rating
IP65
Features
Sensors
Accelerometer
Scenarios
Jamming detection, Unplug detection,
Drop down detection, Auto Geofence,
Manual Geofence, Trip start and stop
detection
Sleep modes
GPS Sleep, Online Deep Sleep, Deep
Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika
Configurator (USB),
SMS
Configuration, Events, DOUT control,
Debug
GPRS commands
Configuration, DOUT control, Debug
Time Synchronization
GPS, NITZ, NTP
Electrical characteristics
Table 6 Electrical characteristics
Characteristicdescription
Value
Min.
Typ.
Max.
Unit
SupplyVoltage
Supply Voltage (Recommended Operating
Conditions)
+8
+50
V

12
TST100 | Wiki
Safety information
This message contains information on how to operate TST100 safely. By
following these requirements and recommendations, you will avoid
dangerous situations. You must read these instructions carefully and
follow them strictly before operating the device!
The device uses SELV limited power source. The nominal voltage is
+42 V DC. The allowed voltage range is +8..+50 V DC.
To avoid mechanical damage, it is advised to transport the device in
an impact-proof package.
Do not disassemble the device. If the device is
damaged, the power supply cables are not isolated or
the isolation is damaged, DO NOT touch the device
before unplugging the power supply.
All wireless data transferring devices produce
interference that may affect other devices which are
placed nearby.
The device must be connected only by qualified
personnel.
The device must be firmly fastened in a predefined
location.
The programming must be performed using a PC with
autonomic power supply.
Installation and/or handling during a lightning storm
is prohibited.
The device is susceptible to water and humidity if the
device housing is not properly closed.
Risk of explosion if battery is replaced by an incorrect
type. Dispose of used batteries according to the
instructions.
Battery should not be disposed of with general
household waste. Bring damaged or worn-out
batteries to your local recycling center or dispose
them to battery recycle bin found in stores.

13
TST100 | Wiki
Certification and Approvals
FMB202 Declaration of IMEI assignment
FMB202 RoHS
This sign on the package means that it is
necessary to read the User‘s Manual before
your start using the device. Full User‘s
Manual version can be found in our Wiki.
This sign on the package means that all used
electronic and electric equipment should not
be mixed with general household waste.
Hereby, Teltonika declare under our sole
responsibility that the above described
product is in conformity with the relevant
Community harmonization: European
Directive 2014/53/EU (RED).

14
TST100 | Wiki
