Telycam TLC-700-S User manual

TLC-700-S
HD PTZ Video Camera
User Manual
Version V1.0
(English)
All manuals and user guides at all-guides.com
all-guides.com

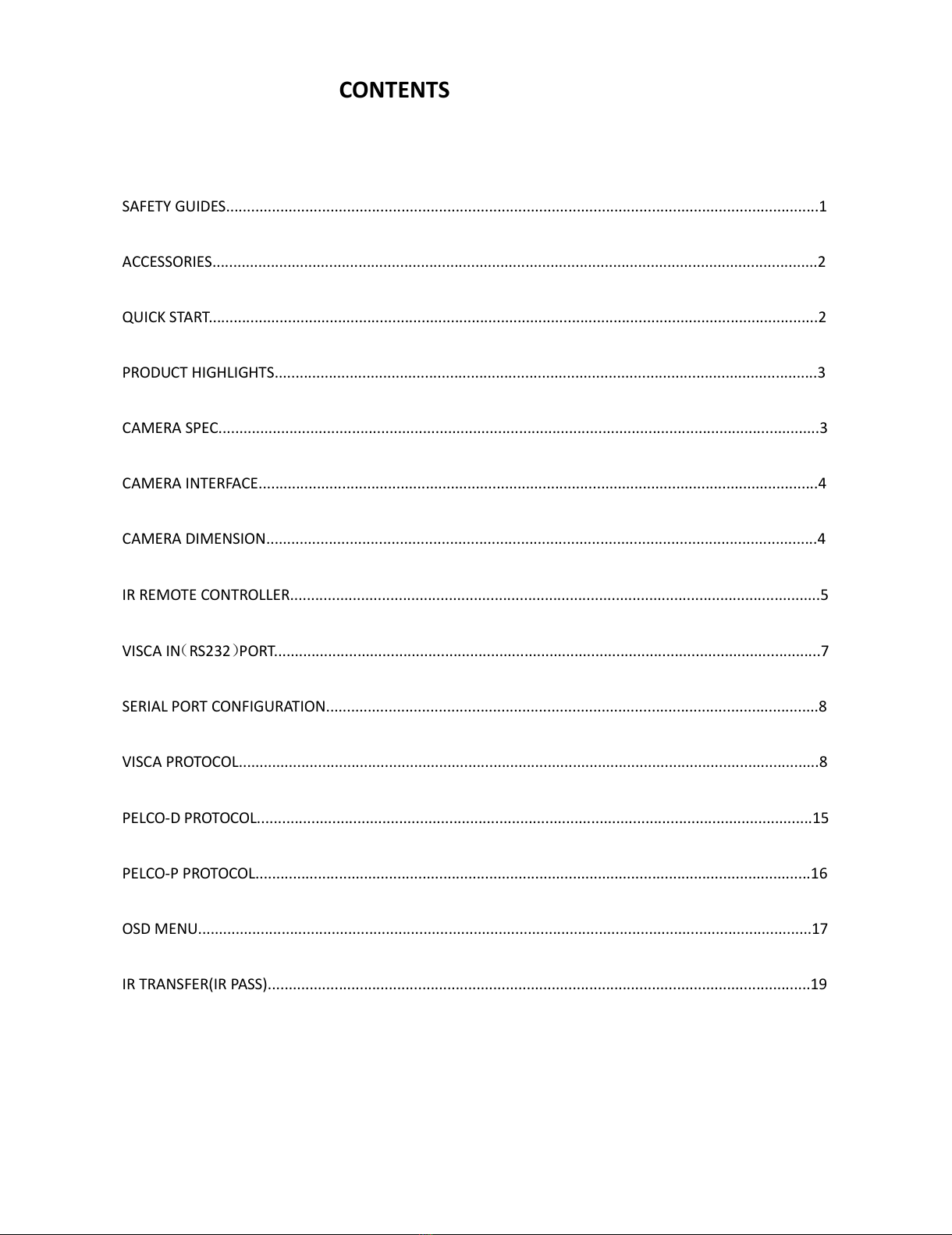

CONTENTS
SAFETY GUIDES..............................................................................................................................................1
ACCESSORIES.................................................................................................................................................2
QUICK START..................................................................................................................................................2
PRODUCT HIGHLIGHTS..................................................................................................................................3
CAMERA SPEC................................................................................................................................................3
CAMERA INTERFACE......................................................................................................................................4
CAMERA DIMENSION....................................................................................................................................4
IR REMOTE CONTROLLER...............................................................................................................................5
VISCA IN(RS232)PORT...................................................................................................................................7
SERIAL PORT CONFIGURATION......................................................................................................................8
VISCA PROTOCOL...........................................................................................................................................8
PELCO-D PROTOCOL.....................................................................................................................................15

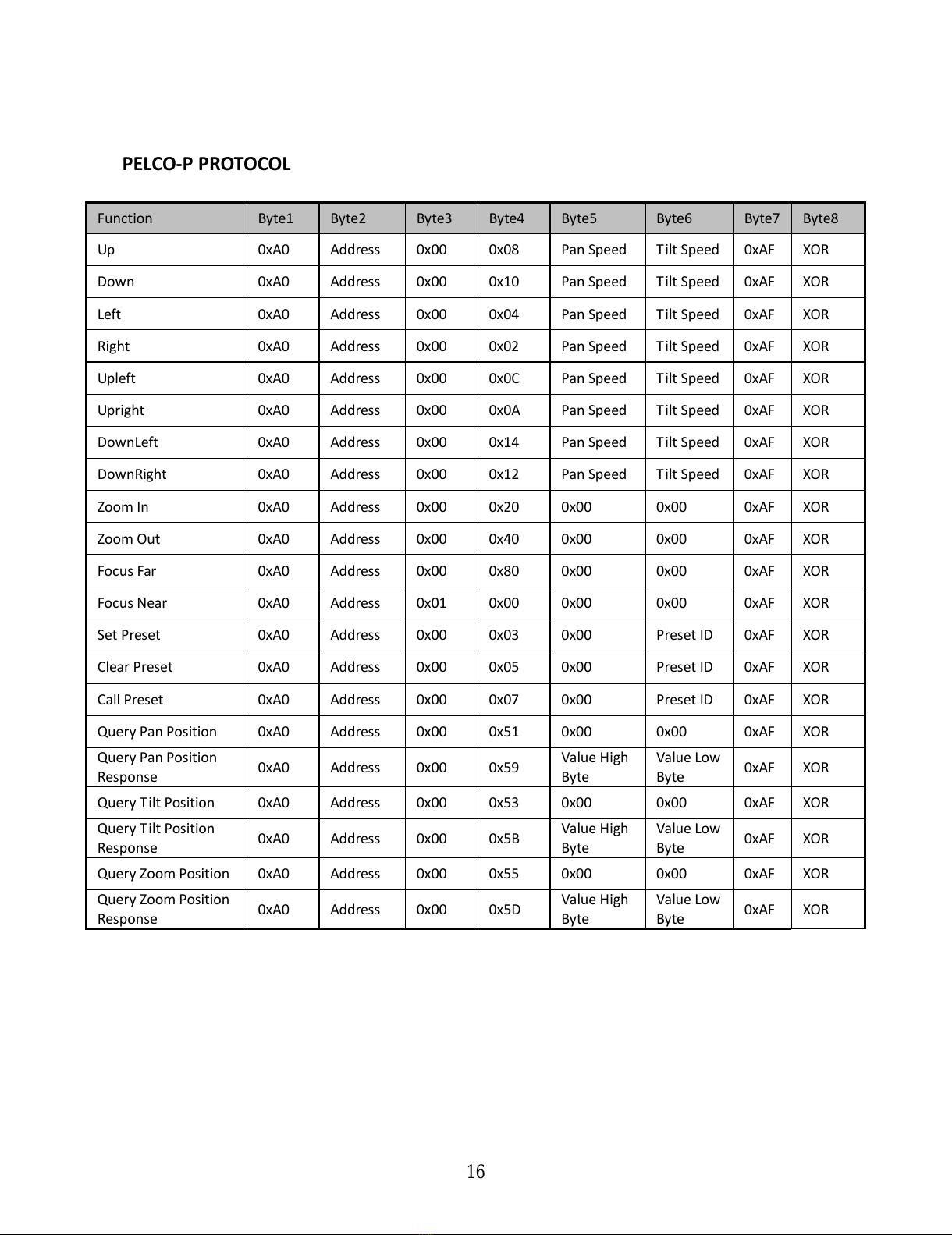

PELCO-P PROTOCOL.....................................................................................................................................16

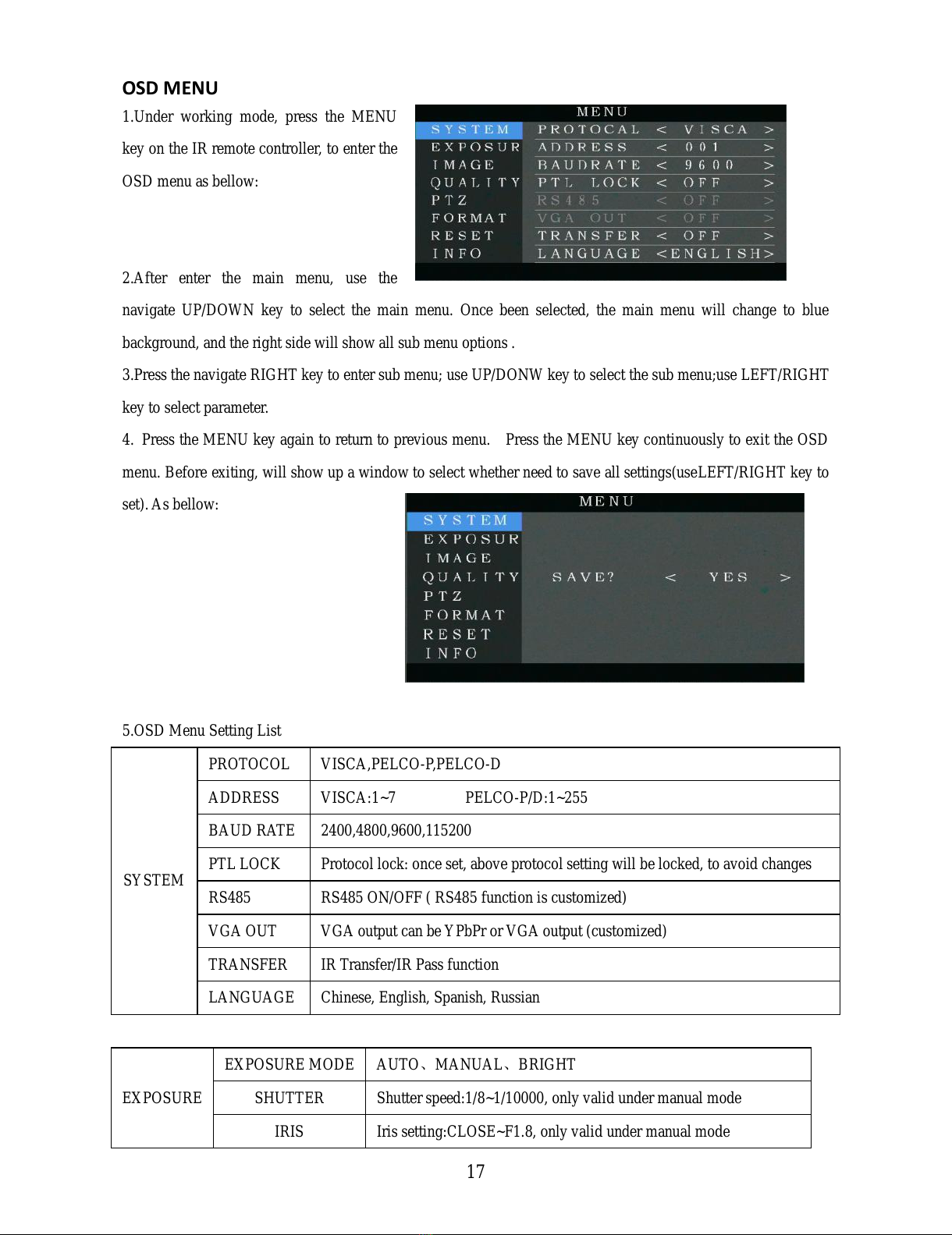

OSD MENU...................................................................................................................................................17
IR TRANSFER(IR PASS)..................................................................................................................................19
All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com

1
SAFETY GUIDES
1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this
manual with the camera.
2.The camera power input range is 100-240VAC(50-60Hz),ensure the power supply input within this rate before
powering on.
3.The camera power voltage is 12VDC, rated currency is 2A. We suggest you use it with the original power
supply adapter supplied by the factory.
4.Please keep the power cable, video cable and control cable in a safe place. Protect all cables especially the
connectors.
5.Operational environment: 0℃-50℃, humidity less than 90%.To avoid any danger, do not put anything inside
the camera, and keep away from the corrosive liquid.
6.Avoid stress, vibration and damp during transportation, storage and installation.
7.Do not detetch the camera housing and cover. For any service, please contact authorized technicians.
8.RF cable and control cable should be individually shielded, and cannot be substituted with other cables. Do not
direct the camera lens towards strong light, such as the sun or the intensive light.
9.Use a dry and soft cloth to clean the camera housing. Applied with neutral cleaning agent when there is need to
clean. To avoid damage on the camera lens, never use strong or abrasive cleaning agents on the camera housing.
10.Do not move the camera by holding the camera head. To avoid mechanical trouble, do not rotate the camera
head by hand.
11.Put the camera on fixed and smooth desk or platform, avoid leaned installation.
12. Power Supply Polarity(Drawing)
Note: the video quality may be affected by the specific frequencies of electromagnetic filed.
All manuals and user guides at all-guides.com

2

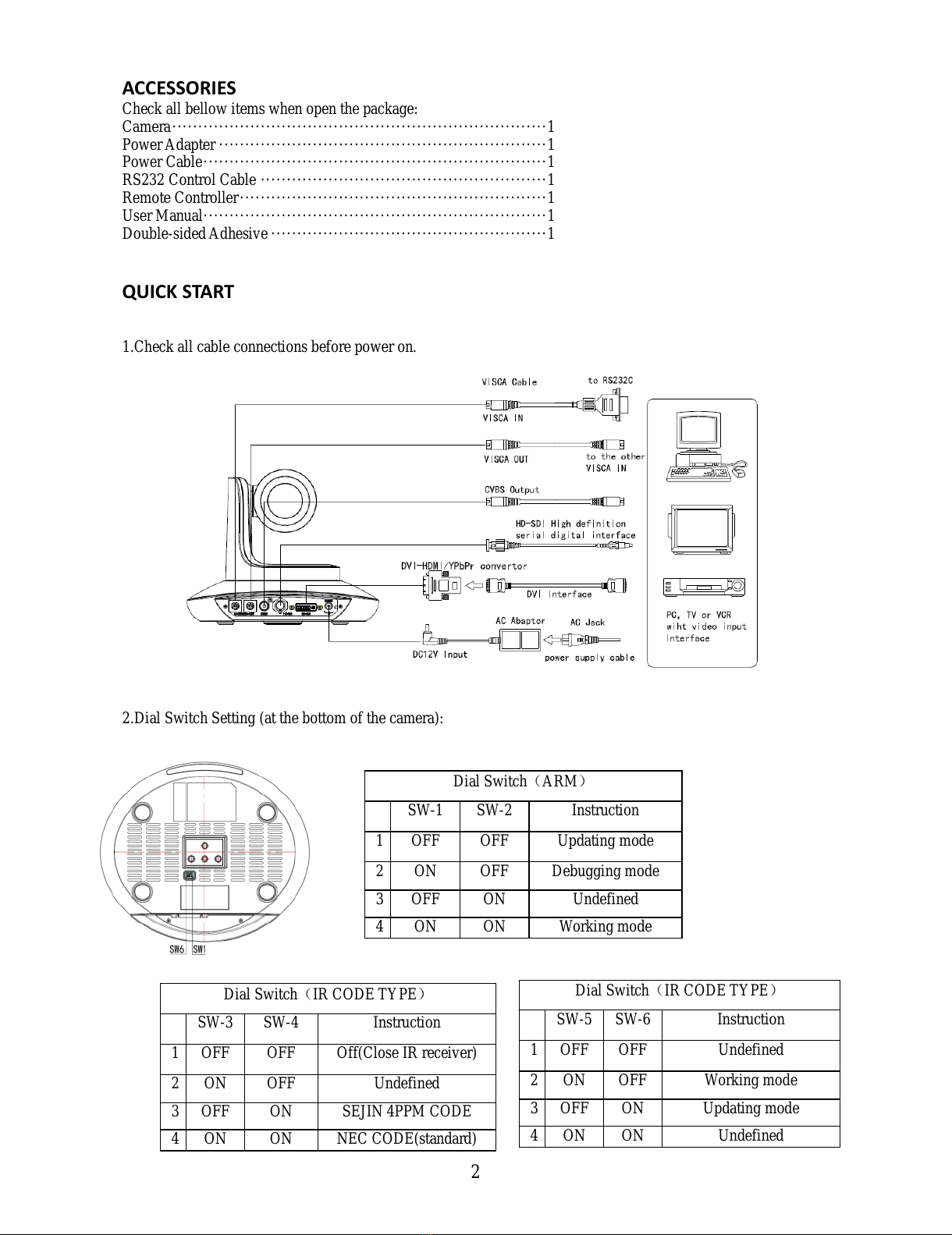

ACCESSORIES
Check all bellow items when open the package:
Camera········································································1
Power Adapter ·······························································1
Power Cable··································································1
RS232 Control Cable ·······················································1
Remote Controller···························································1
User Manual··································································1
Double-sided Adhesive ·····················································1
QUICK START
1.Check all cable connections before power on.
2.Dial Switch Setting (at the bottom of the camera):
Dial Switch(ARM)
SW-1
SW-2
Instruction
1
OFF
OFF
Updating mode
2
ON
OFF
Debugging mode
3
OFF
ON
Undefined
4
ON
ON
Working mode
Dial Switch(IR CODE TYPE)
SW-3
SW-4
Instruction
1
OFF
OFF
Off(Close IR receiver)
2
ON
OFF
Undefined
3
OFF
ON
SEJIN 4PPM CODE
4
ON
ON
NEC CODE(standard)
Dial Switch(IR CODE TYPE)
SW-5
SW-6
Instruction
1
OFF
OFF
Undefined
2
ON
OFF
Working mode
3
OFF
ON
Updating mode
4
ON
ON
Undefined
All manuals and user guides at all-guides.com

3

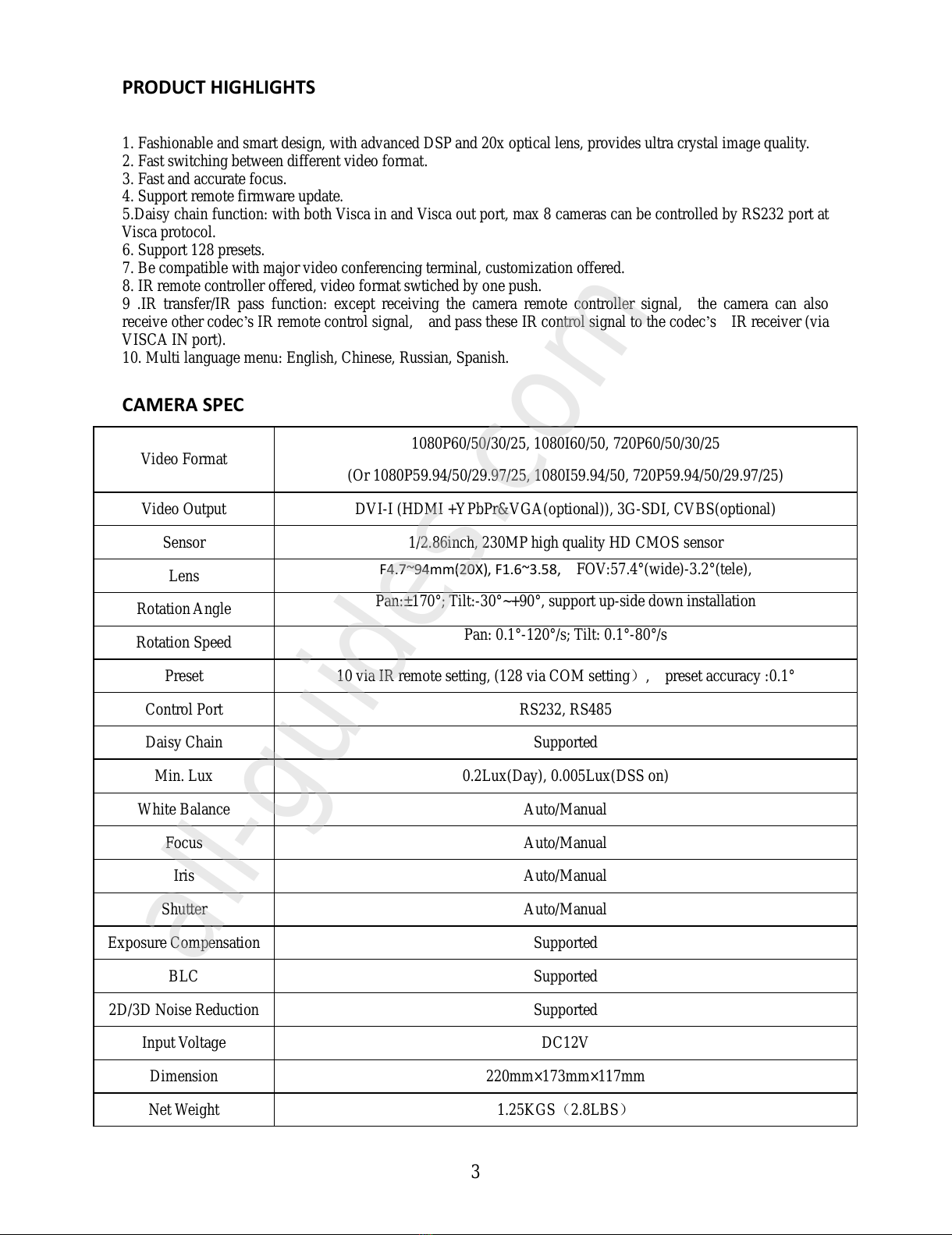

PRODUCT HIGHLIGHTS
1. Fashionable and smart design, with advanced DSP and 20x optical lens, provides ultra crystal image quality.
2. Fast switching between different video format.
3. Fast and accurate focus.
4. Support remote firmware update.
5.Daisy chain function: with both Visca in and Visca out port, max 8 cameras can be controlled by RS232 port at
Visca protocol.
6. Support 128 presets.
7. Be compatible with major video conferencing terminal, customization offered.
8. IR remote controller offered, video format swtiched by one push.
9 .IR transfer/IR pass function: except receiving the camera remote controller signal, the camera can also
receive other codec’s IR remote control signal, and pass these IR control signal to the codec’s IR receiver (via
VISCA IN port).
10. Multi language menu: English, Chinese, Russian, Spanish.
CAMERA SPEC
Video Format
1080P60/50/30/25, 1080I60/50, 720P60/50/30/25
(Or 1080P59.94/50/29.97/25, 1080I59.94/50, 720P59.94/50/29.97/25)
Video Output
DVI-I (HDMI +YPbPr&VGA(optional)), 3G-SDI, CVBS(optional)
Sensor
1/2.86inch, 230MP high quality HD CMOS sensor
Lens
F4.7~94mm(20X), F1.6~3.58, FOV:57.4°( wide)-3.2°( tele),
Rotation Angle
Pan:±170°; Tilt:-30°~+90°, support up-side down installation
Rotation Speed
Pan: 0.1°-120°/s; Tilt: 0.1°-80°/s
Preset
10 via IR remote setting, (128 via COM setting), preset accuracy :0.1°
Control Port
RS232, RS485
Daisy Chain
Supported
Min. Lux
0.2Lux(Day), 0.005Lux(DSS on)
White Balance
Auto/Manual
Focus
Auto/Manual
Iris
Auto/Manual
Shutter
Auto/Manual
Exposure Compensation
Supported
BLC
Supported
2D/3D Noise Reduction
Supported
Input Voltage
DC12V
Dimension
220mm×173mm×117mm
Net Weight
1.25KGS(2.8LBS)
All manuals and user guides at all-guides.com
all-guides.com

4
CAMERA INTERFACE
1.Camera Lens 5.Dial Switch 9.VISCA OUT port
2.Camera Base 6. Tripod Screw Hole 10.CVBS port
3.IR Receiver Panel 7. Installation Hole 11.HD-SDI port
4.Power Indicator Light 8.VISCA IN port 12. DVI-I port
5.Power Input 12VDC 14. Power Indicator Light 13.Power Jark
CAMERA DIMENSION(MM)
All manuals and user guides at all-guides.com

5
IR REMOTE CONTROLLER
POWER
Under normal working mode, short press POWER key, the camera
will enter stand by mode;
Press it again, the camera will do self-configuration, then go back
to HOME position.
It will go to preset position if power on model has been set before.
FREEZE (Not Supported)
Short press FREEZE key to freeze/ unfreeze the image.
IRT(IR Transfer/IR Pass)
Open or close the IR pass function. Once press the IRT key, the
camera will receive and
pass the IR remote control signal to the codec/terminal(via VISCA
IN port).
SET 1~SET4 ADDRESS SETTING
Long press for 3seconds until the key light ON, to set camera address.
CAM1~CAM4(CAMERASELECTING)
Short press to select the relative camera.
NUMBER KEY(1-9)
Set preset: long press(3 seconds) the number key to set preset.
Run preset: Short press the number key to run preset.
CLR PRE(CLEAR PRESET)
CLR PRE+ number key: to clear the relative preset.
Long press to clear all preset.
LEARN
Reserved, not available now.
All manuals and user guides at all-guides.com

6

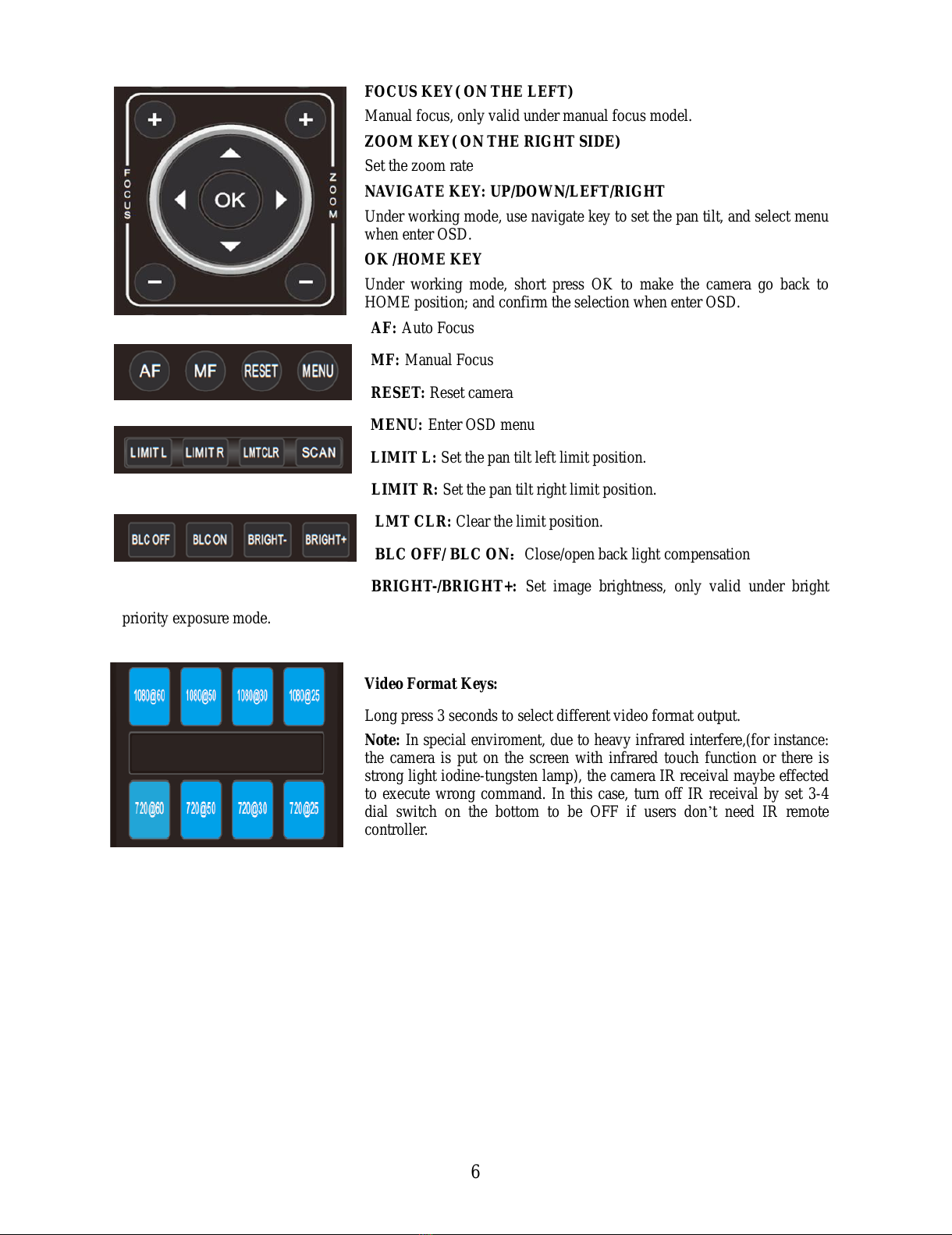

FOCUS KEY( ON THE LEFT)
Manual focus, only valid under manual focus model.
ZOOM KEY( ON THE RIGHT SIDE)
Set the zoom rate
NAVIGATE KEY: UP/DOWN/LEFT/RIGHT
Under working mode, use navigate key to set the pan tilt, and select menu
when enter OSD.
OK /HOME KEY
Under working mode, short press OK to make the camera go back to
HOME position; and confirm the selection when enter OSD.
AF: Auto Focus
MF: Manual Focus
RESET: Reset camera
MENU: Enter OSD menu
LIMIT L: Set the pan tilt left limit position.
LIMIT R: Set the pan tilt right limit position.
LMT CLR: Clear the limit position.
BLC OFF/ BLC ON:Close/open back light compensation
BRIGHT-/BRIGHT+: Set image brightness, only valid under bright
priority exposure mode.
Video Format Keys:
Long press 3 seconds to select different video format output.
Note: In special enviroment, due to heavy infrared interfere,(for instance:
the camera is put on the screen with infrared touch function or there is
strong light iodine-tungsten lamp), the camera IR receival maybe effected
to execute wrong command. In this case, turn off IR receival by set 3-4
dial switch on the bottom to be OFF if users don’t need IR remote
controller.
All manuals and user guides at all-guides.com

7

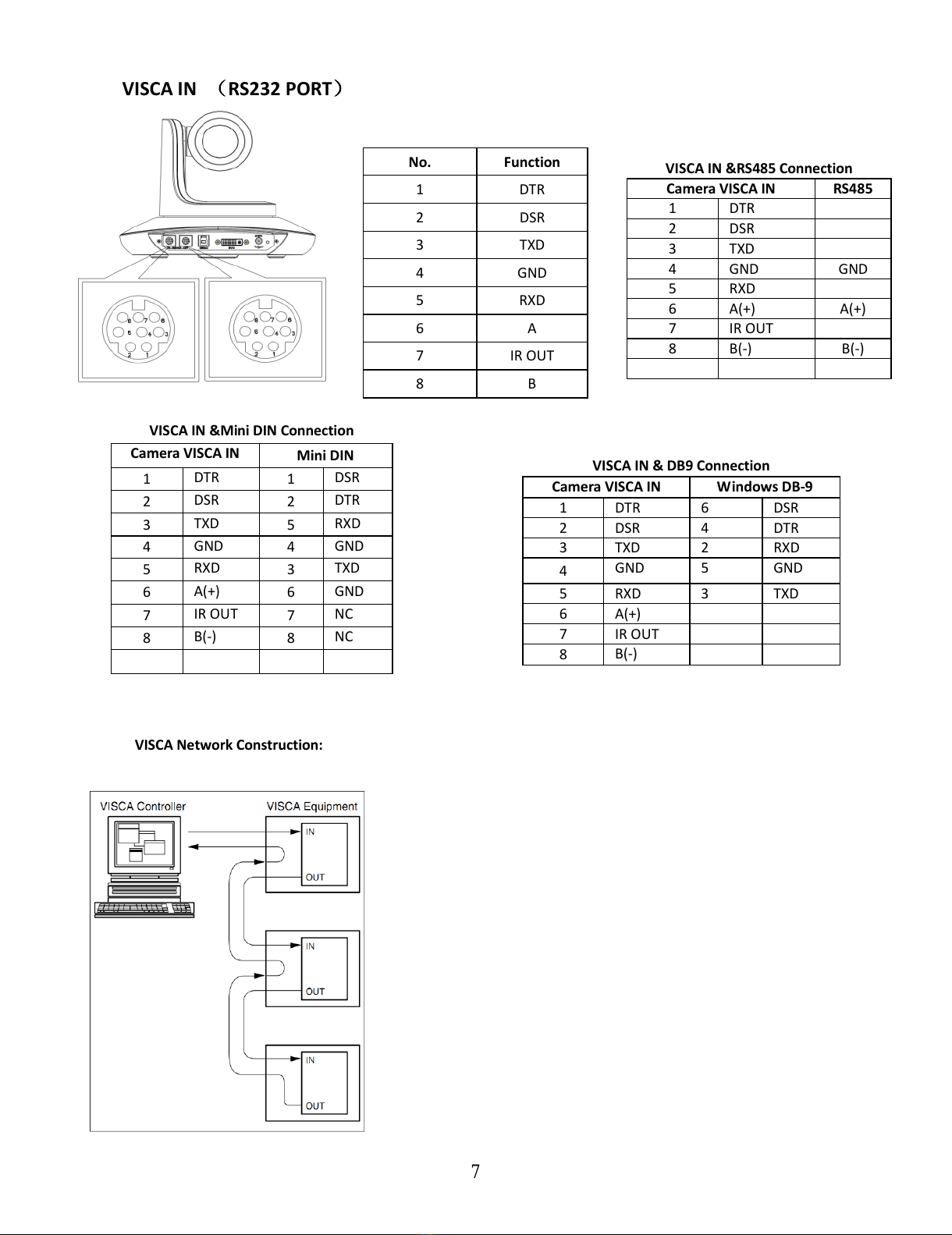

VISCA IN (RS232 PORT)
VISCA Network Construction:
No.
Function
1
DTR
2
DSR
3
TXD
4
GND
5
RXD
6
A
7
IR OUT
8
B
VISCA IN &RS485 Connection
Camera VISCA IN
RS485
1
DTR
2
DSR
3
TXD
4
GND
GND
5
RXD
6
A(+)
A(+)
7
IR OUT
8
B(-)
B(-)
VISCA IN &Mini DIN Connection
Camera VISCA IN
Mini DIN
1
DTR
1
DSR
2
DSR
2
DTR
3
TXD
5
RXD
4
GND
4
GND
5
RXD
3
TXD
6
A(+)
6
GND
7
IR OUT
7
NC
8
B(-)
8
NC
VISCA IN & DB9 Connection
Camera VISCA IN
Windows DB-9
1
DTR
6
DSR
2
DSR
4
DTR
3
TXD
2
RXD
4
GND
5
GND
5
RXD
3
TXD
6
A(+)
7
IR OUT
8
B(-)
All manuals and user guides at all-guides.com

8
SERIAL PORT CONFIGURATION
VISCA PROTOCOL
Part1 Camera Return Command
Ack/Completion Message
Command Packet
Note
ACK
z0 41 FF
Returned when the command is accepted.
Completion
z0 51 FF
Returned when the command has been executed.
z = camera adderss+8
Part 2 Camera Control Command
Command
Funnation
Command Packet
Note
AddressSet
Broadcast
88 30 01 FF
Address setting
IF_Clear
Broadcast
88 01 00 01 FF
I/F Clear
CommandCancel
8x 21 FF
CAM_Power
On
8x 01 04 00 02 FF
Power ON/OFF
Off
8x 01 04 00 03 FF
CAM_Zoom
Stop
8x 01 04 07 00 FF
Tele(Standard)
8x 01 04 07 02 FF
Wide(Standard)
8x 01 04 07 03 FF
Tele(Variable)
8x 01 04 07 2p FF
p = 0(low)~7(high)
Wide(Variable)
8x 01 04 07 3p FF
Direct
8x 01 04 47 0p 0q 0r 0s FF
pqrs: Zoom Position (0(wide)
~0x4000(tele))
CAM_Focus
Stop
8x 01 04 08 00 FF
Far(Standard)
8x 01 04 08 02 FF
Near(Standard)
8x 01 04 08 03 FF
Parameter
Value
Parameter
Value
Baud rate
2400/4800/9600/115200
Stop Bit
1bit
Start Bit
1 bit
Check Bit
None
Date Bit
8 bit
Error Messages
Command
Packet
Note
Syntax Error
z0 60 02 FF
Returned when the command format is different or when a command with
illegal command parameters is accepted.
Command Not
Executable
z0 61 41 FF
Returned when a command cannot be executed due to current conditions.
For example, when commands controlling the focus manually are received
during auto focus.
All manuals and user guides at all-guides.com
all-guides.com

9
Command
Funnation
Command Packet
Note
Direct
8x 01 04 48 0p 0q 0r 0s FF
pqrs: Focus Position
One Push AF
8x 01 04 18 01 FF
CAM_ZoomFocus
Direct
8x 01 04 47 0p 0q 0r 0s
0t 0u 0v 0w FF
pqrs: Zoom Position (0(wide)~
0x4000(tele))
tuvw: Focus Position
CAM_WB
Auto
8x 01 04 35 00 FF
Indoor
8x 01 04 35 01 FF
Outdoor
8x 01 04 35 02 FF
OnePush
8x 01 04 35 03 FF
Manual
8x 01 04 35 05 FF
Outdoor Auto
8x 01 04 35 06 FF
Sodium Lamp
Auto
8x 01 04 35 07 FF
Sodium Auto
8x 01 04 35 08 FF
CAM_RGain
Reset
8x 01 04 03 00 FF
Manual Control of R Gain
Up
8x 01 04 03 02 FF
Down
8x 01 04 03 03 FF
Direct
8x 01 04 43 00 00 0p 0q FF
pq: R Gain (0~0xFF)
CAM_Bgain
Reset
8x 01 04 04 00 FF
Manual Control of B Gain
Up
8x 01 04 04 02 FF
Down
8x 01 04 04 03 FF
Direct
8x 01 04 44 00 00 0p 0q FF
pq: B Gain (0-0xFF)
CAM_AE
Full Auto
8x 01 04 39 00 FF
Automatic Exposure mode
Manual
8x 01 04 39 03 FF
Manual Control mode
Bright
8x 01 04 39 0D FF
Bright mode(Manual control)
CAM_Shutter
Reset
8x 01 04 0A 00 FF
Shutter Setting
Up
8x 01 04 0A 02 FF
Down
8x 01 04 0A 03 FF
Direct
8x 01 04 4A 00 00 0p 0q FF
pq: Shutter Position (0~0x15)
CAM_Iris
Reset
8x 01 04 0B 00 FF
Iris Setting
Up
8x 01 04 0B 02 FF
Down
8x 01 04 0B 03 FF
Direct
8x 01 04 4B 00 00 0p 0q FF
pq: Iris Position (0~ 0x11)
CAM_Gain
Reset
8x 01 04 0C 00 FF
Gain Setting
Up
8x 01 04 0C 02 FF
Down
8x 01 04 0C 03 FF
All manuals and user guides at all-guides.com

10
Command
Funnation
Command Packet
Note
Direct
8x 01 04 0C 00 00 0p 0q FF
pq: Gain Positon (0~0x0E)
CAM_Bright
Reset
8x 01 04 0D 00 FF
Bright Setting
Up
8x 01 04 0D 02 FF
Down
8x 01 04 0D 03 FF
Direct
8x 01 04 4D 00 00 0p 0q FF
pq: Bright l Positon ()
CAM_ExpComp
On
8x 01 04 3E 02 FF
Exposure Compensation ON/OFF
Off
8x 01 04 3E 03 FF
Reset
8x 01 04 0E 00 FF
Exposure Compensation Amount
Setting
Up
8x 01 04 0E 02 FF
Down
8x 01 04 0E 03 FF
Direct
8x 01 04 4E 00 00 0p 0q FF
pq: ExpComp Position (0~0x0E)
CAM_BackLight
On
8x 01 04 33 02 FF
BackLight On
Off
8x 01 04 33 03 FF
BackLight Off
CAM_Aperture
Reset
8x 01 04 02 00 FF
Aperture Control
Up
8x 01 04 02 02 FF
Down
8x 01 04 02 03 FF
Direct
8x 01 04 42 00 00 0p 0q FF
pq: Aperture Gain (0~0x04)
CAM_Memory(preset)
Reset
8x 01 04 3F 00 0p FF
p: Memory Number(=0 to 127)
Corresponds to 0 to 9 on the Remote
Commander
Set
8x 01 04 3F 01 0p FF
Recall
8x 01 04 3F 02 0p FF
CAM_LR_Reverse
On
8x 01 04 61 02 FF
Image Flip Horizontal ON/OFF
Off
8x 01 04 61 03 FF
CAM_PictureFlip
On
8x 01 04 66 02 FF
Image Flip Vertical ON/OFF
Off
8x 01 04 66 03 FF
CAM_MountMode
UP
8x 01 04 A4 02 FF
Mount Up
Down
8x 01 04 A4 03 FF
Mount Down
CAM_ColorGain
Direct
8x 01 04 49 00 00 00 0p FF
(0~0x0E)
CAM_2D
Noise Reduction
Direct
8x 01 04 53 0p FF
(0~0x05)
CAM_3D
Noise Reduction
Direct
8x 01 04 54 0p FF
(0~0x03)
FLICK
50HZ
81 01 04 23 01 FF
60HZ
81 01 04 23 02 FF
Freeze
Freeze On
81 01 04 62 02 FF
Freeze On Immediately
Freeze Off
81 01 04 62 03 FF
Freeze Off Immediately
Preset Freeze On
81 01 04 62 22 FF
Freeze On When Running Preset
All manuals and user guides at all-guides.com

11
Command
Funnation
Command Packet
Note
Preset Freeze Off
81 01 04 62 23 FF
Freeze Off When Running Preset
VideoSystem Set
8x 01 06 35 00 pp FF
pp: 0~9 Video format
0:1080P60 1:1080P50
2:1080I60 3:1080I50
4:1080P30 5:1080P25
6:720P60 7:720P50
8:720P30 9:720P25
CAM_IDWrite
8x 01 04 22 0p 0q 0r 0s FF
pqrs: Camera ID (=0000 to FFFF)
SYS_Menu
Menu On
8x 01 06 06 02 FF
Turn on the menu
Menu Off
8x 01 06 06 03 FF
Turn off the menu
Menu Back
8x 01 06 06 10 FF
Menu step back
Menu Ok
8x 01 7E 01 02 00 01 FF
Menu ok
IR_Transfer
Transfer On
8x 01 06 1A 02 FF
Receive IR(remote commander) CODE
from VISCA communication ON/OFF
Transfer Off
8x 01 06 1A 03 FF
IR_Receive
On
8x 01 06 08 02 FF
IR(remote commander)receive
ON/OFF
Off
8x 01 06 08 03 FF
On/Off
8x 01 06 08 10 FF
IR_ReceiveReturn
On
8x 01 7D 01 03 00 00 FF
IR(remote commander)receive
message via the VISCA
communication ON/OFF
Off
8x 01 7D 01 13 00 00 FF
Pan_tiltDrive
Up
8x 01 06 01 VV WW 03 01 FF
VV: Pan speed 0x01 (low speed) to
0x18 (high speed)
WW: Tilt speed 0x01 (low speed) to
0x14 (high speed)
YYYY: Pan Position(TBD)
ZZZZ: Tilt Position(TBD)
Down
8x 01 06 01 VV WW 03 02 FF
Left
8x 01 06 01 VV WW 01 03 FF
Right
8x 01 06 01 VV WW 02 03 FF
Upleft
8x 01 06 01 VV WW 01 01 FF
Upright
8x 01 06 01 VV WW 02 01 FF
DownLeft
8x 01 06 01 VV WW 01 02 FF
DownRight
8x 01 06 01 VV WW 02 02 FF
Stop
8x 01 06 01 VV WW 03 03 FF
AbsolutePosition
8x 01 06 02 VV WW
0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
RelativePosition
8x 01 06 03 VV WW
0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
Home
8x 01 06 04 FF
Reset
8x 01 06 05 FF
Pan-tiltLimitSet
Set
8x 01 06 07 00 0W
0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
W:1 UpRight 0:DownLeft
YYYY: Pan Limit Position(TBD)
ZZZZ: Tilt Limit Position(TBD)
Clear
8x 01 06 07 01 0W
07 0F 0F 0F 07 0F 0F 0F FF
All manuals and user guides at all-guides.com

12
PART 3 INQUIRY COMMAND
Command
Command Packet
Return Packet
Note
CAM_PowerInq
8x 09 04 00 FF
y0 50 02 FF
On
y0 50 03 FF
Off(Standby)
CAM_ZoomPosInq
8x 09 04 47 FF
y0 50 0p 0q 0r 0s FF
pqrs: Zoom Position
CAM_FocusModeInq
8x 09 04 38 FF
y0 50 02 FF
Auto Focus
y0 50 03 FF
Manual Focus
CAM_FocusPosInq
8x 09 04 48 FF
y0 50 0p 0q 0r 0s FF
pqrs: Focus Position
CAM_WBModeInq
8x 09 04 35 FF
y0 50 00 FF
Auto
y0 50 01 FF
Indoor mode
y0 50 02 FF
Outdoor mode
y0 50 03 FF
OnePush mode
y0 50 04 FF
ATW
y0 50 05 FF
Manual
CAM_RGainInq
8x 09 04 43 FF
y0 50 00 00 0p 0q FF
pq: R Gain
CAM_BGainInq
8x 09 04 44 FF
y0 50 00 00 0p 0q FF
pq: B Gain
CAM_AEModeInq
8x 09 04 39 FF
y0 50 00 FF
Full Auto
y0 50 03 FF
Manual
y0 50 0A FF
Shutter priority
y0 50 0B FF
Iris priority
y0 50 0D FF
Bright
CAM_ShutterPosInq
8x 09 04 4A FF
y0 50 00 00 0p 0q FF
pq: Shutter Position
CAM_IrisPosInq
8x 09 04 4B FF
y0 50 00 00 0p 0q FF
pq: Iris Position
CAM_GainPosiInq
8x 09 04 4C FF
y0 50 00 00 0p 0q FF
pq: Gain Position
CAM_ BrightPosiInq
8x 09 04 4D FF
y0 50 00 00 0p 0q FF
pq: Bright Position
CAM_ExpCompModeInq
8x 09 04 3E FF
y0 50 02 FF
On
y0 50 03 FF
Off
CAM_ExpCompPosInq
8x 09 04 4E FF
y0 50 00 00 0p 0q FF
pq: ExpComp Position
CAM_ApertureInq
8x 09 04 42 FF
y0 50 00 00 0p 0q FF
pq: Aperture Gain
CAM_MemoryInq
8x 09 04 3F FF
y0 50pp FF
pp: Memory number last operated.
SYS_MenuModeInq
8x 09 06 06 FF
y0 50 02 FF
On
y0 50 03 FF
Off
CAM_LR_ReverseInq
8x 09 04 61 FF
y0 50 02 FF
On
y0 50 03 FF
Off
CAM_PictureFlipInq
8x 09 04 66 FF
y0 50 02 FF
On
y0 50 03 FF
Off
CAM_IDInq
8x 09 04 22 FF
y0 50 0p 0q 0r 0s FF
pqrs: Camera ID
CAM_VersionInq
8x 09 00 02 FF
y0 50 ab cd
mn pq rs tu vw FF
VideoSystemInq
8x 09 06 23 FF
y0 50 pp FF
pp: 0~9 Video format
0:1080P60 1:1080P50
2:1080I60 3:1080I50
4:1080P30 5:1080P25
6:720P60 7:720P50
8:720P30 9:720P25
IR_Transfer
8x 09 06 1A FF
y0 50 02 FF
On
y0 50 03 FF
Off
IR_Receive
8x 09 06 08 FF
y0 50 02 FF
On
y0 50 03 FF
Off
IR_ReceiveReturn
y0 07 7D 01 04 00 FF
Power ON/OFF
All manuals and user guides at all-guides.com

13
y0 07 7D 01 04 07 FF
Zoom tele/wide
y0 07 7D 01 04 38 FF
AF On/Off
y0 07 7D 01 04 33 FF
CAM_Backlight
y0 07 7D 01 04 3F FF
CAM_Memory
y0 07 7D 01 06 01 FF
Pan_tiltDrive
Pan-tiltMaxSpeedInq
8x 09 06 11 FF
y0 50 ww zz FF
ww: PanMaxSpeed zz: Tilt Max
Speed
Pan-tiltPosInq
8x 09 06 12 FF
y0 50 0w 0w 0w 0w
0z 0z 0z 0z FF
wwww: PanPosition zzzz: Tilt
Position
Note:【x】means the camera address ;【y】=【x + 8】.
VISCA PAN TILT ABSOLUTE POSITION VALUE
Pan Angle
VISCA Value
Tilt Angle
VISCA Value
-170
0xF670
-30
0xFE50
-135
0xF868
0
0x0000
-90
0xFAF0
30
0x01B0
-45
0xFD78
60
0x0360
0
0x0000
90
0x510
45
0x0288
90
0x0510
135
0x0798
170
0x0990
VISCA PAN TILT SPEED VALUE
Pan(degree/second)
tilt(degree/second)
0
0.3
0
0.3
1
1
1
1
2
1.5
2
1.5
3
2.2
3
2.2
4
2.4
4
3.6
5
2.6
5
4.7
6
2.8
6
6
7
3.0
7
8
8
3.2
8
10
9
3.4
9
12
10
3.8
10
15
11
4.5
11
18
12
6
12
23
13
9
13
30
14
15
14
39
15
19
15
48
16
25
16
59
17
32
17
69
18
38
18
80
19
45
20
58
21
75
22
88
23
105
24
120
All manuals and user guides at all-guides.com
all-guides.com

14
VISCA EXPOSURE VALUE
Shutter speed
21
1/10000
Iris
0
close
20
1/6000
1
f32
19
1/4000
2
f28
18
1/3000
3
f24
17
1/2000
4
f22
16
1/1500
5
f18
15
1/1000
6
f14
14
1/725
7
f11
13
1/500
8
f9.6
12
1/350
9
f6.8
11
1/250
10
f5.6
10
1/180
11
f4.8
9
1/125
12
f4.0
8
1/100
13
f3.4
7
1/90
14
f2.8
6
1/60
15
f2.4
5
1/30
16
f2.0
4
1/15
17
f1.8
3
1/8
2
/
1
/
0
/
Gain
0
0dB
Gain
8
16dB
1
2dB
9
18dB
2
4dB
10
20dB
3
6dB
11
22dB
4
8dB
12
24dB
5
10dB
13
26dB
6
12dB
14
28dB
7
14dB
ZOOM RATE & ZOOM VALUE
Optical Zoom
Digital Zoom
Zoom Rate
Value
Zoom Rate
Value
x1(wide)
0x0000
x1
0x4000
x2
0x1851
x2
0x6000
x3
0x22BE
x3
0x6A80
x4
0x28F6
x4
0x7000
x5
0x2D45
x5
0x7300
x6
0x3086
x6
0x7540
x7
0x3320
x7
0x76C0
x8
0x3549
x8
0x7800
x9
0x371E
x9
0x78C0
x10
0x38B3
x10
0x7980
x11
0x3A12
x11
0x7A00
x12
0x3B42
x12
0x7AC0
All manuals and user guides at all-guides.com

15
x13
0x3C47
x14
0x3D25
x15
0x3DDF
x16
0x3E7B
x17
0x3EFB
x18
0x3F64
x19
0x3FBA
x20(tele)
0x4000
PELCO-D PROTOCOL
Function
Byte1
Byte2
Byte3
Byte4
Byte5
Byte6
Byte7
Up
0xFF
Address
0x00
0x08
Pan Speed
Tilt Speed
SUM
Down
0xFF
Address
0x00
0x10
Pan Speed
Tilt Speed
SUM
Left
0xFF
Address
0x00
0x04
Pan Speed
Tilt Speed
SUM
Right
0xFF
Address
0x00
0x02
Pan Speed
Tilt Speed
SUM
Upleft
0xFF
Address
0x00
0x0C
Pan Speed
Tilt Speed
SUM
Upright
0xFF
Address
0x00
0x0A
Pan Speed
Tilt Speed
SUM
DownLeft
0xFF
Address
0x00
0x14
Pan Speed
Tilt Speed
SUM
DownRight
0xFF
Address
0x00
0x12
Pan Speed
Tilt Speed
SUM
Zoom In
0xFF
Address
0x00
0x20
0x00
0x00
SUM
Zoom Out
0xFF
Address
0x00
0x40
0x00
0x00
SUM
Focus Far
0xFF
Address
0x00
0x80
0x00
0x00
SUM
Focus Near
0xFF
Address
0x01
0x00
0x00
0x00
SUM
Set Preset
0xFF
Address
0x00
0x03
0x00
Preset ID
SUM
Clear Preset
0xFF
Address
0x00
0x05
0x00
Preset ID
SUM
Call Preset
0xFF
Address
0x00
0x07
0x00
Preset ID
SUM
Query Pan Position
0xFF
Address
0x00
0x51
0x00
0x00
SUM
Query Pan Position
Response
0xFF
Address
0x00
0x59
Value High
Byte
Value Low
Byte
SUM
Query Tilt Position
0xFF
Address
0x00
0x53
0x00
0x00
SUM
Query Tilt Position
Response
0xFF
Address
0x00
0x5B
Value High
Byte
Value Low
Byte
SUM
Query Zoom Position
0xFF
Address
0x00
0x55
0x00
0x00
SUM
Query Zoom Position
Response
0xFF
Address
0x00
0x5D
Value High
Byte
Value Low
Byte
SUM
All manuals and user guides at all-guides.com

16
PELCO-P PROTOCOL
Function
Byte1
Byte2
Byte3
Byte4
Byte5
Byte6
Byte7
Byte8
Up
0xA0
Address
0x00
0x08
Pan Speed
Tilt Speed
0xAF
XOR
Down
0xA0
Address
0x00
0x10
Pan Speed
Tilt Speed
0xAF
XOR
Left
0xA0
Address
0x00
0x04
Pan Speed
Tilt Speed
0xAF
XOR
Right
0xA0
Address
0x00
0x02
Pan Speed
Tilt Speed
0xAF
XOR
Upleft
0xA0
Address
0x00
0x0C
Pan Speed
Tilt Speed
0xAF
XOR
Upright
0xA0
Address
0x00
0x0A
Pan Speed
Tilt Speed
0xAF
XOR
DownLeft
0xA0
Address
0x00
0x14
Pan Speed
Tilt Speed
0xAF
XOR
DownRight
0xA0
Address
0x00
0x12
Pan Speed
Tilt Speed
0xAF
XOR
Zoom In
0xA0
Address
0x00
0x20
0x00
0x00
0xAF
XOR
Zoom Out
0xA0
Address
0x00
0x40
0x00
0x00
0xAF
XOR
Focus Far
0xA0
Address
0x00
0x80
0x00
0x00
0xAF
XOR
Focus Near
0xA0
Address
0x01
0x00
0x00
0x00
0xAF
XOR
Set Preset
0xA0
Address
0x00
0x03
0x00
Preset ID
0xAF
XOR
Clear Preset
0xA0
Address
0x00
0x05
0x00
Preset ID
0xAF
XOR
Call Preset
0xA0
Address
0x00
0x07
0x00
Preset ID
0xAF
XOR
Query Pan Position
0xA0
Address
0x00
0x51
0x00
0x00
0xAF
XOR
Query Pan Position
Response
0xA0
Address
0x00
0x59
Value High
Byte
Value Low
Byte
0xAF
XOR
Query Tilt Position
0xA0
Address
0x00
0x53
0x00
0x00
0xAF
XOR
Query Tilt Position
Response
0xA0
Address
0x00
0x5B
Value High
Byte
Value Low
Byte
0xAF
XOR
Query Zoom Position
0xA0
Address
0x00
0x55
0x00
0x00
0xAF
XOR
Query Zoom Position
Response
0xA0
Address
0x00
0x5D
Value High
Byte
Value Low
Byte
0xAF
XOR
All manuals and user guides at all-guides.com

17
OSD MENU
1.Under working mode, press the MENU
key on the IR remote controller, to enter the
OSD menu as bellow:
2.After enter the main menu, use the
navigate UP/DOWN key to select the main menu. Once been selected, the main menu will change to blue
background, and the right side will show all sub menu options .
3.Press the navigate RIGHT key to enter sub menu; use UP/DONW key to select the sub menu;use LEFT/RIGHT
key to select parameter.
4. Press the MENU key again to return to previous menu. Press the MENU key continuously to exit the OSD
menu. Before exiting, will show up a window to select whether need to save all settings(useLEFT/RIGHT key to
set). As bellow:
5.OSD Menu Setting List
SYSTEM
PROTOCOL
VISCA,PELCO-P,PELCO-D
ADDRESS
VISCA:1~7 PELCO-P/D:1~255
BAUD RATE
2400,4800,9600,115200
PTL LOCK
Protocol lock: once set, above protocol setting will be locked, to avoid changes
RS485
RS485 ON/OFF ( RS485 function is customized)
VGA OUT
VGA output can be YPbPr or VGA output (customized)
TRANSFER
IR Transfer/IR Pass function
LANGUAGE
Chinese, English, Spanish, Russian
EXPOSURE
EXPOSURE MODE
AUTO、MANUAL、BRIGHT
SHUTTER
Shutter speed:1/8~1/10000, only valid under manual mode
IRIS
Iris setting:CLOSE~F1.8, only valid under manual mode
All manuals and user guides at all-guides.com
Other manuals for TLC-700-S
1
Table of contents
Other Telycam Security Camera manuals

Telycam
Telycam Vision+N330X User manual

Telycam
Telycam TLC-300-IP-12 User manual

Telycam
Telycam TLC-1000-DS User manual

Telycam
Telycam TLC-100-HU2-10 User manual

Telycam
Telycam Vision+N320X User manual

Telycam
Telycam TLC-300-IP-20NDI User manual

Telycam
Telycam TLC-600-S User manual

Telycam
Telycam 20X NDI User manual

Telycam
Telycam NDI HX3 User manual

Telycam
Telycam TLC-700-H User manual
