Tema Telecomunicazioni T40 User manual

Revision Date Revision Reason Prepared Checked/Approved
0 10-05-2007 First Issue MM FL
MAS-T40-REV00EN Page 1 of 43
T40
Voice Mail and Automatic Attendant
Solid State - Flash Disk
TECHNICAL – INSTALLATION MANUAL
T40 - Version HW 1.00 FW 2.0
Made in Italy by TEMA TELECOMUNICAZIONI S.r.l.
Recommendations
1. Use only original spare parts and consumables supplied by Tema Telecomunicazioni Srl for this equipment. The company shall
not be held responsible for any damage caused by the use of materials that they have not supplied.
2. The device has been carefully manufactured and tested. In any case, the product is not recommended for use in situations in
which incorrect operating may result in damage to persons and/or property.
3. We recommend that you carefully read this entire manual before starting to use the device.
4. Do not expose the device to sunlight and protect it from sources of heat, dust, humidity and chemical agents.
5. This manual is the property of Tema Telecomunicazioni Srl and any duplication and reproduction, even partial, as well as
storage on any type of media is forbidden without written permission from Tema Telecomunicazioni Srl.
TEMA TELECOMUNICAZIONI S.r.l.
Telecommunications - Electronics

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 2 of 43
La sottoscritta società : TEMA TELECOMUNICAZIONI SRL
con sede in : Via C. Girardengo, 1/4 - 20161 MILANO
dichiara che il prodotto: Risponditori telefonici Operatori automatici
Codici: T40
è stato costruito in conformità alle seguenti normative:
SICUREZZA EN 60950
EMC EN 55022
EN 55024
EN 61000-6-1
EN 61000-6-3
TERMINALE DI TBR 21 (1998) – Terminal Equipment (TE); Attachment
TELECOMUNICAZIONE requirements for pan-European approval for connection
to the analogue Public Switched Telephone Networks (PSTNs)
of TE (excluding TE supporting the voice telephony service) in
which network addressing, if provided, is by means of Dual
Tone Multi Frequency (DTMF) signalling.
Inoltre il prodotto sopra menzionato soddisfa i requisiti essenziali delle seguenti direttive:
• Direttiva LVD 73/23/EEC (Low Voltage Directive)
• Direttiva EMC 89/336/EEC – 92/31/ECC
• Direttiva 99/05/EC per apparati di Radio e Telecomunicazioni
MILANO, 10 Luglio 2006 TEMA TELECOMUNICAZIONI SRL
Felice Lamanna
Amministratore
DICHIARAZIONE DI CONFORMITÀ CE
DECLARATION OF CONFORMITY CE

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 3 of 43
I. IMPORTANT INFORMATIONS REGARDING THE RECOVERY AND RECYCLING OF THIS
ELECTRONIC DEVICE
The crossed-out wheeled bin symbol below indicates that this electronic equipment is intended to be
disposed in a separate collection and not in an unsorted municipal waste, in order to provide for the
treatment of WEEE (Waste Electrical and Electronic Equipment) using best available recovery and recycling
techniques.
Specific treatment for WEEE is indispensable in order to avoid the dispersion of pollutants and other
hazardous substances into the waste stream, while recycling leads to reduction of disposal of waste and the
negative impacts on environment and human health. That is, priority is given to reuse of WEEE in its
components, subassemblies and consumables.
As the final holder, the user has an important role in contributing to reuse, recycling and other forms of
recovery of WEEE and is responsible to return this waste in the collection facilities set up by EC Member
States and to fulfill other duties in compliance with Directive 2002/96/EC and local laws.

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 4 of 43
INDEX
1. T40 INTRODUCTION ................................................................................................................ 6
2. T40 OVERVIEW......................................................................................................................... 6
3. PACKING LIST.......................................................................................................................... 7
4. THECNICAL CHARACTERISTICS ........................................................................................... 7
5. DEVICE DESCRIPTION ............................................................................................................ 8
5.1. FRONT VIEW.................................................................................................................................................... 8
5.2. REAR VIEW....................................................................................................................................................... 8
6. INSTALLATION AND SERVICES ............................................................................................. 9
6.1. PBX CONNECTIONS........................................................................................................................................... 9
6.2. START UP.......................................................................................................................................................... 10
7. SYSTEM CONFIGURATION ................................................................................................... 14
7.1. GENERAL PARAMETERS ................................................................................................................................. 14
7.2. PBX PARAMETERS........................................................................................................................................... 16
8. SYSTEM MENU....................................................................................................................... 17
8.1. INTRODUCTION ................................................................................................................................................. 17
8.2. MENU MANAGEMENT ....................................................................................................................................... 17
9. LINES CONFIGURATION ....................................................................................................... 22
9.1. INTRODUCTION ................................................................................................................................................. 22
9.2. MANAGEMENT................................................................................................................................................... 22
10. EXTENSION’S CONFIGURATION.......................................................................................... 23
10.1. INTRODUCTION ...................................................................................................................... 23
10.2. EXTENSION’S MANAGEMENT ................................................................................................... 23
10.3. EXTENSION INSERTION........................................................................................................... 25
10.4. EXIT OPTION TABLES .............................................................................................................. 26
11. EXTENSION OWNER ................................................................................................................... 27
11.1. INTRODUCTION ...................................................................................................................... 27
11.2. ACCESS TO OWN MAILBOX...................................................................................................... 27
11.3. AVAILABLE FUNCTIONS ........................................................................................................... 27
11.4. MESSAGE LISTENING.............................................................................................................. 28
11.5. CONFIGURATION CHANGING ................................................................................................... 29
12. NIGHT MODE .......................................................................................................................... 30
12.1. INTRODUCTION ...................................................................................................................... 30
12.2. SLOTS SETUP ........................................................................................................................ 30
13. CALL TIME SLOTS ................................................................................................................. 31
13.1. INTRODUCTION ...................................................................................................................... 31
13.2. CALL TIME SLOTS SETUP ........................................................................................................ 31
14. MESSAGE RECORDING ........................................................................................................ 32
14.1. INTRODUCTION ...................................................................................................................... 32
14.2. MESSAGE RECORDING AND LISTENING .................................................................................... 32
14.3. SYSTEM MESSAGE CHANGING................................................................................................. 32

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 5 of 43
15. MESSAGE NOTIFICATION..................................................................................................... 33
15.1. INTRODUCTION ...................................................................................................................... 33
15.2. CONFIGURATION .................................................................................................................... 33
15.3. MESSAGE NOTIFY ON DISPLAY ............................................................................................... 34
APPENDIX...................................................................................................................................... 35
A1. SYSTEM MESSAGES .................................................................................................................... 36
A2. MUSIC ON HOLD SERVICE ............................................................................................................. 39
A3. REMOTE SYSTEM PROGRAMMING USING DTMF COMMANDS.......................................................... 40
A4. SYSTEM ACCESS AS MAILBOX OWNER........................................................................................... 42
A5. PLAYBACK AND CANCELING MESSAGES (OLD OR NEW ONE’S) ........................................................ 43

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 6 of 43
1. T40 INTRODUCTION
T40 is a new generation solid-state device, coming from several years of experience in telecommunication
field, voice mails and automatic attendant systems. T40 is based on a strong and sophisticated hardware
with solid-state memory (flash disk) and a DSP processor. It provides all services for automation and call
management, such as:
•Automatic Attendant with Voice Guide
•Information Services with tree structure
•Voice mail with integration software for main PBX brands
Installation and setup it is very easy (the system comes with pre-installed software) and it already contains
base services that can be managed for better fitting your needs.
2. T40 OVERVIEW
Main characteristics:
•Proprietary hardware based on DSP (Digital Signal Processing)
•Compact Flash standard memory
•2-4 Analog Lines
•Up to 512 Voice Mail Boxes
•Up to144 Hours of message memory
•IVR up to 4 level
•Audio Output for internal music on hold
•Automatic FAX switch on FAX incoming calls
•Integration and capability with main PBX brand
•Easy to use and to setup
•PBX and SMS messages notification
•Optional modem for remote assistance
•Small dimension, low consumption
Automatic Attendant and Voice Mail:
•Automatic answer on all lines connected to T40, even simultaneously (2 or 4 lines)
•Welcome message and functions individually configurable for each line by time table (Day/Night)
•Tree structure, voice guided menu
•The caller can receive generic information directly from the voice menu
•DTMF tone recognition with fast extension achieve (internal extension linked to a DTMF digit)
•Lines tone recognition with automatic hang-up at the end of calls
•Automatic Voice Mail on busy or no answering extensions
•Presentation on extension of the caller name
•Capability of call rejection (only for allowed extensions)
•Messages on Mail-Box notification to a extension or external number, by hours and weeks schedule
•New messages notification via SMS
•Fax recognition and automatic diversion to an extension with fax machine.
•Setup of maximum day count for messages to be maintained in memory before automatic deletion, two
parameters, for new and old messages (when day count expire for each message the system
automatically deletes it to maintain the mailbox clean)
•Maximum massages limit for each mailbox on voicemail in range from 0 to 60
•Maximum individual time limit calling a not answering extension
•Activity log file for better trouble solving
•Integration with main PBX’s for message recording / signaling directly on extension lamps
•Many services available and configurable at individual level
•T40 behavior is configurable with individual programming table for extension busy or no answering.
•Remote configuration for main system parameters
•It’s possible to dedicate one system line as output for music on hold (only for 4 lines model)

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 7 of 43
3. PACKING LIST
T40 system consists of the following parts:
•1 T40 device
•1 Power Adapter 12VDC – 1A
•2 / 4 PLUG/PLUG RJ-11 telephone cord
•2 / 4 Telephone wall mount sockets
•1 SUB-D cable for programming
•1 Technical- Installation manual (this manual)
4. THECNICAL CHARACTERISTICS
MAINS:
TELEPHONE INTERFACE SECTION:
DSP (Digital Signal Processing) Processor
8MB RAM Memory
Real Time Clock with Lithium battery
Hardware platform
Flash File System with Compact Flash card memory
Power Supply - Consumption Power supply: 230VAC, 47...63Hz,
Consumption: 12VA with external AC adapter T7012A 12VDC
Dimension and weight Dimension: L130 x H40 x P180
Weight: 350g only T40 device, 500g including AC Adapter
Operating temperature In working: 5°-40°, Warehouse: -20°....+60°.
Humidity: 10%-80%
Analog Telephone Lines with 600 Ohm, isolated by transformer
Ring sensibility: Min 20VRMS Max 130VRMS, 15,3…68Hz
Current Loop: from 20 to 50mA, without polarity
Frequency band: from 300 to 3.400Hz +/- 3dBm
RJ-11 Trunk connection
Lines connection type: RJ-11
DTMF recognition: numbers 0-9, *, #, A, B, C, D
Line tones: single tone 300…3300Hz
Sensitivity: –36dBm a 0dBm
Line tones and signal recognition
DTMF: minimum duration 43mS, interdigit 40mS
DTMF generation: digits 0 - 9, *, #, A, B, C, D.
Tone Generation: single/double in audio band
Tone and digits generation
Flash signal: programmable, 100 msec. default
Input sensitivity: -50….0dBm
Transmission output signal: -9dBm
Recording and playback
Memory usage: 28,8 MB/hours (8 KB/sec) rate

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 8 of 43
5. DEVICE DESCRIPTION

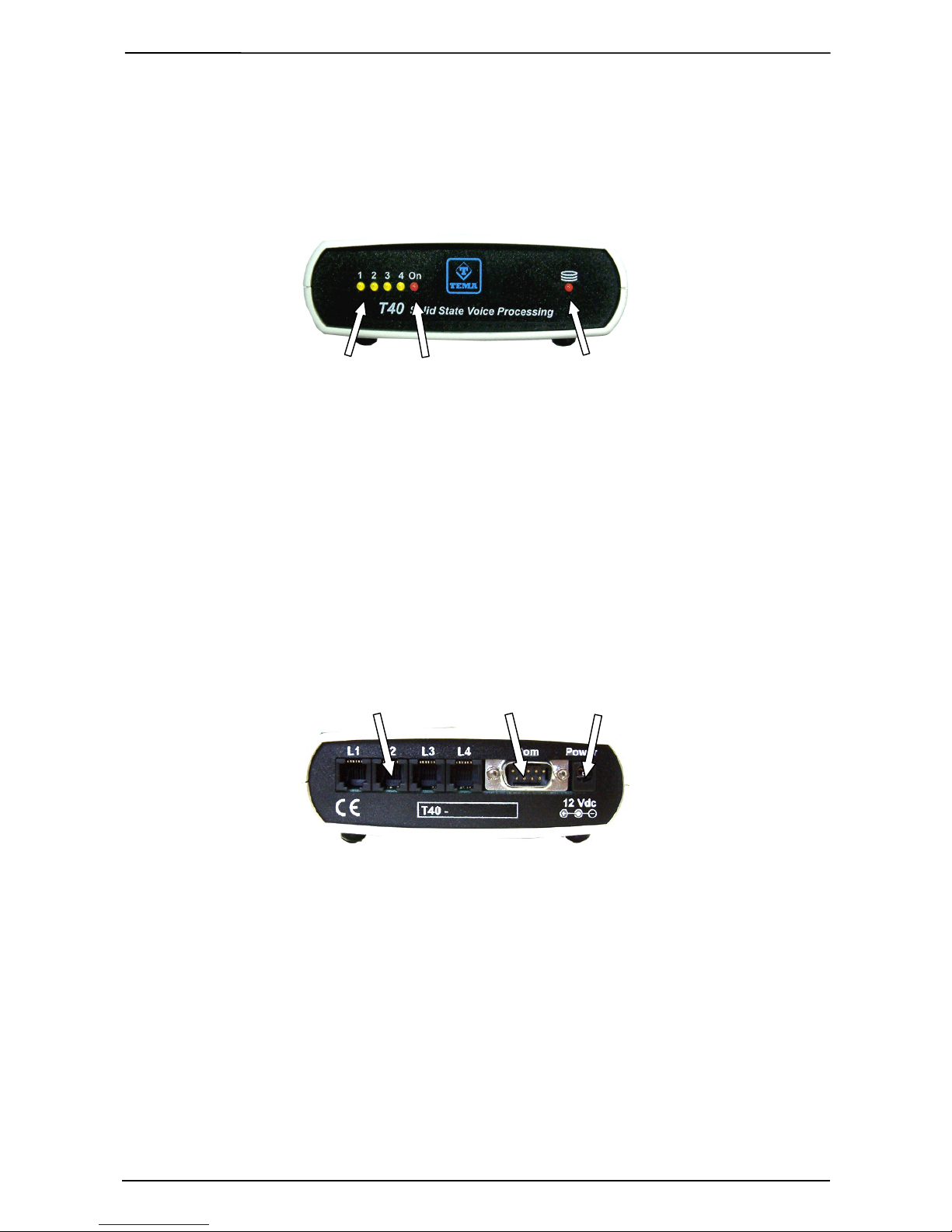

5.1. FRONT VIEW
T40 is equipped with a series of LED indicators of the system activity:
1, 2, 3, 4 Lines activity indication. Led have the following flashing mode, slow
flash when line is free and permanent on to indicate line in use.
Disk Led for CF memory access indication
On Led for system powered
5.2. REAR VIEW
In this panel you can find all the unit connectors, as described in picture.
L1, L2, L3, L4 Four RJ-11 for analog lines cables connectors.
Com Sub-D 9 male serial port connector.
Power Power adapter input.
Lines activity
indication
System status led Memory access
indication
ANALOG LINES
INPUT
SERIAL PORT POWER SUPPLY
PLUG

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 9 of 43
6. INSTALLATION AND SERVICES
6.1. PBX connections
The installation procedure consists to connect up to four PBX’s analogs extension to T40. On the rear panel
of the device, there are four RJ sockets, one for each analog telephone line. Lines from PBX could be
connected to the internal contacts of the wall-mounting sockets coming with the unit, on screw marked “tip“
and “ring”. Then connect to T40 plugs by normal telephone lines cables.
On PBX, create a group of extension, corresponding to those connected to T40, then program PBX to divert
all incoming calls toward this group.
It is normal practice to leave one (or more) T40 line, out of the incoming group, using it only for outgoing
calls (message notification and signaling); this configuration is recommended in case the system receives
many messages in mailboxes and a fast mailbox status advice and heavy message playback is required.
The picture shows the T40 installation scheme. Incoming calls are diverted on the extension group where
T40 is connected.
The operator is supported by T40, not substituted by it. The device automatically connects callers to
extensions they can directly select or, for no selection, connect them to operator that will manage only no
automatically processed calls.
T40
EXTENSIONS
TELEPHONE
NETWORK
OPERATOR
PB
X
INCOMING LINES
GROUP
EXTENSION FOR
NOTIFICATION

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 10 of 43
6.2. Start Up
Once the lines are connected and configured as above, is possible to check the system, easily with a call to
T40 group extension number. If everything is ok, a standard message is played and an extension number
selection is requested. Then hang up and start with services configuration.
Due the system doesn’t has neither video nor keyboard, for the programming is request to plug the com port
to a ANSI terminal emulator using a null-modem cable, and setup the communication baud rate at 115.200
bps. There are much software suited to do this operation; following is descript how to use HyperTerminal™
software, a default windows component from Windows95™ version.

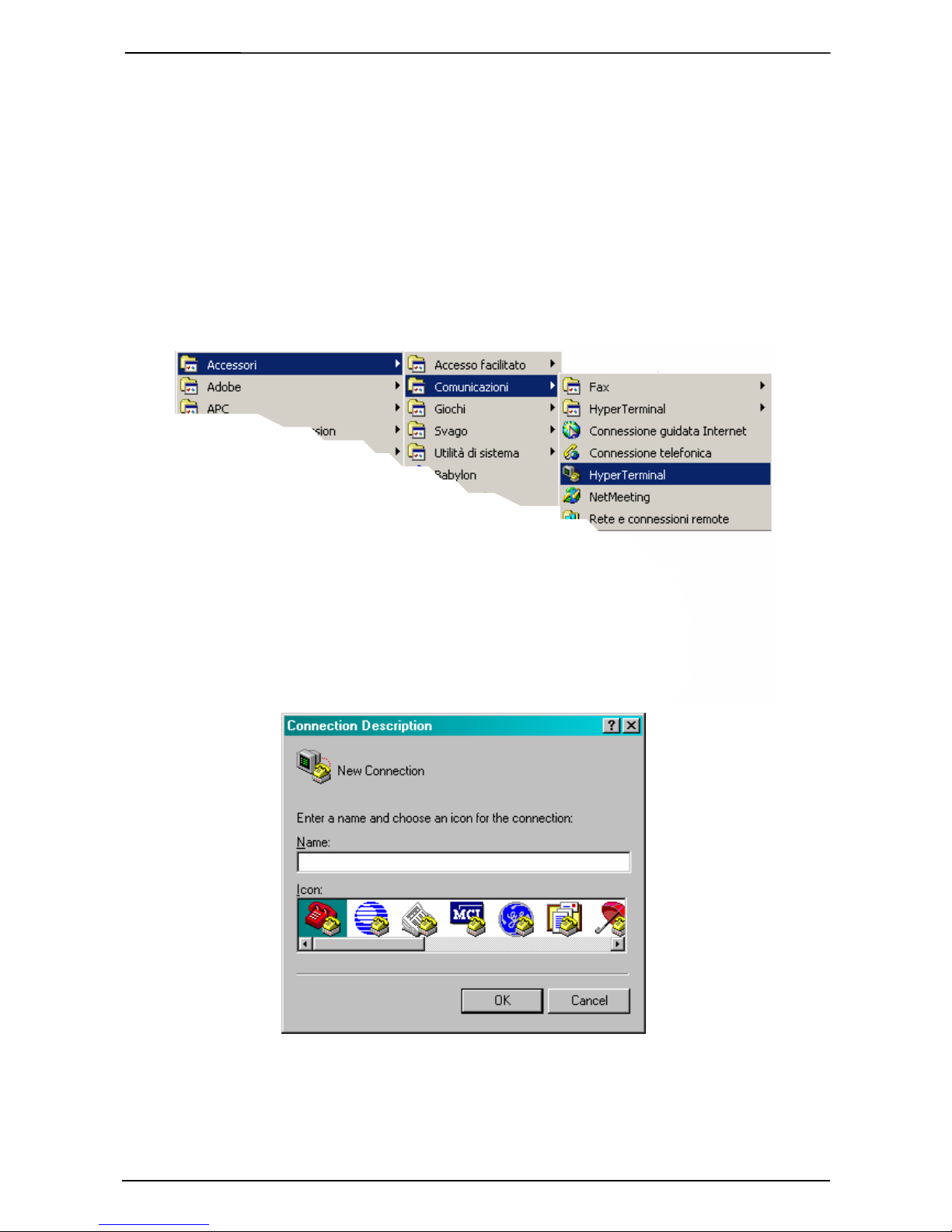

Open HyperTerminal™ from “Accessory”, “Communications” from the tool bar.
In the following window, the program asks to create a new connection:

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 11 of 43
In the name field insert connection ID, for example T40, then press enter to confirm. It may be asked to
configure a modem, chose No.
At the end the window, the program asks to configure the connection. In the “Connect” field chose COM1 (or
the port you select to use).
Confirming with OK, now port configuration is requested: Chose 115.200 in “Bit per second” field and None
in “Flush control” field.
Confirming with OK, if everything is ok, pressing <Enter> more than ones, T40 main window is showed.

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 12 of 43

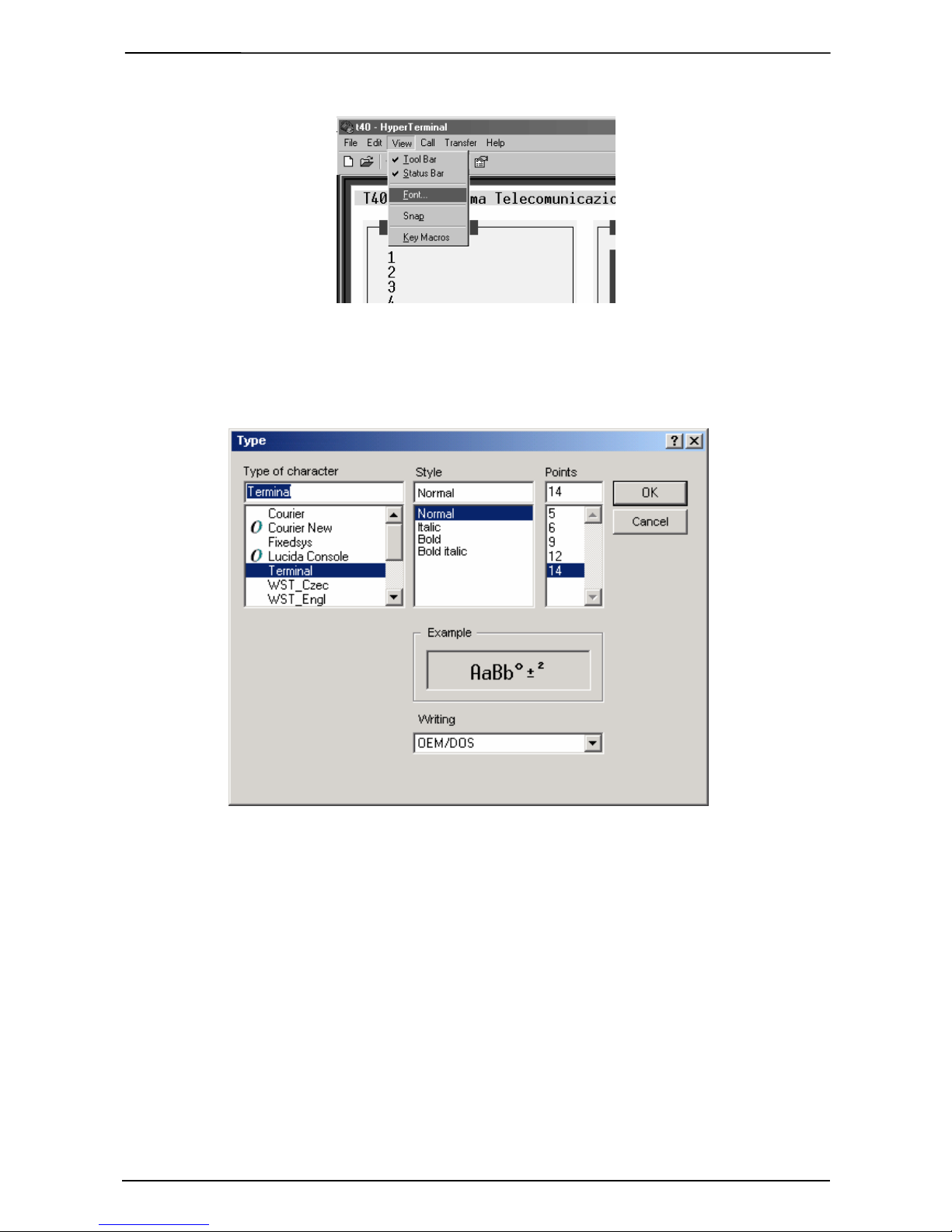

In case characters of the window results confused, select “Character” in “Show” menu.
From font selection field, chose “Terminal” then type and 9 or 12 dimension (a small font will generate a
small windows, a big font will be better visible but, on low resolution, no whole windows could be showed).
Now the software for system configuration is ready to use.
When you close the HyperTerminal™, saving your settings is requested. Saving connection, when you will
need to connect to T40 the next time, simply select the saved connection (in the example named T40), all
parameters will automatically be applied and the T40 main window will be displayed.

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 13 of 43

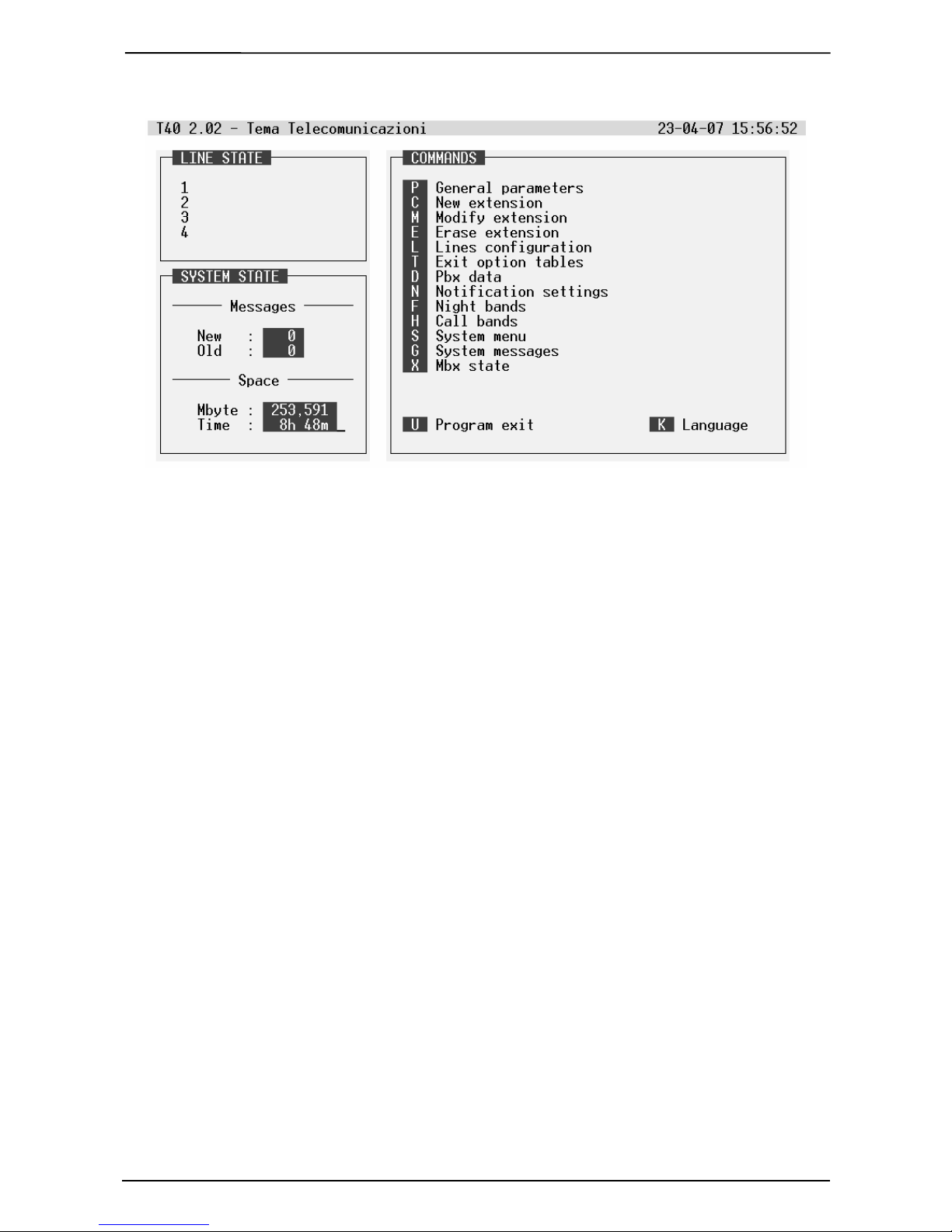

The following mask will appear on your PC:
To choose a function, press the corresponding capital letter showed on the left of the functions list (for
example “P” for general parameters, “L” for lines configuration, and so on..).
To exit from a function windows press ESC to return to previous menu, if different methods are not showed.
If changes was made, software will ask you to save them.
At this point, you must configure system working mode and the extensions accessing modes:
Which incoming message must be played to callers (if different to the standard message), which extensions
callers could be reached by T40 and eventually if they also have a voicemail box.
The welcome message is to be used to presents the company name and it is better to make a short and
direct message without annoy callers but only suggest quick selections or connect them to the operator after
the firm presentation.
T40 allows detailed and individual users settings to best adhere to their conveniences.

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 14 of 43
7. SYSTEM CONFIGURATION
7.1. General Parameters
General Parameters setup the system global working, as hold criteria, dial tones, system identification
number, etc.
Choosing General Parameters the following window is showed:
Selection (T/P): T40 dialing mode. Choose T for DTMF tones or to Pfor Pulse Dialing.
DTMF Time: defines DTMF dialing Tone duration, in mSec.
Flash On: put on hold digit sequence. Normally is not necessary to change this parameter (the “&” indicates
the flash, the comma “,” indicates a 2 sec. pause). A common case for much PBX could be require another
digit after the flash criteria (for example flash plus 2: in this case “&,2,” that is flash, pause, 2, pause.
Flash Off: the code to take back a call previously placed on hold.
Flash Time: duration in mSec of flash signal.
Interdigits: the delay that T40 must wait before process callers selections when they navigates system
menu.
Pause menu: the time between menu repetition.
Max Time Call: the maximum call duration before the system close it.
Min Time Msg: T40 does not store caller’s messages shorter than this value. Thanks to this parameter,
when caller hangs up not leaving a valid message, it isn’t recorded in the mailbox space. If this value is set
to “0” all messages will be saved.
Max Time Msg: this is the maximum duration available to callers to leave a message. This is useful to limit
mailbox messages at predefined maximum time.
Silence Stop Rec: during a message recording, if the caller stops to talk until this time elapse, recording will
stop.
PBX digit length: number of digits that composes PBX extensions. T40 does not allow mixed numeration
plan (3 and 4 digit extensions for example)
PO extension: T40 must know the operator’s extension number. T40 will refer to this number every time the
operator is requested. Even when a real operator does not exist in the company, an operator extension
number must be created in the system.
Protection Notific.: this parameter is used to avoid that T40 records itself when notify a message to an
extension diverted on T40. This function is useful when the system is services integrated to a PBX.
Wait Ext Answers: this is the waiting time on extension ringing. After this time, T40 understands that there is
no answer to the call. It is possible to set this time individually for each extension. (See “Modify Extension”).
Verify Selection: To be set if you prefer that T40 check, every time a caller select an extension, the effective
extension existence. If extension exist the T40 connect the call otherwise inform the caller that a wrong
extension was required. Leave this mark empty if you prefer that all possible selection made by callers could
be permitted.

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 15 of 43
Music on hold: contains files sequence to play on music on hold specific output.
Access code: this is the master password for remote access (see “Remote Access” in appendix).
Fax extension: this is the fax extension number to receive eventually incoming fax calls.
SMS service center: the network service center for SMS. This number has to contain also the digit code the
PBX users must compose to access external lines (typically 0).
Test wrong selection: when this function is active, the system will check the selection of the user in the main
menu: after 2 wrong selection (a digit not programmed in the menu) the final action will be invoked.
Otherwise, if the function is not active, every wrong selection will restart the menu message from the
beginning.
COM2 parameters: Optional parameter port settins. Only for particular integrated services.
Rings to answer: T40 will answer after this number of rings.
Debug Log: if selected, the system will generate a log file in “Sys” directory. This is useful as diagnostic tool
to check the right system functioning.

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 16 of 43
7.2. PBX parameters
Some parameters have to match your PBX specifications (especially in case of integrated T40 version). This
table allows configuring tones, signaling strings, etc.
PBX type: the PBX type integrated in services with T40. Zero means no particular PBX, standard services.
No change is possible on this field.
VM Group number: write here the group number of the extensions connected to T40 and characterized as
voice mail in the PBX.
Line 1 number (2-3-4): the exact extension number connected to T40 on line basis.
Lamp ON string: this is the string sequence that T40 use for turning ON the messages indication on
extension phones (available only on integrated versions). Please see the “integration addendum” manual for
more information, PBX specific.
Lamp OFF string: same as above, to clear the messages indication.
Line lamp notify: Indicate which line T40 must use to notify or signaling messages to extensions.
Number of retry: T40 can repeat message signaling on extension, to improve indication refreshes.
Time wait for digits: time out in seconds, within it PBX must send its Integration digits command string (only
to be set with integrated version).
Recording boost: set to increase callers incoming messages recording level.
Busy Tone: busy tone specifications for your PBX (rhythm, cadence)
•freq: signal frequency in Hz (normally 420)
•sense: tone sensitivity (a low value represent a high recognition sensitivity)
•ontime: tone presence time (in mSec)
•ontdev: tone presence deviation time (+/- this value)
•offtime: tone absence time (in mSec)
•offtdev: tone absence deviation time (+/- this value)
•repcnt: tone presence/absence to be counted to validate a Busy signal
Reorder Tone: as above, for the Reorder tone
SENS VOX: this is the system sensitivity, on channel basis, of the answer recognition mechanism, to detect
when to one called it comes given answered at the ringing extension. A low value (min. 2) represents a high
recognition sensitivity.

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 17 of 43
8. SYSTEM MENU
8.1. Introduction
The system menu contains all messages and choices available to a caller. Simplest menu is one row menu
and it is only composed by the presentation message.
More structured menu can be created in a simply manner adding new levels with different messages and
choices, in a tree configuration. The caller will navigate menu by DTMF digit commands.
An example of simplest (DAY) menu could be:
“Good morning, you are connected with XYZ Company, if you know the extension number desired, please
dial it now or hold the line for the operator, thank you…”
More articulated menu could be:
“Good morning, you are connected with XYZ Company, if you know the extension number desired, please
dial it now or press 3 for the company extension’s list. Please wait for the operator, thanks…”
Now, if the caller has pressed “3”, he reach the second menu level:
“Extension’s list, dial the extension number in any moment. Mr Smith 110, Miss. Power 112, ….”
Normally, for the first menu, a short message is suggested. This in order to speed up T40 occasional callers
management avoiding them wasting time. For the following menus (intentionally selected by the callers) a
detailed and more complete messages are suggested, to indicate all opportunities to the caller.
8.2. Menu management
System menus can be created or modified at any time. A powerful edit function allows create offline several
menu, test them and finally make them alive to serve callers. The system can manage a maximum of 20
menus.
To open the menu management window press “S” on main window:
You can create a new menu, modify or delete an existing one. To create a new menu, insert the menu
name. To modify an existing one, insert its correct name.

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 18 of 43
Press <Enter> to view and select a menu name from a list.
Selecting the “DAY” menu pressing “enter”, you can see it as a tree diagram. As shown, there is only one
level with several choices, 1 for Voice Mail (mailbox 200), 2 for Voice Mail (mailbox 200), 3 for the operator.
We suggest that you prepare a diagram before start to create a menu, planning menu choices, actions, and
corresponding description messages to be vocally recorder in the menu levels:
In this example, we planned a menu in manner that the caller could wait for the operator or could press three
to listen to the extension list.
WELCOME
MESSAGE
no caller selection OPERATOR
Caller dialled “3” EXTENSION LIST

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 19 of 43
These are steps in detail:
1. Build a new menu; impose a preferred name, for example “NEW MENU”.
2. A mask appears with only the start label.
3. Based on previous example now add the digit “3” that will contain the voice menu with extension’s list:
•press “N” new digit
•the new digit is requested; digit “3” and press <Enter>
•link to digit “3” a new submenu pressing “M” from possible listed actions.
New submenu:from the current node, a new submenu is created.
Activate VM:the digit will activate generic voice mail service. It is possible force T40 to use a fixed mailbox
to record to or, if blank, T40 will ask the mailbox number to the caller.
Call operator:the digit will transfer the caller to the operator number (indicated on general parameters).
Go back:digit brings back to the previous menu level. This option is not active at top level.
Call extension:digit will dial the extension number you write in associated field. T40 will place the caller on
hold and will call the programmed extension.
All choices are to be confirmed with <Enter> or discarded with <Esc>.
All “menu” or “submenu” requires a message. You can directly create a message in a simple way.
Conversely, “actions” does not need a message; they just operate their service.
NOTE: Only for “start” menu and for other level menus is possible to link a message, in those case T40 does
as automatic operator, plays the message and it wait for a user selection (active numbers on this menu or
directly an extension number)
In case of no selection, as default, the system diverts caller to the operator (to modify this option, please see
“Final Action” at the point 4 of this paragraph).

TEMA TELECOMUNICAZIONI SRL Voice Mail - Automatic Attendant T40
MAS-T40-REV00EN Page 20 of 43
4. To record a message into a menu row press “R”.
The system records the message from line one. From any extension, dial the line connected to line one of
T40; when you hear the line ringing tone press <enter>. T40 gets the line and waits to enter in record mode.
Press <enter> to starts the recording (a short tone is played).
The system starts recording the message marked by the arrow in the tree scheme. As showed in the
preceding picture, the system starts recording the “start” message
“Good morning, you are connected with XYZ Company, if you know the extension number desired, please
dial it now or press 3 for the company extension’s list. Please wait for the operator, thanks…”
Stop the recording by pressing <esc>. To playback and check the message press “A” and follow indications.
To select the following menu, simply move the marker with the arrow keys of the keyboard.
In the example by selecting the row “3” under “start” and selecting “R” the system starts recording the
relative message: “Extension’s list, dial the extension number when you want. Mr Smith 110, Miss. Power
112, ….”
In this manner T40 will gives to the caller the possibility to dial the desired extension by following indications
in the message you have recorded.
As last operation, you must save the menu: press “U” for exit and press “Y” to confirm the saving. The menu
is then added to the menu’s list and is now available to be choose later (in the lines configuration).
Other functions are: “F” (final action), “I” (import), “C” (delete digit), “M” (modify) options:
Final Action:when the caller listen to the menu and does not press any digit, T40 itself must take an action.
As default, it is programmed to diverts the call to the operator, but you can select other actions like call a
predefined extension, activate a voice mail box (useful in “night” mode), hang up or simulate a digit pressing
to force caller in tree menu navigation.
Import:as alternative to direct message recording, it is possible to import in each menu a studio arranged
message file. The message file can also be previously stored in T40, in this case simply indicate the
complete file path. Normally you use the import function to import a high quality message file prepared in the
audio studio of Tema. To do this, from the PC used as terminal, press “I”, and start the transmission with
Zmodem protocol as now explained. Suppose to have the personalized message supplied by Tema, on a
USB pen drive. To import this message, put the marker over the menu row has to receive the message,
press “I” for import and ignore file name request, select in the Hyperterminal the “transfer file” (Zmodem) and
“send file” command. Browse for the file in the USB drive, select the file and use “open” command. File
transfer will start.
