TEMC DE-OX SUN User manual

DE-OX® SUN Helium analyzer Draft Issue n. 1.1 of 10/02/11 page1
Instruction Manual
Draft Issue n. 1.1 of 10/02/11
DE-OX
®SUN
HELIUM ANALYZER
2011 All Rights reserved
www.temc.it
Contents
Contents................................................................................................................................................................. 1
Discharge of Liability .............................................................................................................................................. 2
General Specifications ........................................................................................................................................... 2
Powering On and Warming Up .............................................................................................................................. 3
Reading Page ........................................................................................................................................................ 3
Programming Procedures ...................................................................................................................................... 3
Threshold Alarms Setting....................................................................................................................................... 3
Full Scale Value Setting ......................................................................................................................................... 4
Auto Switch Off Delay Time ................................................................................................................................... 4
Threshold Alarms ................................................................................................................................................... 4
Powering Off .......................................................................................................................................................... 4
Factory Reset......................................................................................................................................................... 4
Note For Correct Helium Analysis.......................................................................................................................... 4
Replacement of the Battery and of the Helium Sensor .......................................................................................... 5
Central Unit Specifications ..................................................................................................................................... 6
Helium Sensor Specifications ................................................................................................................................ 6

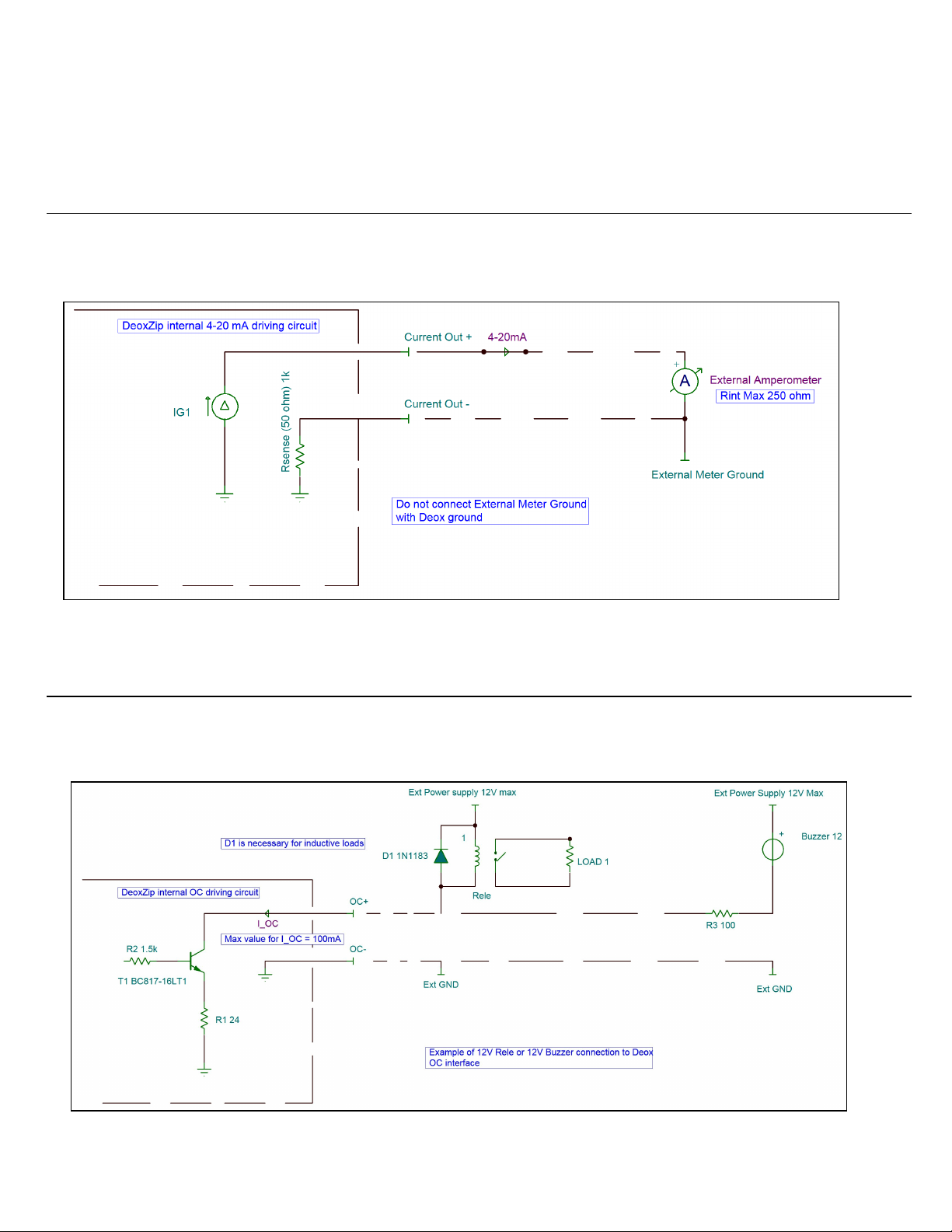

4-20mA Connections (if available) ......................................................................................................................... 7
Open Collector Connections (if available).............................................................................................................. 7
Warranty................................................................................................................................................................. 8

DE-OX® SUN Helium analyzer Draft Issue n. 1.1 of 10/02/11 page2
Cartolina di Garanzia (Warranty Registration Card) .............................................................................................. 9

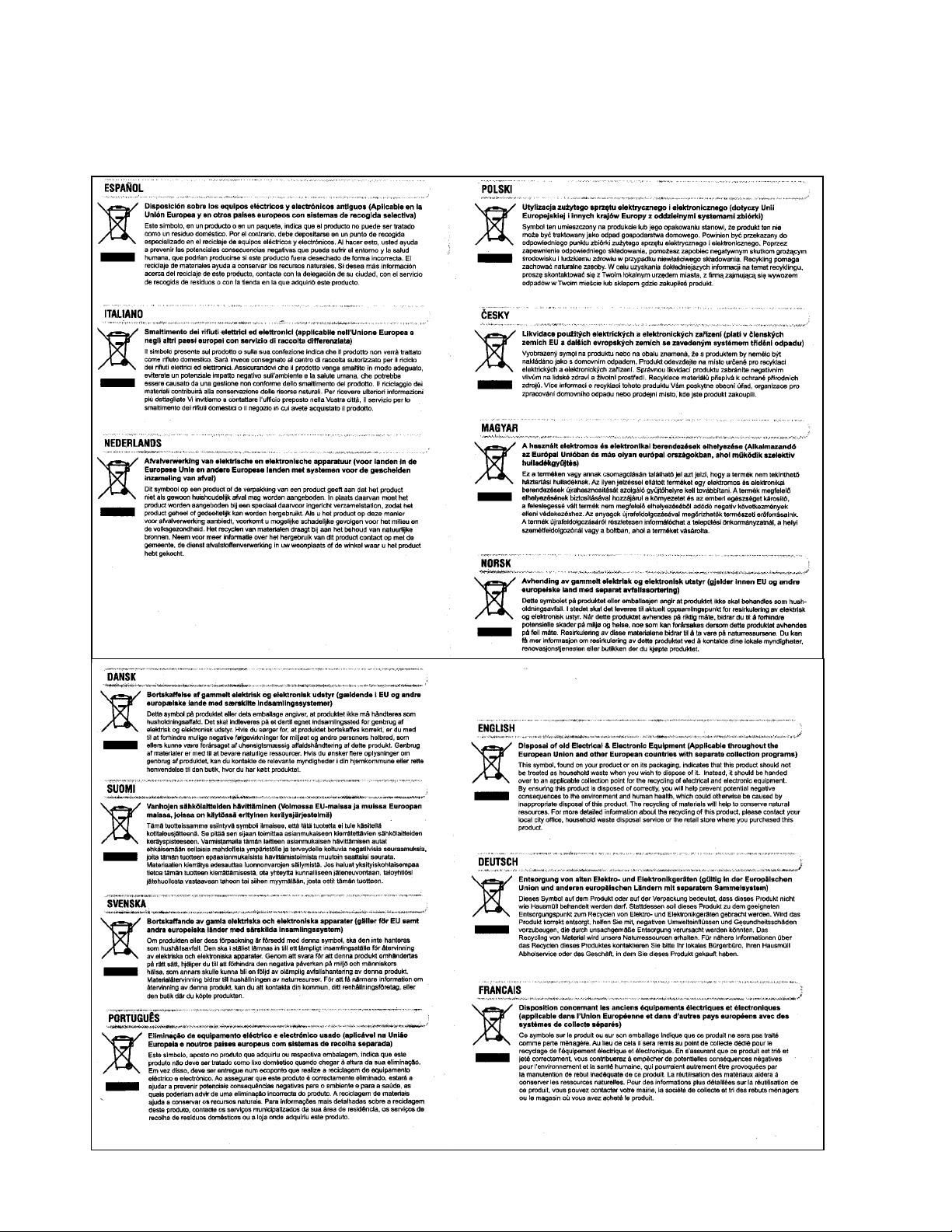

Disposal of Old Electrical and Electronic Equipment ........................................................................................... 10
Discharge of Liability
Before operating and installing please read this manual carefully. This manual is an integral part of the DE-
OX®SUN helium analyzer. The use of this instrument implicates total acceptance of the present section.
All warranties relevant to this instrument are void if is not operated and maintained in accordance with this
manual.
TEMC®disclaims every responsibility for the improper, wrong or incorrect use of this measurement
instrument. Before use, it is necessary to receive a proper training on mixed gas diving and gas mixtures
analysis for diving applications. It is dangerous to breathe mixed gas with any percentage of oxygen different
from 21% and containing helium. Sport and mixed gas diving is a potentially hazardous and dangerous
activity that may lead to death if practised incorrectly. Manipulating mixed gas with oxygen is dangerous and
requires special training and oxygen dedicated equipment. The present instrument does not replace the
necessary notional and practice training for these activities. The data displayed are a mathematical
elaboration based on physical laws but they are not representative of the complexity of human physiology
and of the different psycho-physical situation of use by customers.
TEMC®is not liable for any damage or injury including death which may result from DE-OX®SUN utilisation.
The operator of this instrument is responsible for any damage or injury resulting from improper use,
unauthorized repair, improper maintenance, or damage by anyone other than TEMC®. Use always another
instrument for data cross checking.
The N.O.A.A. (National Oceanic and Atmospheric Administration) oxygen partial pressure and exposure time
limits table are available on world-wide literature.
TEMC®, whose policy is one of continuous quality improvement, reserves the right to modify the technical
characteristics of the instrument and manual without prior notice.
General Specifications
Thank you for buying DE-OX®SUN analyzer. It represents the
simplest and up-to-date mobile measurement instrument for
the analysis of helium in mixed gas. Unique features include
two level alarms, standard analog 4-20 mA and Open
Collector outputs.
DE-OX® SUN has been especially designed and
manufactured for the analysis of binary and ternary gas mix
like Heliox and Trimix.
DE-OX® SUN comprises in just one integrate device the
helium sensor, the electronic board and the battery. The
instrument does not need any calibration.
DE-OX® SUN can be used for continuously reading during
mixed gas filling. It can alert and help in switching off the
compressor if the helium value goes out the set alarms range
(for instance 45% helium).
DE-OX® SUN is based on an innovative sensor developed by
TEMC®for respiratory use and for monitoring the respiratory
parameters in saturation dives.
Main features:
o Helium indication in any Oxygen-Nitrogen mix in the range 0.0
-100.0% of volume. 0,1 % resolution.
o Full digital measurement instrument.
o Thermal conductivity stainless steel helium sensor developed
for marine sport ambient.
o Extra long file sensor life

DE-OX® SUN Helium analyzer Draft Issue n. 1.1 of 10/02/11 page3
o Auto OFF with switching delay time setting.
o No calibration needed.
o Sensor and analyzer autosetting.
o Two custom audible and visible alarms.
o Analog 4-20 mA output for external devices (available on request).
o Open Collector output (available on request).
o Battery low indicator.
o milliVolt sensor output reading.
o Standard 9 Volt transistor battery.
o Simple battery replacement.
o Direct connection to every kind of tank valve with TEMC® rubber cup.
o Soft protection and transport bag.
o Numeric display of 50x35mm.
o Dimensions: max 7,5x4,2 cm weight 350 grams ca.
Powering On and Warming Up
Press the On Off key for more than three seconds, until the display shows “On”, after that the Firmware version
and the “Att” (WAIT) message will be displayed for about 3 seconds.
Reading Page
At the end of the warming up, the instrument is now ready to read helium concentration into the gas mix.
Connect the sensors to the mixed gas flow with a flow of 0,5-1,0 litres/minute at ambient pressure (typically 1 bar) and
temperature (typically 20°C). Now on the display the helium content will be continuously displayed. While the
instrument is in oxygen percentage display mode, keeping the <Calib key pressed for more than 1 seconds causes
the device to display the helium sensor output in mV. It is periodically necessary to read this value in order to know if
the sensor is correctly working or it is exhausted or faulty.
Warning
During gas analysis the instrument and the sensors must be firmly kept and must not be shaken. The gas
pipe used to provide gas mix to the sensor must allow free gas flowing. Never seal or stop the sensor holes. If
this event occurs the helium sensor will be irreparably damaged.
Warning
The mixed gas flow, must be 0,5-2 litres/min at ambient pressure (typically 1 bar) and temperature (typically
20°C) or DE-OX® SUN will yield a wrong gas analysis. All the analysis concentration shown on the display will
be wrong. Wrong helium analysis may lead to death.
Programming Procedures
Keep the ^ Prog key pressed for more than two seconds, then release the key. On the display will appear “Pr” for two
second in order to advice the start of the programming procedure. It is possible to program:
oAL1 First alarm threshold expressed in % helium concentration
oAL2 Second alarm threshold expressed in % helium concentration
oFSC Value expressed in % helium concentration corresponding to the current output full scale value
(20mA). 4mA always correspond to zero % helium concentration.
ot00 Auto switch off delay.
Press ON/OFF key for going to different pages.
At the end of the of the programming procedure on the display will be displayed “End” and the instrument will display
the oxygen content in the gas mix.
Threshold Alarms Setting
Press the ^ Prog key for more than two seconds, then release the key. On the display will appear “Pr” for two
seconds in order to advice the start of the programming procedure. Then will appear “AL1” for changing the value of
the minimum alarm threshold. The display will show “AL1” and the value of the alarm threshold alternatively. The
blinking digit shows the current cursor position.
Press the ^ Prog key for increasing the value (from 0 to 9).

DE-OX® SUN Helium analyzer Draft Issue n. 1.1 of 10/02/11 page4
Press the <Calib key to move the cursor to the next digit.
Press the On/Off key for accepting the value and jumping to AL2 threshold programming page.
Act as for AL1 to modify the AL2 second threshold to the desired value. If you want to exclude the first alarm AL1
program it as 100.0. If you want to exclude the second alarm AL2 program it as 100.0.
Full Scale Value Setting
After the alarms concentration values setting, the instrument goes to “Fsc” page in order to change the analogic full
scale value of the instrument (if equipped with this feature). This is the helium concentration at 20 mA on the
analogical output. 4 mA is the value at 0% of helium concentration.
It is displayed alternatively “Fsc” and the value of the full scale. The blinking value is the actual changing value.
Press the ^ Prog key for increasing the value (from 0 to 9).
Press the <Calib key for going to the next value.
Press the On/Off key for accepting the value and jumping to the next program page.
Auto Switch Off Delay Time
In this page it is possible to change the auto switch off delay time of the instrument. The display will show “t00” and
the seconds alternatively. The blinking digit shows the current cursor position.
Press the ^ Prog key for increasing the value (from 0 to 9).
Press the <Calib key to move the cursor to the next digit.
In this page it is possible to define the time after that the instrument will auto switch off in the range 0 -1999
seconds. For keeping the instrument already switched on insert 000 sec.
Press the On/Off key for accepting the value and quitting the programming procedures. On the display will appear for
two seconds “End”, then the instrument will show the helium concentration.
Warning
The instrument will switch off after the time set into the Auto Switch Off Delay Time. If you are using the
instrument in continuous blending system, set this value to 000. If not, the instrument will auto switch off
without giving any control of the mixing process. Always analyze the mixed gas you are going to dive with.
Diving with wrong mixed gas may lead to death.
Threshold Alarms
Should the helium reading goes over the threshold alarms (AL1 or AL2) the instrument goes to alarm mode
and it activates the relays output if equipped (open collector max 100mA) and the internal buzzer. On the
display will be shown the trespassed alarm and the actual measured value.
For stopping the buzzer song it is enough to press any key. In this event the instrument will remain in alarm
mode until the analysed value will go below the alarm.
Powering Off
For powering off the instrument, in the reading page press the On/Off key for more than 3 seconds. On the display
will appear “Off” and the instrument will power off.
Factory Reset
In case it is necessary to reset the instrument to the factory settings, power on the instrument pressing at the same
time for more than one second the On/Off and the <Calib keys. On the display will appear “res” and the instrument
will go to the reading page.
Warning
In case of reset, the instrument will delete all the alarms settings, the full scale value, any auto delay
switching off time. Before using again the instrument, it may be necessary to program again the alarm values,
the full scale value, the auto delay switching off time if changed. Wrong helium analysis may lead to death.
Note For Correct Helium Analysis
Before doing mixed gas analysis, connect the mixed gas hose (not supplied) to the flow adapter in the rear of the
instrument and let the gas flow goes through the internal helium sensor. The sensor, when coming in contact with the

DE-OX® SUN Helium analyzer Draft Issue n. 1.1 of 10/02/11 page5
mixed gas flow, gives an electrical signal. This signal is transmitted to the central unit and processed in order to give
the helium percentage information on the display. The mixed gas flow that comes in contact with the sensor, must
range from 0,5 to 1 litres/min (best 0,5 lit/min) at the same calibration pressure (typically ambient pressure 1 bar) and
temperature (Typically 20°C) or a wrong gas analysis will occur (preferably use a flow regulator with meter connected
to the mixed gas tank). Higher flow value or pressure or temperature variations, will cause wrong analysis and will
irreparably damage the sensor. During the gas analysis, the unit must be kept steady and must not be shaken or
submitted to vibrations. Allow gas freely flows into the pipes.
During gas analysis, the helium percentage of the mixed gas being analyzed is available on the display. It is possible
to make several gas analysis without waiting the instrument goes to 0 reading.
It is possible to let DE-OX® SUN in ambient for ambient analysis of helium. In this case the reading will be slower (up
to 5 minutes).
Warning
When battery is nearly exhausted BAT appears on the display. In this case helium analysis is not anymore
reliable.
Warning
Breathing mixed gas with helium needs the right training. NOOA and medical studies recommend not to
expose to an oxygen partial pressure higher than 1.6 bar or lower than 0.18 bar because of serious personal
injury including death. Refer to proper medical literature and receive the right training.

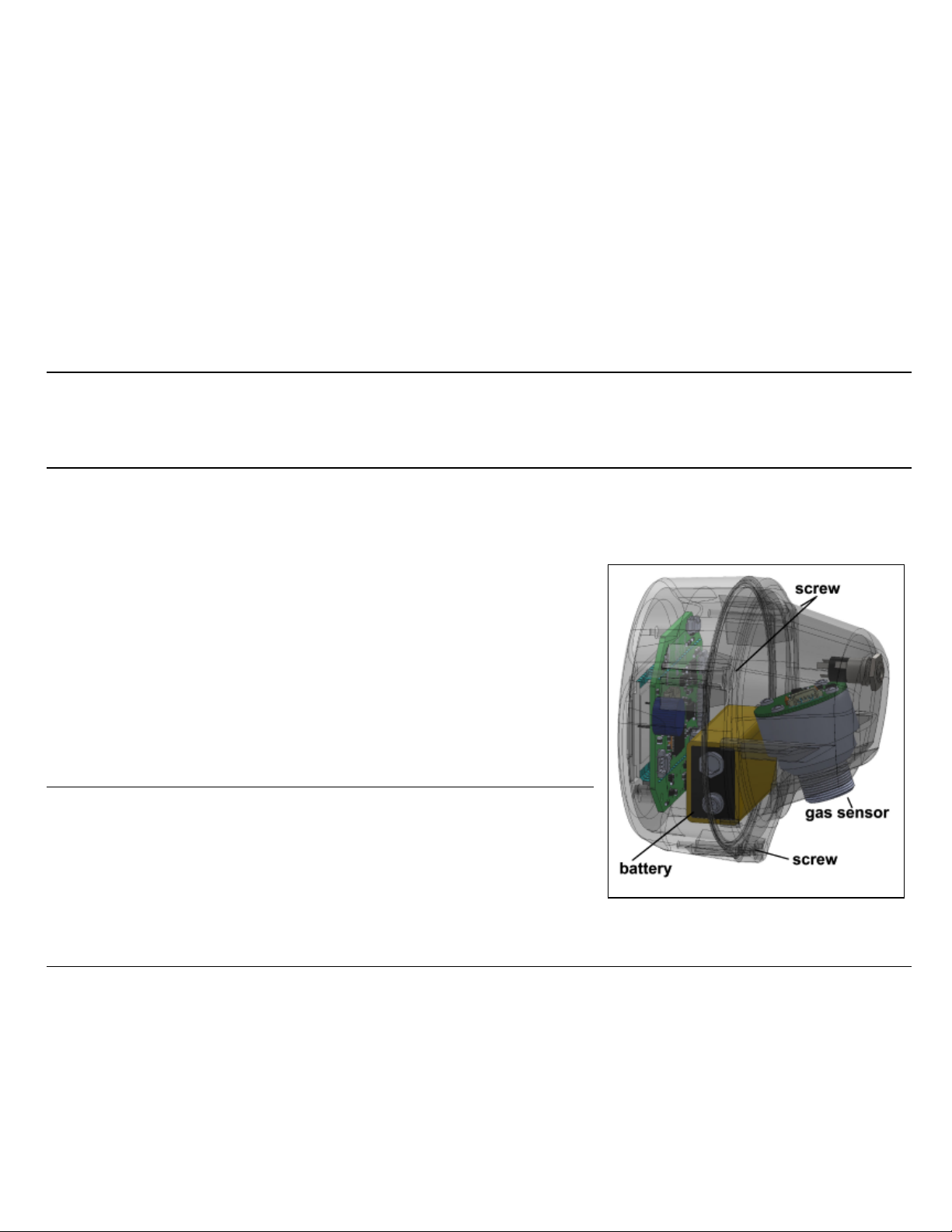

Replacement of the Battery and of the Helium Sensor
DE-OX® SUN requires one 9 Volt transistor alkaline battery. It must be replaced when “bat” appears on the display.
To replace the battery:
- Switch off DE-OX® SUN.
- Remove the three closing screws and carefully open the
instrument.
- Remove the old battery and replace it with the new one.
- Do not throw anyway the old battery. Check the correct recycling
procedure.
- Close the instrument screwing the three closing screws.
- Switch on the instrument with the On/Off key and check the battery
level.
Warning
Don’t leave battery inside the instrument if you do not use it for
a long time.
The helium sensor must be replaced when unable to correctly read
helium concentration. The sensor life is over 24 months or more
under normal operating conditions. Always contact TEMC® for
replacing the sensor.
Warning
Replace the helium sensor when the unit is unable to correctly analyze the gas. The use of an exhausted
sensors may cause dangerous analysis and lead to death. Wrong helium analysis may lead to death. Always
contact TEMC® for sensor replacement. Do not use any other helium sensor brand.
To replace the helium sensor:
- Switch off DE-OX® SUN with the On/Off key.
- Remove the three closing screws and carefully open the instrument.
- Unplug the sensor connector.
- Remove the old sensor screwing un-clockwise the flow adapter and replace it with the new one.
- Connect again the plug to the sensor connector. Screw again the flow adapter.

DE-OX® SUN Helium analyzer Draft Issue n. 1.1 of 10/02/11 page6
- Do not throw anyway the old sensor. Check the correct recycling procedure.
- Close the instrument, screwing the three closing screws.
- Switch on the instrument with the On/Off key and check the unit.
Warning
Do not try to disassemble the sensor. Sealed unit contains delicate electronic components that may be
destroyed. If this event occurs the helium sensor will be irreparably damaged. If disassembled or handled the
sensor will not properly work and will not correctly analyze the gas mix. Wrong helium analysis may lead to
death. Do not wet in any case. Do not touch any of the internal part. Some sensor internal parts are heated to
up 500°C and may injure you causing serious burning. In this event get medical attention. Always contact
TEMC® for sensor replacement. Do not use any other helium sensor brand.
Central Unit Specifications
DE-OX®SUN contains delicate electronic devices, hence it is absolutely necessary to:
- Avoid shock (greater than 2g) or vibrations
- Avoid exposure to environmental temperature higher than 30°C and lower than 5°C (41 F)
- Do not supply the instrument with voltage higher than 9 V DC. This will lead to damaging the battery and the internal
electronic carts
- Press the keys delicately with your fingers and don’t use any kind of tools
- Avoid exposure to spray liquids and to corrosive gas, don’t submerge and do not expose to water splash.
- For cleaning, use a soft dry brush not soaked with any liquid.
- Don’t try to remove screws from DE-OX®SUN or to open it. For any problem call TEMC®.
Warning
Never wet or splash or submerge the instrument. The instrument or any of its part are waterproof . If one of
these events occur the DE-OX®SUN will be irreparably damaged.
Helium Sensor Specifications
The Helium sensor is developed for related underwater applications. It operates by comparing the thermal
conductivity of the sample gas with that of a reference gas (in this case air). A heated sensor is mounted so that
it is exposed to the sample gas while the reference sensor is enclosed in a sealed compartment of the reference
gas. If the sample gas has a higher thermal conductivity than the reference gas, heat is lost from the exposed
element and its temperature decreases; if the thermal conductivity is lower than that of the reference, the sensor
heats up. The sensor is designed to only analyze helium into nitrogen and oxygen gas mix.
Specifications:
-Measurements range 0÷100% of Helium in air or Nitrogen or oxygen.
-Resolution 0,1%
- Operating humidity from 0 to 95% non condensing. Prevent condensation on the surface of the sensing
surface.
- Operating temperature range from 5°C (41F) to 40°C (104F).
- Storage temperature range from -15°C (5F) to 50°C (122F).
- Do not expose sensor to a biased voltage or to a short circuit.
- Response Time <10 sec for 90% response at 23°C.
- Accuracy ±2% over full scale.
-Linearity within ±2% over full scale.
-Due to the thermal conductivity technology, the accuracy of the sensor is no more warranted if into the gas mix
there are gases like: acetylene,)ammonia, argon, carbon dioxide,)ethane, ethylene, freon, hydrogen, methane,)neon,
propane, etc.
In the interest of product improvement, TEMC®reserves the right to alter design features and specifications without
notice. Check TEMC® for the latest helium sensor specifications.
Unless otherwise stated, all product specifications are quoted at standard temperature and pressure.
Warning

DE-OX® SUN Helium analyzer Draft Issue n. 1.1 of 10/02/11 page7
Do not try to disassemble the sensor. Sealed unit contains delicate electronic components that may be
destroyed. If disassembled or handled the sensor will not properly work and will not correctly analyze the gas
mix. Wrong helium analysis may lead to death. Do not wet in any case. Do not touch any of the internal part.
Some sensor internal parts are heated to up 500°C and may injure you causing serious burning. In this event
get medical attention Always contact TEMC® for sensor replacement. Do not use any other helium sensor
brand.
4-20mA Connections (if available)
In one side of the instrument (if equipped with this feature) there is a jack for the 4-20 mA output. Insert the plug
into the jack for taking out the signal. For connections refer to the following diagram.
Warn
ing
The plug should be connected or disconnected when the instrument is switched off, or the instrument will
autonomously switch off.
Open Collector Connections (if available)
In one side of of the instrument (if equipped with this feature) there is a jack for the open collector output. Insert the
plug
into
the
jack
for
taking
out the
signal.
For
conne
ctions
refer to
the
followi
ng
diagra
m.

DE-OX® SUN Helium analyzer Draft Issue n. 1.1 of 10/02/11 page8
Warning
The plug should be connected or disconnected when the instrument is switched off, or the instrument will
autonomously switch off.
Warranty
TEMC®warrants that its DE-OX®SUN computer will be free from defects on material and workmanship for a period of
twelve (12) months from the date of delivery, with the exception of sensor that is not manufactured in-house and that
is warranted for six (6) months, provided that the warranty Registration Card is filled in and returned to TEMC®at the
time of delivery.
Warranty will be void by failure to install, use or maintain DE-OX®SUN according to TEMC®instructions. To avail
oneself of the warranty, send the product with carriage prepaid to TEMC®.
THESE WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED,
OR LEGAL. TEMC®MAKES NO WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR
PURPOSE. Buyer’s exclusive remedy shall be the replacement of any DE-OX®SUN helium analyzer or sensor
therefore that fails to comply with the above warranty. Under no circumstances will TEMC®be liable for economic,
special, incidental or consequential damages of any kind whatsoever.
This warranty does not cover any damage due to accidental events (ex. impact or falls) or natural events (ex. fires
calamities, earthquakes, etc.).

DE-OX® SUN Helium analyzer Draft Issue n. 1.1 of 10/02/11 page9
Cartolina di Garanzia (Warranty Registration Card)
Compilare e inviare in busta chiusa entro 5 giorni dall’acquisto a:
(Fill with required data and send in a sealed envelope within 5 days from purchase to):
TEMC®
Via Donna Prassede 5 A
I-20142 MILANO ITALY
Phone [phone] or [phone]
E-Mail: [email protected] Website: www.temc.it
Nome ________________Cognome___________________
(First name) (Family name)
Via_______________________________________n_____
(Address) (#)
Città______________________________CAP__________
(Town) (ZIP)
Nazione_________________________________________
(Country)
Telefono_________________________________________
(Telephon)
E-Mail_________________________________________
(E-Mail)
N.serie strumento_________________________________
(Instrument Serial number)
Data Acquisto____________________________________
(Purchase date)
Dichiaro di aver letto e compreso il manuale di istruzione e di accettare le condizioni di garanzia del presente
strumento.
(I have read and well understood the instruction manual and I accept all warranty terms).
Data__________________________
(Date)
Firma__________________________________________
(Signature)

DE-OX® SUN Helium analyzer Draft Issue n. 1.1 of 10/02/11 page10
Disposal of Old Electrical and Electronic Equipment
In the EU when you buy a new equipment you may give back the old equivalent unit to the supplier free of charge for
correct disposal.

DE-OX® SUN Helium analyzer Draft Issue n. 1.1 of 10/02/11 page11
DE-OX®SUN HELIUM ANALYZER
Quick reference guide:
Warning
Please refer to the complete manual in electronic format before operating the instrument. This guide is just a
quick support. Misuse of this instrument may lead to death.
For switching on the instrument, keep pressed the ON/OFF key for few seconds.
For analyzing connect the sensor to the gas source at 0,5-1 lit/min and 1 bar.
Pressing the CALIB key it is displayed the milli Volt output of the helium sensor.
Pressing the PROG key you will go to the programming pages (Pr): Alarm1, Alarm2, Full scale value, Auto switch off.
Alarm 1 (AL1) sets the lower alarm. At 100.0 the alarm is off.
Alarm 2 (AL2) sets the higher alarm. At 100.0 the alarm is off.
Full scale value (FSC) sets the span of the instrument for the 4-20 mA output, if available.
Auto Switch Off Delay Time (t00) sets the switching off delay time in seconds. At 000 the instrument will not
automatically switch off.
For changing the value into any programming page press PROG^ key.
For going to the next value press CALIB< key.
For saving the value and going to the next program page press ON/OFF key. At the end of the programming pages is
displayed End.
For switching off the instrument keep pressed the ON/OFF key for few seconds.
For replacing the battery, unscrew the three screws on the rear, open the instrument, replace the battery with a new
one, close the instrument screwing the three screws.
TEMC®
Via Donna Prassede 5 A
I-20142 MILANO ITALY
Phone [phone] or [phone]
E-Mail: [e-mail] Website: www.temc.it
DE-OX®SUN ANALIZZATORE DI ELIO
Guida veloce di riferimento:
Attenzione
Fare sempre riferimento al manuale completo in formato elettronico prima di utilizzare lo strumento. Questa
guida è un e veloce supporto all’uso ma non è completa. L’uso non corretto di questo strumento può
provocare la morte.
Per accendere lo strumento tenere premuto il tasto ON/OFF per qualche secondo.
Per effettuare l’analisi connettere il sensore alla fonte di gas a 0,5-1 lit/min e 1 bar.
Premere il tasto CALIB per visualizzare i milli Volt del sensore di elio.
Premere il tasto PROG per accedere alle pagine di programmazione (Pr): allarme1, allarme2, valore di fondo scala,
tempo di auto-spegnimento.
Allarme1 (AL1) è l’allarme di minima. A 100.0 l’allarme è disattivato.
Allarme2 (AL2) è l’allarme di massima. A 100.0 l’allarme è disattivato.
Valore di fondo scala (FSC) è il valore cui è impostata, se disponibile, l’uscita 4-20 mA al fondo scala.
Tempo di auto-spegnimento (t00) modifica il tempo in secondi passati i quali lo strumento si spegne. A 000 lo
strumento resta sempre acceso.
Per cambiare ogni valore all’interno delle pagine di programmazione premere il tasto PROG^.
Per andare al valore successivo premere il tasto CALIB<.
Per salvare i valori impostati e andare alla pagina di programmazione successiva premere il tasto ON/OFF. Al termine
della procedura di programmazione sul display appare End.
Per spegnere lo strumento tenere premuto il tasto ON/OFF per qualche secondo.
Per sostituire la batteria svitare le tre viti sul retro dello strumento, aprirlo, estrarre la vecchia batteria e sostituirla con
una nuova, richiudere lo strumento, avvitare le tre viti.
TEMC®
Via Donna Prassede 5 A
I-20142 MILANO ITALY
Phone [phone] or [phone]

DE-OX® SUN Helium analyzer Draft Issue n. 1.1 of 10/02/11 page12
E-Mail: [e-mail] Website: www.temc.it
