Endress+Hauser Cerabar M PMC51? Cerabar M PMP51 User manual

BA00382P/00/EN/13.10
71123275
Valid from software version:
01.00.zz
Operating Instructions
Cerabar M PMC51, PMP51, PMP55
Deltabar M PMD55
Deltapilot M FMB50/51/52/53
Process pressure / Differential pressure, Flow / Hydrostatic
Deltapilot M
Deltabar M
Cerabar M

Overview of documentation Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART
2Endress+Hauser
Overview of documentation
Cerabar M Deltabar M Deltapilot M Content Remarks
Technical Information TI00436P TI00434P TI00437P Technical data
– The documentation can be found on the
documentation CD.
– The documentation is also available on the
Internet.
See: www.endress.com Download
Operating Instruction BA00382P – Identification
– Installation
– Wiring
– Operation
– Commissioning
– Examples of configuration
– Description of parameters
– Maintenance
– Troubleshooting
– Appendix
Brief Operating
Instruction
KA01030P KA01027P KA01033P – Installation
– Wiring
– Local operation
– Commissioning
– The documentation is supplied with the device.
– The documentation can also be found on the
documentation CD supplied.
– The documentation is also available on the
Internet.
See: www.endress.com Download

Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART Table of contents
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational and process safety . . . . . . . . . . . . . . . . . 4
1.4 Notes on safety conventions and icons . . . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 CE mark, Declaration of Conformity . . . . . . . . . . . . 8
2.4 Registered labels . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Installation . . . . . . . . . . . . . . . . . . . . . . 9
3.1 Incoming acceptance and storage . . . . . . . . . . . . . . . 9
3.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 Installing Cerabar M . . . . . . . . . . . . . . . . . . . . . . . 10
3.4 Installing Deltabar M . . . . . . . . . . . . . . . . . . . . . . . 18
3.5 Installing Deltapilot M . . . . . . . . . . . . . . . . . . . . . 25
3.6 Mounting of the profile seal for universal process
mounting adapter . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.7 Closing the cover on the stainless steel housing . . . 30
3.8 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 30
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 31
4.1 Connecting the device . . . . . . . . . . . . . . . . . . . . . . 31
4.2 Connecting the measuring unit . . . . . . . . . . . . . . . 33
4.3 Potential equalization . . . . . . . . . . . . . . . . . . . . . . 35
4.4 Overvoltage protection (optional) . . . . . . . . . . . . . . 36
4.5 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 37
5 Operation . . . . . . . . . . . . . . . . . . . . . . 38
5.1 Operating options . . . . . . . . . . . . . . . . . . . . . . . . . 38
5.2 Operation without operating menu . . . . . . . . . . . . 39
5.3 Operation with an operating menu . . . . . . . . . . . . 41
6 Commissioning. . . . . . . . . . . . . . . . . . 51
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
6.2 Commissioning without an operating menu . . . . . . 52
6.3 Commissioning with an operating menu . . . . . . . . 55
6.4 Position zero adjustment . . . . . . . . . . . . . . . . . . . . 56
6.5 Level measurement (Cerabar M and Deltapilot M) . 57
6.6 Linearization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
6.7 Pressure measurement . . . . . . . . . . . . . . . . . . . . . . 71
6.8 Electrical differential pressure measurement with gauge
pressure sensors (Cerabar M or Deltapilot M) . . . . . 73
6.9 Differential pressure measurement (Deltabar M) . . 75
6.10 Flow measurement (Deltabar M) . . . . . . . . . . . . . . 77
6.11 Level measurement (Deltabar M) . . . . . . . . . . . . . . 80
6.12 Backup or duplicate device data . . . . . . . . . . . . . . . 91
7 Maintenance. . . . . . . . . . . . . . . . . . . . 92
7.1 Exterior cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 92
8 Troubleshooting . . . . . . . . . . . . . . . . . 93
8.1 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
8.2 Response of output to errors . . . . . . . . . . . . . . . . . . 95
8.3 Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
8.4 Repair of Ex-certified devices . . . . . . . . . . . . . . . . . 96
8.5 Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
8.6 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
8.7 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
8.8 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
9 Technical data . . . . . . . . . . . . . . . . . . . 99
10 Appendix. . . . . . . . . . . . . . . . . . . . . . 100
10.1 Overview of operating menu . . . . . . . . . . . . . . . . 100
10.2 Description of parameters . . . . . . . . . . . . . . . . . . 108
10.3 Patents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Safety instructions Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART
4Endress+Hauser
1 Safety instructions
1.1 Designated use
The Cerabar M is a pressure transmitter for measuring level and pressure.
The Deltabar M is a differential pressure transmitter for measuring differential pressure, flow and
level.
The Deltapilot M is a hydrostatic pressure sensor for measuring level and pressure.
The manufacturer accepts no liability for damages resulting from incorrect use or use other than that
designated.
1.2 Installation, commissioning and operation
The device is designed to meet state-of-the-art safety requirements and complies with applicable
standards and EU regulations. If used incorrectly or for applications for which it is not intended,
however, it can be a source of application-related danger, e.g. product overflow due to incorrect
installation or configuration. For this reason, installation, connection to the electricity supply,
commissioning, operation and maintenance of the measuring system must only be carried out by
trained, qualified specialists authorized to perform such work by the facility's owner-operator. The
specialist staff must have read and understood these Operating Instructions and must follow the
instructions they contain. Modifications and repairs to the devices are permissible only if they are
expressly approved in the Operating Instructions. Pay particular attention to the technical data and
information on the nameplate.
1.3 Operational and process safety
Alternative monitoring measures have to be taken while configuring, testing or servicing the device
to ensure the operational and process safety.
#Warning!
Only disassemble the device in pressurless condition!
1.3.1 Hazardous areas (optional)
Devices for use in hazardous areas are fitted with an additional nameplate (ä6 ff). If using the
measuring system in hazardous areas, the appropriate national standards and regulations must be
observed. The device is accompanied by separate "Ex documentation", which is an integral part of
these Operating Instructions. The installation regulations, connection values and safety instructions
listed in this Ex document must be observed. The documentation number of the related Safety
Instructions is also indicated on the additional nameplate.
• Ensure that all personnel are suitably qualified.

Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART Safety instructions
Endress+Hauser 5
1.4 Notes on safety conventions and icons
In order to highlight safety-relevant or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding icon in the margin.
Symbol Meaning
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to serious
personal injury, a safety hazard or the destruction of the device.
"Caution!
Caution highlights actions or procedures which, if not performed correctly, can lead to personal
injury or the incorrect operation of the device.
!Note!
A note highlights actions or procedures which, if not performed correctly, can have an indirect
effect on operation or trigger an unexpected response on the part of the device.
0Explosion-protected, type-examined equipment
If the device has this symbol embossed on its nameplate, it can be used in a hazardous area or a
non-hazardous area, depending on the approval.
-Hazardous area
This symbol is used in the drawings of these Operating Instructions to indicate hazardous areas.
– Devices used in hazardous areas must possess an appropriate type of protection.
.
Safe area (non-hazardous area)
This symbol is used in the drawings of these Operating Instructions to indicate non-hazardous
areas.
– Devices used in hazardous areas must possess an appropriate type of protection. Cables used in
hazardous areas must meet the necessary safety-related characteristic quantities.
%Direct current
A terminal to which DC voltage is applied or through which direct current flows.
&Alternating current
A terminal to which alternating voltage (sine-wave) is applied or through which alternating current
flows.
)Ground connection
A grounded terminal, which as far as the operator is concerned, is already grounded by means of a
grounding system.
*Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
+Equipotential connection
A connection that has to be connected to the plant grounding system: This may be a potential
equalization line or a star grounding system depending on national or company codes of practice.
Connecting cable immunity to temperature change
Indicates that the connecting cables have to withstand a temperature of 85°C at least.
Safety instructions
Observe the safety instructions in the associated Operating Instructions.
>
=
t 85°C

Identification Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART
6Endress+Hauser
2 Identification
2.1 Device designation
2.1.1 Device identification via the nameplate
!Note!
• The MWP (maximum working pressure) is specified on the nameplate. This value refers to a
reference temperature of 20°C (68°F) or 100°F (38 °C) for ANSI flanges.
• The pressure values permitted at higher temperatures can be found in the following standards:
– EN 1092-1: 2001 Tab. 18 1)
– ASME B 16.5a – 1998 Tab. 2-2.2 F316
– ASME B 16.5a – 1998 Tab. 2.3.8 N10276
– JIS B 2220
• The test pressure corresponds to the over pressure limit (OPL) of the device = MWP x 1.5 2).
• The Pressure Equipment Directive (EC Directive 97/23/EC) uses the abbreviation "PS". The
abbreviation "PS" corresponds to the MWP (maximum working pressure) of the measuring
device.
Aluminum housing
P01-xMx5xxxx-18-xx-xx-xx-000
Fig. 1: Nameplate
1 Device name
2 Ordercode (complete)
3 Orderident (for re-orders)
4 Serial number (for identification)
5 MWP (maximum working pressure)
6 Electronic version (output signal)
7 Min./max. span
8 Nominal measuring range
9 Supply voltage
10 Length data
11 ID number of notified body with regard to ATEX (optional)
12 ID number of notified body with regard to Pressure Equipment Directive (optional)
13 Approvals
14 Degree of protection
15 Wetted materials
16 Deltabar M: Cable entry; Deltapilot M: Wetted materials
17 Approval-specific information
18 Software Revision
19 Device Revision
Devices suitable for oxygen applications are fitted with an additional nameplate.
1) With regard to their stability-temperature property, the materials 1.4435 and 1.4404 are grouped together under 13EO
in EN 1092-1 Tab. 18. The chemical composition of the two materials can be identical.
2) The equation does not apply for PMP51 and PMP55 with a 40 bar (600 psi) or a 100 bar (1500 psi) measuring cell.
2
1
34
586910 7
11
12
13 14
15 16
17
17 18
19
Ex works SW:
Dev.Rev.:
Mat.:
250005756-–
250002755-–
Orderident.: Ser.-No.:
Vmax.
Span
P
MWP
Ordecode:
Made in Germany, D-79689 Maulburg

Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART Identification
Endress+Hauser 7
P01-xxxxxxxx-18-xx-xx-xx-000
Fig. 2: Additional nameplate for devices suitable for oxygen applications
1 Maximum pressure for oxygen applications
2 Maximum temperature for oxygen applications
3 Layout identification of the nameplate
Stainless steel housing, hygienic
P01-xMx5xxxx-18-xx-xx-xx-001
Fig. 3: Nameplate for Cerabar M and Deltapilot M
1 Device name
2 Ordercode (complete)
3 Orderident (for re-orders)
4 Serial number (for identification)
5 Nominal measuring range
6 MWP (maximum working pressure)
7 Length data
8 Electronic version (output signal)
9 Cable entry
10 Supply voltage
11 Min./max. span
12 Wetted materials
13 ID number of notified body with regard to ATEX (optional)
14 ID number of notified body with regard to Pressure Equipment Directive (optional)
15 Approval-specific information
16 Degree of protection
Devices for use in hazardous areas are fitted with an additional plate.
P01-xMx5xxxx-18-xx-xx-xx-002
Fig. 4: Additional nameplate for devices for use in hazardous areas, or devices with a CSA and FM approval
1 Approval-specific information
Pmax
Tmax
for oxygen service
Bei Sauerstoffeinsatz/
3
1
2
1
4
2
3
5
6
7
89
11
10
12
13
14
15
15
16
002758-–
cable entry:
L=
Span
Mat.
002757-–
p
Ordercode:
Orderident:
Ser.-No.:
MWP
D-79689 Maulburg
Made in Germany,
1
1
1
11
002760-–
Install per drawing
Dat.:
002759-–
Ta>60°C:
t>80°C

Identification Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART
8Endress+Hauser
2.1.2 Identifying the sensor type
In the case of relative pressure or gauge pressure sensors, the "Pos. zero adjust" parameter appears
in the operating menu ("Setup" -> "Pos. zero adjust").
In the case of absolute pressure sensors, the "Calib. offset" parameter appears in the operating menu
("Setup" -> "Calib. offset").
2.2 Scope of delivery
The scope of delivery comprises:
• Device
• CD-ROM with documentation
• Optional accessories
Documentation supplied:
• Operating Instruction BA00382P, Technical Information (TI00436P Cerabar M / TI00434P
Deltabar M / TI00437P Deltapilot M) and the Brief Operating Instructions can be found on the
documentation CD provided. ä2, "Overview of documentation" section.
• Brief Operating Instruction: KA01030P Cerabar M / KA01027P Deltabar M / KA01033P
Deltapilot M
• Final inspection report
• Additional Safety Instructions for ATEX, IECEx and NEPSI devices
• Optional: factory calibration form, test certificates
2.3 CE mark, Declaration of Conformity
The devices are designed to meet state-of-the-art safety requirements, have been tested and left the
factory in a condition in which they are safe to operate. The devices comply with the applicable
standards and regulations as listed in the EC Declaration of Conformity and thus comply with the
statutory requirements of the EC Directives. Endress+Hauser confirms the conformity of the device
by affixing to it the CE mark.
2.4 Registered labels
KALREZ, VITON, TEFLON
Registered label of E.I. Du Pont de Nemours & Co., Wilmington, USA
TRI-CLAMP
Registered label of Ladish & Co., Inc., Kenosha, USA
HART
Registered label of the HART Communication Foundation, Austin, USA
GORE-TEX®
Registered label of W.L. Gore & Associates, Inc., USA

Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART Installation
Endress+Hauser 9
3 Installation
3.1 Incoming acceptance and storage
3.1.1 Incoming acceptance
• Check the packaging and the contents for damage.
• Check the shipment, make sure nothing is missing and that the scope of supply matches your
order.
3.1.2 Storage
The device must be stored in a dry, clean area and protected against damage from impact
(EN 837-2).
Storage temperature range:
See Technical Information for Cerabar M TI00436P / Deltabar M TI00434P / Deltapilot M
TI00437P.
3.2 Installation conditions
3.2.1 Dimensions
For dimensions, please refer to the Technical Information for Cerabar M TI00436P / Deltabar M
TI00434P / Deltapilot M TI00437P, "Mechanical construction" section. See also ä2,
"Overview of documentation".

Installation Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART
10 Endress+Hauser
3.3 Installing Cerabar M
!Note!
• Due to the orientation of the Cerabar M, there may be a shift in the zero point, i.e. when the
container is empty or partially full, the measured value does not display zero. You can correct this
zero point shift ä40, Section "Function of the operating elements" or ä56, Section 6.4
"Position zero adjustment".
• For PMP55, please refer to Section 3.3.2 "Installation instructions for devices with diaphragm
seals – PMP55", ä12.
• Endress+Hauser offers a mounting bracket for installing on pipes or walls.
ä15, Section 3.3.5 "Wall and pipe mounting (optional)".
3.3.1 Installation instructions for devices without diaphragm seals –
PMP51, PMC51
!Note!
• If a heated Cerabar M is cooled during the cleaning process (e.g. by cold water), a vacuum
develops for a short time, whereby moisture can penetrate the sensor through the pressure
compensation (1). If this is the case, mount the Cerabar M with the pressure compensation (1)
pointing downwards.
• Keep the pressure compensation and GORE-TEX®filter (1) free from contamination.
• Cerabar M transmitters without diaphragm seals are mounted as per the norms for a manometer
(DIN EN 837-2). We recommend the use of shutoff devices and siphons. The orientation depends
on the measuring application.
• Do not clean or touch process isolating diaphragms with hard or pointed objects.
Pressure measurement in gases
P01-PMx5xxxx-11-xx-xx-xx-003
Fig. 5: Measuring arrangement for pressure measurement in gases
1 Cerabar M
2 shutoff device
• Mount Cerabar M with shutoff device above the tapping point so that condensate which may be
present, can flow into the process.
1
1
1
➁
➀

Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART Installation
Endress+Hauser 11

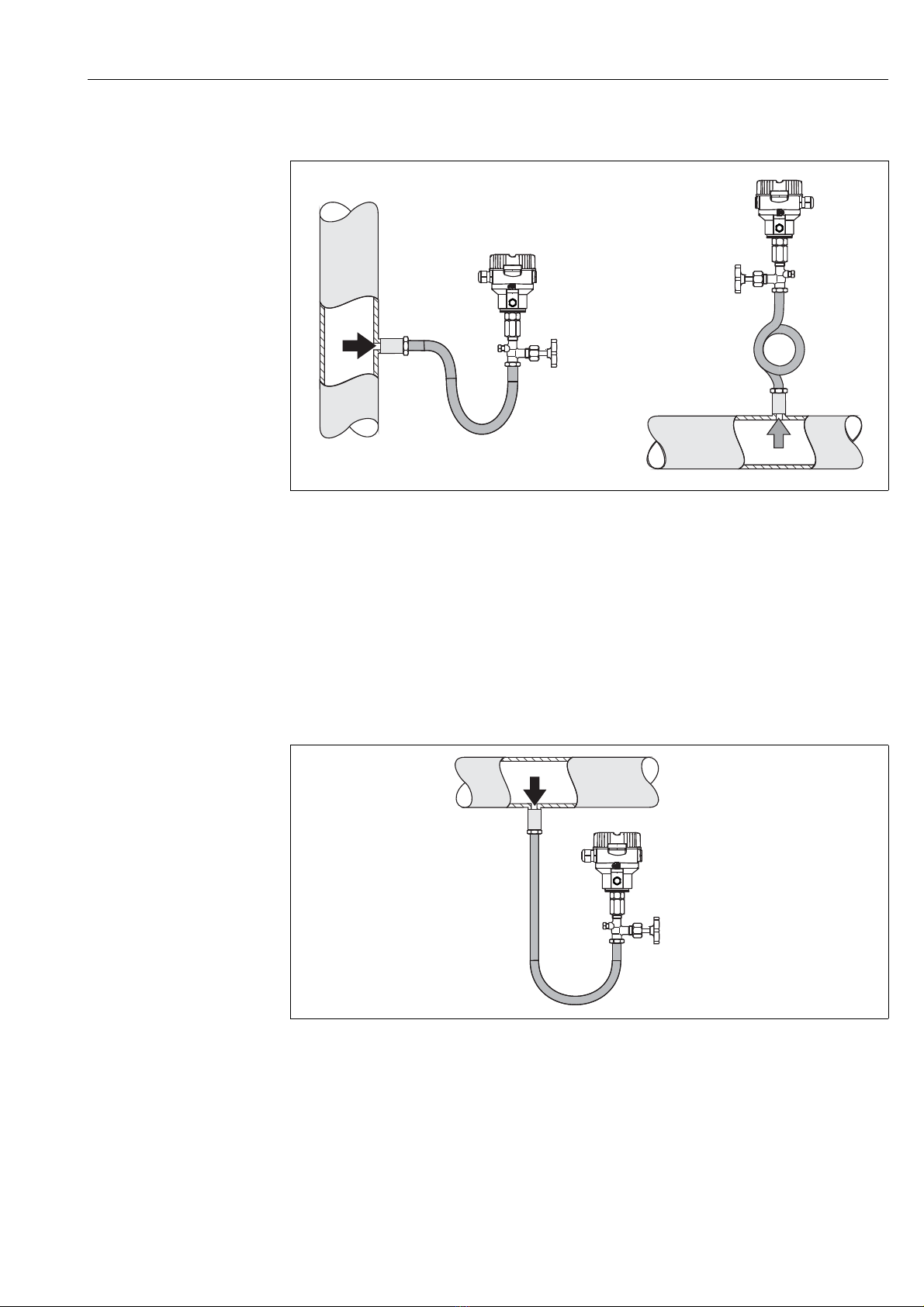

Pressure measurement in steams
P01-PMx5xxxx-11-xx-xx-xx-004
Fig. 6: Measuring arrangement for pressure measurement in steams
1 Cerabar M
2shutoffdevice
3 U-shaped siphon
4 Circular siphon
• Mount Cerabar M with siphon above the tapping point.
• Fill the siphon with liquid before commissioning.
The siphon reduces the temperature to almost the ambient temperature.
Pressure measurement in liquids
P01-PMx5xxxx-11-xx-xx-xx-005
Fig. 7: Measuring arrangement for pressure measurement in liquids
1 Cerabar M
2shutoffdevice
• Mount Cerabar M with shutoff device below or at the same level as the tapping point.
➂
➀
➁
➃
➀
➁
➁
➀

Installation Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART
12 Endress+Hauser
Level measurement
P01-xMx5xxxx-11-xx-xx-xx-000
Fig. 8: Measuring arrangement for level
• Always install the Cerabar M below the lowest measuring point.
• Do not mount the device in the filling curtain or at a point in the tank which could be affected by
pressure pulses from an agitator.
• Do not mount the device in the suction area of a pump.
• The calibration and functional test can be carried out more easily if you mount the device
downstream of a shutoff device.
PVDF interchangeable threaded boss
!Note!
A maximum torque of 7 Nm (5.16 lbs ft) is permitted for devices with a PVDF interchangeable
threaded boss. The thread connection may become loose at high temperatures and pressures. This
means that the integrity of the thread must be checked regularly and may need to be tightened using
the torque given above. Teflon tape is recommended for sealing the 1/2 NPT thread.
3.3.2 Installation instructions for devices with diaphragm seals –
PMP55
!Note!
• Cerabar M devices with diaphragm seals are screwed in, flanged or clamped, depending on the
type of diaphragm seal.
• A diaphragm seal and the pressure transmitter together form a closed, oil-filled calibrated system.
The fill fluid hole is sealed and may not be opened.
• Do not clean or touch the process isolating diaphragm of the diaphragm seal with hard or pointed
objects.
• Do not remove process isolating diaphragm protection until shortly before installation.
• When using a mounting bracket, sufficient strain relief must be ensured for the capillaries in order
to prevent the capillary bending down (bending radius 100 mm (3.94 in)).
• Please note that the hydrostatic pressure of the liquid columns in the capillaries can cause zero
point shift. The zero point shift can be corrected. ä56, Section 6.4 "Position zero
adjustment".
• Please observe the application limits of the diaphragm seal filling oil as detailed in the Technical
Information for Cerabar M TI00436P, "Planning instructions for diaphragm seal systems" section.
In order to obtain more precise measurement results and to avoid a defect in the device, mount the
capillaries as follows:
• Vibration-free (in order to avoid additional pressure fluctuations)
• Not in the vicinity of heating or cooling lines
• Insulate if the ambient temperature is below or above the reference temperature
• With a bending radius of 100 mm (3.94 in).

Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART Installation
Endress+Hauser 13
Vacuum application
For applications under vacuum, Endress+Hauser recommends mounting the pressure transmitter
below the diaphragm seal. This prevents vacuum loading of the diaphragm seal caused by the
presence of filling oil in the capillaries.
When the pressure transmitter is mounted above the diaphragm seal, the maximum height
difference H1 in accordance with the illustration below left must not be exceeded. The maximum
height difference depends on the density of the filling oil and the smallest ever pressure that is
permitted to occur at the diaphragm seal (empty container), see illustration below right.
Mounting with temperature isolator
P01-PMx5xxxx-11-xx-xx-xx-008
Endress+Hauser recommends the use of temperature isolators in the event of constant extreme
medium temperatures which lead to the maximum permissible electronics temperature of +85°C
(+185°F) being exceeded. To minimize the influence of rising heat, Endress+Hauser recommends
the device be mounted horizontally or with the housing pointing downwards.
The additional installation height also brings about a zero point shift of approx. 21 mbar (0.315 psi)
due to the hydrostatic column in the temperature isolator. You can correct this zero point shift.
ä40 "Function of the operating elements" or ä56, Section 6.4 "Position zero adjustment".
P01-PMx5xxxx-11-xx-xx-xx-006
Fig. 9: Installation above the diaphragm
seal
P01-PMP75xxx-05-xx-xx-en-011
Fig. 10: Diagram of maximum installation height above the
diaphragm seal for vacuum applications, depending on
the pressure at the diaphragm seal
H1
0.0
2.0
4.0
6.0
8.0
10.0
12.0
50 100 300 400 500 600 700 800 900 1000
200
Inert oil
Hightemperature
oil
Vegetableoil
Silicone oil
Pressure at diaphragm seal[mbarabs]
Heightdifference H1[m]
Low temperature oil
max. 115

Installation Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART
14 Endress+Hauser
3.3.3 Seal for flange mounting
P01-FMD7xxxx-11-xx-xx-xx-002
Fig. 11: Mounting the versions with a flange
1 Process isolating diaphragm
2Seal
#Warning!
The seal is not allowed to press against the process isolating diaphragm as this could affect the
measurement result.
3.3.4 Thermal insulation – PMP55
The PMP55 may only be insulated up to a certain height. The maximum permitted insulation height
is indicated on the devices and applies to an insulation material with a heat conductivity
0.04 W/(m x K) and to the maximum permitted ambient and process temperature (see table
below). The data were determined under the most critical application "quiescent air".
P01-PMx5xxxx-11-xx-xx-xx-010
Fig. 12: Maximum permitted insulation height, here indicated on a PMP55 with a flange
➁➀
l0.04£W
mK•
TP
TA
PMP55
Ambient temperature (TA)70°C (158°F)
Process temperature (TP) Max. 400°C (752°F), depending on the diaphragm seal filling oil used (see
TI00436PEN)

Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART Installation
Endress+Hauser 15

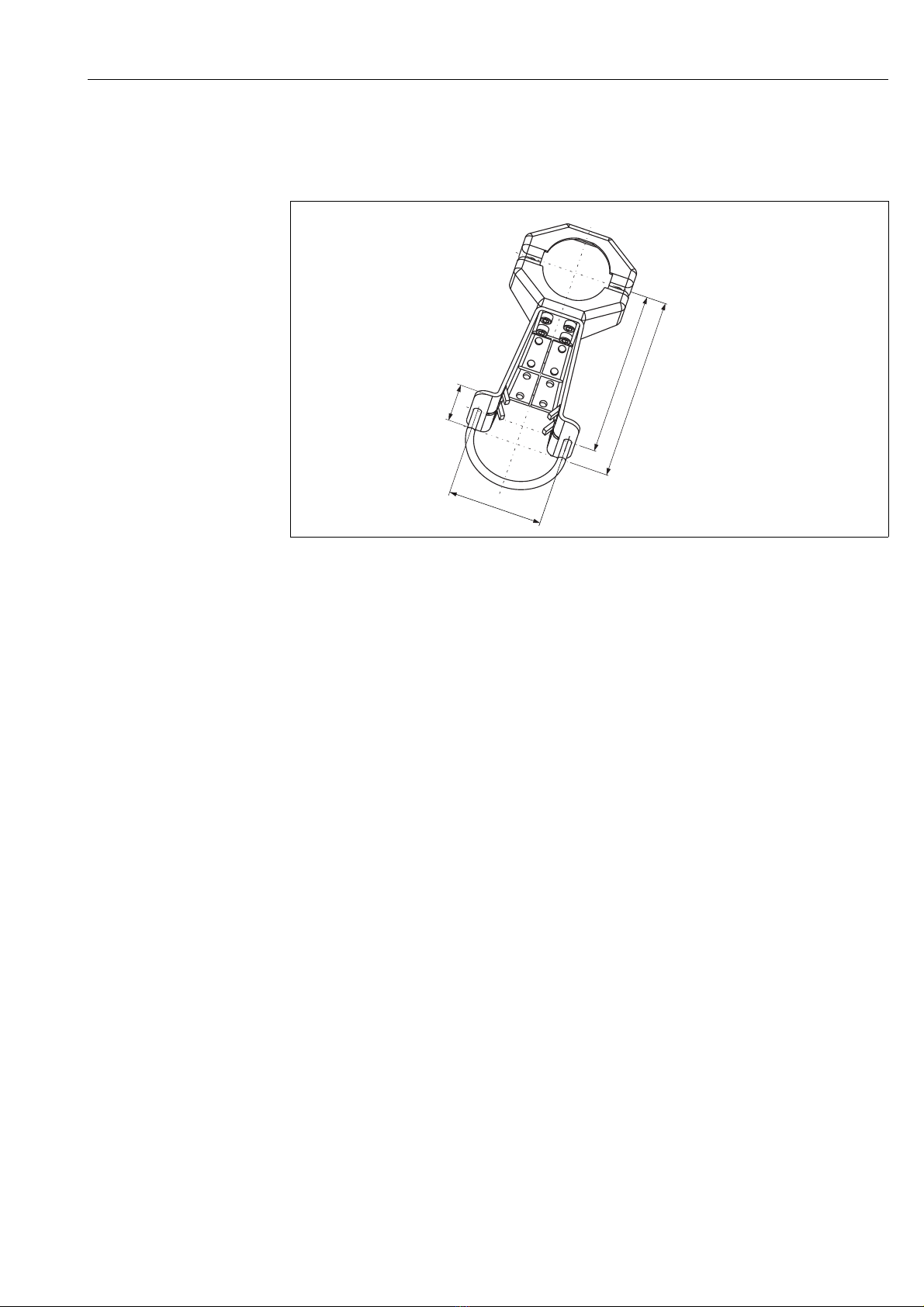

3.3.5 Wall and pipe mounting (optional)
Endress+Hauser offers a mounting bracket for installing on pipes or walls (for pipes from 1 1/4" up
to 2" diameter).
P01-xMx5xxxx-06-xx-xx-xx-001
Please note the following when mounting:
• Devices with capillary tubes: mount capillaries with a bending radius 100 mm (3.94 in).
• In the case of pipe mounting, the nuts on the bracket must be tightened uniformly with a torque
of at least 5 Nm (3.69 lbs ft).
52
140
122
70

Installation Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART
16 Endress+Hauser
3.3.6 Assembling and mounting the "separate housing" version
P01-XMx5xxxx-11-xx-xx-xx-009
Fig. 13: "Separate housing" version
1 In the case of the "separate housing" version, the sensor is delivered with the process connection and cable ready
mounted.
2 Cable with connection jack
3 Pressure compensation
4 Connector
5Lockingscrew
6 Housing mounted with housing adapter, included
7 Mounting bracket provided, suitable for pipe and wall mounting (for pipes from 1 1/4" up to 2" diameter)
Assembly and mounting
1. Insert the connector (item 4) into the corresponding connection jack of the cable (item 2).
2. Plug the cable into the housing adapter (item 6).
3. Tighten the locking screw (item 5).
4. Mount the housing on a wall or pipe using the mounting bracket (item 7).
When mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at least
5 Nm (3.69 lbs ft).
Mount the cable with a bending radius (r) 120 mm (4.72 in).
r³120 mm
1
2
3
4
5
6
7
7

Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART Installation
Endress+Hauser 17
3.3.7 PMP51, version prepared for diaphragm seal mount –
welding recommendation
P01-PMP71xxx-11-xx-xx-xx-000
Fig. 14: Version U1: prepared for diaphragm seal mount
1 Hole for fill fluid
2Bearing
3Setscrew
A1 See the "Welding recommendation" table below
Endress+Hauser recommends welding on the diaphragm seal as follows for the "XSJ - Prepared for
diaphragm seal mount" version in feature 110 "Process connections" in the order code up to, and
including, 40 bar sensors: the total welding depth of the fillet weld is 1 mm (0.04 in) with an outer
diameter of 16 mm (0.63 in). Welding is performed according to the WIG method.
Information on filling
The diaphragm seal must be filled as soon as it has been welded on.
• After welding into the process connection, the sensor assembly must be properly filled with a
filling oil and sealed gas-tight with a sealing ball and lock screw.
Once the diaphragm seal has been filled, the device display should not exceed 10% of the full scale
value of the cell measuring range at the zero point. The internal pressure of the diaphragm seal
must be corrected accordingly.
• Adjustment / calibration:
– The device is operational once it has been fully assembled.
– Once the device has been switched on, the total reset code (7864) must be entered in the path:
"Expert" "System" "Management" "Enter reset code (124)" (see also Section 5.3.7).
The electronics then read all the specific sensor data out of the sensor electronics. The device
then has to be calibrated to the process measuring range as explained in the Operating
Instructions.
ø2.5
5
➀➂➁
ø7.95
A1
Consecutive
seam no.
Sketch/welding groove
shape, dimension as per
DIN 8551
Base material
matching
Welding
process
DIN EN
ISO 24063
Welding
position
Inert gas,
additives
A1
for sensors
40 bar (600
psi)
P01-PMP71xxx-11-xx-xx-xx-001
Adapter made of
AISI 316L (1.4435)
to be welded to
diaphragm seal made of
AISI 316L
(1.4435 or 1.4404)
141 PB Inert gas
Ar/H 95/5
Additive:
ER 316L Si
(1.4430)
s1 a0.8

Installation Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART
18 Endress+Hauser
3.4 Installing Deltabar M
3.4.1 Installation position
!Note!
• Due to the orientation of the Deltabar M, there may be a shift in the measured value, i.e. when
the container is empty, the measured value does not display zero. You may correct this zero point
shift by a position adjustment in one of the following ways:
– via the operation keys on the electronics module (ä40, "Function of the operating
elements")
– via the operating menu (ä56, "Position zero adjustment")
• General recommendations for routing the impulse piping can be found in DIN 19210 "Methods
for measurement of fluid flow; differential piping for flow measurement devices" or the
corresponding national or international standards.
• Using a three-valve or five-valve manifold allows for easy commissioning, installation and
maintenance without interrupting the process.
• When routing the impulse piping outdoors, ensure that sufficient anti-freeze protection is used,
e.g. by using pipe heat tracing.
• Install the impulse piping with a monotonic gradient of at least 10%.
• Endress+Hauser offers a mounting bracket for installing on pipes or walls (ä23, "Wall and
pipe-mounting (option)").
Installation position for flow measurement
!Note!
For more information about differential pressure flow measurement refer to following documents:
• Differential pressure flow measurements with orifices: Technical Information TI00422P
• Differential pressure flow measurement with Pitot tubes: Technical Information TI00425P
Flow measurement in gases
P01-PMD55xxx-11-xx-xx-xx-000
Measuring layout for flow measurement in gases
1DeltabarM
2 Three-valve manifold
3 Shut-off valves
4 Orifice plate or pitot tube
• Mount the Deltabar M above the measuring point so that the condensate which may be present,
can run off into the process piping.
➀
➂
➃
+–
➁

Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART Installation
Endress+Hauser 19
Flow measurement in steam
P01-PMD55xxx-11-xx-xx-xx-001
Measuring layout for flow measurement in steam
1 Condensate traps
2 Orifice plate or pitot tube
3 Shut-off valves
4DeltabarM
5Separator
6 Drain valves
7 Three-valve manifold
• Mount the Deltabar M below the measuring point.
• Mount the condensate traps at the same level as the tapping points and at the same distance to
the Deltabar M.
• Prior to commissioning, fill the impulse piping to the height of the condensate traps.
Flow measurement in liquids
P01-PMD55xxx-11-xx-xx-xx-002
Measuring layout for flow measurement in liquids
1 Orifice plate or pitot tube
2 Shut-off valves
3DeltabarM
4Separator
5 Drain valves
6 Three-valve manifold
• Mount the Deltabar M below the measuring point so that the impulse piping is always filled with
liquid and gas bubbles can run back into the process piping.
• When measuring in media with solid parts, such as dirty liquids, installing separators and drain
valves is useful for capturing and removing sediment.
➀
➁
➃
+–
➂
➅
➄
➆
➂
➅
➄
+–
➀
➂
➅
➁
➃
➄
➁
➃
➄

Installation Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART
20 Endress+Hauser

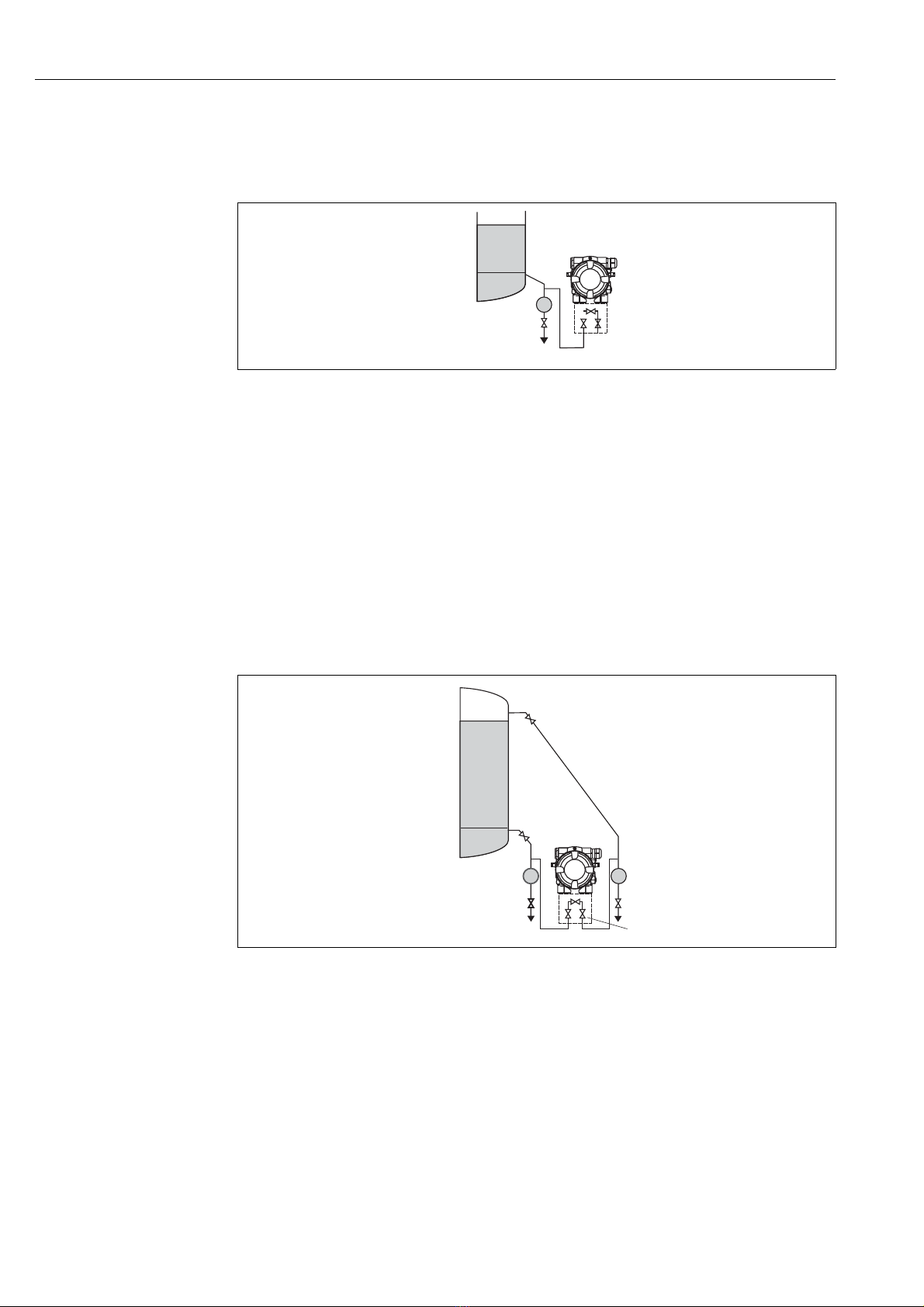

Installation position for level measurement
Level measurement in an open container
P01-PMD55xxx-11-xx-xx-xx-003
Measuring layout for level measurement in open containers
1 The low-pressure side is open to atmospheric pressure
2DeltabarM
3 Shut-off valve
4 Separator
5 Drain valve
• Mount the Deltabar M below the lower measuring connection so that the impulse piping is always
filled with liquid.
• The low-pressure side is open to atmospheric pressure.
• When measuring in media with solid parts, such as dirty liquids, installing separators and drain
valves is useful for capturing and removing sediment.
Level measurement in a closed container
P01-PMD55xxx-11-xx-xx-xx-004
Measuring layout for level measurement in a closed container
1 Shut-off valves
2DeltabarM
3 Separator
4 Drain valves
5 Three-valve manifold
• Mount the Deltabar M below the lower measuring connection so that the impulse piping is always
filled with liquid.
• Always connect the low-pressure side above the maximum level.
• When measuring in media with solid parts, such as dirty liquids, installing separators and drain
valves is useful for capturing and removing sediment.
+
➃
➂
➀
➁
➄
patm
min.
patm
+
–➀
➂
➃
➄
➁
➀
➂
➃
min.
max.
