Thermal Imager
User Manual
Part Number: ST-980

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <2> V1.026/04/18
Table of Contents
1 - Introduction.............................................................................................................................................................................4
2 - Safely Information ..................................................................................................................................................................4
3 - Packing Lists ..........................................................................................................................................................................5
4 - Specications .........................................................................................................................................................................5
5 - Structure Description.............................................................................................................................................................. 7
5.1 - Back View................................................................................................................................................................... 7
5.2 - Front View .................................................................................................................................................................. 8
5.3 - Interface ..................................................................................................................................................................... 8
6 - Before You Start .....................................................................................................................................................................9
6.1 - How to Charge the Battery......................................................................................................................................... 9
6.2 - Power On and Off....................................................................................................................................................... 9
6.3 - Desktop ...................................................................................................................................................................... 9
6.4 - Lens ......................................................................................................................................................................... 10
6.5 - Focus ....................................................................................................................................................................... 10
6.6 - Shutter...................................................................................................................................................................... 11
6.7 - Zoom ........................................................................................................................................................................ 11
6.8 - LED Light ................................................................................................................................................................. 11
6.9 - Laser ........................................................................................................................................................................ 11
6.10 - Temperature Measurement .................................................................................................................................... 12
6.11 - Emissivity Adjustment............................................................................................................................................. 12
6.12 - Reected Temperature........................................................................................................................................... 13
6.13 - The Thermal Imager Reporter Software................................................................................................................. 13
7 - Menus...................................................................................................................................................................................13
7.1 - Main Menu ............................................................................................................................................................... 13
7.2 - Image Mode ............................................................................................................................................................. 14
7.2.1 - Image Palette ............................................................................................................................................... 14
7.2.2 - Image Adjustment ........................................................................................................................................ 15
7.3 - Measurement Menu ................................................................................................................................................. 16
7.3.1 - Open and Close ........................................................................................................................................... 16
7.3.2 - Emissivity ..................................................................................................................................................... 17
7.3.3 - Reective Temperature ................................................................................................................................ 17
7.3.4 - Temperature Ranges.................................................................................................................................... 18
7.3.5 - Settings Menu .............................................................................................................................................. 18
7.3.6 - Language ..................................................................................................................................................... 19

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <3> V1.026/04/18
7.3.7 - Temperature Unit.......................................................................................................................................... 19
7.3.8 - Factory Set................................................................................................................................................... 20
7.3.9 - Set Time ....................................................................................................................................................... 21
7.3.10 - Information ................................................................................................................................................. 21
7.4 - Alignment ................................................................................................................................................................. 22
7.5 - Power off .................................................................................................................................................................. 22
7.6 - Volume ..................................................................................................................................................................... 23
7.7 - Camera Menu .......................................................................................................................................................... 23
7.7.1 - Save Image .................................................................................................................................................. 23
7.8 - Video Menu .............................................................................................................................................................. 24
7.9 - Files Browser ........................................................................................................................................................... 24
7.9.1 - Open an Image ............................................................................................................................................ 25
7.9.2 - Play a Video ................................................................................................................................................. 25
7.9.3 - Delete a File or all Files................................................................................................................................ 26
7.10 - USB Mode.............................................................................................................................................................. 26
7.11 - HDMI Output........................................................................................................................................................... 27
8 - Fault Diagnosis and Exclusion ............................................................................................................................................. 27
9 - Android/iOS APP Thermview................................................................................................................................................ 28
9.1 - System required ....................................................................................................................................................... 28
9.2 - Thermoview App install ............................................................................................................................................ 28
10 - Thermview function ............................................................................................................................................................ 28
10.1 - Import Pictures ....................................................................................................................................................... 28
10.2 - Analyse................................................................................................................................................................... 29
10.3 - Image mode ........................................................................................................................................................... 29
10.4 - Colourbar Select .................................................................................................................................................... 29
10.5 - Analyse................................................................................................................................................................... 30
10.6 - Save and exit ......................................................................................................................................................... 30
11 - Report and Share ............................................................................................................................................................... 30
11.1 - Report..................................................................................................................................................................... 30
11.2 - Share...................................................................................................................................................................... 31
12 - PC Software .......................................................................................................................................................................31
12.1 - System required ..................................................................................................................................................... 31
12.2 - IR Meter Install ....................................................................................................................................................... 31
12.3 - Running.................................................................................................................................................................. 32
12.4 - Uninstall ................................................................................................................................................................. 32

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <4> V1.026/04/18
1 - Introduction
Overview
The Thermal Imager is handheld imaging camera used for predictive maintenance, equipment troubleshooting, and verication.
Thermal and visual images are displayed on the LCD and can be saved to a Micro SD Memory card. Transferring Images to
a PC is accomplished by removing the SO memory card and connecting it to a PC through the included card reader.
In addition to the features mentioned above, the Thermal Imager provide video recording with audio and play back.
2 - Safely Information
To prevent eye damage and personal injury, do not look into the laser. Do not point laser directly at persons or animals or
indirectly off reective surfaces.
Do not disassemble or do a modication to the Thermal Imager.
Do not point the Thermal Imager (with or without the lens cover) at intensive energy sources, for example devices that emit
laser radiation, or the sun.
This can have an unwanted effect on the accuracy of the camera. It can also cause damage to the detector in the Thermal Imager.
Do not use the Thermal Imager in a temperature higher than +50°C (+122°F), lower than -20°C (-4°F). High temperature or low
temperature can cause damage to the Thermal Imager.
Only use the correct equipment to discharge the battery.
If you do not use the correct equipment, you can decrease the performance or the life cycle of the battery. If you do not use the
correct equipment, an incorrect ow of current to the battery can occur. This can cause the battery to become hot, or cause an
explosion and injury to persons.
Do not pull out the battery when the thermal imager is working.
If you pull out the battery when the thermal imager is working, may cause the thermal imager work unnormal.
Do not disassemble or do a modication to the battery.
The battery contains safety and protection devices which, if they become damaged, can cause the battery to become hot, or
cause an explosion or an ignition. If there is a leak from the battery and the uid gets into your eyes, do not rub your eyes. Flush
well with water and immediately get medical care.
Do not make holes in the battery with objects. Do not hit the battery with a hammer. Do not step on the battery, or apply strong
impacts or shocks to it.
Do not put the battery in or near a re, or in direct sunlight, or other high-temperature locations. Do not solder directly onto the
battery.
Always charge the battery in the special temperature rang.
The temperature range through which you can charge the battery is 0°C to +50°C (+32°F to +122°F). If you charge the battery
at temperatures out of this range, it can cause the battery to become hot or to break. It can also decrease the performance or
the life cycle of the battery.
Do not get water or salt water on the battery, or permit the battery to get wet.
Clean the case with a damp cloth and a weak soap solution. Do not use abrasives, isopropyl alcohol, or solvents to clean the
case or lens/screen.
Be careful when you clean the infrared lens. Do not clean the infrared lens too vigorously. This can damage the anti-reective
coating.
Avoid condensation
Take the Thermal Imager from cold to hot, it will appear condensation in thermal Imager. To protect the Thermal Imager, you
should power of the Thermal Imager, wait until the Thermal Imager has become war enough for the condensation to evaporate.
Storage
If you do not use the Thermal Imager, put the Thermal Imager in cool and dry environment, if you store Thermal Imager
equipped with the battery, the power of the battery will be exhausted.

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <5> V1.026/04/18
3 - Packing Lists
Standard Accessories
4 - Specications
Item Quantity Description
Thermal Imager 1
Lens 1 Field of view = 17°× 17°, f = 9mm
Li-ion battery 1 3.7V, 2600mAH
Adaptor 1 Input AC Volts:100V to 240V, 50/60HZ, 0.3A
Output DC Volts: 5V 2400mA
Micro SD 1 8GByte
USB Cable 1
USB OTG cable 1
Non-slip Strap 1
User Manual 1
Warranty Card 1
PC Software & Installation CD 1
Gift Box & Carrying Case 1
Imaging and optical data
Field of View (FOV) / Minimum Focus
Distance 17°×17°/ 0.5m
Spatial Resolution (IFOV) 3.78mrad
Thermal Sensitivity / NETD < 0.1°C @ +30°C (+86oF) /100 mK
Image Frequency 50Hz
Focus Mode Manual
Zoom 1-32 × continuous, digital zoom
Focal Length 9mm
Focal Plane Array(FPA) / Spectral Range Uncooled microbolometer / 8-14 µm
IR Resolution 80 x 80 pixels
Image presentation
Display 2.8 in. LCD 240 x 320 pixels
Image Modes IR image, Visual Image, Image Fusion
Colour Palettes IRON Rainbow Grey, Grey Inverted
Measurement
Object Temperature Range -20”C to +150°C (4°F to +302°F)
0°C to +350°C (+32°F to +662°F)

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <6> V1.026/04/18
Accuracy ±2°C (±3.6°F) or ±2% of reading (Environment
temperature 10°C to +35°C, object temperature > 0°C.)
Measurement Analysis
Spot Center Spot
Automatic Hot / Cold Detection Auto hot or cold markers
Emissivity Correction Variable from 0.01 to 1.0
Measurement Corrections Emissivity, Reected temperature
Storage of Videos
Storage Media 8 GBytes Micro SD card
Video Storage Format Standard MPEG-4 encode, 1280×960@30fps, on memory card
> 60 minutes
Video Storage Mode IR/Visual images; simultaneous storage of IR and visual images
Storage of Images
Image Storage Format Standard JPEG, including measurement data, on memory card
> 6000 pictures
Image Storage Mode IR/visual images; simultaneous storage of IR and visual images
Set-up
Laser < Class 2
Set-up Commands Local adaptation of units, language, date and time formats,
information of camera
Languages Multinational
Digital Camera
Built-in Digital Camera 5 Mega pixels
Built-in Digital Lens Data FOV 59°
Data Communication Interfaces
Interfaces USB-mini, audio, HDMI
USB Data transform between camera and PC
Live video between camera and PC
Video Out HDMI
Power system
Battery Li-ion battery, 4 hours operating time
Input Voltage DC 5V
Charging System In camera (AC adapter)
Power Management Automatic shutdown

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <7> V1.026/04/18
5 - Structure Description
5.1 - Back View
1 - Infrared Camera Lens Cover
2 - Lens Focus Adjuster
3 - Trigger
4 - LCD Display
5 - Buttons
(Lett) Menu/OK Button
(Right) Lock/Cancel Button
Up/Zoom out Button
Down/Zoom in Button
Right/Light Button
Left/Laser Button
Files Browse Button
Power Button
6 - Battery Box
7 - Holes for Non-slip Strap
Environmental Data
Operating Temperature Range -15°C to +50°C (5°F to +122°F)
Storage Temperature Range -40°C to +70°C (-40° F to +158°F)
Humidity (Operating and Storage) 10% to 90%
Drop Test 2m
Bump 25g (IEC60068-2-29)
Vibration 2g (IEC60068-2-6)
Physical Data
Camera Weight incl. Battery <500g
Camera Size (L × W × H) 224×77×96

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <8> V1.026/04/18

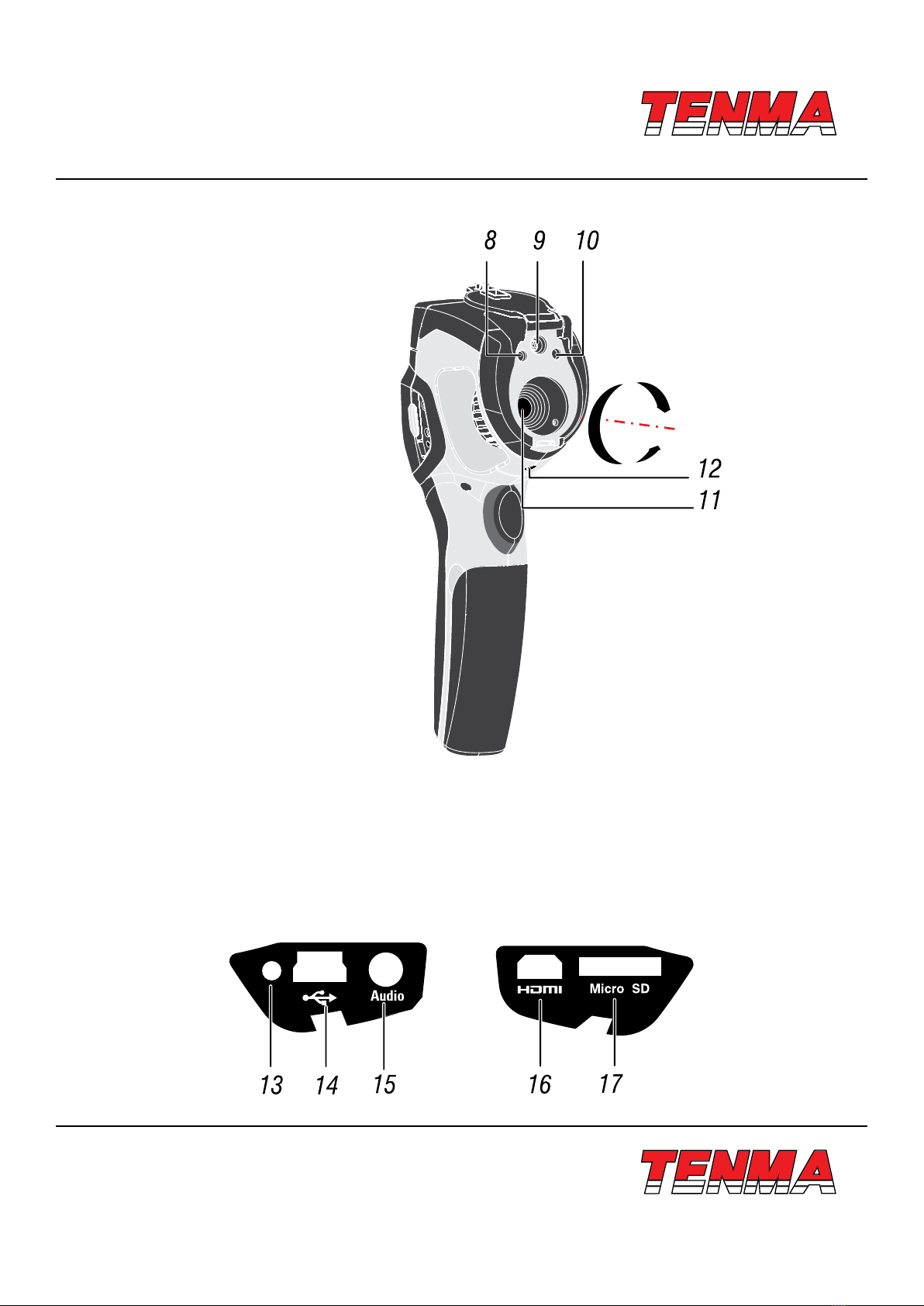

5.2 - Front View
8 - LED light
9 - Visual Camera
10 - Laser Pointer
11 - Infrared Camera lens
12 - Hole for Tripod Insertion
5.3 - Interface
13 - Charge light
14 - USB Cable Connection /Charger Input Terminal
15 - Audio/Microphone
16 - HDMI Output
17 - Micro SD card

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <9> V1.026/04/18
6 - Before You Start
6.1 - How to Charge the Battery
Before you use tile Thermal Imager for tile rst time, charge the battery for minimum of one and one-half hours. The battery
status shows on the four-segment charge Indicator.
To charge the battery, use follow before:
1 - Connect the ac power adapter into an ac wall outlet and connect the dc output to the Thermal Imager’s ac power socket,
the charge light is on. The battery indicator becomes ″ ″, while the battery charges with the ac
power adapter.
2 - Charge until the charge Indicator becomes , the charge light is off.
3 - Disconnect ac power adapter when the battery is full charged.
Note
Make sure that the Thermal Imager is near room temperature before you connect it to the charger. Do not charge in hot or cold
areas. When you Charge in extreme temperature, battery capacity may be decreased.
6.2 - Power On and Off
To turn the Thermal Imager on, push the Power Button. When Thermal Imagers power on, Push and hold the Power
Button for two seconds, turn the Thermal Imager off.
Note
The Thermal Imager needs sufcient warm-up time for the most accurate temperature measurements and best image quality.
This time can often vary by environmental conditions. It is best to wait a minimum of 10 minutes If tile most accurate temperature
measurements very Important to your application.
6.3 - Desktop
The Desktop is as follow:

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <10> V1.026/04/18
6.4 - Lens
The Thermal Imager has a Lens.
FOV is the largest area that your imager can see at a set distance.
This table lists the horizontal FOV. Vertical FOV and IFOV for lens.
IFOV (Instantaneous Reid of View) is the smallest detail within the FOV that can be detected or seen at a set distance, the unit
is rad. The formula is this:
IFOV = (Pixel Size)/(Lens focal length);
D:S theoretical (=1 / IFOV theoretical) is the calculated spot size based on the pixel size of the Thermal Imager detector array
and lens focal length.
Example: If Thermal Imager uses 9mm lens, because the Pixel Size of detector is 34um. Horizontal FOV is 17°, Vertical FOV
is 17°, the IFOV is
34um/9mm = 3.78mrad;
D:S theoretical (=1 / IFOV theoretical) = 265:1
Spot Size= 100.00cm*100.00cm
(Based upon IFOVtheoretical)
D:S measure (=1 / IFOV measure) is the spot size needed to provide an accurate temperature measure.
Typically, D:S measure is 2 to 3 times smaller than D:S theoretical, which means the temperature measurement area of the
target need to be 2 to 3 times larger than that determined by the calculated theoretical D:S.
Note:
IFOV theoretical represents the smallest objects that the thermal Imager can detect or see. IFOV measure represents the
smallest object form which an accurate temperature can be measured by the thermal Imager.
6.5 - Focus
To adjust focus, clockwise or Anti-clockwise rotates the IR Lens. When target comes into focus, it shows a sharper image. When
the target moves out of focus, the thermal image becomes blurry.
Note:
Correct focus is important in all imaging applications. Correct focus makes sure that the infrared energy is correctly directed
Focal Length Horizontal FOV Vertical FOV IFOV
9mm 17° 17° 3.78mrad

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <11> V1.026/04/18
onto the pixels of the detector. Without the correct focus, the thermal image can be blurry and the radiometric data will be
inaccurate. Out-of-focus infrared images are frequently unusable or of little value.
6.6 - Shutter
The thermal image of the Thermal Imager becomes blurry, when the Thermal Imager no correcting after some minutes or the
Thermal Imager changes target. To get ne thermal image, the Thermal Imager need to correct.
The Thermal Imager has two mode for correcting, Manual and Auto Mode. In Manual Mode, push the Power button, the Thermal
Imager will correct. In Auto Mode, the Thermal Imager can correct automatically while The thermal image of the Thermal Imager
becomes blurry.
6.7 - Zoom
Thermal Imager offers 1-32x continuous zoom functions.
1 - In desktop, press the up button, image zoom out 1 0%, long press will continue to zoom out.
2 - In desktop, press the down button, image zoom in 10%, long press will continue to zoom in.
When zoom in or zoom out, the zoom factor ″1X″ displays in the upper status bar.
6.8 - LED Light
1 - In desktop, press the right button and hold about 2 seconds, the LED light is on.
2 - In desktop, press the right button and hold about 2 seconds again, the LED light is off.
6.9 - Laser
1 - In desktop, press the left button and hold about 2 seconds, the laser is on.
2 - In desktop, press the left button and hold about 2 seconds again, the laser is off.

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <12> V1.026/04/18
6.10 - Temperature Measurement
All objects radiate infrared energy. The quantity of energy radiated is base on the actual surface temperature and the surface
emissivity of the object. The Thermal Imager senses the infrared energy from the surface of the object and uses this data to
calculate an estimated temperature value. Many common objects and materials such as painted metal, wood, water, skin,
and cloth are very good at radiating energy and it is easy to get relatively accurate measurements. For surfaces that are good
at radiating energy (high emissivity), the emissivity factor is >=0.90. This simplication does not work on shiny surfaces or
unpainted metals as they have an emissivity of <0.6. These materials are not good at radiating energy and are classied as
low emissivity. To more accurately measure materials with a low emissivity, an emissivity correction is necessary. Adjustment
to the emissivity setting will usually allow the Thermal Imager to calculate a more accurate estimate of the actual temperature.
More information please see Emissivity Adjustment to get the most accurate temperature measurements.
6.11 - Emissivity Adjustment
The correct emissivity value is important to make the most accurate temperature measurement. Emissivity of a surface can
have a large effect on the apparent temperatures that the Thermal imager observes. Understanding the emissivity of the
surface, but may not always, allow you to obtain more accurate temperature measurements.
Note:
Surfaces with an emissivity of <0.60 make reliable and consistent determination of actual temperature problematic. The lower
the emissivity, the more potential error is associated with the Imager’s temperature measurement calculations. This is also true
even when adjustments to the emissivity and reected background adjustments are performed properly.
Emissivity is set directly as a value or from a list of emissivity values for some common materials. The global emissivity displays
in LCD Screen as E=x.xx.
The following table gives typical emissivity of important materials.
Material Emissivity
Water 0.96
Stainless steel 0.14
Aluminium plate 0.09
Asphalt 0.96
Concrete 0.97
Cast iron 0.81
Rubber 0.95
Wood 0.85
Brick 0.75
Tape 0.96
Brass plate 0.06
Human skin 0.98
PVC plastic 0.93
Polycarbonate 0.8
Oxidized copper 0.78
Rust 0.8
Paint 0.9
Soil 0.93

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <13> V1.026/04/18
6.12 - Reected Temperature
Using the offset factor, the reection is calculated out due to the low emissivity and the accuracy of the temperature measurement
with Infrared Instruments is improved. In most cases, the reected temperature is identical to the ambient air temperature. Only
when objects with strong emissions with much higher temperature are in the proximity of the object being measured should be
determined and used. The reected temperature has only little effect on objects with high emissivity. The reected temperature
can be set individually.
Follow these steps to get the right value for the reected temperature.
1 - Set the emissivity to 1.0
2 - Adjust the optical lens to near focus
3 - Looking in the opposite direction away from the object, take a measurement and freeze the image
4 - Determine the average value of the Image and use that value for your Input of reected temperature.
6.13 - The Thermal Imager Reporter Software
Thermal Imager Reporter software is supplied with the Thermal Imager. This Software is intended for Thermal Imager and
contains future to analyze Images, organize data and information and make professional reports. Thermal Imager Reporter
software allows audio annotations and commentary to be reviewed on a PC.
7 - Menus
The menus, together with buttons, are access for Image, measurement, Emiss, Palette, temperature measurement range, take
photo and video, review and settings.
7.1 - Main Menu
Main menu is the main Interface of the Thermal Imager’s menus. It contains six items such as Measure, Emiss, Image, Palette,
Temperature measurement range, Settings.
Measure: Set for the calculation and display of radiometric temperature measurement data related to the thermal images.
Emiss: Setting the materials type and the emissivity of the measured object, you can also set the environment reected
temperature.
Image: Set image source for the display on the Thermal Imager’s LCD. It contains six items such as Infrared Image, visual
Image and fusion.
Palette: Set the type of colour bar.
Range: Set the temperature measurement range.
Settings: Set for the user preferences such as language, unit of temperature measurement, date, time. Restore factory setting
and display product information.

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <14> V1.026/04/18
7.2 - Image Mode
1 - In main menu, press ″up″ and ″down″ button, highlight ″Image″.
2 - Press ″select″ button, popup Image submenu which contains infrared image, visual image and fusion.
3 - Press ″up″ and “down″ button, highlight the Image mode which you want to choose.
4 - Press ″Select″ to conrm, ″Close″ to exit without change.
Thermal Imager has 3 kinds of Image modes for display. IR, Visible, IR_MIX_VIS, AUF mode.
IR: Displays only Infrared Image:
Visible: Displays only visible image;
IR_Mil_VIS: Display fusion image of infrared and visible images.
AUF: Auto Fusion mode, compare the centre area temperature with full
screen, the machine will calculate the mix ratio of Infrared and visible Images
automatically.
Press ″ ″ key to enter lock mode of AUF, the lock mode of AUF is to help
users to nd the temperature they are interested, users can set the temperature
manually and the selected temperature range is coloured with palette, the other
temperature will be displayed with visible camera.
7.2.1 - Image Palette
The Image Palette lets you change the false-Colour presentation of the infrared
images on display or captured. A variety of palettes are available for specic
applications. The standard palettes offer an equal, linear presentation of colours
that allow for best presentation of detail.

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <15> V1.026/04/18
Standard Palette
1 - In main menu, press ″up″ and ″down″ button, highlight ″Palette″.
2 - Press ″select″ button, popup the Image palette submenu. It shows four kinds of palettes, they are IRON, Rainbow, Grey,
Grey Inverted.
3 - Press ″up″ and ″down″ button, highlight the palette which you want to choose.
4 - Press ″select″ button to select palette, press ″close″ button to return.
7.2.2 - Image Adjustment
There are two kinds of mode for image
adjustment, Auto and Manual. Press right
function button to change mode.
means Manual, means Auto.
Auto: Level and span are decided by the
thermal image of minimum temperature
and maximum temperature.
Manual: Level and span are decided
by the manual values, which decide by
″Max Temp″ and ″Min Temp″. Long press
right function button to display menu for
adjusting ″Max Temp″ and ″Min Temp″,
ADA AD
Press left button to decrease value, press
right button to Increase value. Press up
button or down button to switch ″Min Temp″
and ″Max Temp″, press ″Ok″ to conrm,
press ″cancel″ to exit without change.

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <16> V1.026/04/18

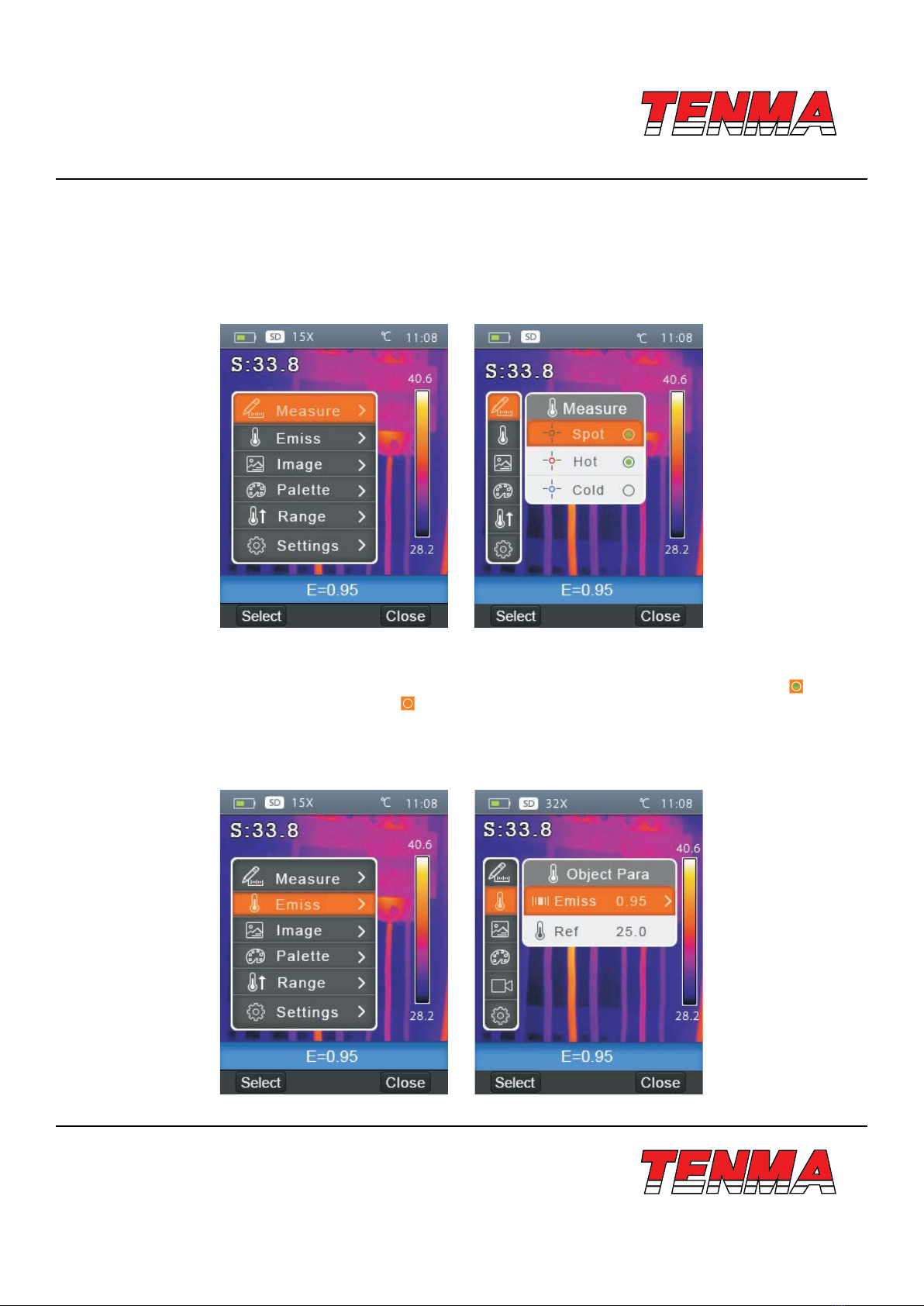

7.3 - Measurement Menu
In main menu, highlight ″Measure″ and press ″select″ button, popup Measure submenu which contains Spot, Hot, Cold.
Spot: Measure tile center point temperature.
Hot: Capture maximum temperature.
Cold: Capture minimum temperature.
7.3.1 - Open and Close
Press ″Select″ to select Spot, Hot, Cold to open the corresponding point of tile temperature measurement. The icon means
to open corresponding point measurement. The icon means to close corresponding point measurement
Object Parameter Menu
In main menu, press ″up″ and ″down″ button, highlight ″Emiss″, press ″select″ button, popup object parameter submenu.

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <17> V1.026/04/18

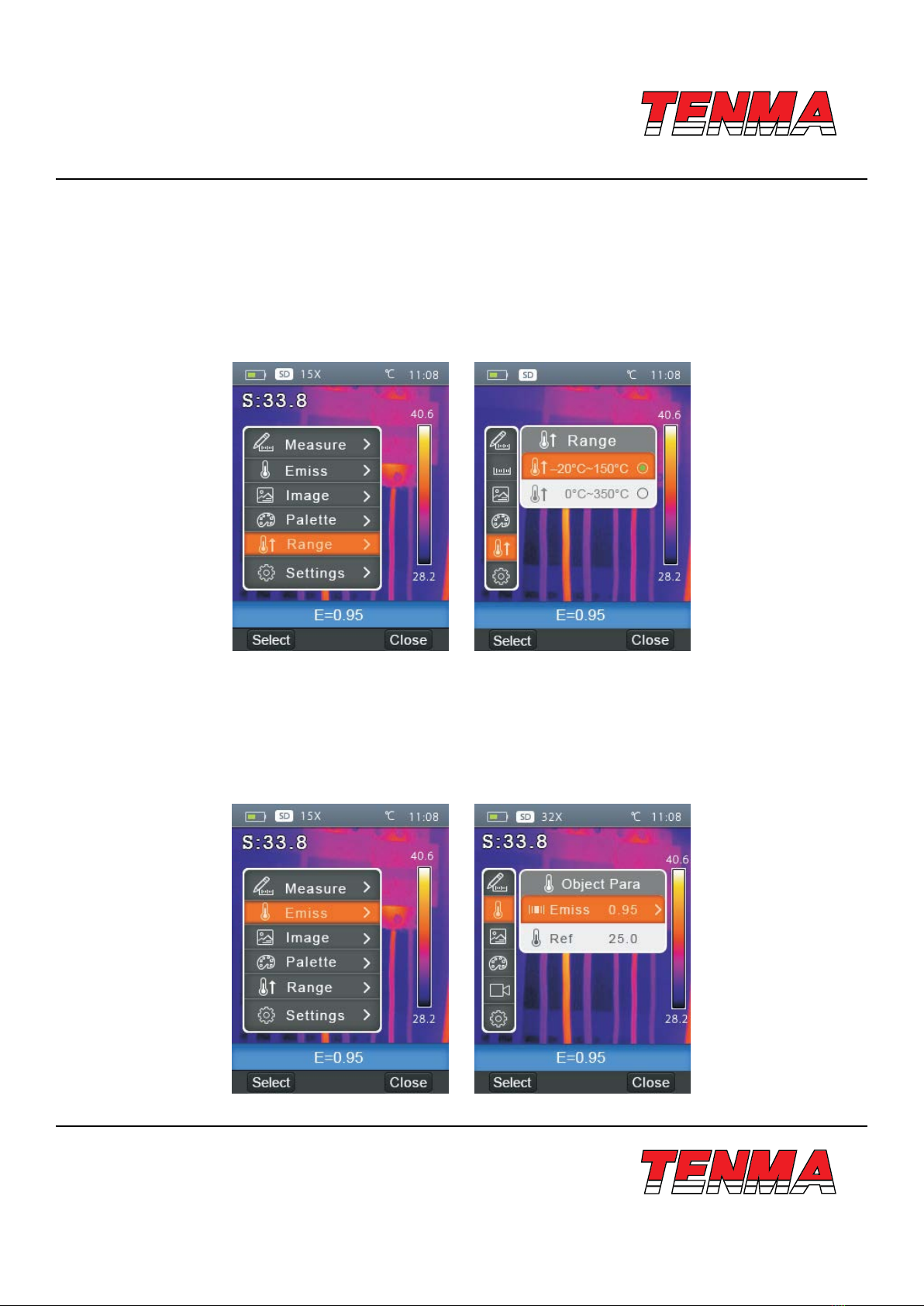

7.3.2 - Emissivity
In Object parameter submenu, press ″up″ and ″down″ button, highlight ″Emiss″, press ″select″ button, popup emissivity submenu.
″Emiss″ sets object emissivity, the value range is 0.01 to 1.00;
7.3.3 - Reective Temperature
The reective temperature is important tor radiometric temperature measurement Thermal Imager has temperature compensation
for reective temperature. To get more accurate temperature measurement, accurately set1tte reective temperature. In most
cases, the reected temperature Is Identical to the ambient temperature. Only when objects with strong emissions with much
higher temperature are in the proximity of the object being measured, the reected temperature must set.
1 - In Object parameter submenu, press ″up″ and ″down″ button, highlight ″Ref″.
2 - Press ″select″ button, the reective temperature will be modied.
3 - Press ″up″ and ″down″ button to modify the Reective temperature.
4 - Press ″select″ to conrm, ″Close″ to exit without modify.

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <18> V1.026/04/18
7.3.4 - Temperature Ranges
The temperature measurement ranges have ″-20°C to 150°C″ and ″0°C to 350°C″ to choose. The overlap temperature of the
two ranges is more accurate to choose ″-20°C to 150°C″.
1 - In main menu, press ″up″ and ″down″ button, highlight ″Range″.
2 - Press ″select″ button, popup temperature ranges submenu.
3 - Press ″up″ and ″down″ button, highlight the Range which you want to choose.
4 - Press ″Select″ to conrm, ″Close″ to exit without change.
7.3.5 - Settings Menu
1 - In main menu, press ″up″ and ″down″ button, highlight ″Settings″.
2 - Press ″select″ button, popup Settings submenu. Two pages in Setting submenu.
3 - Press ″left″ and ″right″ button, switch the page which you want to choose. Press ″up″, ″down″ button, highlight the
Setting item.
4 - Press ″Select″ button to entry into Setting item, ″Close″ to exit Setting submenu.

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <19> V1.026/04/18
7.3.6 - Language
1 - In Settings submenu, press ″up″ and ″down″ button, highlight ″Language″.
2 - Press ″select″ button, popup language submenu.
3 - Press ″up″, ″down″, ″left″ and ″right″ button, highlight the language which you want to choose.
4 - Press ″Select″ button to conrm, ″Close″ to exit without change.
7.3.7 - Temperature Unit
1 - In Settings submenu, press ″up″ and ″down″ button, highlight ″Temp. Unit″
2 - Press ″select″ button, popup Temperature Unit submenu.
3 - Press ″up″ and ″down″ button,highlight the temperature unit which you want to choose.
4 - Press ″Select″ to conrm, ″Close″ to exit without change.
Temperature Unit have three types to choose: °C, °F and K.
Conversion relationship: °F = 1.8* °C+32, K = 273.15 +°C.

www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
TM
TM
Page <20> V1.026/04/18
7.3.8 - Factory Set
1 - In Settings submenu, press ″up″ and ″down″ button, highlight ″Factory Set″.
2 - Press ″Select″ button, popup ″Factory Set″ submenu.
3 - Press ″OK″ to restore factory setting, ″Cancel″ to exit without change.
Factory Settings of the Thermal Imager is as follow:
Item Parameter Value
Measurement
Center Spot Measurement off
Hot Soot Measurement off
Cold Spot Measurement off
Measurement Parameters Emissivity 0.95
Reective temperature 25°C
Mode Infrared
Palette Iron
Adjustment Auto
System Setting
Language English
HDMI Output off
Laser off
Lamp off
