T500
*9015222*
www.tennantco.com
Parts Manual
9015222
Rev. 00 (01-2017)
North America / International
Walk-Behind Floor Scrubber
(S/N 10000000- 20000000)
Hygenic®Fully Cleanable Recovery Tank
TennantTrue®Parts
IRIS®a Tennant Technology
Pro-Panel™ Controls
Insta-Fit™ Adapter
Smart-Fill™ Automatic Battery Watering

B
A
Ref Part No. Serial Number Description Qty.
1 82681 (000000- ) Bracket Wldt, Lpg Mount 1
o2 63810 (000000- ) Latch Assy, Lpg Tank Mtg, W/Nut 4
Y3 51839 (000000- ) Nut Adjustable, Lpg Tank Mtg 2
4 49263 (000000- ) Tie, Cable 3
5 82556 (000000- 001039) Bracket, Vaporizer 1
6 54930 (000000- ) Vaporizer, LPG 1
C
D
HOW TO ORDER PARTS - See diagram above
Only use TENNANT Company supplied or equivalent parts. Parts and supplies may be ordered online,
by phone, by fax or by mail.
Follow the steps below to ensure prompt delivery.
1. (A) Identify the machine model.
2. (B) Identify the machine serial number from the data label.
3. (C) Ensure the proper serial number is used from
the parts list.
4. Identify the part number and quantity.
Do not order by page or reference numbers.
5. Provide your name, company name, customer ID number,
billing and shipping address, phone number and
purchase order number.
6. Provide detail shipping instructions.
(D) - identifies an assembly
Y- identifies parts included in assembly
Please fill out at time of installation for
future reference.
Model No. -
Serial No. -
Machine Options -
Sales Rep. -
Sales Rep. phone no. -
Customer ID Number -
Installation Date -
Tennant Company
PO Box 1452
Minneapolis, MN 55440 USA
Phone: [phone] or
(763) 513- 2850
www.tennantco.com
Specifications and parts are subject to change without notice.
Copyright E2017 TENNANT Company, Printed in U.S.A.

CÓMO SOLICITAR PIEZAS - Consulte el diagrama anterior.
Utilice sólo las piezas suministradas por TENNANT Company o piezas equivalentes. Puede solicitar las piezas a través de internet,
por teléfono, por fax o por correo.
Siga los siguientes pasos para que la entrega sea rápida.
1. (A) Indique el modelo de máquina.
2. (B) Indique el número de serie de la etiqueta de datos.
3. (C) Asegúrese de que indica el número de serie correcto de la lista de piezas.
4. Indique la cantidad y el número de la pieza.
No realice el pedidoindicando el número de página o el de referencia.
5. Incluya su nombre, el nombre de la empresa, el ID de cliente,
las direcciones de envío y facturación, el número de teléfono y el número del pedido de compra.
6. Facilite instrucciones de envío.
(D) o- identifica un conjunto
Y- identifica piezas de un conjunto
ES
Rellene estos datos cuando realice la instalación para utilizarlos
como referencia en el futuro.
Nº modelo -
Nº serie -
Opciones de la máquina -
Vendedor -
Nº teléfono vendedor -
Nº cliente -
Fecha de instalación -
COMMENT COMMANDER DES PIÈCES DÉTACHÉES - Voir le schéma ci- dessus.
Utilisez uniquement des pièces fournies par la société TENNANT ou équivalentes. Les pièces et fournitures peuvent être commandées en ligne, par téléphone, fax, ou par
courrier.
Suivez les étapes ci- dessous pour assurer une livraison rapide.
1. (A) Identifiez le modèle de la machine.
2. (B) Identifiez le numéro de série de la machine, à partir de l’étiquette signalétique.
3. (C) Assurez- vous que le numéro de série correct est utilisé à partir de la liste de pièces détachées.
4. Identifiez le numéro de pièce et la quantité. Ne commandez pas par page ou numéros de référence.
5. Fournissez votre nom, le nom de votre société, votre numéro d’identification de client, l’adresse
de facturation et d’expédition, le numéro de téléphone et le numéro du bon de commande.
6. Fournissez des instructions d’expédition détaillées.
(D) o- identifie un assemblage
Y- identifie les pièces composant l’assemblage
FR
A remplir au moment de l’installation à titre de référence.
Nº du modèle -
Nº de série -
Optionsdelamachine-
Agent commercial -
Nº tél. de l’agent commercial -
Numéro d’identification client -
Date d’installation -

TABLE OF CONTENTS
Tennant T500 (01- 2017) 5
STANDARD PARTS
GENERAL RECOMMENDED MAINTENANCE
ITEMS 7...................................
REPLACEMENT BRUSHES AND PAD
DRIVER DISK 10............................
REPLACEMENT BRUSHES CYLINDRICAL 12....
REPLACEMENT PADS ORBITAL 13.............
SCRUB HEAD GROUP, DISK 650MM / 26IN 14...
SCRUB HEAD GROUP, DISK 700MM / 28IN 16...
SCRUB HEAD GROUP, DISK 800MM / 32IN 18...
SCRUB HEAD GROUP, CYLINDRICAL
700MM / 28IN 20............................
SCRUB HEAD GROUP, CYLINDRICAL
700MM / 28IN - CONT’D 22...................
SCRUB HEAD GROUP, ORBITAL 700MM / 28IN 24
RECOVERY TANK GROUP 26..................
RECOVERY TANK FILTER AND HOSE GROUP,
SCREW CAP 28.............................
SOLUTION TANK GROUP 30...................
STANDARD ELECTRICAL GROUP 32...........
FRAME AND DRIVE GROUP 34.................
HEAD LIFT GROUP, DISK 36...................
HEAD LIFT GROUP, CYLINDRICAL 38...........
HEAD LIFT GROUP, ORBITAL 40................
SHROUD GROUP, DISK AND ORBITAL 42.......
SHROUD GROUP, CYLINDRICAL 43............
LOWER CONSOLE GROUP, ON- BOARD
CHARGER 44...............................
LOWER CONSOLE GROUP, OFF- BOARD
CHARGER 46...............................
CONSOLE HANDLE, PRO- MEMBRANE
PANEL 48..................................
CONSOLE HANDLE, PRO- PANEL LCD 50.......
SQUEEGEE LIFT GROUP 52...................
SQUEEGEE ASSEMBLY, 500MM / 20IN 54.......
SQUEEGEE ASSEMBLY, 650MM / 26IN 56.......
SQUEEGEE ASSEMBLY, 700MM / 28IN 58.......
SQUEEGEE ASSEMBLY, 800MM / 32IN 60.......
STANDARD PARTS - Cont’d
STANDARD SOLUTION GROUP 62.............
BATTERY CABLES GROUP 64..................
LABEL GROUP 65.............................
ELECTRICAL DIAGRAM 66.....................
ELECTRICAL HARNESS, MAIN 70..............
ELECTRICAL HARNESS, OPERATOR
STATION 74................................
ELECTRICAL HARNESS, BAIL SWITCH 76.......
OPTIONS
ACCESSORY RAIL CLIP KIT 77.................
TELEMETRY ELECTRICAL GROUP 78..........
ec-H2O SOLUTION GROUP 80.................
SEVERE ENVIRONMENT SOLUTION GROUP 82.
RECOVERY TANK RINSE KIT 84................
PARKING BRAKE GROUP 86...................
SOLUTION TANK AUTO-FILL KIT 88.............
CONTROL VALVE DRAIN HOSE KIT 90..........
BATTERY GROUP, WET 225AH 91..............
BATTERY GROUP, WET 260AH 92..............
BATTERY GROUP, AGM 220AH 93..............
SMART-FILLtAUTOMATIC BATTERY
WATERING GROUP 94......................
HYDROLINKRMANUAL BATTERY
WATERING KIT 96...........................
DOCUMENTATION GROUP 98..................
BREAKDOWNS
ec- H2O NANOCLEAN MODULE BREAKDOWN 100
ORBITAL HEAD ECCENTRIC DRIVE
BREAKDOWN 102............................

TABLE OF CONTENTS
6Tennant T500 (01- 2017)

RECOMMENDED MAINTENANCE ITEMS
Tennant T500 (01- 2017) 7
GENERAL RECOMMENDED MAINTENANCE ITEMS
Part No. Serial Number Description Qty.
1223989 (10000000- 20000000 )Brush Assy, Disk, Scb, 13.0d, Pyp 2
1223991 (10000000- 20000000 ) Brush Assy, Disk, Scb, 13.0d, Nyl 2
1223990 (10000000- 20000000 ) Brush Assy, Disk, Scb, 13.0d, Sab 2
89046 (10000000- 20000000 ) Pad, Stripping, 13.0d, Brown[1pick=1pad] 2
89047 (10000000- 20000000 ) Pad, Scb, 13.0d, Blu 2
89048 (10000000- 20000000 )Pad, Buff, 13.0d, Red [1pick=1pad] 2
89049 (10000000- 20000000 ) Pad, Polish, 13.0d, White [1pick=1pad] 2
1051024 (10000000- 20000000 ) Pad, Surf Prep, 13.0d [Mar, 1pick=1pad] 2
1220218 (10000000- 20000000 ) Brush Assy, Disk, Scb, 14.0d, Pyp 2
1221541 (10000000- 20000000 ) Brush Assy, Disk, Scb, 14.0d, Nyl 2
1220217 (10000000- 20000000 )Brush Assy, Disk, Scb, 14.0d, Sab 2
222327 (10000000- 20000000 ) Pad, Stripping, 14.0d, Brown[1pick=1pad] 2
222326 (10000000- 20000000 ) Pad, Scb, 14.0d, Blu [1pick=1pad] 2
222325 (10000000- 20000000 ) Pad, Buff, 14.0d, Red 2
222324 (10000000- 20000000 ) Pad, Polish, 14.0d, White [1pick=1pad] 2
370091 (10000000- 20000000 )Pad, Stripping, 14.0d, Blk [Hi Prod] 2
1051026 (10000000- 20000000 ) Pad, Surf Prep, 14.0d [Mar, 1pick=1pad] 2
1220216 (10000000- 20000000 ) Brush Assy, Disk, Scb, 16.0d, Pyp 2
1220215 (10000000- 20000000 ) Brush Assy, Disk, Scb, 16.0d, Nyl 2
1220214 (10000000- 20000000 ) Brush Assy, Disk, Scb, 16.0d, Sab 2
63248- 1 (10000000- 20000000 )Pad, Stripping, 16.0d, Brown[1pick=1pad] 2
63248- 2 (10000000- 20000000 ) Pad, Scb, 16.0d, Blu [1pick=1pad] 2
63248- 3 (10000000- 20000000 ) Pad, Buff, 16.0d, Red [1pick=1pad] 2
63248- 4 (10000000- 20000000 ) Pad, Polish, 16.0d, White [1pick=1pad] 2
370092 (10000000- 20000000 ) Pad, Stripping, 16.0d, Blk [Hi Prod] 2
1051027 (10000000- 20000000 )Pad, Surf Prep, 16.0d [Mar, 1pick=1pad] 2
222304 (10000000- 20000000 ) Brush, Scb, 28l, 18sr, Pyp, Spl 2
222305 (10000000- 20000000 ) Brush, Scb, 28l, 18sr, Nyl, Spl 2
222306 (10000000- 20000000 ) Brush, Scb, 28l, 18sr, Abr, Spl 2
1223247 (10000000- 20000000 ) Pad, Scb, 28 X 14, Blu [1pick=1pc] 1
1218157 (10000000- 20000000 )Pad, Buff, 28 X 14, Red [1pick=1pc] 1
1223246 (10000000- 20000000 ) Pad, Polish, 28 X 14, White [1pick=1pc] 1
1223248 (10000000- 20000000 ) Pad, Surf Prep, 28 X 14, Mar [1pick=1pc] 1
1223250 (10000000- 20000000 ) Pad, Scb, 28 X 14, Green [1pick=1ctn] 1
1075563 (10000000- 20000000 )Pad, Stripping, 28 X 14, Blk [1pick=1ctn] 1
1221839 (10000000- 20000000 )Pad, Backer, 28 X 14 1
222403 (10000000- 20000000 )Wheel, 02.0d 0.88w 0.50b (Disk Head) 2
1221522 (10000000- 20000000 ) Bumper, Head, 65cm, Skirt, Im [T500] 1
1221520 (10000000- 20000000 ) Bumper, Head, 70cm, Skirt, Im [T500] 1
1221512 (10000000- 20000000 ) Bumper, Head, 80cm, Skirt, Im [T500] 1
630477 (10000000- 20000000 )Wheel, Pyu, 02.0d 0.38w, Gray (Cylindrical Head) 6
1023067 (10000000- 20000000 ) Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Disk Head) 2
Y1031775 (10000000- 20000000 ) Brush Kit, Carbon, Motor, Replmt [T5] (Disk Head) 1
1223429 (10000000- 20000000 ) Motor, Ele, 24vdc 1500rpm 0.60hp (Cylindrical Head) 2
Y1031775 (10000000- 20000000 )Brush Kit, Carbon, Motor, Replmt [T5] (Cylindrical Head) 1
1218573 (10000000- 20000000 )Skirt, Side, Scrb, Cyl [T500] 4
9015765 (10000000- 20000000 )Belt Kit, Motor, Ci (Cylindrical Head) 1
Y1213132 (10000000- 20000000 ) Tool, Installation, Belt (Cylindrical Head) 1
1219913 (10000000- 20000000 ) Motor, Ele, 24vdc, 2200rpm, 0.75hp 28.0a (Orbital Head) 1
Y1059370 (10000000- 20000000 )Brush, Motor, Replmt [Bag Of 4) (Orbital Head) 1
1014918 (10000000- 20000000 )Wheel, 03.0d 0.88w 0.31b, W/ Bshg, Rbr (Orbital Head) 2

RECOMMENDED MAINTENANCE ITEMS
Tennant T500 (01- 2017)
8
GENERAL RECOMMENDED MAINTENANCE ITEMS
Part No. Serial Number Description Qty.
9015731 (10000000- 20000000 )Blade Kit, 500mm, Linatex (Standard) 1
Y1203953 (10000000- 20000000 )Blade, Sqge, Rear, 836l, Linatex[500mm] (Standard) 1
Y1203954 (10000000- 20000000 )Blade, Sqge, Front, 788l, Linatex[500mm] (Standard) 1
9015732 (10000000- 20000000 )Blade Kit, 500mm, Urethane (Option) 1
Y1215609 (10000000- 20000000 )Blade, Sqge, Rear, 836l, Urethane[500mm] (Option) 1
Y1215611 (10000000- 20000000 )Blade, Sqge, Front, 788l, Urethane[500mm (Option) 1
9015730 (10000000- 20000000 )Blade Kit, 500mm, Gum (Option) 1
Y1215610 (10000000- 20000000 )Blade, Sqge, Rear, 836l, Gum[500mm] (Option) 1
Y1215612 (10000000- 20000000 ) Blade, Sqge, Front, 788l, Gum[500mm] (Option) 1
9015734 (10000000- 20000000 )Blade Kit, 650mm, Linatex (Standard) 1
Y1221585 (10000000- 20000000 )Blade, Sqge, Rear, 1166l, Linatex[650mm] (Standard) 1
Y1221586 (10000000- 20000000 )Blade, Sqge, Front, 1072l Linatex[650mm] (Standard) 1
9015735 (10000000- 20000000 )Blade Kit, 650mm, Urethane (Option) 1
Y1228909 (10000000- 20000000 )Blade, Sqge, Rear, 1136l,Urethane[650mm] (Option) 1
Y1228915 (10000000- 20000000 )Blade, Sqge, Front,1072l,Urethane[650mm] (Option) 1
9015733 (10000000- 20000000 )Blade Kit, 650mm, Gum (Option) 1
Y1228910 (10000000- 20000000 )Blade, Sqge, Rear, 1136l, Gum[650mm] (Option) 1
Y1228919 (10000000- 20000000 )Blade, Sqge, Front, 1072l Gum[650mm] (Option) 1
9015737 (10000000- 20000000 )Blade Kit, 700mm, Linatex (Standard) 1
Y1221572 (10000000- 20000000 )Blade, Sqge, Rear, 1204l, Linatex[700mm] (Standard) 1
Y1221573 (10000000- 20000000 )Blade, Sqge, Front, 1148l Linatex[700mm] (Standard) 1
9015738 (10000000- 20000000 )Blade Kit, 700mm, Urethane (Option) 1
Y1228904 (10000000- 20000000 )Blade, Sqge, Rear, 1204l,Urethane[700mm] (Option) 1
Y1228906 (10000000- 20000000 )Blade, Sqge, Front,1148l Urethane[700mm] (Option) 1
9015736 (10000000- 20000000 )Blade Kit, 700mm, Gum (Option) 1
Y1228905 (10000000- 20000000 )Blade, Sqge, Rear, 1204l, Gum[700mm] (Option) 1
Y1228907 (10000000- 20000000 )Blade, Sqge, Front, 1148l Gum[700mm] (Option) 1
9015740 (10000000- 20000000 )Blade Kit, 800mm, Linatex (Standard) 1
Y1221115 (10000000- 20000000 )Blade, Sqge, Rear, 1306l, Linatex[800mm] (Standard) 1
Y1221116 (10000000- 20000000 )Blade, Sqge, Front, 1256l Linatex[800mm] (Standard) 1
9015741 (10000000- 20000000 )Blade Kit, 800mm, Urethane (Option) 1
Y1228920 (10000000- 20000000 )Blade, Sqge, Rear, 1306l,Urethane[800mm] (Option) 1
Y1228922 (10000000- 20000000 )Blade, Sqge, Front,1256l Urethane[800mm] (Option) 1
9015739 (10000000- 20000000 )Blade Kit, 800mm, Gum (Option) 1
Y1228921 (10000000- 20000000 )Blade, Sqge, Rear, 1306l, Gum[800mm] (Option) 1
Y1228923 (10000000- 20000000 )Blade, Sqge, Front, 1256l Gum[800mm] (Option) 1

RECOMMENDED MAINTENANCE ITEMS
Tennant T500 (01- 2017) 9
GENERAL RECOMMENDED MAINTENANCE ITEMS
Part No. Serial Number Description Qty.
9004909 (10000000- 20000000 )Wheel Kit, Solid, Ci [T5 T5e Ss5] 1
Y1223583 (10000000- 20000000 )Wheel, Scrbr, 213mm, W/ Taper 2
1031723 (10000000- 20000000 ) Motor, Transaxle, 24vdc, Afmkt [T5] 1
Y614166 (10000000- 20000000 ) Brush Kit, Carbon, Transaxle, Replmt [4] 1
1202880 (10000000- 20000000 )Fan, Vacuum, 6.6d, 024vdc, 2 Stage 1
Y1206774 (10000000- 20000000 )Vr, Brush Kit, Motor, Fan 1
100038 (10000000- 20000000 )Gasket, .50, 02.63id 05.75od, Adh [Epdm] 1
630052 (10000000- 20000000 ) Float, Shut- Off, (2)Ball, 1.75d 1
1207357 (10000000- 20000000 ) Tray, Debris, Tank, Recvy [T300] 1
1219406 (10000000- 20000000 ) Hose Assy, Drain, 1.5d 029l 1.5/Cap[Pu] (Gray) 1
Y1219134 (10000000- 20000000 )Cap, Drain Assy [Gray] 1
1225793 (10000000- 20000000 )Hose Assy, Drain, 1.5d 016l 1.5/Cap[Pvc] (Black) 1
Y1218955 (10000000- 20000000 ) Cap, Drain Assy [Black] 1
1224414 (10000000- 20000000 ) Hose Assy, W/2cuff,1.5d 033l 1.5/1.5[Pu] (Gray) 1
1211220 (10000000- 20000000 )Hose Assy,W/2cuff,1.5d 022l 1.5/1.5[Pvc] (Black) 1
9015756 (10000000- 20000000 )Seal, Cover, Recvy, Ci [T500] 1
9015758 (10000000- 20000000 )Seal, Tank, Soltn, Ci [T500/T500e] 1
1066431 (10000000- 20000000 )Seal, Afmkt, Bulb, Dual, 03ft [F/.30gap](Soltn Tank Front) 1
1212422 (10000000- 20000000 ) Caster, Swivel [Wicke 224051] 2
1211537 (10000000- 20000000 ) Filter, In- Line, Pf06/Pf06 080m 2.6l Epd 1
Y1218885 (10000000- 20000000 )Gasket [Epdm, F/1211537] 1
Y1218883 (10000000- 20000000 ) Screen, Fltr, 80 Mesh, Ss [W/ Cage] 1
Y613991 (10000000- 20000000 ) Bowl, Clr, Short, F/1005302 1
9011810 (10000000- 20000000 ) Module Kit, Replmt [Ec- H2o, B 02] (Includes Cartridge) 1
9014127 (10000000- 20000000 )Controller Kit, Replmt [Ec- H2o Nc] (Includes Cartridge) 1
Y9013646 (10000000- 20000000 )Cartridge, Ec- H2o Nanoclean Wcm, 270ml 1
9015726 (10000000- 20000000 )Hose Kit, Drain, Pu, W/ Valve, Ci[T500] (Gray) 1
Y1051986 (10000000- 20000000 )Valve, Ball, 2way, 1.0id Pvc, W/Handle 1
Y1225817 (10000000- 20000000 )Hose Assy, W/2cuff,1.5d 027l 2.0/1.5[Pu] (Gray) 1

STANDARD PARTS
Tennant T500 (01- 2017)
10
REPLACEMENT BRUSHES AND PAD DRIVER DISK
1
2
3
4
5
6
7
8
9
355426

STANDARD PARTS
Tennant T500 (01- 2017) 11
REPLACEMENT BRUSHES AND PAD DRIVER DISK
Ref. Part No. Serial Number Description Qty.
11223989 (10000000- 20000000 )Brush Assy, Disk, Scb, 13.0d, Pyp 2
1 1223991 (10000000- 20000000 ) Brush Assy, Disk, Scb, 13.0d, Nyl 2
1 1223990 (10000000- 20000000 ) Brush Assy, Disk, Scb, 13.0d, Sab 2
1 1220218 (10000000- 20000000 ) Brush Assy, Disk, Scb, 14.0d, Pyp 2
1 1221541 (10000000- 20000000 ) Brush Assy, Disk, Scb, 14.0d, Nyl 2
11220217 (10000000- 20000000 )Brush Assy, Disk, Scb, 14.0d, Sab 2
1 1220216 (10000000- 20000000 ) Brush Assy, Disk, Scb, 16.0d, Pyp 2
1 1220215 (10000000- 20000000 ) Brush Assy, Disk, Scb, 16.0d, Nyl 2
1 1220214 (10000000- 20000000 ) Brush Assy, Disk, Scb, 16.0d, Sab 2
Y2 9014667 (10000000- 20000000 ) Brush Kit, Hub Assy, Drive, Ci [Comm] 1
31220220 (10000000- 20000000 )Driver Assy, Pad, 13.0d, Brush 2
3 1220221 (10000000- 20000000 ) Driver Assy, Pad, 14.0d, Brush 2
3 1220222 (10000000- 20000000 ) Driver Assy, Pad, 16.0d, Brush 2
Y4 9014667 (10000000- 20000000 ) Brush Kit, Hub Assy, Drive, Ci [Comm] 1
Y5 370095 (10000000- 20000000 ) Device, Centering, Clip On, Tl [Gf Pp] 1
Y641579 (10000000- 20000000 )Washer, Flat, 08, Ss 3
Y7 04403 (10000000- 20000000 ) Screw, Pan, Phl, M4 X 0.70 X 25, Nl, Ss 3
Y8 10908 (10000000- 20000000 ) Nut, T, M4 X 0.70 3
9 89046 (10000000- 20000000 ) Pad, Stripping, 13.0d, Brown[1pick=1pad] 2
9 89047 (10000000- 20000000 ) Pad, Scb, 13.0d, Blu 2
989048 (10000000- 20000000 )Pad, Buff, 13.0d, Red [1pick=1pad] 2
9 89049 (10000000- 20000000 ) Pad, Polish, 13.0d, White [1pick=1pad] 2
9 1051024 (10000000- 20000000 ) Pad, Surf Prep, 13.0d [Mar, 1pick=1pad] 2
9 222327 (10000000- 20000000 ) Pad, Stripping, 14.0d, Brown[1pick=1pad] 2
9 222326 (10000000- 20000000 ) Pad, Scb, 14.0d, Blu [1pick=1pad] 2
9222325 (10000000- 20000000 )Pad, Buff, 14.0d, Red 2
9 222324 (10000000- 20000000 ) Pad, Polish, 14.0d, White [1pick=1pad] 2
9 370091 (10000000- 20000000 ) Pad, Stripping, 14.0d, Blk [Hi Prod] 2
9 1051026 (10000000- 20000000 ) Pad, Surf Prep, 14.0d [Mar, 1pick=1pad] 2
9 63248- 1 (10000000- 20000000 ) Pad, Stripping, 16.0d, Brown[1pick=1pad] 2
963248- 2 (10000000- 20000000 )Pad, Scb, 16.0d, Blu [1pick=1pad] 2
9 63248- 3 (10000000- 20000000 ) Pad, Buff, 16.0d, Red [1pick=1pad] 2
9 63248- 4 (10000000- 20000000 ) Pad, Polish, 16.0d, White [1pick=1pad] 2
9 370092 (10000000- 20000000 ) Pad, Stripping, 16.0d, Blk [Hi Prod] 2
91051027 (10000000- 20000000 )Pad, Surf Prep, 16.0d [Mar, 1pick=1pad] 2
ASSEMBLY
YINCLUDED IN ASSEMBLY

STANDARD PARTS
Tennant T500 (01- 2017)
12
REPLACEMENT BRUSHES CYLINDRICAL
355427
1
Ref. Part No. Serial Number Description Qty.
1222304 (10000000- 20000000 )Brush, Scb, 28l, 18sr, Pyp, Spl 2
1 222305 (10000000- 20000000 ) Brush, Scb, 28l, 18sr, Nyl, Spl 2
1 222306 (10000000- 20000000 ) Brush, Scb, 28l, 18sr, Abr, Spl 2

STANDARD PARTS
Tennant T500 (01- 2017) 13
REPLACEMENT PADS ORBITAL
355478
1
2
Ref. Part No. Serial Number Description Qty.
11223247 (10000000- 20000000 )Pad, Scb, 28 X 14, Blu [1pick=1pc] 1
1 1218157 (10000000- 20000000 ) Pad, Buff, 28 X 14, Red [1pick=1pc] 1
1 1223246 (10000000- 20000000 ) Pad, Polish, 28 X 14, White [1pick=1pc] 1
1 1223248 (10000000- 20000000 ) Pad, Surf Prep, 28 X 14, Mar [1pick=1pc] 1
1 1223250 (10000000- 20000000 ) Pad, Scb, 28 X 14, Green [1pick=1ctn] 1
11075563 (10000000- 20000000 )Pad, Stripping, 28 X 14, Blk [1pick=1ctn] 1
2 1221839 (10000000- 20000000 ) Pad, Backer, 28 X 14 (Includes Velcro Fasteners) 1

STANDARD PARTS
Tennant T500 (01- 2017)
14

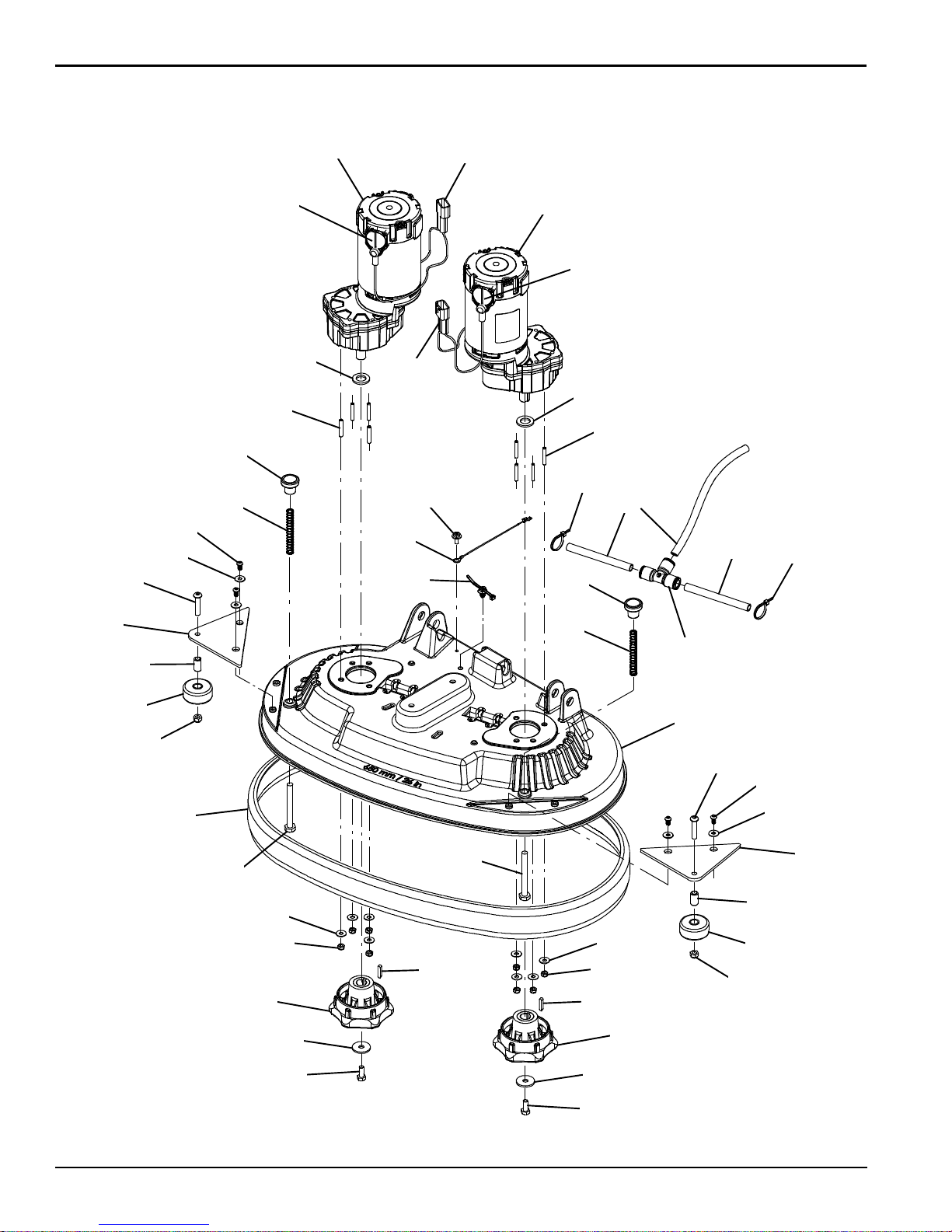

SCRUB HEAD GROUP, DISK 650MM / 26IN
1
2
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21 20
4
5
6
7
22
8
9
10
11
12
13
14
23
23
24
25
26
27
28
29
24
25
26
27
28
29
355421

STANDARD PARTS
Tennant T500 (01- 2017) 15
SCRUB HEAD GROUP, DISK 650MM / 26IN
Ref. Part No. Serial Number Description Qty.
11023067 (10000000- 20000000 )Motor, Ele, 24vdc 0220rpm 0.75hp Gear 2
Y2 1031775 (10000000- 20000000 ) Brush Kit, Carbon, Motor, Replmt [T5] 1
Y3 1031681 (10000000- 20000000 ) Harness, Connector, Brush- Motor [T5] Us 1
4 1022549 (10000000- 20000000 ) Spacer, Shaft, 17.15b 30.0d 3.0l, Ss 2
5 1025853 (10000000- 20000000 ) Screw, Set, M6 X 1.00 X 35, Nl, Ss 8
61222988 (10000000- 20000000 )Knob, Rnd, 31.0d 27.0l M10, Plstc 2
7 626081 (10000000- 20000000 ) Spring, Cmpr, 0.48od .04wir 03.5l 2
81227865 (10000000- 20000000 ) Screw, Trs, M6 X 1.0 X 12, Phl, Ss, Nl 4
901684 (10000000- 20000000 )Washer, Flat, 0.27b 0.69d .05, Ss 4
10 397826 (10000000- 20000000 ) Screw, Btn, M8 X 1.25 X 40, Ss 2
11 1227709 (10000000- 20000000 )Bracket, Roller, Wall 2
12 222496 (10000000- 20000000 )Sleeve, P/M, 0.32b 0.50d 0.9l [430ss] 2
13 222403 (10000000- 20000000 )Wheel, 02.0d 0.88w 0.50b 2
14 08713 (10000000- 20000000 ) Nut, Hex, Lock, M8 X 1.25, Nl, Ss 2
15 1222365 (10000000- 20000000 ) Housing, Disc, Dual, 65cm [Machined] 1
16 1221522 (10000000- 20000000 )Bumper, Head, 65cm, Skirt, Im [T500] 1
17 1034731 (10000000- 20000000 ) Screw, Hex, M6 X 1.00 X 16, Sems, Ss 1
18 1074344 (10000000- 20000000 ) Harness, Ele [Ring With .250m Tail] 1
19 1210807 (10000000- 20000000 ) Wire, Tie [W/.25” Fir Tree Clip] 1
20 130773 (10000000- 20000000 ) Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D 2
21 9014145 (10000000- 20000000 )Hose, Afmkt, Pe, .375id .50od, 05ft 1
22 1212858 (10000000- 20000000 ) Fitting, Plstc, Tee, Qf08/Qf08/Qf08 1
23 09746 (10000000- 20000000 ) Screw, Hex, M10 X 1.50 X 90, Ss 2
24 01684 (10000000- 20000000 ) Washer, Flat, 0.27b 0.69d .05, Ss 8
25 08712 (10000000- 20000000 ) Nut, Hex, Lock, M6 X 1.00, Nl, Ss 8
26 1014328 (10000000- 20000000 )Key, Sq, 05mm X 05mm, 25mml 2
27 1071637 (10000000- 20000000 ) Hub, Drive, Brush, Disk, 17mmb 2
28 1017218 (10000000- 20000000 ) Washer, Flat, 0.32b 1.00d .12, Ss 2
29 12273 (10000000- 20000000 ) Screw, Hex, M8 X 1.25 X 20, Nl, Ss 2
ASSEMBLY
YINCLUDED IN ASSEMBLY

STANDARD PARTS
Tennant T500 (01- 2017)
16
SCRUB HEAD GROUP, DISK 700MM / 28IN
1
2
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21 20
4
5
6
722
8
9
10
11
12
13
14
23
23
24
25
26
27
28
29
24
25
26
27
28
29
355422

STANDARD PARTS
Tennant T500 (01- 2017) 17
SCRUB HEAD GROUP, DISK 700MM / 28IN
Ref. Part No. Serial Number Description Qty.
11023067 (10000000- 20000000 )Motor, Ele, 24vdc 0220rpm 0.75hp Gear 2
Y2 1031775 (10000000- 20000000 ) Brush Kit, Carbon, Motor, Replmt [T5] 1
Y3 1031681 (10000000- 20000000 ) Harness, Connector, Brush- Motor [T5] Us 1
4 1022549 (10000000- 20000000 ) Spacer, Shaft, 17.15b 30.0d 3.0l, Ss 2
5 1025853 (10000000- 20000000 ) Screw, Set, M6 X 1.00 X 35, Nl, Ss 8
61222988 (10000000- 20000000 )Knob, Rnd, 31.0d 27.0l M10, Plstc 2
7 626081 (10000000- 20000000 ) Spring, Cmpr, 0.48od .04wir 03.5l 2
81227865 (10000000- 20000000 ) Screw, Trs, M6 X 1.0 X 12, Phl, Ss, Nl 4
901684 (10000000- 20000000 )Washer, Flat, 0.27b 0.69d .05, Ss 4
10 397826 (10000000- 20000000 ) Screw, Btn, M8 X 1.25 X 40, Ss 2
11 1227709 (10000000- 20000000 )Bracket, Roller, Wall 2
12 222496 (10000000- 20000000 ) Sleeve, P/M, 0.32b 0.50d 0.9l [430ss] 2
13 222403 (10000000- 20000000 )Wheel, 02.0d 0.88w 0.50b 2
14 08713 (10000000- 20000000 ) Nut, Hex, Lock, M8 X 1.25, Nl, Ss 2
15 1222364 (10000000- 20000000 ) Housing, Disc, Dual, 70cm [Machined] 1
16 1221520 (10000000- 20000000 )Bumper, Head, 70cm, Skirt, Im [T500] 1
17 1034731 (10000000- 20000000 ) Screw, Hex, M6 X 1.00 X 16, Sems, Ss 1
18 1074344 (10000000- 20000000 ) Harness, Ele [Ring With .250m Tail] 1
19 1210807 (10000000- 20000000 ) Wire, Tie [W/.25” Fir Tree Clip] 1
20 130773 (10000000- 20000000 ) Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D 2
21 9014145 (10000000- 20000000 )Hose, Afmkt, Pe, .375id .50od, 05ft 1
22 1212858 (10000000- 20000000 ) Fitting, Plstc, Tee, Qf08/Qf08/Qf08 1
23 09746 (10000000- 20000000 ) Screw, Hex, M10 X 1.50 X 90, Ss 2
24 01684 (10000000- 20000000 ) Washer, Flat, 0.27b 0.69d .05, Ss 8
25 08712 (10000000- 20000000 ) Nut, Hex, Lock, M6 X 1.00, Nl, Ss 8
26 1014328 (10000000- 20000000 )Key, Sq, 05mm X 05mm, 25mml 2
27 1071637 (10000000- 20000000 ) Hub, Drive, Brush, Disk, 17mmb 2
28 1017218 (10000000- 20000000 ) Washer, Flat, 0.32b 1.00d .12, Ss 2
29 12273 (10000000- 20000000 ) Screw, Hex, M8 X 1.25 X 20, Nl, Ss 2
ASSEMBLY
YINCLUDED IN ASSEMBLY

STANDARD PARTS
Tennant T500 (01- 2017)
18
SCRUB HEAD GROUP, DISK 800MM / 32IN
355423
1
2
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20 21
21 20
4
5
6
722
8
9
10
11
12
13
14
23
23
24
25
26
27
28
29
24
25
26
27
28
29

STANDARD PARTS
Tennant T500 (01- 2017) 19
SCRUB HEAD GROUP, DISK 800MM / 32IN
Ref. Part No. Serial Number Description Qty.
11023067 (10000000- 20000000 )Motor, Ele, 24vdc 0220rpm 0.75hp Gear 2
Y2 1031775 (10000000- 20000000 ) Brush Kit, Carbon, Motor, Replmt [T5] 1
Y3 1031681 (10000000- 20000000 ) Harness, Connector, Brush- Motor [T5] Us 1
4 1022549 (10000000- 20000000 ) Spacer, Shaft, 17.15b 30.0d 3.0l, Ss 2
5 1025853 (10000000- 20000000 ) Screw, Set, M6 X 1.00 X 35, Nl, Ss 8
61222988 (10000000- 20000000 )Knob, Rnd, 31.0d 27.0l M10, Plstc 2
7 626081 (10000000- 20000000 ) Spring, Cmpr, 0.48od .04wir 03.5l 2
81227865 (10000000- 20000000 ) Screw, Trs, M6 X 1.0 X 12, Phl, Ss, Nl 4
901684 (10000000- 20000000 )Washer, Flat, 0.27b 0.69d .05, Ss 4
10 397826 (10000000- 20000000 ) Screw, Btn, M8 X 1.25 X 40, Ss 2
11 1227709 (10000000- 20000000 )Bracket, Roller, Wall 2
12 222496 (10000000- 20000000 )Sleeve, P/M, 0.32b 0.50d 0.9l [430ss] 2
13 222403 (10000000- 20000000 )Wheel, 02.0d 0.88w 0.50b 2
14 08713 (10000000- 20000000 ) Nut, Hex, Lock, M8 X 1.25, Nl, Ss 2
15 1222293 (10000000- 20000000 ) Housing, Disc, Dual, 80cm [Machined] 1
16 1221512 (10000000- 20000000 )Bumper, Head, 80cm, Skirt, Im [T500] 1
17 1034731 (10000000- 20000000 ) Screw, Hex, M6 X 1.00 X 16, Sems, Ss 1
18 1074344 (10000000- 20000000 ) Harness, Ele [Ring With .250m Tail] 1
19 1210807 (10000000- 20000000 ) Wire, Tie [W/.25” Fir Tree Clip] 1
20 130773 (10000000- 20000000 ) Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D 2
21 9014145 (10000000- 20000000 )Hose, Afmkt, Pe, .375id .50od, 05ft 1
22 1212858 (10000000- 20000000 ) Fitting, Plstc, Tee, Qf08/Qf08/Qf08 1
23 09746 (10000000- 20000000 ) Screw, Hex, M10 X 1.50 X 90, Ss 2
24 01684 (10000000- 20000000 ) Washer, Flat, 0.27b 0.69d .05, Ss 8
25 08712 (10000000- 20000000 ) Nut, Hex, Lock, M6 X 1.00, Nl, Ss 8
26 1014328 (10000000- 20000000 )Key, Sq, 05mm X 05mm, 25mml 2
27 1071637 (10000000- 20000000 ) Hub, Drive, Brush, Disk, 17mmb 2
28 1017218 (10000000- 20000000 ) Washer, Flat, 0.32b 1.00d .12, Ss 2
29 12273 (10000000- 20000000 ) Screw, Hex, M8 X 1.25 X 20, Nl, Ss 2
ASSEMBLY
YINCLUDED IN ASSEMBLY

STANDARD PARTS
Tennant T500 (01- 2017)
20
SCRUB HEAD GROUP, CYLINDRICAL 700MM / 28IN
355424
1
2
34
5
6
8
7
9
10
11
12
13
14
15
16 17 1
18
19
17
20
21
22
23
24
25
25
10 9
8765
432
1
26
27
28
21
1
29
17
14
14
