Assembly Instructions
UNIVERSAL BBQ TABLE
Version 2021
Item No. 3198
P20142_TEPRO_3198_UniversalBBQtable_GB_20210113.indd 1 13/1/2021 12:36 PM

P20142_TEPRO_3198_UniversalBBQtable_GB_20210113.indd 2 13/1/2021 12:36 PM

Contents
Before using the device ....................................................................................................................... 4
Scope of delivery .................................................................................................................................. 4
Intended use.......................................................................................................................................... 4
For your safety ...................................................................................................................................... 4
Signal symbols .................................................................................................................................. 4
Safety instructions ............................................................................................................................. 4
Assembly ........................................................................................................................................ 5 - 10
Preparation ........................................................................................................................................ 5
Required tools ................................................................................................................................... 5
Assembling the Universal BBQ Table ........................................................................................ 5 - 10
Setting up the Universal BBQ Table ................................................................................................. 10
Maintenance and Cleaning ................................................................................................................ 10
Disposal ............................................................................................................................................... 10
Technical details .................................................................................................................................. 10
Service ................................................................................................................................................ 11
Distributor............................................................................................................................................ 11
P20142_TEPRO_3198_UniversalBBQtable_GB_20210113.indd 3 13/1/2021 12:36 PM

4
Before using the device
After unpacking and before every use, check whether the item
shows any signs of damage.
Should this be the case, do not use the item, but notify your
retailer.
The operating manual is based on the norms and regulations
that are applicable in the European Union. In non-EU countries,
observe country-specific directives and laws!
Before start-up, first read through the safety informa-
tion and the operating manual carefully. Only by doing
so will you be able to use all of the functions safely and
reliably.
Keep the operating manual and pass it on to any third party that
might own the BBQ Table after you.
Scope of delivery
Please check that the delivery is complete and undamaged.
Should a part be missing or defective, please contact your dealer.
Claims relating to damages or missing parts made after assembly
has taken place or commenced will not be recognised.
No. Part Qty.
AFrame (left) 1
B Side rack (left) 1
C Rail for hooks 1
DHooks 5
EStorage basket 1
F Side beam 2
G Support leg, left back 1
H Support leg, left front 1
ISide railing 2
JWheel axle 1
KWheel 2
LWheel cover 2
M Railing (front and back) 2
NFrame (right) 1
OShelf 2
PSide rack (right) 1
QTowel rail 1
R Fixing rail for towel rail 1
SCrossbeam 1
T Bottle opener 1
U Support leg (right back) 1
V Support leg (right front) 1
Fasteners
AA Screw M6x12 22
BB Screw M6 8
CC Screw M4x12 8
DD Schraube ST4.0x12 3
Intended use
Use this BBQ table as support for BBQ.
It is suitable exclusively for outdoor use and in a domestic set-
ting.
Only use the item as described in this operating manual. All
other uses are considered improper and can lead to material
damage or even to personal injuries.
The manufacturer accepts no liability for damages caused by
improper use.
For your safety
Signal symbols
Danger High risk!
Failure to observe the warning can lead to potentially
fatal injuries.
Attention Moderate risk!
Disregarding this warning can lead to property dam-
age.
Caution Low risk!
Facts that should be respected when handling the
device.
Safety instructions
Danger High Risk!
Always follow the safety instructions for your grill ap-
pliance.
– Any changes to the product represent a major safety hazard
and are prohibited. Do not make any unauthorized interven-
tions yourself In the event of damage, repairs or other prob-
lems, please contact your retail partner.
Attention Risk of damage!
During use, the screws can loosen slowly and impair
the BBQ's stability.
– Check the stability of the screws prior to each use. If neces-
sary, tighten all of the screws again to ensure the BBQ is
standing securely.
Attention Risk of damage!
Do not use any strong or grinding solvents or abra-
sive pads, since these can attack the surfaces and
leave behind scrape marks.
P20142_TEPRO_3198_UniversalBBQtable_GB_20210113.indd 4 13/1/2021 12:36 PM

5
Assembly
Preparation
Danger Risk of injury!
Failure to follow the instructions can lead to prob-
lems and dangers when using the BBQ table.
– Follow all of the assembly instructions listed here.
1. First read through the assembly instructions completely.
2. Two people are needed for the assembly.
3. Allow yourself enough time for assembly and find an even
working space of two to three square meters.
4. Place the necessary tools within reach.
5. Small parts such as handles will probably be pre-assem-
bled.
Required tool
1 x Phillips screwdriver
Step 1

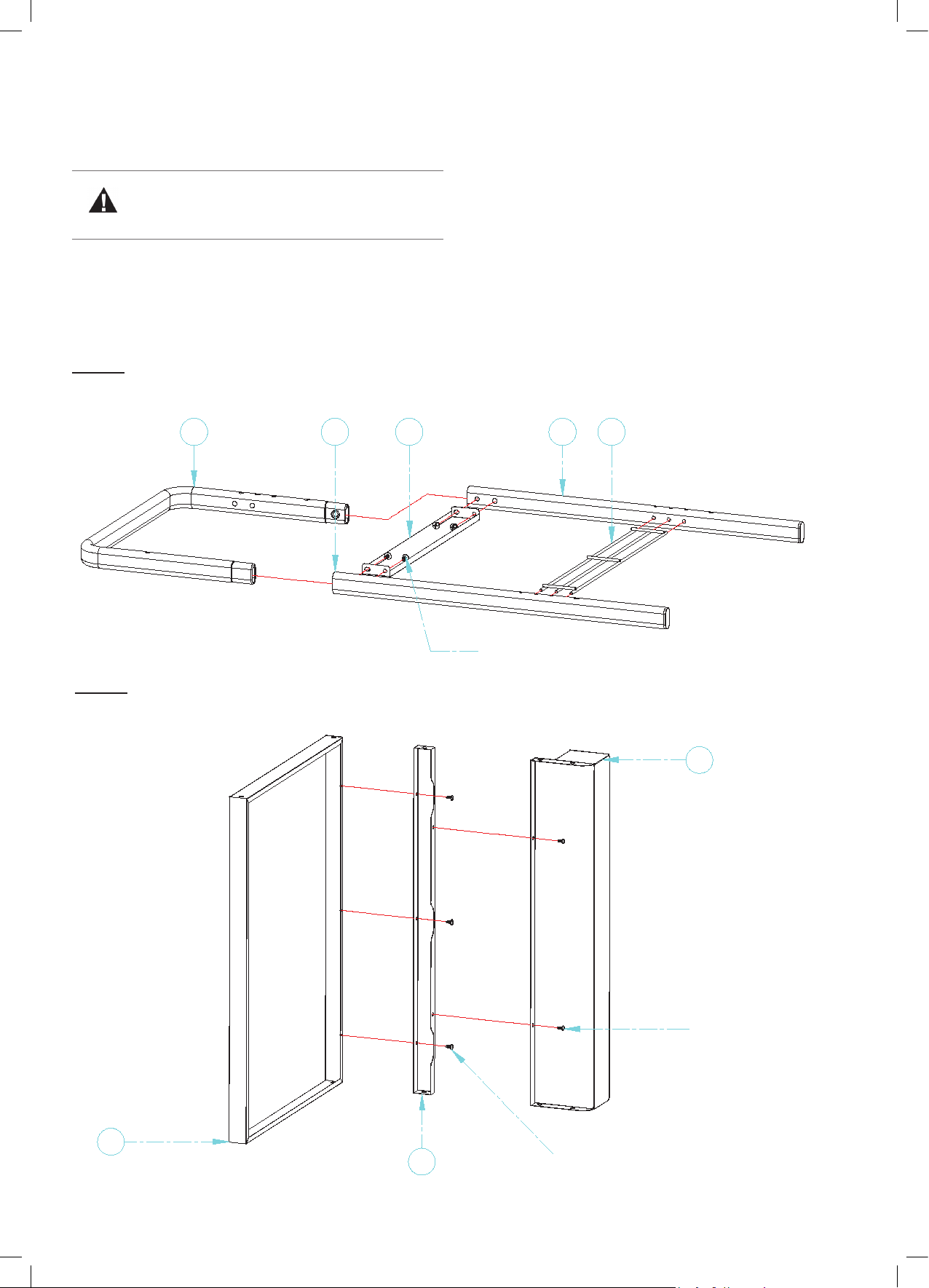

AGIH F
AA x 4
Step 2
OS
E
CC x 2
DD x 3
Assembling the Universal BBQ Table
P20142_TEPRO_3198_UniversalBBQtable_GB_20210113.indd 5 13/1/2021 12:36 PM

6

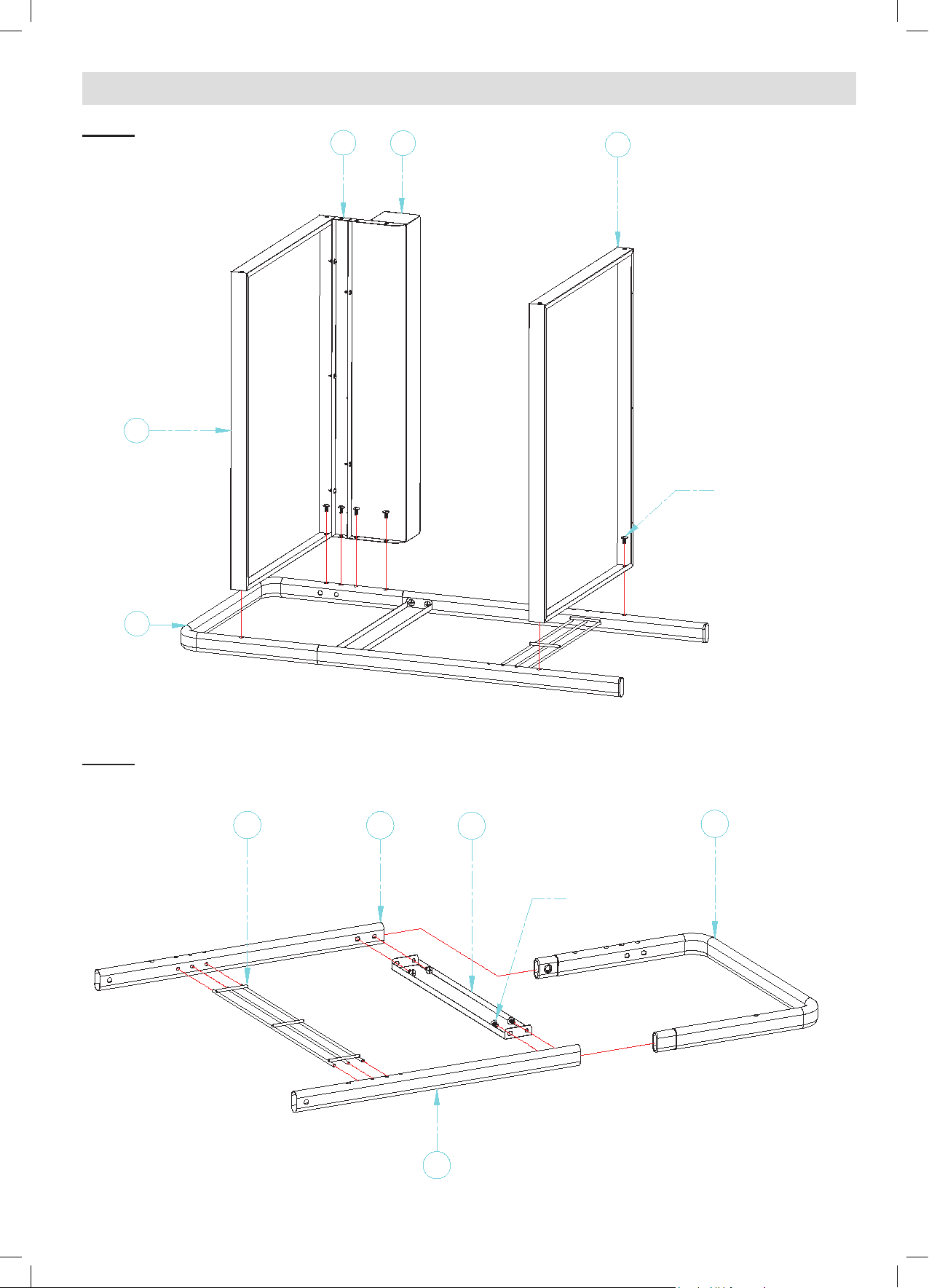

Step 3
A
O
E
SO
AA x 7
Step 4
AA x 4
IU
V
FN
P20142_TEPRO_3198_UniversalBBQtable_GB_20210113.indd 6 13/1/2021 12:36 PM

7
Step 5
A
O
AA x 7
N
Mx 2
Step 6
LK
J
L
KJ
P20142_TEPRO_3198_UniversalBBQtable_GB_20210113.indd 7 13/1/2021 12:36 PM

8

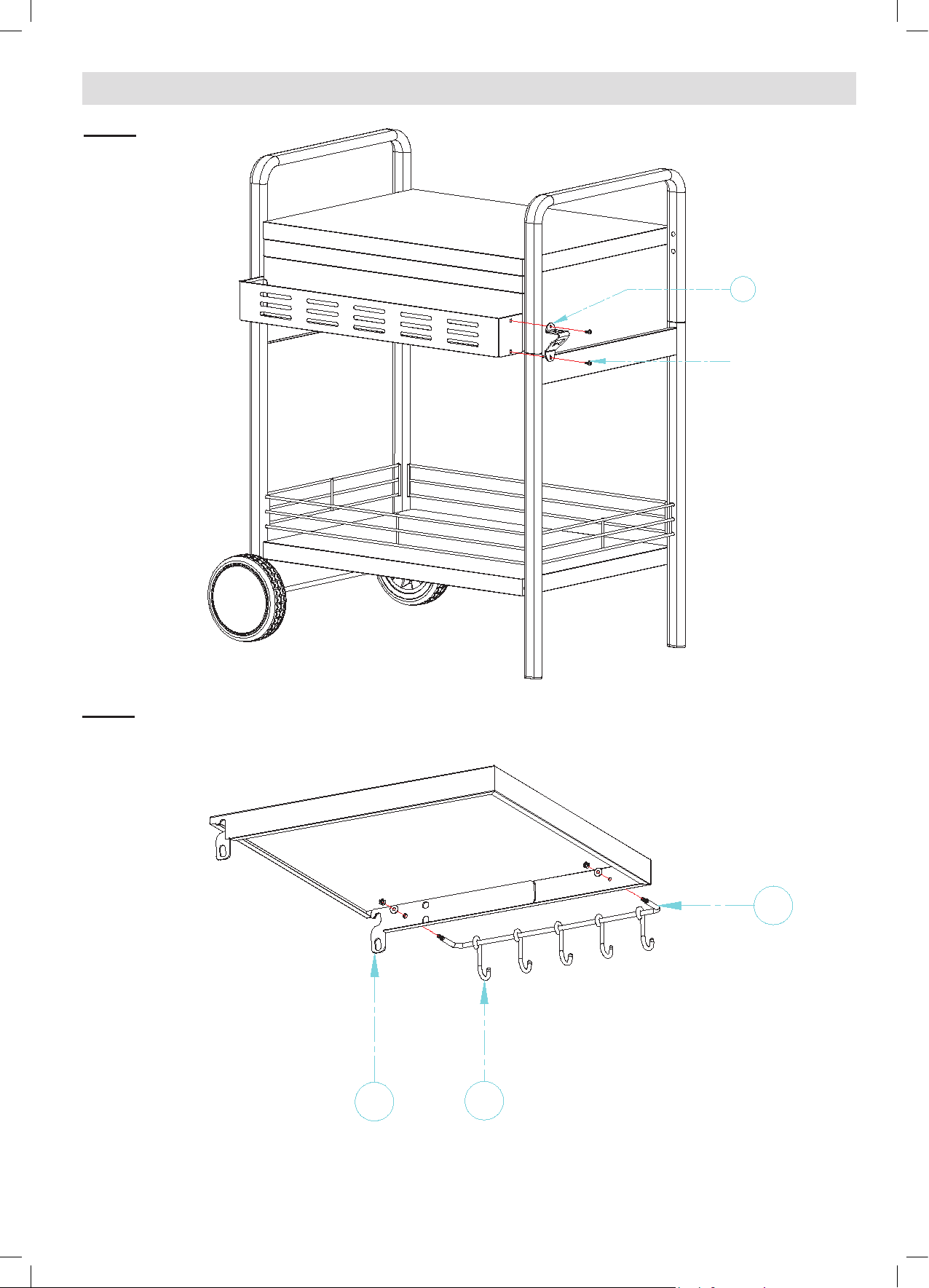

Step 7
T
CC x 2
Step 8
BD
C
x 5
P20142_TEPRO_3198_UniversalBBQtable_GB_20210113.indd 8 13/1/2021 12:36 PM

9
Step 9
BB x 4
Step 10
CC x 4
RQP
Step 11
BB x 4
P20142_TEPRO_3198_UniversalBBQtable_GB_20210113.indd 9 13/1/2021 12:36 PM

10
Setting up the Universal BBQ Table
Attention Risk of damage!
During use, the screws can loosen slowly and impair
the BBQ table's stability.
– Check the stability of the screws prior to each use. If neces-
sary, tighten all of the screws again to ensure the BBQ is
standing securely.
• Always set up the BBQ table on a flat, solid surface outdoors.
Maintenance and Cleaning
Your universal BBQ table is made of high quality materials.
Clean the table after each use.
To clean and care for the surfaces, please note the following:
Danger Risk of burning!
Let the BBQ placed on the table cool completely be-
fore cleaning.
Danger Health risk!!
Do not use any decolorants or thinners to remove
stains. These are harmful to health and must not
come into contact with food. .
Attention Risk of damage!!
Do not use any strong or grinding solvents or abra-
sive pads, since these can attack the surfaces and
leave behind scrape marks.
IMPORTANT INFORMATION
Care and protection of stainless steel surfaces
Your BBQ table was manufactured with stainless steel compo-
nents. All grades of stainless steel require a certain amount of
protection and care in order to preserve their appearance. Con-
trary to popular belief, stainless steel is not one hundred percent
safe from rust and corrosion and is thus not maintenance-free.
Even stainless steel grades of the highest quality require regular
cleaning with fresh water to prevent oxidation and corrosion.
Without proper care, it is inevitable that signs of rust or corrosion
will appear on the steel after some time.
Stainless steel is not a maintenance-free material. Cleanli-
ness and stainless steel are closely interlinked.
After assembling the BBQ table, it is recommended that
the user apply a thin film of olive oil with a clean cloth on
all accessible surfaces with stainless steel.
The olive oil should be a polished in afterwards and then wiped
off with another clean cloth for a non-oily finish. This procedure
serves to protect the material from dirt and other corrosive con-
taminants by applying a temporary food-safe protective shield.
The film of olive oil also serves to facilitate subsequent polish-
ing, as well as the removal of fingerprints and the like. Repeat
this process from time to time when cleaning your BBQ.
In order to maintain the quality of the Universal BBQ table for a
long period of time, the owner should make sure to follow these
care and maintenance instructions exactly.
Pay careful attention to your investment and it will serve you well
for years.
Disposal
The packaging is made from environmentally friendly
materials, which you can dispose of at your local recy-
cling points.
Do not under any circumstance dispose of the BBQ in
normal household waste! Dispose of it at an approved
disposal business or at your community disposal facility.
Respect the currently valid regulations. If in doubt, get in
touch with your disposal facility.
Technical Data
Product: Item No. 3198
Universal BBQ Table
Weight: approx. 14 kg
Overall dimensions: approx. 150,5 x 59,5 x 97,5 cm
(WxDxH)
Important: All screws must be tightened securely.
The Universal BBQ Table is now fully assembled and can be
dismantled in the reverse order.
