Calflame BBQ11955P User manual

LTR50001100, Rev. B
5/15/13

Copyright 2013 LMS, Inc. All rights re-
served. Duplication without written consent
is strictly prohibited.
Cal Flame ® is a registered trademark.
Due to continuous improvement programs,
all models, operation, and/or specications
are subject to change without prior notice.
LTR50001100, Rev. B
5/15/13
250-443
CONTACT INFORMATION
For customer service, please contact
your authorized dealer immediately. If
you need additional information and/or
assistance, please contact:
Customer Service Department
1462 East Ninth Street
Pomona, CA 91766
Toll Free: 1-800-225-7727
Fax: [phone]
www.calamebbq.com
Installation / Assembly
Cabinet Cut-out Dimensions .......................5
LP Gas ........................................6
Natural Gas ....................................8
Leak Testing Procedure...........................9
Placing the Power Burner in a Built-in Enclosure .....10
Using Your Power Burner
Power Burner Controls ..........................11
Basic Operation ................................12
Lighting the Power Burner .......................13
Power Burner Lid...............................14
Using the Wok Ring.............................15
Cleaning and Maintenance
Removing and Replacing Burners .................16
Stainless Steel Care and Cleaning .................18
Covering Your Power Burner .....................22
Appendix
Troubleshooting ...............................23
Converting from LP to NG ........................26
Limited Warranty...............................30
Locating the Product Serial Number ...............34
Save these instructions!

Safety Instructions
1
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
Placement and Location
The Cal Flame Power Burner is designed for outdoor use only.
Never locate this appliance in an enclosed room, under a sealed•
overhead structure, or in any type of enclosed area such as a ga-
rage, shed, or breezeway. Keep clear of trees and shrubs.
Do not place the Power Burner under or near windows or vents•
that can be opened into your home.
The Power Burner is not intended for installation in or on recre-•
ational vehicles or boats.
Maintain suf cient distance as to not overheat any overhead com-•
bustible material such as a patio cover.
The area surrounding your new Power Burner should be kept clean•
and free from fl ammable liquids and other combustible materials
such as mops, rags or brooms, as well as solvents, cleaning fl uids,
and gasoline.
Do not store the liquid propane (LP) cylinder in the vicinity of this •
or any other appliance when it is not being used.
Set-Up
Before installing a built-in Power Burner in an enclosure, copy all•
product information such as model number, serial number and gas
type (LP) to page 34 of this manual. This information is located on
a plate located on the right side of the chassis.
We recommend that a licensed contractor install your Cal Flame•
Power Burner. Installation must conform to local codes, or in the
absence of local codes, with either the National Fuel Gas Code,
ANSI Z223.1 / NFPA54, Natural Gas and Propane Installation
Code, CSA B149.1, or Propane Storage and Handling Code,
B149.2), as applicable.
To prevent  re and smoke damage, remove all packaging material •
before operating your Power Burner.
Before you start cooking, clean the Power Burner thoroughly with•
hot, soapy water. This is necessary to remove residual solvents, oil
and grease used in the manufacturing process.
Safety Instructions
WARNING: Improper installation, adjustment, alteration,
service or maintenance can cause injury or property damage. Read
the installation, operating and maintenance instructions thoroughly
before installing or servicing this equipment.

2
Safety Instructions
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
Operation
Do not use the Power Burner for oth• er than its intended use.
Never use the Power Burner if the drip pan is not in place. The drip•
pan should be pushed all the way in under the Power Burner. Fire
or explosion can result from an improperly installed drip pan.
Keep all electrical supply cords away from the heated areas of the•
Power Burner.
Never use the Power Burner in windy conditions. If used in a con-•
sistently windy area a windbreak will be required. Always adhere
to the speci ed clearances listed in this manual.
When the unit is not in use, be sure to turn off the gas at the•
source.
Do not install or operate your Power Burner in such a manner that•
the cross ventilation openings are blocked. Fresh air must be able
to pass though installed vents to safeguard against residual gas
accumulation. Failure to allow proper ventilation may cause  re or
explosion.
Do not use fuel such as charcoal briquettes in the Power Burner.•
Gas sources to the Power Burner must be regulated. Do not oper-•
ate the Power Burner if the regulator has been removed. Fire or
explosion can occur.
Never leave the Power Burner unattended when in use.•
Do not use water on grease  res. Turn the appliance off and smoth-•
er the fl aming pan with a tight- tting lid, a cookie sheet or a fl at
tray. For fl aming grease outside of the pan, smother it with baking
soda or use a dry chemical or foam-type  re extinguisher.
Never allow clothing, pot holders or other fl ammable materials •
come in contact with or be close to any grate, burner or hot sur-
face until it has fully cooled. Never wear loose  tting or hanging
DANGER
What To Do If You Smell Gas
Shut off gas to the appliance.•
Extinguish any open fl ame.•
Keep lid up.•
If odor continues, keep away from the appliance and immedi-•
ately call your gas supplier or your  re department.

Safety Instructions
3
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
garments while using your Power Burner. Fabric may ignite and
result in personal injury.
When using the Power Burner, do not touch the grate or immediate•
surroundings as these areas become extremely hot and can cause
burns.
Only use dry pot holders and do not use a towel or other bulky•
cloth in place of pot holders. Moist or damp pot holders used on
hot surfaces can cause burns.
Do not heat any unopened glass or metal container of food on the•
Power Burner. Pressure may build up and cause the container to
burst, possibly resulting in serious personal injury or damage to
the Power Burner.
Do not reach over your Power Burner or any other surfaces when•
hot or in use.
Maintenance and Repair
Spiders and other i• nsects can nest in the burners and block the gas
and airfl ow to the burner ports. This creates a dangerous condition
that can result in a  re behind the valve panel. Inspect and clean
the burners periodically and follow the guidelines in the Cleaning
and Maintenance section of this manual.
Unless speci cally recommended in this manual, do not repair or •
replace any part of the Power Burner. A quali ed technician should
perform all service. Any repairs made by a non-LMS approved deal-
er technician will void your warranty.
Storage
When your Power Burner is not in use,• ensure the in-line gas valve
or gas cylinder valve is always shut OFF.
Storing the Power Burner indoors is permissible only if the supply•
cylinder is disconnected and removed.
Precautions Regarding Children
Never leave children unattended in the area where the Power•
Burner is being used. Close supervision of children is necessary
when any appliance is use near children.
Do not store items of interest to children around or below the•
Power Burner.
Never allow children to sit or stand on any part of the Power Burn-•
er.

4
Installation / Assembly
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
Most cities and counties require permits for exterior construction. In
addition, some communities have codes requiring residential barriers
such as fencing and/or self-closing gates on property to prevent unsu-
pervised access to the property by children under the age of  ve. Your
dealer can provide information on which permits may be required and
how to obtain them prior to the delivery of your equipment.
We recommend the installation, adjustment and service of your new
Power Burner be performed by LMS quali ed installers and service
technicians to ensure proper operation and prevent accidents.
When planning the location of your Power Burner, access to a gas line
should be considered. The location with the shortest gas line run is
recommended.
When determining a suitable location, consider factors such as expo-
sure to wind, proximity to traf c paths, and windows that open into
the home.
Locate the Power Burner only in a well-ventilated area.
If you do not have an updated  ller valve on your existing propane tank,
you will need to purchase one at your local hardware store. Without it
you will not be able to attach your tank to your Power Burner or re ll
the tank at your local propane re ll station.
Installation / Assembly
Converting the Power Burner
IMPORTANT: The Cal Flame Power Burner is manufactured to oper-
ate on liquid propane (LP). However, they can be converted to oper-
ate on natural gas (NG) by an authorized service technician. Consult
your Cal Flame dealer for information on converting your gas Power
Burner. See page 26 for conversion instructions.
Owners must not convert their Power Burner themselves.
Attempting to convert the Power Burner from LP to NG may
result in serious injury and will void the warranty cover-
age.

Installation / Assembly
5
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
Cabinet Cut-out Dimensions
Your Cal Flame Power Burner is designed for easy installation into a
non-combustible enclosure. The supporting deck or counter must be
fl at and level.
Width Depth Height
18” 20” 9 ¼”
WIDTH DEPTH
HEIGHT

6
Installation / Assembly
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
LP Gas
Tank Requirements
For plumbed-in LP installation, use a convertible regulator and set it
for LP gas.
Maximum line pressure for plumbed-in propane is 14” WC (3.5 kPa).
Minimum line pressure for propane is 11” WC.
The Power Burner must be used with the gas pressure regulator. The
regulator will control and maintain a uniform gas pressure in the mani-
fold. The burner ori ces have been sized for the gas pressure delivered
by the regulator.
WARNING: Attempting to operate the Power Burner without the gas
regulator installed could cause an explosion and possible death.

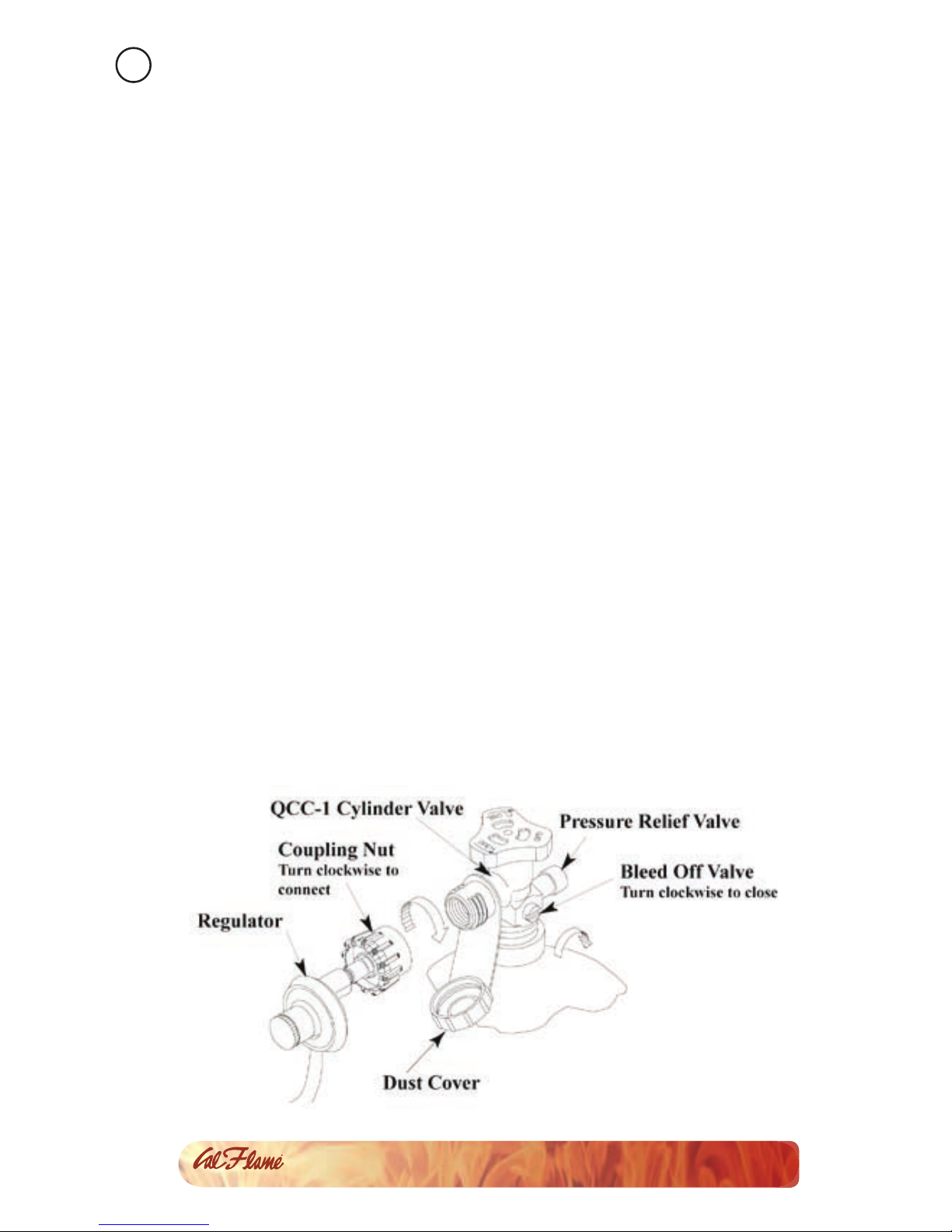

Cylinder Specifi cation
Any LP gas supply cylinder used with the Power Burner must be:
Constructed and marked in accordance with the• Specifi cations
for LP-Gas Cylinders of the U.S. Department of Transportation
or the National Standard of Canada, CAN/CSA-B339, Cylin-
ders, Spheres and Tubes for Transportation of Dangerous
Goods; and Commission, as applicable.
Approximately 12 inches in diameter and 18 inches high.•

Installation / Assembly
7
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
The maximum fuel capacity is 20 lbs. of propane, or 5 gallons. Full cyl-
inder weight should be approximately 38 lbs. (43.7 lbs. nominal water
capacity.) Never  ll the cylinder beyond 80% full.
Place the dust cap on the cylinder valve outlet whenever the cylinder is
not in use. Only install the type of dust cap on the cylinder valve outlet
that is provided with the cylinder valve. Other types of caps or plugs
may result in leakage of propane.
LP Gas Hook Up
An enclosure for an LP gas cylinder shall be vented by openings at the
level of the cylinder valve and at fl oor level. The effectiveness of the
openings for purposes of ventilation shall be determined with the LP-
gas supply cylinder in place. This shall be accomplished in one of the
following manners:
One side of the enclosure shall be completely open.1.
Enclosures that have four sides, complete with a top and bottom:2.
At least two ventilation openings at cylinder valve level shall bea.
provided in the sidewall, equally sized, spaced at 180º (3.14
rad), and unobstructed. Each opening shall have a total free
area of not less than one square inch per pound (7.1 cm²/kg)
of stored fuel capacity, and not less than a total free area of 10
square inches (64.5 cm²).
Ventilation openings shall be provided at fl oor level and shall b.
have a total free area of not less than one square inch per
pound (7.1 cm²/kg) of stored fuel capacity and not less than
a total free area of 10 square inches (64.5cm²). If ventilation
openings at fl oor level are in a sidewall, there shall be at least
two openings. The bottom of the openings shall be at fl oor
level and the upper edge no more than 5 inches (127 mm)
above the fl oor. The openings shall be equally sized, spaced at
180º (3.14 rad) and unobstructed.
Every opening shall have minimum dimensions so as to permitc.
the entrance of a 1/8 inch (3.2 mm) diameter rod.
Transporting and Storing LP Gas
Transport only one cylinder at a time. Ensure the cylinder is secured in
an upright position with the control valve turned off and the dust cap
in place. Store cylinders outdoors and out of reach of children. Do not
store cylinders in a building, garage, or any other enclosed area.

8
Installation / Assembly
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
Natural Gas
Requirements
Always check the rating plate to make sure the gas supply you are
hooking up to is the gas type the Power Burner is manufactured for.
IMPORTANT: Never connect the Power Burner to an unregulated gas
supply.
The installation of this appliance must conform with local codes or,
in the absence of local codes, to the national fuel gas code, ANSI
Z223.1a-1998. Installation in Canada must be in accordance with the
standard CAN/CGA-B149.2, Propane Installation Code.
A licensed contractor or local gas company representative must per-
form all natural gas connections.
Ensure that the service supplying the Power Burner is  tted with a shut
off valve conveniently positioned near the appliance and giving ease
of access.
The Power Burner must be isolated from the gas supply piping system
by closing its individual manual shutoff valve during any pressure test-
ing of the gas supply piping system at test pressures equal to or less
than 0.5 psi (3.5 kPa).
The Power Burner and its individual shutoff valve must be disconnected
from the gas supply piping system during any pressure testing of that
system at test pressure in excess of 0.5 psi (3.5 kPa).
The Power Burner for use with natural gas comes equipped with its
own regulator that MUST NOT be removed. If this regulator needs to
be replaced, use only the type speci ed by Cal Flame for this appli-
ance.
Connection
Slide the Power Burner forward to gain access to the regulator and1.
gas connection point in the rear.
Connect a suitable fl ex connector to the NG regulator.2.
Check the controls to ensure all control valves are in the full OFF3.
position.
Turn on the main gas supply and check all connections for leaks4.
using soapy water as described in the leak testing procedure sec-
tion.

Installation / Assembly
9
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
Leak Testing Procedure
Perform a leak test at least once a year whether the gas supply cylinder
has been disconnected or not. In addition, whenever the gas cylinder
is connected to the regulator or whenever any part of the gas system
is disconnected or replaced, perform a leak test.
As a safety precaution, remember to always leak test your Power Burn-
er outdoors in a well-ventilated area. Never smoke or permit sources
of ignition in the area while doing a leak test. Do not use a fl ame, such
as a lighted match to test for leaks. Use a solution of soapy water.
Prepare a leak testing solution of soapy water by mixing in a spray1.
bottle one part liquid soap to one part water.
Make sure all the control knobs are in the OFF position.2.
Turn on the gas.3.
Apply the leak-testing solution by spraying it on joints of the gas4.
delivery system. Blowing bubbles in the soap solution indicates
that a leak is present.
Stop a leak by tightening the loose joint or by replacing the faulty5.
part with a replacement part recommended by the manufacturer.
Do not attempt to repair the cylinder valve if it is damaged. The
cylinder must be replaced.
Turn all control knobs back to the full OFF position.6.
If you are unable to stop a leak:
Turn all control knobs back to the full OFF position.1.
Shut off the gas supply to the Power Burner and release pressure2.
in the hose and manifold by pushing in and turning any of the con-
trol valves one quarter turn counter-clockwise.
On LP systems, remove the cylinder from the Power Burner.3.
Call an authorized gas appliance service technician or an LP gas4.
dealer.
Do not use the appliance until the leak is corrected.

10
Installation / Assembly
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
Placing the Power Burner in
a Built-in Enclosure
You may need a second person to help you to avoid damag-
ing the Power Burner or your enclosure.
Before installing the Power Burner in an enclosure, make sure that
the opening is not bigger than the outside frame of the Power Burn-
er. The Power Burner should rest on the lip of the frame.
Pay careful attention to the location of the gas line. It should be
routed away from sources of heat and should make as few bends
as possible.
Check to see if the gas line connection will be accessible when the
Power Burner is installed.
If the gas line connection is not easily accessible when the Pow-•
er Burner is installed, support the Power Burner above counter
level and attach the gas line to it. When the gas connection is
made, slide the Power Burner into the cut out.
If the gas line connection is accessible when the Power Burner•
is installed, slide the Power Burner into the cut out and then at-
tach the gas line.
Be very careful not to kink the gas line when lowering the Power
Burner into the cut out.
Keep your  ngers away from where the Power Burner will be sup-
ported on counter. Your  ngers could become trapped and serious
injury could occur.
Check to make sure the Power Burner is level and is supported
around the entire outside edge. If the Power Burner is not level
or is unstable, use non-combustible shims under the outside lip to
stabilize it.
Perform the leak test procedure as described on page 9.

UsingYour Grill
11
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
Read all instructions before you operate
your Power Burner.
We recommend you wash the Power Burner thoroughly with soap and
water prior to lighting it for the  rst time. Oils are used during the
manufacturing process and some residual oil may still be on the stain-
less steel parts of your Power Burner. Washing will reduce the possibil-
ity of discoloration. We also recommend you keep your Power Burner
covered when not in use. This will minimize the amount of dust and dirt
that accumulates on your Power Burner and extend its life.
Remember to use your Power Burner safely by following these remind-
ers:
It is dangerous to use Power Burner in any manner other than for•
what it is designed for.
Do not use charcoal in the Power Burner.•
Do not heat sealed containers such as cans or jars on the Power•
Burner. Explosion may result resulting in injury or death.
Never put combustible material such as paper, cloth, or fl ammable •
liquids on your Power Burner at any time. Do not use the Power
Burner or any area around it to store fl ammable materials.
Never spray water on a hot gas unit. This may damage compo-•
nents.
The stainless steel ring placed around the brass burners func-
tions both as a wok ring and as a baffl e for the burners. (See
page 15 .) Do NOT remove it except for cleaning. It must must
always be in place during operation.
Using Your Power Burner
Burners
Outer Ring Center Grill Knob Operation
Low
Off
High
Burners
Outer Ring Center Grill Knob Operation
Low
Off
High
Power Burner Controls
The controls shown below are for the Power Burner. Familiarize your-
self with these controls before using your Cal Flame Power Burner.

12
UsingYour Grill
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
Basic Operation
Before lighting, make sure all burner controls are off. Do not at-
tempt to light the burners if the smell of gas is present. Check the
connection with a soap and water solution after attaching the hose.
For LP units, make sure there is gas in the tank and it is sitting up-
right. For natural gas units, make sure the shut off valve is on.
Make sure the drip tray is in place.
Light the burners using the instructions on the next page.
Place the pot on the grate and cook to desired completion. Adjust
heat setting if necessary. You may set the control knob to any posi-
tion between HIGH and LOW.
Do not leave the Power Burner unattended while cooking.
Do not place food directly on the grate. The Power Burner
is not a grill and should not be used in this way. Always use
cooking utensils with the Power Burner.
When using propane gas:
Keep the special ventilation openings in the enclosure free and•
clear of debris.
If connected to a propane cylinder, carefully inspect the rubber•
hose attached to the regulator before each use.
Ensure the propane cylinder, regulator, and rubber hose are in-•
stalled in a location not subject to heating above 125º F (51º
C).
Each time you light the Power Burner, check the following:
Inspect the hose before using the Power Burner. If there is ex-•
cessive abrasion or wear, or if the hose is cut, it must be re-
placed prior to using the Power Burner. If you need a replace-
ment hose, contact your dealer.
Ensure the area around the Power Burner is clear of fl ammable •
substances such as gasoline, yard debris, wood, etc.
Ensure the burner fl ames burn evenly with a steady fl ame •
(mostly blue with yellow tipping). If burner fl ames are not nor-
mal, check the ori ce and burner for insects or insect nests. See
troubleshooting procedures on page 23.

UsingYour Grill
13
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
Lighting the Power Burner
Electronic Ignition
Lift the cover.1.
Keep your face as far away from the burners as possible.2.
Turn the burner knob counter clockwise past the light position3.
to HIGH. You will hear a loud click as the electronic lighter pro-
duces a spark.
Listen for the sound of the gas igniting. If the burner does not4.
light on the  rst try, repeat immediately.
If the burner does not light after three attempts, turn the con-5.
trol knobs to the OFF position. Wait  ve minutes until the gas
clears before attempting to light it again.
Repeat the procedure or try the manual lighting procedure be-6.
low.
Upon successful lighting, repeat the process on the other burner.7.
To shut off the burners, rotate the knob and turn to OFF. It is8.
normal to hear a popping sound when the burners are turned
off.
Manual Lighting
WARNING: Do not use standard matches or cigarette lighters. Seri-
ous burns can occur and lighters can explode.
Lift the cover.1.
If you have just attempted to light the burner, allow  ve minutes 2.
for any accumulated gas to dissipate.
Keep your face as far away from the burners as possible.3.
Light a long stem match or butane lighter, holding it near the4.
burners.
Push in and turn the control knob just past the LIGHT position 5.
to HIGH.
Listen for the sound of the gas igniting. If the burner does not6.
light after  ve seconds, turn the control knobs to the OFF posi-
tion. Wait  ve minutes until the gas clears before attempting to
light it again.
If the burner does not light after several attempts, see trouble-7.
shooting procedures on page 23.

14
UsingYour Grill
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
Power Burner Lid
We strongly recommend you remove the lid for your Power Burner
before each use.
The Power Burner lid is attached to the unit by two hinges on each
side. Each hinge has a detachable spring-loaded hinge pin that re-
moves easily when pulled out.
NEVER put the lid down while using the Power Burner!
Doing so can cause excessive heat to accumulate under
the lid, resulting in  re, explosion, damage to property,
personal injury, or death.

UsingYour Grill
15
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
Using the Wok Ring
If you have a wok, you can use it with the Power Burner. Remove the
grate and set it aside. Inside the burner area, surrounding the brass
burners, is a stainless steel ring that will securely hold your wok in
place while you cook with it.
The stainless steel ring also functions as a baffl e for the burners and
must always be in place during operation.

16
Cleaning and Maintenance
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
Cleaning and Maintenance
Removing and Replacing Burners
The burner has three pieces plus a wok ring. If you remove the burner
for cleaning, make sure to clean each piece and replace them in proper
order.
Removal
Disconnect or shut off the gas line connected to the Power Burner.1.
Wait until the burners are cool.
Remove the grate and the wok ring.2.
Lift out the burner by raising the stud from the locking hole and3.
pulling the burner out carefully to release it from the ignition and
gas supply valves.
Set the burner in a safe and dry place.4.
Wok Ring Burner Ring Burner Cap Burner Body
Adjustable Air Venturis
Wok Ring
Burner Ring
Adjustable Air Venturis
Burner Cap
Burner Ring
Burner Body

Cleaning and Maintenance
17
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
Replacement
Set the burner body in place,1.
making sure the stud in prop-
erly seated and the burner
body is fl at and level.
Set the burner ring on the2.
burner body, making sure the
pin on the burner ring is seat-
ed in the notch on the burner
body.
Set the burner cap on the3.
burner body, making sure the
pin on the burner cap is seat-
ed in the notch on the burner
ring.
Set the wok ring around the4.
burner. Set the two pins at
the back of the ring in place
and the square hook in front
on the bar.

18
Cleaning and Maintenance
Power Burner
LTR50001100, Rev. B
www. c a l  a m e b b q . c o m
To ensure safe and proper maintenance, we recommend you
follow these directions carefully.
Clean internal parts of the Power Burner regularly as determined
by the amount of use and foods cooked. The entire Power Burner
should be cleaned at least once a year.
In addition, keep the area around your Power Burner clear and free
from combustible materials, gasoline, and other fl ammable vapors
and liquids. Do not obstruct the fl ow of combustion and ventilation
air.
These instructions describe the best way to care for your stainless
steel.
Although stainless steel will discolor and accumulate grime with regular
use, it can keep its original shine with periodic cleaning. We strongly
recommend using a surface protectant to prevent smudging and sur-
face rust from accumulating.
The easiest way to clean the stainless steel is immediately after cook-
ing is completed. Doing so will extend the life of your Power Burner,
prevent grease  res, and present a pleasant appearance while you
cook.
Stainless Steel Care and Cleaning
All exposed stainless steel surfaces require special attention if you want
to keep them looking clean and bright. Following these simple instruc-
tions will help avoid scratching or damaging the  nish and keep your
stainless steel attractive.
