Tesla 32S605BHS User manual

1
TV SAFETY NOTICE AND
INSTALLATION GUIDE
TESLA SMART TV
EN
CZ
SK
PL
HU
SL
HR
UA
RU
DE

2
ACCESSORIES
NOTE:
INSTALLATION
TV,
remote controll,
stand,
screws.
1) Accessory Items may vary depending upon model.
2) Specifications may change without prior notice.
3) Stand pictures are for reference only.
Installation (Table Top)
Insert Left / Right Stand Base to TV as shown in the picture and fasten
them using screws.
Note: Wall Mount Bracket is not a part of standard accessory.
Turn On the TV
Connect TV’s power cord to ac power outlet carefully.
Push the power bu_on located at bo_om of TV (or press power bu_on on remo-
te.) to turn it On.
Follow screen instructions of quick start guide to setup TV.
STAND ASSEMBLY Note: o
® � ® � - □ ® ® � � 00 
-4-

3
SETUP WIZARD
The system setting will appear when you open the TV on the first time.Please set
according to the on-screen
guide.Press OK button to start the setup.
Press / button t ▼ ▲ o select the language.
1
TV INTERFACE
AV1 Input - External AV signal Input and relevant Right/Left sound channel.
HMDI Input - Digital signal input from HDMI video connectro
RF input - Connect the antennal/cadle tv input
VGA input - PC analog signal input
CI slot Input
MIHI YPbPr input - Connect them to video output terminal of DVD
Earphone output - When earphones are plugged in, speakers are disabled
HDMI(Arc) input - TV transmiths its audio directly to the amplifier receiver via the
HDMI.
USB input - connect a USB device here to play media files.
Optical input - Digital Audio Output
RJ45 - internet connect
Mini AV2 - audio connect

4
Press ◄ / ► button to choose the country.
Press ◄ / ► button to select Set Password.
Press ◄ / ► button to select Set your TV network.
Press ◄ / ► button to select Connect the TV assistant.

5
Press / button to select Home page in Setup Wizard or press ◄ / ► button t ▼ ▲ o
select Home in the
menu of ATV/DTV input .
Press ▼ / ▲ / ◄ / ► button to select Movie/TV/HOT APP/FAV APP/MUSIC.
You can choose the program you want on the home page.
Press ◄ / ► button to select TV viewing guide.
Press / button to choose the way you watch TV programs or source: H ▼ ▲ ome
page/TV/AV1/AV2/
YPBPR/HDMI1/HDMI2/HDMI3/VGA.
HOME PAGE

6
SETTINGS
Press / / ▼ ▲ ◄ / ► button to select OTHERS.
Press ◄ / ► button to select the SETTINGS , and press OK button to enter the
System Setting.
Press◄ / ► button to select Network/Time/Commen/Bluetooth/Accounts.
Network
Press ◄ / ► button to select Network.
Time
Press ◄ / ► button to select Time.
Press / button to select Auto Attach/Time Zone/Daylight Saving/▼ ▲ Time Edit/
Date Format/

7

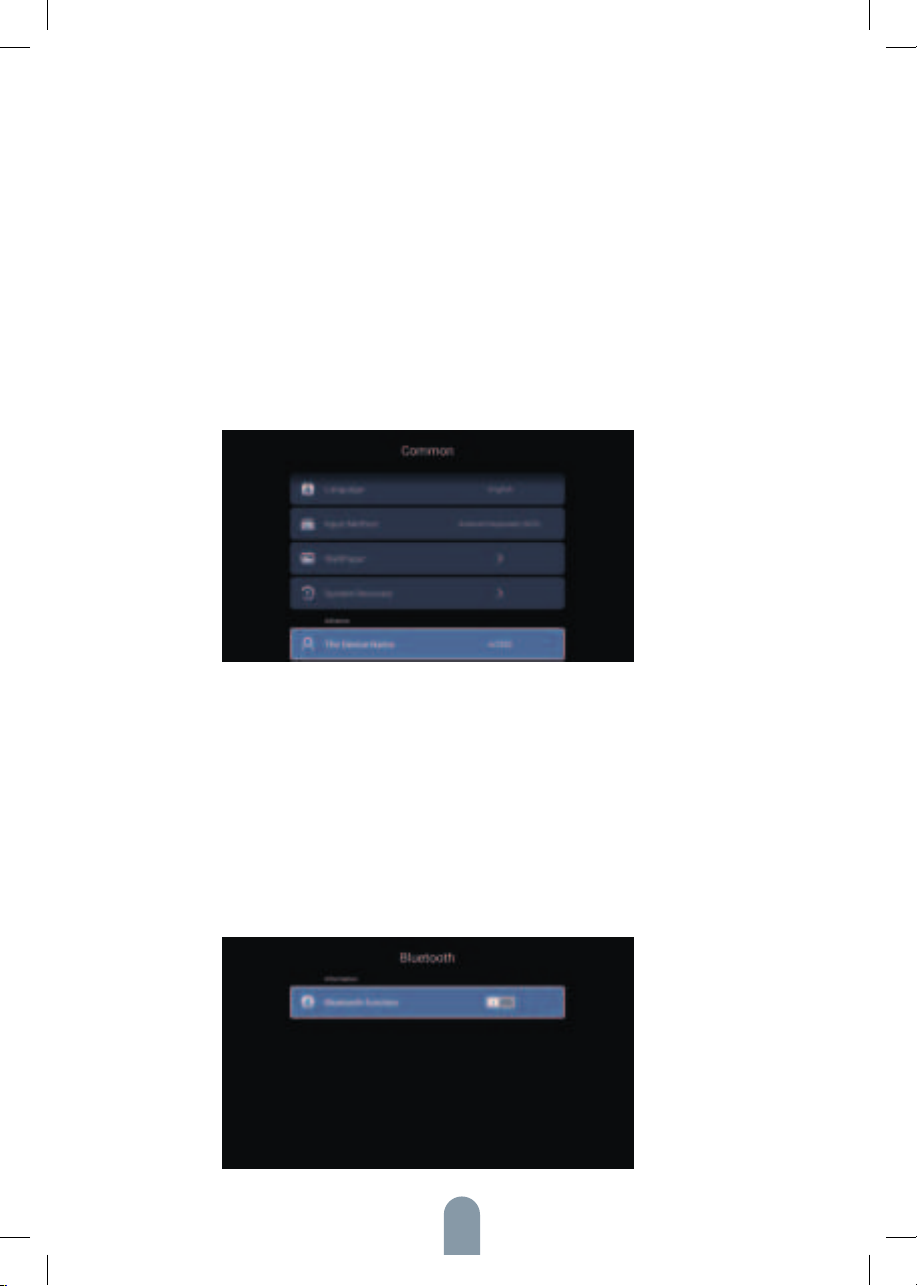

Press ◄ / ► button to to select Common.
Press / button to select Language/Input Method/Wallpaper/▼ ▲
System Recovery/
The device name.
Language Set the current display language.The default language is English.
Input Method Set the remote controller input method.
WallPaper Set the Wallpaper.
System Recovery Recovery system to original state.
The device name Set the device name.
Bluetooth
Press ◄ / ► button to to select Bluetooth.
24 Hours/Screen saver time/Sleep Timer.
Auto Attach: Get the current time and date automatically.
Time Zone: Set the current time zone.
Daylight Saving: Set the daylight saving Auto/On/Off.
Time Edit: Set the current time.
Date Format: Set the current date.
24 Hours: Select the 12 hours or 24 hours.
Sleep Timer: Set the sleep timer as Off/15min/30min/45min/60min/90min/
120min/240min.
Screen saver time: Set the screen saver time as Off/1min/2min/5min.
COMMON

8
Press ▼ / ▲ / ◄ / ► button to select Multimedia in OTHERS on the Home page or
press MEDIA button on the
remote,and press OK button to enter enter the Media Center.
Press ◄ / ► button to select All/Video/Audio/Image.
Video
Press / button to select Video or All,and press / /▼ ▲ ▼ ▲ ◄ / ► button to select
Movies.
Press Menu button to display the setting options on the left side.
Accounts
Press ◄ / ► button to to select Account.
MEDIA

9
Play List
Press ▼ / ▲ button to select Play List,and press OK button to display all available
videos.
PLAY MODE
Press ▼ / ▲ button to select Play Mode,and press OK button to select.
(Options:Repeat All/Auto exit /Repeat One/Random/Play List)
Aspect Ratio
Press / button ▼ ▲ to select Aspect Ratio.
Audio Track
Press▼ / ▲ button to select Audio Track and press OK button to select.
Subtitle Track
Press ▼ / ▲ button to select Subtitle Track and press OK button to select close.
Encoding Standard
Press ▼ / ▲ button to select Encoding Standard and press OK button to select
ISO/WINDOWS.
Region Language
Press ▼ / ▲button to select Region Language and press OK button to select .
(Optional: Default/West Euro/Center Euro/Baltic/Cyrillic/Arabic/Greek/Heb-
rew/
Turkey/Thai/Vietnamese/Chinese)
Character Set
Press ▼ / ▲ button to select Character Set and press OK button to select.(Optio-
nal:Default/GBK/ISO/WINDOWS)
External Subtitles
Press ▼ / ▲ button to select External Subtitles and press OK button to select.
HDR
Press▼ / ▲ button to select HDR and press OK button to select On/Off.
Audio
Press / button to select Audio or All,and press / /▼ ▲ ▼ ▲ ◄ / ► button to select
Music.

10
Play List
Press ▼ / ▲ button to select Play List,and press OK button to display all available
Audios.
PLAY MODE
Press ▼ / ▲ button to select Play Mode,and press OK button to select.
(Options:Repeat All/Auto exit /Repeat One/Random/Play List)
Press ▼ / ▲ button to select Image or All,and press ▼ / ▲ /◄ / ► button to select
Pictures.
Play List: Playable picture list display.
Play Slide: You can choose to start the slide show.
Interval Time: Select slide show interval. (Optional:3/5/8/12Sec.)
Aspect ratio: Set the aspect ratio. (Optional: Auto/Full screen/Zoom Out/Origi-
nal/Zoom1/Zoom2)
Rotate: Set the rotate. (Optional: Default/Rotate Right/Rotate left)
Set as wallpaper: Set the current play picture as wallpaper.
Press More under the “WISDOM S ▼ / ▲ /◄ / ► button to select HARE” on the
Home page.

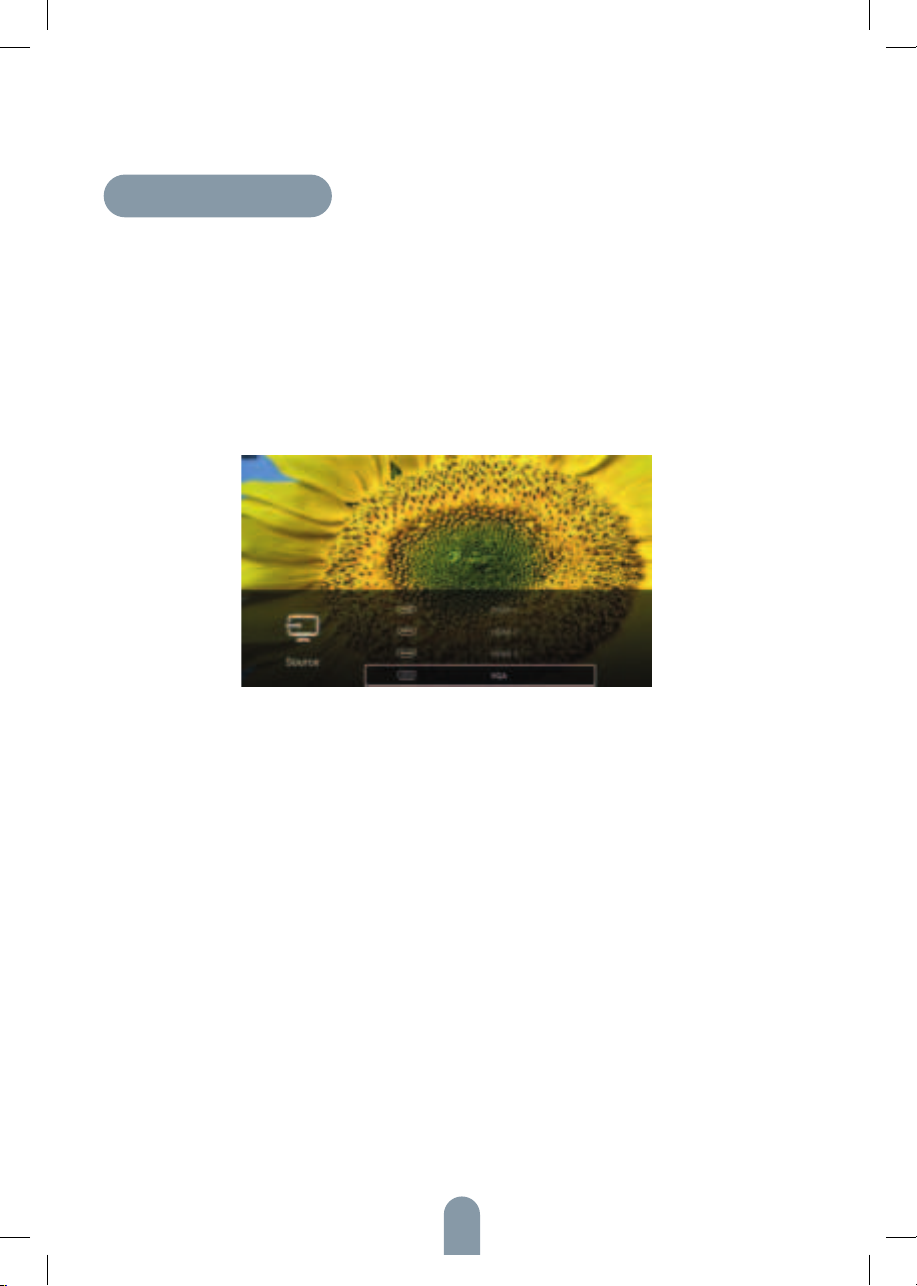

Press ◄ / ► button to select TV/AV1/AV2/YPBPR/HDMI1/HDMI2/HDMI3/
VGA.
INPUT

11
Or press Menu button,and press ◄ / ► button to select Source.
Press ▼ / ▲ button to select the input source you want.
Press OK button to enter.Press EXIT button to quit.
P MENU button t ress o enter the TV Setting.
Press ◄ / ► button to highlight the desired menu icon , and press OK button to
select.
( Optional:Home/Source/Picture/Sound/Channel/Lock/Common/Advance)
Press MENU button to enter the main menu.
Press ◄ / ► button to select the Picture.
Press OK button to enter the sub-menu.
Press ▼ / ▲ button to select Picture Mode/Contrast/Brightness/Color/
Sharpness/Backlight/Noise Reduction/
Aspect Ratio/Color Temp/More Settings.
Press MENU or EXIT button to quit.
Picture Mode
Highlight the item and press OK button to enter the sub-menu, that shows the
picture mode you can choose.
Press ◄ / ► button to select Standard/Dynamic/Vivid/Energy Saving/User.
Standard Produces a standard image.
Dynamic Enhance the contrast ,color and clarity of the screen, so that the picture
in the
dynamic will balance the color.
Vivid Enhance the contrat , color and clarity of the screen to make the color more
vivid.
Energy Saving Reduce screen brightness, improved contrast for energy saving.
User Select to customize picture settings.
Contrast/Brightness/Color/Sharpness
These terms are available only when „User“ is selected in Picture Mode.
Press ▼ / ▲ button to select Contrast/Brightness/Color/Sharpness.
Press ◄ / ► button to adjust.
TV SETTING

12
Contrast Adjust the contrast of the image.
Brightness Adjust the brightness of the image.
Color Adjust the color intensity of the image.
Sharpness Adjust the edge sharpness of the image.
Backlight
Press ▼ / ▲ button to select Backlight.
Press ◄ / ► button to adjust.
Noise Reduction
Set up options to eliminate the image noise intensity.
Press ▼ / ▲ button to select Noise Reduction.
Press ◄ / ► button toselect Off/Low/Middle/High/Auto.
Aspect Ratio
Press ▼ / ▲ button to select Aspect Ratio.
Press ◄ / ► button to select 16:9/4:3/Zoom1/Zoom2.
Color Temp
Adjust the overall color of the image.
Press ▼ ▲ button / to select Color Temp.
Press ◄ / ► button to select Cool/Normal/Warm.
Cool The picture is in favor of green-blue and less red.
The whole color is in favor of light. The picture is more fresh and elegant.
Normal The picture does not in favor of any color.The color is moderate.
Warm The picture is in favor of red-green and less blue to make the color more
vivid and soft.
More Settings
Press ▼ / ▲ button to select More Settings.
Press OK button to enter the sub-menu.
DLC
Press ▼ / ▲ button to select DLC.
Press ◄ / ► button to select On/Off
Sound
Press MENU button to enter the main menu.
Press ◄ / ► button to select the Sound.
Press OK button to enter the sub-menu.
SOUND
Press ▼ / ▲ button to select Sound Mode/Bass/Treble/Balance/AVC/Multi-Ta-
ack Sound/More Settings.
Press MENU or EXIT button to quit.
TV

13
Sound Mode
Press▼ / ▲ button to select Sound Mode.
Press ◄ / ► button to select Standard/Music/Movie/News/User.
Standard Emit balanced sound under any circumstances.
Music Enhance the high pitch and reduce the bass.
Movie Enhances treble and bass for a rich sound experience.
News Enhance the voice.
User Select to customize sound settings.
Bass
Adjust the low frequency sounds.
Press▼ / ▲ button to select Bass.Press ◄ / ► button to adjust.
Treble
Adjust the high frequency sounds.
Press▼ / ▲ button to select Treble.Press ◄ / ► button to adjust.
Blance
Balanced left and right channels.
Press ▼ / ▲ button to select Balance.Press ◄ / ► button to adjust.
AVC
Press ▼ / ▲ button to select AVC. Press ◄ / ► button to select On/Off.
Note:After open the“AVC“, once the volume is set up, it can keep the volume of
the
speaker steady no matter what kind of difference among the TV sound of each
channel.
Mulit-Track Sound
Press ▼ / ▲ button to select Mulit-Track Sound.
Optional: NICAM stereo/Mono.
MT9632-OSD
More Settings
Press▼ / ▲ button to select More Settings.Press OK button to enter the sub-me-
nu.
DIGITAL AUDIO OUTPUT
Press ▼ / ▲ button to select Digital Audio Output. Press ◄ / ► button to select
Off/PCM/RAW.

14
SPDIF Delay
Press ▼ / ▲ button to select SPDIF Delay. Press ◄ / ► button to select .
Surround
Press ▼ / ▲ button to select Sorround. Press ◄ / ► button to select On/Off.
Audio Only
Press ▼ / ▲ button to select Audio Only. Press OK button enter the sub-menu.
CHANNEL
Press MENU button to enter the main menu.
Press ◄ / ► button to select Channel.
Press OK button to enter the sub-menu.
ATV
Press ▼ / ▲ button to select Country/Antenna Type/Scan/Channel List.
Press MENU or EXIT button to quit.
20
TV

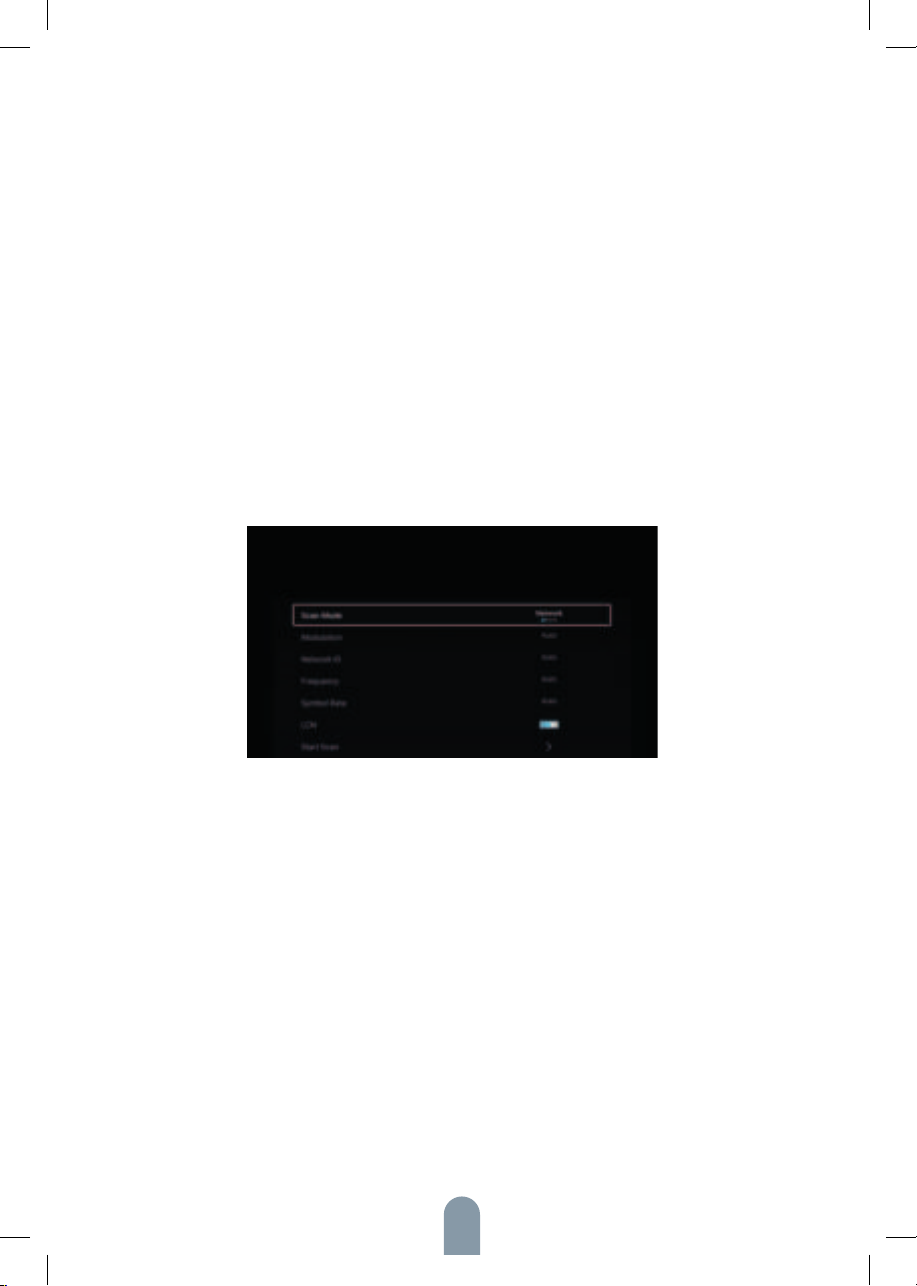

Scan
Press ▼ / ▲ button to select Scan.Press OK button to enter the sub-menu.

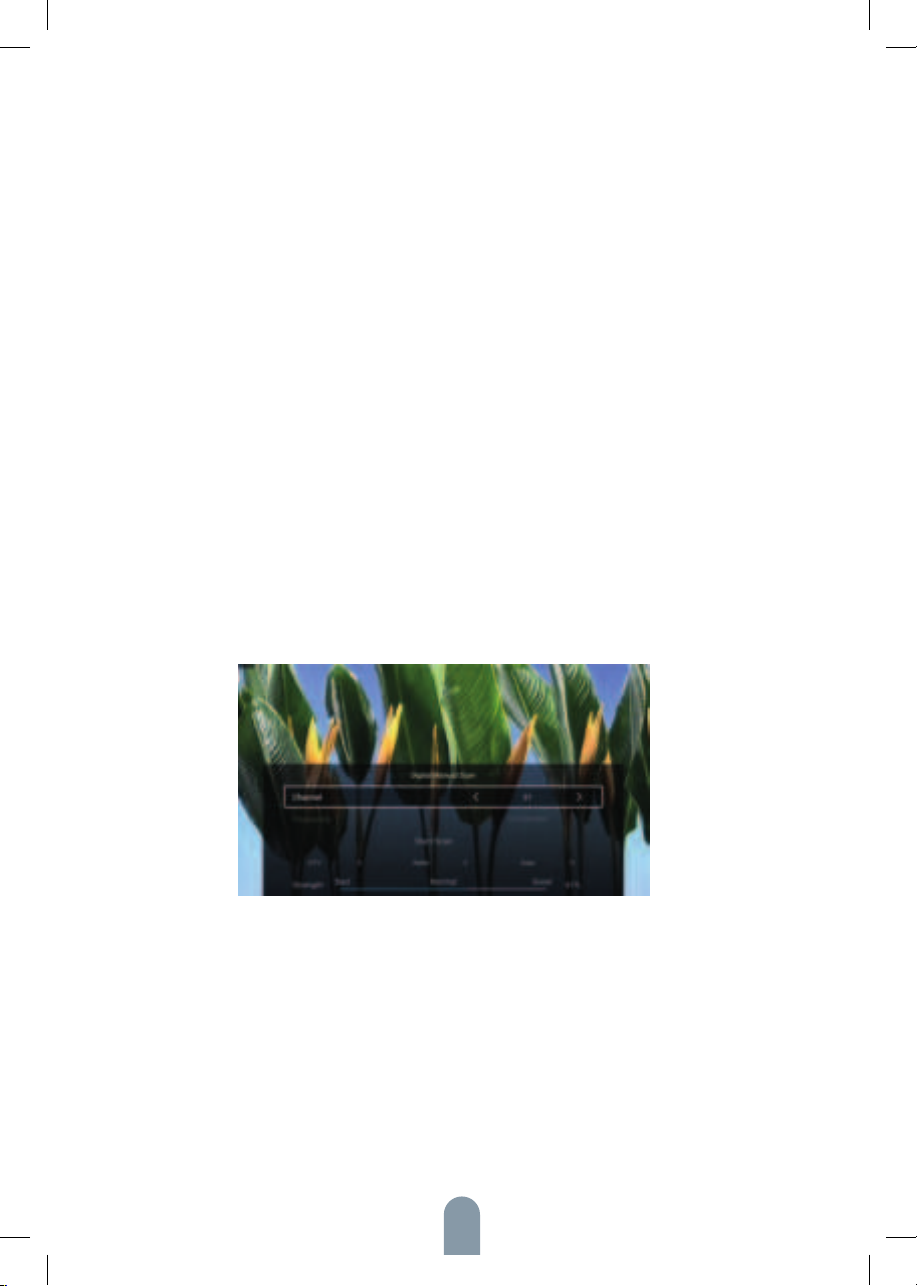

Press ▼ / ▲ button to select Search Type/Auto Scan/Analog Manual Scan/
Digital Manual Scan.
MT9632-OSD

15
Country
Press ▼ / ▲ button to select Country.Press OK button to enter to select country.
Antenna Type
Press ▼ / ▲ button to select Antenna Type.Press ◄ / ► button to enter to select
Air/Cable/Satellite.
Scan
Press ▼ / ▲ button to select Scan.Press OK button to enter the sub-menu.
Press ▼ / ▲ button to select Search Type/Auto Scan/Analog Manual Scan/
Digital Manual Scan.
Search Type
Press ▼ ▲ ◄ ► select / button to select Search Type, then press / button to
ATV+DTV/ATV/DTV.
Auto Scan
Automatic search can search for effective program channel automatically.
Press ▼ / ▲ button to select Auto Scan, then press▼ / ▲ button to select LCN/
Start Scan.
LCN
Press ▼ / ▲ button to select LCN. Press ◄ / ► button to select On/Off.
Start Scan
Press ▼ / ▲ button to select Start Scan. Press ◄ / ► button to start auto scan.
Analog Manual Scan
Analog manual search can search for effective simulation program channel ma-
nually.
Press ▼ / ▲ button to select Analog Manual Scan , and press OK button to enter
the sub-menu.
Press EXIT or MENU button to quit.
Channel
Channel
Press ▼ / ▲ button to select Channel. Press ◄ / ► button to select the channel
number.

16
Color System
Press ▼ / ▲ button to select Color System. Press ◄ / ► button to select PAL/
SECAM/NTSC/Auto.
Sound System
Press ▼ / ▲ button to select Sound System. Press ◄ / ► button to select DK/
BG/I/L/M/N.
Frequency
Press ▼ / ▲ button to select Frequency. Press ◄ / ► button to adjust.
Digital Manual Scan
Digital manual search can search for effective simulation program channel manu-
ally.
Press ▼ / ▲ button to select Digital Manual Scan , and press OK button to enter
the sub-menu.
Press EXIT or MENU button to quit.
Channel List
View all of the existing programs.
Press / button to select Channel List. Press OK button ▼ ▲ to enter the sub-menu.
Press ▼ / ▲ button to select All/Favorite/ATV/DTV/Radio/Encrypt/HD/Free/
Data.
All
Press ▼ / ▲ button to select All.Press MENU button to edit the program.
(Optional:Favorite/Rename/Delete/Skip.)
If the program is selected as an analog signal, the program can be renamed.
Favorite
Press ▼ / ▲ button to select Favorite.Press MENU button to edit the Favorite
Channel.
(Optional:Top/Delete/Skip.)
ATV/DTV/Radio/Encrypt/HD/Free/Data are type of program.
DTV
Press ▼ / ▲ button to select Country/Antenna Type/Scan/Signal Information/CI
Card/Audio Language/Subitle

17
Channel List/EPG.
Press MENU or EXIT button to quit.
24
TV MT9632-OSD
Country
Press ▼ / ▲ button to select Country.Press OK button to enter to select country.
Antenna Type
Press ▼ / ▲ button to select Antenna Type.Press ◄ / ► button to select Air/Cab-
le/Satellite.
Scan
Press ▼ / ▲ button to select Scan.Press OK button to enter the sub-menu.
Press ▼ / ▲ button to select Search Type/AutoScan/Analog Munual Scan/Digital
Manual Scan.
Search Type
Press ▼ ▲ ◄ ► select / button to select Search Type, then press / button to
ATV+DTV/ATV/DTV.
Auto Scan
Automatic search can search for effective program channel automatically.
Press ▼ / ▲ button to select Auto Scan, then press OK button to start auto search.
If you want to stop searching, press EXIT or MENU button to stop searching.
Scan mode
Press ▼ / ▲ button to select Scan mode. Press ◄ / ► button to select Network/
Quick/Full/Blind.
Modulation
Press ▼ / ▲ button to select Modulation. Press ◄ / ► button to select Au-
to/16QAM/32QAM/
64QAM/128QAM/256QAM.
Network ID
Press ▼ / ▲ button to select Network ID.
Frequency
Press ▼ / ▲ button to select Frequency.
Symbol Rate

18
Press ▼ / ▲ button to select Symbol Rate.
LCN
Press ▼ / ▲ button to select LCN. Press ◄ / ► button to select On/Off.
Start Scan
Press ▼ / ▲ button to select Start Scan. Press ◄ / ► button to start auto scan.
Analog Manual Scan
Analog manual search can search for effective simulation program channel ma-
nually.
Press ▼ / ▲ button to select Analog Manual Scan , and press OK button to enter
the sub-menu.
Press EXIT or MENU button to quit.
Channel
Press ▼ / ▲ button to select Channel. Press ◄ / ► button to select the channel
number.
Color System
Press ▼ / ▲ button to select Color System. Press ◄ / ► button to select PAL/
SECAM/NTSC/Auto.
Sound System
Press ▼ / ▲ button to select Sound System. Press ◄ / ► button to select DK/
BG/I/L/M/N.

19
Frequency
Press ▼ / ▲ button to select Frequency. Press ◄ / ► button to adjust.
Digital Manual Scan
Digital manual search can search for effective simulation program channel manu-
ally.
Press ▼ ▲ Digital M / button to select anual Scan , and press OK button to enter
the sub-menu.
Press EXIT or MENU button to quit.
Signal Information
Press ▼ / ▲ button to select Signal Information. Press OK button to enter.
CI Card
Press ▼ / ▲ button to select CI Card to view the information of CI card.
Audio Language
Press ▼ / ▲ button to select Audio Language .Press ENTER&▼ / ▲button to select
audio language.
Subtitle
Press ▼ / ▲ button to select Subtitle .Press ENTER&▼ / ▲button to select
Channel List
View all of the existing programs.
Press / button to select Channel List. Press OK button ▼ ▲ to enter the sub-menu.
Press ▼ / ▲ button to select All/Favorite/ATV/DTV/Radio/Encrypt/HD/Free/
Data.
All
Press ▼ / ▲ button to select All.Press MENU button to edit the program.
(Optional:Favorite/Rename/Delete/Skip.)
If the program is selected as an analog signal, the program can be renamed.

20
Favorite
Press ▼ / ▲ button to select Favorite.Press MENU button to edit the Favorite
Channel.
(Optional:Top/Delete/Skip.)
ATV/DTV/Radio/Encrypt/HD/Free/Data are type of program.

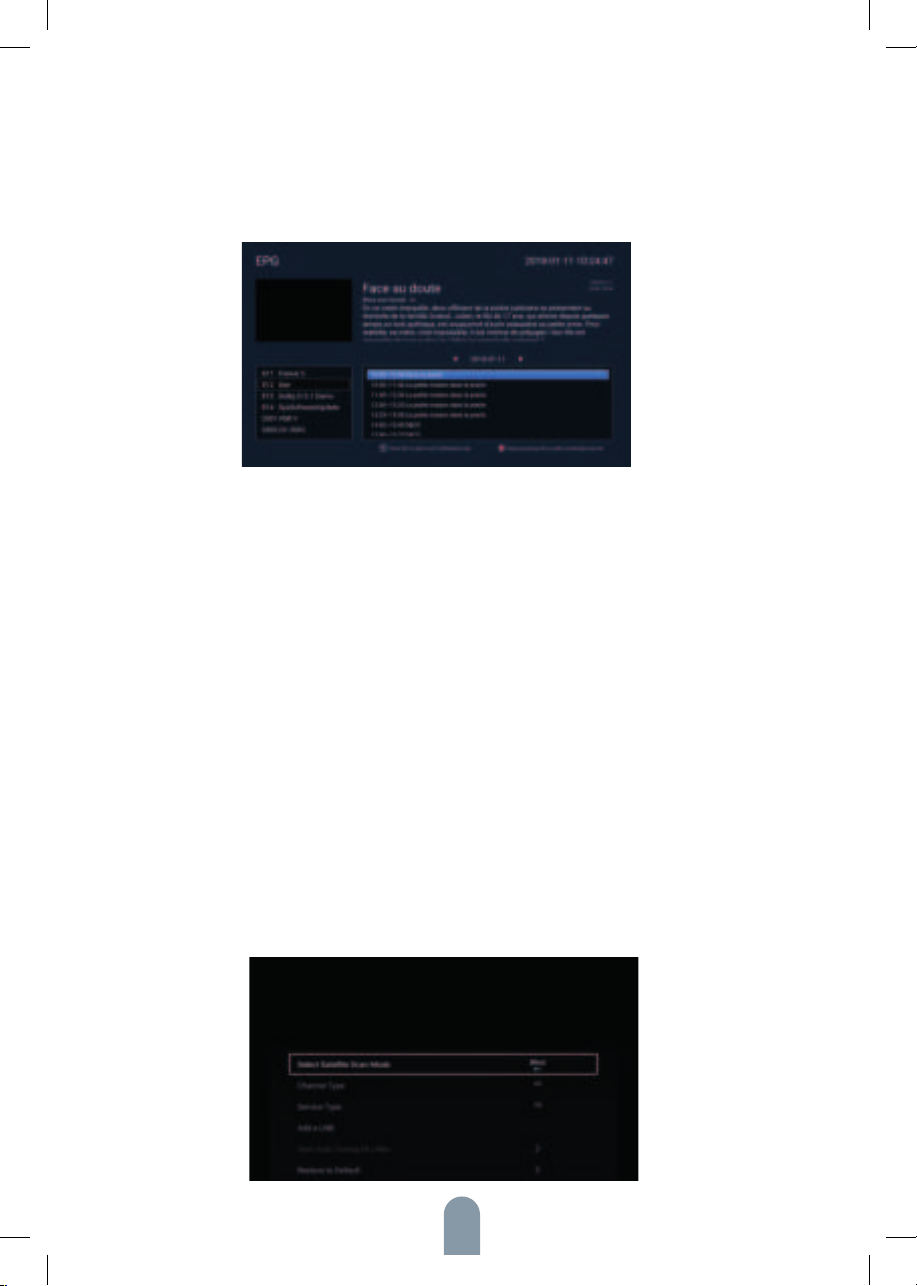

EPG
Press ▼ ▲ MENU button t / button to select EPG.Press o enter the sub-menu.
DVB-S
In DTV source,set the Antenna Type as Satellite.(It only available with DVB-S
funtion.)
Press ▼ / ▲ button to select Country/Antenna Type/Scan/Signal Information/CI
Card/Audio Language/Subitle
Channel List/EPG.
Press MENU or EXIT button to quit.
Country
Press ▼ / ▲ button to select Country.Press OK button to enter to select country.
Antenna Type
Press ▼ / ▲ button to select Antenna Type.Press ◄ / ► button to select Air/Cab-
le/Satellite.
Scan
Press ▼ / ▲ button to select Scan.
Press OK button to enter the sub-menu.and press ▼ / ▲ button to select the
parameter.
