TEUCER DIM-DALI4CH User manual

1 Channel Dali Decoder
for Single Colour, Tunable White, RGB and RGBW LED strip
www.teucerled.co.uk
V002-11-2019
This 4 channel DALI decoder can control single colour, tunable white, RGB or RGBW LED strips. This product
is compliant with the Dali standard protocol and is equipped with a digital display allowing users to set
manual or automatic addresses.
Product Description
Technical Specification
• Compatible with DALI standard protocol IEC
62386-102, IEC 62386-207
• Manual and automatic DALI address setting
• Digital address display
• Four independently addressable DALI chan-
nels
• Compatible with PR-RGB signal repeater to
expand your LED lighting.
Features
Decoder
Order Code DIM-DALI4CH
Type DALI decoder
Input Voltage 12-36VDC
Current 4X5A
Output 4X(60-180)W
Note Constant voltage
Dimension 46x178x22mm (WxLxH)
Decoder layout
123
4
GN D
CH 1 output
CH 2 output
CH 3 output
CH 4 output
Address display
Address bu�ons
DC power input
DALI signal input &
DALI signal output
DIM-DALI4CH
DIM-DALI4CH

1 Channel Dali Decoder
for Single Colour, Tunable White, RGB and RGBW LED strip
www.teucerled.co.uk
V002-11-2019
Decoder wiring diagram for single colour strip
When wiring the decoders, it is important to make sure the total wattage of the LED strips does not
exceed the maximum rated wattage per channel of the decoder. Each channel is rated at 5A, so the
maximum wattage per channel is 24x5A=120w.
The power supply has to match the rated voltage and be superior to the total LED strip wattage by a
recommended 10%.
L
N
110V-230VAC
Power Supply
123
4
GND
DIM-DALI4CH
DALI master
Decoder wiring diagram for tunable white strip
L
N
110V-230VAC
Power Supply
123
4
GND
DIM-DALI4CH
DALI master
Decoder wiring diagram for RGB strip
L
N
110V-230VAC
Power Supply
123
4
GND
DIM-DALI4CH
DALI master
Decoder wiring diagram for RGBW strip
L
N
110V-230VAC
Power Supply
123
4
GND
DIM-DALI4CH
DALI master
W

1 Channel Dali Decoder
for Single Colour, Tunable White, RGB and RGBW LED strip
www.teucerled.co.uk
V002-11-2019
Synchronising the decoder
Address on
DIM-DALI1CH
Channel
1
Channel
2
Channel
3
Channel
4
1A 22 22 22 22
2A 22 23 22 23
3A 22 23 24 24
4A 22 23 24 25
Teucer (UK) Ltd
Bedford House, Fulham Green, Fulham High Street,
London, SW6 3JW, UK
Tel: [phone]
Fax: [phone]
www.teucerled.co.uk
[e-mail]
Warranty
• Products must be installed and serviced by qualified
electrician.
• Please ensure the receiver is mounted in a water proof
enclosure if installed in an outdoor environment,
avoiding metallic enclosures.
• Always ensure products are mounted in areas with
adequate ventilation to avoid overheating.
• Please ensure outputs of any power suppliers used
in conjunction with this product comply with its
working voltage.
• Never install product whilst connected to power and
double check connections before switching on to
avoid short circuits.
Safety
Should this product fail during the 3 year warranty
period it will be replaced free of charge, subject
to the correct installation of the original product
in accordance with applicable and appropriate
electrical codes and instructions provided by
Teucer, as well as subsequent return of the faulty
unit. Teucer does not accept responsibility for any
installation costs associated with the replacement
of this product and Teucer reserves the right to
alter specifications without prior notice. For further
information, please see our Terms and Conditions.
www.teucerled.co.uk/terms-and-conditions/
0-6 0-9

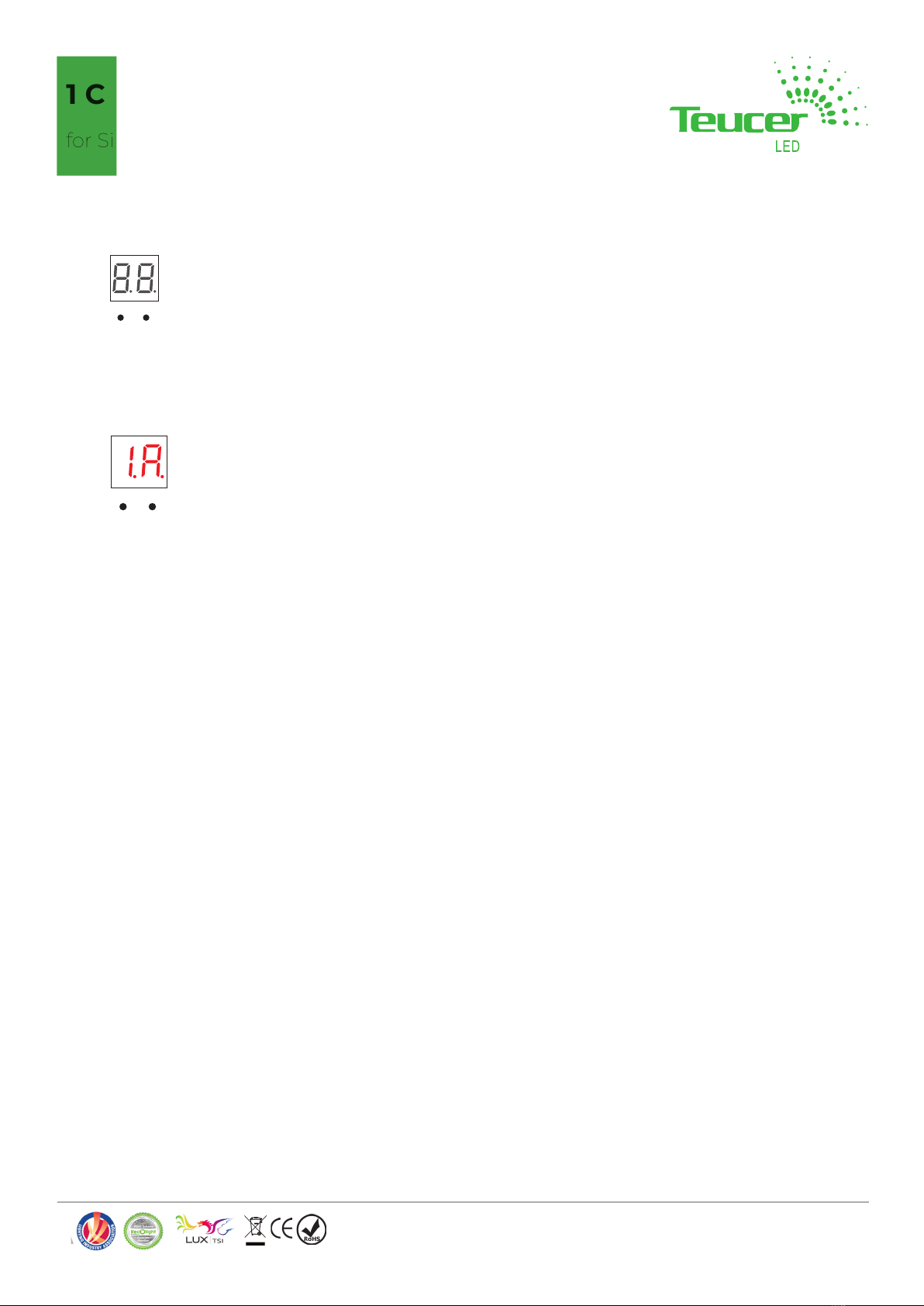

Setting the DALI address manually
1. Press and hold down any of the two manual address buttons for 2 seconds until
the numeric display flashes before releasing.
2. Press any of the two buttons once to select a digit, click again to change the digit
until the desired DALI address appears.
3. Press each button to select the address you require (0-6, left hand button and 0-9,
right hand button). To confirm the selected address press and hold any of the two
buttons until the numeric display stops flashing to confirm the setting
1. Press and hold down both buttons until the numeric digital display flashes, then
release the buttons.
2. Press first button to select “1A”, “2A”, “3A” or “4A” which means 1 address, 2 address-
es, 3 addresses or 4 addresses.
3. Then press and hold down any of the 2 buttons until the numeric digital display
stops flashing to confirm the setting. For example, when selecting 1A, all four
channels will be the same address 22. When selecting 2A, channel 1 & 3 will be the
same address 22, channel 2 & 4 will be the same address 23. For a full list of ad-
dresses per output 1A-4A please consult the table below.
Note: Setting DALI address as FF will reset the dimmer to factory default.
1 2
The decoder is set to
4A as default when
supplied.
Setting the DALI address output quantity
