Teufel Concept C 200 Black Edition Manual

Technical Description and Operating Instructions
2.1 Mulitmedia-Set with integrated remote
Concept C 200
Black Edition

2 • Concept C 200
Contents
General notes and information ......................................................................................................................................3
Safety notes ..................................................................................................................................................................4
Caution icons ................................................................................................................................................ 4
Safety notes .................................................................................................................................................. 4
Explanation of symbols ................................................................................................................................... 5
Overview ......................................................................................................................................................................6
Controls and connections ...............................................................................................................................................7
Setup and connection ....................................................................................................................................................8
Setup location ............................................................................................................................................... 8
Connecting the satellites ................................................................................................................................. 8
Connecting the desktop remote control ............................................................................................................. 9
RCA input ..................................................................................................................................................... 9
USB input ...................................................................................................................................................... 9
Connecting to a power supply ......................................................................................................................... 9
Activating and deactivating .......................................................................................................................... 10
Automatic shutdown ..................................................................................................................................... 10
Use .............................................................................................................................................................................10
Tabletop remote control ................................................................................................................................ 10
Care an cleaning .........................................................................................................................................................11
Troubleshooting ...........................................................................................................................................................11
Protecting the environment ..........................................................................................................................................12
Batteries and rechargeable batteries ...............................................................................................................12
Disposal of the unit........................................................................................................................................12
Technical data .............................................................................................................................................................12

• Concept C 200 3
Notice
The information in this document may change without
prior notice and in no way constitutes any liability on the
part of Lautsprecher Teufel GmbH.
No part of these instructions may be reproduced in any
form or be broadcasted in any way electronically, me-
chanically, by photocopy or recording without the written
permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0
December 2012
Original packaging
If you wish to exercise your eight-week right of return, we
ask that you be absolutely sure to hold onto the packag-
ing. We can only accept the return of a device WITH
THE ORIGINAL PACKAGING.
Empty boxes are not available!
Complaints
In case of complaint we will need the following informa-
tion to process your enquiry:
1. Invoice number
Can be found on the sales slip (enclosed with the
product) or on the order confirmation received as a PDF
document, e.g. 4322543
2. Serial number or batch number
Located on the back of the unit,
e.g. serial number: CO 00702012040A.
Many thanks for your support!
Contact
For questions, suggestions or any other issues please
contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen · Buelowstrasse 66
10783 Berlin (Germany)
Phone 00800 - 200 300 40 (free of charge)
Fax: +49 (0)30 / 300 930 930
E-mail: [e-mail]
www.teufelaudio.com
Proper use
Only use the unit as described in these operating instruc-
tions. Any other use will be deemed as not in accordance
with the instructions and may lead to damage to property
or even persons.
The manufacturer accepts no liability for damage caused
by use not in accordance with the instructions.
The unit is intended for private use.
Before operating the unit for the first time please
read the safety notes and operating instructions
carefully. This is the only way to use all functions
safely and reliably.
Keep the operating instructions safe and pass them on to
anyone who may own the unit after you.
General notes and information

4 • Concept C 200
Safety notes
Caution icons
You will find the following caution icons in these instruc-
tions:
Danger High risk!
Failure to observe the warning may result in
severe personal injury or death.
Attention Moderate risk!
Failure to observe the warning may result in
property damage.
Minor risk!
Points which should be observed when hand-
ling the unit.
Safety notes
Gefahr Risk of electric shock!
Faulty installation of electrical equipment or
mains voltage which is too high can cause
electric shocks.
• The device is only suitable for use with a power supply
voltage of 230 V~/50 Hz. Make sure that the mains
voltage is correct. For more information, refer to the
nameplate.
• Check the unit regularly for damage.
If the unit’s case or mains cable is defective or shows
other signs of visible damage, disconnect it immedi-
ately from the power supply and do not operate it.
• If the unit emits smoke or smells of burning or other
unusual odours, disconnect it immediately from the
power supply and do not operate it.
• The standby button does not disconnect the unit from
the power supply. For this reason, connect it to an eas-
ily accessible socket so that you can quickly disconnect
it from the power supply in the event of faults.
• Never open the unit case.
Repairs may only be carried out by an authorised
specialist workshop. Only use parts which conform
with the original unit specifications. There are electrical
and mechanical parts in this unit which are essential in
order to avoid exposure to sources of danger.
• Use only accessories specified by the manufacturer.
• Do not insert any object through the vent slots in the case.
• Only use the unit in indoor areas.
• Do not operate the unit in damp areas and protect it
from drops of water or splash water.
Also take care not to stand vases or other containers
of liquid on or near the unit in order to avoid liquid
getting into the case. If water or other foreign bodies
should enter the case, disconnect it immediately from the
mains power supply and remove any batteries. Send the
unit to our service address.
• Never touch the plug with damp hands.
• Check the unit regularly for damage.
Danger Danger to children!
Children can become trapped in the packing
film when playing and suffocate.
• Do not allow children to play with the unit or the pack-
ing film. Danger of suffocation.
• Ensure that children do not remove small parts from
the unit (e. g. remote control battery, buttons or plug
adapters). They could swallow the parts and choke.
If a battery is swallowed, take the child to a doctor
immediately.
• Never allow children to operate electrical devices
unsupervised.
Danger to hearing!
Loud noise may lead to hearing loss.
Particularly when a subwoofer is activated and
has been set to maximum volume, very high noise pres-
sure may be produced. This may also have psychological
consequences as well as cause physical injury. Children
and pets are particularly at risk.
• Set your signal source unit volume control to a low
setting.
• When the volume is set high, always keep a certain
distance from the unit and never place your ear directly
on the speaker.
• To avoid damage to health, avoid extended listening at
high volume.
Danger Danger of chemical burns!
Leaking battery acid may lead to chemical
burns.
• Do not allow battery acid to come into contact with
skin, eyes or mucus membranes. In case of contact with
acid rinse the affected part immediately with plenty of
plain water and if necessary see a doctor.
Danger Danger of injury/damage!
Incorrect location may result in personal injury
and/or property damage.
• Never use the unit unsecured in a vehicle, on an unsta-
ble surface, on wobbly stands or furniture, with under-
sized wall fixings etc. The speakers could fall down or
fall over and be damaged or cause injury.
• Place the subwoofer on the ground only.
• Place the speakers in such a way that they cannot be
knocked over unseen and make sure that the cables do
not pose a trip hazard.
• Carefully follow the installation instructions.
• Ensure that wall mounting is carried out by a profes-
sional. Verify the carrying capacity of the walls.
• Do not place the unit near sources of heat (e. g. heat-
ers, ovens, other heat generating equipment such as
amplifiers etc.)

• Concept C 200 5
Danger Risk of injury
An unstable base may cause the unit to tip and
injure or even kill persons, children are particu-
larly at risk. You can prevent many accidents by taking
the following precautions.
• Only place the subwoofer on the floor.
• If you want to use underframes or speaker stands, only
use those recommended by the manufacturer.
• When storing the product, also ensure that it stands
safely and that it cannot be knocked down or over.
Attention Fire hazard!
Improper use may lead to damage or fire.
• Do not place open flames such as burning candles or
similar on the unit.
• Ensure sufficient ventilation.
• Do not place the unit in direct sunlight.
• Do not operate the unit in damp areas and protect it
from drops of water or splash water.
Also take care not to stand vases or other containers
filled with liquid on or near the speaker in order to
avoid liquid getting into the case. If water or other
foreign objects penetrate the case, immediately discon-
nect the power plug and if applicable, remove any bat-
teries. Send the unit to our service address in this case
• Do not cover the ventilation slots with curtains, cloths,
newspapers or similar. Heat build-up inside the unit
can shorten the lifetime of the unit.
Attention Risk of damage!
Power overload due to lightning strike may
damage or destroy the unit.
• If the unit is to be left unsupervised for a long period
(e. g. during a holiday), or if a thunderstorm is fore-
cast, disconnect it from the mains power supply.
• Leaked batteries may damage the remote control.
• In case of prolonged absence remove the batteries
from the remote control.
Explanation of symbols
Protection class II
Fuse 3.15 AL/250 V, 220-240 V
May only be used indoors

6 • Concept C 200

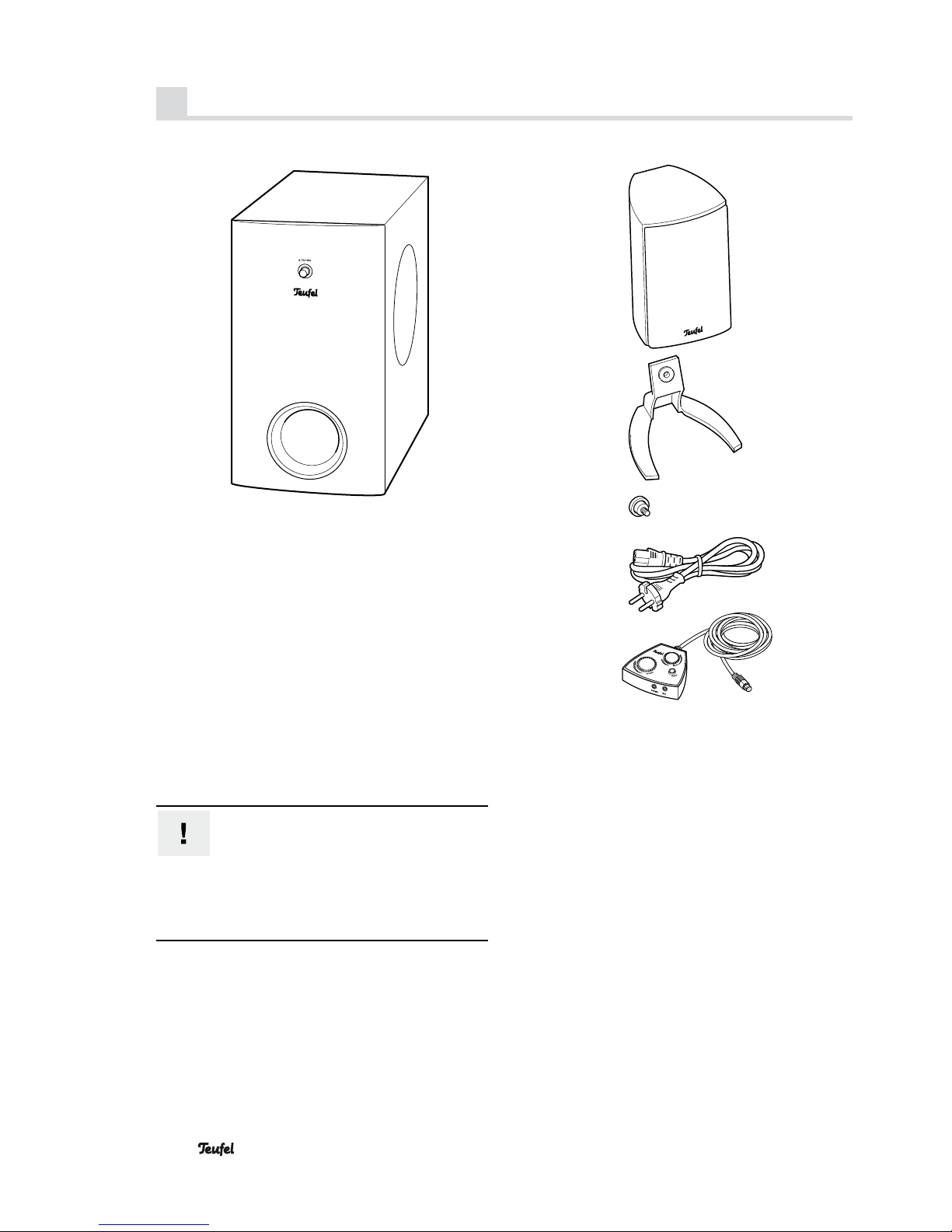

Product Contents
a 1 x subwoofer CC 202 SW
b 2 x satellite speaker CS 25 FCR
c 2 x table stand for satellite
d 2 x screw for table stand
e 1 x mains cord
f 1 x desktop remote control
Check to be sure
• Check that all items have been delivered and that noth-
ing is damaged.
• If the delivery is incomplete or you find damage sus-
tained in transit, do not operate the unit but contact our
service department (see page 3).
Speaker cord
Based on differing customer requirements, the
Concept C series is shipped without a connec-
tor cable for the satellite speakers. You can e. g. find
suitable cables in our webshop (www.teufelaudio.com)
in the “Accessories” area. You can also purchase extra
stands for your satellite speakers there as well as other
accessories.
Overview
a
b
c
d
e
f

• Concept C 200 7

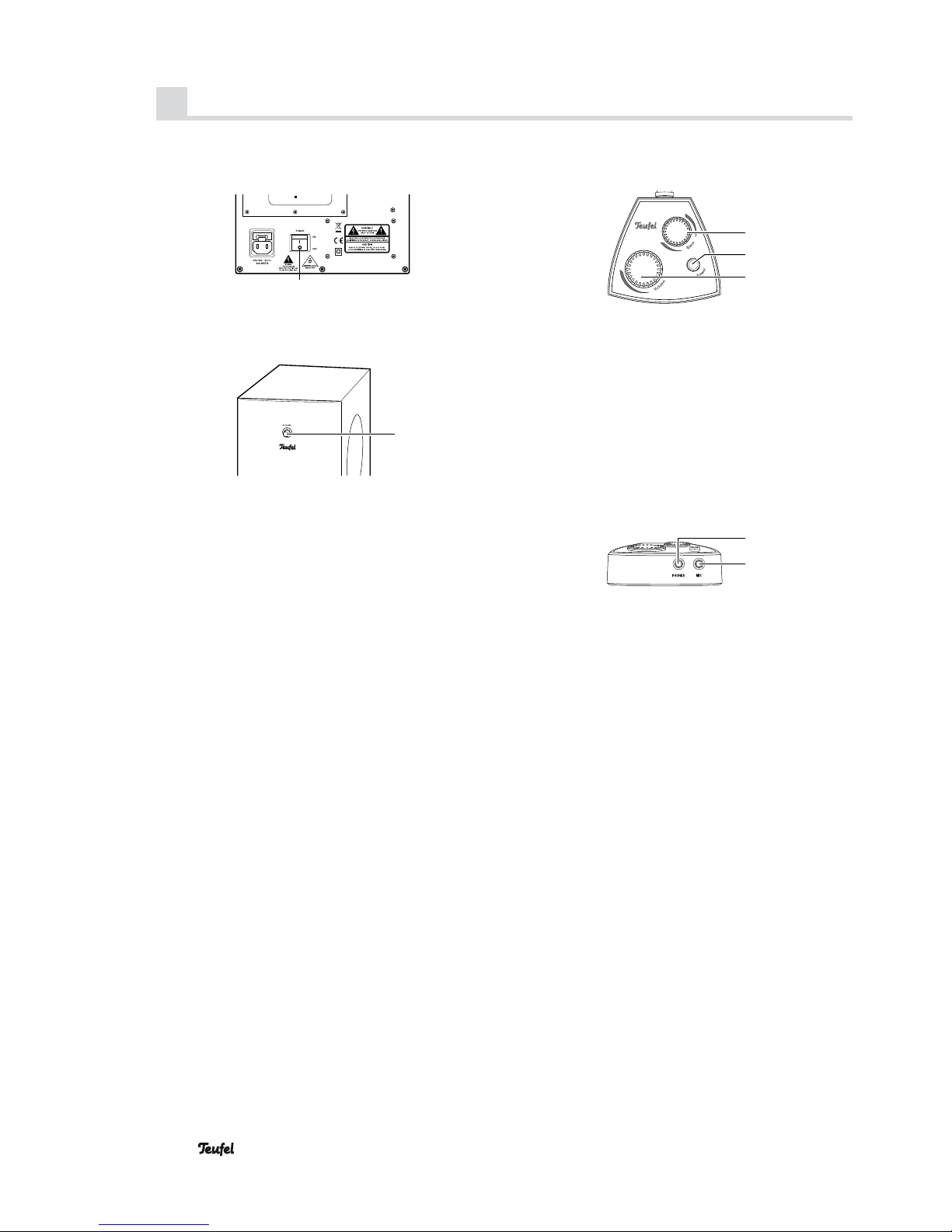

Controls and connections
Front
3
2
1
Rear
Pos Name Description
1 Standby Switch the unit on or to standby
mode
2 – Bass speaker
3 – Reflex opening
Satellite
Desktop remote
control
Pos Name Description
4 LINE IN RCA jacks for connecting to an
audio source
5REMOTE
CONTROL
Jack for remote control f
6 USB USB port for connection to a PC.
7SPEAKER
OUT
Connector terminals for satellite
speakers b
8 POWER Mains switch
9 – Jack for mains cord e
Pos Name Description
10 – Opening for wall mounting
11 –
Threaded bushing for table stand c
12 – Connector terminals
Pos Name Description
13 Bass Adjust the bass level
14 Power Switch the unit on or to standby
mode
15 Volume Increase/decrease volume
16 PHONES Jack for earphones
17 MIC Jack for microphone
4
5
6
7
8
9
10
11
12
13
17
16
14
15

8 • Concept C 200
Setup and connection
Setup location
• Preferably, the room, where you plan to use a
Concept C 200, should not be larger than 25 sqm.
• Select a stable, level base.
• Make sure that the environment is clean and free from
dust.
• Avoid placing the unit close to sources of heat or in
direct sunlight.
• Arrange the connecting cables so that they do not
pose a trip hazard.
• Do not place any heavy objects on top of the cables
or units.
Subwoofer
In general, you can position the subwoofer anywhere on
the floor in the room. Positioning the subwoofer between
the two front satellites is often beneficial. However, it is
not absolutely necessary that it be situated between the
satellite speakers as our ears are not capable of directly
locating the source of bass tones.
There should be at least 30 cm of space in front of the
bass speaker 2 and the reflex opening 3 as consider-
able air movement is produced around these openings at
higher volumes.
Satellite speakers
For the best possible sound quality, you should
• set up the left and right speaker at equal distances
from your preferred sitting position;
• set up the speakers at ear level;
• position the speakers on a shelf so that their front panel
is flush with the front edge of the shelf;
• do not cover the speakers with fabrics or objects.
You can set up the satellite speakers using the stands
included in the product contents or mount them directly
on the wall.
Table stand assembly
Insert the screw d through
the top hole of the table
stand c and turn the screw
into the threaded bush-
ing 11 on the back of the
speaker. Do not over tighten
the screw. The connectors of
the speaker cord are now
covered by the table stand
– to connect them later on,
loosen the screw somewhat
and turn the table stand to
the side.
d c
Wall mounting
You will need the following materials for wall mounting:
• one screw for each speaker, 4 x 40 mm
(screw head = ø 9 mm)
• for rock walls, one dowel for each speaker (ø 5 mm)
Danger
Danger of damage and electric shock!
Proceed with care when mounting the unit on
the wall and follow the instructions below.
• The speakers may only be mounted on the wall by
properly qualified persons.
• The unit may only be mounted on a suitable, solid wall.
If mounting on plasterboard walls special dowels or
fixings may be required. Seek the advice of an expert.
• Ensure that no cords or pipes are located at the
desired mounting point. Before drilling and tightening
the screws, check the applicable areas with a metal
detector.
Drive the screw into the wall and hang the speaker with
the mounting hole 10 on the screw.
Connecting the satellites
To connect the satellite speakers, use high-quality,
two-core speaker cable with a diameter of at least 1.5
mm2 and if possible, a banana plug for the subwoofer.
You can order them both as a set in our webshop
(www.teufelaudio.com) in the “Accessories” area.
7
12
12
The connector terminals 7 “SPEAKER OUT” for the right
(“Right ”) and left (“Left ”) speakers are located on the
back of the subwoofer.
The connector terminals 12 are located on the back of
the satellite speakers.
The terminals are marked in red (+) and black (-) respec-
tively.
Observe the correct polarity!
Connect the like-coloured terminals with one
another. Otherwise, the sound quality will
suffer. The cores of the speaker cable are marked with
different colours or shapes.

• Concept C 200 9
Split the cables down to approximately 30 mm on both
ends and strip approximately 10 mm of insulation on the
respective cores. Twist the cables so that no cores are
protruding.
Push down the lever for the connector terminal 12 on the
satellites and insert the stripped cable end into the open-
ing below the respective connector terminal. The cable is
clamped in place when the lever is released.
If you use banana plugs, screw the cord into place on
the plug (see instructions for the banana plug) and insert
the plug into the jack of the connector terminal 7 on the
subwoofer.
If you don’t use any banana plugs, turn the connector
terminal 7 counterclockwise. Insert the stripped cable end
into the hole that is now visible. Turn the terminal clock-
wise. This will clamp the cable in place.
Connecting the desktop remote control
5
Connect the desktop remote control to the jack
5 “REMOTE CONTROL”.
RCA input
4
You can connect almost any audio source to the RCA
jacks 4 “LINE IN” such as a computer, MP3 player
(with/without dock), video game system, television etc.
The source device only needs an output with line level.
Such outputs are configured either as stereo RCA jacks
or as a 3.5 mm jack plug. Connect such devices to the
jacks 4 “LINE IN” using a corresponding connector
cable. You can purchase such cables in our webshop
(www.teufelaudio.com) in the “Accessories” area.
USB input
6
Besides the RCA input, your Concept C 200 also has a
USB interface which you can use to connect to a note-
book, PC or Mac. Your Concept C 200 will operate just
like a sound card when connected via USB.
• Connect the terminal 6 USB with a free USB port on
your computer (all USB standards are supported).
A Type A to Type B USB cable is suitable.
A specific
driver installation is not necessary with Windows ver-
sions XP, Vista, 7 and 8 and Mac OS X.
You may need to select your Concept C 200 as a play-
back device in the audio menu of your operating system.
It is displayed as “USB Multimedia Audio Device”.
Note:
In order to be able to use the analogue audio input 4
“LINE IN” and the Concept C 200 USB sound card at
the same time the computer must be switched on and
operational!
After connecting the USB cable to the “USB” terminal 6
and to the PC, the standard drivers will be installed.
Afterwards the following settings are required:
1. In the control panel please select the “Hardware and
Sound” area.
2. Then select the subitem “Sounds” and click “Manage
audio devices”.
3. In the pop-up window select “Speaker USB audio
device”.
You will now be able to select the item “Properties”
(previously greyed out). Please click this item.
4. In the “Speaker properties” window select the “Level”
tab.
You will now be able to activate the AUX IN input
for the Concept C by clicking the speaker icon in the
“Line” area.
Connecting to a power supply
e
9 8
• Ensure that the mains switch 8 “Power” has been
turned off (“0 OFF” setting).
• Connect the mains connector jack 9 with a power sup-
ply socket via the mains cord d.

10 • Concept C 200
Use
Activating and deactivating
8
• Using the mains switch 8, you can activate or deacti-
vate your Concept C 200.
In standby mode and LED 1 is red.
1
• With the button 1 “Standby” or 14 “Power”, you
can switch your Concept C 200 to operating and/or
standby mode.
In operating mode, the LED 1 is blue.
Automatic shutdown
If there is no audio signal for 20 minutes, the subwoofer
switches to standby automatically. The subwoofer acti-
vates as soon as an audio signal is present on the RCA
jacks 4 “LINE IN”
Tabletop remote control
13
14
15
B
C
A
13 “Bass”: You can use this rotary encoder to control the
bass reproduction of your subwoofer.
LED A indicates a lower bass level, whereas LED B
indicates a higher bass level.
14 “Power”: Use this button to switch the Concept C 200 on
or to Standby mode.
15 “Volume”: Use this rotary encoder to set the volume of
the Concept C 200.
LED C shows the relative volume. Any separate volume
settings at the source device (PC, Mac, CD player, etc.)
are not considered here.
17
16
16 “PHONES”: You can connect earphones here using a
3.5 mm phone jack. The subwoofer and satellite speakers
are then automatically switched to mute.
17 “MIC”: You can connect a microphone here using a
3.5 mm phone jack. The microphone is automatically
recognised by the computer. You may receive the notifica-
tion that a recording device has been connected.
Note: The microphone works only if you have connected
the Concept C 200 via USB to your computer.

• Concept C 200 11

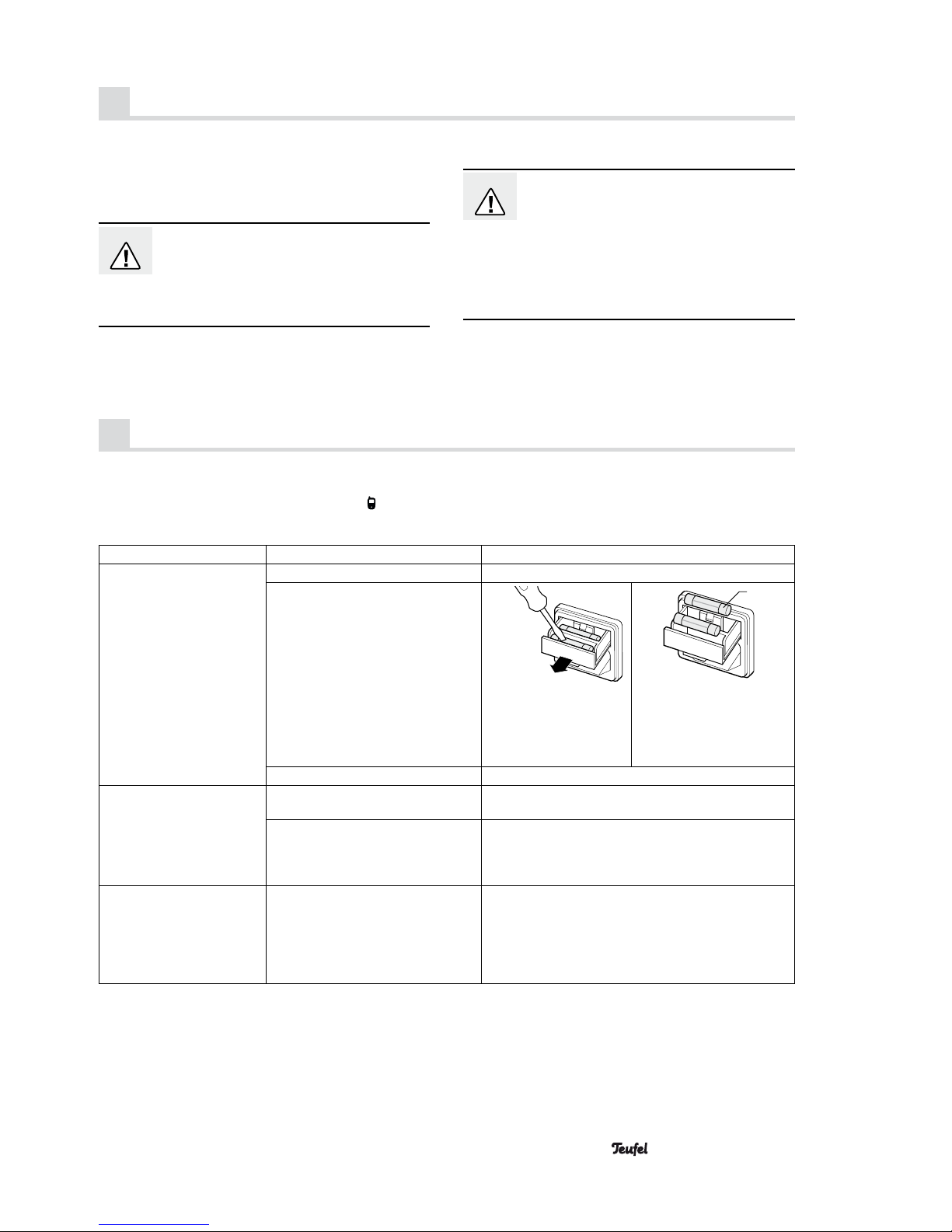

Care an cleaning
Clean your Concept C 200 regularly with a soft, slightly
damp microfibre cloth. Please be absolutely sure to ob-
serve the following:
Danger Risk of electric shock!
In contact with live parts water can lead to
electric shock or short circuit.
• Ensure that no water gets into the unit.
• Disconnect the device from the mains power supply
before cleaning.
Attention Risk of damage!
Using the wrong cleaning materials may dam-
age the delicate surface of the case.
• If possible use only plain water with no cleaning prod-
ucts. In case of stubborn marks a mild soap solution
may be used.
• In no circumstances should caustic cleaning products,
white spirit, thinners, petrol or similar be used for
cleaning.
Troubleshooting
The following notes and further detailed information on our website should help you to rectify malfunctions. If this does
not lead to success, please contact our hotline 00800 - 200 300 40 (free of charge). Please also observe the warranty
notes.
Störung Mögliche Ursache Abhilfe
The unit produces no
sound.
Volume is set to »0 «. Increase the volume.
Fuse defective. 1. 2. spare
Disconnect the power
cord.
Carefully pull the fuse
holder out of the mains
connection.
Push the old fuse out.
Insert a new fuse (3.15 AL
delayed action) and push
the holder back.
The input signal is too low Increase the volume at the source device.
Subwoofer buzzes. The buzzing is caused by problems
with the power supply.
Purchase a line filter and connect it to the device.
The buzzing is caused by a multi-
way socket.
Use another multi-way socket or plug the subwoofer
directly into the wall socket. In the case of two-pin
plugs it may help to insert the plug into the socket the
other way up.
Playback is noisy. The Concept C 200 is a very low-
noise system. What often happens
is that the speaker system which
is excellent in the treble range
exposes the poor quality of a signal
source (e. g. from MP3 files).
Make sure that the signal being sent from the source
to the Concept C 200 is free from faults.

Technical data
Subwoofer
Power consumption, max: 300 W
Operating voltage: 230 V~, 50 Hz
Dimensions (W x H x D): 247 x 435 x 380 mm
Net weight: 13 kg
Satellites
Dimensions (W x H x D): 90 x 125 x 98 mm
Net weight: 680 g
You can find further technical data on our website.
No responsibility is assumed for the correctness of this information.
Technical changes, typographical errors and other errors reserved.
