TGM 18k Series User manual

INSTALLATION&OPERATION INSTRUCTION MANUAL
FOR
CEILING &FLOOR AIR-CONDITIONING UNIT

Thank you for choosing our company products!
Air conditioning facilities are valuable products. In order to protect
your legitimate rights and interests, please make sure that the
installations are done by professional technicians. This manual is a
general-purpose version for the conditioning systems manufactured
by our CO., the one that you have chosen might be a little different in
appearance from the ones described in the manual . But these differences
will not have any impacts upon your operation and use of the system.
Please read the manual carefully before you operate the system and
check to see if the model is identical to the one you have purchased, keep
the manual properly in case you might refer to it in the future.
CONTENTS PAGE
NOTICES TO USERS
PARTS NAME AND FUNCTION
INTRODUCTION OF REMOTE CONTROLLER
PREPARATIONS FOR INSTALLATION
INSTALLATION OF THE UNIT
SYSTEM CHECK AND TRIAL RUN
MAINTENANCE AND UPKEEP
TROUBLESHOOTING
ELECTRIC WIRING
1
5
6
9
14
23
25
27
30

＂Important Safety Information＂ affords very important points about how to
operate the unit safely.To prevent injury to the user or other people and property
damage, the following instructions must be followed. Incorrect operation due to
ignoring of instructions may cause harm or damage.
The safety precautions listed here are divided into two categories. In either
case, important safety information is listed which must be read carefully.
1. Never install the unit by yourself and call the professionals from distributor
or maintenance center for installation, or it may lead to accidents and affect
the performance of usage .
2. Be sure to install leakage protection switch.
If not installation leakage protection switch, may cause the accident of getting
an electric shock etc .
3.The outdoor unit should be installed on the firm level reliably.
4. Must keep the noncongestion that drain off water, otherwise the condensate
will be damaged your furniture, electric devices,etc.
5.Make sure that the air conditioner is grounded unfailingly,or it may cause
an electric shock .
6. Forbid installing it in the places where there might be leakage of combustible
gases ,full of oil or saliniferous places such as seaside.
1 1 Safety . Notices
NOTICES TO USERS
1
WARNING
Failure to observe a warning may result in serious injury grave
accidents even death.
,
CAUTION
Failure to observe a caution may lead to injury or damage to the
equipment.
WARNING
Please read the mark of the unit carefully .If you detect any abnormality, such
as abnormal noise, smell, fog, temperature rise, creepage, fire and so on;
Please turn off the power supply immediately and call your dealer or local
service center for instructions. Do not repair the unit by yourself. If necessary,
call the local fire department or Emergency department for help.
!
!
!

7. If the unit will be idle for a long time, disconnect the power to avoid of accidents .
8. The unit shall be equipped with special power supply switch and power line
to avoid of sharing the same power line with other devices. Besides, it adopts
the stated- cross-section wire to supple the power, matching with the
corresponding breaker(with creepage protect function) .
9. The unit is connected with the stated-cross-section earth wire, which is
grounded safely and is not allowed to be connected with the gas pipe, water
pipe, lightning conductor or the telephone earth wire in order to avoid of
electric shocks.
10. Never stop the operation of the unit by pulling out the power supply line in
order to avoid of electric shocks or fire hazards .
CAUTION
1. Do not put your hands or sticks into the air vents . As the fan running with high
speed will hurt you.
2. Keep the electric control system from damp to avoid of circuit-short or damage
of unit .
3. After cleaning the filter screen, install the air filter screen quickly .It is not
allowed to operate the unit without the air filter screen which may get the poor
performances.
4. When there are old men, children and patient in the room, please adjust the
room temperature properly.
5. If the unit is interrupted by the lightning or other electromagnetic radiation, cut
off the power, restart the unit after eliminating that factors.
6. Do not clog the air inlet and outlet of the unit.
7. Never use the fuse with incorrect capacity or iron or copper wires for fuse .
8. Keep the unit off the places where might happen fire hazards .Pull out the
power plug immediately and put down the fire with fire extinguisher result from
circuit-short.
9. Cut off the power supply before servicing.
10.Do not touch the pipe on the exhaust side, because the temperature may be
above than 100℃, so it may result in scald.
11. Do not touch the fin and sharp edge which will hurt you.
12. Do not move the unit randomly without professional guidance, otherwise it may
cause the damage of the unit .
2
!

3
13.Do not touch the rotary air vents with your hands or other objects to avoid of
accidents or damage.
14. It is forbidden placing goods above the machine set, so as not to result in the
danger of the fall off when they are running.
15.
the equipment contains fluorinated greenhouse gas R410A ,the value of
Global Warming Potential(GWP) is 2087.5.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
16.Children should be supervised to ensure that they do not play with the
appliance.
17.If the appliance is fixed wiring, the appliance must be fitted with means for
disconnection from the supply mains having a contact separation in all poles
that provide full disconnection under over voltage category III conditions, and
these means must be incorporated in the fixed wiring in accordance with the
wiring rules.
18.If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
19.If

4
1.2 Use notices
1. The unit must be installed in outdoor field where there is sunlitproof and
rainproof establishments , or else our company is not responsible for the
problems caused because of wrong installation.
2. All the operation parameters of the unit set , the set values of the protective
device have been set before the delivery , the consumers are not allowed to
change the set values at random , and also are not allowed to make the line of
the protective devices of the machine set , short-circuit or the unit may be
damaged as result of improper protection.
3. When the unit is running, the unprofessional personnel do not touch any
electrical element and buttons, or it will result in serious accident.
4. If the unit goes wrong , don't repair it by yourself , please consult the service
center of the company ( the consultation telephone number can refer to the
back over ). If the machine set is repaired by unprofessional personnel , it may
result in the machine breakdown or the casualty of personnel.
5. During cleaning the unit, never clean the operational panel with benzene,
diluent agent , or chemical cloth and so on , or it will result into fade or the fault
function of the buttons ; It is not allowed to directly sprinkle the unit with
water or cleaning agent, when it is necessary, please clean them with a cloth
that is stained with water or neutral cleaning agent.
6. In order to prolong the service time of the air- condition, please do not start the
compressor frequently. (It should not be more than five times in an hour).
7. The refrigerant used in the machine set is noncombustible and innoxious , as
for the specific gravity of which is greater than air , so when it leaks, it will
diffuse on the ground. As a consequence, if the unit is installed in a room, it
must make sure that the ventilation condition is good , or it way result in serious
asphyxia when the refrigerant leaks.
8. If the refrigerant leaks, stop the unit as soon as possible, and get in touch with
the maintenance and repairmen in time, the flame on the field is forbidden,
because if the refrigerant contacts with the flame, it will decompose into
harmful gas
9. Please service the machine set termly according to the requirements of the
specification , in order to make sure that the operation condition of the machine
set is good.

PARTS NAME AND FUNCTION
■Indoor unit
■Outdoor unit
NOTE: The drawings above based on one model of our product is for
reference only, which may be different from the unit you purchased.
Infrared signal
receiver
Alarming indicator
DEF FAN indicator./
OPERATION lamp
TIMER lamp
Temporary button
Display panel
Air outlet
Air inlet at sides rear surface ( & )
Connecting pipe
Drain hose
Air outlet
Air inlet at sides rear surface ( & )
Connecting pipe
Drain hose
5

INTRODUCTION OF CONTROLLERS
6
Remote controller
Function description:
ON/OFF key:When pressing the key, the remote controller circulates in sequence of "ON→OFF→ON".
Mode key:When pressing the mode key, the remote controller with circulate in sequence of "Automatic
→ Cooling → Dehumidification → Heating → Ventilation → Automatic".
Minus key:When pressing this key in dehumidification mode and automatic mode, the temperature will
not change.
Plus key: When pressing this key in dehumidification mode and automatic mode, the temperature will
not change.
In dehumidification mode, the winging will be fixed and unadjustable.
During OFF→ON for first power on, the default setting of working status (temperature setting 25℃,
automatic mode, automatic wind speed, automatic swinging, automatic throttle, without light, without
force, without purification, without sleep, without timing, without lock key). During OFF→ON for non-first
power-on, the working status is that before power off. The lamp, purification, cancel, forced and timing
functions will be canceled after power off.
In other modes, press this key once and the temperature setting will decrease by 1 in the
sequence of "32℃→31℃→…→17℃→16℃".
In other modes, press this key once and the temperature setting will increase by 1 in the
sequence of "16℃→17℃→…→31℃→32℃ ".
Swinging key:In other modes,
when pressing the swinging key, the remote controller will circulate in the sequence of "Swinging wind
→ fixed direction wind → natural wind → swinging wind".
“ON/OFF”
Open or close the air-conditioner.
Fan speed -
Reduce fan speed in one gear.
Minimum wind speed will swich to
the automatic wind, and swich to the
highest wind when pressing again.
Timer
Setting timing ON/OFF.
Clock
Modify the current time of the
remote controller.
Lock
Lock the remote controller bottons.
Temperature reduction
Decrease the setting temperature.
Temperature addition
Increase the setting temperature.
Mode
Select modes, including automatic,
cooling, dehumidification, fan and
heating mode.
Fan speed +
Increase fan speed in one gear.
Highest wind speed will swich to the
automatic wind, and swich to the
minimum wind when pressing again.
Turbo
Enter the turbo function.Decide
whether to have this function
according to the actual model.
ECON
Automatically setting 26 ℃ in
cooling or heating mode.
Sleep
Enter the sleep function.Decide
whether to have this function
according to the actual model.
Light
Forced closing or lighting of display
panel. Decide whether to have this
function according to the actual
model.
Up and down swinging
Open the external pendulum wind.
Left and right swinging
Open the internal pendulum wind.

7
Wind direction key:
In other modes, press this key and it will circulate in sequence of
"Automatic wind → High speed wind → Medium speed wind → Low speed wind → automatic wind".
In power off state, press timing setting keyto set power on
setting; press timing setting key to set the timing switch in power ON state. After settingof timing function,
decrease every 1 hour till reached the setting time when it will power on or off, and cancel the timing display. If
the timing is activated, the timing will not be canceled if pressed mode key. If the timing is activated, pressing
of other key will send the setting time.
When pressing
this key in other mode, the forced mode will circulate between ON and OFF. The wind speed does not display
if the forced mode is activated; the forced mode will be deactivated after switching themode if it is activated;
the forced mode will be canceled when setting the sleep operation.
The wind direction is set as winging state in default during first time power on; press this
key and it will circulate in sequence of "Swing → Stop → Swing".
Wind speed key: The wind speed is set at automatic wind speed in default during first time power on; in
dehumidification mode, the speed wind is fixed as low speed and can not be adjusted; it will have no response
when pressing the wind speed key.
Timing key: Set at non-timing state in default; press this key for timing setting in unit of 1 hour in the sequence
of "1 H→2 H→…→24 H→ cancellation →1 H…”.
Forced key:The remote controller is set of non-forced state in default; in automatic, dehumidification and
ventilation modes, the forced key does no function (no display and no code emitted for force).
Sleep switch: When pressing the sleep key, circulate in sequence of "sleep → cancel sleep → sleep"; if the
sleep mode is activated, it will not be canceled after changed the mode.
It is set as non-lock state in default; when pressing this key, the remote controller circulates in
sequence of "Lock→Cancel lock→Lock".
In discrete unit, only the remote controlleris locked, the emergency
button will not be locked, but the main plate response.)
Light key:
When pressing the sleepkey to sleep,
the wind speed will automatically switch to low speed, but the pressing of wind speed keycan adjust the wind
speed (except dehumidification mode)
Lock key:
If the lock key is activated, all keys of remote controller other than
lock key does no function. (Note: when the lock key is activated, the keys on cabinet unit remote controller and
air conditioner operation panel will automatically lock; when pressing the key again, the remote controller and
air conditioner will automatically unlock.
The split unit only locks the remote controller, but does not lock the emergency lock; the main board
will response. It is set as non-lamp state in default; when pressing this key, the remote controllercirculates in
sequence of "Lamp→Cancel lamp→Lamp". If the lamp key is activated, after pressed the mode key, the lamp
key indication will not be canceled.

8
Notice aligning the
electrodes "+" and "-
Remove the back cover
Notices for remote controller:
① Do not place the remote controller near the high temperature heat sources such as
electric carpet or heating oven.
② Do not put the remote controller at the position directly exposed to the sunshine.
③ Be careful not to drop off from high position; otherwise it may be damaged.
④ There must have no barrier between signal receiver and remote controller of air
conditioner which may affect the receiving and transmitting of signal.
⑤ Do not splash the liquid such as water onto the remote controller.
⑥ Do not place the weight onto the remote controller.
Replacement of remote controller battery
In case of following conditions, it indicates the battery is used up; take out the used battery and replace with
new one.
① There is no air conditioner receiving sound after transmitted the signal.
② The display screen becomes obscure.
In case of above conditions, it indicates the battery is used up; take out the used
battery and replace with new one.
Note: In case of operation failure of remote controller, please replace with new battery and
repeat the operation; if the failure still exists, please run the air conditioner in emergency
operation method, and contact the dealer or special maintenance points.
A. Remove rear cover and take out the used battery.
B. Replace the battery; notice the ”+“ and ”-“ electrode marks of battery.
C. Close the rear cover.
Note:
1. The new and used batteries must not be mixed.
2. Please take out the battery if the remote controller is not used for long time.

PREPARATIONS FOR INSTALLATION
The installation of the unit has to be carried out by the professional
installation operator. Improper installation of the unit may cause water
leakage, an electric shock or fires .
4.1.1 Installation sites for the outdoor unit
1)
Installed the unit at the places where not be exposed to rain or not direct
sunshine ,and the places with good ventilation.
2) Noises made by unit will not affect the neighboring places.
3) Easy to connect the units and the power.
4) Not install the unit on the non-special metal bracket;
5) Not to installed at the places where may leak inflammable gases;
6) In heating, pay attention to the drainage of the condensed water from the base
plate so that it does not affect the neighbor or passer-by;
7) Not locate the exhaust ports pointing the windward direction ;
8) Make sure that the children can not touch it ;
9) Leave enough space for installation or maintenance, refer to Fig 1;
10) The air conditioner is not applicable for the following fields:
a. On the vehicle or ship;
b. The place with heavy oil or strong wind;
c. The moist place, such as bathroom, cellar and so on;
d. The place with high-frequency equipment, such as wire-less equipment,
electric welder, medical instrument and so on;
e. Other special fields.
CAUTION
4.1 Selection of the installation site
Fig 1
＞300mm
＞2000mm
＞600mm
＞300mm
Air inlet
Air outlet
wall or obstacles
Air inlet
Connecting
wire and tube
Air inlet
>300mm
Air inlet
>300mm
Air inlet
Connecting
wire and tube
Air inlet
>300mm
>600mm
>230mm
4.1.2 Installation sites for the indoor unit
1) Keep the unit level and without any vibration and keep supply air to all places in
room quickly;
2) The air inlet or outlet of the indoor unit can not be blocked so that the supple air
or return air is free and not affected by heat or moisture nearby;
3) Not install it in the place with too much oil smoke or steam.
9
!

4) Avoid the place where inflammable gases may generate, inflow, linger or leak .
5) Avoid high-frequency facilities (such as high frequency arc welders, etc.).
6) Not install the exhaust ports near a fire alarm;
7) To avoid the places where acid solutions are frequently used.
8) Keep the indoor unit near the power plug or special wires.

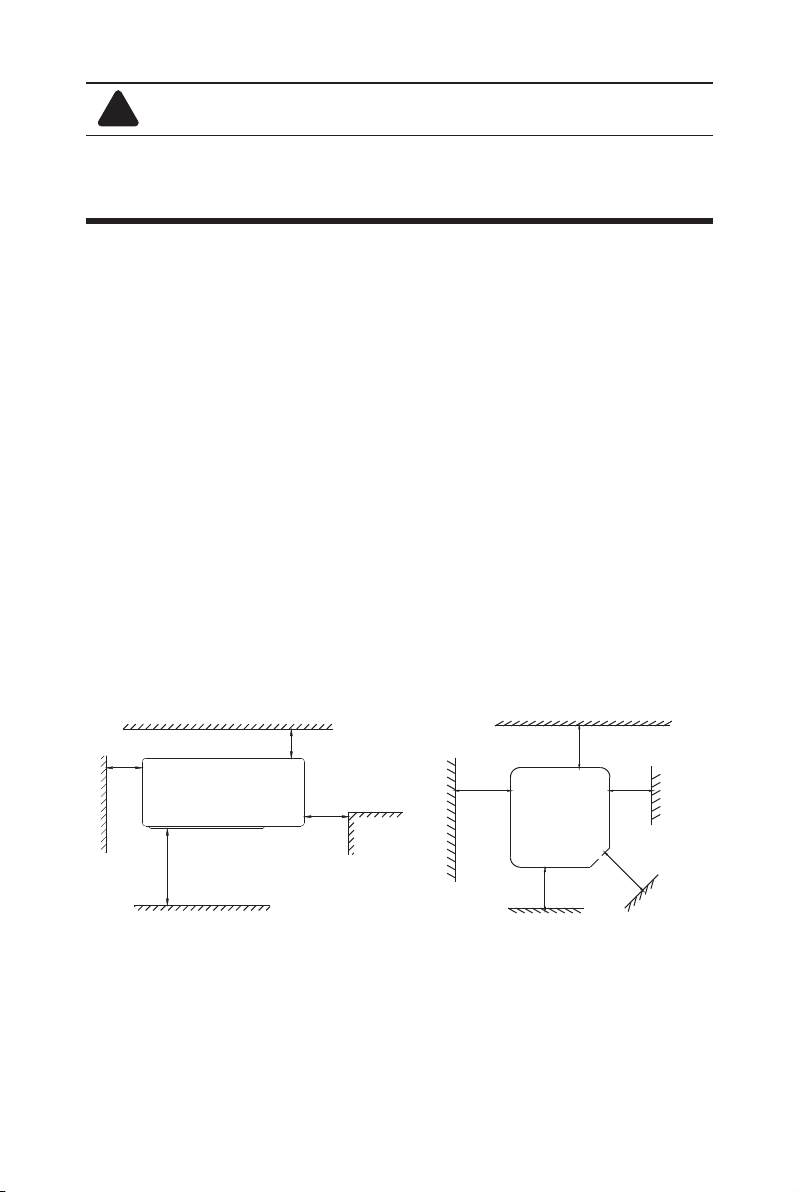

Indoor unit
Indoor unit
Blind sector
Right installation
(even air flow circulation)
Wrong installation
(uneven air flow circulation)
Fig 2
√×
4.2 Preparation before installation
According to the position and installed dimension to made the base.(Fig 3)
4.2.1 Outdoor unit
4.2.1.1 Install the unit on the ground:
■ Concrete foundation
This foundation is cast with the design mark concrete, which has great anti-
vibration effect, the following factors shall be emphasized:
1) The surface of concrete foundation is massy, firm and flat. The bearing of the
support surface is more than 2 times of the unit weight.
2) When the cement foundation platform is made , the following measures are
adopted: put the whorl reinforcing steel bar ( Dia > 9.5 mm )into the concrete
foundation, the whorl reinforcing steel bar must be enlaced as top and bottom
layers, and the space between bars is 10cm.
3) When making the cement foundation on the concrete floor board, please keep
the surface coarse, and then clean and wet it, after all of these works, make
the concrete foundation seat.
4) The mix ratio of the concrete is 1:2:4, if necessary, embed some proper
anchor bolts. Finally, keep the surface of the basic platform smooth.
5) The surface of the concrete foundation platform should have the waterproof
disposal and around of it we should have a drip through and the gradient is
more than 30 ℃, pointing to outfall.
6) Until the concrete foundation is fully dry, you can install the unit.
10

7) In order to run the unit quietly and avoid the noise and vibration interference to
the surroundings, there should keep a separate layer for vibration-proof
between the base of the unit and foundation. And then keep the unit level
when installing.
8) To avoid units distortion and even rupture, which is caused in displacement of
the unit run for a long time, you should take some measures to fix the unit at the
restrict position.(Fig3)
Concrete base
Ground
Pre-buried Bolt
Soil
Mounting hole
Bolt Nut
Unit base Anti-vibration pad
Thickness
Thickness
Iron plate
Base
Bolt Nut
Unit base
Anti-vibration pad
Iron plate
Mounting hole(50 50 100)× ×
Thickness>200mm
Thickness>200mm
Ground
Pre-buried Bolt
Concrete base
Soil
Base
100 mm;
● The height of the concrete foundation is more than 300 mm;
● The concrete foundation should keep level with the level gradient less than
0.1﹪
● The distance between the concrete foundation and the ground is more than
NOTE
■
riveted on the ground with bolts.
Welded with Channel Steel, I-Steel and Angle Iron, the support should be
increase vibration and noise, which may cause the disturbance.
The support surface must be strong enough to bear unit’s load, and it do not
NOTE
Fig 3
11
!

4.2.1.2 Install the unit on the wall:
Fig 4
4.2.2 Indoor unit
4.2.2.1 Install the unit on the ceiling:
F
120
A
B
C
D
E
A:Hanger bolt
B:Nut
C:Spring washer
D:Flat washer
E:Installation rack
F:Expansion bolt
Fig 5
4 3 Unpacking inspection.
Inspect the equipment before installation. Do as follows:
■ Check for any damage or damp at outer surface after opening.
■ Check for name, specification, type of the unit meeting requirement and make
sure the user＇s manual , qualification card are complete and the accessories
are compliant to the packing list.
■ Checking the unit , refer to Table 1 Table 1
Check item
Fan Check if the fan works well.
PCB
1）Check if insulation is ok.
2）Check if the connect of earth wire is tight.
3）Check if the wire connect of fan motor is
tight.
1）check if the PCB is ok.
2）check if the insert accessory is tight.
3） check if the connect of earth wire is tight.
Fan motor
Content Check item Content
1) Check if the surface is broken or humid
when the packing is open .
2）Check the pipe is ok.
3）Check the accessory is ok.
4)Checkif the gas pressure of unit is OK.
Unit
12

■ Keep check record as Table2 Table 2
Unit inspection
Unit name
Inspection on technical cocuments
1.Packing
Problem and treatment
Inspector
4.Others
3.User s manual＇
2.Qualified card
1.Packing lisk
5.Others
4.Fan and motor check
3.PCB check
2.Unit treatment
copy pcs
copy pcs
copy pcs
copy pcs
Year Month Date
4 4 Check the power of the unit
■ Before installing the unit, must check the specifications of power capacity,
power cord and switch, to ensure the unit accord with secure request.
■ The power of the unit should be connected with the special power switch with
leakage protection function.
.
If the request above is not met, the installer must refuse to install the unit.
NOTE
13
!

INSTALLATION OF THE UNIT
5.1 Install indoor units and outdoor units
5.1.1 Install outdoor units
1) Fix the unit on foundation and adjust
it to level with the gradient.
2) Fix the unit on the base with nuts and
then tighten them.
3) Fix the unit firmly enough to withstand
vibration or strong wind.
4) When mounting the unit on the wall
with the bracket, please refer to the
installation of Household Air conditioner.

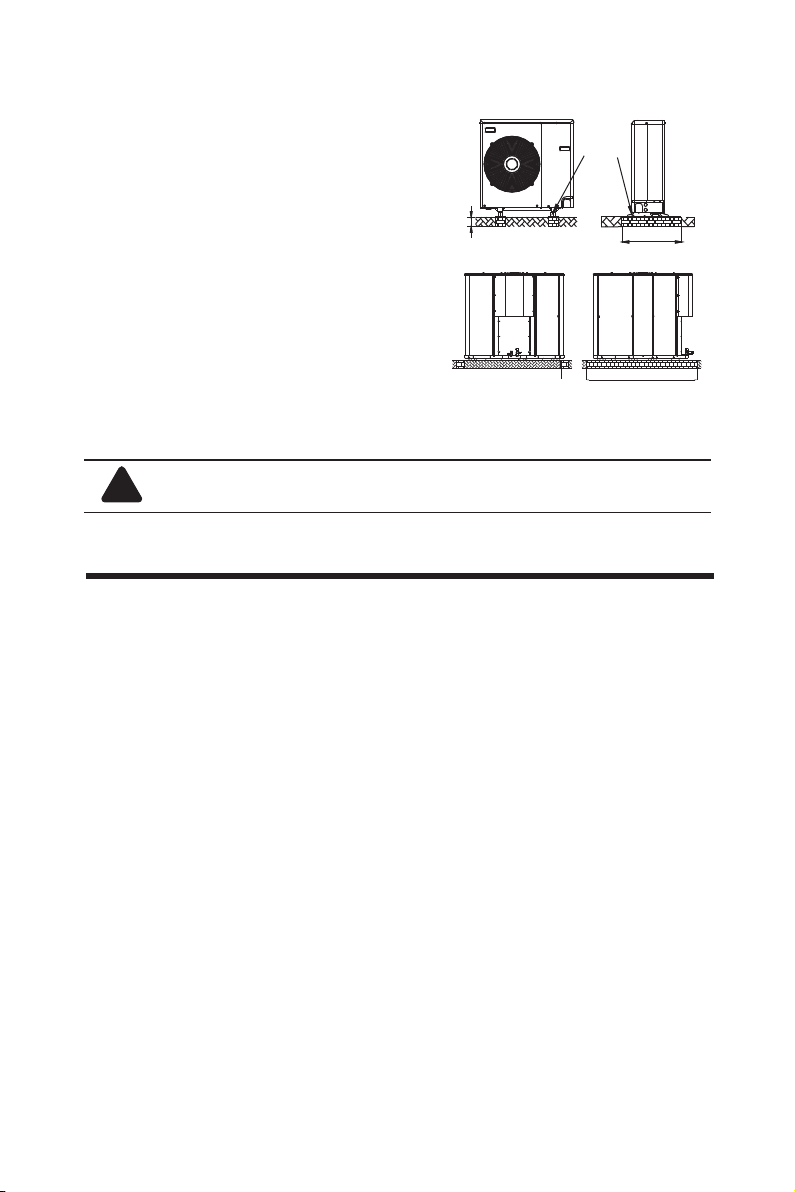

5) Adopting the concrete foundation,
please refer to Fig 6:
Deep buried
For larger width
Fig 6
● The gradient is not over 20°when transiting the unit.
● Transit the unit with the package to the installation field.
NOTE
5.1.2 Install indoor units

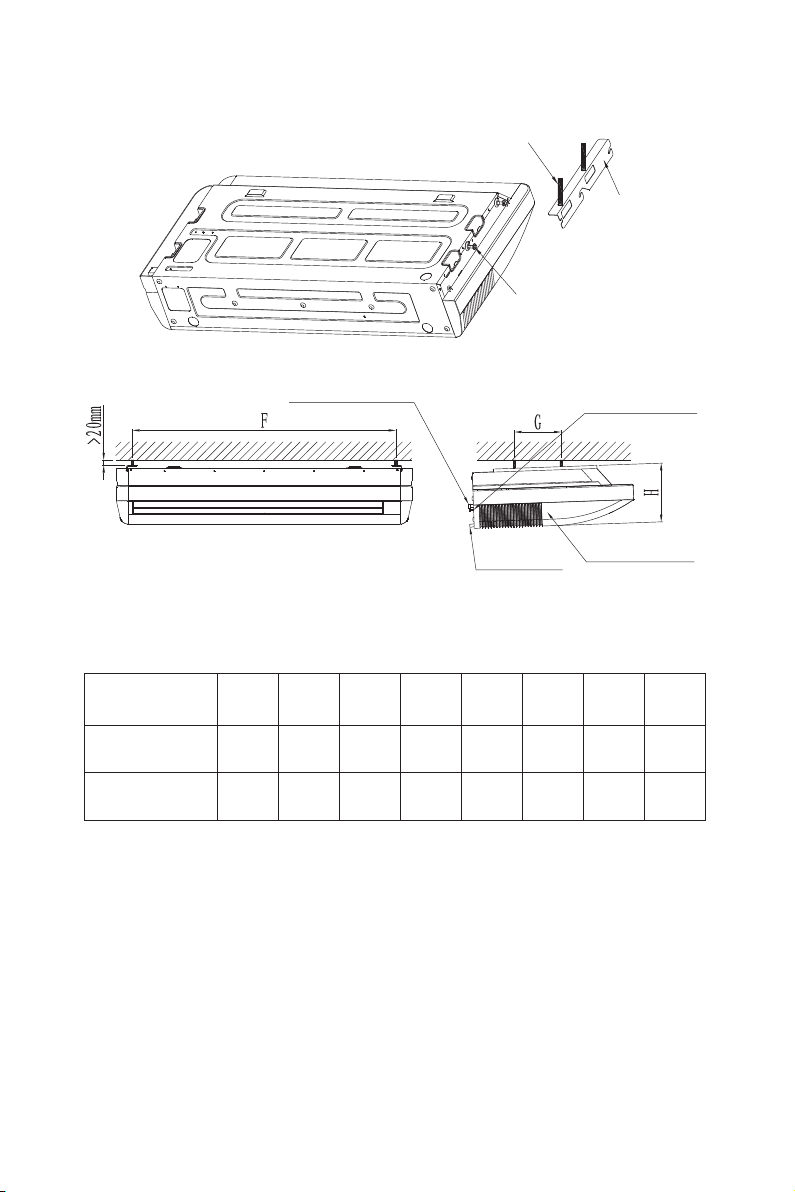

5.1.2.1 Install M10 hanging screw bolts.( 4bolts):
● Please refer to the following figure for the distance measurement between
the screw bolts.
● Please install with M10 hanging screw bolts.
● The handling to the ceiling varies from the constructions, consult the
construction personnel for the specific procedures.
1) The size of the ceiling to be handled...do keep the ceiling flat.
Consolidate the roof beam for possible vibration.
2) Cut off the roof beam.
3) Strengthen the place cut off and consolidate the roof beam.
● Carry out the pipeline operation in the ceiling after finishing the
installation of the main body. While choosing where to start the operation,
determine the direction of the pipes to be drawn out.Especially in case of
there is a ceiling,position the refrigerant pipes, drain pipes, indoor &
outdoor lines to the connection places before hanging up the machine.
●The installation of hanging screw bolts
Deep buried
For larger width
Fix it with nuts
■
14
!

■ Wooden construction
Put the square timber cross the roof
beam, then install the hanging screw
bolts(Refer to Fig 7)
■ New concrete bricks
Inlaying or embedding the screw
bolts(Refer to Fig 8)
■ For Original concrete bricks
Use embedding screw bold, crock
and stick harness(Refer to Fig 9)
■ Steel roof beam structure
Install and use directly the supporting
angle steel(Refer to Fig 10)
Timber over the beam
Roof beam
Ceiling
Hanging screw bolts
(Blade shape insertion)(Slide insertion)
Steel bar
Embedding screw bolt
(Pipe hanging and embedding screw bolt)
Hanging screw bolt
Hanging bolts Supporting angle
steel
5.1.2.2 Wall Mounting Installation
Fig 7Fig 8
Fig 9 Fig 10
Fig 11
15
Hook

■ Fix the hook with tapping screw onto
the wall(Refer to Fig 12 )
■ Hang the indoor unit on the hook
5.1.2.3 Ceiling Installation
■ Remove the side board. ( Refer to Fig14)
■ Locate the hanging arm on the hanging screw bolt(Refer to Fig15)
Prepare the mounting bolts on the unit. ( Refer to Fig16)
Hook
Tapping screw
Washer
Fig 12
Fig 13
Hanging arm
Fig14
Hanging arm
Mounting bolt
(max.40mm)
Fig15 Fig16
16
Side board
Hanging
screw bolt
Washer
Screw nut

■ Hang the unit on the hanging arm by sliding backward. Securely tighten
the mounting bolts on both sides(Refer to Fig 17 )
5.1.2.4 The dimension of the unit
Model(kBtu/h)
18~36
36~60
A
1245
1670
B
680
680
C
244
244
D
760
1070
A
1245
1670
B
680
680
G
200
200
H
240
240
E
450
450
F
1119
1542
Connecting point of refrigerant
pipe (Gas side) Connecting point of refrigerant
pipe (Liquid side)
Downward declivity
Lower between
(1-2)/100
Drain point
Fig 17
Mounting bolt
Hanging arm
Hanging
screw bolt
17
Table 3

5 2 Install and connect refrigerant pipes
After installing the indoor and outdoor unit, you can connect the pipes.
5.2.1 Inspection of pipes
Before connecting pipes, inspect pipes so that the following requirement is met;
■ The inside of the pipe is clean, no dust, air or water gathers in the pipe;
■ Flares and nuts at both ends of the pipe are in good condition.
Bend the refrigerant pipe following the scheduled routine. During bending
pipes, avoid the pipe broken or out of shape and keep the bent radius of the
copper pipe as big as possible (400mm at least) and the bent number no more
than 3 times.
5.2.2 Connection of pipes
As connecting the refrigerant pipes for indoor units, the operation must be
rapid to make sure that the time for connecting two pipes is not too long at site.

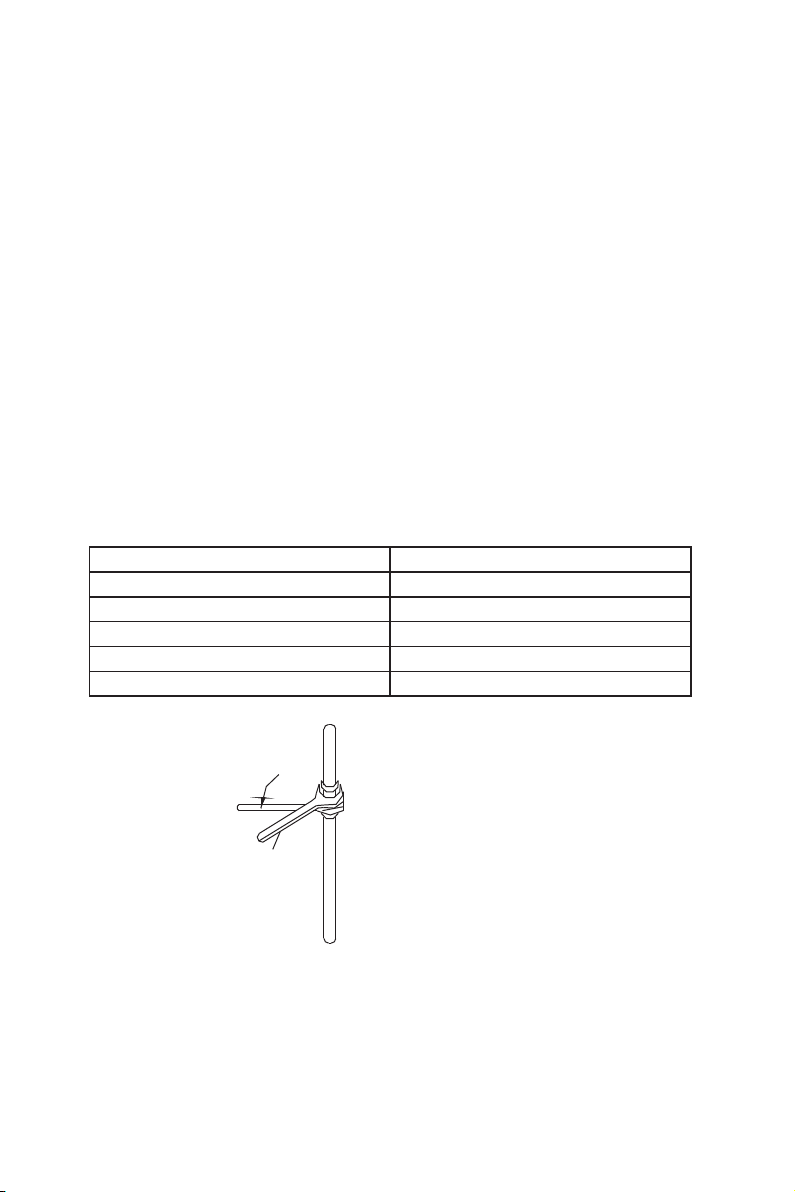

5.2.2.1 When connecting the flared connector ,keep two pipes aligned with the
same center and then put on the screw nut and revolved them in. Finally , tighten
the screws with wrenches ,refer to the figure below:
Please fix the copper with wrenches in proper torque force according to
Table 4 Torque Force Table.
.
Fig 18
Table 4
Diameter of copper pipe (mm)φTightening torque(kgf m)·
6.35
9.52
12.7
15.88
19.05 6.9 9.9～
1.4 1.7～
～4.8 6.2
～4.8 6.2
1.4 1.7～
Ple a s e use t w o wrenches ,
normal wrench and torque
wrench.
NOTE:
Fi x
18
